The Java Apache Project

How to : Scalability - Load-Balancing - Fault tolerance

with Apache JServ 1.1


document version: 1.2.1 (03 Feb 2000)

Summary

  1. Introduction
  2. Changes from previous versions
  3. Features
    1. Scalability
    2. Openess
    3. Security
    4. Load-balancing
    5. Session handling
    6. Fault tolerance
    7. Manageability
  4. Configuration
  5. Internals
    1. Load-balancing algorithm
    2. Watchdog process
    3. Shared memory
  6. Internal state - Admistration tasks
  7. Large sites
  8. Known problems
  9. FAQ
  10. Tips
  11. Authors


  12.






    1. Introduction

    Scalability, load-balancing, fault-tolerance are key issues for internet content providers : As the market becomes more mature, the need for static pages websites decreases, and the dynamic content generation, personnalized, and transactionnal becomes a must.
    We strongly believe that Java is a key technology on the server side, because of its rapid prototyping and validation phases, which give a time-to-market bonus to those that are using it.

    However, as the Java Virtual Machines become faster over years, people tend to ask for always more personnalized and dynamic contents, and this type of application requires always more and more CPU power. Apache JServ addresses this requirement and lets you distribute your application load over as many hosts as needed.

    At the same time, applications and user transactions are based on HTTP sessions, and Apache JServ ensures that the system will take care of them. Of course the whole system has to be fault-tolerant.

    And of course all for free ... ;-)

    This document describes how to use Apache JServ load-balancing and fault tolerance features.

    Thank you for using Apache JServ.



    2. Changes from previous versions


    This is just a partial list, within our current scope.
    1.1 Fixes security bugs present in all 1.0: a potential Denial of Service when using load-balancing !
    1.1 Fixes numerous bugs present in all 1.0: a potential file descriptor leak when using load-balancing !
    1.1 Offers enhanced configuration feedback on /jserv/ status page with load-balancing.
    1.1 Contributed sh and perl scripts to allow immediate or graceful shutdown of JServs in shared memory (still experimental).
    1.1 Load-balancing can work above ajpv11 AND the new ajpv12 at the same time.
    1.1 Load-balancing can also work with URL rewritten Sessions Ids.
    1.1 JServ is now bound to 1 IP address : Syntax: bindaddress=[ipaddress] or [localhost] (Default: localhost). This is possibly a cause of non working installations.
    1.1 JServ's default protocol is now ajpv12. (update your config files).
    1.0, 1.1 Unix : Full Load balancing & fail-over support.
    1.0, 1.1 Unix : Fail-over optimized support based on shared memory & internal watchdog process (using the appropriate ApJServShmFile directive).
    1.0, 1.1 Win32 : Full Load balancing & basic fail-over support
    1.0, 1.1 Win32 : Fail-over optimized support not supported.
    1.0b3 and above use new configuration parameters for load-balancing.


    3. Features

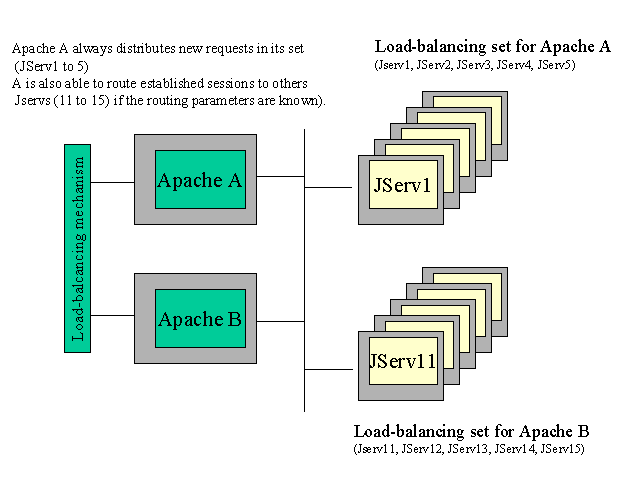

    Apache fault-tolerance JServ load-balancing

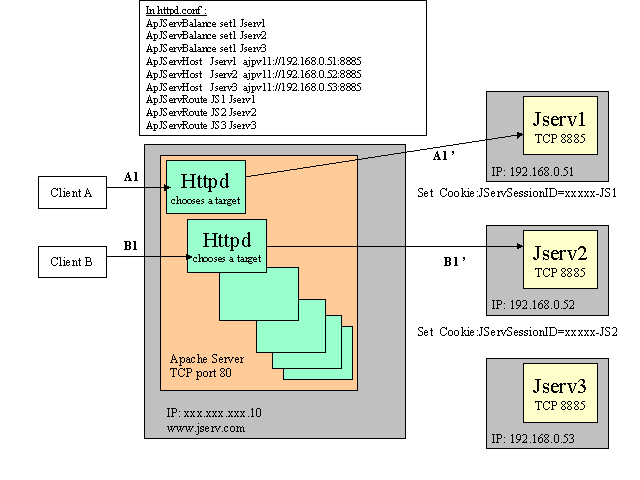

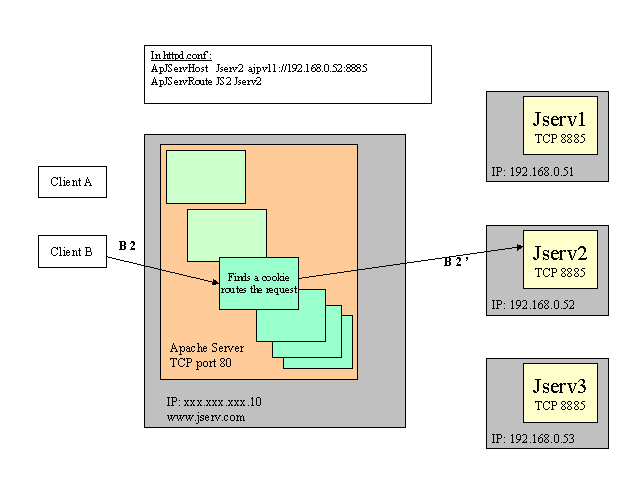

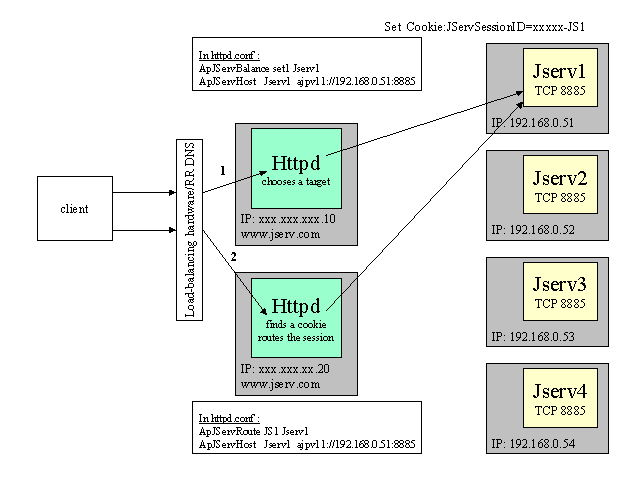

    session handling

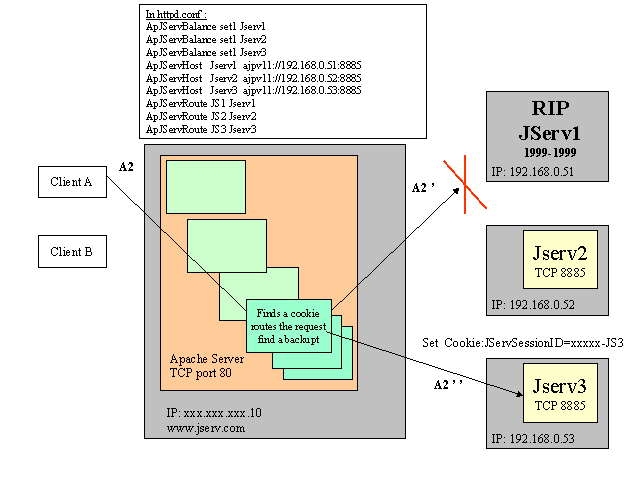

    JServ fault tolerance

    4. Configuration

    Nothing special to do on the Java side. NO new parameter in properties file.
    Administrator installs JServ and then chooses to use load-balancing or not from the Apache side.


    1 - defining hosts and routing parameters (in red)

    Requests with cookies containing .JS2 will be routed to PC2 using protocol ajpv11 on port 8888 host 192.168.0.52.
    NB: PC2 and PC3 are using ajpv11. PC1 and SPARK are using ajpv12.
    Ajpv12 is the new (since v1.1) default protocol and using 2 protocols at the same time is maybe source of errors.


    2 - defining hosts weight (in orange)


    ApJServBalance set1  SPARK 4

    Default weight is = 1. This one (SPARK) is a 4*CPU engine.


    3 - defining set (here called set1) of equivalent JServs (in green)

    Set "set1" contains PC1 + PC2 + PC3 + SPARK


    4 - defining load-balanced servlet mount point (in blue)

    Requests for /servlet will be load-balanced on set "set1".
    SPARK should receive 4 times(average) more requests than others.

    If one of the JServs fails; requests will be redirected to other members in set "set1".


    5 - defining the shared memory file (in pink)

    Defines the path of the file that will be used as shared memory between processes (needs read+write+create rights for the JServ's userid).
    This can be an absolute or relative file path.

    ApJServShmFile log/jserv_shm


    <IfModule mod_jserv.c>
    ####################################################
    #                   Apache JServ Configuration File                                     #
    ####################################################
    # Note: this file should be appended to httpd.conf
    ApJServManual on

    ApJServMount /oldservlet ajpv12://192.168.0.1:7777/zone2   // old style config

    ApJServMount /servlet balance://set1/zone1

    ApJServBalance set1  PC1
    ApJServBalance set1  PC2
    ApJServBalance set1  PC3
    ApJServBalance set1  SPARK 4

    ApJServHost PC1 ajpv12://192.168.0.51:7777
    ApJServHost PC2 ajpv11://192.168.0.52:8888
    ApJServHost PC3 ajpv11://192.168.0.53:9999
    ApJServHost SPARK ajpv12://192.168.0.54:7777

    ApJServRoute JS1 PC1
    ApJServRoute JS2 PC2
    ApJServRoute JS3 PC3
    ApJServRoute sp1  SPARK

    ApJServShmFile log/jserv_shm

    ApJServSecretKey DISABLED
    </IfModule>


    5. Internal

    5.1 Load-balancing algorithm

    All the job is done by mod_jserv.

    When Apache (re)starts, the configuration file (httpd.conf) is parsed. For each set (of servlet engines), a circular list of engines is created. Every engine is inserted exactly n times, where n is the weight as described above.
    In our example, the circular list contains :
    PC1 - PC2 - PC3 - SPARK - SPARK - SPARK - SPARK


    for each HTTP request coming for a balanced Servlet mount point:
    do

        if is the first HTTP request for a balanced Servlet mount point
        then
            process_mount_default_target = randomly chosen in set
        endif

        if a session cookie is found
        then
            the process finds the JServ which owns the session (using ApJServRoute parameters)
            if the JServ is not dead/stopped (in shared memory)
            then
                the process sends the request to this JServ.
                if the JServ replies
                then
                    return
                else
                    mark the JServ dead (in shared memory)
                endif
            endif
        endif

        # here we have either got a request without session cookie
        # or a broken session. In this last case, we send te request
        # to another target in the list without saying it to the client.
        # (the application will have to notice the broken session anyway)

        if process_target != process_mount_default_target AND
           our process_mount_default_target is alive (in shared memory)
        then
            process_target = process_mount_default_target
        endif
        while (process_target exists)
        do
            if process_target is alive (in shared memory)
            then
                the process sends the request to this JServ.
                if the JServ replies
                then
                    return
                else
                    mark the JServ dead (in shared memory)
                endif
            endif
            process_target = next in set
        done
    done

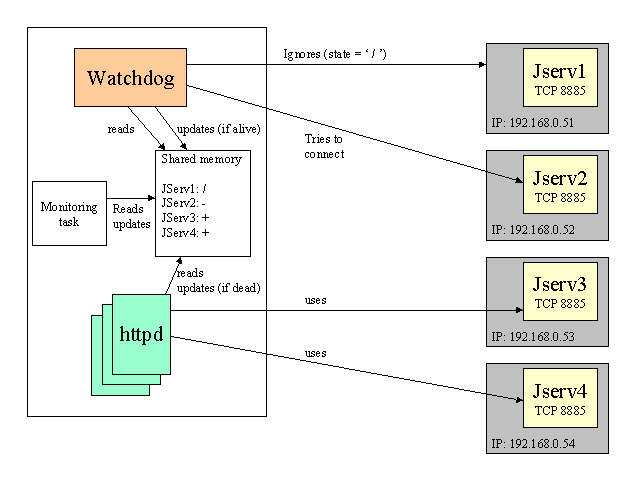

    5.2. Watchdog process

    At Apache startup a process is created. This process is a httpd process, which doesn't listen to HTTP requests. This process wakes up every 10 sec, reads the shared memory, and tries to connect to dead JServs. When a dead JServ replies, it is marked running in shared memory.
    while true
    do
        sleep(10)

        if this process is not the default watchdog (in shared memory )
            break
        endif

        for each JServ present in shared memory list
        do
            if JServ.state = down
                connect JServ
                if failed
                    continue
                else
                    mark it alive in shared memory
                endif
            endif
        done
    done




    5.3. Shared memory

    It is used to communicate between httpd processes.
    Every httpd process opens a regular file on the disk (open read+write), and then mmaps it. This makes the file appear as regular memory.
    As many processes can do the same at the same moment, modifications in this memory zone are immediately seen by other processes.
    This is a very convenient way to share information about server state between httpd processes, and avoids a lot of infructuous connexions when a JServ is down.
    This shared memory can be read/written by any process (according to file permissions), and we can just imagine CGI programs, SNMP proxies, inetd started programs than can run and access this shared memory, mainly for admistration/monitoring tasks.
    The information stored in this shared memory is NOT MT-safe, not MP-safe : accesses are NOT synchronized.
    Why ? Well, the fault-tolerance part doesn't need it (really not). This would be just annoying if we wanted to share counters (nb of hits by example : the LB algorithm could use it to distribute the load, but this would work only for 1 Apache/N JServs. Well, random+weight is not a so bad choice, and easier to implement ;-)
    This file is not human readable/writable. use a C/Perl program to access it. (structure is in jserv.h).
