D Desktop Administration

D.1 Custom Installation Options for the Client Software

The Desktop client software installers support a number of custom installation options that can help system administrators roll out the software:

• Section D.1.1, "Command-Line Operation"

• Section D.1.2, "Disabling Integrations"

• Section D.1.3, "Silent Roll-outs"

msiexec /q /i "DIS-11.1.x.yy-Setup.msi" OUTLOOK=0 INSTALLDIR="C:\Desktop"

DIS-11.1.x.yy-Setup.exe /v"WORD=0 EXCEL=0 INSTALLDIR=\"C:\Program Files\Desktop\""

msiexec /q /i "DIS-11.1.x.yy-Setup.msi" OUTLOOK=0 INSTALLDIR="C:\Desktop"

D.2 Setting the Web Browser Search Provider Name for an Oracle WebCenter Content Server Instance

Desktop provides plug-ins for various popular web browsers which enable users to search for content on an Oracle WebCenter Content Server instance directly from the search field in their web browser. See Chapter 6, "Integration Into Web Browsers" for more information about the search provider web browser plug-in.

The default search provider name for an Oracle WebCenter Content Server instance is 'Oracle WebCenter Content Search', but this can be modified to a more meaningful name for the server:

1. Log in to Oracle WebCenter Content Server as an administrator.

2. Open the Administration tray or menu and choose Configuration for SERVER.

   The Configuration Information for SERVER page opens.

3. Under Features And Components, click Enabled Component Details.

   A list of all installed components opens.

4. Find DesktopIntegrationSuite in the list, and click its Configure link.

   The Update Component Information page opens for the component.

5. Make sure the 'Enable web browser search plug-in' check box is selected.

6. Enter the search provider name for the server in the 'Web browser search plug-in title' field.

   Note:

   Make sure to choose a search provider name that is unique across your organization. You cannot have two servers with the same search provider name.

7. When you are done, click Update to enable the new settings, Reset to cancel any modifications, or Revert To Install Settings to return to all default settings.

8. Restart the content server.

D.3 Enabling Subfolder Searching

If an Oracle WebCenter Content Server 11gR1 instance is using Framework Folders as the content hierarchy component, then you can enable subfolder searching. This allows users to specify whether a content search should apply to the current folder only or whether it should include all subfolders of that folder.

To enable subfolder searching, the content server must be configured to use the Oracle Text Search engine and some elements must be added to the search form:

1. Log in to the Administration Server of the content server.

2. Click General Configuration in the menu on the left.

   The General Configuration page opens.

3. Make sure the Additional Configuration Values section includes the following entries:

   SearchIndexerEngineName=OracleTextSearch
   FoldersIndexParentFolderValues=true


4. Click Save.

5. Restart the content server.

6. Rebuild the search collection index using the Repository Manager utility.

The content search form now includes a Parent Folder field as well as an 'Include Subfolders' check box, which allows users to limit a search query to just the current content folder or expand it to include all subfolders.

D.4 Mapping E-mail Metadata

System administrators can map e-mail header fields to metadata fields for e-mail messages that are checked in to the content server. This is done on the Map MSG Metadata and Map EML Metadata pages, which are available in the Oracle WebCenter Content Server web interface. MSG metadata mapping is used for the Microsoft Outlook message format and EML metadata mapping for Internet mail message format.

Please note that you cannot override the six standard e-mail metadata mappings (see Section 12.2, "E-mail Specific Metadata on Oracle WebCenter Content Server"); you can only create additional mappings.

Perform these steps to map e-mail metadata:

1. Log in to Oracle WebCenter Content Server as an administrator.

2. Open the Administration tray or menu and choose Configure Email Metadata and then Map MSG Metadata or Map EML Metadata.

   The Email Metadata Mappings page opens (MSG or EML) (Figure D-1).

3. The e-mail header fields listed under Available Fields are not mapped to content server metadata fields. The fields listed under Mapped Fields are mapped to metadata. Use the right and left arrows to select a field and move it from one group to the other. Use the up and down arrows to sort the fields within each grouping.

4. As fields are added to or removed from Mapped Fields, a dropdown list appears for that field under Mapped Values. For each mapped e-mail header field, select a value for the metadata field from the dropdown list.

5. Once all fields have been updated with metadata values, click Save.

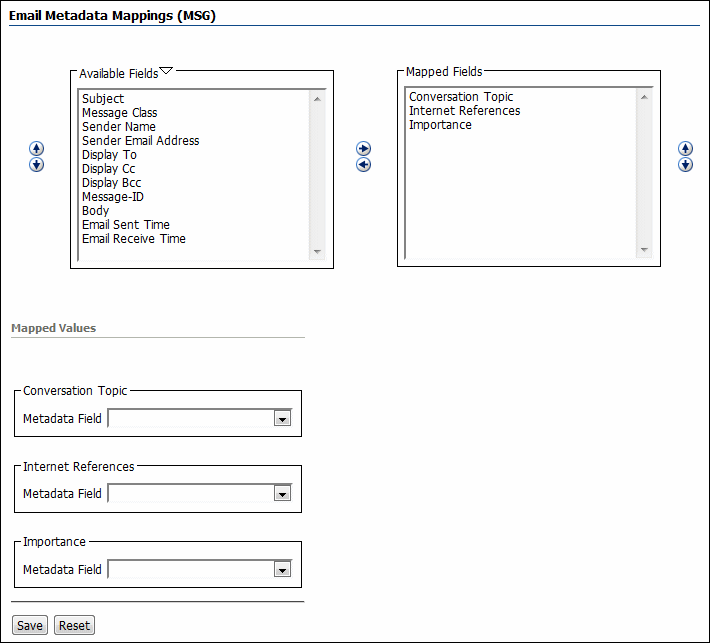

Figure D-1 Email Metadata Mappings (MSG) Page

Description of "Figure D-1 Email Metadata Mappings (MSG) Page"

D.5 Configuring Form-Based Login

Your organization may use separate identity and access management software that provides secure, form-based login screens to authenticate users and control what they have access to on the network. Oracle WebCenter Content: Desktop is compatible with form-based logins. To set this up, system administrators need to add a comment to the login page so that Desktop identifies an HTML response as the forms-based login page. Users, as a result, will see the form-based login instead of the standard content server login.

Perform these steps to configure form-based login:

1. Locate the login form on the file system (for example, login.fcc for Netegrity SiteMinder). The location of this form depends on how the authentication system was set up in your organization.

2. Open the form in a text editor.

3. Add the following comment (with no spaces) to the HEAD section of the form:

   <!--IdcClientLoginForm=1-->


   Important:

   The form's HEAD section may contain a lot of code; for example, many META tags or JavaScript code. The delivered page must have that HTML comment (or token) in the first 5,000 characters of the response, otherwise the server connection may fail. The software on the client computer sniffs the response for the <!--IdcClientLoginForm=1--> token (using a strict string search) and route through the prompting code if it is found. It is encoded as an HTML comment so that regular browsers do not show the token when they attempt to log in. (If it is Idoc Script, then the parser removes that bit of code from the delivered page, and the client-side browser will not see anything in the page.)

4. Save and close the form.

The next time users connect to a content server using Oracle WebCenter Content: Desktop, they will see a login form, where they can provide their username and password to log on.

D.6 Customizing the Form-Based Login Regular Expression

By default, Desktop 11g uses the following regular expression to identify a form-based login:

<!--IdcClientLoginForm=1-->|
<form .*sso.* name=\"LoginForm\"|
<form *name=\"loginForm\"

This regular expression is configurable in the Windows Registry. The code first looks in the following place:

[HKEY_LOCAL_MACHINE\SOFTWARE\Oracle\Universal Content Management\Desktop Integration Suite\WebDAV\Servers\SERVER_NAME]
"Form Based Logins Reg Exp"="REGULAR_EXPRESSION"

Then in:

[HKEY_CURRENT_USER\SOFTWARE\Oracle\Universal Content Management\Desktop Integration Suite\WebDAV\Servers\SERVER_NAME]
"Form Based Logins Reg Exp"="REGULAR_EXPRESSION"

Then in:

[HKEY_LOCAL_MACHINE\SOFTWARE\Oracle\Universal Content Management\Desktop Integration Suite\WebDAV]
"Form Based Logins Reg Exp"="REGULAR_EXPRESSION"

And finally in:

[HKEY_CURRENT_USER\SOFTWARE\Oracle\Universal Content Management\Desktop Integration Suite\WebDAV]
"Form Based Logins Reg Exp"="REGULAR_EXPRESSION"

If no custom regular expression is defined in any of these Windows Registry locations, the default one is used.
