3 Getting Started With Oracle Entitlements Server

3.2.1 Assigning Oracle Entitlements Server Administrators

Only users with sufficient privileges can log in to the Oracle Entitlements Server Administration Console or use administrative command-line tools such as the WebLogic Scripting Tool (WLST). An Oracle Entitlements Server system-level Administrator Role named SystemAdmin is created during installation and is mapped to the WebLogic Server administrator user (weblogic). The password is set during installation. SystemAdmin has extensive privileges that includes the rights to create additional Administrative Roles and delegating administrative rights to others.

You can create separate administrative users with different access rights for administering Oracle Entitlements Server and your environment. For more information, see Section 9.6, "Managing System Administrators Using Administrator Roles.".

3.2.2 Using the Identity Store

Oracle Entitlements Server administrator and user identities are stored in an identity store, typically an LDAP directory server. Users and external roles defined in the identity store are read-only during authorization policy definition. Oracle Entitlements Server reads and displays the data; it does not perform any management operations. Management of the identity data is accomplished using the identity store's tools or an identity management product such as Oracle Identity Manager.

3.2.3 Accessing the Policy Store

For this release, Oracle Entitlements Server the policy store used to maintain policy objects and defined policies can be a relational database (preferred) or an LDAP-based directory. (Oracle Internet Directory can be used as the policy store but has limited capabilities.) For links regarding hardware requirements, see Section 3.1, "Before You Begin." Instructions for creating and initializing the policy store can be found in Oracle Fusion Middleware Installation Guide for Oracle Identity Management.

3.3.1 Signing In to the Administration Console

Follow this procedure to sign in to the Authorization Policy Manager Administration Console.

1. Enter the Authorization Policy Manager Administration Console URL in the address bar of your browser. For example:

   https://hostname:port/apm/

   where:

   • HTTPS represents the Hypertext Transfer Protocol (HTTP) with the Secure Socket Layer (SSL) enabled to encrypt and decrypt user page requests and the pages returned by the Web server.

   • hostname refers to the fully qualified domain name of the computer hosting the Oracle Authorization Policy Manager Administration Console.

   • port refers to the designated bind port for the Authorization Policy Manager Administration Console. (This is the same as the bind port for the WebLogic Server Administration Console.)

   • /apm/ refers to the Authorization Policy Manager Log In page

2. Enter the System Administrator credentials.

   The default system administrator identifier is weblogic. The password is the same one supplied during installation. Figure 3-4 is a screenshot of the Sign In page.

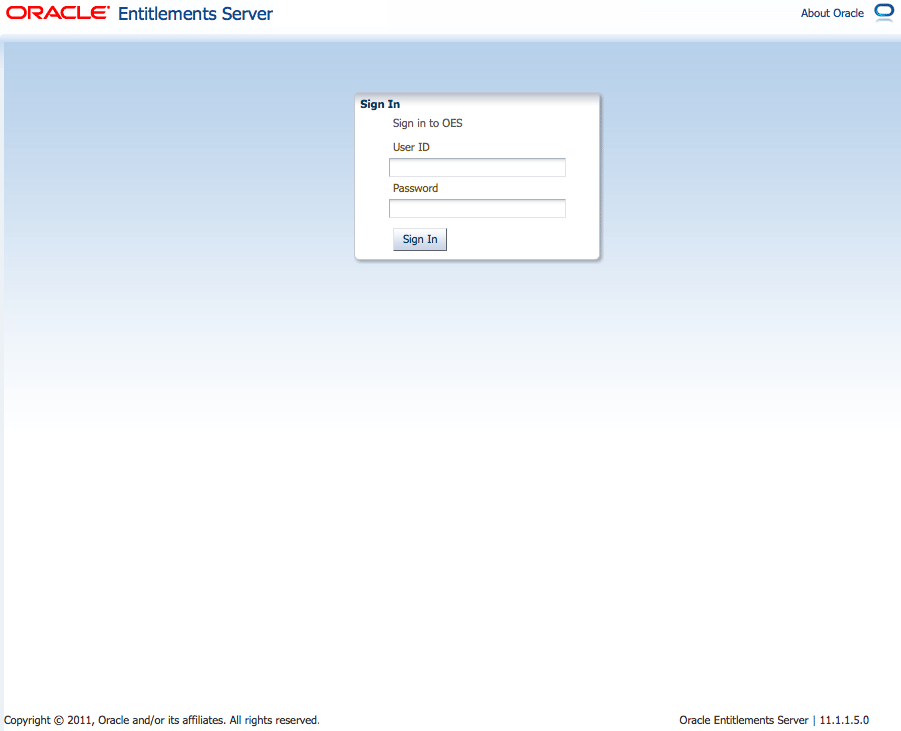

   Figure 3-4 Administration Console Sign In Page


   Description of "Figure 3-4 Administration Console Sign In Page"



3. Click Sign In.

3.3.2 Signing Out of the Administration Console

Follow this procedure to sign out of the Authorization Policy Manager Administration Console.

1. Click the Sign Out link located in the upper right corner of the Administration Console.

   Figure 3-5 is a screenshot of the Sign Out link.

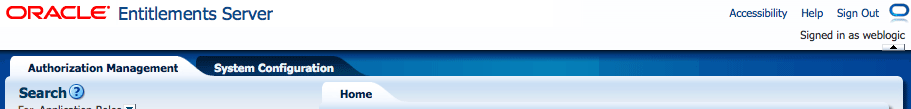

   Figure 3-5 Administration Console Sign Out Link


   Description of "Figure 3-5 Administration Console Sign Out Link"



2. Close the browser window.

3.4.1 Understanding the Main Tabs

See the following sections for information on the organizational tabs used in the Administration Console. Each tab is comprised of a Navigation Panel and Home area.

• Section 3.4.1.1, "Authorization Management Tab"

• Section 3.4.1.2, "System Configuration Tab"

3.4.1.1 Authorization Management Tab

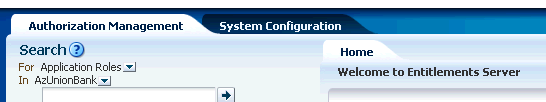

The Authorization Management tab is used to search and manage policy objects. This tab is active upon successful log in to the Administration Console. Figure 3-7 is a screenshot of the Authorization Management tab.

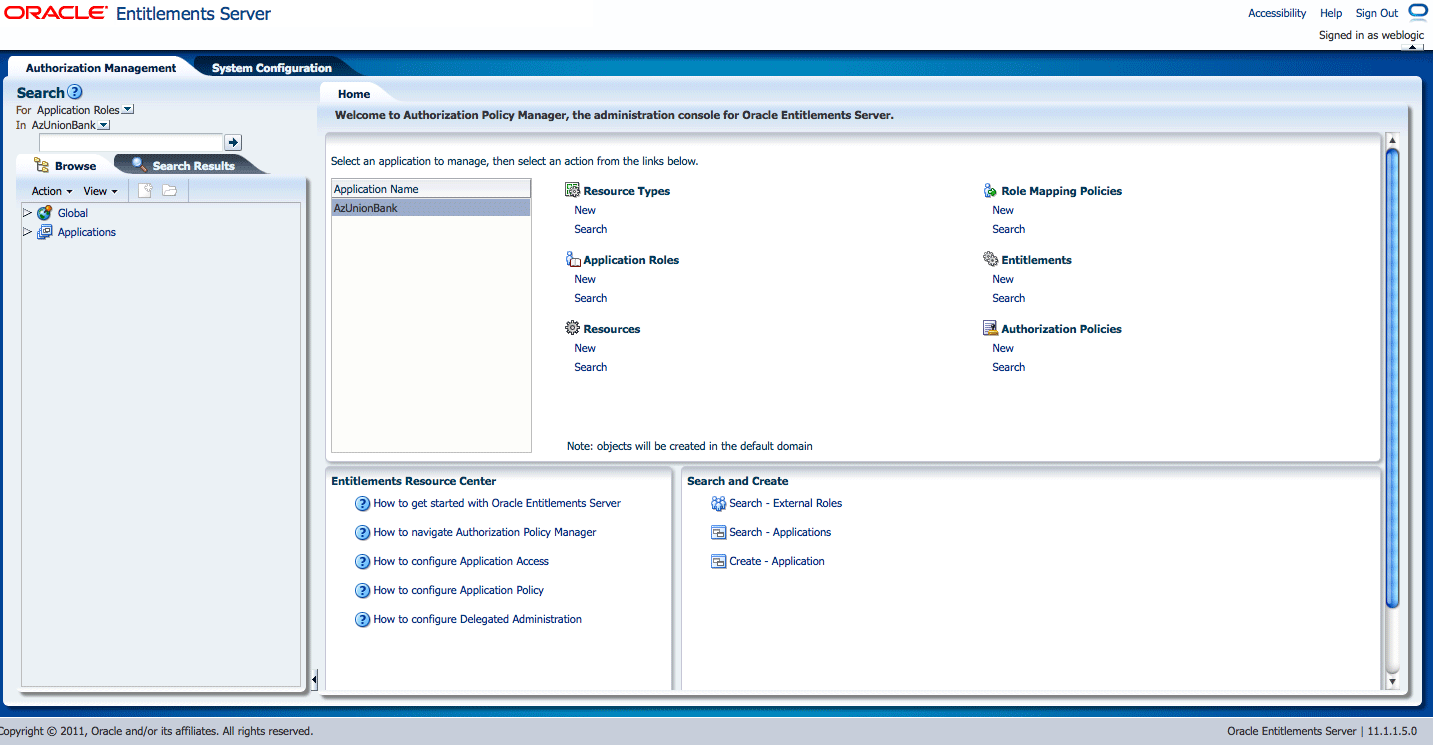

Figure 3-7 Authorization Management Tab

Description of "Figure 3-7 Authorization Management Tab"

Under Authorization Management, the left side is the Navigation Panel and the right side is Home. The Home display changes based on what is selected from the Navigation Panel. For more information, see Section 3.4.2, "Using The Navigation Panel" and Section 3.4.3, "The Home Area."

3.4.1.2 System Configuration Tab

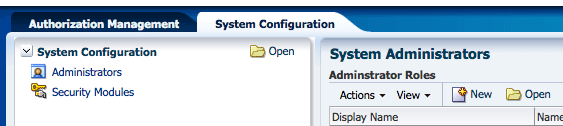

The System Configuration tab is used to manage administrative and system type objects for the Oracle Entitlements Server deployment. Figure 3-8 is a screenshot of an active System Configuration tab. The object selected in the Navigation Panel is displayed using tabs in the Home area.

Figure 3-8 System Configuration Tab

Description of "Figure 3-8 System Configuration Tab"

The following tasks are performed under System Configuration:

• Creating Security Modules

• Binding Security Modules to applications

• Managing system administrators (for example, creating additional system administrator roles, assigning users to system administrator roles, and assigning rights to system administrator roles)

For more information, see Chapter 8, "Managing System Configurations".

3.4.2 Using The Navigation Panel

The Navigation Panel is used to find security objects by browsing the Global or Applications information trees, or by conducting a simple search. It lists all Global and Application policy objects in a navigatable tree. You can browse the tree or display objects as Search Results based on defined search criteria. Figure 3-6 is a screenshot that displays the Navigation Panel with its nodes collapsed. Figure 3-9 displays the Navigation Panel with its nodes expanded and many policy objects in view.

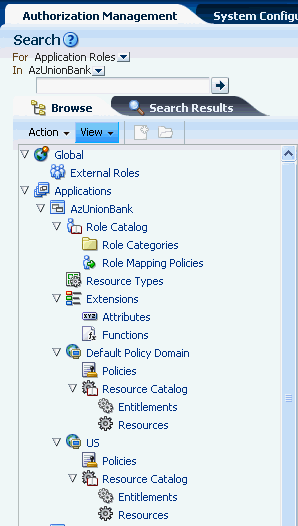

Figure 3-9 Navigation Panel Browse Tab with Nodes Expanded

Description of "Figure 3-9 Navigation Panel Browse Tab with Nodes Expanded"

The Navigation Panel contains, from top to bottom, the following elements:

• A pull-down list to select the policy object for a simple search. For more information, see Section 5.2, "Finding Objects with a Simple Search."

• A pull-down list to select the scope of a simple search. For more information, see Section 5.2, "Finding Objects with a Simple Search."

• A text box to enter the simple search string. The string is compared against both the Name and Display Name of policy objects; those that match are displayed in the Search Results tab.

• The Browse tab displays the following expandable and collapsible nodes:

  • The Global node collects global objects such as external roles.

  • The Applications node contains one or more Applications being managed by the administrator that is logged in. (Only Applications which the logged in user is authorized to access are displayed.) From any of those displayed, the administrator can access application-specific policy objects such as resource types, entitlements, resources, policies, and roles. For more information, see Chapter 8, "Managing System Configurations".

• The Search Results tab displays the results of the last simple search as seen in Figure 3-10.

• Action and View drop downs to select operations on the chosen policy object.

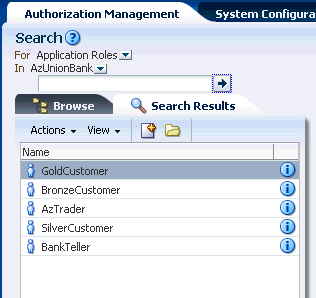

Figure 3-10 Navigation Panel Search Tab

Description of "Figure 3-10 Navigation Panel Search Tab"

From the Navigation Panel, there are two methods for displaying the New and Open options comprised in the Actions drop-down list.

• Locate the desired application, expand the node, and select the desired object. Click the Actions drop-down and select New.

• Locate the desired application, expand the node, and select the desired object. Right-click the object from the application node.

Select New to create a new object of the same type and select Open to display a search tab in the Home area. Double-clicking an object from the node also opens a Search tab in the Home area.

3.4.3 The Home Area

The Home area displays on the right side of the Navigation Panel and contains quick access links to New and Search screens for the most commonly used policy objects. As displayed in Figure 3-11, the Home area of the Administration Console is divided into the following sections.

• The Application area is the upper region of the Home area. The Application Name pane displays all applications available to the logged in user. To the right of this pane are links to screens for performing common operations such as creating new policy objects (entitlements, resources, resource types, application roles, and authorization policies) or searching defined policy objects.

• The Global section is the lower right region of the Home area. This section is for objects shared across all applications and includes external role search.

• The Entitlements Resource Center section is the lower left region of the Home area. It contains links to information regarding the most commonly used procedures.

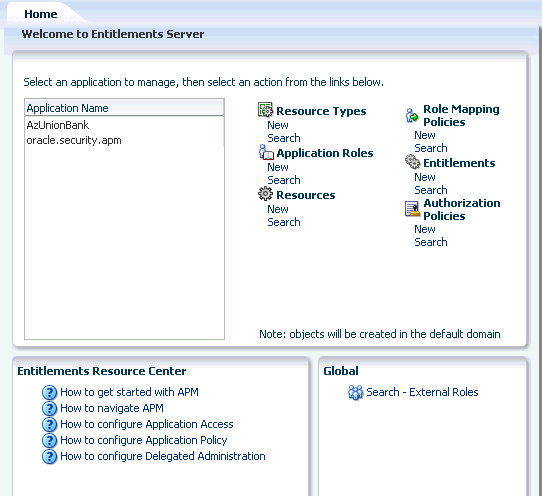

Figure 3-11 The Home Area

Description of "Figure 3-11 The Home Area"

3.4.4 Online Help

To get more information while using the Administration Console, click the Help link located in the upper right corner (as seen in Figure 3-5). A separate window opens. From this window you can access both the online help and an embedded version of this book in HTML. After the window displays, select either Oracle Entitlements Server Administration Console Online Help or Administrator's Guide for Oracle Entitlements Server from the drop-down Book list. The help topics link to the corresponding section of the embedded book as do the links in the book's Table of Contents.
