C Configuring F5 Load Balancers for MAN/WAN Failover

Virtual Server IPs and Pools

On each local load balancer you must configure two virtual server IPs as well as a multi-layer pool and a failover trigger pool. The diagram in Figure C-1 shows how these pools and virtual server IPs work within a MAN/WAN environment.

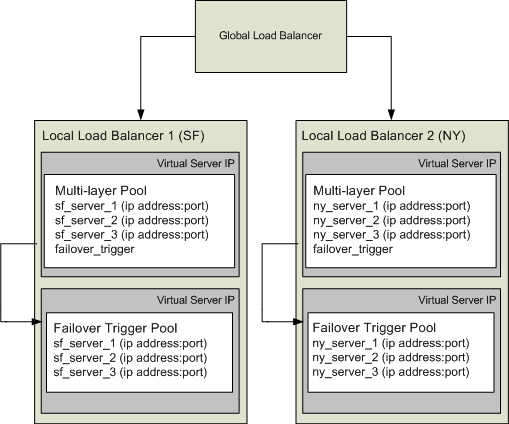

Figure C-1 Hardware Load Balancers in a MAN/WAN Environment

Description of "Figure C-1 Hardware Load Balancers in a MAN/WAN Environment"

In this diagram, multiple Managed Servers are distributed across separate physical locations. This diagram shows individual Managed Servers, but this could also represent a clustered configuration as well.

Each local load balancer contains a virtual server IP that references a multi-layer pool. The multi-layer pool references each of the local WebLogic Server IP addresses and host names and the virtual server of the failover trigger pool. The failover trigger is used to indicate that a site is down. This triggers failover to the other local load balancer.

The following sections describe how to configure multi-layer and failover trigger pools.

Create a Failover Trigger Virtual Server and Pool

Create a new BIG-IP pool on the local load balancer that references each of the local WebLogic Server host names and ports to be load-balanced. Then, create a new virtual server that specifies this pool. This virtual server will be utilized by the 3-DNS global load balancer for health monitoring and will later be embedded inside another local load balancer pool/virtual server.

1. In the BIG-IP navigation panel, click Pools.

2. Add a pool name

3. Add all the WebLogic Server host:port combinations to be load balanced

   The default priority may used. Session persistence does not need to be configured.

4. In the BIG-IP navigation panel, click Virtual Servers.

5. Add a virtual server that references your new pool.

   1. You should specify a port that by convention would be a failover-trigger port, for example 17001.

   2. Specify an IP address for the Virtual Server, for example 10.254.34.151.

Create a Multi-layered Virtual Server and IP Pool

Using the F5 administration utility, create a new BIG-IP pool on the local load balancer that references the host and port of each local WebLogic Server instance and also the failover-trigger virtual server. The failover-trigger virtual server must be a lower priority than the WebLogic Servers. By assigning a lower priority, the failover-trigger virtual server will never receive client requests unless all the WebLogic Server instances have failed. Session persistence should be configured also.

1. In the BIG-IP navigation panel, click on Pools.

2. Add a pool name, for example multilayeredPool

   1. Add all the WebLogic Server host:port combinations to be load balanced. All host:port combinations should be configured with priority=10

   2. Add the failover-trigger virtual server with priority=1

   3. Specify persistence attributes on the pool (active with insert mode)

   4. In the BIG-IP navigation panel, click on Virtual Servers

3. Create a Virtual Server that references your new pool, for example: 10.254.34.151:7001

Configure DNS Zones

The global server load balancer must be configured to manage its own DNS zone. This is done by creating a new delegation on the local DNS management machine. The following procedures describe how to configure DNS zones.

1. On your DNS management machine, create a new delegation, for example: gslb

2. Specify the fully qualified name of your 3-DNS machine as a name server

3. Specify the IP address of your 3-DNS machine as a name server

Configure BIG-IP Addresses Managed by 3-DNS

The 3-DNS global balancer needs to be configured with the addresses of the BIG-IP local load balancers. The following procedures outline how to configure BIG-IP addresses:

1. In the 3-DNS navigation panel, click Servers, then BIG-IP.

2. Add BIG-IP

3. Specify a name for the BIG-IP box, and its IP address.

4. When you revisit the list of BIG-IP boxes, the 3-DNS device should display a column with a count of virtual servers available on each BIG-IP box. Click on this count of virtual servers.

5. Find your multi-layered virtual server, and click dependencies.

6. Specify the associated failover-trigger virtual server as a dependency.

Configure Data Centers

In most cases, global load balancers spread service requests to virtual servers in multiple physical sites. These sites are called data centers and you must create two of them. Data centers resolve to the two different subnets of BIG-IP local load balancers.

Configure Wide IPs

It is recommended that you configure the 3-DNS device so it will distribute requests evenly to servers in a VIP in one data center. If these servers fail, they should fail requests over to a VIP in the other data center. In order to do this, a wideip address must be created. This wideip address will be the target of client requests, and can be given a fully qualified domain name. The Wide IP defines how connections are distributed to local load balancer virtual servers.

The following procedures describe how to configure wide IPs:

1. In the 3-DNS navigation panel, click Wide IPs, and then Add Wide IP

2. Specify an available network address for the Wide IP, a port (e.g. 7001) for the Wide IP, and an associated fully qualified domain name (e.g. cs.gslb.bea.com).

3. Add a 3-DNS pool that should specify the virtual servers on the local load balancers. The 3-DNS global load balancer automatically identifies the virtual servers available on each local load balancer after the BIG-IP hosts are configured. Specify the multi-layered Virtual Servers.

4. Create two entries in the DNS database on your DNS nameserver that resolve to the wideip.
