This chapter describes the requirements, design principles, security considerations and implementation guidelines need to use the WebLogic JMS C API to create C clients that can access WebLogic JMS applications and resources.
The WebLogic JMS C API is an application program interface that enables you to create C client applications that can access WebLogic JMS applications and resources. The C client application then uses the Java Native Interface (JNI), described at http://download.oracle.com/javase/1.5.0/docs/guide/jni/index.html
, to access the client-side Java JMS classes. See Figure 15-1.
For this release, the WebLogic JMS C API adheres to the JMS Version 1.1 specification to promote the porting of Java JMS 1.1 code. For more information, see the Oracle WebLogic Server JMS C API Reference.

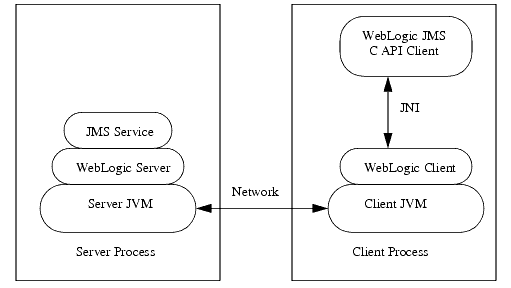

Figure 15-1 WebLogic JMS C API Client Application Environment
The following section provides information on the system requirements needed to use the WebLogic JMS C API in your environment:
A list of supported operating systems for the WebLogic JMS C API is available from the Oracle Fusion Middleware Supported System Configurations page. See "Supported Configurations" at What's New in Oracle WebLogic Server.
A supported JVM for your operating system.
An ANSI C compiler for your operating system.
Use one of the following WebLogic clients to connect your C client applications to your JMS applications:
The WebLogic Thin T3 Client jar (wlthint3client.jar
). See "Developing a WebLogic Thin T3 Client" in Programming Stand-alone Clients for Oracle WebLogic Server.
The WebLogic application client (wlfullclient.jar
file). See "Using the WebLogic JarBuilder Tool" in Programming Stand-alone Clients for Oracle WebLogic Server.
The WebLogic JMS thin client (wljmsclient.jar
file). See the "WebLogic JMS Thin Client" in Programming Stand-alone Clients for Oracle WebLogic Server.
The following sections discuss guiding principals for porting or developing applications for the WebLogic JMS C API:
The WebLogic JMS C API is handle-based to promote modular code implementation. This means that in your application, you implement Java objects as handles in C code. The details of how a JMS object is implemented is hidden inside a handle. However, unlike in Java, when you are done with a handle, you must explicitly free it by calling the corresponding Close
or Destroy
methods. See Memory Allocation and Garbage Collection.
The handles returned from the WebLogic JMS C API are as thread safe as their Java counterparts. For example:
javax.jms.Session
objects are not thread safe, and the corresponding WebLogic JMS C API handle, JmsSession
, is not thread safe.
java.jms.Connection
objects are thread safe, and the corresponding WebLogic JMS C API handle, JmsConnection
, is thread safe.
As long as concurrency control is managed by the C client application, all objects returned by the WebLogic JMS C API may be used in any thread.
Note:
The WebLogic JMS C API uses integer return codes.Exceptions in the WebLogic JMS C API are local to a thread of execution. The WebLogic JMS C API has the following exception types:
JavaThrowable
represents the class java.lang.Throwable
.
JavaException
represents the class java.lang.Exception
.
JmsException
represents the class javax.jms.JMSException
. All standard subclasses of JMSException
are determined by bits in the type descriptor of the exception. The type descriptor is returned with a call to JmsGetLastException
.
When you interoperate between Java code and C code, typically one of the main tasks is converting a C type to a Java type. For example, a short
type is a two-byte entity in Java as well as in C. The following type conversions that require special handling:
Integer (int)
converts to JMS32I
(4-byte signed value).
Long (long)
converts to JMS64I
(8-byte signed value).
Character (char)
converts to short
(2-byte java character).
String
converts to JmsString
.
Java strings are arrays of two-byte characters. In C, strings are generally arrays of one-byte UTF-8 encoded characters. Pure ASCII strings fit into the UTF-8 specification as well. For more information on UTF-8 string, see http://www.unicode.org
. It is inconvenient for C programmers to translate all strings into the two-byte Java encoding. The JmsString
structure allows C clients to use native strings or Java strings, depending on the requirements of the application.
JmsString
supports two kinds of string:
Native C string (CSTRING)
JavaString (UNISTRING)
A union of the UNISTRING
and CSTRING
called uniOrC
has a character pointer called string
that can be used for a NULL
terminated UTF-8 encoded C string. The uniOrC
union provides a structure called uniString
, which contains a void pointer for the string data and an integer length (bytes).
When the stringType
element of JmsString
is used as input, you should set it to CSTRING
or UNISTRING
, depending on the type of string input. The corresponding data field contains the string used as input.
The UNISTRING
encoding encodes every two bytes as a single Java character. The two-byte sequence is big-endian. Unicode calls this encoding UTF-16BE (as opposed to UTF-16LE, which is a two-byte sequence that is little-endian). The CSTRING
encoding expects a UTF-8 encoded string.
When the stringType
element of JmsString
is used as output, the caller has the option to let the API allocate enough space for output using malloc
, or you can supply the space and have the system copy the returned string into the provided bytes. If the appropriate field in the union (either string or data) is NULL, then the API allocates enough space for the output using malloc
. It is the callers responsibility to free this allocated space using free
when the memory is no longer in use. If the appropriate field in the union (string or data) is not NULL, then the allocatedSize
field of JmsString
must contain the number of bytes available to be written.
If there is not enough space in the string to contain the entire output, then allocatedSize
sets to the amount of space needed and the API called returns JMS_NEED_SPACE
. The appropriate field in the JmsString
(either string or data) contains as much data as could be stored up to the allocatedSize
bytes. In this case, the NULL character may or may not have been written at the end of the C string data returned. Example:
To allocate one hundred bytes for the string output from a text message, you would set the data pointer and the allocatedSize
field to one hundred. The JmsMessageGetTextMessage
API returns JMS_NEED_SPACE
with allocatedSize
set to two hundred. Call realloc
on the original string to reset the data pointer and call the function again. Now the call succeeds and you are able to extract the string from the message handle. Alternatively, you can free the original buffer and allocate a new buffer of the correct size.
All resources that you allocate must also be disposed of it properly. In Java, garbage collection cleans up all objects that are no longer referenced. However, in C, all objects must be explicitly cleaned up. All WebLogic JMS C API handles given to the user must be explicitly destroyed. Notice that some handles have a verb that ends in Close
while others end in Destroy
. This convention distinguishes between Java objects that have a close
method and those that do not. Example:
The javax.jms.Session
object has a close
method so the WebLogic JMS C API has a JmsSessionClose
function.
The javax.jms.ConnectionFactory
object does not have a close
method so the WebLogic JMS C API has a JmsConnectionFactoryDestroy
function.
Note:
A handle that has been closed or destroyed should never be referenced again.In Java JMS, closing a connection implicitly closes all subordinate sessions, producers, and consumers. In the WebLogic JMS C API, closing a connection does not close any subordinate sessions, producers, or consumers. After a connection is closed, all subordinate handles are no longer available and need to be explicitly closed.
The WebLogic JMS C API provides some helper functions that do not exist in WebLogic JMS. These helpers are explained fully in the Oracle WebLogic Server JMS C API Reference. For example:
JmsMessageGetSubclass
operates on a JmsMessage
handle and returns an integer corresponding to the subclass of the message. In JMS, this could be accomplished using instanceof
.
The WebLogic JMS C API supports WebLogic compatibility realm security mode based on a username
and password
. The username
and password
must be passed to the initial context in the SECURITY_PRINCIPAL
and SECURITY_CREDENTIALS
fields of the hash table used to create the InitialContext
object.
Be aware of the following when you implement the WebLogic JMS C API:
It does not support WebLogic Server JMS extensions, including XML messages.
It does not support JMS Object messages.
It creates an error log if an error is detected in the client. This error log is named ULOG.mmddyy
(month/day/year). This log file is fully internationalized using the NLSPATH
, LOCALE
, and LANG
environment variables of the client.
Users who want to translate the message catalog can use the gencat
utility provided on Windows or the gencat
utility of the host platform. If the generated catalog file is placed according to the NLSPATH
, LOCALE
, and LANG
variables, then the translated catalog will be used when writing messages to the log file.
You can set the following environment variables in the client environment:
JMSDEBUG
— Provides verbose debugging output from the client.
JMSJVMOPTS
—Provides extra arguments to the JVM loaded by the client.
ULOGPFX
— Configures the pathname and file prefix where the error log file is placed.
A C program that uses the JMS C client library may crash with a JVM failure. This could be related to a known, intermittent race-condition that occurs only with certain JVM products. The likelihood of failure can change based on the JVM version and patch level, operating system, and hardware combination. Specifically, the JMS C-Client library implicitly attaches C-threads to the JVM, but fails to detach them when it is done with them. Suggested workarounds are as follows:
Upgrade to a newer JVM. Version 1.5 and later of the Sun JVM, and version R27.6 of the JRockit JVM do not have this problem, although it is still recommended to call detach even with the updated JVMs. For more information about this issue with the Sun JVM, see http://bugs.sun.com/bugdatabase/view_bug.do?bug_id=6219874
.
Add code in the client to detach the JVM from any C thread that exits and that has previously called into the JMS C-API.
Do not allow any C thread that has previously called into the JMS C-API to exit before the entire process exits.
The sample Java JNI code shown in Example 15-1 describes how to detach the thread from the JVM.
Example 15-1 Sample Java JNI Code
#include <jni.h> ... JavaVM *jvmList[JVM_LIST_SIZE]; jsize retSize = -1; jint retVal = JNI_GetCreatedJavaVMs(jvmList, JVM_LIST_SIZE, &retSize); if ((retVal != 0) || (retSize < 1) ) { printf('ERROR: got %d/%d on JNI_getCreatedJavaVMs\n', retVal, retSize); return; } printf('INFO: got %d/%d on JNI_getCreatedJavaVMs\n', retVal, retSize); /* The following line assumes that there's exactly one JVM: */ (*(jvmList[0]))->DetachCurrentThread(jvmList[0]);
If a program is not directly making JNI calls already, it may be necessary to add compiler and linker parameters for access to the Java JNI libraries. For example, in MicroSoft Visual C++, do the following:
Add -I$(JAVA_HOME)/include
and -I$(JAVA_HOME)/include/win32
to the compile
Add $(JAVA_HOME)/lib/jvm.lib
to the link
