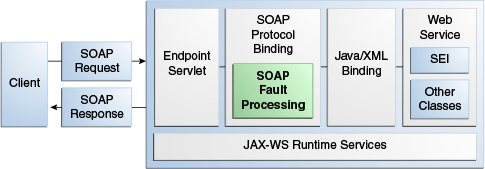

16 Handling Exceptions Using SOAP Faults

Example 16-1 Example of SOAP 1.2 Fault Message

<?xml version="1.0"?>
<env:Envelope xmlns:env=http://www.w3.org/2003/05/soap-envelope>
   <env:Body>
      <env:Fault>
         <env:Code>
            <env:Value>env:Sender</env:Value>
            <env:Subcode>
               <env:Value>rpc:BadArguments</env:Value>
            </env:Subcode>
         </env:Code>
         <env:Reason>
            <env:Text xml:lang=en-US>Processing error<env:Text>
         </env:Reason>
         <env:Detail>
            <e:myFaultDetails
               xmlns:e=http://travelcompany.example.org/faults>
               <e:message>Name does not match card number</e:message>
               <e:errorcode>999</e:errorcode>
            </e:myFaultDetails>
         </env:Detail>
      </env:Fault>
   </env:Body>
</env:Envelope>

Example 16-2 Example of SOAP 1.1 Fault Message

<?xml version="1.0"?>
<soap:Envelope
    xmlns:soap='http://schemas.xmlsoap.org/soap/envelope'>
   <soap:Body>
      <soap:Fault>
         <faultcode>soap:VersionMismatch</faultcode>
         <faultstring, xml:lang='en">
            Message was not SOAP 1.1 compliant
         </faultstring>
         <faultactor>
            http://sample.org.ocm/jws/authnticator
         </faultactor>
      </soap:Fault>
   </soap:Body>
</soap:Envelope>

Example 16-3 Web Service With Custom Exception

package examples;
import javax.jws.WebService;

@WebService(name="HelloWorld", serviceName="HelloWorldService")
public class HelloWorld {
   public String sayHelloWorld(String message) throws MissingName {
        System.out.println("Say Hello World: " + message);
        if (message == null || message.isEmpty()) {
           throw new MissingName();
        }
      return "Here is the message: '" + message + "'";
      }
}

Example 16-4 Custom Exception Class (MissingName)

package examples;
import java.lang.Exception;

public class MissingName extends Exception {
    public MissingName() {
        super("Your name is required.");
    }
}

Example 16-5 Example of WSDL with Modeled Exceptions

<?xml version="1.0" encoding="UTF-8" ?>
<definitions
   xmlns:soap="http://schemas.xmlsoap.org/wsdl/soap/"
   xmlns:tns="http://examples/"
   xmlns:xsd="http://www.w3.org/2001/XMLSchema"
   xmlns="http://schemas.xmlsoap.org/wsdl/"
   targetNamespace="http://examples/"
   name="HelloWorldService">
  <types>
    <xsd:schema>
      <xsd:import namespace="http://examples/"
     schemaLocation="http://localhost:7001/HelloWorld/HelloWorldService?xsd=1"/>
    </xsd:schema>
  </types>
  <message name="sayHelloWorld">
    <part name="parameters" element="tns:sayHelloWorld" />
  </message>
  <message name="sayHelloWorldResponse">
    <part name="parameters" element="tns:sayHelloWorldResponse" />
  </message>
  <message name="MissingName">
    <part name="fault" element="tns:MissingName" />
  </message>
  <portType name="HelloWorld">
    <operation name="sayHelloWorld">
      <input message="tns:sayHelloWorld" />
      <output message="tns:sayHelloWorldResponse" />
      <fault message="tns:MissingName" name="MissingName" />
    </operation>
  </portType>
  <binding name="HelloWorldPortBinding" type="tns:HelloWorld">
    <soap:binding transport="http://schemas.xmlsoap.org/soap/http"
      style="document" />
    <operation name="sayHelloWorld">
      <soap:operation soapAction="" />
      <input>
        <soap:body use="literal" />
      </input>
      <output>
        <soap:body use="literal" />
       </output>
      <fault name="MissingName">
        <soap:fault name="MissingName" use="literal" />
      </fault>
    </operation>
  </binding>
  <service name="HelloWorldService">
    <port name="HelloWorldPort" binding="tns:HelloWorldPortBinding">
      <soap:address
        location="http://localhost:7001/HelloWorld/HelloWorldService" />
    </port>
  </service>

Example 16-6 Example SOAP Fault Message for MissingName Exception

<?xml version = '1.0' encoding = 'UTF-8'?>
<S:Envelope xmlns:S="http://schemas.xmlsoap.org/soap/envelope/">
   <S:Body>
      <S:Fault xmlns:ns4="http://www.w3.org/2003/05/soap-envelope">
         <faultcode>S:Server</faultcode>
         <faultstring>Your name is required.</faultstring>
         <detail>
            <ns2:MissingName xmlns:ns2="http://examples/">
               <message>Your name is required.</message>
            </ns2:MissingName>
            <ns2:exception xmlns:ns2="http://jax-ws.dev.java.net/"
 class="examples.MissingName" note="To disable this feature, set
 com.sun.xml.ws.fault.SOAPFaultBuilder.disableCaptureStackTrace system
 property to false">
               <message>Your name is required.</message>
               <ns2:stackTrace>
                  <ns2:frame class="examples.HelloWorld" file="HelloWorld.java"
  line="14" method="sayHelloWorld"/>
  ...
               </ns2:stackTrace>
            </ns2:exception>
         </detail>
      </S:Fault>
   </S:Body>
</S:Envelope>
