The Oracle Reports Bridge configuration settings for the Reports Server component of Oracle Reports Services are stored in the XML file rwbridge.conf
.
The bridgeconfig.xsd
file contains data type definitions for rwbridge.conf
elements and attributes. See Section 7.4.1, "Oracle Reports Bridge Configuration Elements".
These files are located in the directories specified in Table 7-1.
The bridgeconfig.xsd
contains the data type definitions for the various Oracle Reports Bridge configuration file (rwbridge.conf) elements and attributes.
The Oracle Reports Bridge acts as a gateway for packets that are broadcast by Reports Server and Reports Client across Farms. For example, in a sample setup, Oracle Reports components are installed on different Farms: Oracle Reports Servlet is in Farm A and Reports Server is in Farm B. To achieve this configuration, the Oracle Reports Bridge has to be started on each Farm. Bridge configuration will include the host and port settings. The Oracle Reports Bridge in Farm A will contact the Oracle Reports Bridge in Farm B through reliable TCP to retrieve the server information on Farm B, and vice versa. For more information, see Section 2.3.4.1.2, "Server Discovery Across Subnets".
To start and stop the Oracle Reports Bridge, refer to Chapter 5, "Starting and Stopping Oracle Reports Services".
Oracle Reports creates the configuration file rwbridge.conf when the Oracle Reports Bridge is started for the first time. This file is generated based on the settings in the rwbridge.template
file.
In the configuration file, rwbridge.conf, modify the identifier
element to specify the username/password
and set the encrypted
attribute to no
. This indicates that the password is not encrypted. This password will be encrypted once the Oracle Reports Bridge is started.
For example:
<identifier encrypted="no">scott/tiger</identifier>
Usage Notes
If the identifier
element is commented, then it is possible to stop the Oracle Reports Bridge without specifying authid
.
It is not possible to stop the Oracle Reports Bridge remotely.
See Also:
Section 7.4.1.2, "identifier"The bridgeconf.xsd
file provides the following data type definitions for configuring rwbridge.conf
elements and attributes:
Note:
The configuration elements described in this section can be configured in Oracle Enterprise Manager:Select Reports > Administration > Bridge Configuration to display the Reports Bridge Component Configuration page.
The bridge
element is defined in bridgeconfig.xsd
as follows:
<xs:element name="bridge"> <xs:complexType> <xs:sequence> <xs:element ref="identifier" minOccurs="0" maxOccurs="1"/> <xs:element ref="remoteBridges" minOccurs="0" maxOccurs="1"/> </xs:sequence> <xs:attribute name="version" use="required" type="xs:string"/> <xs:attribute name="port" default="14011"> <xs:simpleType> <xs:restriction base="xs:integer"> <xs:minInclusive value="14001"/> </xs:restriction> </xs:simpleType> </xs:attribute> <xs:attribute name="timeout" use="required"> <xs:simpleType> <xs:restriction base="xs:integer"> <xs:minInclusive value="100"/> </xs:restriction> </xs:simpleType> </xs:attribute> </xs:complexType> </xs:element>
Example
<bridge version="11.1.1.1.0" port="14011" timeout="12000"> <!--networkConfig file="rwnetwork.conf" ></networkConfig--> <!--identifier encrypted="no" >%USERNAME%/%PASSWORD%</identifier--> <!--trace traceOpts="trace_all"></trace--> <!-- Specify one or more remote bridges inside remoteBridges element --> <!--remoteBridges> <remoteBridge host="%HOST%" port="%PORT%"></remoteBridge> </remoteBridges--> </bridge>
Required/Optional
Required. You can have a maximum of one open tag and one close tag in the bridge
element in a given configuration file.
Description
The bridge
element opens and closes the content area of the bridge configuration file. In terms of the file's hierarchy, all the other elements are subordinate to the bridge
element.
The bridge
element attributes are described in Table 7-29.
Table 7-29 Attributes of the bridge
Element
Attributes | Valid Values | Description |
---|---|---|
|
The bridge version. |
|
The allotted range for Oracle Reports Bridge component; that is, |
The port on which the bridge will listen. |
|
|
Value in milliseconds (ms). The bridge will wait for this period for a response from a remote bridge. |
Note:
The default port value for the bridge configuration file is assigned when you install Oracle Fusion Middleware. Therwbridge.template
file contains this default port, which is used to generate the configuration file for the bridge. The configuration file name for a bridge is ORACLE_INSTANCE/config/ReportsBridgeComponent/<bridge name>/rwbridge.conf.
If you need to customize the port number for the bridge, you must specify a valid port range reserved for the Oracle Reports Bridge bridge (14011
to 14020
).
The identifier
element is defined in bridgeconfig.xsd
as follows:
<xs:element name="identifier"> <xs:complexType mixed="true"> <xs:attribute name="encrypted" default="no"> <xs:simpleType> <xs:restriction base="xs:NMTOKEN"> <xs:enumeration value="yes"/> <xs:enumeration value="no"/> </xs:restriction> </xs:simpleType> </xs:attribute> </xs:complexType> </xs:element>
Example
<identifier encrypted="yes">fpoiVNFvnlkjRPortn+sneU88=NnN</identifier>
Required / Optional
Optional. If this element is commented, then the Oracle Reports Bridge will not perform a security check when the bridge shutdown command is issued.
Description
The identifier
element ensures that the Oracle Reports Bridge performs a security check before shutting down.
To set the value of the identifier
element:
Uncomment the identifier
element in the bridge configuration file.
Set the value to the administrator username/password, set the attribute encrypted=no
, so that the username/password will be encrypted when the Oracle Reports Bridge is restarted.
For example:
<identifier encrypted="no">scott/tiger</identifier>
Start the Oracle Reports Bridge.
Once this element is set, only the administrator will be able to shut down the bridge by specifying the username/password
in the command line.
The remoteBridge
element is defined in bridgeconfig.xsd
as follows:
<xs:element name="remoteBridge"> <xs:complexType> <xs:attribute name="host" use="required" type="xs:string"/ <xs:attribute name="port" use="required"> <xs:simpleType> <xs:restriction base="xs:integer"> <xs:minInclusive value="14001"/> </xs:restriction> </xs:simpleType> </xs:attribute> </xs:complexType> </xs:element>
Example
<remoteBridge host="myhost.mydomain.com" port="14022"></remoteBridge>
Required/Optional
Optional. You can have one or more remoteBridge
elements in your bridge configuration file.
Description
The remoteBridge
element specifies the host and port on which remote bridges are running.

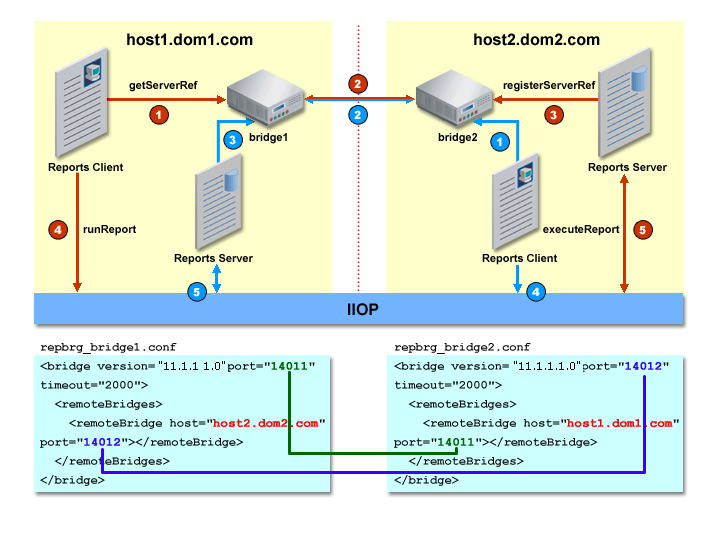

Figure 7-1 Oracle Reports Bridge Configuration (Two-Way)
If you specify the optional remoteBridge
element(s) in the repbrg_
bridgename
.conf
, then the bridge will act as a two-way bridge. That is, the bridge can get server references from remote bridges.

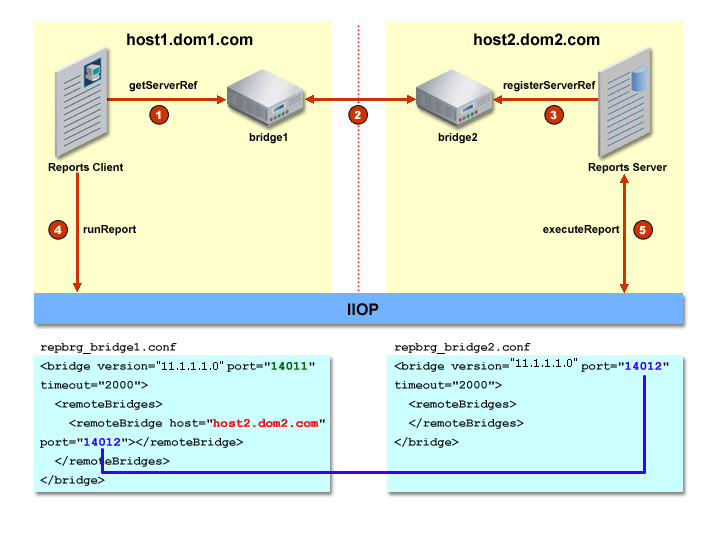

Figure 7-2 Oracle Reports Bridge Configuration (One-Way)
If you do not specify the optional remoteBridge
element(s) in the repbrg_
bridgename
.conf
, then the bridge will act as a one-way bridge. That is, the bridge can only serve remote bridges. It cannot connect to remote bridges to get the server reference.
The remoteBridge
element attributes are described in Table 7-30.
The remoteBridges
element is defined in bridgeconfig.xsd
as follows:
<xs:element name="remoteBridges"> <xs:complexType> <xs:sequence> <xs:element ref="remoteBridge" minOccurs="0" maxOccurs="unbounded"/> </xs:sequence> </xs:complexType> </xs:element>
Example
<remoteBridges> <remoteBridge host="myhost.mydomain.com" port="14022"></remoteBridge> </remoteBridges>
Required/Optional
Optional. If this entry is not specified, then this bridge will not contact any remote bridge to get a Reports Server reference. However, remote bridges can contact this bridge to get the references of Reports Servers running in this farm.
Description
The remoteBridges
element can contain zero or more remoteBridge elements.
