This section contains information on the following subjects:
Oracle CEP provides standards-based interfaces that are fully compliant with the Java Management Extensions (JMX) specification. Software developers can use these interfaces to monitor Oracle CEP MBeans, to change the configuration of an Oracle CEP domain, and to monitor Oracle CEP applications.
For more information, see:
Before you can manage Oracle CEP applications, servers, and domains using JMX and Oracle CEP MBeans, you must first configure the JMX service on your Oracle CEP server.
You configure the Oracle CEP JMX service using the following elements in the config.xml
file that describes your Oracle CEP domain:
jmx
: See Section 6.2.1, "jmx Configuration Object" for details.
rmi
: See Section 6.2.2, "rmi Configuration Object" for details.
jndi-context
: See Section 6.2.3, "jndi-context Configuration Object" for details.
exported-jndi-context
: See Section 6.2.4, "exported-jndi-context Configuration Object" for details
For more information, see Section 6.2, "Configuring JMX".
Oracle CEP applications define an event processing network (EPN) that is made up of components such as adapters, channels, and processors. You deploy these applications to an Oracle CEP instance that has been started in a domain.
Note:
Components are also sometimes referred to as stages, in particular in the management Javadocs. However, for consistency with the rest of the Oracle CEP documentation, this section uses the term components.You can dynamically configure each component in the EPN using managed beans, or MBeans. Typical configuration tasks include adding and removing Oracle CQL or EPL rules, changing channel max size, subscribing to notifications, and executing operations.
You manipulate the MBeans using any of the following:
Oracle CEP Visualizer: the Oracle CEP graphical administration console.
For more information, see Oracle CEP Visualizer User's Guide.
wlevs.Admin
: the Oracle CEP command-line administration utility.
For more information, see Appendix A, "wlevs.Admin Command-Line Reference".
Deployer: the Oracle CEP command-line deployment utility.
For more information, see Appendix B, "Deployer Command-Line Reference".

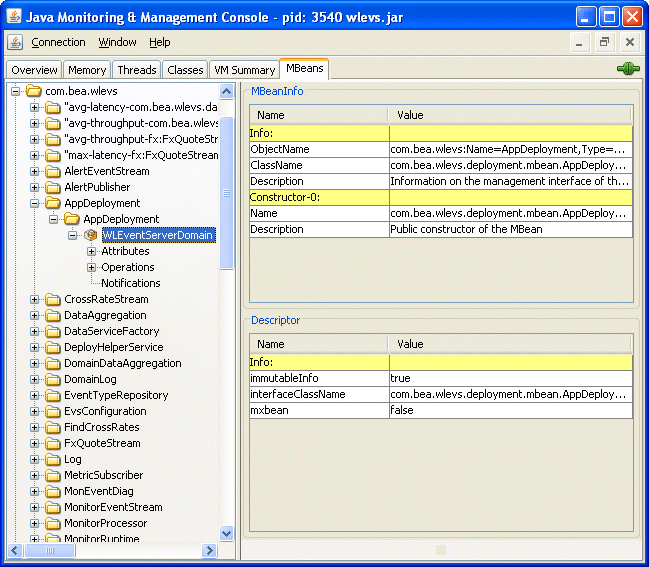

jconsole
: the JMX console that the Java JDK provides.

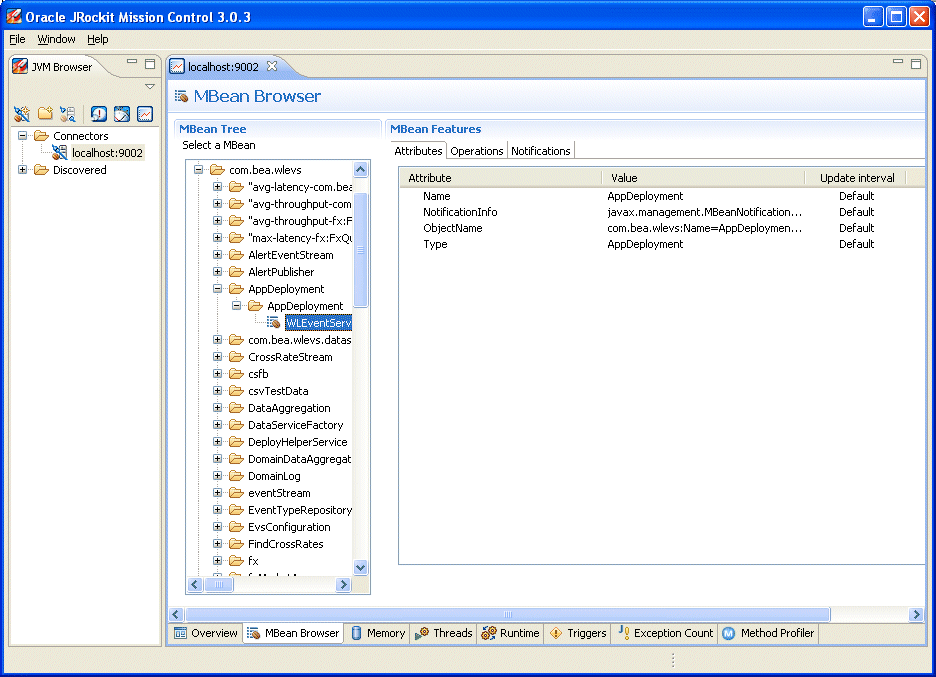

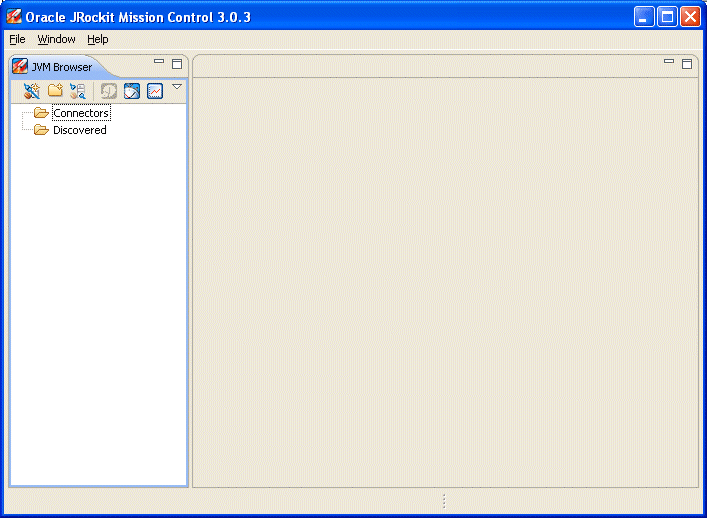

JRockit Mission Control: the JMX console that the JRockit distribution provides.
Your own Java code using standard JMX APIs: http://java.sun.com/javase/technologies/core/mntr-mgmt/javamanagement
.
This section describes:
For more information, see:
To access Oracle CEP MBeans, you must first connect to the Oracle CEP JMX server.
Oracle CEP does not support the JRMP protocol. Instead, JMX clients must use the more secure MSA protocol for both local and remote access to the Oracle CEP JMX server.
When you connect to the Oracle CEP JMX server that is running on localhost
or on a remote host, you must copy the following Oracle CEP server JAR files to the client classpath of the host from which you want to connect to the Oracle CEP server:
ORACLE_CEP_HOME
\modules\com.bea.core.jmx_8.0.0.0.ja
r
ORACLE_CEP_HOME
\modules\com.bea.core.rmi_7.0.0.0.jar
ORACLE_CEP_HOME
\modules\com.bea.core.jndi.context_7.0.0.0.jar
ORACLE_CEP_HOME
\modules\com.bea.core.logging_1.5.0.0.jar
ORACLE_CEP_HOME
\modules\com.bea.core.bootbundle_8.0.0.0.jar
Where ORACLE_CEP_HOME
refers to the directory in which you installed Oracle CEP (such as d:\oracle_home
).
You must launch your JMX client (such as jconsole
) using the following command line options and classpath:
prompt> java -Djmx.remote.protocol.provider.pkgs=com.bea.core.jmx.remote.provider -Dmx4j.remote.resolver.pkgs=com.bea.core.jmx.remote.resolver -Djava.naming.factory.initial=com.bea.core.jndi.context.ContextFactory -classpath %JAVA_HOME%\lib\jconsole.jar;MODULE_HOME\modules\com.bea.core.jmx_8.0.0.0.jar;MODULE_HOME\modules\com.bea.core.rmi_7.0.0.0.jar;MODULE_HOME\modules\com.bea.core.jndi.context_7.0.0.0.jar;MODULE_HOME\modules\com.bea.core.logging_1.5.0.0.jar;MODULE_HOME\modules\com.bea.core.bootbundle_8.0.0.0.jar sun.tools.jconsole.JConsole
Where MODULE_HOME
is the directory you copied the Oracle CEP server JAR files to.

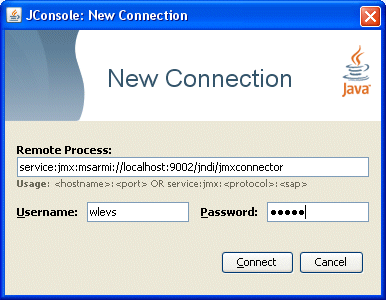

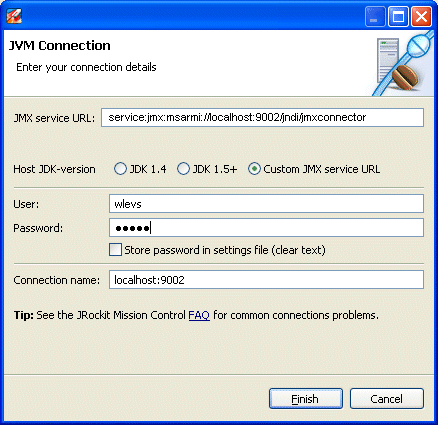

To connect to the Oracle CEP JMX server, you must use the JMX URL service:jmx:msarmi://
HOST-NAME
:
port
/jndi/jmxconnector
so that you are always using the MSA connector (where HOST-NAME
is either localhost
or the name of the remote host and port
is the Oracle CEP server JNDI port ).
For more information, see:
You can also perform some configuration and application life cycle management of the server, domain, and deployed applications using MBeans, although this section predominantly describes configuring individual application components. However, because server, domain, and application configuration is also done using MBeans, much of the information in this section is applicable.
Each component in a deployed application (adapter, channel, or processor) has a configuration MBean that manages the underlying configuration of the component. Each type of component has its own set of manageable artifacts. For example, you can dynamically configure the maximum number of threads for a channel or the Oracle CQL rules associated with a processor.
Oracle CEP exposes the following types of MBeans:
Configuration MBeans—Contain information about the configuration of components in an EPN, a deployed Oracle CEP application, the server and domain configurations. These MBeans have a fixed management interface and represent the information contained in the domain config.xml file and the component configuration XML files. Examples of standard MBeans include CQLProcessorMBean
and EventChannelMBean
.
Runtime MBeans—Contain information about throughput and latency of a component.
For full reference information about Oracle CEP MBeans and management in general, see the following classes in the Oracle CEP Java API Reference:
com.bea.wlevs.management.configuration
com.bea.wlevs.management.runtime
com.bea.wlevs.monitor.management
com.bea.wlevs.monitor
com.bea.wlevs.processor.epl.management
com.bea.wlevs.deployment.mbean
This section describes:
When you deploy an Oracle CEP application, the server automatically creates a configuration MBean for each component in the EPN whose manageability has been enabled, or in other words, for each component registered in the EPN assembly file. If you have extended the configuration of an adapter, then the server deploys a custom configuration MBean for the adapter.
Using JMX, you can dynamically configure the component using its configuration MBean. For example, using the StreamMBean.setMaxSize()
method you can set the size of a channel component.
Oracle CEP configuration MBeans are arranged in a hierarchy. The object name of each MBean reflects its position in the hierarchy. A typical object naming pattern is as follows:
com.bea.wlevs:Name=name,Type=type,[TypeOfParentMBean=NameOfParentMBean]
where:
com.bea.wlevs:
is the JMX domain name.
Name=
name
,Type=
type
,[
TypeOfParentMBean
=
NameOfParentMBean
]
is a set of JMX key properties.
The order of the key properties is not significant, but the object name must begin with com.bea:wlevs:
.
For example, the object name of the MBean corresponding to a processor called myprocessor
in the application myapplication
in the domain is as follows:
com.bea.wlevs:Name=myprocessor,Type=EPLProcessor,Application=myapplication
Table 6-1 describes the key properties that Oracle CEP encodes in its MBean object names.
Table 6-1 Oracle CEP MBean Object Name Key Properties
This Key Property | Specifies |
---|---|
Name=name
|
The string that you provided when you created the resource that the MBean represents. This is typically the name of a component. The name of a particular component is specified in the EPN assembly file using the For example, in the case of processors, the entry in the EPN assembly file might look like the following: <wlevs:processor id="myprocessor" advertise="true" /> In this case, the key property would be |
Type=type
|
The short name of the MBean's type. The short name is the unqualified type name without the For example, for an MBean that is an instance of the |
TypeOfParentMBean=NameOfParentMBean
|
Specifies the type and name of the parent MBean. For components, this is always The name of a particular Oracle CEP application is specified with the Manifest-Version: 1.0 Archiver-Version: Build-Jdk: 1.5.0_06 .... Bundle-SymbolicName: myapplication then the key property would be |
Table 6-2 shows examples of configuration MBean objects names that correspond to the component declarations in the HelloWorld sample EPN assembly file. In each example, the application name is helloworld
and the domain name is mydomain
.
Table 6-2 Component Declaration Example With Corresponding MBean Object Names
EPN Assembly File Component Declaration | Corresponding Configuration MBean Object Name |
---|---|
<wlevs:processor id="helloworldProcessor" /> |
com.bea.wlevs:Name=helloworldProcessor,Type=EPLProcessor,Application=helloworld,Domain=mydomain
|
<wlevs:channel id="helloworldInstream"> <wlevs:listener ref="helloworldProcessor"/> <wlevs:source ref="helloworldAdapter"/> </wlevs:channel> |
com.bea.wlevs:Name=helloworldInstream,Type=Channel,Application=helloworld,Domain=mydomain
|
You can also gather monitoring information for each component in the EPN using runtime MBeans. Oracle CEP server defines the following metrics that you can monitor for each component:
Throughput—The number of events processed by the component. The parameters for this metric are: throughput time interval, aggregation time interval, the unit of time for the intervals.
Average Latency—The average amount of time it takes an event to pass through a component, or latency. Parameters: aggregation time interval, the unit of time for the interval.
Maximum Latency—The maximum amount of time it takes an event to pass through a component. Parameters: aggregation time interval, the unit of time for the interval.
Average Latency Threshold—Specifies whether the average latency of events between the start- and end-points of a component crosses a specified threshold. Parameters: aggregation time interval, threshold, the unit of time for the interval.
Runtime MBeans are named using the same pattern as with configuration mbeans except for one extra property: Direction
. This property has two valid values: OUTBOUND
or INBOUND
that refer to the point at which you want to gather the statistic OUTBOUND
means that you want to gather throughput or latency as events flow out of the specified component; similarly INBOUND
means you want to gather the monitoring information as events flow into a component.
For example, the object name of the runtime MBean corresponding to a processor called myprocessor
in the application myapplication
, in which events will be monitored as they flow into the component, is as follows:
com.bea.wlevs:Name=myprocessor,Type=EPLProcessor,Application=myapplication,Direction=INBOUND
See Section 6.1.3.1.1, "Configuration MBean Naming" for details about configuration MBean naming.

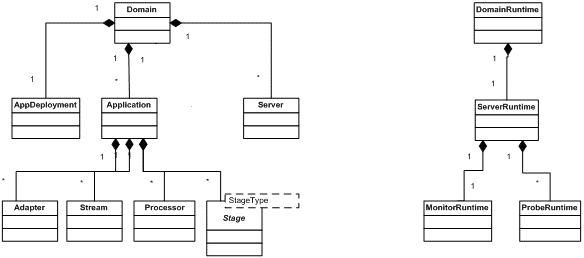

Figure 6-1 describes the Oracle CEP MBean tree.
All MBeans must be registered in an MBean server under an object name of type javax.management.ObjectName
. Oracle CEP follows a convention in which object names for child MBeans contain part of its parent MBean object name.
There are two main MBean roots: DomainMBean
and DomainRuntimeMBean
. The former includes configuration MBeans for the entire domain, the latter contains runtime information, such as statistics, and local services, such as Monitor, that are generally scoped to a single server instance.
ApplicationMBean
is a child of the DomainMBean
instead of the ServerMBean
. This is because an application is unique within a domain, and can span multiple servers.

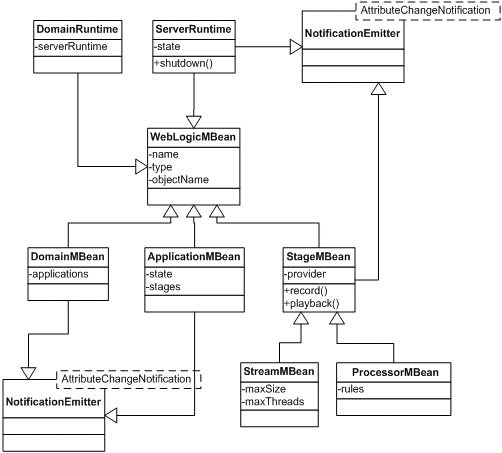

Figure 6-2 shows the main classes and relationships that make up the object model.
Most MBeans are notification emitters that generate AttributeChangeNotifications
. In other words, a JMX client can register to receive attribute change notifications regarding changes to application state, insertion and removal of applications at the domain, channel size and thread changes, insertion and removal of rules, and so on.
You configure the Oracle CEP JMX service using the following elements in the config.xml
file that describes your Oracle CEP domain:
jmx
: See Section 6.2.1, "jmx Configuration Object" for details.
rmi
: See Section 6.2.2, "rmi Configuration Object" for details.
jndi-context
: See Section 6.2.3, "jndi-context Configuration Object" for details.
exported-jndi-context
: See Section 6.2.4, "exported-jndi-context Configuration Object" for details
For information on security configuration tasks that affect JMX, see Section 4.8.2, "Configuring JMX Security".
For more information, see:
Table 6-3 lists the jmx
element child elements in the config.xml
file that you must configure.
The Oracle CEP RMI service provides:
Ability to register a POJO interface in a server for remote method invocation from a client.
Ability to register for any context propagation from the client to the server on a remote method invocation, intercept, and act on this propagated context in the server.
Table 6-4 lists the rmi
element child elements in the config.xml
file that you use to export server-side objects to remote clients.
Table 6-4 Configuration Parameters for the rmi Element
Parameter | Type | Description |
---|---|---|
heartbeat-period |
int |
The number of failed heartbeat attempts before triggering disconnect notifications to all registered listeners. |
http-service-name |
String |
The name of the HTTP service used to register remote objects (such as Jetty, see Section 5.1, "Overview of Jetty Support in Oracle Complex Event Processing"). |
heartbeat-interval |
int |
The amount of time, in milliseconds, between heartbeats. Once the number of unsuccessful heartbeat attempts has reached the value specified by the |
name |
String |
The name of this configuration object. |
The JNDI Factory Manager is responsible for supporting JNDI in an OSGi environment. It allows JNDI providers to be supplied as OSGi bundles, and for code running inside OSGi bundles to have full access to the JNDI environment.
The Factory Manager consists of two components:
An OSGi bundle, which provides the OSGi-specific factory management code, to look up JNDI objects using the appropriate OSGi classloader.
JNDI "glue code," internal to Oracle CEP, that initializes the JNDI environment to support the factory manager bundle.
Table 6-5 lists the jndi-context
element child elements in the config.xml
file that you must configure.
Requires a configured Section 6.2.3, "jndi-context Configuration Object."
Use this configuration object to export a remote JNDI service to a client using RMI. A JNDI context is registered with the RMI service to provide remote access to clients that pass a provider URL parameter in their InitialContext
object.
Table 6-6 lists the exported-jndi-context
element child elements in the config.xml
file that you must configure.
Table 6-6 Configuration Parameters for the exported-jndi-context Element
Parameter | Type | Description |
---|---|---|
rmi-service-name |
String |
The name of the RMI service that should be used to serve this JNDI context over the network. It must match an existing |
name |
String |
The name of this configuration object. The value of this element must be different from the value of the |
Example 6-1 shows a config.xml
snippet with JMX configuration; only relevant parts of the file are shown.
Example 6-1 JMX Configuration
<config> <netio> <name>JettyNetio</name> <port>12345</port> </netio> <work-manager> <name>WM</name> <fairshare>5</fairshare> <min-threads-constraint>1</min-threads-constraint> <max-threads-constraint>4</max-threads-constraint> </work-manager> <jetty> <name>TestJetty</name> <work-manager-name>WM</work-manager-name> <network-io-name>JettyNetio</network-io-name> </jetty> <rmi> <name>RMI</name> <http-service-name>TestJetty</http-service-name> </rmi> <jndi-context> <name>JNDI</name> </jndi-context> <exported-jndi-context> <name>exportedJNDI</name> <rmi-service-name>RMI</rmi-service-name> </exported-jndi-context> <jmx> <jndi-service-name>JNDI</jndi-service-name> <rmi-service-name>RMI</rmi-service-name> </jmx> </config>
This section describes detailed examples of managing Oracle CEP components using JMX, including:
Section 6.3.3, "How to Programmatically Configure an Oracle CEP Component Using JMX APIs"
Section 6.3.5, "How to Connect to a Local or Remote Oracle CEP JMX Server Using JConsole"
For more information, see:
This section describes how to write Java code using the JMX API (http://java.sun.com/javase/technologies/core/mntr-mgmt/javamanagement
) to connect to the Oracle CEP JMX server from a non-Oracle CEP client. This is the first step to all programmatic JMX management.
For information on connecting to the Oracle CEP JMX server from another Oracle CEP server, see Section 6.3.2, "How to Programmatically Connect to the Oracle CEP JMX Server From an Oracle CEP Client".
To programmatically connect to the Oracle CEP JMX server from a non-Oracle CEP client:
Be sure that the JMX service is configured for your domain.
For details see Section 6.2, "Configuring JMX" .
Write the http://java.sun.com/javase/technologies/core/mntr-mgmt/javamanagement
Java code to configure the component using the appropriate MBean.
Consider the following JMX programming hints.
One of the first things you must do in your JMX program is to establish a connection to the JMX server running in the Oracle CEP server as Example 6-2 shows.
Example 6-2 Establishing a Connection to the Oracle CEP JMX Server
public static void initConnection(String hostname, int port, String username, char[] password) throws IOException,MalformedURLException { Map<String,Object> env = makeSecureEnv(); env.put("jmx.remote.protocol.provider.pkgs","com.bea.core.jmx.remote.provider"); env.put("mx4j.remote.resolver.pkgs","com.bea.core.jmx.remote.resolver"); env.put("java.naming.factory.initial","com.bea.core.jndi.context.ContextFactory"); JMXServiceURL serviceUrl = new JMXServiceURL( "MSARMI","localhost",9002,"/jndi/jmxconnector" ); System.out.println("Service: " + serviceURL.toString()); JMXConnector connector = JMXConnectorFactory.connect(serviceUrl,env); MBeanServerConnection connection = connector.getMBeanServerConnection(); } // The JMXConnectorFactory.connect() method's second parameter is a Map object that sets up a // secure environment using the makeSecureEnv() method, which looks like the following: private static Map<String,Object> makeSecureEnv() { Map<String,Object> env = new HashMap<String,Object>(); String username = "wlevs" ; char[] password = { 'w','l','e','v','s' }; env.put(JMXConnector.CREDENTIALS, new Serializable[]{username,password}); env.put("jmx.remote.authenticator", "com.bea.core.jmx.server.CEAuthenticator"); System.setProperty("jmx.remote.authenticator", "com.bea.core.jmx.server.CEAuthenticator"); return env; }
This section describes how to write Java code using the JMX API (http://java.sun.com/javase/technologies/core/mntr-mgmt/javamanagement
) to connect to the Oracle CEP JMX server from another Oracle CEP server. This is the first step to all programmatic JMX management.
For information on connecting to the Oracle CEP JMX server from a non-Oracle CEP client, see Section 6.3.1, "How to Programmatically Connect to the Oracle CEP JMX Server From a Non-Oracle CEP Client".
To programmatically connect to the Oracle CEP JMX server from an Oracle CEP client:
Be sure that the JMX service is configured for your domain.
For details see Section 6.2, "Configuring JMX" .
Write the http://java.sun.com/javase/technologies/core/mntr-mgmt/javamanagement
Java code to configure the component using the appropriate MBean.
Consider the following JMX programming hints.
One of the first things you must do in your JMX program is to establish a connection to the JMX server running in the Oracle CEP server as Example 6-2 shows.
Example 6-3 Establishing a Connection to the Oracle CEP JMX Server
public static void initConnection(String hostname, int port, String username, char[] password) throws IOException,MalformedURLException { Map<String,Object> env = makeSecureEnv(); // This is an OSGi necessity env.put( JMXConnectorFactory.DEFAULT_CLASS_LOADER, com.bea.core.jmx.remote.provider.msarmi.ServerProvider.class.getClassLoader() ); env.put( JMXConnectorFactory.PROTOCOL_PROVIDER_CLASS_LOADER, com.bea.core.jmx.remote.provider.msarmi.ServerProvider.class.getClassLoader() ); JMXServiceURL serviceUrl = new JMXServiceURL( "MSARMI","localhost",9002,"/jndi/jmxconnector" ); System.out.println("Service: " + serviceURL.toString()); env.put( JMXConnectorFactory.PROTOCOL_PROVIDER_PACKAGES, "com.bea.core.jmx.remote.provider" ); System.setProperty("mx4j.remote.resolver.pkgs", "com.bea.core.jmx.remote.resolver"); JMXConnector connector = JMXConnectorFactory.connect(url, env); connector.connect(); MBeanServerConnection connection = connector.getMBeanServerConnection(); ... } // The JMXConnectorFactory.connect() method's second parameter is a Map object that sets up a // secure environment using the makeSecureEnv() method, which looks like the following: private static Map<String,Object> makeSecureEnv() { Map<String,Object> env = new HashMap<String,Object>(); String username = "wlevs" ; char[] password = { 'w','l','e','v','s' }; env.put(JMXConnector.CREDENTIALS, new Serializable[]{username,password}); env.put("jmx.remote.authenticator", "com.bea.core.jmx.server.CEAuthenticator"); System.setProperty("jmx.remote.authenticator", "com.bea.core.jmx.server.CEAuthenticator"); return env; }
This section describes how to write Java code using the JMX API (http://java.sun.com/javase/technologies/core/mntr-mgmt/javamanagement
) to access Oracle CEP MBeans.
To programmatically configure an Oracle CEP component using JMX APIs:
Acquire a connection to the Oracle CEP JMX server.
For details see Section 6.3.1, "How to Programmatically Connect to the Oracle CEP JMX Server From a Non-Oracle CEP Client" .
Write the http://java.sun.com/javase/technologies/core/mntr-mgmt/javamanagement
Java code to configure the component using the appropriate MBean.
Consider the following JMX programming hints.
Example 6-4 shows how to use the connection to start getting information about the domain and its deployed applications by querying MBeans.
First the code shows how to get all MBeans whose type is Domain; there should only be one. Then, using the DomainMBean
, the sample shows how to retrieve a list of all the deployed applications in the domain (using ApplicationMBean
):
Example 6-4 Querying MBeans
Set domainObjectNames = connection.queryMBeans( ObjectName.getInstance( ManagementConstants.DOMAIN_NAME + ":" + ManagementConstants.TYPE_PROPERTY + "=" + DomainMBean.MBEAN_TYPE + ",*" ), null ); ObjectName domainName = ((ObjectInstance) domainObjectNames.iterator().next()).getObjectName(); System.out.println("Domain Name: " + domainName.getKeyProperty(ManagementConstants.NAME_PROPERTY)); ObjectName [] applicationNames = (ObjectName[]) connection.getAttribute(domainName, "ApplicationMBeans"); ObjectName selectedApplicationObjectName = null ; for (ObjectName applicationName : applicationNames) { String name = applicationName.getKeyProperty(ManagementConstants.NAME_PROPERTY); String status = (String) connection.getAttribute(applicationName, "State"); System.out.println("Application: " + name + " Status: " + status); selectedApplicationObjectName = applicationName ; }
This section describes how to write Java code using the JMX API (http://java.sun.com/javase/technologies/core/mntr-mgmt/javamanagement
) to access Oracle CEP MBeans and dynamically monitor the throughput and latency of an Oracle CEP component.
To dynamically configure an Oracle CEP component using JMX APIs:
Acquire a connection to the Oracle CEP JMX server.
For details see Section 6.3.1, "How to Programmatically Connect to the Oracle CEP JMX Server From a Non-Oracle CEP Client" .
Acquire an instance of a MonitorRuntimeMBean
for the component you want to monitor as Example 6-5 shows.
Example 6-5 Acquiring an Instance of a MonitorRuntimeMBean
m_processorInbound = ObjectName.getInstance( "com.bea.wlevs:Name=myprocessor, Type=EPLProcessor, Application=myapplication, Direction=INBOUND" );
Be sure you specify whether you want to monitor incoming events (INBOUND
) or outgoing events (OUTBOUND
). For example:
Use the MonitorRuntimeMBean
to acquire an instance of ProbeRuntimeMBean
for the type of statistic you want as Example 6-6 shows.
Example 6-6 Acquiring an Instance of ProbeRuntimeMBean
ProbeRuntimeMBean probeON = m_testBean.getMonitorRuntimeMBean().monitorAvgThroughput( m_processorInbound, 1000, 1000 );
The MonitorRuntimeMBean
has methods for each type of statistic you can gather. For example, you execute monitorAvgLatency()
if you want to monitor the average latency, monitorAvgThroughput()
to monitor the average throughput, and so on. These methods all return ProbeRuntimeMBean
.
Use the ProbeRuntimeMbean
instance to get the actual runtime metrics in one of the following ways:
Use the ProbeRuntimeMBean
method getMetric()
to pull the information.
Use javax.management.NotificationBroadcaster.addNotificationListener()
to have the information pushed to you every time there is a change in the metrics.
When you are finished gathering monitoring information, unregister the MBean from the MBean server as Example 6-7 shows.
For additional details about these MBean interfaces and how to use them to monitor throughput and latency, see the com.bea.wlevs.monitor.management
package in the Oracle CEP Java API Reference.
You can use the wlevsjconsole
script to connect to an Oracle CEP JMX server running on your local host or on a remote host to browse and manage Oracle CEP MBeans with the JDK jconsole
.
For more information, see Section 6.1.2.1, "Accessing the Oracle CEP JMX Server".
To connect to a local or remote Oracle CEP JMX server using JConsole:
Ensure that the local or remote Oracle CEP server is running.
Open a command window and set your environment as described in "Setting Your Development Environment" in the Oracle CEP Getting Started.
Launch jconsole
using the wlevsjconsole.cmd
or wlevsjconsole.sh
located in the ORACLE_CEP_HOME
/common/bin
directory, where ORACLE_CEP_HOME
refers to the directory in which you installed Oracle CEP (such as /oracle_home
).
prompt> wlevsjconsole.cmd
The jconsole
New Connection dialog appears as shown in Figure 6-3.
Figure 6-3 JConsole New Connection Dialog
Configure the New Connection dialog as Table 6-7 describes.
Table 6-7 JConsole New Connection Attributes
Attribute | Description |
---|---|
|
Enter the following URL: service:jmx:msarmi://HOST-NAME:9002/jndi/jmxconnector
Where |
|
Enter an Oracle CEP administration password. Default: wlevs. |
|
Enter the password for the Oracle CEP administration password you chose. Default: wlevs. |
Click Connect.
The jconsole
browser opens and provides access to Oracle CEP MBeans as Figure 6-4 shows.
You can use the wlevsmissioncontrol
script to connect to an Oracle CEP JMX server running on your local host or on a remote host to browse and manage Oracle CEP MBeans with the JRockit Mission Control console.
For more information, see Section 6.1.2.1, "Accessing the Oracle CEP JMX Server".
To connect to a local or remote Oracle CEP JMX server using JRockit Mission Control:
Ensure that the local or remote Oracle CEP server is running.
Open a command window and set your environment as described in "Setting Your Development Environment" in the Oracle CEP Getting Started.
Launch JRockit Mission Control using the wlevsmissioncontrol.cmd
or wlevsmissioncontrol.sh
located in the ORACLE_CEP_HOME
/common/bin
directory, where ORACLE_CEP_HOME
refers to the directory in which you installed Oracle CEP (such as /oracle_home
).
prompt> wlevsmissioncontrol.cmd
The Mission Control workspace appears as shown in Figure 6-5.
Figure 6-5 JRockit Mission Control Workspace
Click the Create New JVM Connection button.
The JVM Connection dialog appears as Figure 6-6 shows.
Figure 6-6 JRockit Mission Control JVM Connection Dialog
Configure the JVM Connection dialog as Table 6-8 describes.
Table 6-8 JConsole New Connection Attributes
Attribute | Description |
---|---|
|
Select Custom JMX service URL. |
|
Enter the following URL: service:jmx:msarmi://HOST-NAME:9002/jndi/jmxconnector
Where |
|
Enter an Oracle CEP administration password. Default: wlevs. |
|
Enter the password for the Oracle CEP administration password you chose. Default: wlevs. |
|
The name for this connection as shown in the Connectors folder of the JRockit Mission Control navigator. |
Click Finish.
JRockit Mission Control connects to the Oracle CEP JMX server.
Click Start Up Console.
The JRockit Mission Control workspace console opens as Figure 6-7 shows.
Click the MBean Browser tab.
The JRockit Mission Control workspace MBean browser provides access to Oracle CEP MBeans as Figure 6-7 shows.
Figure 6-7 JRockit Mission Control MBean Browser
