Oracle provides all of the JSP tag libraries, schemas, and base Java classes that you need to develop a console extension. Because an Administration Console extension is a collection of XML files, Java classes, JSPs, and other standard Web-related resources, you can use any text editor or Integrated Development Environment to develop your extension.
The following sections describe setting up an environment for developing Administration Console extensions:
If you are creating Apache Struts classes or Beehive Page Flow classes for your extension, you need a set of Apache classes in your classpath. If you are adding nodes to the NavTreePortlet, you need a set of Oracle classes.
To add these classes to your classpath, run the following script:
WL_HOME\server\bin\setWLSEnv.cmd
or
WL_HOME\server\bin\setWLSEnv.sh
where WL_HOME
is the directory in which you installed WebLogic Server.
Instead of using Oracle's script, you can add to your environment's classpath all of the JAR files in the WL_HOME
/server/lib/consoleapp/webapp/WEB-INF/lib
directory.
If you are using Oracle's JSP templates to create JSPs in your extension, you must use JSP tags from the JSP Standard Tag Library (JSTL), the Oracle Administration Console Extension Tag Library, and the Apache Beehive Page Flows Tag Library.
WebLogic Server installs a version of these tag libraries, which you can make available to your IDE. Alternatively, you can download your own copy of these standard tag libraries. For more information, see JSP Templates and Tag Libraries.
An Administration Console extension is a portion of a Web application and its resources must be organized into a directory structure that satisfies the requirements for standard Java EE Web applications. In addition, the WebLogic Portal framework, Apache Struts, and Apache Beehive require configuration files to be in specific locations.
To start working on your Administration Console extension, create a directory tree that matches the skeletal structure in Table 3-1.
Table 3-1 Directory Tree for an Administration Console Extension
Directory | Description |
---|---|
root-dir
|
The root directory of your extension. Oracle recommends that you do not create files in this directory. The name of the directory has no programmatic significance. Choose a name that is meaningful to you. When specifying URIs in your extension, the " |
root-dir/WEB-INF
|
This directory must contain a file named If you use Apache Struts, you must locate your Struts configuration file in this directory. |
root-dir/WEB-INF/classes
|
If your extension uses a message bundle, your properties files must be in this directory. If your extension uses custom classes, your package structure must start in this directory. For example, if you packaged your class files in a package named |
(optional) root-dir/WEB-INF/src
|
If your extension uses custom classes, Oracle recommends that you save your pre-compiled Java source files in a package structure that starts in this directory. When you archive your extension, you do not include this |
(recommended) root-dir/ext_jsp
|
Oracle recommends that you save all of your extension's JSP files below a directory named Creating a separate directory for your JSPs shields content developers from needing to learn about other support files such as the Portal framework XML files. If your extension contains many JSPs, consider creating subdirectories below If you follow this recommendation, URIs for your JSPs will start with The directory named |
(recommended) root-dir/controls
|
Oracle recommends that you save all of your extension's portal book files ( If your extension contains many books or pages, consider creating subdirectories below If you follow this recommendation, URIs for your books or pages will start with |
(recommended) root-dir/portlets
|
Oracle recommends that you save all of your extension's portlet files ( If your extension contains many portlets, consider creating subdirectories below If you follow this recommendation, URIs for your portlets will start with |
If you are extending the Administration Console's Look and Feel, your root directory will contain additional subdirectories. See Chapter 5, "Rebranding the Administration Console."
WebLogic Server provides a configuration option for displaying the labels of the Administration Console's extension points. You use these labels to specify where you want your extension to display. To display these labels:
In the Administration Console toolbar, click Preferences.
Select the Extensions tab.
Select Show Definition Labels.
Click Save.
A field is displayed over each labeled control on the page. The field displays the value of the control's definitionLabel
, prefixed by Book:
or Label:
to indicate whether it is a book or a label. See Figure 3-1.

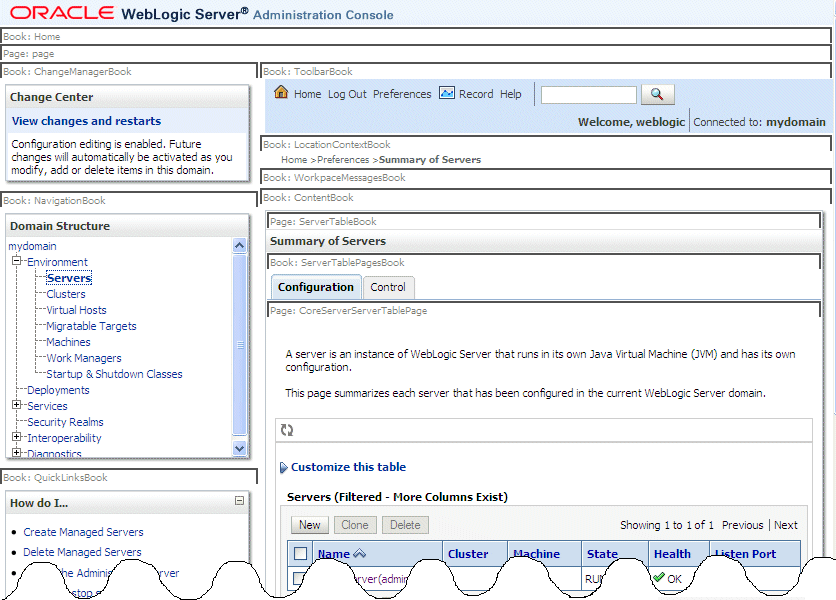

Figure 3-1 Control Labels in the Administration Console User Interface
