A Configuring J.D. Edwards OneWorld for Outbound and Inbound Processing

Modifying the JDE.INI File for Outbound and Inbound Processing

This section describes the settings that are required in the JDE.INI file for the XML call object kernel (outbound and inbound processing).

Open the JDE.INI file and modify the [JDENET_KERNEL_DEF6] and [JDENET_KERNEL_DEF15] sections as follows:

[JDENET_KERNEL_DEF6]krnlName=CALL OBJECT KERNELdispatchDLLName=XMLCallObj.dlldispatchDLLFunction=_XMLTransactionDispatch@28maxNumberOfProcesses=1numberOfAutoStartProcesses=1

[JDENET_KERNEL_DEF15]krnlName=XML TRANSACTION KERNELdispatchDLLName=XMLTransactions.dlldispatchDLLFunction=_XMLTransactionDispatch@28maxNumberOfProcesses=1numberOfAutoStartProcesses=1

The parameters containing an underscore (_) and @28 are for Windows NT operating systems only. For other operating systems, replace the parameters with the values in the following table:

Using the GenJava Development Tool (Outbound Processing)

This section describes how to use the GenJava development tool, which is used to create Java wrappers for accessing the J.D. Edwards business functions. The Oracle Application Adapter for J.D. Edwards OneWorld uses these wrappers to call the J.D. Edwards business functions.

J.D. Edwards provides a Java Generation tool called GenJava that you can use to expose J.D. Edwards business functions externally as Java class files. A J.D. Edwards system administrator usually runs the GenJava tool.

During GenJava operation, you must specify a library of business functions, for example CALLBSFN. GenJava creates the associated Java class files for the business functions and related data structures. GenJava also compiles the business functions, generates Java documents, and packages them into two .JAR files. One .JAR file contains Java classes and the second .JAR file contains Java documents.

For example, if the business function library you specified in GenJava is CALLBSFN, the following files are found in the <install>\system\classes directory or any user-specified directory redirected by GenJava:

• JDEJAVA_CALLBSFN.xml

• JDEJAVA_CALLBSFNInterop.jar

• JDEJAVA_CALLBSFNInteropDoc.jar

Once they are generated, these library files must be added to the CLASSPATH.

GenJava also provides access to J.D. Edwards business functions by generating pure Java interfaces for these business functions. GenJava can be generated from a thick client or a deployment server.

Running GenJava

GenJava is located in the <install>\system\bin32 directory. You run GenJava from the command line. There are two GenJava command options that can be used to generate the wrappers.

GenJava Command Option 1

The following command generates Java wrappers for Category 1 (Master Business Functions), Category 2 (Major Business Functions), Category 3 (Minor Business Functions), and Category - (Uncategorized Business Functions) in the CALLBSFN library:

GenJava /Cat 1 /Cat 2 /Cat 3 /Cat - CALLBSFN

GenJava Command Option 2

The GenJava command can also be run with a JDEScript file and prompts a J.D. Edwards log on window, where you must enter a valid user ID, password, and environment.

1. Using an editor, create a new file called AddressBook.cmd and enter the following commands:

   define library CALLBSFNloginlibrary CALLBSFNinterface AddressBookimport B0100031import B0100019import B0100032import B0100002import B0100033buildlogout


2. Run the following GenJava command:

   GenJava /cmd .\AddressBook.cmd


3. GenJava generates the wrappers (CALLBSFNInterop.jar, CALLBSFNInteropDoc.jar, and CALLBSFN.xml) in Java for all business functions that are mentioned in the script file.

Triggering J.D. Edwards OneWorld Events

The flow of inbound data to third parties is controlled through the Data Export Controls application. For each transaction type and order type, one or more records can be defined with different function names and libraries.

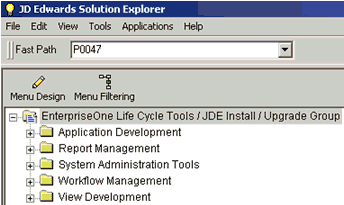

1. Type P0047 in the Fast Path field and press Enter.


   Description of the illustration jde_outbound1.gif

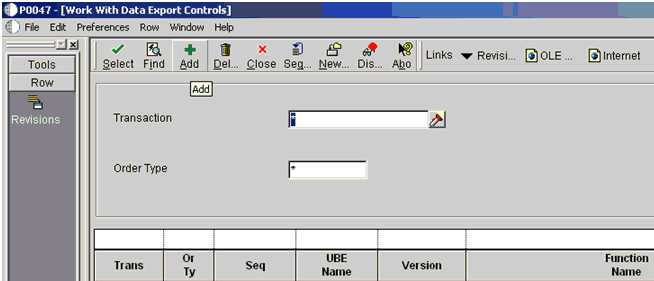

   The Work With Data Export Controls window opens.


   Description of the illustration jde_outbound2.gif



2. Click Add.

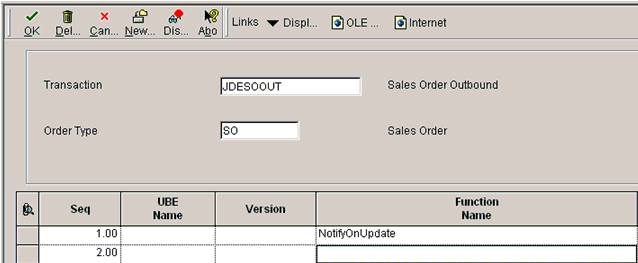

   The Data Export Control Revisions window opens. Notice that the sequence (Seq) number automatically increments for each new line.


   Description of the illustration jde_outbound3.gif



3. Perform the following steps:

   1. Type JDESOOUT in the Transaction field.

   2. Type SO in the Order Type field.

   3. Type NotifyOnUpdate in the first row of the Function Name column.

   4. Type the absolute path to the location of the iwoevent.dll file in the first row of the Function Library column, for example:

      D:\JDEdwards\E812\DDP\Outbound\iwoevent.dll


   5. Type 1 in the first row of the Execute for Add column if you want the notifications for add/insert.

   6. Make the same decision for update, delete, and inquiry and type 1 in the appropriate column.

   7. Type 1 in the Launch Immediately column to launch the Outbound Subsystem batch process (R00460).

4. Click OK.


   Description of the illustration jde_outbound4.gif



Starting the Outbound Scheduler Subsystem Process (R00460)

Once you have finished defining one or more records for each transaction type and order type, you must manually start the outbound scheduler subsystem process.

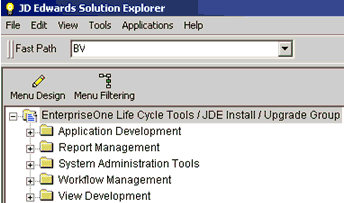

1. Type BV in the Fast Path field and press Enter.


   Description of the illustration jde_outbound5.gif



   The Work With Batch Versions - Available Versions window opens.


   Description of the illustration jde_outbound6.gif

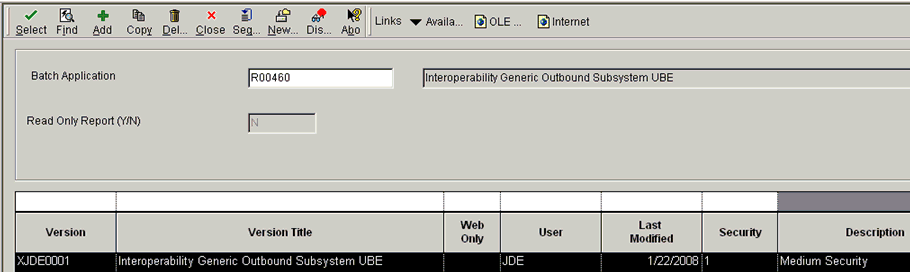

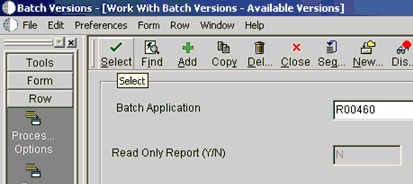

2. Type R00460 in the Batch Application field and click Find.


   Description of the illustration jde_outbound7.gif



3. Select Interoperability Generic Outbound Subsystem UBE (XJDE0001) and click Select.

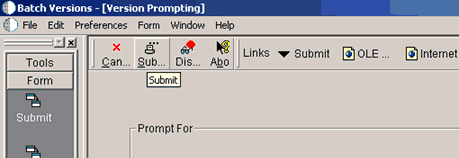

   The Version Prompting window opens.


   Description of the illustration jde_outbound8.gif

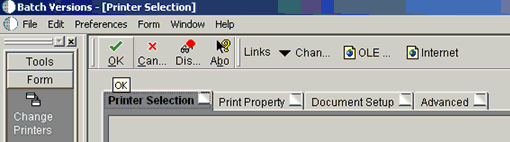

4. Click Submit.


   Description of the illustration jde_outbound9.gif



5. Navigate to the last screen and click OK.

Verifying the Subsystem Process

This section describes how to verify the outbound scheduler subsystem processs.

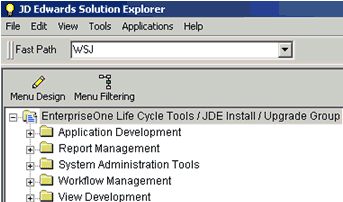

1. Type WSJ in the Fast Path field and press Enter.


   Description of the illustration jde_outbound10a.gif

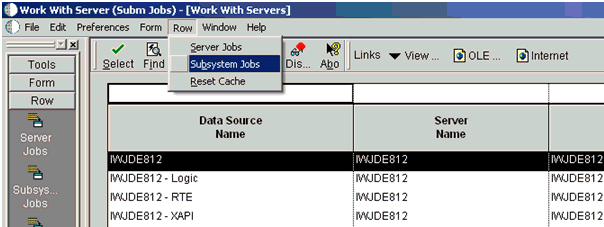

   The Work With Server (Subm Jobs) window opens.


   Description of the illustration jde_outbound11a.gif



2. Select a corresponding server from the table.

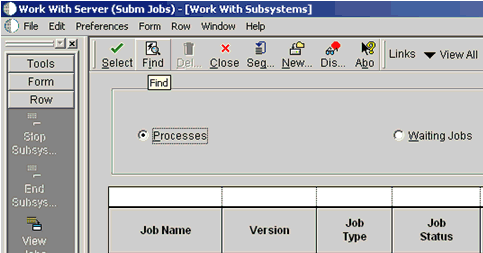

3. Click Row from the menu bar and select Subsystem Jobs.


   Description of the illustration jde_outbound10.gif



4. Click Find.

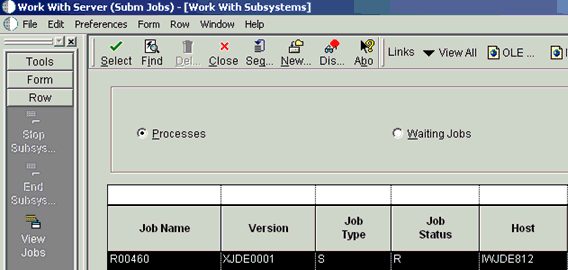

   Description of the illustration jde_outbound11.gif



5. Verify that R is listed in the Job Status column.

Configuring P4210 (Sales Order) to Trigger an Event

This section describes how to configure a P4210 (Sales Order) to trigger an event.

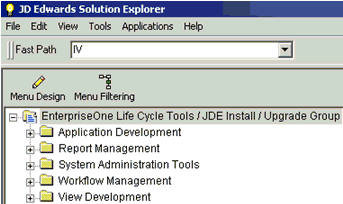

1. Type IV in the Fast Path field and press Enter.


   Description of the illustration jde_outbound12.gif

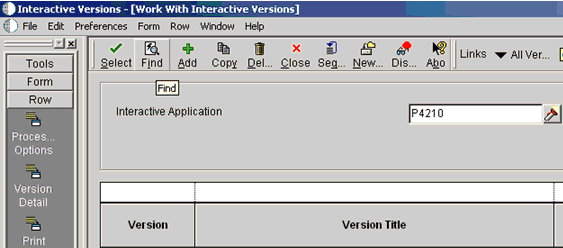

   The Interactive Versions window opens.


   Description of the illustration jde_outbound13.gif

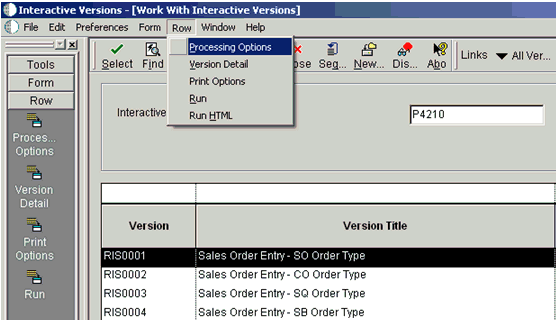

2. Type P4210 in the Interactive Application field and click Find.


   Description of the illustration jde_outbound14.gif



3. Select a document version from the table, for example, RIS0001 - Sales Order Entry - SO Order Type.

4. Click Row from the menu bar and select Processing Options.

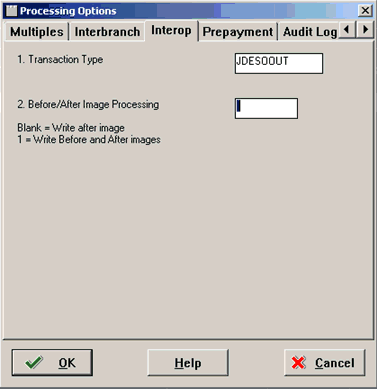

   The Processing Options dialog opens.


   Description of the illustration jde_outbound16.gif



5. Click the Interop tab.

6. Type JDESOOUT in the Transaction Type field.

7. Add Sales Order.

Verifying the Configuration Steps

This section describes how to verify the configuration steps by updating F0046.

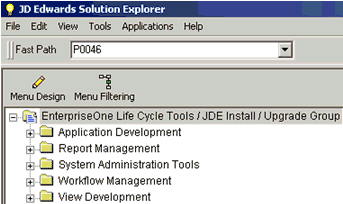

1. Type P0046 in the Fast Path field and press Enter.


   Description of the illustration jde_outbound17.gif

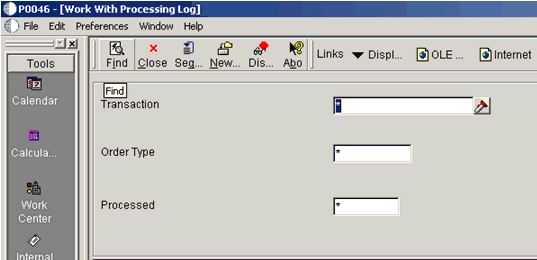

   The P0046 - Work With Processing Log window opens.


   Description of the illustration jde_outbound18.gif



2. Click Find.

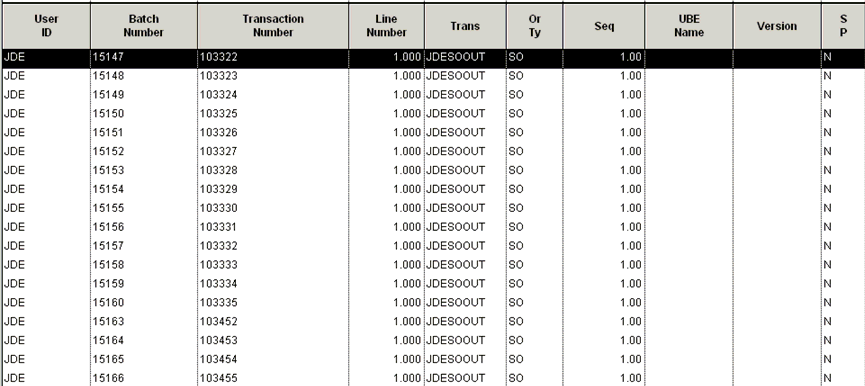

   The following data is displayed.


   Description of the illustration jde_outbound19.gif



3. Search for the corresponding transaction.

   The iwoevnt.log file is created in the following directory:

   \\iwJDE812\JDEdwards\E812\DDP\system\bin32


   The iwoevent.log file is created in the outbound folder where the iwoevent.dll and iwoevent.cfg files are located. The following is an example of the event log file:

   Event call begin...Server time      : Tue May 27 07:23:55 2008userId           : JDE       batchNumber      : 15205          transactionNumber: 103494                lineNumber       : 1.000000transactionType  : JDESOOUTsequenceNumber   : 1.000000Request xml:========================<? xml version="1.0" encoding="UTF-8"?><jde><request><connection><dsn /><user /><password /><sp><proc>JDESOOUT</proc><data><ediUserId>JDE       </ediUserId><ediBatchNumber>15205          </ediBatchNumber><ediTransactionNumber>103494                </ediTransactionNumber></data></sp></connection></request></jde>========================
