3 Configuring Oracle BI to use Oracle Internet Directory

3.2.1.1 How to Configure Oracle Business Intelligence to use Oracle Internet Directory as an Authentication Provider

You perform this task to reconfigure your installation to use OID instead of the default Oracle WebLogic Administration Server.

To configure the OID authentication provider:

Note: MyOIDDirectory is used to represent the Oracle Internet Directory in the following procedure.

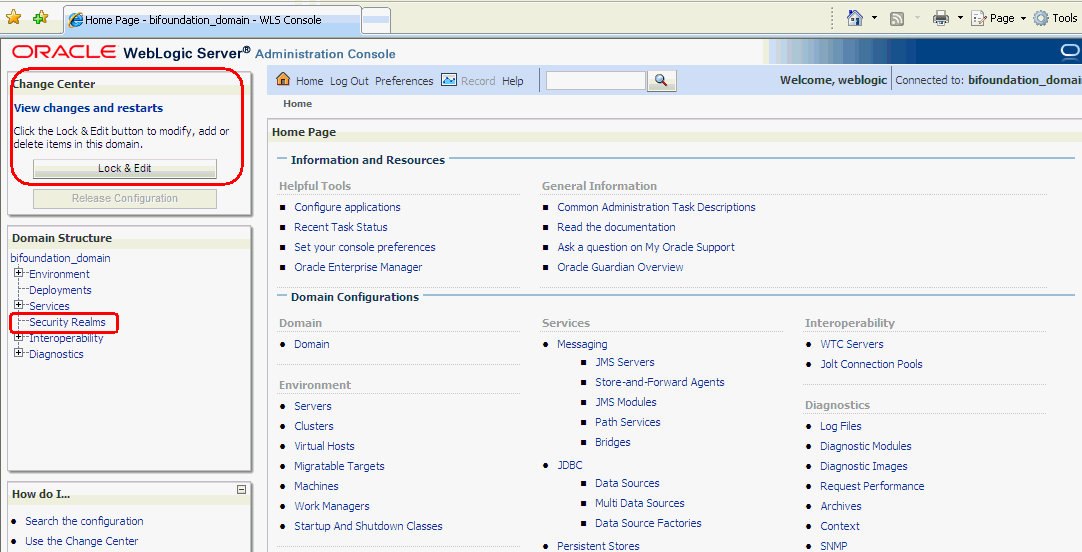

1. In Oracle WebLogic Server Administration Console, click Lock & Edit in the Change Center.


   Description of the illustration wls01.gif



2. Select Security Realms from the left pane and click myrealm.

   The default Security Realm is named myrealm.

3. Display the Providers tab, then display the Authentication sub-tab.

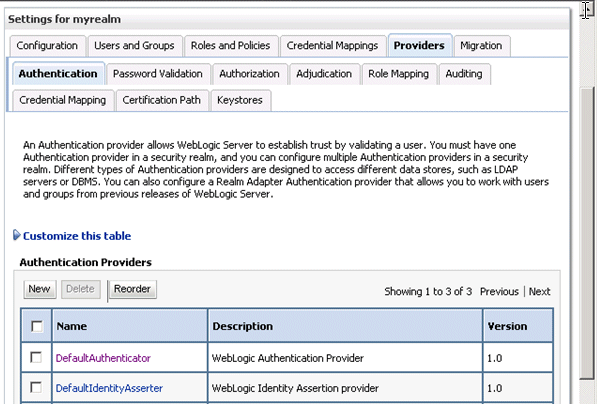

   Description of the illustration wls03.gif

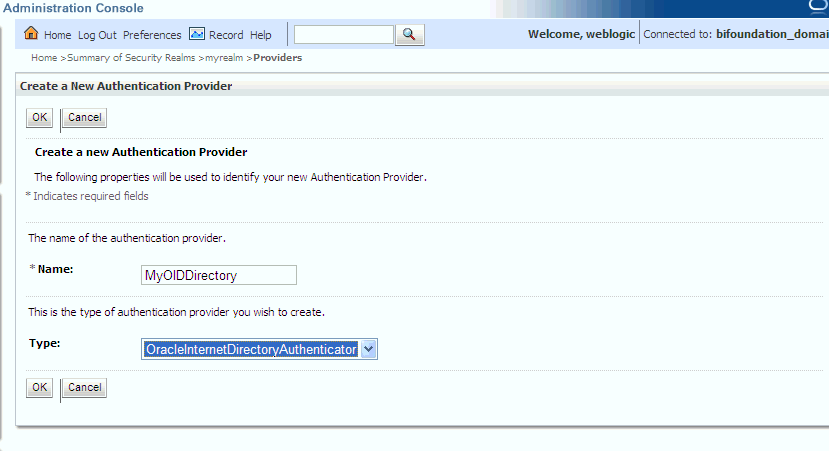

4. Click New to launch the Create a New Authentication Provider page.


   Description of the illustration wls04.gif



5. Enter values in the Create a New Authentication Provider page as follows:

   • Name: Enter a name for the authentication provider. For example, MyOIDDirectory.

   • Type: Select OracleInternetDirectoryAuthenticator from the list.

   • Click OK to save the changes and display the Authentication Providers list updated with the new Authentication Provider.

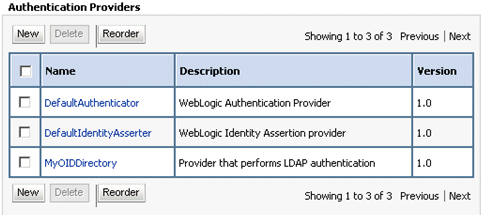

     Description of the illustration wls07.gif

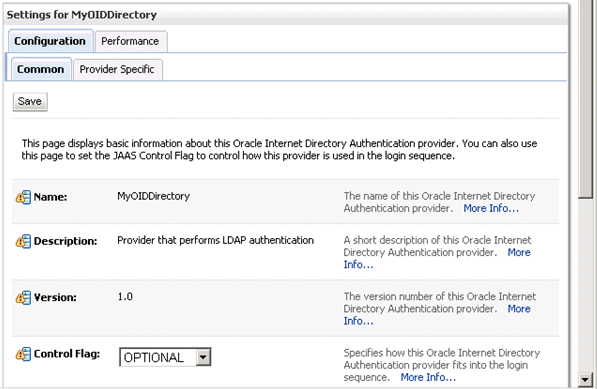

6. Click the new Authenticator Provider in the Name column to display the Settings for <Authentication Provider Name> page.

   For example, click MyOIDDirectory.


   Description of the illustration wls08.gif

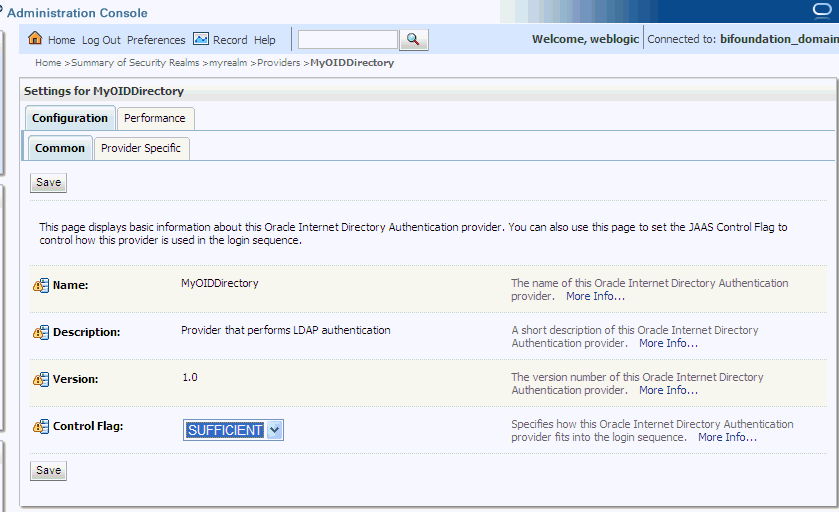

7. Display the Configuration\Common tab, and use the Control Flag drop down list to select 'SUFFICIENT', then click Save.


   Description of the illustration wls05.gif

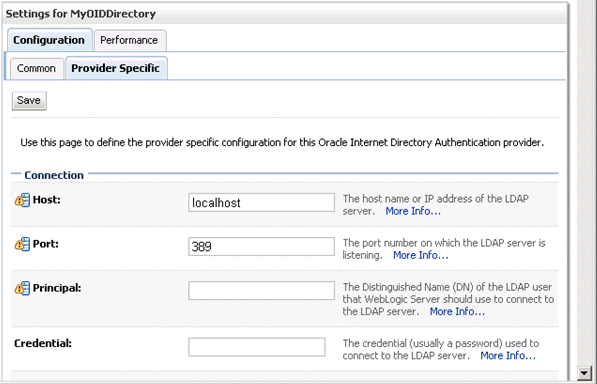

8. Display the Provider Specific tab.


   Description of the illustration wls09.gif



9. Use the Provider Specific tab to specify the details listed in the table below.

   Section Name	Field Name	Description
   Connection	Host	The host name of the Oracle Internet Directory server.
   	Port	The port number on which the Oracle Internet Directory server is listening.
   	Principal	The distinquished name (DN) of the Oracle Internet Directory user to be used to connect to the Oracle Internet Directory server. For example: cn=OIDUser,cn=users,dc=us,dc=mycompany,dc=com.
   	Credential	Password for the Oracle Internet Directory user entered as the Principal.
   Groups	Group Base DN	The base distinguished name (DN) of the Oracle Internet Directory server tree that contains groups.
   Users	User Base DN	The base distinguished name (DN) of the Oracle Internet Directory server tree that contains users.
   	All Users Filter	LDAP search filter. Click More Info... for details.
   	User From Name Filter	LDAP search filter. Click More Info... for details.
   	User Name Attribute	The attribute that you want to use to authenticate (for example, cn, uid, or mail). For example, to authenticate using a User's email address you set this value to 'mail'. Note: The value that you specify here must match the User Name Attribute that you are using in the Authentication Provider, as described in the next task Section 3.2.1.2, "How to Configure the User Name Attribute in the Identity Store".

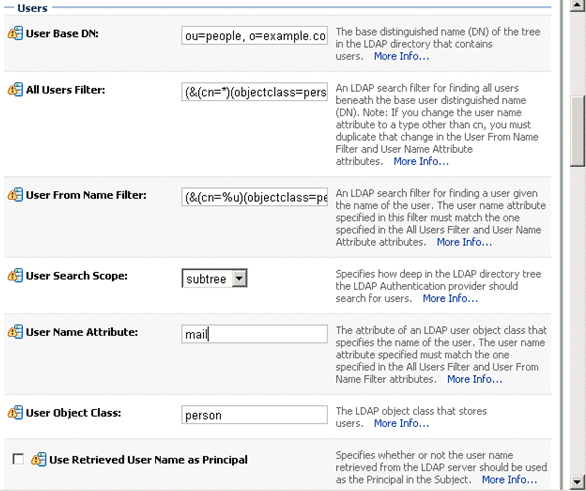

   The screenshot below shows the Users area of the Provider Specific tab.


   Description of the illustration wls10.gif



10. Click Save.

11. At the main Settings for myrealm page, display the Providers tab, then display the Authentication sub-tab.


    Description of the illustration wls07.gif



12. Click Reorder. to display the Reorder Authentication Providers page.

13. Select the name of the Oracle Internet Directory authentication provider (for example, MyOIDDirectory) and use the arrow buttons to move it into the first position in the list, then click OK.

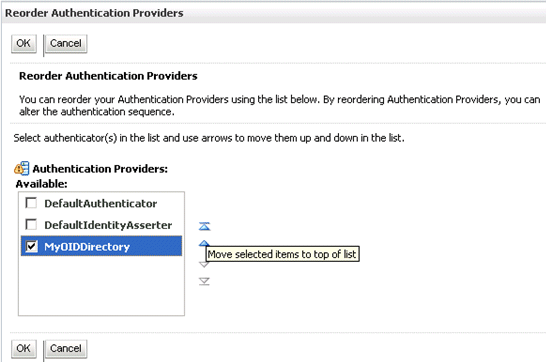

    Description of the illustration wls11.gif



    The screenshot below shows the re-ordered list of Authentication Providers.

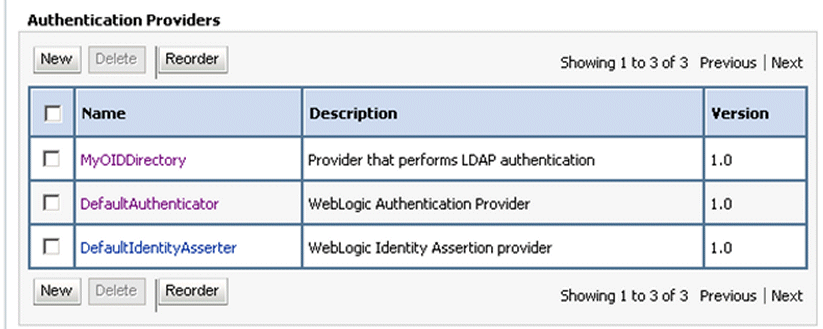

    Description of the illustration oid23_crop.gif



14. Click DefaultAuthenticator in the Name column to display the Settings for DefaultAuthenticator page.

15. Display the Configuration\Common tab, and use the Control Flag drop down list to select 'SUFFICIENT', then click Save.

3.2.1.2 How to Configure the User Name Attribute in the Identity Store

If you configure a different Authentication Provider such as OID, then you must ensure that the User Name Attribute that you use in the Identity Store matches the User Name Attribute that you use in the Authentication Provider.

For example, to authenticate using a User's email address you might set the User Name Attribute to 'mail' in both the Identity Store and the Authentication Provider.

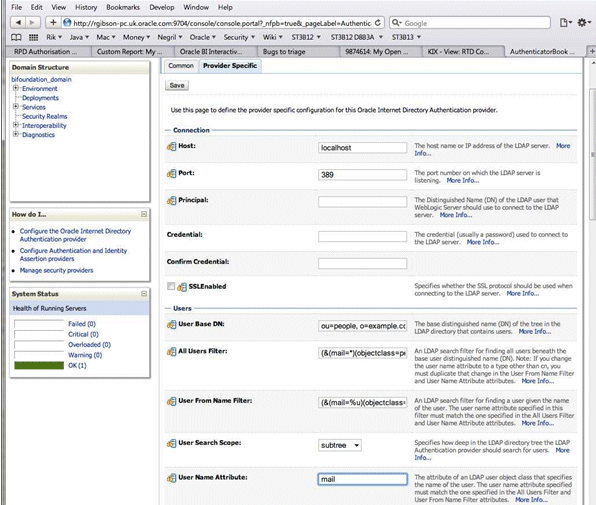

The screenshot below shows an example where the User Name Attribute in OID Authenticator has been set to 'mail'.

To configure the User Name Attribute:

1. In Oracle Enterprise Manager - Fusion Middleware Control, navigate to \Weblogic domain\bifoundation_domain in the navigation pane.

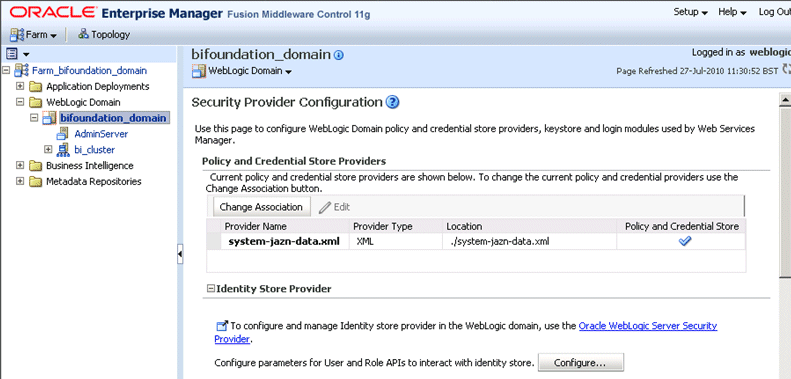

2. Right-click bifoundation_domain and select Security, then Security Provider Configuration to display the Security Provider Configuration page.

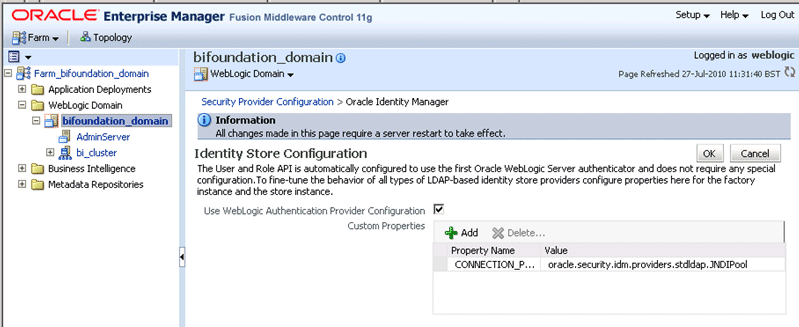

3. In the Identity Store Provider area, click Configure to display the Identity Store Configuration page.




4. In the Custom Properties area, use the Add option to add the following two Custom Properties:

   Table 3-2 Custom Properties

   Property Name	Value
   user.login.attr	Specify the User Name Attribute that is set in the Authentication Provider. For example, if the User Name Attribute is set to 'mail' in the Authentication Provider, then set this value to 'mail'.
   username.attr	Specify the User Name Attribute that is set in the Authentication Provider. For example, if the User Name Attribute is set to 'mail' in the Authentication Provider, then set this value to 'mail'.

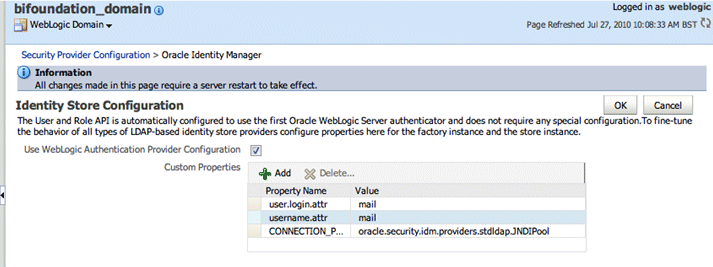

   The screenshot below shows an example set of Custom Properties with the User Name Attribute set to 'mail'.




5. Click OK to save the changes.

6. Restart the Admin Server.

Note: Ensure that the Users and Groups in OID are displayed in WebLogic Console, as described in step 3 in Section 3.2.1, "How to Configure Oracle Internet Directory as an Authentication Store Provider".

3.2.1.3 Configure a New Trusted User (BISystemUser)

Oracle Business Intelligence uses a specific user for the configured authentication provider for internal communication. If you configure Oracle BI to use an OID authentication provider, then you must select a user from OID to use for this purpose and give that user the required permissions. You can create a new user in OID for this purpose or use a pre-existing user. You give the chosen user the permission they need by making them a member of the pre-existing BISystem Application Role.

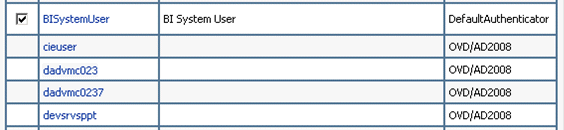

Pre-requisite: Delete the default 'BISystemUser' from the realm myrealm. Display the Settings for myrealm page, display the Users and Groups tab, then the Users sub-tab, and delete the user named BISystemUser with DefaultAuthenticator in the Provider column of the table (see example screenshot below).

To create a new trusted user account with a user in OID:

1. In Oracle Internet Directory, create a user for the trusted user.

   Best practice is to name this trusted user BISystemUser to clarify its purpose, but you might choose any name you want.

   When you are finished, the Users table in Oracle WebLogic Server Administration Console should resemble the screenshot below.

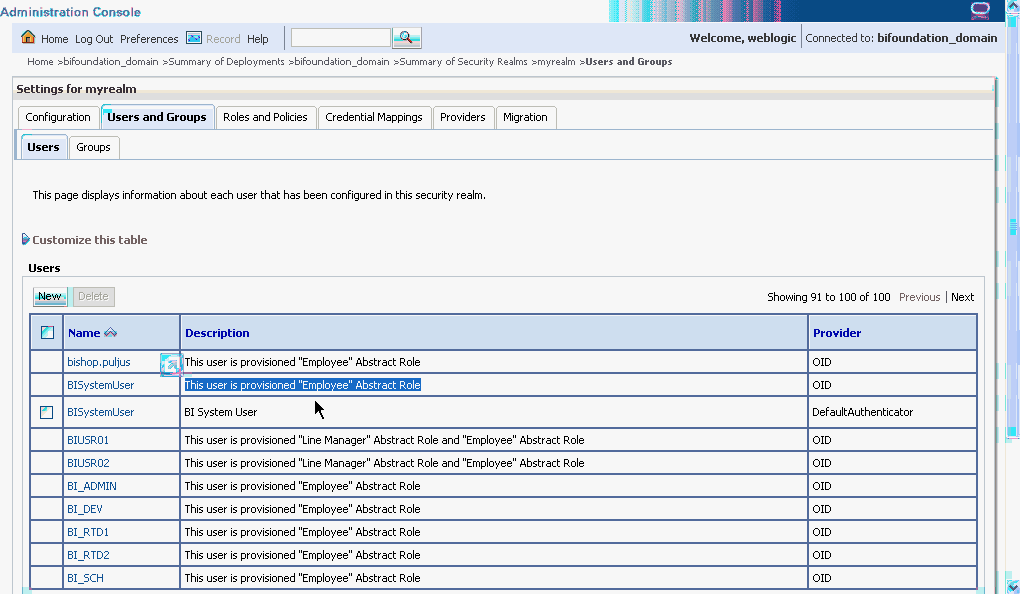

   Description of the illustration oid08gif.gif



   Next you must make the new trusted user a member of the BISystem Application Role.

2. In Fusion Middleware Control target navigation pane, go to the Oracle WebLogic Server domain in which Oracle Business Intelligence is installed. For example, bifoundation_domain.

3. Go to the Application Roles page in Fusion Middleware Control.

4. In the Select Application Stripe to Search list, select obi from the list. Click the search arrow to the right of the Role Name field.

   The Oracle Business Intelligence Application Roles are displayed and should resemble the screenshot below.

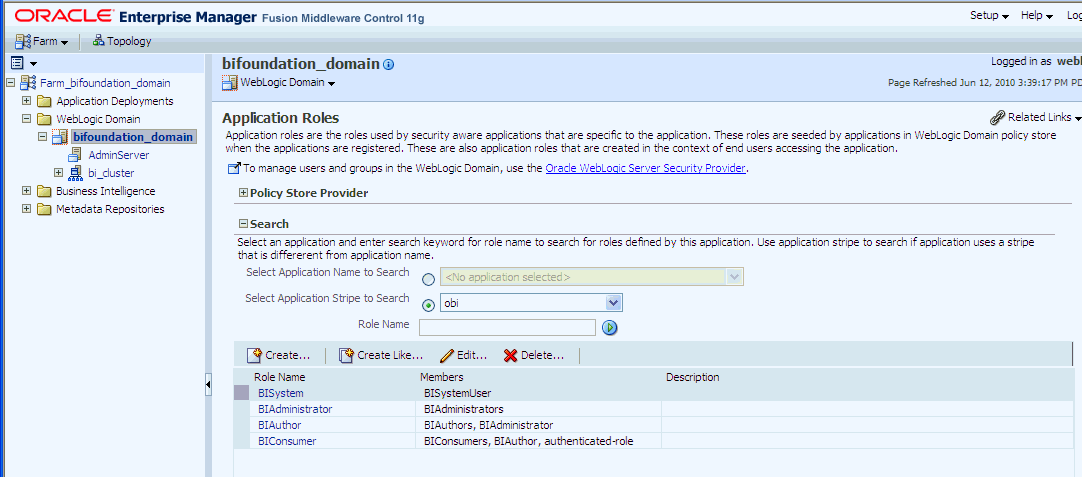

   Description of the illustration bisystem_edit.gif



5. Select the BISystem Application Role and click Edit.

6. In the Edit Application Role page, click Add User.

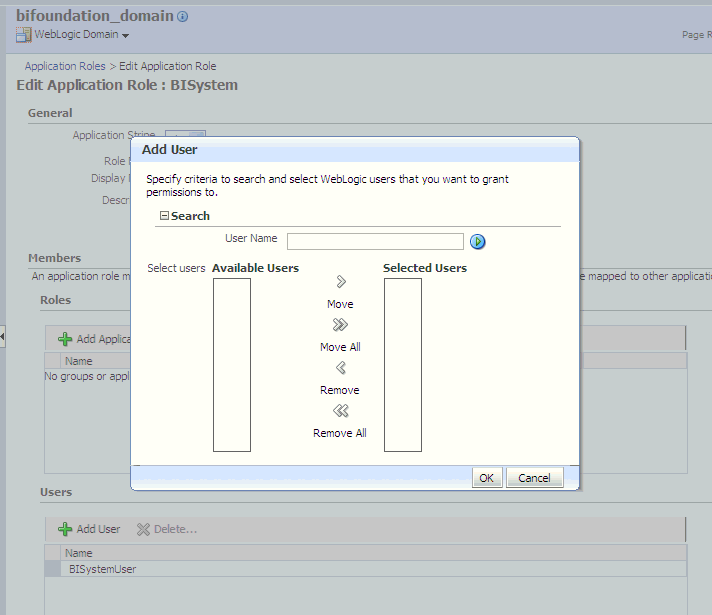

7. In the Add User dialog, search for the trusted user created in Oracle Internet Directory. Use the shuttle controls to move the trusted user name (BISystemUser) from the Available Users list to the Selected Users list.


   Description of the illustration bisystem_edit02.gif



8. Click OK.

   The trusted user (BISystemUser) contained in Oracle Internet Directory is now a member of the BISystem Application Role.

   Next add the trusted user's credentials to the oracle.bi.system credential map.

9. From Fusion Middleware Control target navigation pane, expand the farm, then expand WebLogic Domain, and select bifoundation_domain.

   • From the WebLogic Domain menu, select Security, then Credentials.

   • Open the oracle.bi.system credential map, select system.user and click Edit.

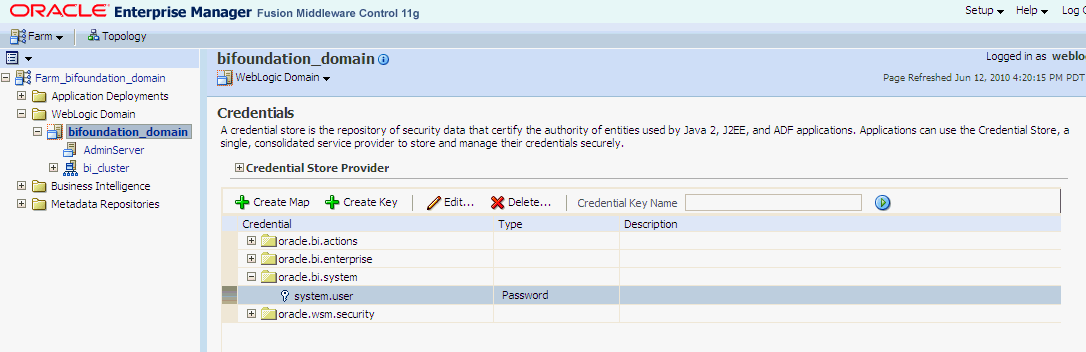

     Description of the illustration bisystem_cred.gif



   • In the Edit Key dialog, enter BISystemUser (or name you selected) in the User Name field. In the Password field, enter the trusted user's password that is contained in Oracle Internet Directory.

   • Click OK.

10. In WebLogic Console, click myrealm to display the Settings for <Realm> page, display the Roles and Policies tab, and add the new System user to the Global 'Admin Role'.

11. Start the Managed Servers.

The new trusted user from Oracle Internet Directory is configured for Oracle Business Intelligence

3.2.1.4 Refresh the User GUIDs

If you change the directory server used as the identity store for the authentication provider, then you must refresh the user GUIDs as described below. If you do not refresh the GUIDs and the same user name exists in both directory servers (original and new), then the original user GUID might conflict with the user GUID contained in new directory server, resulting in authentication errors.

To refresh the user GUIDs:

This task requires that you manually edit the configuration files to instruct Oracle BI Server and Oracle BI Presentation Server to refresh the GUIDs on restart. Once completed, you edit these files to remove the modification. For information about where to locate Oracle Business Intelligence configuration files, see "Where Configuration Files are Located" in Oracle Fusion Middleware System Administrator's Guide for Oracle Business Intelligence Enterprise Edition.

1. Update the FMW_UPDATE_ROLE_AND_USER_REF_GUIDS parameter in NQSConfig.INI:

   1. Open NQSConfig.INI for editing at:

      ORACLE_INSTANCE/config/OracleBIServerComponent/coreapplication_obisn


   2. Locate the FMW_UPDATE_ROLE_AND_USER_REF_GUIDS parameter and set it to YES, as follows:

      FMW_UPDATE_ROLE_AND_USER_REF_GUIDS = YES;


   3. Save and close the file.

2. Update the ps:Catalog element in instanceconfig.xml:

   1. Open instanceconfig.xml for editing at:

      ORACLE_INSTANCE/config/OracleBIPresentationServicesComponent/
      coreapplication_obipsn


   2. Locate the ps:Catalog element and update it as follows:

      <ps:Catalog xmlns:ps="oracle.bi.presentation.services/config/v1.1">
      <ps:UpgradeAndExit>false</ps:UpgradeAndExit>
      <ps:UpdateAccountGUIDs>UpdateAndExit</ps:UpdateAccountGUIDs>
      </ps:Catalog>


   3. Save and close the file.

3. Start the Oracle Business Intelligence system components using opmnctl:

   cd ORACLE_BASE/admin/instancen/bin
   ./opmnctl startall


4. Set the FMW_UPDATE_ROLE_AND_USER_REF_GUIDS parameter in NQSConfig.INI back to NO.

   Important: You must perform this step to ensure that your system is secure.

5. Update the ps:Catalog element in instanceconfig.xml to remove the <ps:UpdateAccount GUIDs> entry.

6. Restart the Oracle Business Intelligence system components using opmnctl:

   cd ORACLE_BASE/admin/instancen/bin
   ./opmnctl stopall
   ./opmnctl startall
