A Oracle Data Integrator Installation Screens

This appendix contains images and descriptions for all of the Oracle Data Integrator installation screens and post-installation configuration screens:

Section A.1, "Welcome Screen"
Section A.2, "Select Installation Type Screen"
Section A.3, "Prerequisite Checks Screen"
Section A.4, "Specify Installation Location Screen"
Section A.5, "Repository Configuration Screen"
Section A.6, "Master Repository Screens"
Section A.7, "Supervisor User Details Screen"
Section A.8, "Specify Work Repository Details Screen"
Section A.9, "Specify Agent Details Screen"
Section A.10, "Specify Security Updates Screen"
Section A.11, "Installation Summary Screen"
Section A.12, "Installation Progress Screen"
Section A.13, "Configuration Progress Screen"
Section A.14, "Installation Completed Screen"

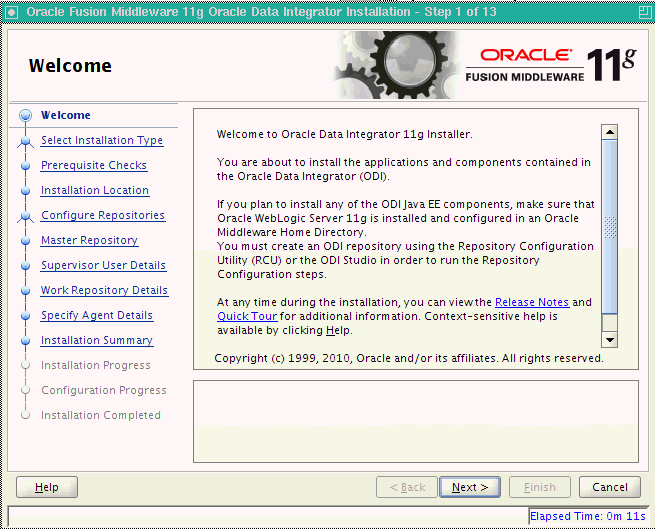

A.1 Welcome Screen

The Welcome screen is displayed each time you start the installer.

Before continuing, make sure that you have created the necessary schemas for the products you want to install, and that you have also installed and configured WebLogic Server. For more information, refer to Section 2.1, "Preparing to Install".

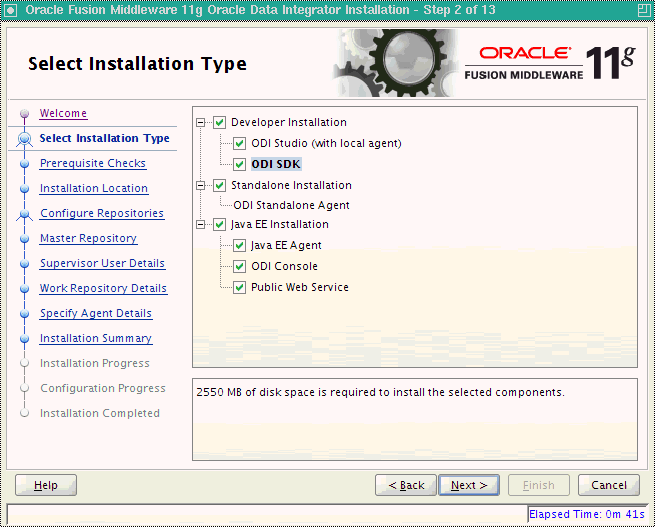

A.2 Select Installation Type Screen

Installation Type	Description
Developer Installation	This installation type includes the ODI Studio (with a local agent) and the Oracle Data Integrator Software Development Kit (SDK).
Standalone Installation	This installation type includes an Oracle Data Integrator standalone agent.
Java EE Installation	This installation type includes the Java EE agent, Oracle Data Integrator Console, and Public Web Services.

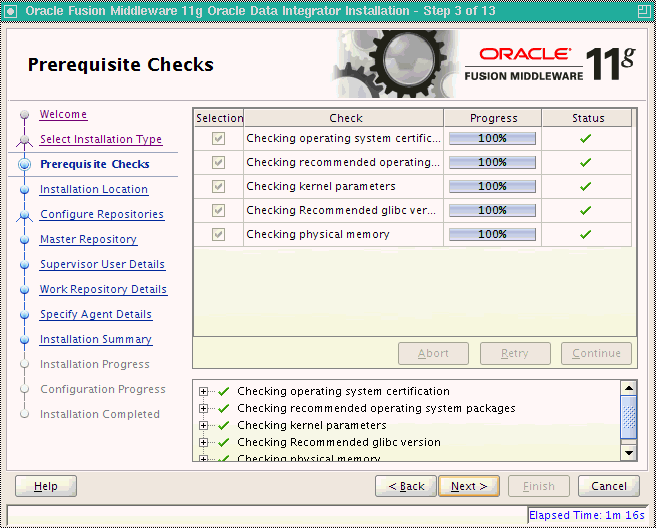

A.3 Prerequisite Checks Screen

If there is a problem, a short error message appears in the bottom portion of the screen. Fix the error and click Retry to try again.

If you want to ignore the errors or warnings and continue with the installation, click Continue.

Click Abort to stop prerequisite checking for all components.

A.4 Specify Installation Location Screen

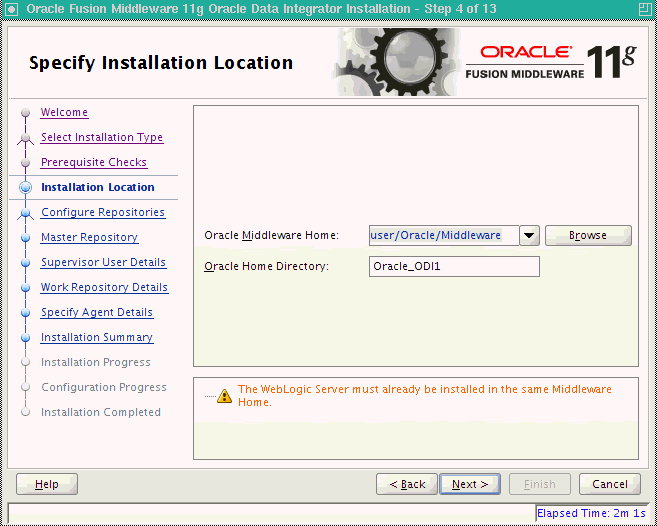

Figure A-1 Specify Installation Location Screen for Java EE Install Types

Element	Description
Oracle Middleware Home	In the Oracle Middleware Home field, specify the absolute path to your existing Oracle Middleware Home directory; this is the directory that was created when you installed Oracle WebLogic Server. If you do not know the full path to your Middleware Home, you can click Browse to select an existing directory in your system.
Oracle Home Directory	In the Oracle Home Directory field, specify a directory inside the Oracle Middleware Home. This Oracle Home Directory is the root directory where the ODI products will be installed. This is also known as the ODI_HOME directory. If you specify a directory that already exists, it must be either: An empty directory inside the Oracle Middleware Home (for example, you have created an empty directory inside the Middleware Home in advance of this installation and should specify the directory here). An existing Oracle home directory (for example, you are reinstalling ODI to an existing Oracle home because of an incomplete previous installation). NOTE: If you specify a new directory, it will be created inside the Oracle Middleware Home.

Element

Description

Oracle Middleware Home

In the Oracle Middleware Home field, specify the absolute path to your existing Oracle Middleware Home directory; this is the directory that was created when you installed Oracle WebLogic Server. If you do not know the full path to your Middleware Home, you can click Browse to select an existing directory in your system.

Oracle Home Directory

In the Oracle Home Directory field, specify a directory inside the Oracle Middleware Home. This Oracle Home Directory is the root directory where the ODI products will be installed. This is also known as the ODI_HOME directory.

If you specify a directory that already exists, it must be either:

An empty directory inside the Oracle Middleware Home (for example, you have created an empty directory inside the Middleware Home in advance of this installation and should specify the directory here).
An existing Oracle home directory (for example, you are reinstalling ODI to an existing Oracle home because of an incomplete previous installation).

NOTE: If you specify a new directory, it will be created inside the Oracle Middleware Home.

Click Next to continue.

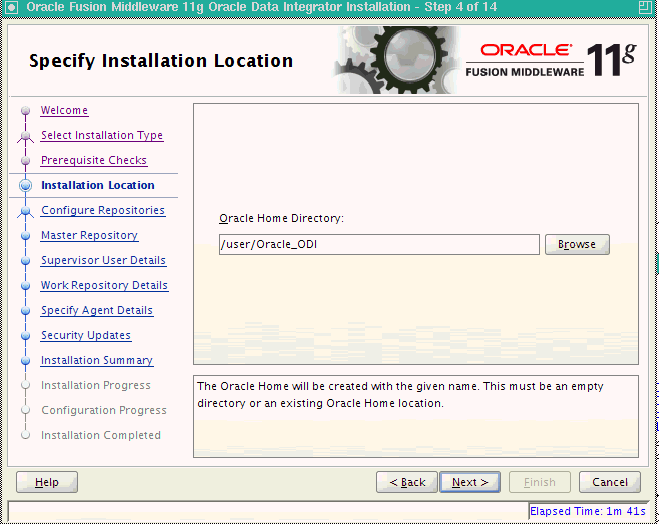

Figure A-2 Specify Installation Location Screen for Developer and Standalone Agent Install Type

Element	Description
Oracle Home Directory	Enter the absolute path for the Oracle home location.

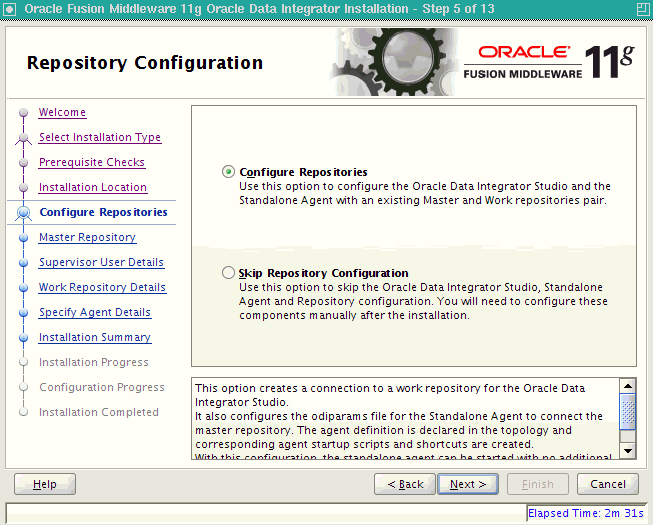

A.5 Repository Configuration Screen

Specify which repository configuration option you want to perform:

Option Description

Configure Repositories Select this option if you have existing 11g Master and Work Repositories.

Skip Repository Configuration

Option	Description
Configure Repositories	Select this option if you have existing 11g Master and Work Repositories.
Skip Repository Configuration	Select this option to continue with the Oracle Data Integrator installation without configuring the repositories. Once installed, you can use the Oracle Data Integrator Studio JDev Gallery to create or configure the repositories. Continue to Section A.11, "Installation Summary Screen". NOTE: Select Skip Repository Configuration if your database is not supported by Oracle's Repository Creation Utility (RCU). You will need to configure these components manually after the installation. For more information see Appendix G, "Creating Repositories with Oracle Data Integrator Studio". For a list of supported databases, see `http://www.oracle.com/technology/software/products/ias/files/fusion_requirements.htm`.

Select this option to continue with the Oracle Data Integrator installation without configuring the repositories. Once installed, you can use the Oracle Data Integrator Studio JDev Gallery to create or configure the repositories. Continue to Section A.11, "Installation Summary Screen".

NOTE: Select Skip Repository Configuration if your database is not supported by Oracle's Repository Creation Utility (RCU). You will need to configure these components manually after the installation. For more information see Appendix G, "Creating Repositories with Oracle Data Integrator Studio".

For a list of supported databases, see http://www.oracle.com/technology/software/products/ias/files/fusion_requirements.htm.

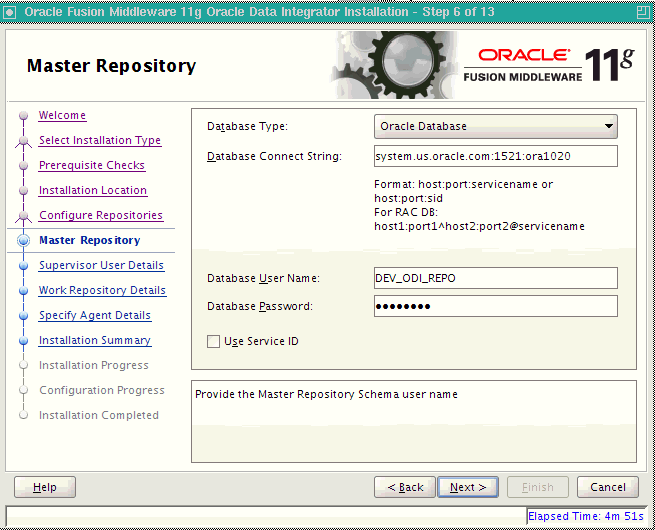

A.6 Master Repository Screens

Element	Description
Database Type	Select the database type that hosts the Oracle Data Integrator Master Repository.
Database Connect String	Enter the connect string for the database that contains the 11g ODI schemas. Oracle Database Use a JDBC connect string: host:port:SID For example: odiHost:1521:odiDB Or: //host:port/service For example: //odiHost:1521/odiDB2 Microsoft SQL Server Use the following connect string: //host:port;DatabaseName=dbname For example: //odiHost:1443;DatabaseName=odiDB IBM DB2 Use the following connect string: //host:port;DatabaseName=dbname NOTE: If your database is not supported by the Oracle Universal Installer, see Appendix F, "Manual Installation and Configuration Steps".
Database User Name	Provide the Master Repository schema user name.
Database Password	Provide the Master Repository schema password.
Use Service ID	Select Use Service ID, if you want to use the Service ID instead of the Service Name for Oracle database.

Click Next to continue.

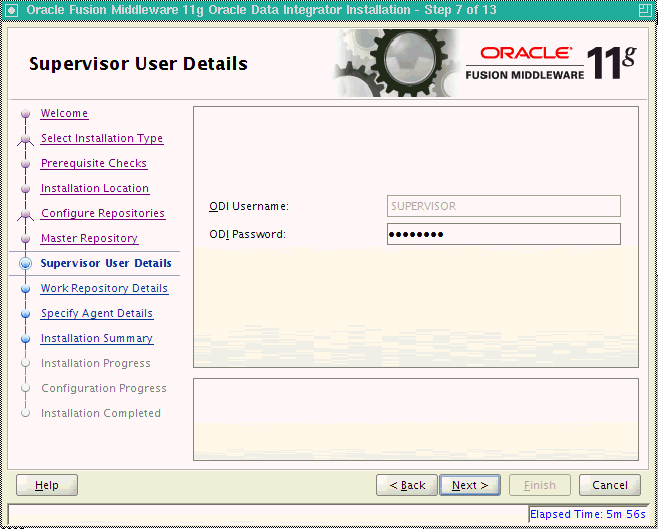

A.7 Supervisor User Details Screen

Element	Description
ODI Username	Provide the ODI username with Supervisor privileges.
ODI Password	Provide the Supervisor user's password.

Click Next to continue.

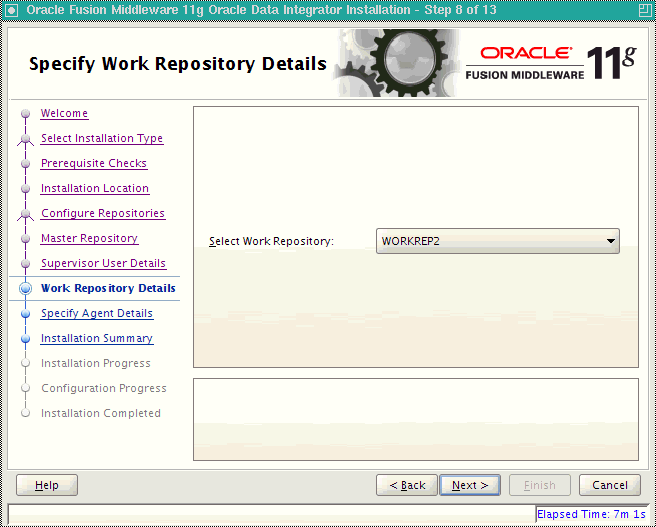

A.8 Specify Work Repository Details Screen

Element	Description
Select Work Repository	Select the Oracle Data Integrator Work Repository from the drop-down list.

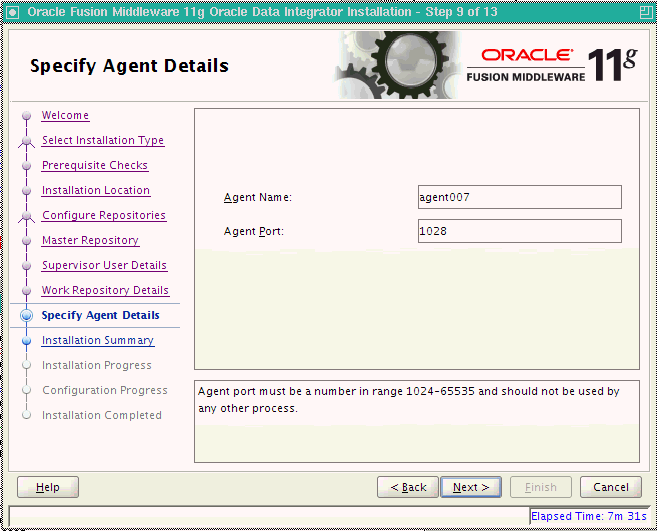

A.9 Specify Agent Details Screen

Element	Description
Agent Name	Provide a name for the standalone or local agent.
Agent Port	Provide a port number between 1024 and 65535 that is not currently being used by any other Oracle home. This port defaults to 20910.

Click Next to continue.

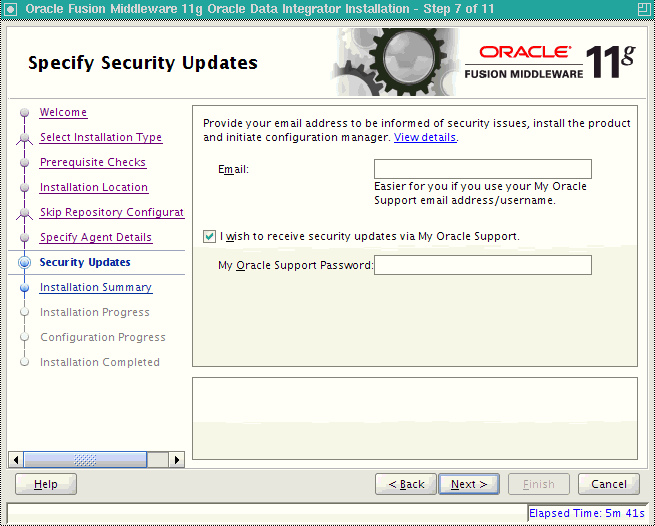

A.10 Specify Security Updates Screen

Element	Description
Email	Enter your E-mail address if you want to receive the latest product information and security updates.
My Oracle Support Password	If you have a My Oracle account and want to receive updates via this mechanism, select I wish to receive security updates via My Oracle Support, then enter your account password. If you do not want to register for Oracle Configuration Manager, leave all the fields on this screen blank. You will be prompted to confirm your selection. Click Yes to confirm that you do not want to register for security updates.

Element

Description

Enter your E-mail address if you want to receive the latest product information and security updates.

My Oracle Support Password

If you have a My Oracle account and want to receive updates via this mechanism, select I wish to receive security updates via My Oracle Support, then enter your account password.

If you do not want to register for Oracle Configuration Manager, leave all the fields on this screen blank. You will be prompted to confirm your selection. Click Yes to confirm that you do not want to register for security updates.

Click Next to continue.

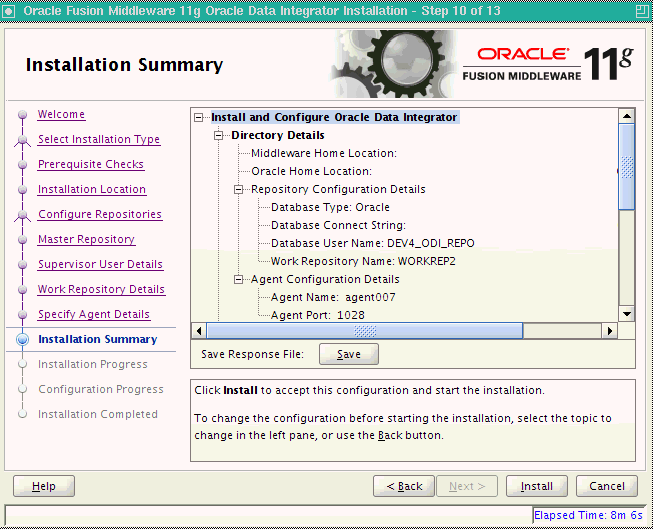

A.11 Installation Summary Screen

Review the information on this screen, and click Install to begin the installation. The operations summarized on this page will be performed when you click Install.

If you want to make any changes to the configuration before starting the installation, use the navigation pane and select the topic you want to edit.

If you want to save this configuration to a text file, click Save. This file can be used later if you choose to perform the same installation from the command line. See Appendix C, "Silent Installations" for more information.

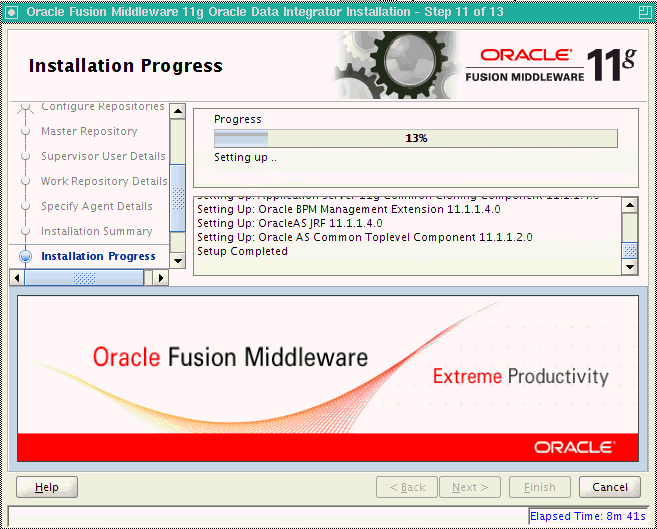

A.12 Installation Progress Screen

This screen shows you the progress of the installation.

If you want to quit before the installation is completed, click Cancel. Doing so will result in a partial installation; the portion of the software that was installed on your system before you click Cancel will remain on your system, and you will have to remove it manually.

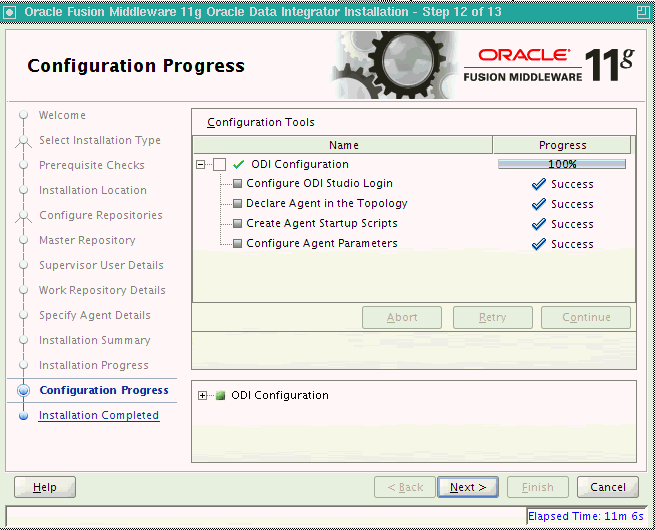

A.13 Configuration Progress Screen

If you selected Configure Repositories on the Repository Configuration Screen, this screen shows you the progress of the component configuration. This screen will not appear if you selected Skip Repository Configuration.

If there is a problem, a short error message appears in the bottom portion of the screen. Fix the error and click Retry to try again.

If you want to ignore the error and warning messages and continue with the installation, click Continue.

Click Abort to stop prerequisite checking for all components.

If you want to quit before the installation is completed, click Cancel.

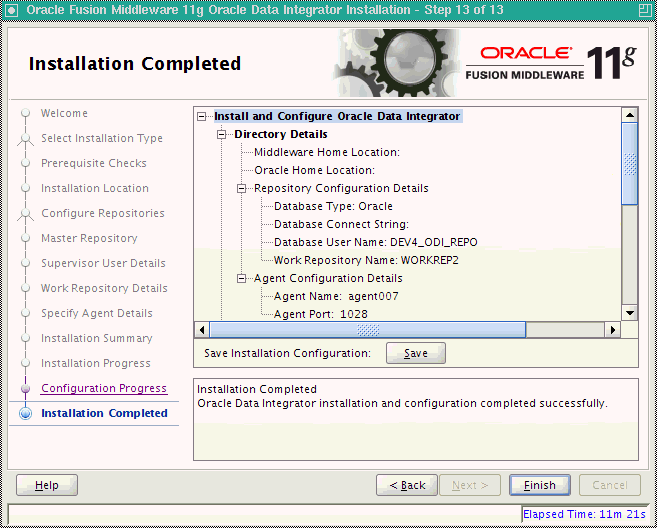

A.14 Installation Completed Screen

This screen summarizes the installation that was just completed. The information that you provided appears in the Directory Details section.

Click Save to save your configuration information to a file. This information includes port numbers, installation directories, disk space usage, URLs, and component names which you may need at a later time.

Click Finish to dismiss the screen.
