49 Managing Operational Settings Using Smart Search

You can use the Oracle Service Bus Smart Search utility for searching and managing resources such as proxy services, business services, alert rules for Service Level Agreements (SLA) violations, and alert destinations. You can use this utility to search for resources based on the various criteria regardless of your role in Oracle Service Bus. For more information about tasks, which can be performed by each role Oracle Service Bus, see Chapter 43, "Roles in Oracle Service Bus."

You can also use results of a search to change the operational settings at the service level. For effectively enabling or disabling any operational setting, you must enable or disable the setting both at the global level and the service level. For more information, see Section 44.7.1, "How to Configure the Operational Settings for a Service."

You can access Smart Search from the Configuration module on the Operations navigator bar (see Figure 49-1).

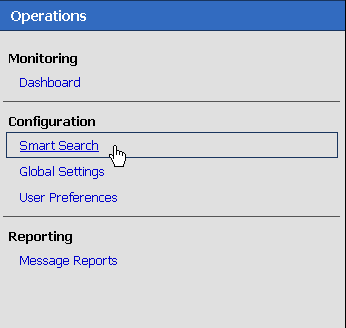

Figure 49-1 Accessing Smart Search

Description of "Figure 49-1 Accessing Smart Search"

There are the two levels of smart search available in Oracle Service Bus–basic search and advanced search. Using basic search you can search using the following basic criteria–Type, Name, and Path. Using advanced search, you can use additional filters to customize your search for each type. The following sections describe:

Section 49.1, "Using Basic Search"
Section 49.2, "Using Advanced Search"
Section 49.4, "Managing Operational Settings for Proxy Services"
Section 49.5, "Managing Operational Settings for Business Services"
Section 49.6, "Managing Operational Settings for Split-Joins"
Section 49.7, "Managing Operational Settings for Alert Destinations"
Section 49.8, "Managing Operational Settings for SLA Alert Rules"

49.1 Using Basic Search

Basic Search helps you to search for resources using basic criteria such as resource type or the name of a resource. Table 49-1 describes the basic criteria you can use with the search functionality.

Table 49-1 Criteria for Basic Search

Criteria	Usage
Type	This search criterion is mandatory. Use the Type field to specify the type of resource. The field has the following options: All Services: Choose this type when you search for both proxy services and business services. Proxy Services: Choose this type when you search for proxy services only. Business Services: Choose this type when you search for business services only. Alert Destinations: Choose this type when you search for alert destinations. SLA Alert Rules: Choose this type when you search for SLA alert rules. Note: To view all the resources of a given type, choose the resource type in the Type field and click View All.
Name	Optional. Enter the name of specific resource you want to find.
Path	Optional. Enter a path in the Path field to specify a location (path) of the resource.

Criteria

Usage

Type

This search criterion is mandatory. Use the Type field to specify the type of resource. The field has the following options:

All Services: Choose this type when you search for both proxy services and business services.
Proxy Services: Choose this type when you search for proxy services only.
Business Services: Choose this type when you search for business services only.
Alert Destinations: Choose this type when you search for alert destinations.
SLA Alert Rules: Choose this type when you search for SLA alert rules.

Note: To view all the resources of a given type, choose the resource type in the Type field and click View All.

Name

Optional. Enter the name of specific resource you want to find.

Path

Optional. Enter a path in the Path field to specify a location (path) of the resource.

You can use any one or a combination of these criteria.

49.2 Using Advanced Search

Use the advanced search if you want to configure your search with additional criteria. To use these filters, click Open Advanced Search Filters icon.The following sections describe the usage of advanced search filters in smart search functionality to manage operational settings.

49.3 Managing Operational Settings for All Services

You can search for proxy services and business services in the Oracle Service Bus Console using filters in Smart Search. This section describes finding, viewing, and editing proxy services and business services.

49.3.1 Finding Services Using Search Filters

Table 49-2 describes the usage advanced filters to customize your search for both proxy services and business services.

Table 49-2 Using Advanced Filters to Find Proxy Services and Business Services

Filter	Usage
Service State	Choose Enabled or Disabled from the. Choose All to ignore this filter.
Service Monitoring	Choose Enabled or Disabled from the. Choose All to ignore this filter
Service SLA Alerts	Choose Enabled or Disabled from the. Choose All to ignore this filter.
Service Message Tracing	Choose Enabled or Disabled from the. Choose All to ignore this filter.

Click Search to find all services using the set criteria or click View All to view all the services.

49.3.2 Viewing and Editing Operational Settings

You can view results of the search for proxy service and business service in the Summary of All Services table.

Use this table to enable or disable services, monitoring, and SLA alerting functionality for both business service and proxy services. You can also use this to enable or disable message tracing, pipeline alerting, message reporting, execution tracing, and pipeline logging for proxy services. To enable or disable select the check box in the appropriate field and click Update.

The run-time effects of these settings also depend on corresponding settings at the global level. For more information about Global Settings, see Section 44.7.2, "How to Configure the Operational Settings at the Global Level." You can update the information for one or more services concurrently using this table.

The following information is displayed for all services:

Table 49-3 Understanding Summary of All Services

Property	Description
Name	The name assigned to the service. The name is a link to the View Proxy Service page for proxy services or View Business Services page for business services.
Path	The project associated with the service. If the service resides in a project folder, this folder is also listed. The path is displayed in the format: project-name/root-folder/ . . ./parent-folder The path is a link to the corresponding path in the Project Explorer.
Type	The type of the parent service: proxy service or business service.
State	The state of the service–Enabled or Disabled.
Monitoring	The monitoring status of the service. Enabled or Disabled, and the level enabled at and above: Service Monitoring Pipeline Monitoring Action Monitoring
SLA Alerts	The SLA alerting status. Enabled or Disabled, and the level enabled at and above: Normal (N) Warning (W) Minor (Mn) Major (Mj) Critical (C) Fatal (F)
Msg. Tracing	The message tracing status–Enabled or Disabled.
Pipeline Alerts	For proxy services only. The pipeline alerting status–Enabled or Disabled, and the level enabled at and above: Normal (N) Warning (W) Minor (Mn) Major (Mj) Critical (C) Fatal (F)
Reports	For proxy services only. The message reporting status of the service: Enabled or Disabled.
Logs	For proxy services only. The logging status–Enabled or Disabled, and the severity level at which it is enabled–Debug (D), Info (I), Warning (W), or Error (E).
Exe. Tracing	For proxy services and Split-Joins only. The tracing status–Enabled or Disabled
Caching	For business services only. Whether result caching is enabled or disabled.
Actions	For proxy services: The View Message Flow icon is a link to the pipeline for that proxy service.

Click Reset to discard any changes in the summary table and refresh the page with currently stored settings.

Note:

You can edit the operational settings depending on the privileges of your role. For more information about roles, see Chapter 43, "Roles in Oracle Service Bus."

49.4 Managing Operational Settings for Proxy Services

You can search for proxy services in the Oracle Service Bus Console using filters in Smart Search. This section describes finding, viewing, and editing proxy services.

49.4.1 Finding Proxy Services Using Search Filters

Table 49-4 describes advanced filters to customize your search for proxy services.

Table 49-4 Using Advanced Filters to Search for Proxy Services

Filter	Usage
State	Choose Enabled or Disabled. Choose All to ignore this filter.
Monitoring	Choose Enabled or Disabled. Choose All to ignore this filter.
SLA Alerts	Choose Enabled or Disabled. Choose All to ignore this filter.
Message Tracing	Choose Enabled or Disabled. Choose All to ignore this filter.
Pipeline Alerts	Choose Enabled or Disabled. Choose All to ignore this filter.
Reports	Choose Enabled or Disabled. Choose All to ignore this filter.
Logs	Choose Enabled or Disabled. Choose All to ignore this filter.
Execution Tracing	Choose Enabled or Disabled. Choose All to ignore this filter.

Click Search to find all proxy services using the set criteria or click View All to view all the services.

49.4.2 Viewing and Editing Operational Settings

You can view results of the search for proxy service in the Summary of Proxy Services table.

The Summary of Proxy Services view displays State, Monitoring, SLA Alerts, Message Tracing, Pipeline Alerts, Reports, Logs, Execution Tracing, Path, Type, Name, and Actions. For more information about the fields displayed in the summary of proxy services, see Section 49.3.2, "Viewing and Editing Operational Settings."

Use this table to enable or disable proxy services, monitoring, and SLA alerting, message tracing, pipeline alerting, message reporting, pipeline logging, and execution tracing. To enable or disable click the check box in the appropriate field and click Update. The run time effects of these settings also depend on corresponding settings at the global level. For more information about Global Settings, see Section 44.7.2, "How to Configure the Operational Settings at the Global Level." You can update the information for one or more proxy services concurrently using this table.

Click Reset to discard any changes in the summary table and refresh the page with currently stored settings.

Note:

You can edit the pipeline message flow depending on the privileges of your role. For more information about roles, see Chapter 43, "Roles in Oracle Service Bus."

49.5 Managing Operational Settings for Business Services

You can search for business services in the Oracle Service Bus Console using filters in Smart Search. This section describes finding, viewing, and editing business services.

49.5.1 Finding Business Services Using Search Filters

Table 49-5 describes the filters you can use to customize your search for business services.

Table 49-5 Using Advanced filters to Search for Business Services

Filters	Usage
Service State	Choose Enabled or Disabled. Choose All to ignore this filter.
Monitoring	Choose Enabled or Disabled. Choose All to ignore this filter.
SLA Alerts	Choose Enabled or Disabled. Choose All to ignore this filter.
Message Tracing	Choose Enabled or Disabled. Choose All to ignore this filter.
Caching	Choose Enabled or Disabled. Choose All to ignore this filter.

Click Search to find all services using the set criteria or click View All to view all the services.

49.5.2 Viewing and Editing Operational Settings

You can view results of the search for business service in the Summary of Business Services table.

The Summary of Business Services view displays State, Monitoring, SLA Alerts, Message Tracing, Name, Path, and Type. For more information about the fields displayed in the summary of business services, see Section 49.3.2, "Viewing and Editing Operational Settings."

Use this table to enable or disable services, monitoring, SLA alerts, and message tracing. To enable or disable, select the check box in the appropriate field and click Update. The run time effects of these settings also depend on corresponding settings at the global level. For more information about Global Settings, see Section 44.7.2, "How to Configure the Operational Settings at the Global Level." You can update the information for one or more business services concurrently using this table.

Click Reset to discard any changes in the summary table and refresh the page with currently stored settings.

Note:

You can edit the operational settings for a business service depending on the privileges of your role. For more information about roles, see Chapter 43, "Roles in Oracle Service Bus."

49.6 Managing Operational Settings for Split-Joins

You can search for Split-Joins in the Oracle Service Bus Console using filters in Smart Search. This section describes finding, viewing, and editing Split-Joins.

49.6.1 Finding Split-Joins Using Search Filters

Table 49-6 describes the filters you can use to customize your search for Split-Joins.

Table 49-6 Using Advanced filters to Search for Split-Joins

Filters	Usage
Logs	Choose Enabled or Disabled. Choose All to ignore this filter.
Execution Tracing	Choose Enabled or Disabled. Choose All to ignore this filter.

Click Search to find all services using the set criteria or click View All to view all the services.

49.6.2 Viewing and Editing Operational Settings

You can view results of the search for Split-Joins in the Summary of Split-Joins table.

The Summary of Split-Joins view displays Name, Path, Type, Logs, and Execution Tracing. Use this table to view the Split-Join configuration details, modify operational settings, and enable/disable logs and execution tracing. To enable or disable, select the check box in the appropriate field and click Update. The run time effects of these settings also depend on corresponding settings at the global level. For more information about Global Settings, see Section 44.7.2, "How to Configure the Operational Settings at the Global Level." You can update the information for one or more Split-Joins concurrently using this table.

Click Reset to discard any changes in the summary table and refresh the page with currently stored settings.

Note:

You can edit the operational settings for a Split-Join depending on the privileges of your role. For more information about roles, see Chapter 43, "Roles in Oracle Service Bus."

49.7 Managing Operational Settings for Alert Destinations

You can search for alert destinations in the Oracle Service Bus Console using advanced filters in Smart Search. You can view and delete alert destinations using smart search.

49.7.1 Finding Alert Destinations using Search Filters

Table 49-7 describes the filters you can use to customize your search for alert destinations.

Table 49-7 Using Advanced Filters to Search for Alert destinations

Filter	Usage
Target	You can choose from one of the following options: SNMP Trap Reporting E-mail JMS Only alert destinations with at least one of the selected targets are displayed. By default Target filter is not applied.
Search Pattern	The system uses the string to search all the Description fields of the Alert Destinations, as well as the specific detailed fields of the e-mail and JMS destinations. If the string appears in any of the Alert Destination fields, the Alert Destinations matching the search criteria are displayed. Click Search to find all alert destinations using the set criteria or click View All to view all the alert destinations. For more information about alert destinations, see Section 44.6.7, "What are Alert Destinations?."

Filter

Usage

Target

You can choose from one of the following options:

SNMP Trap
Reporting
E-mail
JMS

Only alert destinations with at least one of the selected targets are displayed. By default Target filter is not applied.

Search Pattern

The system uses the string to search all the Description fields of the Alert Destinations, as well as the specific detailed fields of the e-mail and JMS destinations. If the string appears in any of the Alert Destination fields, the Alert Destinations matching the search criteria are displayed.

Click Search to find all alert destinations using the set criteria or click View All to view all the alert destinations. For more information about alert destinations, see Section 44.6.7, "What are Alert Destinations?."

49.7.2 Viewing and Deleting Alert Destinations

You can view results of the search for alert destinations in the Summary of Alert Destinations table.

Table 49-8 describes the information is provided in the Summary of Alert Destination table.

Table 49-8 Summary of Alert Destination

Column Name	Description
Name	This displays the names of the alert destinations that satisfy the search criteria.
Path	This displays the location of the resource in the Oracle Service Bus domain.
Options	This displays the actions that can be performed on the alert destination. You can delete an alert destination from this field.

You can delete one or more alert destination concurrently using this table.To delete an alert destination click the check box associated with the alert destination and click Delete.

Notes:

To create an alert destination click the path to view the corresponding project folder. Select Alert Destination in Create Resource to create a new alert destination.

To reconfigure or view the details of an alert destination click the alert destination to go to the Alert destination configuration page.

49.8 Managing Operational Settings for SLA Alert Rules

You can search for SLA alert rules in the Oracle Service Bus Console using additional filters in Smart Search. This section describes finding, viewing, and configuring alert rules using smart search.

49.8.1 Finding SLA Alert Rules Using Search Filters

Table 49-9 describes the filters you can use to customize your search for SLA ALert Rules:

Table 49-9 Using Advanced Filters to Search for SLA Alert Rules

Filters	Usage
Parent Service	You can base the search for SLA alert rules on the proxy service or business service associated with the SLA alert rule. Use this filter to override the path specified in the basic search.
Service Type	You can specify the type of the parent service criterion. The parent service can be one of the following options: All Services: The parent service is either a proxy service or a business service. Proxy Services Business Service Note: When you specify the value for Service Type, Parent Service is reset.
Rule State	You can customize the search based on the state of the SLA alert rule. The SLA alert rule can be in either of the following states: Enabled: Use this to search for all the SLA alert rules that are enabled. Disabled: Use this to search for all the SLA alert rules that are disabled. Choose All to ignore this filter.
Severity	You can customize the search based on the severity of the SLA alerts. To do so, set the level of severity in the Severity field.

Click Search to find all services using the set criteria or click View All to view all the services.

Note:

Select the or above check box to restrict your search to the specified severity level or above (listed from the most inclusive to the most restrictive level): Normal, Warning, Minor, Major, Critical, and Fatal. For example, to search for alert rules with severity levels equal to Major, Critical, and Fatal set severity equal to Major and click the check box associated with or above.

49.8.2 Viewing and Configuring SLA Alert Rules

You can view results of the search for SLA alert rules in the SLA Alert Rules table. You can update the information for one or more alert rule concurrently using this table. To enable or disable the alert rule select the associated check box and click Update.

Click Reset to discard any changes in the summary table and refresh the page with currently stored settings.

Table 49-10 describes information displayed in the SLA Alert Rules Summary table:

Table 49-10 SLA Alert Summary Table

Property	Description
Name	The name of the alert rule. Click the name to go to the View Alert Rule Details page. For more information, see Section 44.8.2, "How to Lookup or Edit Existing Alert Rules."
SLA State	The status of the alert rule: Enabled or Disabled.
Description	This field is hidden by default. A description of the alert rule.
Service Name	The name of the parent service. The name is a link to the Operational Settings page.
Path	The project associated with the parent service of the alert rule. If the parent service of the alert rule resides in a project folder, this folder is also listed. The path is displayed in the format: project-name/root-folder/ . . ./parent-folder The path is a link to the corresponding path in the Project Explorer.
Severity	The severity of the alert that is triggered by this rule: Normal, Warning, Minor, Major, Critical, or Fatal.
Aggr Interval	The aggregation interval in terms of hours and minutes.
Expiration Date	The date when this alert rule is no longer in effect.
Stop Processing	Displays Yes or No. This field is hidden by default.
Frequency	The frequency of this alert: Every Time Notify Once

Note:

You can enable or disable an alert rule depending on the privileges of your role. For more information about roles, see Chapter 43, "Roles in Oracle Service Bus." For more information about enabling and disabling alert rules, see Section 44.7.1, "How to Configure the Operational Settings for a Service."
