Oracle Application Adapter for PeopleSoft integrates seamlessly with Oracle Service Bus (OSB) to facilitate Web service integration. OSB is based on the Service-Oriented Architecture (SOA). It consumes adapter services exposed as Web Service Definition Language (WSDL) documents.
This chapter contains the following topics:
Overview of Application Adapter Integration with Oracle Service Bus
Configuring Outbound Processing Using Oracle Service Bus (J2CA Configuration)
Configuring Inbound Processing Using Oracle Service Bus (J2CA Configuration)
Configuring Outbound Processing Using Oracle Service Bus (BSE Configuration)
To integrate with Oracle Service Bus (OSB), Oracle Application Adapter for PeopleSoft must be deployed in the same Oracle WebLogic Server as OSB. The underlying adapter services must be exposed as WSDL files, which are generated during design time in Oracle Adapter Application Explorer (Application Explorer) for both request-response (outbound) and event notification (inbound) services of the adapter.
This section describes how to configure outbound processing using Oracle Service Bus for J2CA configurations.
This section includes the following topics:
Setting the Class Path for Application Explorer to Integrate With Oracle Service Bus
Publishing a WSDL From Application Explorer to Oracle Service Bus
Perform the following steps to start Oracle Service Bus and create project folders:
Start the Oracle WebLogic Server for the Oracle WebLogic Server domain that you have configured.
Open the Oracle Service Bus Console in a Web browser by entering the following URL:
http://hostname:port/sbconsole
Where hostname is the name of the machine where Oracle WebLogic Server is running and port is the port for the domain you are using. The port for the default domain is 7001.
The Oracle Service Bus Console logon page is displayed.
Log on to the Oracle Service Bus Console using a valid user name and password.

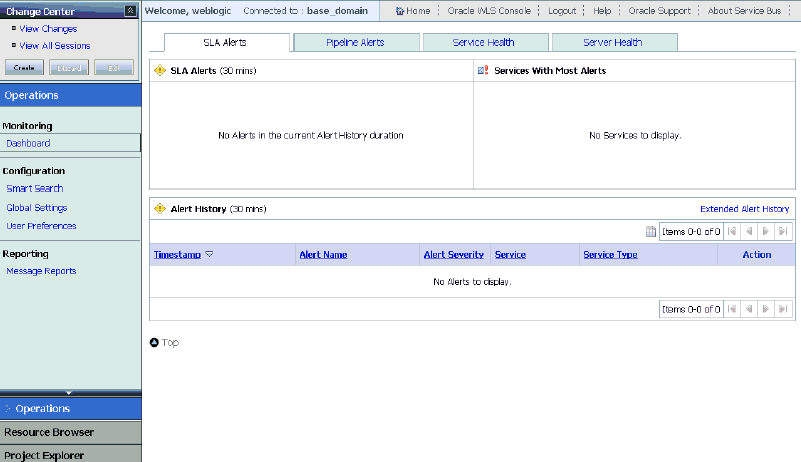

The Oracle Service Bus Console home page is displayed, as shown in Figure 7-1.
Figure 7-1 Oracle Service Bus Console Home Page
Click Create in the Change Center area to start a new Oracle Service Bus session, as shown in Figure 7-2.
Click Project Explorer in the left pane, as shown in Figure 7-3.

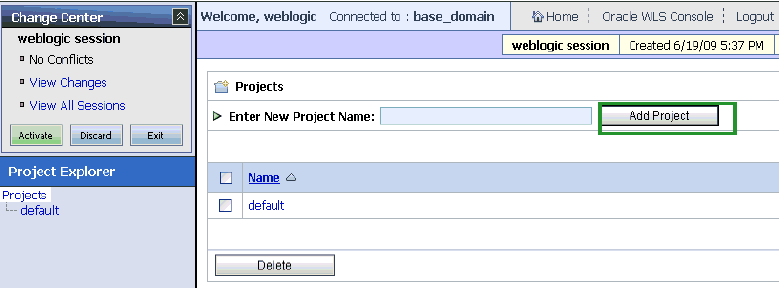

The Project Explorer page is displayed, as shown in Figure 7-4.
Provide a valid name for the new project and click Add Project.
The project is successfully created and listed.
Click on the created project.
The project page is displayed.
In the Enter New Folder Name field, type Business Service and click Add Folder, as shown in Figure 7-5.
In the Enter New Folder Name field, type Proxy Service and click Add Folder.

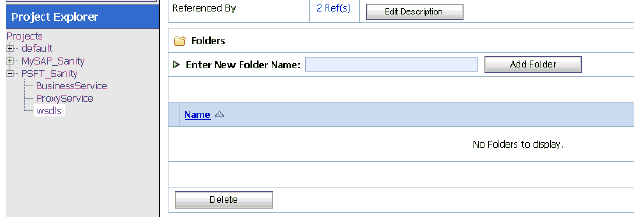

In the Enter New Folder Name field, type wsdls and click Add Folder.
The Business Service, Proxy Service, and wsdls folders are listed in the left pane below the project node, as shown in Figure 7-6.
Before starting and using Application Explorer to publish a WSDL directly to the Oracle Service Bus (OSB) Console (project/folder), OSB users must perform the following steps:
Open the command prompt window.
Navigate to the following directory:
<OSB_Home>\user_projects\domains\base_domain\bin
Execute setDomainEnv.cmd (Windows) or . ./setDomainEnv.sh (UNIX/Linux).
This command sets the class path for Application Explorer to access the Oracle WebLogic Server APIs to publish the WSDLs to the OSB Console.
Do not close the command prompt window.
Navigate to the following directory:
<OSB_Home>\3rdparty\ApplicationAdapters\tools\iwae\bin
Execute ae.bat (Windows) or iwae.sh (UNIX/Linux) to start Application Explorer.
You are now ready to publish WSDLs from Application Explorer to the OSB Console.
Perform the following steps to publish a WSDL from Application Explorer to Oracle Service Bus:
Start Application Explorer, connect to a J2CA configuration, and connect to a PeopleSoft target.
For more information, see Chapter 2, "Configuring Oracle Application Adapter for PeopleSoft".

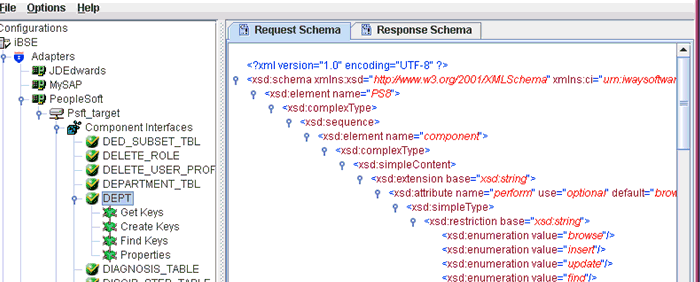

Expand Component Interfaces.

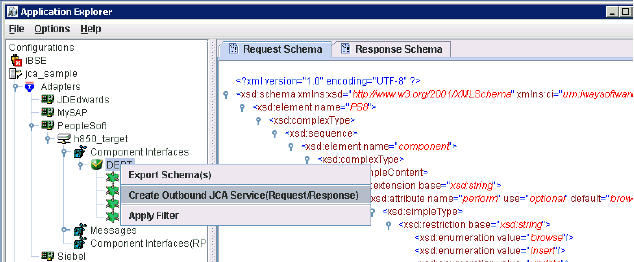

Right-click the DEPT business object and select Create Outbound JCA Service(Request/Response) from the menu, as shown in Figure 7-7.
Figure 7-7 Create Outbound JCA Service(Request/Response) Option

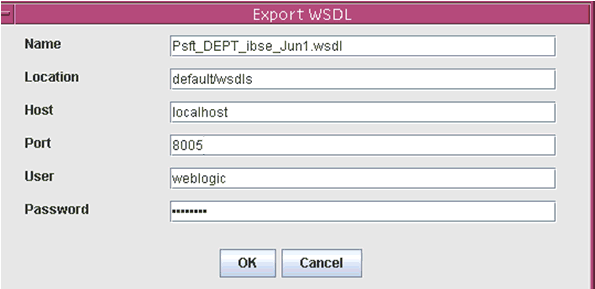

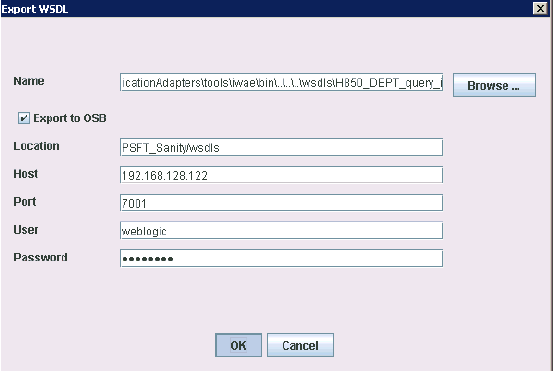

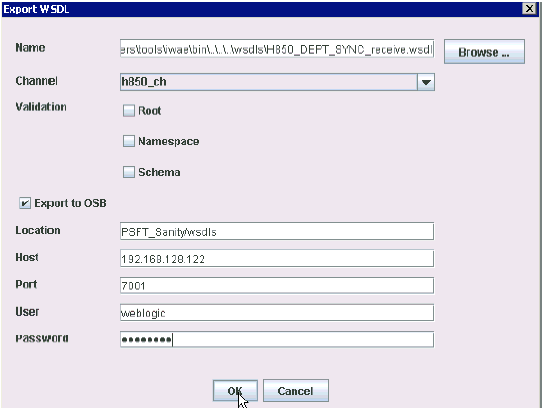

The Export WSDL dialog is displayed, as shown in Figure 7-8.
In the Name field, a default file name for the WSDL file is provided. You can accept the default or provide your own.
Select the Export to OSB option.
In the Location field, enter the folder name in Oracle Service Bus where you want to publish the WSDL document.
The location is composed of an Oracle Service Bus project name and optionally, one or more folder names. The project name and any folder names must be separated by a forward slash character “/”.
In the Host field, enter the name of the machine where Oracle Service Bus is installed.
In the Port field, enter the port that is being used by Oracle Service Bus.
In the User field, enter your username to access Oracle Service Bus.
In the Password field, enter your password to access Oracle Service Bus.
Click OK.
The WSDL is published to the location specified in the Export WSDL dialog and is now available for use with a Business Service or Proxy Service in Oracle Service Bus.

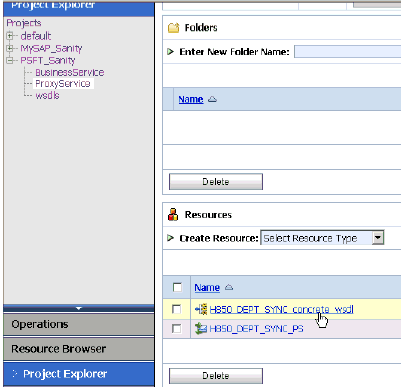

Open the Oracle Service Bus Console and select the created WSDL folder in the left pane (for example, wsdls), as shown in Figure 7-9.

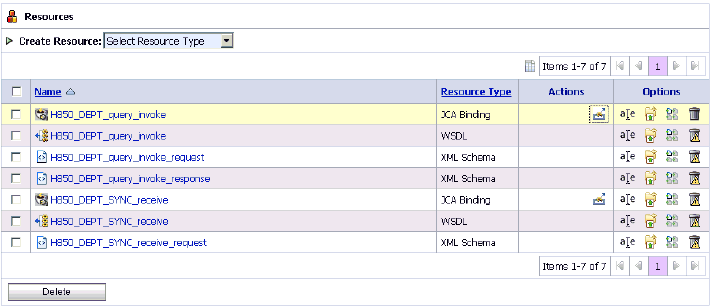

Ensure that the exported WSDL is listed, as shown in Figure 7-10.
Click the icon that corresponds to the exported WSDL in the Actions column.

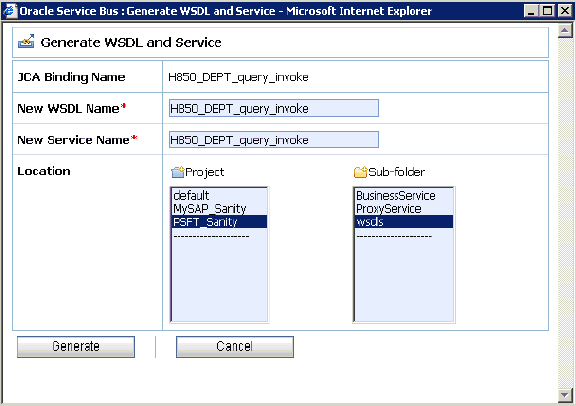

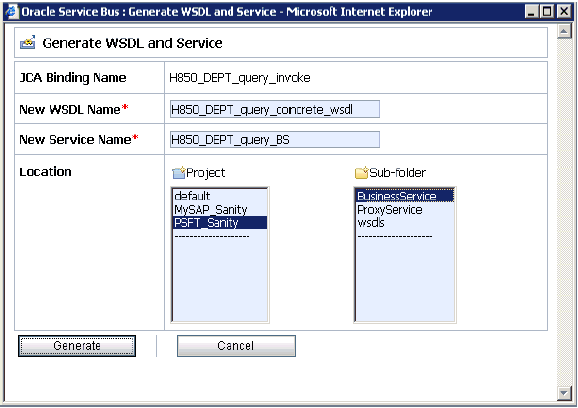

The Generate WSDL and Service page is displayed, as shown in Figure 7-11.
Figure 7-11 Generate WSDL and Service Page
Provide a new WSDL name and a new service name in the corresponding fields, as shown in Figure 7-12.
Figure 7-12 WSDL Name and New Service Name Fields
In the Location area, select an available project and the sub-folder that is designated for Business Services.
Click Generate.
If the WSDL and Service resources are successfully created, the following message is displayed, as shown in Figure 7-13.
Figure 7-13 Resources Created Successfully Message
Perform the following steps to configure a File type Business Service:
Select the Business Service folder you created in the left pane, as shown in Figure 7-14.

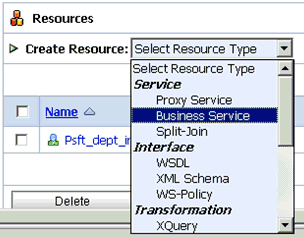

In the right pane, select Business Service from the Create Resource menu, as shown in Figure 7-15.

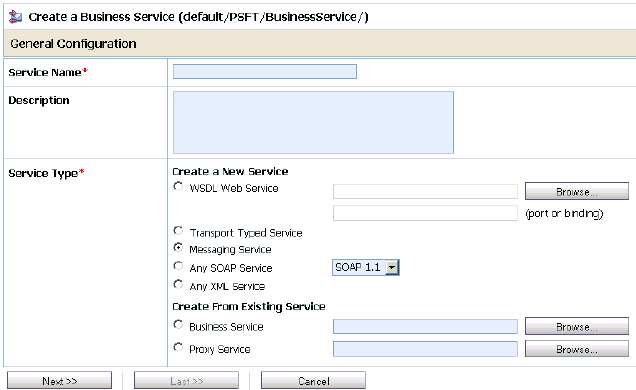

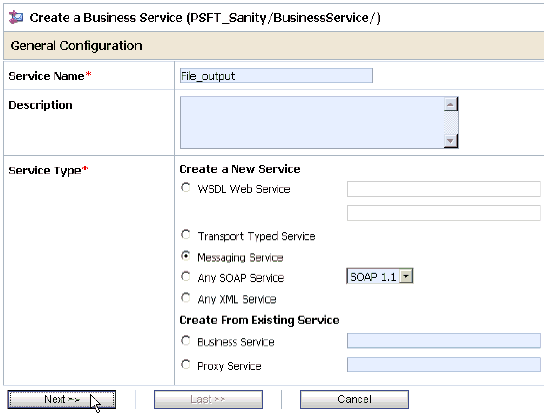

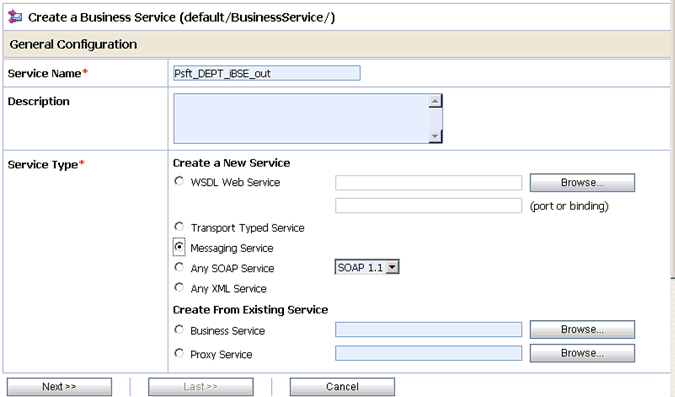

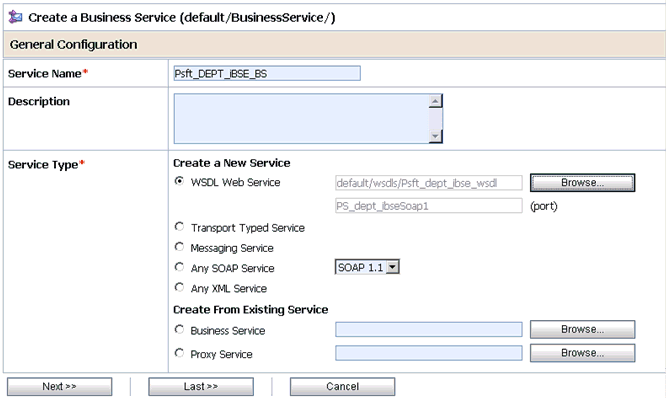

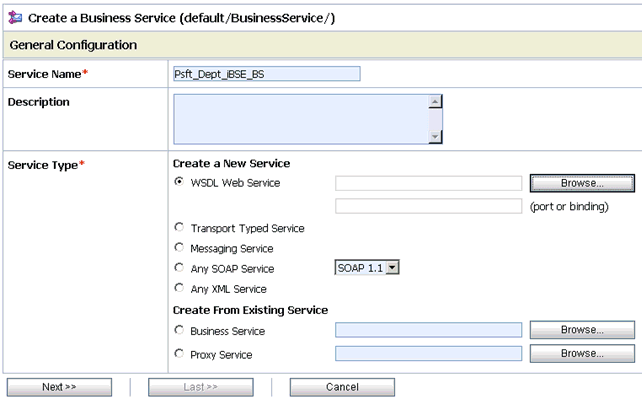

The General Configuration page is displayed, as shown in Figure 7-16.
Provide a name for the Business Service and from the Service Type area select Messaging Service.
Click Next.

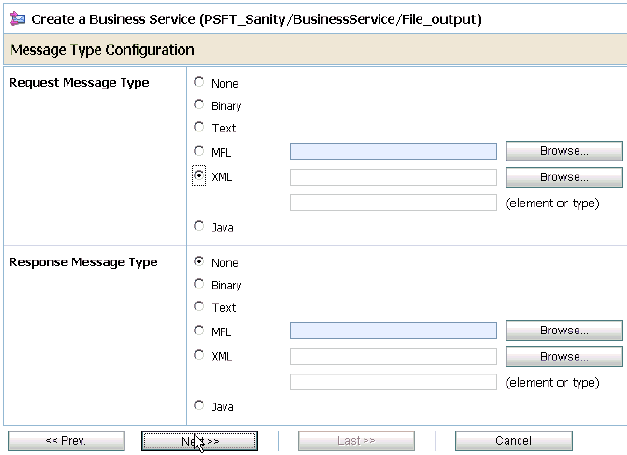

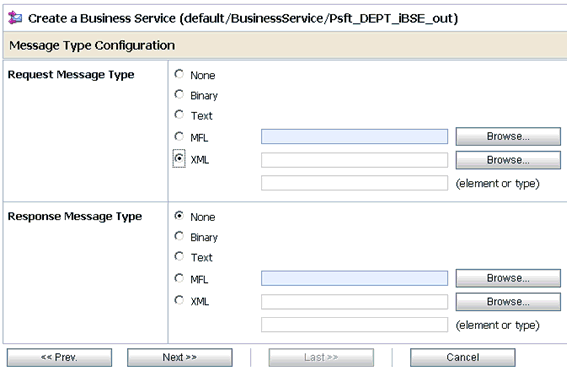

The Message Type Configuration page is displayed, as shown in Figure 7-17.
Figure 7-17 Message Type Configuration Page
Select XML as the Request Message Type and None as the Response Message Type.
Click Next.

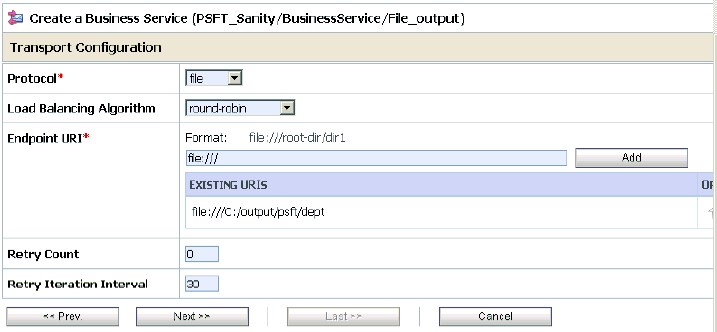

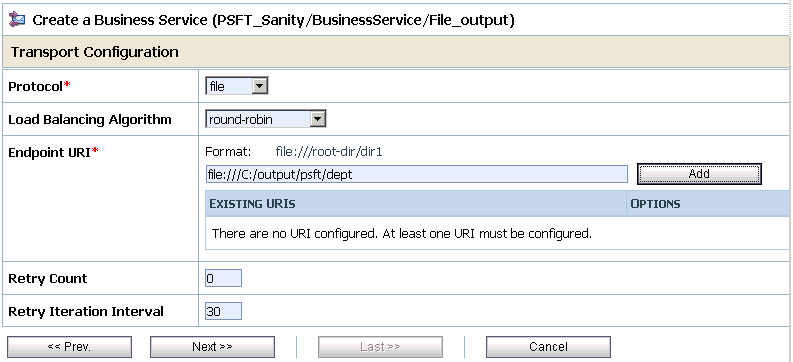

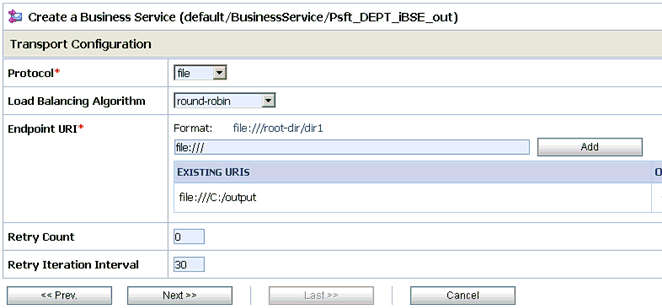

The Transport Configuration page is displayed, as shown in Figure 7-18.
Select file from the Protocol list.
Enter the path to a destination folder on your file system in the Endpoint URI field and click Add.
Click Next, as shown in Figure 7-19.

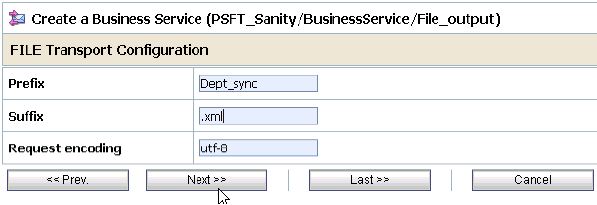

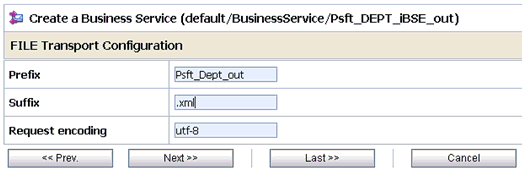

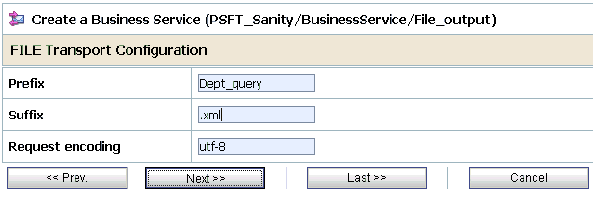

The FILE Transport Configuration page is displayed, as shown in Figure 7-20.
Figure 7-20 FILE Transport Configuration Page
Enter the prefix and suffix for the output file to be received and click Next.

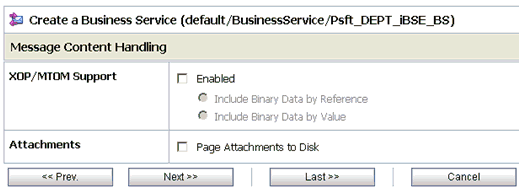

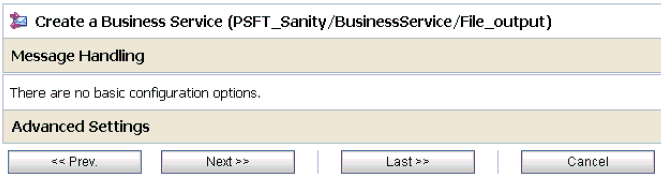

The Message Handling and Advanced Settings page is displayed, as shown in Figure 7-21.
Figure 7-21 Message Handling and Advanced Settings Page
Click Next.

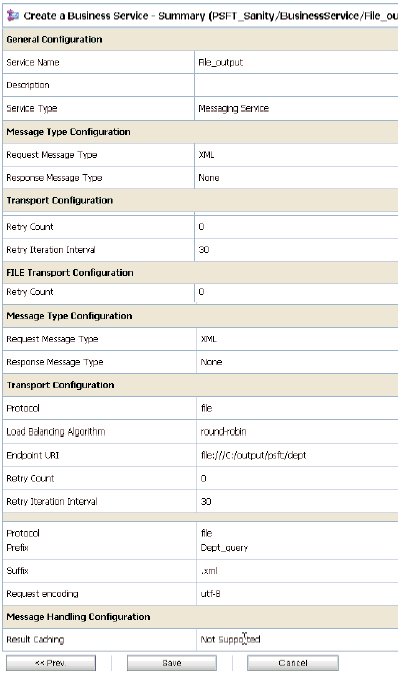

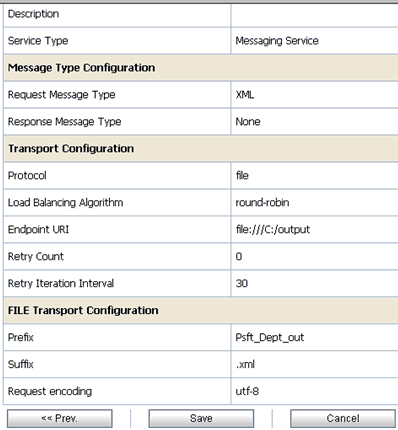

The following Summary page is displayed, as shown in Figure 7-22.
Review all the information for your Business Service and click Save.

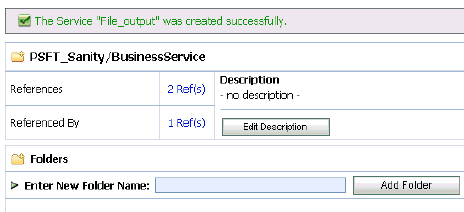

Check if the success message is displayed once it is saved, as shown in Figure 7-23.
Perform the following steps to configure a Proxy Service:

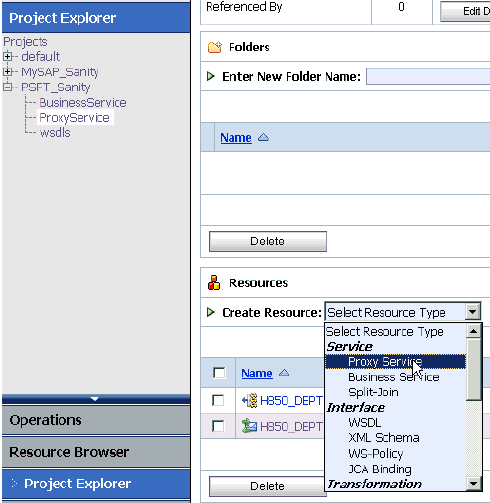

Select the Proxy Service folder you created in the left pane, as shown in Figure 7-24.
In the right pane, select Proxy Service from the Create Resource menu.

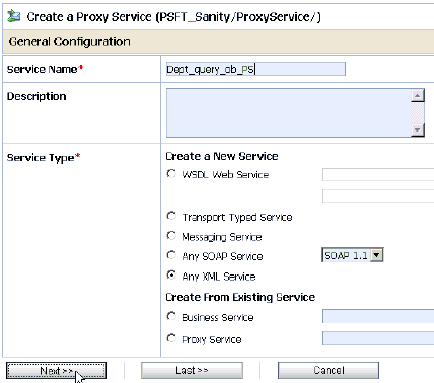

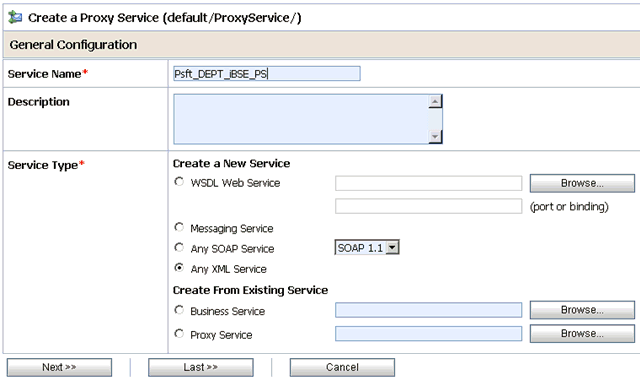

The General Configuration page is displayed, as shown in Figure 7-25
Provide a name for the Proxy Service and from the Service Type area select Any XML Service.
Click Next, as shown in Figure 7-26.

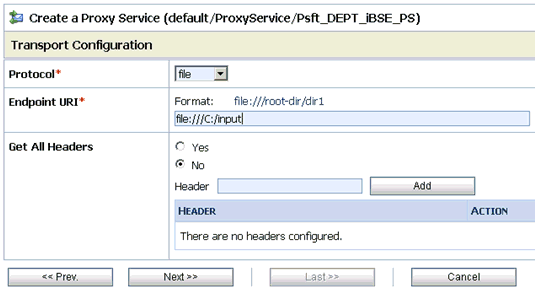

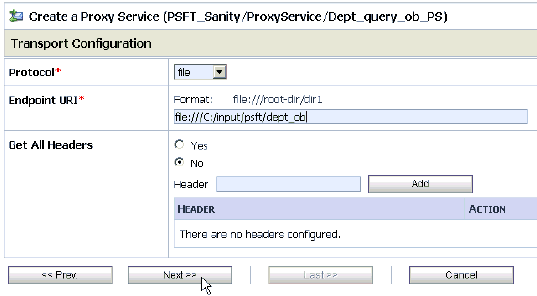

Select file from the Protocol list.
Enter the path to an input folder on your file system in the Endpoint URI field.
Click Next, as shown in Figure 7-27.

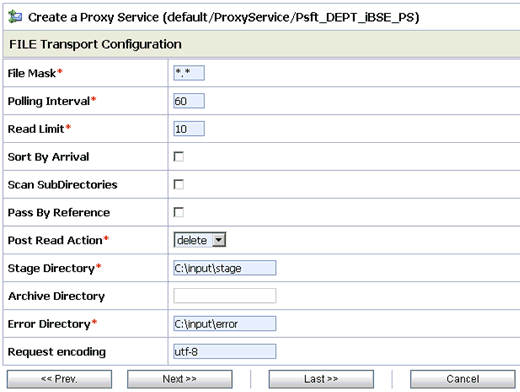

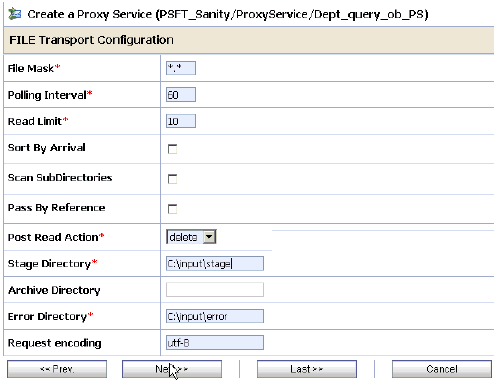

Figure 7-27 FILE Transport Configuration Page
Provide any folder locations on your file system for the Stage Directory and Error Directory fields.
Click Next, as shown in Figure 7-28.

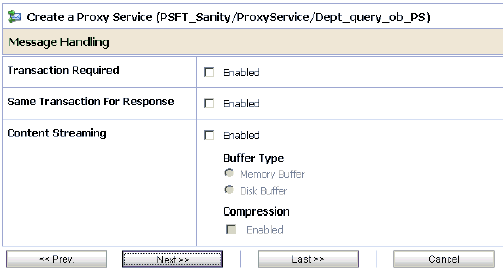

Accept the default values and click Next.

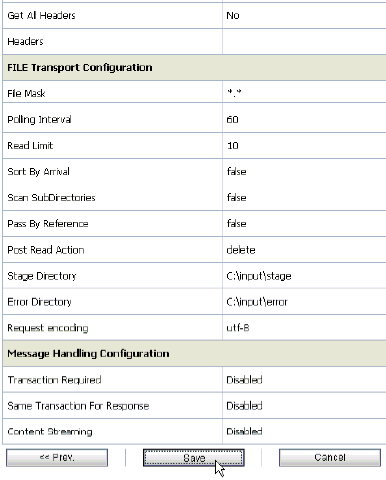

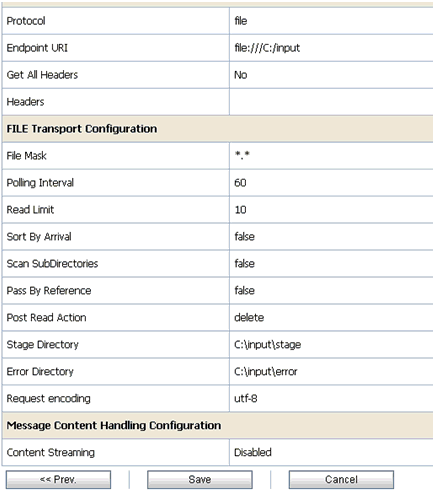

The following Summary page is displayed, as shown in Figure 7-29.
Review all the information for your Proxy Service and click Save.

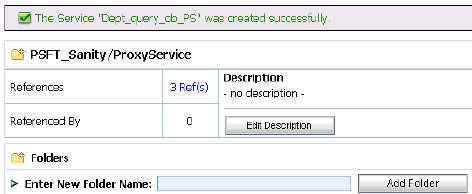

Check if the success message is displayed, as shown in Figure 7-30.
Perform the following steps to configure a Pipeline:

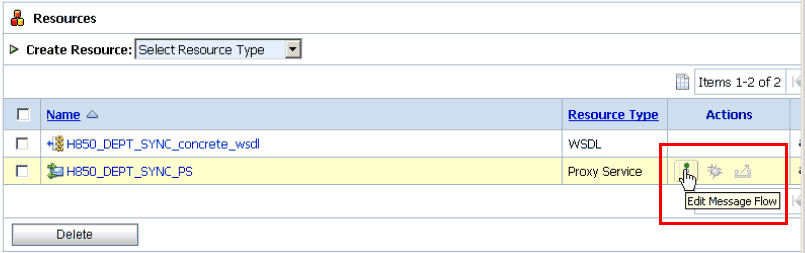

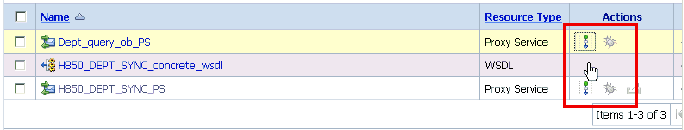

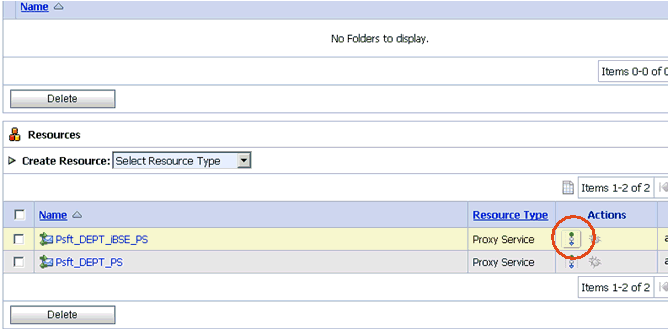

Click the Edit Message Flow icon in the row of the Proxy Service you created, as shown in Figure 7-31.

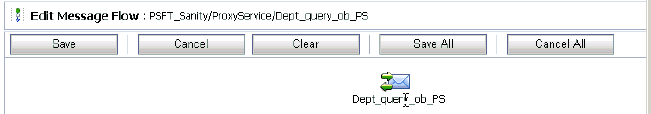

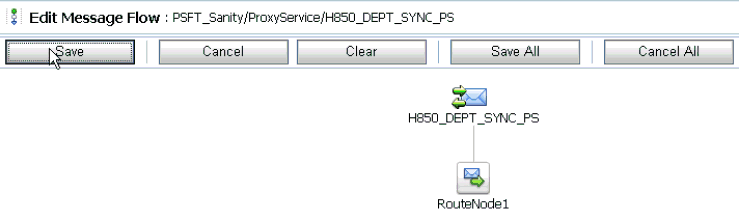

The Edit Message Flow workspace area is displayed, as shown in Figure 7-32.
Figure 7-32 Edit Message Flow Workspace Area
Click the Proxy Service icon and select Add Pipeline Pair from the menu, as shown in Figure 7-33.

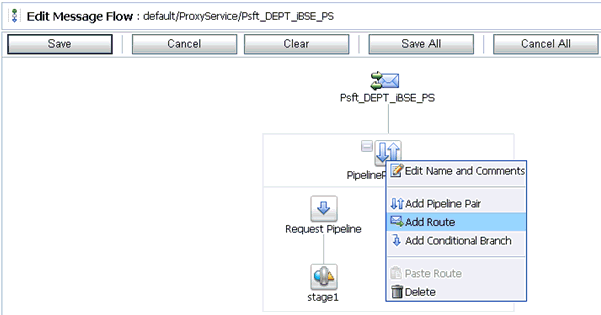

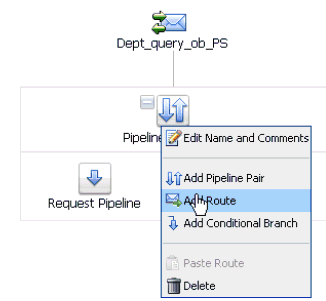

Click the Request Pipeline icon and select Add Route from the menu, as shown in Figure 7-34.
The RouteNode1 icon is added below the Request Pipeline icon.

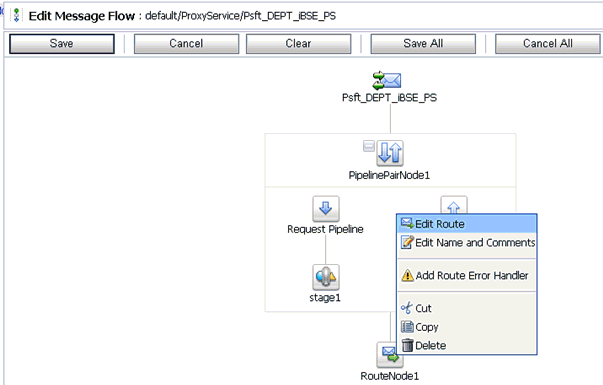

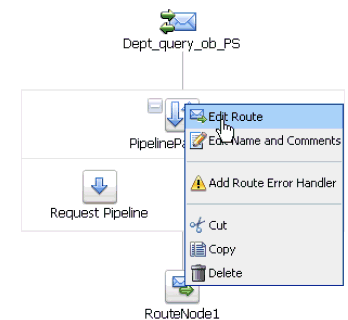

Click the RouteNode1 icon and select Edit Route from the menu, as shown in Figure 7-35.

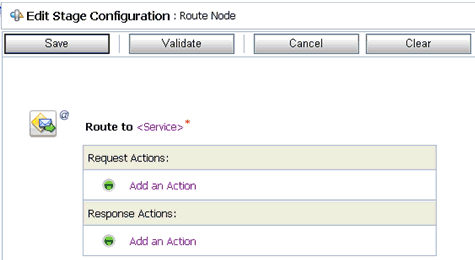

The Edit Stage Configuration workspace area is displayed, as shown in Figure 7-36.
Figure 7-36 Edit Stage Configuration Workspace Area

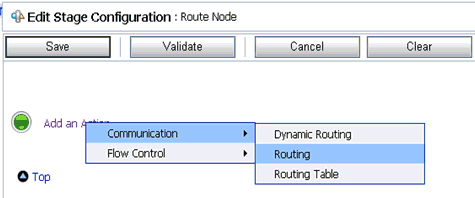

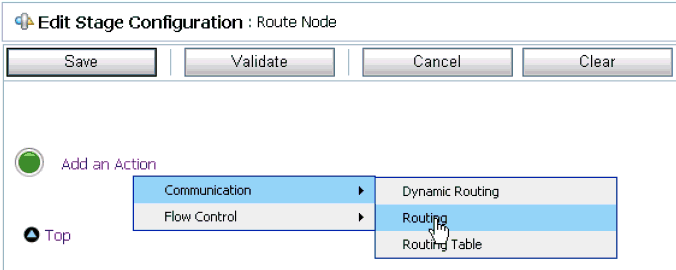

Click Add an Action, select Communication from the menu, and click Routing.

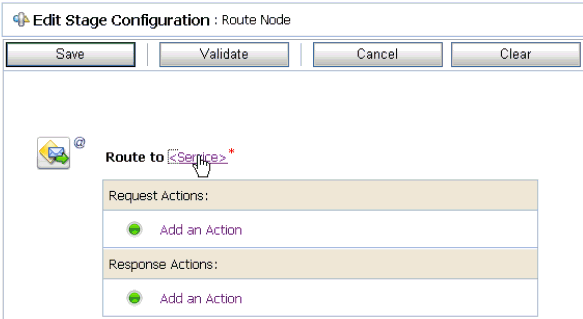

Click <Service>, as shown in Figure 7-37.

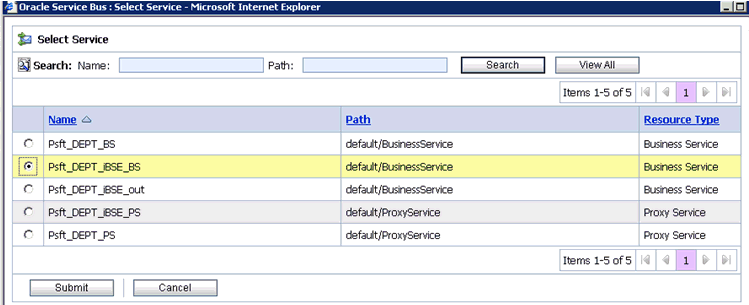

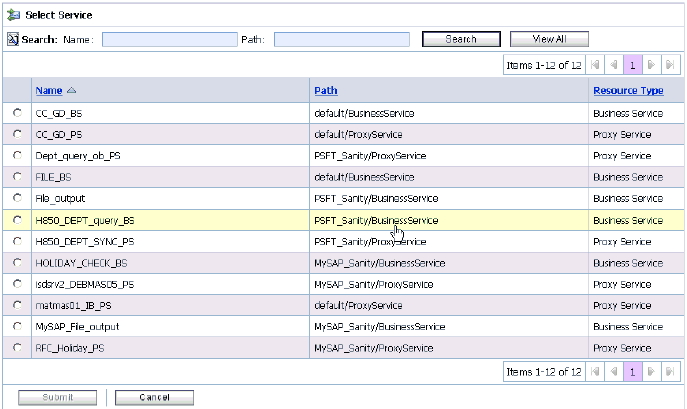

The Select Service dialog is displayed, as shown in Figure 7-38.
Select a WSDL type Business Service and click Submit.

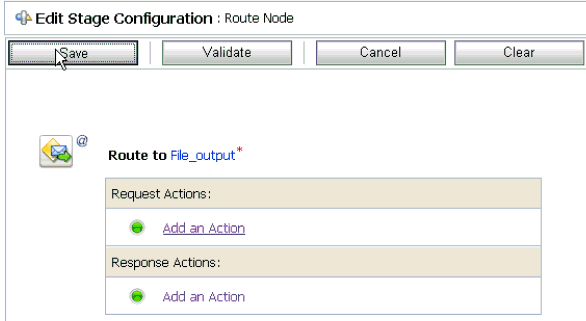

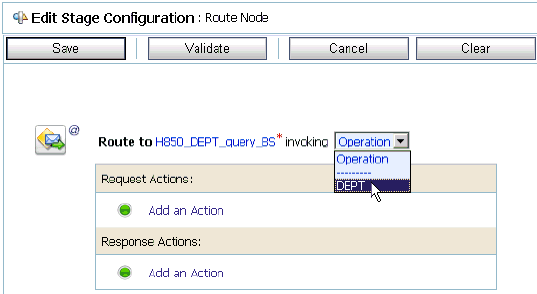

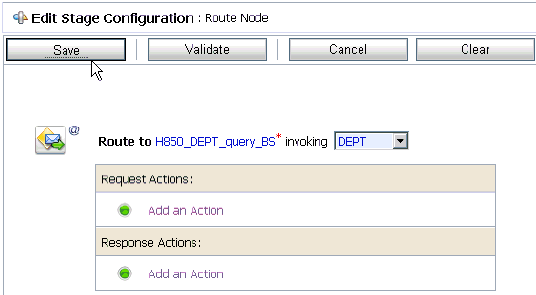

You are returned to the Edit Stage Configuration workspace area, as shown in Figure 7-39.
Figure 7-39 Edit Stage Configuration Workspace Area

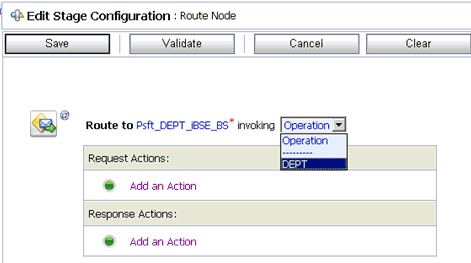

Select the name of the PeopleSoft business object (for example, DEPT) as the operational attribute from the list, as shown in Figure 7-40.
Click Save.

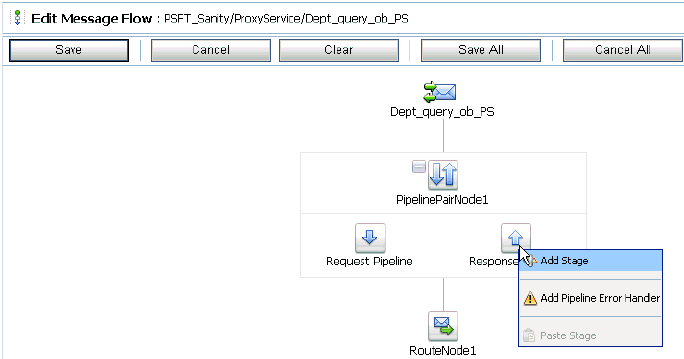

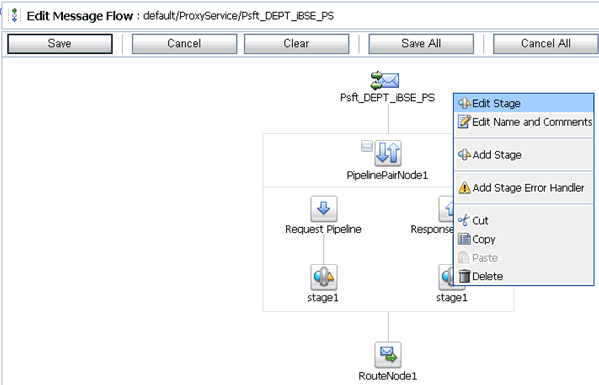

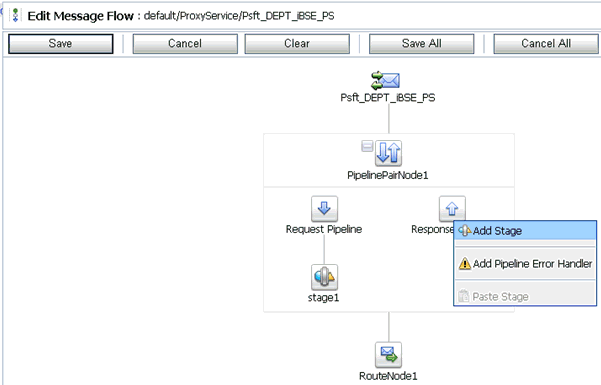

Click the Response Pipeline icon and select Add Stage from the menu, as shown in Figure 7-41.
The Stage1 icon is added below the Response Pipeline icon.

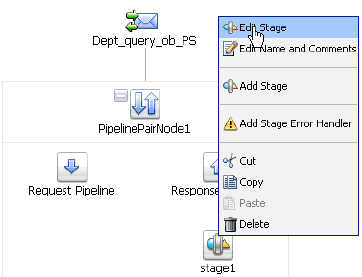

Click the Stage1 icon and select Edit Stage from the menu, as shown in Figure 7-42.
The Edit Stage Configuration workspace area is displayed, as shown in Figure 7-43.
Figure 7-43 Edit Stage Configuration Workspace Area

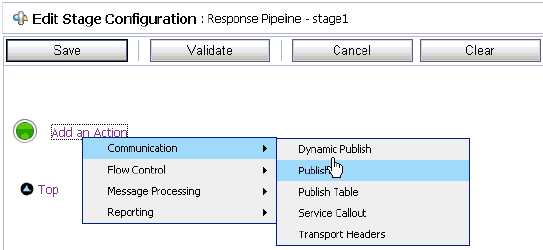

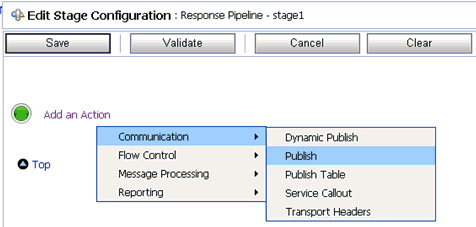

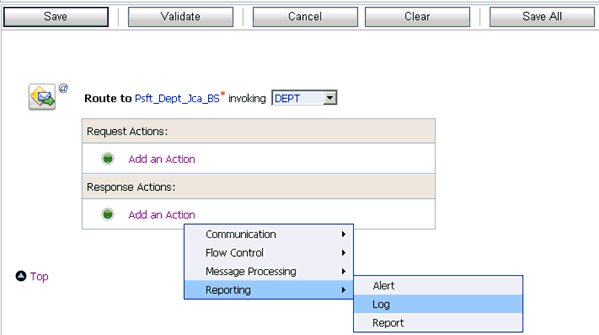

Click Add an Action, select Communication from the menu, and click Publish.

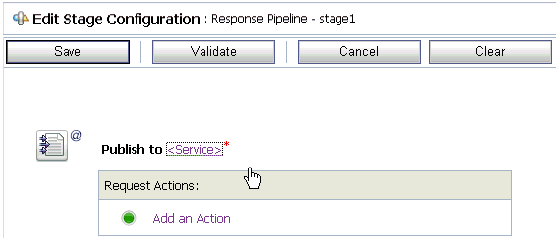

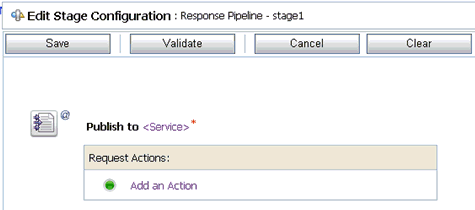

Figure 7-44 Edit Stage Configuration Workspace Area
Click <Service>, as shown in Figure 7-44.

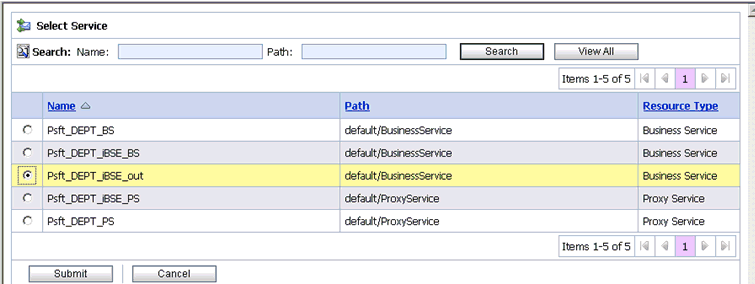

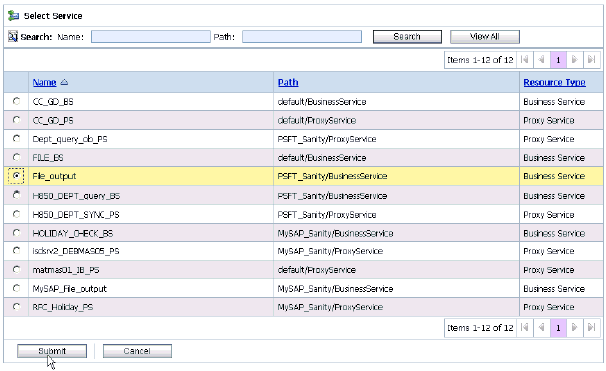

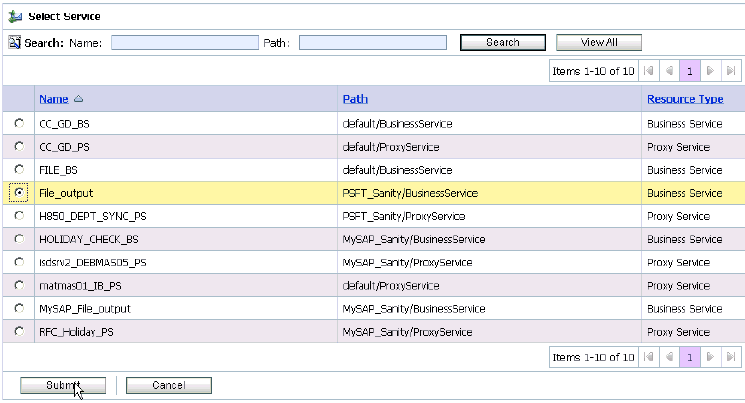

The Select Service dialog is displayed, as shown in Figure 7-45.
Select a File type Business Service and click Submit.

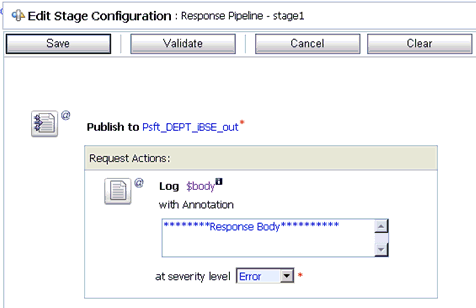

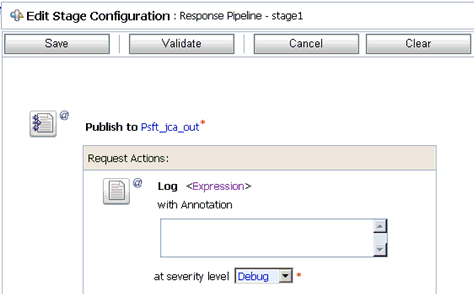

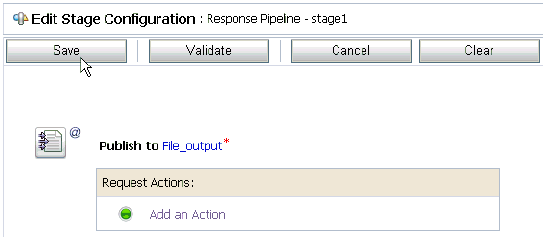

You are returned to the Edit Stage Configuration workspace area, as shown in Figure 7-46.
Figure 7-46 Edit Stage Configuration Workspace Area
Click Save.

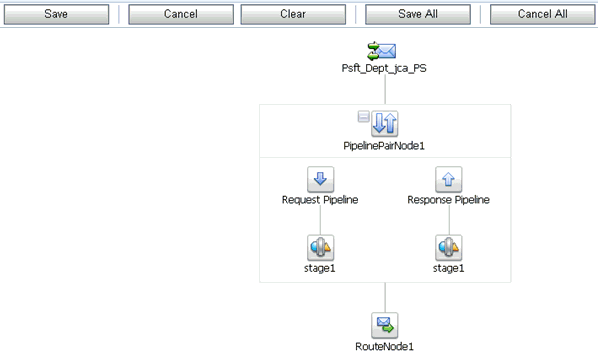

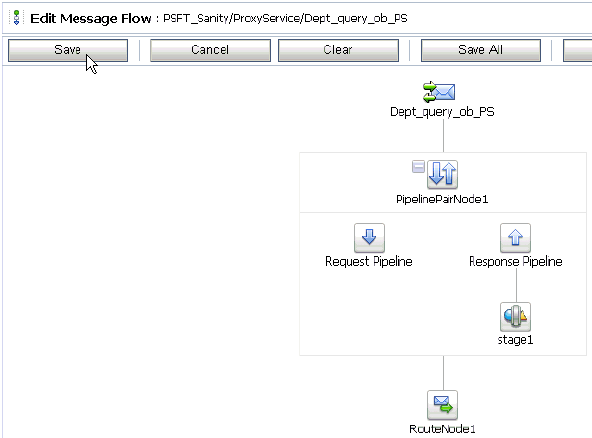

You are returned to the Edit Message Flow workspace area, as shown in Figure 7-47.
Figure 7-47 Edit Message Flow Workspace Area
Click Save.

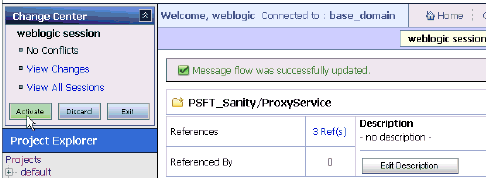

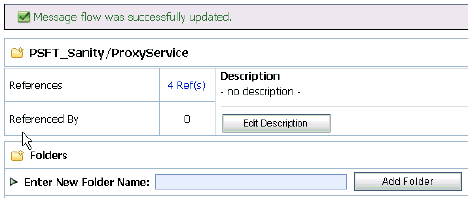

Check if the success message is displayed and click Activate in the Change Center, as shown in Figure 7-48.

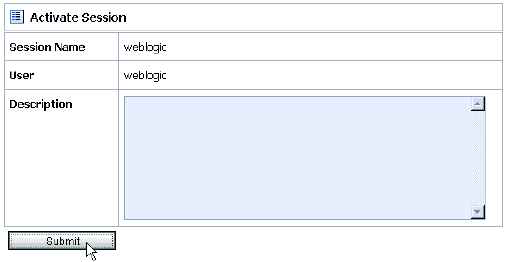

The Activate Session page is displayed, as shown in Figure 7-49.
Click Submit.

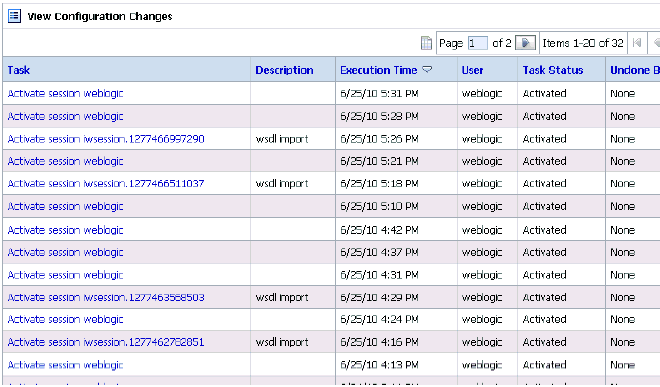

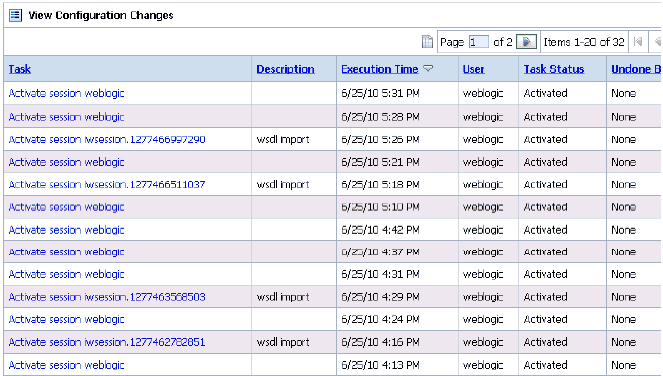

Check if the View Configuration Changes page is displayed, as shown in Figure 7-50.
Figure 7-50 View Configuration Changes Page

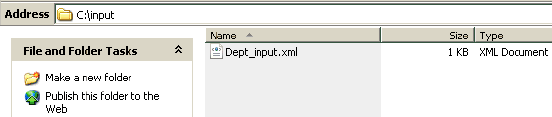

Copy and paste an input XML file in the input folder you have configured, as shown in Figure 7-51.
Output is received in the configured output location.
This section describes how to configure inbound processing using Oracle Service Bus for J2CA configurations.
This section includes the following topics:
Setting the Class Path for Application Explorer to Integrate With Oracle Service Bus
Publishing a WSDL From Application Explorer to Oracle Service Bus
Perform the following steps to start Oracle Service Bus and create project folders:
Start the Oracle WebLogic Server for the Oracle WebLogic Server domain that you have configured.
Open the Oracle Service Bus Console in a Web browser by entering the following URL:
http://hostname:port/sbconsole
Where hostname is the name of the machine where Oracle WebLogic Server is running and port is the port for the domain you are using. The port for the default domain is 7001.
The Oracle Service Bus Console logon page is displayed.
Log on to the Oracle Service Bus Console using a valid user name and password.
The Oracle Service Bus Console home page is displayed, as shown in Figure 7-52.
Figure 7-52 Oracle Service Bus Console Home Page
Click Create in the Change Center area to start a new Oracle Service Bus session, as shown in Figure 7-53.
Click Project Explorer in the left pane, as shown in Figure 7-54.
The Project Explorer page is displayed, as shown in Figure 7-55.
Provide a valid name for the new project and click Add Project.
The project is successfully created and listed.
Click on the created project.
The project page is displayed.
In the Enter New Folder Name field, type Business Service and click Add Folder, as shown in Figure 7-56.
In the Enter New Folder Name field, type Proxy Service and click Add Folder.
In the Enter New Folder Name field, type wsdls and click Add Folder.
The Business Service, Proxy Service, and wsdls folders are listed in the left pane below the project node, as shown in Figure 7-57.
Before starting and using Application Explorer to publish a WSDL directly to the Oracle Service Bus (OSB) Console (project/folder), OSB users must perform the following steps:
Open the command prompt window.
Navigate to the following directory:
<OSB_Home>\user_projects\domains\base_domain\bin
Execute setDomainEnv.cmd (Windows) or . ./setDomainEnv.sh (UNIX/Linux).
This command sets the class path for Application Explorer to access the Oracle WebLogic Server APIs to publish the WSDLs to the OSB Console.
Do not close the command prompt window.
Navigate to the following directory:
<OSB_Home>\3rdparty\ApplicationAdapters\tools\iwae\bin
Execute ae.bat (Windows) or iwae.sh (UNIX/Linux) to start Application Explorer.
You are now ready to publish WSDLs from Application Explorer to the OSB Console.
Perform the following steps to publish a WSDL from Application Explorer to Oracle Service Bus:
Start Application Explorer, connect to a J2CA configuration, and connect to a PeopleSoft target.
For more information, see Chapter 2, "Configuring Oracle Application Adapter for PeopleSoft".
Expand Messages.

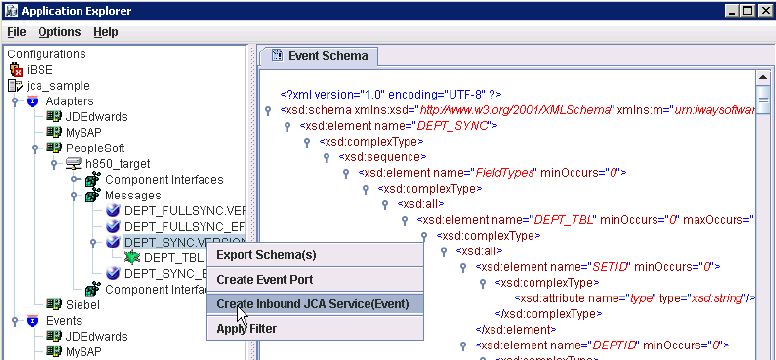

Right-click the DEPT_SYNC.VERSION.1 business object and select Create Inbound JCA Service(Event) from the menu, as shown in Figure 7-58.
Figure 7-58 Create Inbound JCA Service(Event) Option
The Export WSDL dialog is displayed, as shown in Figure 7-59.
In the Name field, a default file name for the WSDL file is provided. You can accept the default or provide your own.
Select a configured channel from the Channel list.
The Validation options can be used for schema validation scenarios, but are optional.
Select the Export to OSB option.
In the Location field, enter the folder name in Oracle Service Bus where you want to publish the WSDL document.
The location is composed of an Oracle Service Bus project name and optionally, one or more folder names. The project name and any folder names must be separated by a forward slash character “/”.
In the Host field, enter the name of the machine where Oracle Service Bus is installed.
In the Port field, enter the port that is being used by Oracle Service Bus.
In the User field, enter your username to access Oracle Service Bus.
In the Password field, enter your password to access Oracle Service Bus.
Click OK.
The WSDL is published to the location specified in the Export WSDL dialog and is now available for use with a Business Service or Proxy Service in Oracle Service Bus.
Open the Oracle Service Bus Console and select the created WSDL folder in the left pane (for example, wsdls), as shown in Figure 7-60.

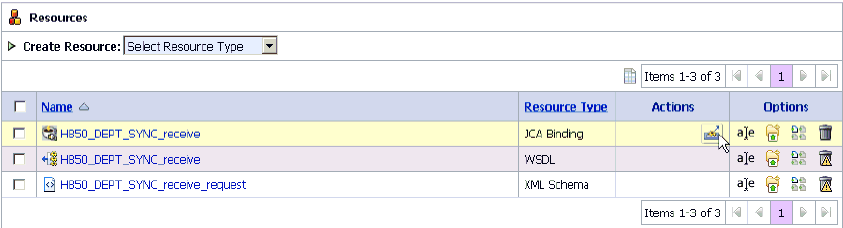

Ensure that the exported WSDL is listed, as shown in Figure 7-61.
Click the icon that corresponds to the exported WSDL in the Actions column.

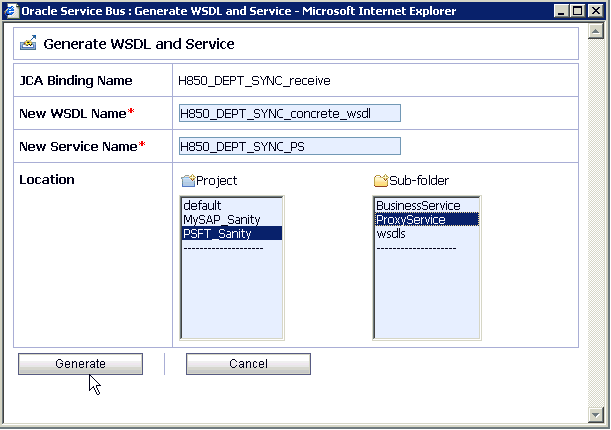

The Generate WSDL and Service page is displayed, as shown in Figure 7-62.
Figure 7-62 Generate WSDL and Service Page
Provide a new WSDL name and a new service name in the corresponding fields.
In the Location area, select an available project and the sub-folder that is designated for Proxy Services.
Click Generate.
If the WSDL and Service resources are successfully created, a message is displayed, as shown in Figure 7-63.
Figure 7-63 Resources Successfully Created Message
Click Proxy Service under Project Explorer and check if the generated WSDL and Proxy Service are listed, as shown in Figure 7-64.
Perform the following steps to configure a File type Business Service:
Select the Business Service folder you created in the left pane, as shown in Figure 7-65.
In the right pane, select Business Service from the Create Resource menu, as shown in Figure 7-66.
The General Configuration page is displayed, as shown in Figure 7-67.
Provide a name for the Business Service and from the Service Type area select Messaging Service.
Click Next.
The Message Type Configuration page is displayed, as shown in Figure 7-68.
Figure 7-68 Message Type Configuration Page
Select XML as the Request Message Type and None as the Response Message Type.
Click Next.
The Transport Configuration page is displayed, as shown in Figure 7-69.
Select file from the Protocol list.
Enter the path to a destination folder on your file system in the Endpoint URI field and click Add.
Click Next.
The FILE Transport Configuration page is displayed, as shown in Figure 7-70.
Figure 7-70 FILE Transport Configuration Page
Enter the prefix and suffix for the output file to be received and click Next.
The Message Handling and Advanced Settings page is displayed, as shown in Figure 7-71.
Figure 7-71 Message Handling and Advanced Settings Page
Click Next.
The following Summary page is displayed, as shown in Figure 7-72.
Review all the information for your Business Service and click Save.
Check if the success message is displayed once it is saved, as shown in Figure 7-73.
Perform the following steps to configure a Pipeline:
Click the Edit Message Flow icon in the row of the Proxy Service you created, as shown in Figure 7-74.
The Edit Message Flow workspace area is displayed, as shown in Figure 7-75.
Figure 7-75 Edit Message Flow Workspace Area
Right-click the displayed Proxy Service icon and select Add Route from the menu.
The RouteNode1 icon is added below the Request Pipeline icon.
Click the RouteNode1 icon and select Edit Route from the menu, as shown in Figure 7-76.
The Edit Stage Configuration workspace area is displayed, as shown in Figure 7-77.
Figure 7-77 Edit Stage Configuration Workspace Area
Click Add an Action, select Communication from the menu, and click Routing.
Figure 7-78 Edit Stage Configuration Page
Click <Service>, as shown in Figure 7-78.
The Select Service dialog is displayed, as shown in Figure 7-79.
Select the File type Business Service and click Submit.
You are returned to the Edit Stage Configuration workspace area, as shown in Figure 7-80.
Figure 7-80 Edit Stage Configuration Workspace Area
Click Save.
You are returned to the Edit Message Flow workspace area, as shown in Figure 7-81.
Figure 7-81 Edit Message Flow Workspace Area
Click Save.
Check if the success message is displayed and click Activate in the Change Center, as shown in Figure 7-82.
The Activate Session page is displayed, as shown in Figure 7-83.
Click Submit.
Check if the View Configuration Changes page is displayed, as shown in Figure 7-84.
Figure 7-84 View Configuration Changes Page
Trigger an event from the PeopleSoft system and check if the output is received in the configured output location.
This section describes how to configure outbound processing using Oracle Service Bus for BSE configurations.
This section includes the following topics:
Setting the Class Path for Application Explorer to Integrate With Oracle Service Bus
Publishing a WSDL From Application Explorer to Oracle Service Bus
Perform the following steps to start Oracle Service Bus and create project folders:
Start the Oracle WebLogic Server for the Oracle WebLogic Server domain that you have configured.
Open the Oracle Service Bus Console in a Web browser by entering the following URL:
http://hostname:port/sbconsole
Where hostname is the name of the machine where Oracle WebLogic Server is running and port is the port for the domain you are using. The port for the default domain is 7001.
The Oracle Service Bus Console logon page is displayed.
Log on to the Oracle Service Bus Console using a valid user name and password.
The Oracle Service Bus Console home page is displayed, as shown in Figure 7-1.
Figure 7-85 Oracle Service Bus Console Home Page
Click Create in the Change Center area to start a new Oracle Service Bus session, as shown in Figure 7-2.
Click Project Explorer in the left pane, as shown in Figure 7-3.
The Project Explorer page is displayed, as shown in Figure 7-4.
Provide a valid name for the new project and click Add Project.
The project is successfully created and listed.
Click on the created project.
The project page is displayed.
In the Enter New Folder Name field, type Business Service and click Add Folder, as shown in Figure 7-5.
In the Enter New Folder Name field, type Proxy Service and click Add Folder.
In the Enter New Folder Name field, type wsdls and click Add Folder.
The Business Service, Proxy Service, and wsdls folders are listed in the left pane below the project node, as shown in Figure 7-6.
Before starting and using Application Explorer to publish a WSDL directly to the Oracle Service Bus (OSB) Console (project/folder), OSB users must perform the following steps:
Open the command prompt window.
Navigate to the following directory:
<OSB_Home>\user_projects\domains\base_domain\bin
Execute setDomainEnv.cmd (Windows) or . ./setDomainEnv.sh (UNIX/Linux).
This command sets the class path for Application Explorer to access the Oracle WebLogic Server APIs to publish the WSDLs to the OSB Console.
Do not close the command prompt window.
Navigate to the following directory:
<OSB_Home>\3rdparty\ApplicationAdapters\tools\iwae\bin
Execute ae.bat (Windows) or iwae.sh (UNIX/Linux) to start Application Explorer.
You are now ready to publish WSDLs from Application Explorer to the OSB Console.
This section describes how to publish a WSDL from Application Explorer (BSE configuration) to Oracle Service Bus.
Start Application Explorer, connect to a BSE configuration, and connect to a PeopleSoft target, as shown in Figure 7-91.
Expand the Component Interfaces node and select the DEPT component interface.
Right-click the DEPT component interface and select Create Web Service from the menu.

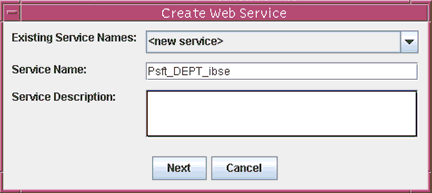

The Create Web Service dialog is displayed, as shown in Figure 7-92.
Enter a service name and click Next.
Click OK on the next dialog that is displayed.
Application Explorer switches the view to the Business Services node, and the new Web service appears in the left pane, as shown in Figure 7-93.

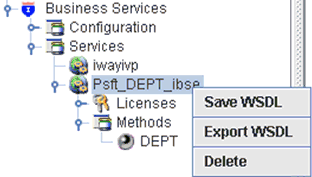

Right-click the new Web service and select Export WSDL from the menu.
The Export WSDL dialog is displayed, as shown in Figure 7-94.
In the Name field, a default file name for the WSDL file is provided. You can accept the default or provide your own.
In the Location field, enter the location where you want to publish the WSDL document.
The location is composed of an Oracle Service Bus project name and optionally, one or more folder names. The project name and any folder names must be separated by a forward slash character “/”.
In the Host field, enter the name of the machine where Oracle WebLogic Server is running.
In the Port field, enter the port for the domain you are using.
In the User field, enter your username to access Oracle Service Bus.
In the Password field, enter your password to access Oracle Service Bus.
Click OK.
The WSDL is published to the location specified in the Export WSDL dialog and is now available for use with a Business Service or Proxy Service in Oracle Service Bus.
This section describes how to configure a File type Business Service using the Oracle Service Bus Console.
Select the Business Service folder you created in the left pane, as shown in Figure 7-95.
In the right pane, select Business Service from the Create Resource menu.
The General Configuration page is displayed, as shown in Figure 7-96.
Provide a name for the Business Service and from the Service Type area select Messaging Service.
Click Next.
The Message Type Configuration page is displayed, as shown in Figure 7-97.
Figure 7-97 Message Type Configuration Page
Select XML as the Request Message Type and None as the Response Message Type.
Click Next.

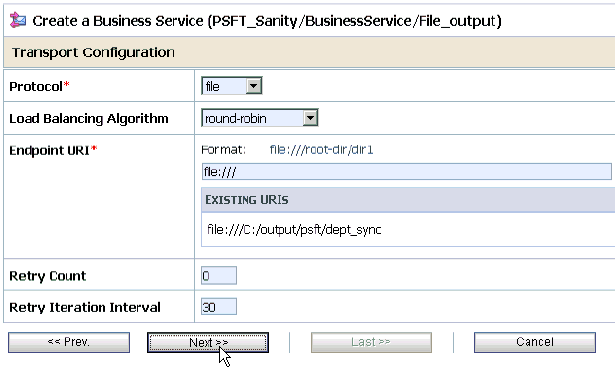

The Transport Configuration page is displayed, as shown in Figure 7-98.
Select file from the Protocol list.
Enter the path to a destination folder on your file system in the Endpoint URI field and click Add.
Click Next.
The FILE Transport Configuration page is displayed, as shown in Figure 7-99.
Figure 7-99 FILE Transport Configuration Page
Enter the prefix and suffix for the output file to be received and click Next.
The Summary page is displayed, as shown in Figure 7-100.
Review all the information for your Business Service and click Save.
This section describes how to configure a WSDL type Business Service using the Oracle Service Bus Console.
Select the Business Service folder you created in the left pane, as shown in Figure 7-101.
In the right pane, select Business Service from the Create Resource menu.
The General Configuration page is displayed, as shown in Figure 7-102.
Provide a name for the Business Service and from the Service Type area select WSDL Web Service.
Click Browse.

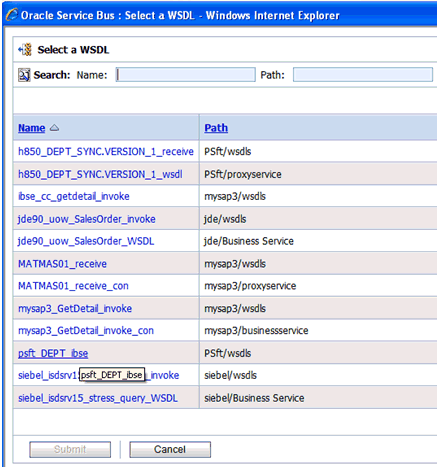

The Select a WSDL dialog is displayed, as shown in Figure 7-103.
Select a BSE WSDL that you published for Oracle Application Adapter for PeopleSoft using Application Explorer and click Submit.

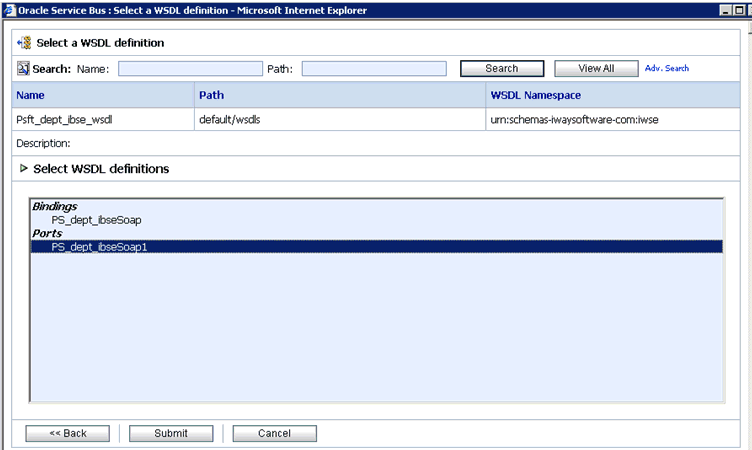

The Select a WSDL Definition dialog is displayed, as shown in Figure 7-104.
Figure 7-104 Select a WSDL Definition Dialog
Select the WSDL definition under the Ports section and click Submit.
You are returned to the General Configuration page where the WSDL you selected is now available, as shown in Figure 7-105.
Leave the default values and click Next.
The Transport Configuration page is displayed, as shown in Figure 7-106.
Figure 7-106 Transport Configuration Page
Leave the default values and click Next.

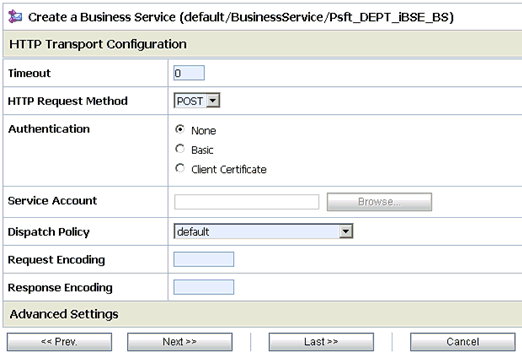

The HTTP Transport Configuration page is displayed, as shown in Figure 7-107.
Figure 7-107 HTTP Transport Configuration Page
Leave the default values and click Next.

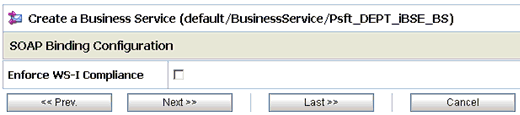

The SOAP Binding Configuration page is displayed, as shown in Figure 7-108.
Click Next.
The Message Content Handling page is displayed, as shown in Figure 7-109.
Figure 7-109 Message Content Handling Page
Click Next.

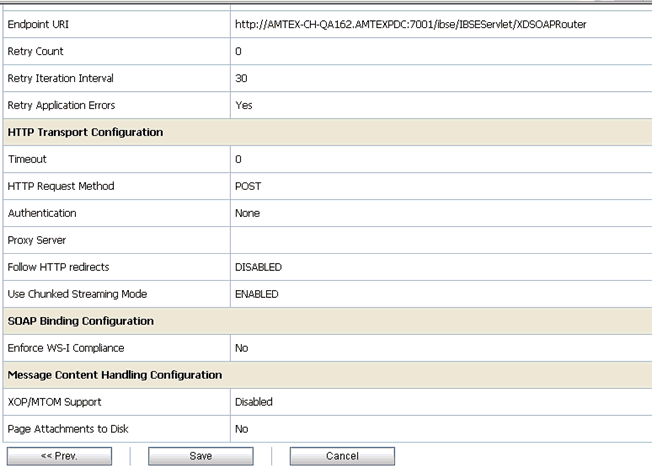

The Summary page is displayed, as shown in Figure 7-110.
Review all the information for your Business Service and click Save.
This section describes how to configure a Proxy Service using the Oracle Service Bus Console.
Select the Proxy Service folder you created in the left pane, as shown in Figure 7-111.
In the right pane, select Proxy Service from the Create Resource menu.
The General Configuration page is displayed, as shown in Figure 7-112.
Provide a name for the Proxy Service and from the Service Type area select Any XML Service.
Click Next.
The Transport Configuration page is displayed, as shown in Figure 7-113.
Figure 7-113 Transport Configuration Page
Select file from the Protocol list.
Enter the path to an input folder on your file system in the Endpoint URI field.
Click Next.
The FILE Transport Configuration page is displayed, as shown in Figure 7-114.
Figure 7-114 FILE Transport Configuration Page
Provide any folder locations on your file system for the Stage Directory and Error Directory fields.
Click Next.

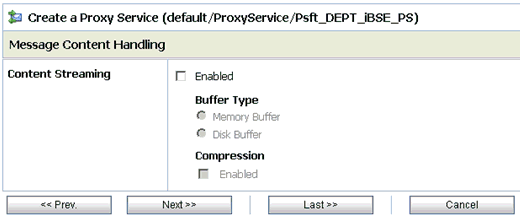

The Message Content Handling page is displayed, as shown in Figure 7-115.
Figure 7-115 Message Content Handling Page
Click Next.
The Summary page is displayed, as shown in Figure 7-116.
Review all the information for your Proxy Service and click Save.
This section describes how to configure a Pipeline using the Oracle Service Bus Console.
Click the Edit Message Flow icon in the row of the Proxy Service you created, as shown in Figure 7-117.
The Edit Message Flow workspace area is displayed.
Click the Proxy Service icon and select Add Pipeline Pair from the menu, as shown in Figure 7-118.
Click the Request Pipeline icon and select Add Stage from the menu, as shown in Figure 7-119.
The Stage1 icon is added below the Request Pipeline icon, as shown in Figure 7-120.
Click the Stage1 icon and select Edit Stage from the menu.
The Edit Stage Configuration workspace area is displayed, as shown in Figure 7-121.
Figure 7-121 Edit Stage Configuration Workspace Area

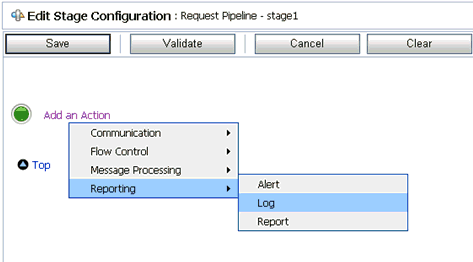

Click Add an Action, select Reporting from the menu, and click Log, as shown in Figure 7-122.

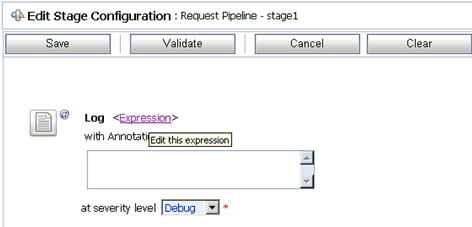

Figure 7-122 Log Action Configuration Page
Click <Expression> to edit the expression.

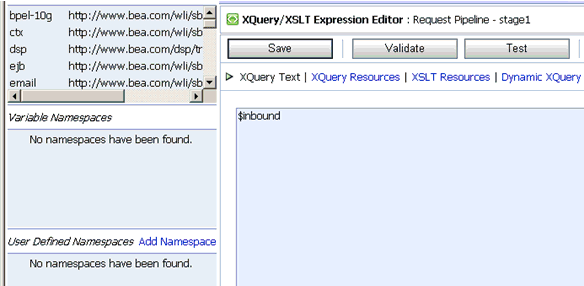

The XQuery/XSLT Expression Editor is displayed, as shown in Figure 7-123.
Figure 7-123 XQuery/XSLT Expression Editor
In the XQuery Text area, type $inbound.
Click Validate and then Save.

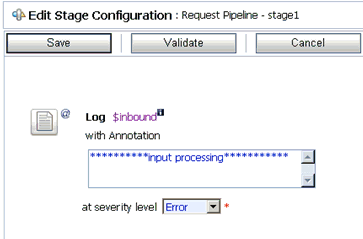

You are returned to the Edit Stage Configuration workspace area, as shown in Figure 7-124.
Figure 7-124 Edit Stage Configuration Workspace Area
Type any annotation/comments in the text box (for example, **********input processing***********).
Select Error from the severity level list.

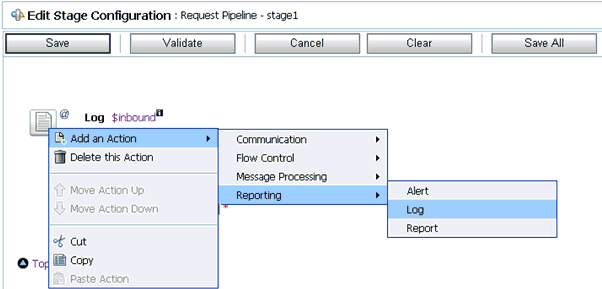

Add one more Log action as shown in Figure 7-125.

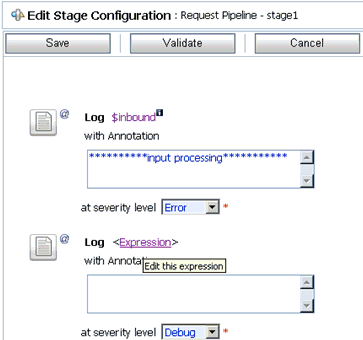

A new Log configuration is added, as shown in Figure 7-126.
Click <Expression> to edit the expression.

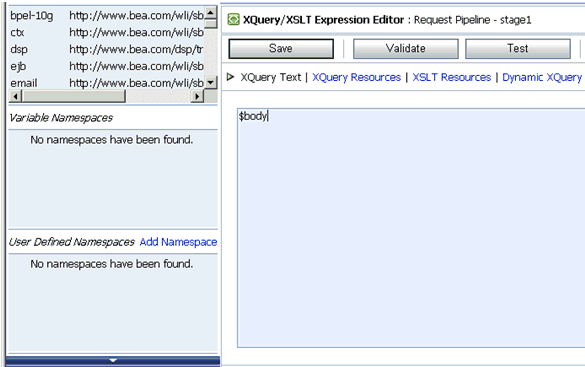

The XQuery/XSLT Expression Editor is displayed, as shown in Figure 7-127.
Figure 7-127 XQuery/XSLT Expression Editor
In the XQuery Text area, type $body.
Click Validate and then Save.

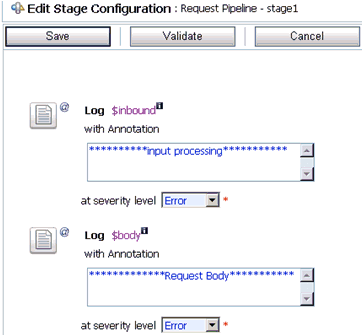

You are returned to the Edit Stage Configuration workspace area, as shown in Figure 7-128.
Figure 7-128 Edit Stage Configuration Workspace Area
Type any annotation/comments in the text box (for example, **********Request Body***********).
Select Error from the severity level list.
Click Validate and then Save.
Click the PipelinePairNode1 icon and select Add Route from the menu, as shown in Figure 7-129.
Click the RouteNode1 icon and select Edit Route from the menu, as shown in Figure 7-130.
Click Add an Action, select Communication from the menu, and click Routing, as shown in Figure 7-131.
The Route Node configuration page is displayed, as shown in Figure 7-132.
Figure 7-132 Route Node Configuration Page
Click <Service>.
The Select Service dialog is displayed, as shown in Figure 7-133.
Select a WSDL type Business Service and click Submit.
You are returned to the Edit Stage Configuration workspace area, as shown in Figure 7-134.
Figure 7-134 Edit Stage Configuration Workspace Area
Select DEPT as the operational attribute from the list.
Click Validate and then Save.
In the Response Actions area, click Add an Action, select Reporting from the menu, and click Log, as shown in Figure 7-135.

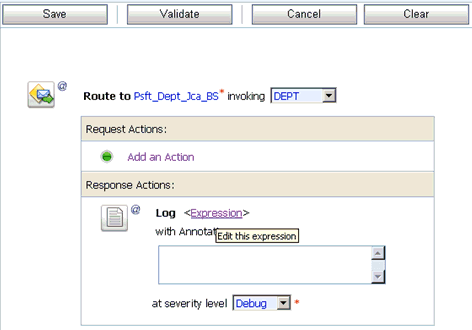

The Log configuration page is displayed, as shown in Figure 7-136.
Click <Expression> to edit the expression.

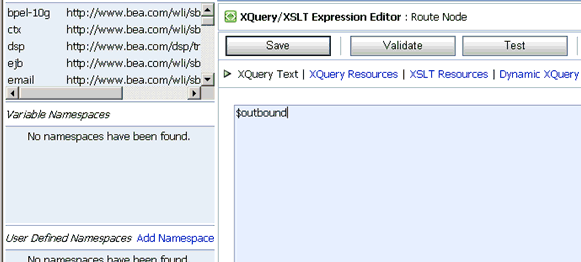

The XQuery/XSLT Expression Editor is displayed, as shown in Figure 7-137.
Figure 7-137 XQuery/XSLT Expression Editor
In the XQuery Text area, type $outbound.
Click Validate and then Save.

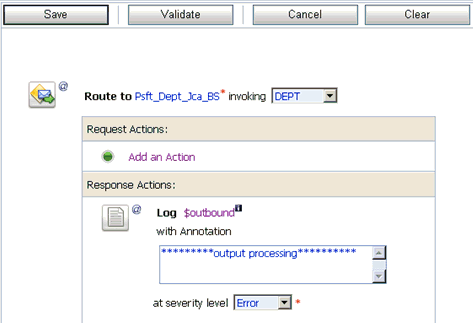

You are returned to the Edit Stage Configuration workspace area, as shown in Figure 7-138.
Figure 7-138 Edit Stage Configuration Workspace Area
Type any annotation/comments in the text box (for example, **********output processing***********).
Select Error from the severity level list.
Click Validate and then Save.
Click the Response Pipeline icon and select Add Stage from the menu, as shown in Figure 7-139.
The Stage1 icon is added below the Response Pipeline icon, as shown in Figure 7-140.
Click the Stage1 icon and select Edit Stage from the menu.
The Edit Stage Configuration workspace area is displayed, as shown in Figure 7-141.
Figure 7-141 Edit Stage Configuration Workspace Area
Click Add an Action, select Communication from the menu, and click Publish.
The Publish configuration page is displayed, as shown in Figure 7-142.
Click <Service>.
The Select Service dialog is displayed, as shown in Figure 7-143.
Select a File type Business Service and click Submit.
You are returned to the Edit Stage Configuration workspace area, as shown in Figure 7-144.
Figure 7-144 Edit Stage Configuration Workspace Area

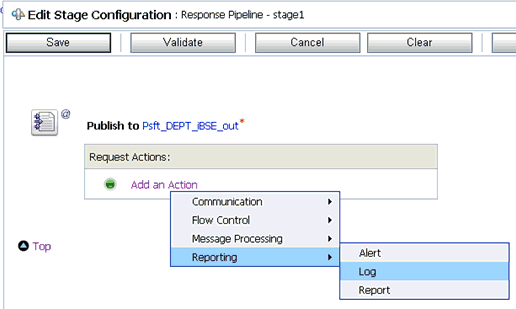

In the Request Actions area, click Add an Action, select Reporting from the menu, and click Log.
The Log configuration page is displayed, as shown in Figure 7-145.
Click <Expression> to edit the expression.

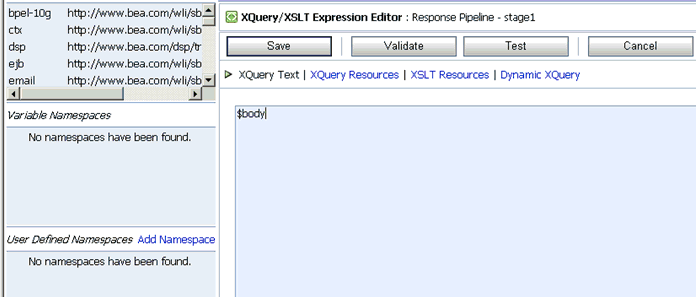

The XQuery/XSLT Expression Editor is displayed, as shown in Figure 7-146.
Figure 7-146 XQuery/XSLT Expression Editor
In the XQuery Text area, type $body.
Click Validate and then Save.
You are returned to the Edit Stage Configuration workspace area, as shown in Figure 7-147.
Figure 7-147 Edit Stage Configuration Workspace Area
Type any annotation/comments in the text box (for example, **********Response Body***********).
Select Error from the severity level list.
Click Validate and then Save.
The pipeline configuration is now completed, as shown in Figure 7-148.
Figure 7-148 Completed Pipeline Configuration
Click Save.
Click Activate in the Change Center area to activate your changes in the Oracle Service Bus session, as shown in Figure 7-149.
Copy and paste an input XML file in the input folder you have configured to receive an output XML file in the destination folder.
|
 Copyright © 2009, 2010, Oracle and/or its affiliates. All rights reserved. Legal Notices |
|
