9 Types of Environments for Oracle Single Sign-On and Oracle Adaptive Access Manager

This chapter describes the most common topologies for Oracle Identity Management 10g and how they compare with equivalent topologies in Oracle Fusion Middleware 11g.

This chapter contains the following sections:

Oracle Single Sign-On Topologies
Oracle Adaptive Access Manager Topologies

9.1 Oracle Single Sign-On Topologies

Figure 9-1 compares a typical Oracle Access Manager topology in Oracle Application Server 10g with a similar topology in Oracle Fusion Middleware 11g.

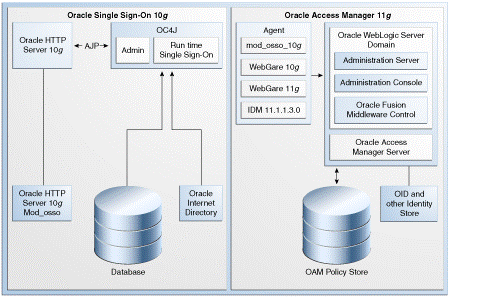

Figure 9-1 Comparison of Typical Oracle Single Sign-On Topologies in Oracle Application Server 10g and Oracle Fusion Middleware 11g

Description of "Figure 9-1 Comparison of Typical Oracle Single Sign-On Topologies in Oracle Application Server 10g and Oracle Fusion Middleware 11g"

9.2 Oracle Adaptive Access Manager Topologies

Figure 9-2 compares a typical Oracle Adaptive Access Manager topology in Oracle Application Server 10g with a similar topology in Oracle Fusion Middleware 11g.

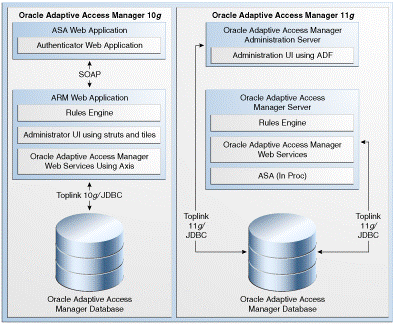

Figure 9-2 Comparison of Typical Oracle Adaptive Access Manager Topologies in Oracle Application Server 10g and Oracle Fusion Middleware 11g

Description of "Figure 9-2 Comparison of Typical Oracle Adaptive Access Manager Topologies in Oracle Application Server 10g and Oracle Fusion Middleware 11g"
