B Managed Attachments Solution Tables

This appendix describes the AXF and business application configuration tables used for the Managed Attachments solution:

Section B.1, "AXF Tables For the Managed Attachments Solution"

Application Extension Framework (AXF) tables define the solution, its system parameters, and the GrantAccess command used.
Section B.2, "Oracle E-Business Suite AXF Tables For the Managed Attachments Solution"

Oracle E-Business Suite tables define how the Managed Attachments screen is activated through the Zoom menu on selected Oracle E-Business Suite forms.
Section B.3, "Oracle PeopleSoft Tables For the Managed Attachments Solution"

Oracle PeopleSoft tables define how the Managed Attachments screen is activated through a button, link, or menu on selected Oracle PeopleSoft pages.
Section B.4, "Content Server Tables For the Managed Attachments Solution"

Content Server tables define how Content Server documents are mapped to Oracle E-Business Suite or Oracle PeopleSoft business objects and how users are temporarily granted access to documents associated with a particular business object.

These tables are automatically populated during installation (Oracle E-Business Suite) or through Integration Broker (Oracle PeopleSoft). This appendix describes how to configure the tables if changes are needed.

B.1 AXF Tables For the Managed Attachments Solution

Note:

If modifying AXF table values in a running system, either execute Clear DB Cache from the Driver page or restart the AXF application within the Application Server for the changes to take effect.

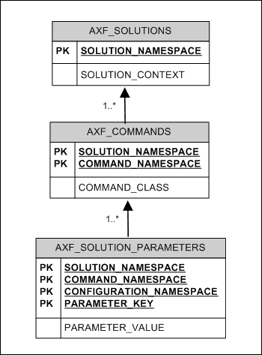

The diagram that follows displays the AXF configuration tables used for the Managed Attachments solution and their relationships.

Shows Managed Attachments table relationships.

AXF Table	Description
AXF_SOLUTIONS Table	Define AXF solutions and general parameters for infrastructure, services, and solutions.
AXF_COMMANDS Table	Define AXF commands within solutions.
AXF_SOLUTION_PARAMETERS Table	Define parameters for AXF commands.

B.1.1 AXF_SOLUTIONS Table

The AXF_SOLUTIONS table defines the solutions used by AXF. It links to the AXF_COMMANDS Table through the SOLUTION_NAMESPACE column.

B.1.1.1 Column Description

Table B-1 Column Description for AXF_SOLUTIONS Table

Column	Description
SOLUTION_CONTEXT	Defines the JNDI name of the AXF solution implementation. (Currently, AxfCommandMediator is the only solution implementation.)
SOLUTION_NAMESPACE	Defines the AXF solution name.

B.1.1.2 Example Implementation

This example shows the Managed Attachments solution defined, using AxfCommandMediator as its solution implementation.

Table B-2 Example AXF_SOLUTIONS Table

SOLUTION_NAMESPACE	SOLUTION_CONTEXT
UCM_Managed_Attachments	ejb.AxfCommandMediator#oracle.imaging.axf.service.AxfCommandMediatorRemote

B.1.2 AXF_COMMANDS Table

This table defines AXF commands and their java classes for the solution. Each command's parameters are configured in the AXF_SOLUTION_PARAMETERS Table.

B.1.2.1 Column Description

Table B-3 Column Description for AXF_COMMANDS Table

Column	Description
SOLUTION_NAMESPACE	The name of the solution, as defined in the AXF_SOLUTIONS Table.
COMMAND_NAMESPACE	Defines the unique name of the command within the solution.
COMMAND_CLASS	The fully qualified class name in which the command is defined. This class is loaded and the execute() method representing the command is executed.

B.1.2.2 Example Implementation

This example shows the Oracle UCM Managed Attachments command defined for the Managed Attachments solution.

Table B-4 Example AXF_COMMANDS Table

SOLUTION_NAMESPACE	COMMAND_CLASS	COMMAND_NAMESPACE
UCM_Managed_Attachments	oracle.imaging.axf.commands.ucm.AfGrantAccessCommand	UCM_Managed_Attachments

B.1.3 AXF_SOLUTION_PARAMETERS Table

This table defines command parameters for the solution and AXF command.

B.1.3.1 Column Description

Table B-5 Column Description for AXF_SOLUTION_PARAMETERS Table

Column	Description
SOLUTION_NAMESPACE	Identifies the solution namespace, as defined in the AXF_SOLUTIONS Table.
COMMAND_NAMESPACE	Specifies the command name, as defined in the AXF_COMMANDS Table.
CONFIGURATION_NAMESPACE	Used to implement the command. Specify the complete package name of the implementation class. This namespace path provides the physical Java class to instantiate. The namespace also differentiates commands within the same solution namespace.
PARAMETER_KEY	Specifies the parameter key to use in the AXF command. Parameters include: RIDC_CONNECTION_STR: Specifies the RIDC connection string used to execute the AF_GRANT_ACCESS Oracle UCM service. Includes the host name or IP address of the system on which Content Server is running, and the Oracle UCM server port that receives RIDC calls. (To find the value for the Oracle UCM server port, locate the IntradocServerPort config value in config.cfg.) UCM_CONNECTION_STR: Specifies the base URL that executes the Oracle UCM attachments framework search, which lists associated documents. This parameter also sets the following values: Host name or IP address of the system on which Content Server is running Port on which the web server is listening. The `/idc/` portion of the URL should be changed to match your Oracle UCM installation's web root (`/ucm_web_root/`) Content Server profile (default profile is EBSProfile or PSFTProfile) GET_SEARCH_RESULTS_FORCELOGIN service ResultCount (default is 5) ResultTemplate (default template is EBS_LIST or PSFT_LIST). DATABASE.METADATA.AFLIST search engine UCM_ADMIN_USER: Specifies the administrative Oracle UCM user that executes the AF_GRANT_ACCESS service for the user logged into the business application.
PARAMETER_VALUE	Specifies the value of the parameter key.

B.1.3.2 Example Implementations

These examples define the UCM_Managed_Attachments command for the UCM_Managed_Attachments solution. Table B-6 provides an Oracle E-Business Suite example and Table B-7 provides an Oracle PeopleSoft example.

The first row specifies the RIDC connection string that executes the AF_GRANT_ACCESS Oracle UCM service.
The second row specifies the Managed Attachments URL that invokes the Oracle UCM attachments framework search.
The third row specifies the Oracle UCM administrative user who runs the AF_GRANT_ACCESS service; this user name is dynamically retrieved.

Fields not shown: SOLUTION_NAMESPACE=UCM_Managed_Attachments

Table B-6 Example AXF_SOLUTION_PARAMETERS Table for Oracle E-Business Suite Managed Attachments Solution

COMMAND_NAMESPACE	CONFIGURATION_NAMESPACE	PARAMETER_KEY	PARAMETER_VALUE
UCM_Managed_Attachments	oracle.imaging.axf.commands.ucm.AfGrantAccessCommand	RIDC_CONNECTION_STR	`idc://UCM host name or IP address:UCM server port`
UCM_Managed_Attachments	oracle.imaging.axf.commands.ucm.AfGrantAccessCommand	UCM_CONNECTION_STR	`http://UCM host name or IP address:WebServerPort/ucm web root/idcplg/_p/min/af/trigger-EBSProfile? IdcService=GET_SEARCH_RESULTS_FORCELOGIN&ResultCount=20&ResultTemplate=EBS_LIST&SearchEngineName=DATABASE.METADATA.AFLIST`
UCM_Managed_Attachments	oracle.imaging.axf.commands.ucm.AfGrantAccessCommand	UCM_ADMIN_USER	`UCM admin user`

Table B-7 Example AXF_SOLUTION_PARAMETERS Table for Oracle PeopleSoft Managed Attachments Solution

COMMAND_NAMESPACE	CONFIGURATION_NAMESPACE	PARAMETER_KEY	PARAMETER_VALUE
UCM_Managed_Attachments	oracle.imaging.axf.commands.ucm.AfGrantAccessCommand	RIDC_CONNECTION_STR	`idc://UCM host name or IP address:UCM server port`
UCM_Managed_Attachments	oracle.imaging.axf.commands.ucm.AfGrantAccessCommand	UCM_CONNECTION_STR	`http://UCM host name or IP address:WebServerPort/ucm web root/idcplg/_p/min/af/trigger-PSFTProfile? IdcService=GET_SEARCH_RESULTS_FORCELOGIN&ResultCount=20&ResultTemplate=PSFT_LIST&SearchEngineName=DATABASE.METADATA.AFLIST`
UCM_Managed_Attachments	oracle.imaging.axf.commands.ucm.AfGrantAccessCommand	UCM_ADMIN_USER	`UCM admin user`

B.2 Oracle E-Business Suite AXF Tables For the Managed Attachments Solution

Each Oracle E-Business Suite form enabled for the AF integration requires an AXF Oracle E-Business Suite configuration that defines a Zoom Menu item with the label Managed Attachments and a set of parameters that include the Oracle E-Business Suite instance name, business object type, business object key(s), and user friendly description of the business object instance.

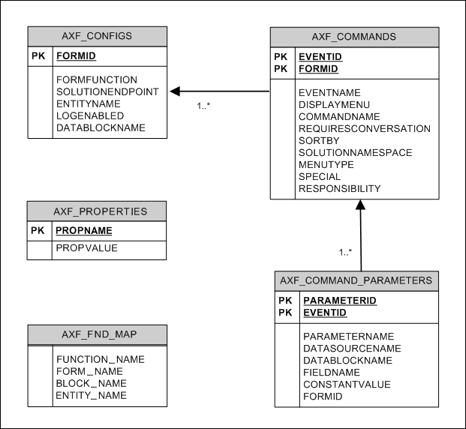

The diagram that follows displays the Oracle E-Business Suite configuration tables used for the Managed Attachments solution and their relationships.

Oracle E-Business Suite Table	Description
AXF_CONFIGS Table (Oracle E-Business Suite)	Enables the AXF solution on various Oracle E-Business Suite Forms.
AXF_COMMANDS Table (Oracle E-Business Suite)	Describes the actions to take based on user activity.
AXF_COMMAND_PARAMETERS Table (Oracle E-Business Suite)	Defines the information sent for the AfGrantAccess command.
AXF_PROPERTIES Table (Oracle E-Business Suite)	Defines properties for AXF integration for Oracle E-Business Suite.
AXF_FND_MAP Table (Oracle E-Business Suite)	Defines Oracle E-Business Suite form values to pass to the AfGrantAccessCommand when a user activates the Managed Attachments functionality from an Oracle E-Business Suite form.

B.2.1 AXF_CONFIGS Table (Oracle E-Business Suite)

Use the AXF_CONFIGS table to enable the AXF solution on various Oracle E-Business Suite Forms. This table provides a fine level of granularity when selecting which forms to AXF-enable.

When an action occurs, the customized code launches the specified solution and command configured for the event. When configured for the Oracle E-Business Suite adapter for Oracle UCM, this table invokes the AfGrantAccess command.

B.2.1.1 Column Description

Table B-8 Column Description for AXF_CONFIGS Table

Column Name	Description	Data Type
FORMID	Specifies the primary key of the table.	Number
FORMFUNCTION	Distinguishes each Oracle E-Business Suite Form based on the form's functionality.	Varchar2 (100 byte)
SOLUTIONENDPOINT	Specifies a URL to AXF. This value should start as `https://` if SecureMode is on. See Section 2.2.2, "Securing Communications Through SSL."	Varchar2 (1000 byte)
ENTITYNAME	Used by the attachment functionality as a unique name, which links attachments to the correct Forms.	Varchar2 (100 byte)
LOGENABLED	Enables or disables the log for the specified form. See Section 2.4, "Configuring Oracle E-Business Suite Logging." Specify one of the following: 1/TRUE/YES 0/FALSE/NO	Varchar2 (10 byte)
DATABLOCKNAME	Specify the data block on the form to enable. Note that you can also specify `AXF_DEFAULT` to enable all data blocks on the form. A Form may be reused by Oracle E-Business Suite (for example, Invoice Entry and Invoice Query); the FORMFUNCTION and DATABLOCKNAME together uniquely identify each form.	Varchar2 (100 byte)

B.2.1.2 Example Implementation

This example defines the AfGrantAccess command in the AXF_CONFIGS table for the Invoice Entry form.

Fields not shown: ENTITYNAME=(null), LOGENABLED=YES, and DATABLOCKNAME=(null)

Table B-9 Example AXF_CONFIGS Table

FORMID	FORMFUNCTION	SOLUTIONENDPOINT
1	AXF_MANAGED_ATTACHMENTS	`https://ApplicationServerName:Port/axf-ws/AxfSolutionMediatorService`

B.2.2 AXF_COMMANDS Table (Oracle E-Business Suite)

Use the AXF_COMMANDS table to describe the actions to take based on user activity. This table works with the AXF_CONFIGS Table (Oracle E-Business Suite).

B.2.2.1 Column Description

Table B-10 Column Description for AXF_COMMANDS Table

Column Name	Description	Data Type	Nullable
FORMID	Links to the AXF_CONFIGS Table (Oracle E-Business Suite).	Number	No
EVENTID	Primary key of the table.	Number	Yes
EVENTNAME	Name of the Event command to invoke (ZOOM for this adapter).	Varchar2(100 byte)	Yes
DISPLAYMENU	Displays text of the menu for the command.	Varchar2(100 byte)	Yes
COMMANDNAMESPACE	Request command to pass to the back-end when a user selects the menu.	Varchar2(100 byte)	Yes
REQUIRESCONVERSATION	Indicates if the command requires a valid conversation or not. For this adapter, this value must be NO.	Varchar2(10 byte)	Yes
SORTBY	Order in which the menu is displayed.	Number	Yes
SOLUTIONNAMESPACE	Name of the solution.	Varchar2(100 byte)	Yes
MENUTYPE	Specify the menu type to display to users in Oracle E-Business Suite. ZOOM displays a Zoom menu in the toolbar.	Varchar2(25 byte)	Yes
SPECIAL	Create new menu entries by entering a unique number for the Special type menu. (Not applicable for this adapter.)	Varchar2(10 byte)	Yes
RESPONSIBILITY	Use this column to filter the menu options based on user responsibility. Enter a value to display the menu only to end users with responsibilities associated with that value. (Not applicable for this adapter.)	Varchar2(100 byte)	Yes

B.2.2.2 Example Implementation

The example AXF_COMMANDS table that follows displays fields for an AfGrantAccess command configuration for the Invoice Entry form.

Fields not shown: SPECIAL=(null), RESPONSIBILITY=(null)

Table B-11 Example AXF_COMMANDS Table for Invoice Entry Form

EVENTID	FORMID	EVENTNAME	DISPLAYMENU	COMMAND NAMESPACE	REQUIRESCONVERSATION	SORTBY	SOLUTION NAMESPACE	MENUTYPE
8	1	ZOOM	Managed Attachments	UCM_Managed_Attachment	NO	3	UCM_Managed_Attachments	ZOOM

B.2.3 AXF_COMMAND_PARAMETERS Table (Oracle E-Business Suite)

Use the AXF_COMMAND_PARAMETERS table to define the information sent for each defined command. Each command may require or omit a different set of parameters.

B.2.3.1 Column Description

Table B-12 Column Description for AXF_COMMAND_PARAMETERS Table

Column	Description
PARAMETERID	Defines a unique ID for the parameter.
EVENTID	Defines a unique ID for the event. Comes from the AXF_COMMANDS Table (Oracle E-Business Suite).
PARAMETERNAME	The name of the parameter to pass. For this adapter, this value must be set to: Application: Value assigned to dAFApplication, a required Oracle UCM parameter key. This name/value pair is passed as a configuration parameter to the Oracle UCM AF_GRANT_ACCESS service and attachments framework search.
DATASOURCENAME	Data Source for the parameter value. You can specify Data or Constant.
DATABLOCKNAME	Data Block of the Form from which the value is fetched
FIELDNAME	Field Name in the form from which the value is fetched.
CONSTANTVALUE	Must be set to a value that uniquely identifies the Oracle E-Business Suite instance.

B.2.3.2 Example Implementation

The AXF_COMMAND_PARAMETERS example that follows displays fields configured for the AfGrantAccess command for the Invoice Entry form.

Table B-13 Example AXF_COMMAND_PARAMETERS Table

PARAMETERID	EVENTID	PARAMETERNAME	DATASOURCENAME	DATABLOCKNAME	FIELDNAME	CONSTANTVALUE
1	8	application	CONSTANT	(null)	(null)	EBS_instanceA

B.2.4 AXF_FND_MAP Table (Oracle E-Business Suite)

This table relates to an Oracle E-Business Suite form's values passed to the AfGrantAccessCommand when a user activates the Managed Attachments functionality from an Oracle E-Business Suite form. The adapter looks up values for the Oracle E-Business Suite form in this table and passes them to the AfGrantAccessCommand for executing the Oracle UCM AF_GRANT_ACCESS service and attachments framework search.

B.2.4.1 Column Description

Table B-14 Column Description for AXF_FND_MAP Table

Column	Description
FUNCTION_NAME	Defines the Oracle E-Business Suite Form based on its functionality.
FORM_NAME	Defines the name of the Oracle E-Business Suite form to enable.
BLOCK_NAME	Defines the data block on the form to enable.
ENTITY_NAME	Used by the attachment functionality as a unique name, which links attachments to the correct forms.

B.2.4.2 Example Implementation

The AXF_FND_MAP example that follows displays fields configured for the AfGrantAccess command for the Invoice Entry form.

Table B-15 Example Implementation for AXF_FND_MAP Table

FUNCTION_NAME	FORM_NAME	BLOCK_NAME	ENTITY_NAME
AP_APXINWKB	APXINWKB	INV_SUM_FOLDER	AP_INVOICES

B.2.5 AXF_PROPERTIES Table (Oracle E-Business Suite)

Use the AXF_PROPERTIES table to define properties for AXF integration for Oracle E-Business Suite. You can also use its AXF_PAPERCLIP property to enable or disable the paperclip (display attached document) feature, as described in Section 6.7.13

B.2.5.1 Column Description

Table B-16 Column Description for AXF_PROPERTIES Table (Oracle E-Business Suite)

Column Description

Column	Description
PROPNAME	Specifies properties to use. Properties include: SecureMode: To enable SSL, set this property to ON, and set values for AXFWalletPath and AXFWalletKey properties. AXFWalletPath: Certificate location (path). AXFWalletKey: Specify the key for the AXF wallet password, to be retrieved from the Oracle E-Business Suite vault. AXF_VERSION: Specify `1` for AXF 10g, or `2` for AXF 11g. AXF_SOAP_POLICY: Specify the name of the SOAP policy to use. The currently supported policy is `USER_NAME_TOKEN`. AXF_SOAP_SECURITY: Specify `TRUE` to enable SOAP security, as described in Section 2.2.1. AXF_SOAP_USER: Specify the SOAP userid used in the SOAP header for authentication, as described in Section 2.2.1. AXF_PAPERCLIP: Set to `TRUE` to enable the Oracle E-Business Suite native attachments paperclip option, or `FALSE` (default) to disable it. See Section 6.7.13.
PROPVALUE	Specifies the property's value.

PROPNAME

Specifies properties to use. Properties include:

SecureMode: To enable SSL, set this property to ON, and set values for AXFWalletPath and AXFWalletKey properties.
AXFWalletPath: Certificate location (path).
AXFWalletKey: Specify the key for the AXF wallet password, to be retrieved from the Oracle E-Business Suite vault.
AXF_VERSION: Specify 1 for AXF 10g, or 2 for AXF 11g.
AXF_SOAP_POLICY: Specify the name of the SOAP policy to use. The currently supported policy is USER_NAME_TOKEN.
AXF_SOAP_SECURITY: Specify TRUE to enable SOAP security, as described in Section 2.2.1.
AXF_SOAP_USER: Specify the SOAP userid used in the SOAP header for authentication, as described in Section 2.2.1.
AXF_PAPERCLIP: Set to TRUE to enable the Oracle E-Business Suite native attachments paperclip option, or FALSE (default) to disable it. See Section 6.7.13.

PROPVALUE

Specifies the property's value.

B.2.5.2 Example Implementation

This example table shows the default properties values.

Table B-17 Example AXF_PROPERTIES Table

PROPNAME	PROPVALUE
SecureMode	OFF
AXFWalletPath	file:walletpath
AXFWalletKey	AXFWalletKey
AXF_VERSION	2
AXF_SOAP_POLICY	USER_NAME_TOKEN
AXF_SOAP_SECURITY	TRUE
AXF_SOAP_USER	weblogic
AXF_PAPERCLIP	FALSE

B.3 Oracle PeopleSoft Tables For the Managed Attachments Solution

Configuring AXF for Oracle PeopleSoft requires configuring these AXF-related tables in Oracle PeopleSoft:

Section B.3.1, "PS_AXF_CONFIG Table"
Section B.3.2, "PS_AXF_COMMANDS Table"
Section B.3.3, "PS_AXF_CMD_PARAMS Table"

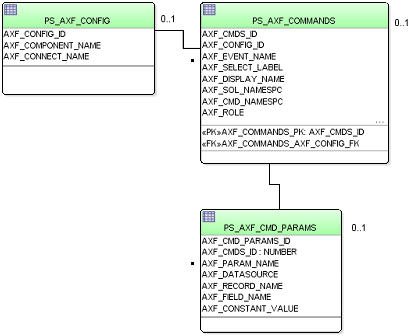

The following diagram shows how the tables used by the Oracle PeopleSoft system in AXF solutions are related.

Shows PeopleSoft AXF Attachments table relationships.

Note:

All AXF table fields require non-null values. You can include a space for fields that do not apply.

B.3.1 PS_AXF_CONFIG Table

Use the PS_AXF_CONFIG table to enable the AXF solution on various Oracle PeopleSoft components. This table provides a fine level of granularity when selecting which pages and components to AXF-enable.

Events are automatically invoked when an action is performed on an Oracle PeopleSoft page. The AXF_PS_Integration project component catches PRE- and POST- save events and makes them available for customization. You can decide which events to use and how and when to use them.

B.3.1.1 Column Description

Table B-18 Column Description for PS_AXF_CONFIG Table

Column	Description
AXF_CONFIG_ID	Specifies the primary key of the table.
AXF_COMPONENT_NAME	Specifies the name of the Oracle PeopleSoft component being enabled.
AXF_CONNECT_NAME	Specifies the Oracle PeopleSoft Integration Broker Connection name (service operation to call), as defined in the Oracle PeopleSoft Integration Broker administration interface. The default service operation is AXF_EXECUTE. You can set up and use other connections.
AXF_VERSION	Specifies the AXF version of the connection. This value should be set to `11g`.

B.3.1.2 Example Implementation

This example defines that the WM_WO (work order) component is AXF-enabled.

Table B-19 Example PS_AXF_CONFIG Table

AXF_CONFIG_ID	AXF_COMPONENT_NAME	AXF_CONNECT_NAME	AXF_VERSION
1	WM_WO	AXF_EXECUTE	11g

B.3.2 PS_AXF_COMMANDS Table

Use the PS_AXF_COMMANDS table to describe the actions to take based on user activity. This table works with the PS_AXF_CONFIG Table.

B.3.2.1 Column Description

Table B-20 Column Description for PS_AXF_COMMANDS Table

Column	Description
AXF_CMDS_ID	Specifies the primary key of the table, used to identify the unique command.
AXF_CONFIG_ID	Specifies the foreign key to the PS_AXF_CONFIG Table, which associates this unique command with a particular page and component.
AXF_EVENT_NAME	Specifies the event being executed. The AXF_EVENT_NAME corresponds to the subpage incorporated into an existing Oracle PeopleSoft page, such as a button, link, or menu added to an Oracle PeopleSoft page to invoke AXF functionality such as the Image Viewer or Task List. Available options include: AXF_BUTTON_1, …, AXF_BUTTON_5 AXF_LINK_1, ..., AXF_LINK5 AXF_COMBO_1, ..., AXF_COMBO_5 AXF_PRE_SAVE_SBP AXF_POST_SAVE_SBP
AXF_SELECT_LABEL	Represents the label that for display if using a drop-down component (for example, AXF_COMBO_1).
AXF_DISPLAY_NAME	Defines the name of the button or link to display on the Oracle PeopleSoft screen.
AXF_SOL_NAMESPC	Identifies the solution namespace for the command to execute.
AXF_CMD_NAMESPC	Identifies the command namespace for the command to execute.
AXF_PSFT_ROLE	Identifies the Oracle PeopleSoft roles with access to the command. Include roles in a comma-delimited list with each role enclosed in single quotes (for example, 'Role1','Role2','Role3')
AXF_SORT_ORDER	Specifies the order of items displayed in a selection field. Sort order applies to selection fields only.
AXF_REQ_CONV	Specifies if a conversation is required for this command before execution. For example, execution of the UpdateTask command requires a conversation be running in order for the user to select a current task.

B.3.2.2 Example Implementation

This example shows the UCM_Managed_Attachments command added as a link to an Oracle PeopleSoft page.

You must specify an Oracle PeopleSoft Role in the AXF_PSFT_ROLE field to give permissions to use the commands. If a person does not have proper permissions to use the commands, the commands do not display. If the commands display but do not function, this indicates that the commands are not configured properly.

Table B-21 Example PS_AXF_COMMANDS Table

AXF_CMDS_ID	AXF_CONFIG_ID	AXF_EVENT_NAME	AXF_SELECT_LABEL	AXF_DISPLAY_NAME	AXF_SOL_NAMESPC	AXF_CMD_NAMESPC	AXF_PSFT_ROLE	AXF_SORT_ORDER	AXF_REQ_CONV
2	1	AXF_LINK_1	(null)	Managed Attachments	UCM_Managed_Attachments	UCM_Managed_Attachments	'Employee'	1	N

B.3.3 PS_AXF_CMD_PARAMS Table

Use the PS_AXF_COMMAND_PARAMS table to specify the information sent for each defined command. Each command may require or omit a different set of parameters.

Use the PS_AXF_CMD_PARAMS Table to configure a label for the list of attachments. You can use a combination of constant and data values to display key information,

B.3.3.1 Column Description

Table B-22 Column Description for PS_AXF_CMD_PARAMS Table

Column	Description
AXF_CMD_PARAM_ID	Specifies the primary key of the table.
AXF_CMD_ID	Specifies the foreign key to the PS_AXF_COMMANDS Table, which associates the unique parameter with a specific command.
AXF_PARAM_NAME	Defines the parameter name, where: Application: Specifies the business application, as defined in AFObjects Table. businessObjectType: Specifies the business application's object type, as defined in AFObjects Table. businessObjectKey1...5: Represents the primary key name for the document. businessObjectValue1...5: Represents the primary key value for the document. labelValue1...5: Labels displayed on Managed Attachments user interface for displaying key values for the attachments integration.
AXF_DATASOURCE	Specifies where the parameter value is retrieved. DATA: Retrieves the value in Oracle PeopleSoft defined by the AXF_RECORD_NAME and AXF_FIELD_NAME fields. CONSTANT: Uses the value defined in the AXF_CONSTANT_VALUE field.
AXF_RECORD_NAME	Identifies the record of the field in the Oracle PeopleSoft page to use as the target value to retrieve when AXF_DATASOURCE is set to DATA.
AXF_FIELD_NAME	Used as the constant value when AXF_DATASOURCE is set to DATA.
AXF_CONSTANT_VALUE	Used as the constant value when AXF_DATASOURCE is set to CONSTANT.

B.3.3.2 Example Implementation

This example shows the information sent for the UCM_Managed_Attachments command, including its application and business object type. The labelValue entries are configured to display key labels/values for the attachment. For example, the labelValues configuration in this table might display the following on the Managed Attachments screen:

[Business Unit], [US001], [Work Order], [123456]

Table B-23 Example PS_AXF_CMD_PARAMS Table

AXF_CMD_PARAM_ID	AXF_CMD_ID	AXF_PARAM_NAME	AXF_DATASOURCE	AXF_RECORD_NAME	AXF_FIELD_NAME	AXF_CONSTANT_VALUE
3	2	application	CONSTANT			PSFT_INSTANCE_A
4	2	businessObjectType	CONSTANT			WM_WO_HDR
5	2	businessObjectKey1	CONSTANT			BUSINESS_UNIT
6	2	businessObjectValue1	DATA	WM_WO_HDR	BUSINESS_UNIT
7	2	businessObjectKey2	CONSTANT			WO_ID
8	2	businessObjectValue2	DATA	WM_WO_HDR	WO_ID
9	2	labelValue1	CONSTANT			Business Unit
10	2	labelValue2	DATA	WM_WO_HDR	BUSINESS_UNIT
11	2	labelValue3	CONSTANT			Work Order
12	2	labelValue4	DATA	WM_WO_HDR	WO_ID

B.4 Content Server Tables For the Managed Attachments Solution

The adapter utilizes the following additional database tables:

Section B.4.1, "AFGrants Table"
Section B.4.2, "AFObjects Table"
Section B.4.3, "AFRelationshipAttributes Table"
Section B.4.4, "AFKeys Table"

These tables are automatically populated at run-time. AFGrants is initially populated when the user accesses Oracle UCM from the business application and the AF_GRANT_ACCESS service is run. AFObjects is populated when the user checks in a document to Oracle UCM from the Managed Attachments screen.

B.4.1 AFGrants Table

This table stores the grants given to users, allowing them to temporarily access documents associated with a particular business object.

B.4.1.1 Column Description

Table B-24 Column Description for AFGrants Table

Columns	Description
dUserName	Stores the name of the user.
dAFApplication	Stores the business application's instance name (for example, PSFT_Instance1).
dAFBusinessObject	Stores the business application's object
dAFBusinessObjectType	Stores the business application's object type
dPrivilege	Stores the privilege to grant to the user: R (read), W (write), D (delete), or A (admin). This parameter is optional. If not specified, the access level specified for the AppAdapterGrantPrivilege configuration variable is used, as described in Section 6.3.3, "Configuring the Preferences.hda File."
dExpirationDate	Stores the date and time at which to expire this grant.
dMaxExpiration	Stores the time at which the maximum access period (in hours) expires.

B.4.2 AFObjects Table

This table maps Content Server documents to AF business objects, in an N-to-N relationship, which enables multiple content items to be associated with a single business object and multiple business objects to contain the same content item.

Each time a user attaches or detaches a document, a record is added or updated in this table.

B.4.2.1 Column Description

Table B-25 Column Description for AFObjects Table

Column	Description
dAFID	Stores the unique ID of each attachment.
dAFApplication	Stores the business application's instance name (for example, PSFT_Instance or EBS_Instance).
dAFBusinessObjectType	Stores the business application's object type (for example, CallRecords or HRMS).
dAFBusinessObject	Stores the business object's ID in the business application instance.
dDocName	Stores a content item's ID associated with the business object.
DID	Stores the ID of the document associated with the business entity. In revision-specific attachments mode, this ID is used in returning a specific version of the document. For more information, see Section 6.7.9, "Configuring Revision-Specific Mode."

B.4.3 AFRelationshipAttributes Table

This table stores relationship attributes associated with an attachment. For more information, see Section 6.7.8, "Configuring Relationship Attributes." Depending on the configuration of relationship attributes, a document can have zero or more relationship attributes.

B.4.3.1 Column Description

Table B-26 Column Description for AFRelationshipAttributes Table

Columns	Description
dAFID	Stores the unique ID of each attachment.
attribute	Stores the relationship attribute name.
value	Stores the value of the relationship attribute the user selected.

B.4.4 AFKeys Table

This table stores individual key values for later reference.

The business applications support up to five primary key/value combinations, which can be used instead of dAFBusinessObject to represent a business entity. In a Managed Attachments solution, these keys are mapped to dAFBusinessObject by concatenating the PK_Value fields separated by a | (pipe) character. The original PK_Key and PK_Values are logged to the AFKeys table before performing the mapping operation.

B.4.4.1 Column Description

Table B-27 Column Description for AFKeys Table

Columns	Description
dAFApplication	Stores the business application's instance name.
dAFBusinessObjectType	Stores the business application's object type.
dAFBusinessObject	Stores the business object's ID in the business application instance.
PK1_Key ... PK5_Key	Stores up to five key/value combinations.
PK1_Value ... PK5_Value	Stores up to five key/value combinations.
