B Troubleshooting Oracle SOA Suite

This appendix describes how to troubleshoot issues you can encounter when using Oracle SOA Suite.

This appendix includes the following topics:

B.1 Best Practice for Starting and Stopping a Managed Server

As a best practice, it is always recommended that you start and stop a managed server through one, but not both, of the following methods. Do not mix these methods, such as starting the managed server from the command line and stopping it from Oracle Enterprise Manager Fusion Middleware Control Console, or vice versa.

Perform the following steps to stop and start the server from Oracle Enterprise Manager Fusion Middleware Control Console.

  1. Expand the WebLogic domain.

  2. Select the managed server (for example, named soa_server1).

  3. Select Control > Shut Down.

  4. Select Control > Start Up.

For information on starting and stopping managed servers from the command line, see Oracle Fusion Middleware Installation Guide for Oracle SOA Suite and Oracle Business Process Management Suite.

B.2 Specifying the Proxy Server

To use system properties to specify the proxy server, write your client application in the standard way, and then specify Java system properties when you execute the client application.

setenv PROXY_SETTINGS "-DproxySet=true
-Dhttp.proxyHost=www-myproxy.us.mycompany.com -Dhttp.proxyPort=80
 -Dhttp.nonProxyHosts=localhost|*.us.mycompany.com
  |0:0:0:0:0:0:0:1|fe80:0:0:0:250:56ff:fe31"

Note:

When you specify values for proxy properties such as http.proxyHost and http.proxyPort, also specify the http.nonProxyHosts property.

B.3 Optimizing the Loading of Pages with Instance and Fault Metrics

Since production systems can include numerous composite instances and faults, there is a possibility of time-outs in the SOA Oracle Enterprise Manager Fusion Middleware Control Console pages as information retrieval becomes relatively slow. To optimize the loading performance of pages, you can enable a property setting in the SOA Infrastructure Common Properties page that disables the loading of all metrics information upon page load. The instances and faults metrics can be obtained on demand from the server.

  1. In the navigator, click soa-infra.

  2. Note that values appear in the Running and Total fields in the Recent Composite Instances section and the Instances column of the Deployed Composites section. When these values are large, it can take time to load this page and other pages with similar information.

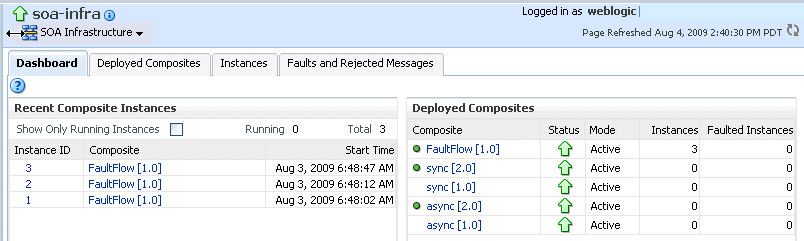

    Description of soaadmin_fetch1.gif follows
    Description of the illustration soaadmin_fetch1.gif

  3. From the SOA Infrastructure menu, select SOA Administration > Common Properties.

  4. In the Display Data Counts section, select the Disable fetching of instance and fault count metrics check box.

  5. Click Apply.

  6. Return to the Dashboard page of the SOA Infrastructure.

  7. Note that the values that previously displayed have been replaced with links.

  8. Click a link.

    Description of soaadmin_fetch2.gif follows
    Description of the illustration soaadmin_fetch2.gif

    The values are calculated for the link you selected. When the calculation is complete, a message displays the total values.

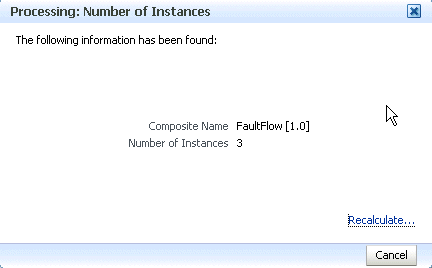

    Description of soaadmin_fetch3.gif follows
    Description of the illustration soaadmin_fetch3.gif

For more information about setting this property, see Section 3.1, "Configuring SOA Infrastructure Properties."

Notes:

  • If you click a link to retrieve instance and fault count metrics, and Oracle Enterprise Manager Fusion Middleware Control Console times out, increase the transaction timeout property. For more information, see Section B.6, "Resolving Connection Timeouts."

  • If you click Recalculate, and the recalculation occurs quickly, the progress indicator does not have a chance to render. However, any updates to the data are reflected on-screen.

B.4 Resolving Message Failure Caused By Too Many Open Files

You can receive the following error at run time or compilation time, depending on the number of JAR files being used, the use of file descriptors by JDK 6/JRE, or both.

Message send failed: Too many open files

To resolve this error, increase the number of file descriptors to at least 4096.

  1. Use the limit command (for the C shell) or the ulimit command (for the Bash shell) to identify the value for descriptors. A value of 1024 is typically too low, especially for JDK 6.

    % limit

    cputime      unlimited
    filesize     unlimited
    datasize     unlimited
    stacksize    10240 kbytes
    coredumpsize unlimited
    memoryuse    unlimited
    vmemoryuse   unlimited
    descriptors  1024
    memorylocked 500000 kbytes
    maxproc      46720

  2. Log in as the root user on your operating system.

  3. Edit the /etc/security/limits.conf file to increase the value for descriptors.

    For this example, the limits.conf file looks as follows after increasing the limit for all users to 4096:

    #<domain>      <type>  <item>         <value>
    #

    #*               soft    core            0
    #*               hard    rss             10000
    #@student        hard    nproc           20
    #@faculty        soft    nproc           20
    #@faculty        hard    nproc           50
    #ftp             hard    nproc           0
    #@student        -       maxlogins       4

    # End of file
    @svrgroup    soft    memlock         500000
    @svrgroup    hard    memlock         500000
    *           soft    nofile          4096
    *           hard    nofile          4096

  4. Close your terminal and reopen for the change to take effect. A system restart is not required.

B.5 Extending Tablespaces to Avoid Problems at Run Time

If the database tablespace is not extended, run time processing can be impacted. Messages are not processed or persisted, and exception errors similar to the following can appear in the log files. This is because Oracle BPEL Process Manager relies on the database to store instance data. If the database is not available, run-time processing is impacted.

INFO: MediatorServiceEngine returning after processing the request for
operation = processResponse

[EL Warning]: 2009.01.14 11:46:16.783--UnitOfWork(32372128)--Exception
[EclipseLink-4002] (Eclipse Persistence Services - 1.1 (Build
SNAPSHOT-20081007)): org.eclipse.persistence.exceptions.DatabaseException
Internal Exception: java.sql.BatchUpdateException: ORA-01691: unable to
extend lob segment SH_SOAINFRA.SYS_LOB0000145067C00007$$ by 1024 in
tablespace SH_SOAINFRA

Error Code: 1691
Query: InsertObjectQuery(com.collaxa.cube.persistence.dto.AuditTrail@199b33d)
[EL Warning]: 2009.01.14 11:46:16.782--UnitOfWork(32372128)--Exception
[EclipseLink-4002] (Eclipse Persistence Services - 1.1 (Build
SNAPSHOT-20081007)): org.eclipse.persistence.exceptions.DatabaseException
Internal Exception: java.sql.BatchUpdateException: ORA-01691: unable to
extend lob segment SH_SOAINFRA.SYS_LOB0000145067C00007$$ by 1024 in
tablespace SH_SOAINFRA
. . .
. . .

Ensure that you set a tablespace to automatically extend itself by a specified amount when it reaches its size limit. If you do not enable autoextend, ensure that you respond when alerted that the tablespace is reaching its critical or warning threshold size. You can respond to size alerts by manually increasing the tablespace size.

B.6 Resolving Connection Timeouts

You can receive a connection timeout error under circumstances such as the following:

To avoid receiving timeout errors, increase the transaction timeout property as follows:

  1. Log into Oracle WebLogic Administration Console.

  2. Click JTA.

  3. Change the value of Timeout Seconds (the default is 30).

  4. Click Save.

  5. Restart Oracle WebLogic Server.

B.7 Updating the EJB Transaction Timeout Value in the Deployment Archive After SOA Infrastructure Failure

Updating the transaction time out value for the FacadeFinderBean property in Oracle WebLogic Server Administration Console under Deployments > expanded SOA Infrastructure Application > FacadeFinderBean > Configuration tab can result in the following error after restarting the SOA Infrastructure:

java.lang.IllegalArgumentException: Cannot convert value of type [$Proxy223
implementing
 oracle.bpel.services.workflow.verification.IVerificationService,org.springframe
work.aop.SpringProxy,org.springframework.aop.framework.Advised]
to required type
[oracle.bpel.services.workflow.verification.IVerificationService] for
property 'verificationService': no matching editors or conversion strategy found
Message icon - Warning Errors were encountered while performing this operation.

The SOA Infrastructure status is also displayed as failed.

This error is not specific to FacadeFinderBean; it also applies to any EJB that is part of the SOA Infrastructure application.

To resolve this error, you must manually modify the transaction timeout setting in your deployment archive.

To update the transaction timeout setting:

  1. Open the fabric-ejb.jar file in your deployment archive.

  2. Increase the transaction timeout value in the META-INF/weblogic-ejb-jar.xml file to a larger value.

  3. Rejar the file.

  4. Restart the managed server that includes the SOA Infrastructure by following the instructions in Section 3.2, "Stopping and Starting the Managed Server and SOA Infrastructure."

    Note:

    This issue may also occur while updating any EJBs deployed as part of the SOA Infrastructure application. If this issue occurs, you must update the corresponding contained JAR file for those EJBs in a similar fashion.

B.8 Increasing Database Connection Values

You can receive the following error message because of slow connections to the database.

Exception [TOPLINK-4002] (Oracle TopLink - 11g Release 1 (11.1.1.1.0) (Build
090304)): oracle.toplink.exceptions.DatabaseException
Internal Exception: java.sql.SQLException: Internal error: Cannot obtain
XAConnection weblogic.common.resourcepool.ResourceDeadException: Pool
SOADataSource has been disabled because of hanging connection tests, cannot
allocate resources to applications.

If this occurs, perform the following steps:

  1. Open the DOMAIN_HOME\bin\setSOADomainEnv.cmd file.

  2. Uncomment the lines shown in bold.

    # 8331492: Value of weblogic.resourcepool.max_test_wait_secs is 10
    # seconds. It can be increased by uncommenting line below if your database
    # connections are slow. See SOA documentation for more details.
     EXTRA_JAVA_PROPERTIES="${EXTRA_JAVA_PROPERTIES}
    -Dweblogic.resourcepool.max_test_wait_secs=30"
    export EXTRA_JAVA_PROPERTIES

  3. Save your changes and restart the managed Oracle WebLogic Server.

B.9 Resolving MaxMessageSizeExceededException Errors Caused By Large Payloads

If you provide a large payload (for example, 12 MB) to your deployed SOA composite application, then click View XML Document in the audit trail to view the payload, you can encounter MaxMessageSizeExceededException errors. This error can be resolved by setting the following JVM parameter.

  1. Open the following file:

    • On UNIX operating systems, open $MIDDLEWARE_HOME/user_projects/domains/domain_name/bin/setDomainEnv.sh.

    • On Window operating systems, open MIDDLEWARE_HOME\user_projects\domains\domain_name\bin\setDomainEnv.bat.

  2. Add the weblogic.MaxMessageSize property with the following value:

    EXTRA_JAVA_PROPERTIES="${EXTRA_JAVA_PROPERTIES}
    -Dweblogic.MaxMessageSize=20000000"
    export EXTRA_JAVA_PROPERTIES

  3. Restart the server.

B.10 Accessing Oracle Enterprise Manager Fusion Middleware Control Console on Dual Stack Hosts that Support IPv4 and IPv6

If you run Oracle SOA Suite on a dual stack host that supports both IPv4 and IPv6, you must update the etc/hosts file as shown in Table B-1 for IPv4 clients to access IPv6 URLs in Oracle Enterprise Manager Fusion Middleware Control Console.

Table B-1 IPv4 and IPv6 Settings in etc/hosts File

On The... Edit the etc/hosts File as Follows....

On the IPv4 client:

xx.xxx.xxx.xxx myhost10-ipv6

where xx.xxx.xxx.xxx is the IP address of IPv6.

On the IPv6 client

fdf5:74cc:db0a::0:1  myhost10-ipv6 myhost10-ipv6.us.oracle.com

Note: Replace fdf5:74cc:db0a::0:1 with a value appropriate to your host environment.


B.11 Limitation on Using the Safari Browser to View WSDL File Content

If you are using the Safari browser, note the following limitation and workaround for viewing WSDL file contents in Oracle Enterprise Manager Fusion Middleware Control Console. Note also that Mozilla Firefox works correctly and does not require this workaround.

  1. Go to the home page for a SOA composite application.

  2. Click the Show WSDL and endpoint URI link at the top of the page.

  3. Click the WSDL link that is displayed.

    This opens a blank page that does not display the contents of the selected WSDL.

    As a workaround, perform the following additional steps.

  4. In the upper right corner of this page, click the Display a menu for the current page icon.

  5. Select View Source from the menu that is displayed.

    This displays the contents of the selected WSDL in another page.

B.12 Flow Diagram Does Not Display The First Time on Some Lower End Hosts

The flow diagram for an instance ID of a deployed SOA composite application in Oracle Enterprise Manager Fusion Middleware Control Console may not display the first time on some lower end hosts. Instead, you receive a failed to load resource message.

As a workaround, close the flow trace page and click the instance ID to return to the flow trace page.
