21 Tracing Rule Execution in Fusion Middleware Control Console

This chapter discusses how to perform rule execution tracing by using Oracle Enterprise Manager Fusion Middleware Control Console.

This chapter covers the following sections:

Section 21.1, "The Oracle Enterprise Manager Fusion Middleware Control Console"
Section 21.2, "Decision Tracing"
Section 21.3, "Rule Execution Tracing Using Fusion Middleware Control Console"

21.1 The Oracle Enterprise Manager Fusion Middleware Control Console

Oracle Enterprise Manager Fusion Middleware Control Console enables you to view the deployed SOA composite applications along with their details. Once you log in to the Fusion Middleware Control Console, you can see the Oracle Fusion Middleware Farm along with the components of the Farm.

When you open the SOA Infra, which contains the SOA Server metrics and the Service Engines, you can view a list of the deployed SOA composites, composite instances as well as any fault that is reported at the time of running a composite instance.

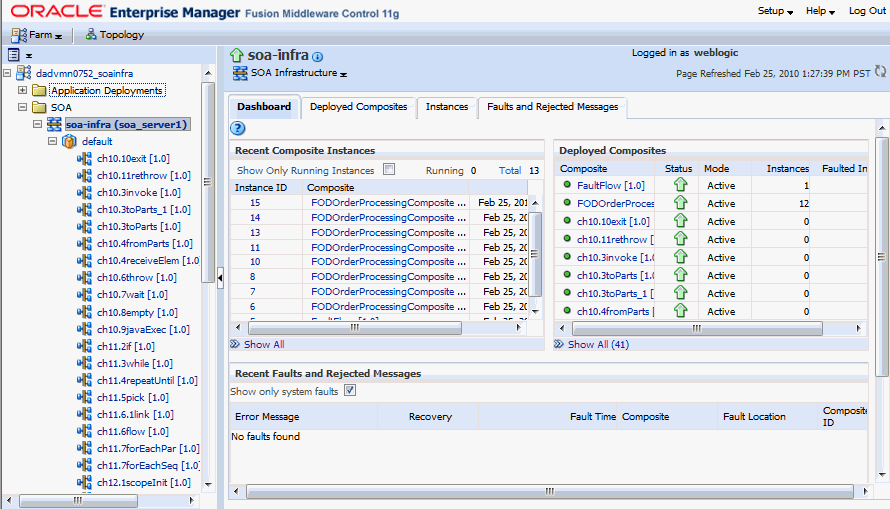

Figure 21-1 displays Oracle Enterprise Manager Fusion Middleware Control Console.

Figure 21-1 Oracle Enterprise Manager Fusion Middleware Control Console

Description of "Figure 21-1 Oracle Enterprise Manager Fusion Middleware Control Console"

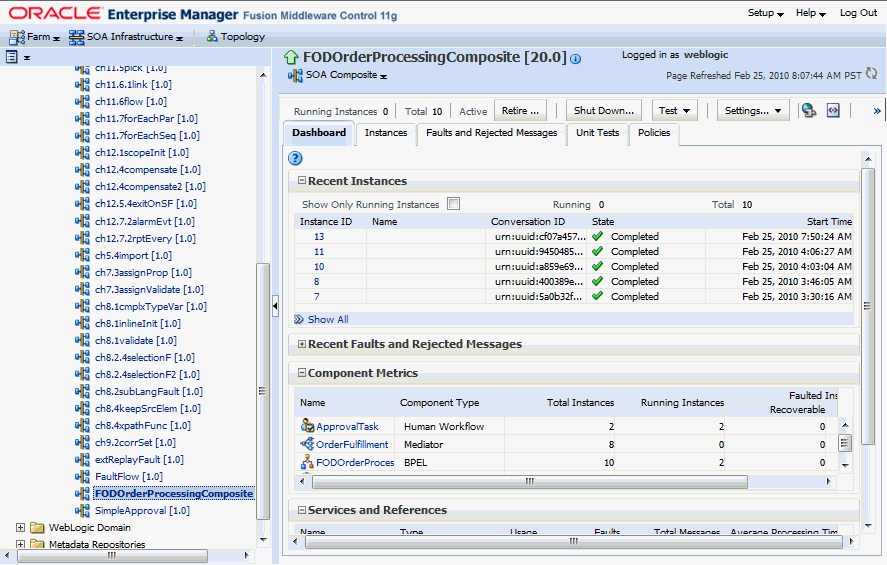

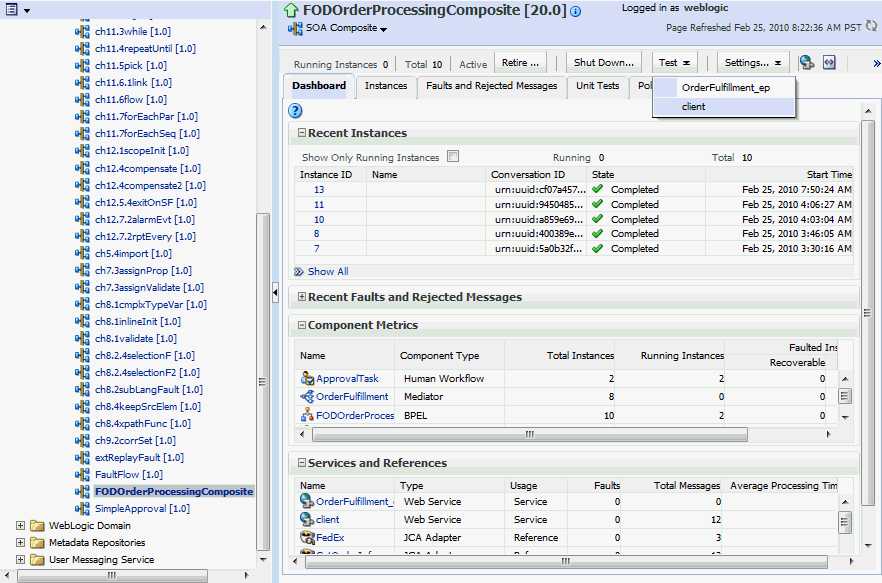

You can click the composite names to view the related instance details, component metrics, and services as shown in Figure 21-2.

Figure 21-2 SOA Composite

Description of "Figure 21-2 SOA Composite"

21.2 Decision Tracing

You can perform a rule execution trace by using Oracle Enterprise Manager Fusion Middleware Control Console.

A decision trace is a mechanism of tracing rule engine events that occur during the evaluation of rules. The types of events traced are:

Fact operations (assert, retract, and modify)
Rules execution
Rule activation
Ruleset stack changes
Rule compilation
Reset (required for maintaining state during analysis)

Each trace contains information about the event that it traces. For example, a rule trace entry for an executed rule consists of:

Rule name (RL name)
Execution sequence number
List of fact IDs for the facts that matched this rule
Timestamp in milliseconds

Decision trace levels are similar to the audit levels supported in SOA Suite:

Off: Decision tracing is disabled. The decision component instance is not created at all.
Development: Full decision tracing that contains all the details about facts (listing, operations such as Modify and Assert), rule activation, pop or push rulesets, and so on. It also provides a list of fact IDs on which the executed rules are matched.
Production: The executed rules are traced. All the details about facts, rule activation, pop or push ruleset are not available. The trace do not contain a list of the matching facts IDs.

You can set trace levels either at the SOA Infra level or at the composite level.

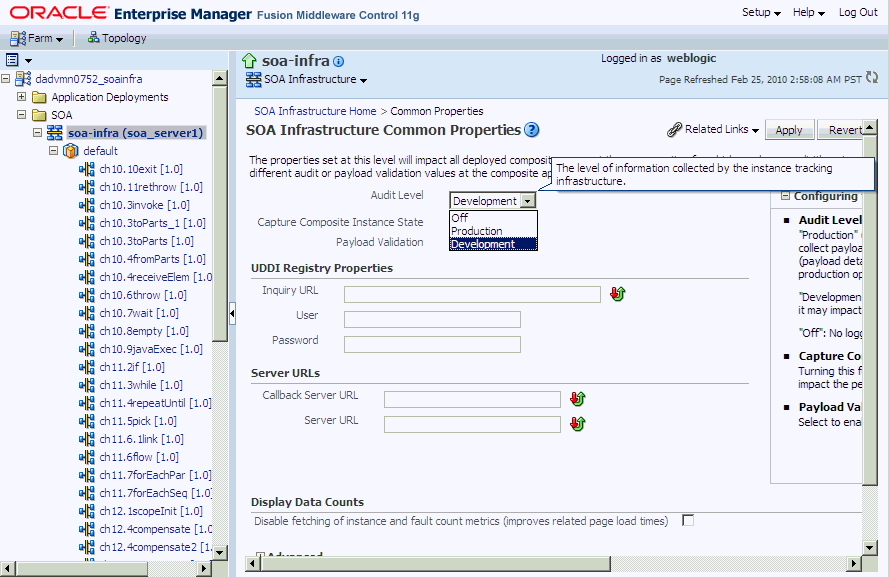

Figure 21-3 displays the options to set different trace levels at the SOA Infra level by using Fusion Middleware Control Console.

Figure 21-3 Decision Trace Levels

Description of "Figure 21-3 Decision Trace Levels"

Figure 21-5, "Setting the Decision Trace Level at the Composite Level" displays how to set the composite trace level.

21.3 Rule Execution Tracing Using Fusion Middleware Control Console

You can use Oracle Enterprise Manager Fusion Middleware Control Console to launch rule execution tracing.

21.3.1 Tracing Rule Execution in the Development Level

Setting the decision trace level as Development enables you to view all the details pertaining to a rule that has been executed.

To perform a Development-level rule execution trace:

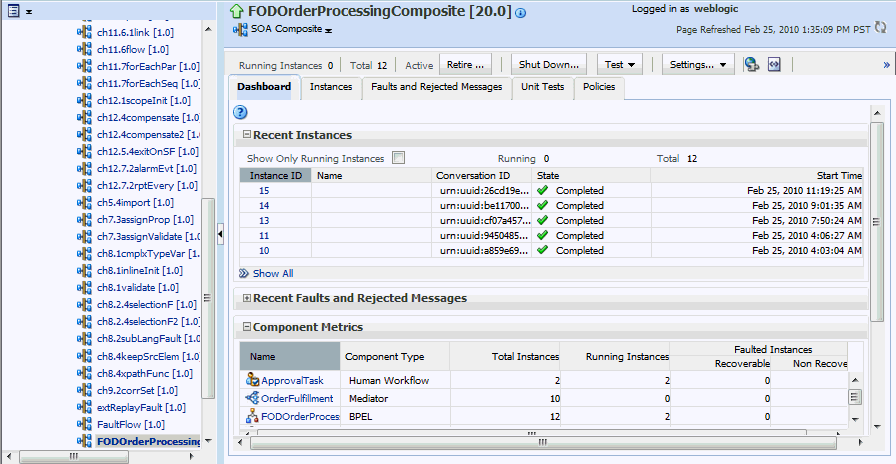

Open the composite application in Fusion Middleware Control Console, as shown in Figure 21-4. The composite under consideration is FOD Order Processing.

You will find a list of the recent composite instances that have been run under the composite Dashboard tab.

Figure 21-4 Opening the SOA Composite

Description of "Figure 21-4 Opening the SOA Composite"

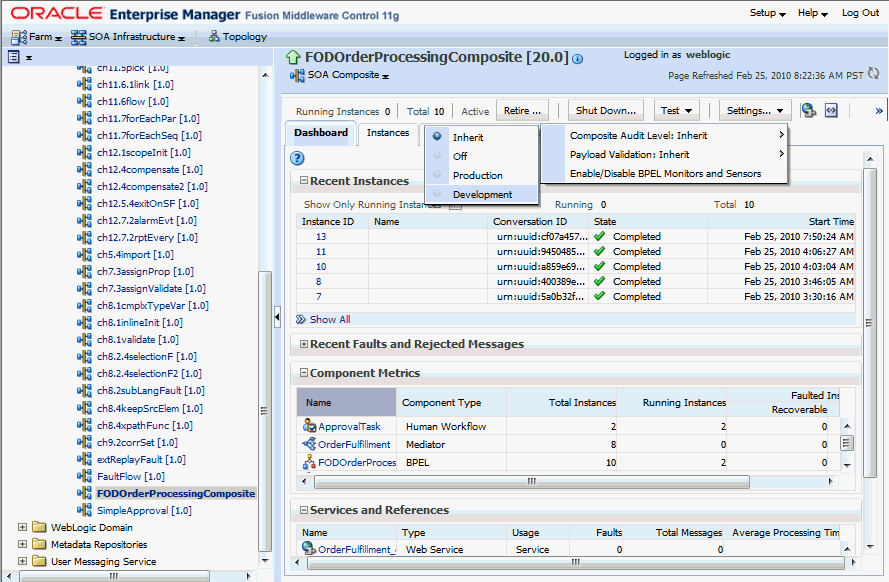

Click the Settings list, select Composite Audit Level, and then Development as shown in Figure 21-5 to set the trace level as Development at the composite level.

Figure 21-5 Setting the Decision Trace Level at the Composite Level

Description of "Figure 21-5 Setting the Decision Trace Level at the Composite Level"

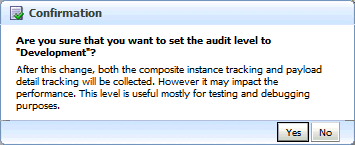

Click Yes in the Confirmation dialog box.

Description of the illustration em_confirm.gif
Click Test and then client to invoke a test instance of the composite as shown in Figure 21-6 to view the decision traces corresponding to different input parameters, such as the OrderID.

Figure 21-6 Invoking a Test Instance of the Composite

Description of "Figure 21-6 Invoking a Test Instance of the Composite"

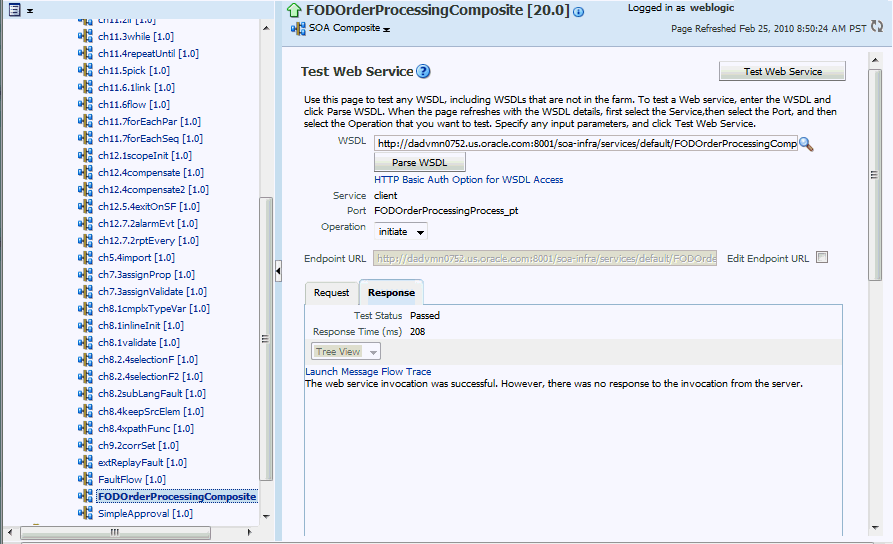

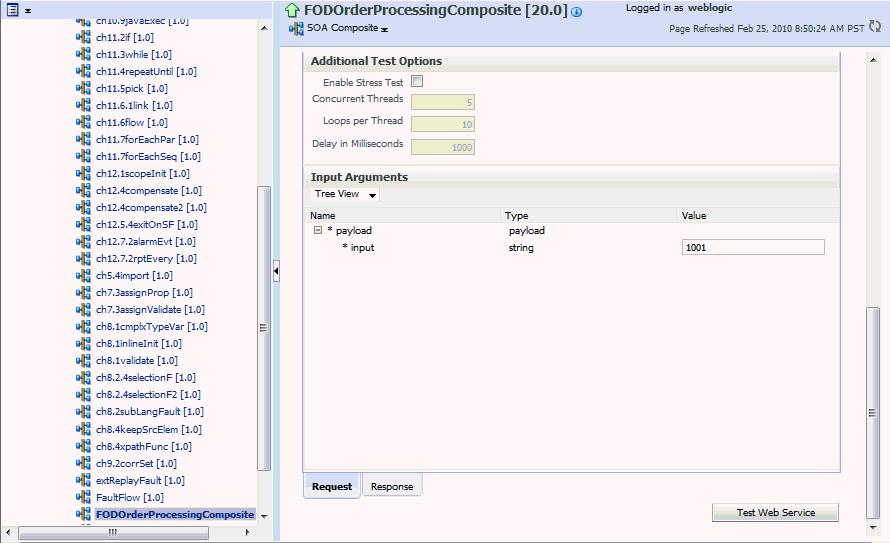

Enter an OrderID, for example 1001, in the Value field in the Input Arguments section on the Test Web Service page and click the Test Web Service button as shown in Figure 21-7.

Based on the input OrderID, the service invokes a BPEL process instance containing the details of the OrderID, and the rule that is relevant to the order details is executed.

Figure 21-7 Entering Input Parameter Value

Description of "Figure 21-7 Entering Input Parameter Value"

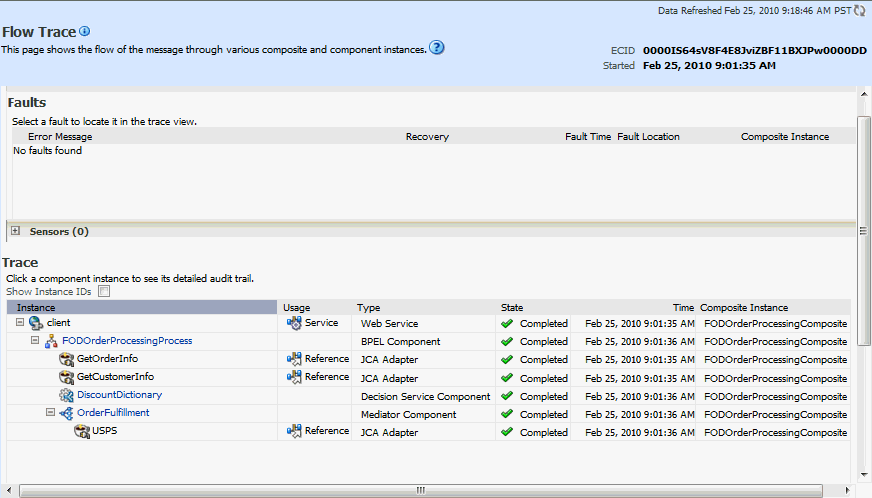

Click Launch Message Flow Trace under the Response tab to open the Flow Trace window as shown in Figure 21-8.

Figure 21-8 Launching the Decision Trace

Description of "Figure 21-8 Launching the Decision Trace"
Click the Decision Service Component instance called DiscountDictionary in the Trace section as shown in Figure 21-9 to view the actual rule execution trace.

Figure 21-9 Opening the Instance Detail Window for the Decision Service Component

Description of "Figure 21-9 Opening the Instance Detail Window for the Decision Service Component"

Note:
You can also view the values of composite variables before and after invocation of business rule component. You need to click the BPEL process component instance in the Flow Trace window, and then click the relevant "payload". In this case, the BPEL component name is FODOrderProcessingProcess.

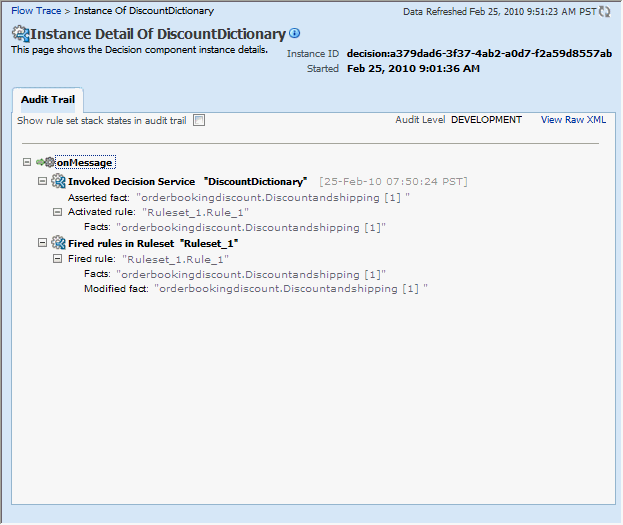

Figure 21-10 displays execution trace for the Decision Service Component called DiscountDictionary.

Figure 21-10 Viewing the Rule Execution Trace

Description of "Figure 21-10 Viewing the Rule Execution Trace"

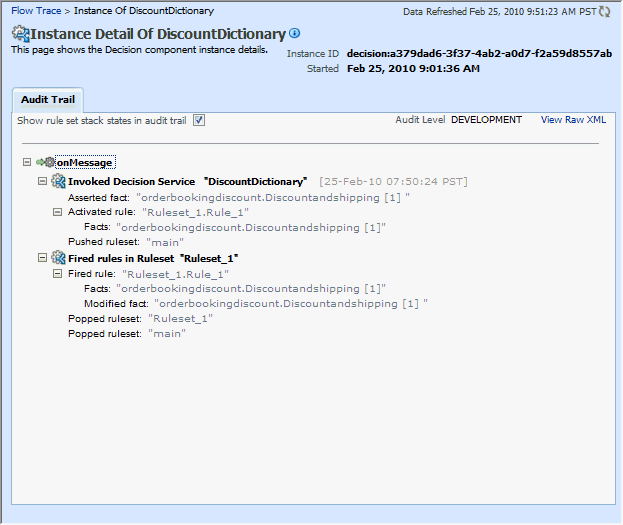

Click the Show rule set stack states in audit trail checkbox to view further details of the rule execution as shown in Figure 21-11.

Figure 21-11 Viewing Detailed Rule Execution Trace

Description of "Figure 21-11 Viewing Detailed Rule Execution Trace"

In Figure 21-11, you can see that the Development-level trace report displays the fact name, activated rule, as well as the pushed and popped ruleset names.

The following table lists the entries of the trace report:

Element	Description
Invoked Decision Service Name	Displays the name of the decision service component that is invoked.
Asserted Fact	Displays the name of the fact that is passed by the BPEL service to the decision service component. This is based on the input parameter provided by the user, which as per the example is the OrderID `1001`.
Activated Rule	Displays the name of the rule that is activated, along with the name of the fact that activated the rule.
Pushed ruleset	Displays the name of the ruleset that has been invoked when the fact is asserted.
Fired rules in Ruleset	Displays the name of the ruleset whose rule is executed.
Fired rule	Displays the name of the rule that is executed.
Modified fact	Displays the name of the fact that has been modified as a result of the rule execution. This modified fact is then passed by the decision service component to the BPEL service.
Popped ruleset	Displays the name of the ruleset for which execution is complete and so, the ruleset is taken out of the execution queue.

Note:

The entry "Invoked Decision Service Name" will appear differently in different scenarios:

For AS10.1.3.x to AS11 upgraded rules dictionaries with AssertExecuteWatch patterns, the entry appears in the trace report as "Invoked Decision Service."
For AS10.1.3.x to AS11 upgraded rules dictionaries with CallFunction patterns, the entry appears in the trace report as "Invoked Decision Function."
For AS11 created dictionaries, the entry is displayed as "Invoked Decision Function."

21.3.2 Tracing Rule Execution in the Production Level

Setting the decision trace level as Production provides a truncated report on the rule execution trace. It only displays the ruleset and the rules that have been fired and does not display details about facts, rule activation, and so on.

The process of Production-level tracing is similar to the Development-level tracing. However, for Production-level tracing, you need to do the following:

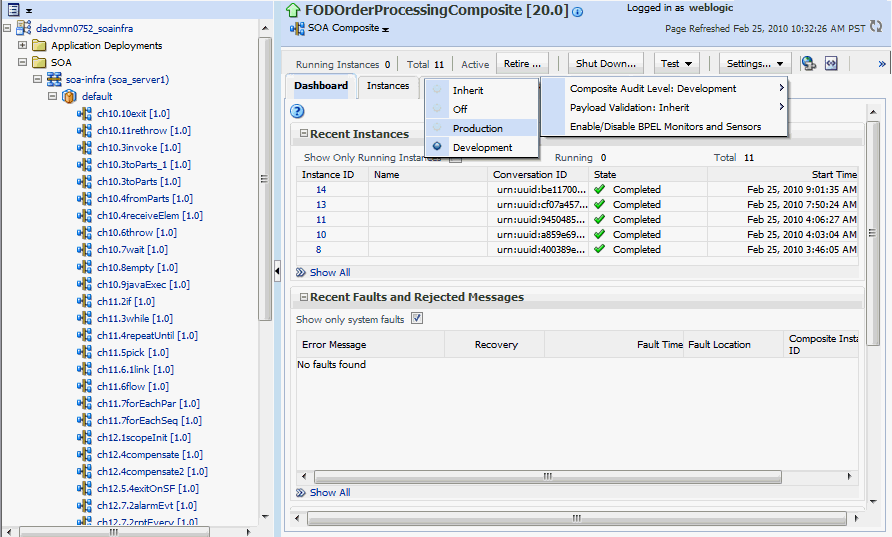

In Fusion Middleware Control Console, after opening the composite, select Production from the Composite Audit Level from the Settings menu as shown in Figure 21-12.

Figure 21-12 Setting the Decision Trace Level as Production

Description of "Figure 21-12 Setting the Decision Trace Level as Production"

You can also set this trace level at the SOA Infra level.

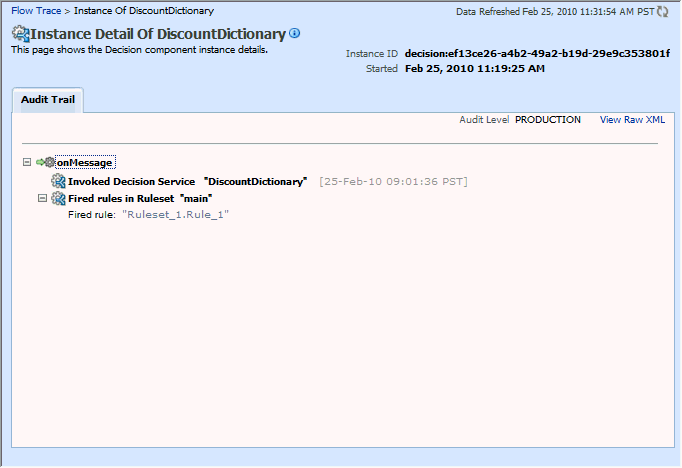

Figure 21-13 displays the Flow Trace window that displays the trace report.

Figure 21-13 Viewing Production Level Rule Execution Trace

Description of "Figure 21-13 Viewing Production Level Rule Execution Trace"

In Figure 21-13, you can see that the Production-level trace report contains only the name of the ruleset and the rules that have been fired. In addition, the Show rule set stack states in audit trail checkbox that provides a drill-down detailed trace report is unavailable in the Production-level trace report.
