116 Creating a Project

116.1.1 How to Create a Project Using Oracle JDeveloper

When you create a TopLink project using Oracle JDeveloper, your mapping information is stored in the TopLink map. The TopLink map contains the information about how classes map to database tables. Use the TopLink editor to edit each component of the mappings, including:

• Database information, such as driver, URL, and login information.

• Mapping defaults, such as identity map and cache options.

The TopLink editor in Oracle JDeveloper supports the following project types:

•
  Relational project

•
  XML project

•
  EIS project

116.1.2 How to Create a Project Using TopLink Workbench

When you create a project using TopLink Workbench, all project information is stored in the project file ( .mwp file). This file references additional XML data files that contain the information about how the Java classes map to database tables or XML elements.

Using TopLink Workbench, you can export this information as a TopLink project XML file (that is, the deployment XML file) that is read in by the TopLink runtime. You can also export this information as a Java class. For more information, see Section 116.3, "Exporting Project Information".

TopLink Workbench displays projects and their contents in the Navigator window. When you select a project, its attributes are displayed in the Editor window. See Section 5.3.3, "How to Use the Navigator" for more information. TopLink Workbench supports the following project types:

•
  Relational project

•
  XML project

•
  EIS project

116.1.3 How to Create a Project Using Java

To create a project using Java code, use this procedure:

1. Implement a project class that extends the oracle.toplink.sessions.Project class (see Example 116-1).

2. Compile the project class.

/**
* The class EmployeeProject is an example of an Oracle TopLink project defined in
* Java code. The individual parts of the project - the Login and the descriptors,
* are built inside of methods that are called by the constructor. Note that
* EmployeeProject extends the class oracle.toplink.sessions.Project
*/
public class EmployeeProject extends oracle.toplink.sessions.Project {

/**
* Supply a zero-argument constructor that initializes all aspects of the project.
* Make sure that the login and all the descriptors are initialized and added to
* the project. Project-level properties, such as the name of the project, should
* be specified here
*/
public EmployeeProject() {
  setName("EmployeeProject");
  applyLogin();

  addDescriptor(buildAddressDescriptor());
  addDescriptor(buildEmployeeDescriptor());
  addDescriptor(buildPhoneNumberDescriptor());
}

// Data source information
public void applyLogin() {
  DatabaseLogin login = new DatabaseLogin();

  // use platform appropriate for underlying database
  login.usePlatform(
    new oracle.toplink.platform.database.oracle.Oracle9Platform());
  login.setDriverClassName("oracle.jdbc.OracleDriver");
  login.setConnectionString("jdbc:oracle:thin:@HOST:PORT:SID");
  login.setUserName("USER NAME");
  login.setEncryptedPassword("PASSWORD, ENCRYPTED");

  // Configuration Properties
    setDatasourceLogin(login);
}

/**
* Descriptors are built by defining table info, setting properties
* (caching, etc.) and by adding mappings to the descriptor
*/

// SECTION: DESCRIPTOR
public ClassDescriptor buildAddressDescriptor() {

  RelationalDescriptor descriptor = new RelationalDescriptor();

  // specify the class to be made persistent
  descriptor.setJavaClass(examples.servletjsp.model.Address.class);

  // specify the tables to be used and primary key
  descriptor.addTableName("ADDRESS");
  descriptor.addPrimaryKeyFieldName("ADDRESS.ADDRESS_ID");

  // Descriptor Properties
  descriptor.useSoftCacheWeakIdentityMap();
  descriptor.setIdentityMapSize(100)
  descriptor.useRemoteSoftCacheWeakIdentityMap()
  descriptor.setRemoteIdentityMapSize(100)
  descriptor.setSequenceNumberFieldName("ADDRESS.ADDRESS_ID")
  descriptor.setSequenceNumberName("ADD_SEQ");
  descriptor.setAlias("Address");

  // Mappings
  DirectToFieldMapping cityMapping = new DirectToFieldMapping();
  cityMapping.setAttributeName("city");
  cityMapping.setFieldName("ADDRESS.CITY");
  descriptor.addMapping(cityMapping);

  // Additional mappings are added to the descriptor using the addMapping method

  return descriptor;}

116.2.1 How to Open Existing Projects

Use this procedure to open an existing project:

1.
   Click Open Project on the toolbar. The Choose a File dialog box appears. You can also open a project by choosing File > Open from the menu.

   Note:

   The File menu option contains a list of recently opened projects. You can select one of these projects to open. See Section 5.4.1, "How to Use General Preferences" for information on customizing this list.

2. Select the TopLink Workbench project file ( .mwp) to open, and click Open. TopLink Workbench displays the project information.

   If you open a TopLink Workbench version 3.n project that contains EJB information, the Potential EJB Descriptors dialog box appears.

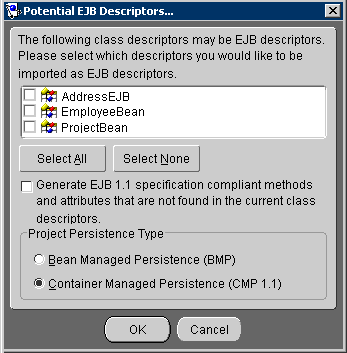

   Figure 116-2 Potential EJB Descriptors Dialog Box


   Description of "Figure 116-2 Potential EJB Descriptors Dialog Box"



3. Select which of the descriptors should be imported as EJB descriptors, the project persistence type, and click OK.

You can also specify whether or not TopLink Workbench generates methods and attributes that comply with the EJB specification, if they are not found within the current class descriptor(s).

If you open a TopLink Workbench version 9.0.3 (or later) project, the Create New TopLink Workbench Project from Previous Version dialog box appears.

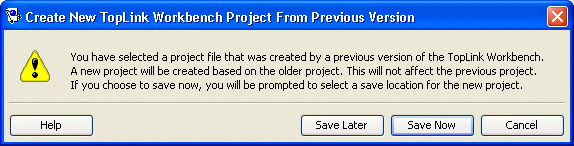

Figure 116-3 Create New TopLink Workbench Project From Previous Version Dialog Box

Description of "Figure 116-3 Create New TopLink Workbench Project From Previous Version Dialog Box"

To convert the old project to the current format and view the project immediately, click Save Later.

To convert the old project to the current format and save it to a new location and then view the project, click Save Now.

116.2.2 How to Save Projects

TopLink Workbench does not automatically save your project. Be sure to save your project often to avoid losing data.

To save your project(s), use this procedure:

1.

   Click Save or Save All to save your project(s).

   You can also save a project by choosing File > Save or File > Save All from the menu.

2. If you close TopLink Workbench while there are currently unsaved changes, the Save Project dialog box appears.

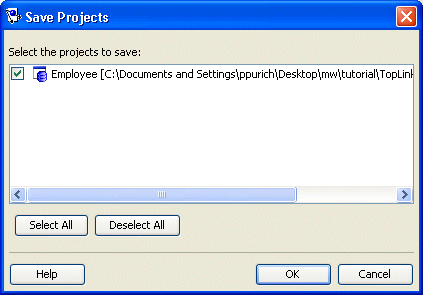

   Figure 116-4 Save Projects Dialog Box


   Description of "Figure 116-4 Save Projects Dialog Box"



3. Select the project(s) to save and click OK.

   Click Select All to select all the available projects.

116.2.3 How to Generate the Project Status Report

Use the project status report to display a list of all warnings and errors in the TopLink Workbench project. This report is similar to the Problems window (see Section 5.3, "Using TopLink Workbench"), but lets you easily copy and paste the errors into documents or messages. To generate the project status report, use this procedure:

1.
   Right-click the Problems label above the Problems window and select Problem Report. The Project Status Report dialog box appears, displaying the status of each TopLink Workbench project.

   You can also generate the project status report by selecting Tools > Problem Report from the menu.

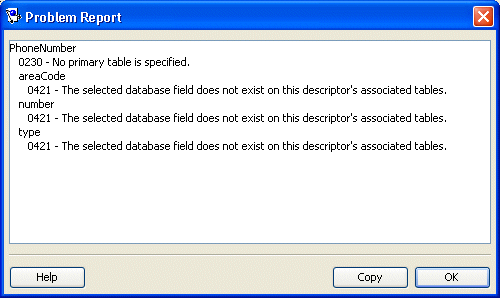

   Figure 116-6 Problem Report Dialog Box


   Description of "Figure 116-6 Problem Report Dialog Box"



See Section A.3, "TopLink Workbench Error Reference" for information on each reported error.

To copy the report to another application, click Copy.

116.3.1 How to Export Deployment XML Information Using TopLink Workbench

To export your deployment XML file (project.xml), use this procedure (see Chapter 9, "Creating TopLink Files for Deployment" for detailed information):

1.
   Select the project and click Export Deployment XML.

   You can also right-click the project in the Navigator and choose Export > Project Deployment XML from the context menu or choose Selected > Export > Project Deployment XML from the menu.

   If you have not defined deployment and source code generation defaults (see Chapter 117, "Configuring a Project") TopLink Workbench prompts for a file name and directory.

To generate the deployment XML file that is compatible with projects prior to this release, see Section 20.11, "Configuring Deprecated Direct Mappings".

116.3.2 How to Export Model Java Source Using TopLink Workbench

To generate the project model's Java source code, use this procedure:

1. Right-click the project, package, or specific descriptor in the Navigator and choose Export > Export Model Java Source from the context menu. TopLink Workbench creates a .java file for each selected descriptor.

   You can also choose Workbench > Export > Export Model Java Source or Selected > Export > Model Java Source from the menu or click Generate Source Code on the Class tab. See Section 5.7.2.1, "Configuring Class Information" for more information.

2. Click Generate Source Code to generate the project's model Java source.

If you have not defined deployment and source code generation defaults (see Section 117, "Configuring a Project") TopLink Workbench prompts for a root directory.
