You select, process, and filter element data from streams and relations using Oracle CQL queries and views.
A top-level SELECT
statement that you create using the QUERY
statement is called a query.
A top-level VIEW
statement that you create using the VIEW
statement is called a view (the Oracle CQL equivalent of a subquery).
A join is a query that combines rows from two or more streams, views, or relations.
This chapter describes:
Section 18.1, "Introduction to Oracle CQL Queries, Views, and Joins"
Section 18.5, "Oracle CQL Queries and the Oracle CEP Server Cache"
Section 18.6, "Oracle CQL Queries and Relational Database Tables"
Section 18.7, "Oracle CQL Queries and Oracle Data Cartridges"
For more information, see:
An Oracle CQL query is an operation that you express in Oracle CQL syntax and execute on an Oracle CEP CQL Processor to process data from one or more streams or views. For more information, see Section 18.2, "Queries".
An Oracle CQL view represents an alternative selection on a stream or relation. In Oracle CQL, you use a view instead of a subquery. For more information, see Section 18.3, "Views".
Oracle CEP performs a join whenever multiple streams appear in the FROM
clause of the query. For more information, see Section 18.4, "Joins".
Example 18-1 shows typical Oracle CQL queries defined in an Oracle CQL processor component configuration file for the processor named proc
.
Example 18-1 Typical Oracle CQL Query
<?xml version="1.0" encoding="UTF-8"?> <n1:config xsi:schemaLocation="http://www.bea.com/ns/wlevs/config/application wlevs_application_config.xsd" xmlns:n1="http://www.bea.com/ns/wlevs/config/application" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"> <processor> <name>proc</name> <rules> <view id="lastEvents" schema="cusip mbid srcId bidQty ask askQty seq"><![CDATA[ select cusip, mod(bid) as mbid, srcId, bidQty, ask, askQty, seq from filteredStream[partition by srcId, cusip rows 1] ]]></view> <query id="q1"><![CDATA[ SELECT * FROM lastEvents [Range Unbounded] WHERE price > 10000 ]]></query> </rules> </processor> </n1:config>
As Example 18-1 shows, the rules element contains each Oracle CQL statement in a view
or query
child element:
view
: contains Oracle CQL view statements (the Oracle CQL equivalent of subqueries). The view
element id
attribute defines the name of the view.
In Example 18-1, the view
element specifies an Oracle CQL view
statement (the Oracle CQL equivalent of a subquery).
query
: contains Oracle CQL select statements. The query
element id
attribute defines the name of the query.
In Example 18-1, the query
element specifies an Oracle CQL query statement. The query statement selects from the view. By default, the results of a query are output to a down-stream channel. You can control this behavior in the channel configuration using a selector
element.
For more information, see "Configuring a Channel" in the Oracle Complex Event Processing Developer's Guide for Eclipse.
Each Oracle CQL statement is contained in a <![CDATA[
... ]]>
tag and does not end in a semicolon (;
).
For more information, see:
Typically, you create an Oracle CQL query or view using the Oracle CEP IDE for Eclipse. After deployment, you can add, change, and delete Oracle CQL queries using the Oracle CEP Visualizer.
To create an Oracle CQL query:
Using Oracle CEP IDE for Eclipse, create an Oracle CEP application and Event Processing Network (EPN).
For more information, see:
"Oracle CEP IDE for Eclipse Projects" in the Oracle Complex Event Processing Developer's Guide for Eclipse.
"Oracle CEP IDE for Eclipse and the Event Processing Network" in the Oracle Complex Event Processing Developer's Guide for Eclipse.

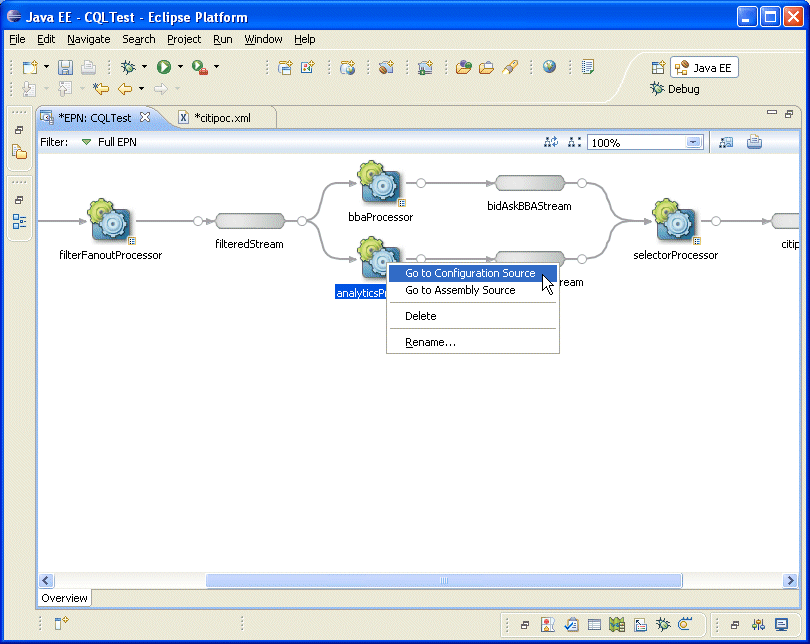

In the EPN Editor, right-click an Oracle CQL processor and select Go to Configuration Source as Figure 18-1 shows.
Figure 18-1 Navigating to the Configuration Source of a Processor from the EPN Editor

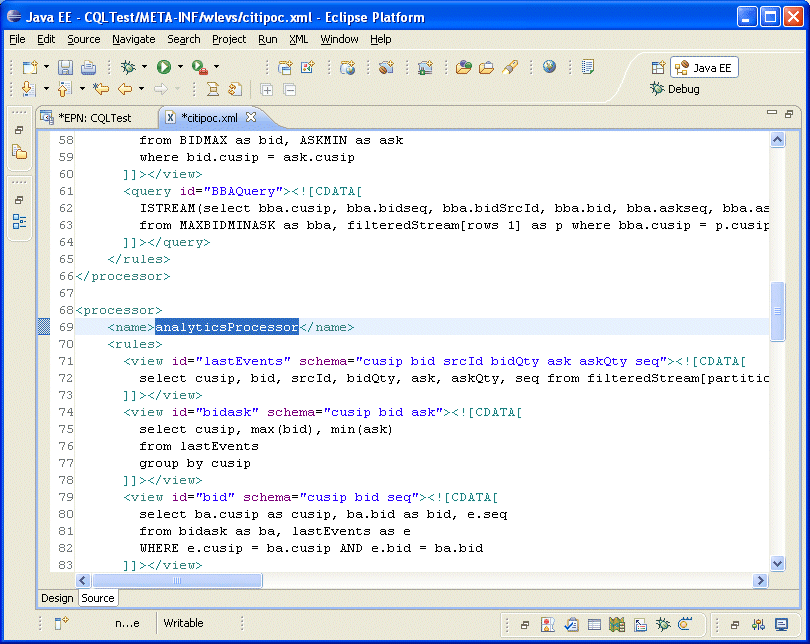

The EPN Editor opens the corresponding component configuration file for this processor and positions the cursor in the appropriate processor
element as Figure 18-2 shows.
Figure 18-2 Editing the Configuration Source for a Processor
Create queries and views and register user-defined functions and windows.
For examples, see
Using Oracle CEP IDE for Eclipse, package your Oracle CEP application and deploy to the Oracle CEP server.
For more information, see "Assembling and Deploying Oracle CEP Applications" in the Oracle Complex Event Processing Developer's Guide for Eclipse.
After deployment, use the Oracle CEP Visualizer to change, add, and delete queries in the Oracle CEP application.
For more information, see "Managing Oracle CQL Rules" in the Oracle Complex Event Processing Visualizer User's Guide.
Queries are the principle means of extracting information from data streams and views.

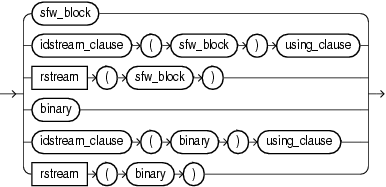

The query
clause itself is made up of one of the following parts:
sfw_block
: use this select-from-where clause to express a CQL query.
For more information, see Section 18.2.1.1, "Select, From, Where Block".
idstream_clause
: use this clause to specify an input IStream
or delete DStream
relation-to-stream operator that applies to the query.
For more information, see Section 18.2.1.9, "IDStream Clause"
rstream
: use this clause to specify an RStream
relation-to-stream operator that applies to the query.
For more information, see "RStream Relation-to-Stream Operator"
binary
: use this clause to perform set operations on the tuples that two queries or views return.
For more information, see Section 18.2.1.8, "Binary Clause"
The following sections discuss the basic query types that you can create:
For more information, see:
This section summarizes the basic building blocks that you use to construct an Oracle CQL query, including:

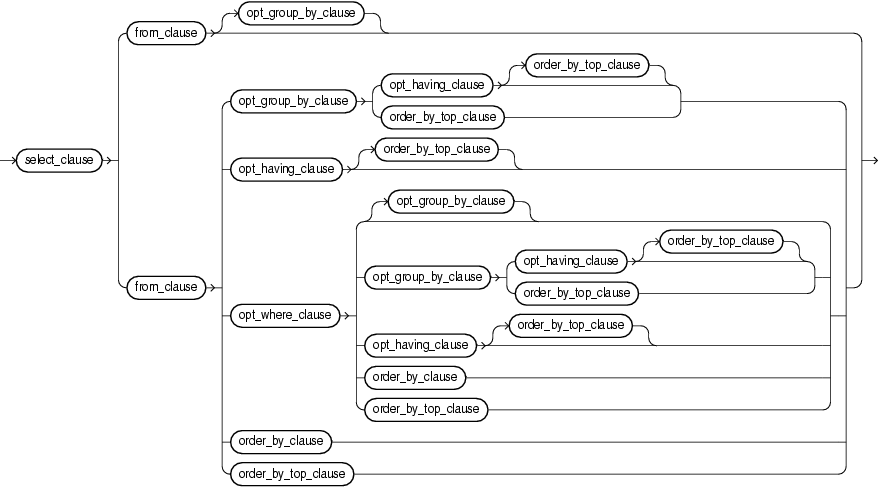

Use the sfw_block
to specify the select, from, and optional where clauses of your Oracle CQL query.
The sfw_block
is made up of the following parts:
Use this clause to specify the stream elements you want in the query's result set. The select_clause
may specify all stream elements using the *
operator or a list of one or more stream elements.
The list of expressions that appears after the SELECT
keyword and before the from_clause
is called the select list. Within the select list, you specify one or more stream elements in the set of elements you want Oracle CEP to return from one or more streams or views. The number of stream elements, and their datatype and length, are determined by the elements of the select list.
Optionally, specify distinct
if you want Oracle CEP to return only one copy of each set of duplicate tuples selected. Duplicate tuples are those with matching values for each expression in the select list.
For more information, see select_clause::=
Use this clause to specify the streams and views that provide the stream elements you specify in the select_clause
(see Section 18.2.1.2, "Select Clause").

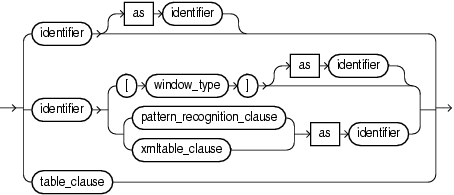

The from_clause
may specify one or more comma-delimited relation_variable
clauses.
For more information, see from_clause::=
You can select from any of the data sources that your relation_variable
clause specifies.
You can use the relation_variable
clause AS
operator to define an alias to label the immediately preceding expression in the select list so that you can reference the result by that (see Section 2.8.1.1, "Aliases in the relation_variable Clause").
If you create a join (see Section 18.4, "Joins") between two or more streams, view, or relations that have some stream element names in common, then you must qualify stream element names with the name of their stream, view, or relation. Example 18-2 shows how to use stream names to distinguish between the customerID
stream element in the OrderStream
and the customerID
stream element in the CustomerStream
.
Example 18-2 Fully Qualified Stream Element Names
<query id="q0"><![CDATA[ select * from OrderStream, CustomerStream where OrderStream.customerID = CustomerStream.customerID ]]></query>
Otherwise, fully qualified stream element names are optional. However, Oracle recommends that you always qualify stream element references explicitly. Oracle CEP often does less work with fully qualified stream element names.
For more information, see:
Use this optional clause to specify conditions that determine when the select_clause
returns results (see Section 18.2.1.2, "Select Clause").
Because Oracle CQL applies the WHERE
clause before GROUP BY
or HAVING
, if you specify an aggregate function in the SELECT
clause, you must test the aggregate function result in a HAVING
clause, not the WHERE
clause.
For more information, see:
Use this optional clause to group (partition) results. This clause does not guarantee the order of the result set. To order the groupings, use the order by clause.
Because Oracle CQL applies the WHERE
clause before GROUP BY
or HAVING
, if you specify an aggregate function in the SELECT
clause, you must test the aggregate function result in a HAVING
clause, not the WHERE
clause.
For more information, see:
Use this optional clause to order all results or the top-n
results.
For more information, see:
Use this optional clause to restrict the groups of returned stream elements to those groups for which the specified condition
is TRUE
. If you omit this clause, then Oracle CEP returns summary results for all groups.
Because Oracle CQL applies the WHERE
clause before GROUP BY
or HAVING
, if you specify an aggregate function in the SELECT
clause, you must test the aggregate function result in a HAVING
clause, not the WHERE
clause.
For more information, see:
Use the binary
clause to perform set operations on the tuples that two queries or views return, including:
EXCEPT
MINUS
INTERSECT
UNION
and UNION ALL
IN
and NOT IN
For more information, see binary::=.
Use this clause to take either a select-from-where clause or binary clause and return its results as one of IStream
or DStream
relation-to-stream operators.
You can succinctly detect differences in query output by combining an IStream
or Dstream
operator with the using_clause
.
For more information, see:
Example 18-3 shows a simple query that selects all stream elements from a single stream.
Example 18-3 Simple Query
<query id="q0"><![CDATA[ select * from OrderStream where orderAmount > 10000.0 ]]></query>
For more information, see "Query".
Example 18-4 shows a query that selects all stream elements from stream S2
, with schema (c1 integer, c2 float)
, using a built-in tuple-based stream-to-relation window operator.
Example 18-4 Built-In Window Query
<query id="BBAQuery"><![CDATA[ select * from S2 [range 5 minutes] where S2.c1 > 10 ]]></query>
For more information, see:
Example 18-5 shows a query that uses the MATCH_RECOGNIZE
clause to express complex relationships among the stream elements of ItemTempStream
.
Example 18-5 MATCH_RECOGNIZE Query
<query id="detectPerish"><![CDATA[ select its.itemId from tkrfid_ItemTempStream MATCH_RECOGNIZE ( PARTITION BY itemId MEASURES A.itemId as itemId PATTERN (A B* C) DEFINE A AS (A.temp >= 25), B AS ((B.temp >= 25) and (to_timestamp(B.element_time) - to_timestamp(A.element_time) < INTERVAL "0 00:00:05.00" DAY TO SECOND)), C AS (to_timestamp(C.element_time) - to_timestamp(A.element_time) >= INTERVAL "0 00:00:05.00" DAY TO SECOND) ) as its ]]></query>
For more information, see:
Using an Oracle CQL processor, you can specify a relational database table as an event source. You can query this event source, join it with other event sources, and so on.
For more information, see, Section 18.6, "Oracle CQL Queries and Relational Database Tables"
Example 18-6 shows a view v1
and a query q1
on that view. The view selects from a stream S1
of xmltype
stream elements. The view v1
uses the XMLTABLE
clause to parse data from the xmltype
stream elements using XPath expressions. Note that the data types in the view's schema match the datatypes of the parsed data in the COLUMNS
clause. The query q1
selects from this view as it would from any other data source. The XMLTABLE
clause also supports XML namespaces.
Example 18-6 XMLTABLE Query
<view id="v1" schema="orderId LastShares LastPrice"><![CDATA[ select X.OrderId, X.LastShares, X.LastPrice from S1 XMLTABLE ( "//FILL" PASSING BY VALUE S1.c1 as "." COLUMNS OrderId char(16) PATH "fn:data(../@ID)", LastShares integer PATH "fn:data(@LastShares)", LastPrice float PATH "fn:data(@LastPx)" ) as X ]]></view> <query id="q1"><![CDATA[ IStream( select orderId, sum(LastShares * LastPrice), sum(LastShares * LastPrice) / sum(LastShares) from v1[now] group by orderId ) ]]></query>
For more information, see:
Use the TABLE
clause to access the multiple rows returned by a built-in or user-defined function in the FROM
clause of an Oracle CQL query. The TABLE
clause converts the set of returned rows into an Oracle CQL relation. Because this is an external relation, you must join the TABLE
function clause with a stream.
(object_expr::=, identifier::=, datatype::=)
Note the following:
The function must return an array type or Collection
type.
You must join the TABLE
function clause with a stream.
Example 18-7 shows a data cartridge TABLE
clause that invokes the Oracle Spatial method getContainingGeometries
, passing in one parameter (InputPoints.point
). The return value of this method, a Collection
, is aliased as validGeometries
. The relation that the TABLE
clause returns is aliased as R2
.
Example 18-7 Data Cartridge TABLE Query
<query id="q1"><![CDATA[ RSTREAM ( SELECT R2.validGeometries.shape as containingGeometry, R1.point as inputPoint FROM InputPoints[now] as R1, TABLE (getContainingGeometries@spatial (InputPoints.point) as validGeometries) AS R2 ) ]]></query>
Example 18-8 shows an invalid data cartridge TABLE
query that fails to join the data cartridge TABLE
clause with another stream because the function getAllGeometries@spatial
was called without any parameters. Oracle CEP invokes the data cartridge method only on the arrival of elements on the joined stream.
Example 18-8 Invalid Data Cartridge TABLE Query
<query id="q2"><![CDATA[ RSTREAM ( SELECT R2.validGeometries.shape as containingGeometry FROM TABLE (getAllGeometries@spatial () as validGeometries) AS R2 ) ]]></query>
For more examples, see:
For more information, see:
Using an Oracle CQL processor, you can specify a cache as an event source. You can query this event source and join it with other event sources using a Now
window only.
Oracle CEP cache event sources are pull data sources: that is, Oracle CEP polls the event source on arrival of an event on the data stream.
For more information, see Section 18.5, "Oracle CQL Queries and the Oracle CEP Server Cache".
Use the ORDER
BY
clause to order the rows selected by a query.
Sorting by position is useful in the following cases:
To order by a lengthy select list expression, you can specify its position in the ORDER
BY
clause rather than duplicate the entire expression.
For compound queries containing set operators UNION
, INTERSECT
, MINUS
, or UNION
ALL
, the ORDER
BY
clause must specify positions or aliases rather than explicit expressions. Also, the ORDER
BY
clause can appear only in the last component query. The ORDER
BY
clause orders all rows returned by the entire compound query.
The mechanism by which Oracle CEP sorts values for the ORDER
BY
clause is specified by your Java locale.
Use the DIFFERENCE USING
clause to succinctly detect differences in the IStream
or DStream
of a query.
Consider the query that Example 18-9 shows.
Example 18-9 DIFFERENCE USING Clause
<query id="q0"> ISTREAM ( SELECT c1 FROM S [RANGE 1 NANOSECONDS] ) DIFFERENCE USING (c1) </query>
Table 18-1 shows sample input for this query. The Relation column shows the contents of the relation S [RANGE 1 NANOSECONDS]
and the Output column shows the query results after the DIFFERENCE USING
clause is applied. This clause allows you to succinctly detect only differences in the IStream
output.
Table 18-1 DIFFERENCE USING Clause Affect on IStream
Input | Relation | Output |
---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
When you specify the usinglist
in the DIFFERENCE USING
clause, you may specify columns by:
attribute name: use this option when you are selecting by attribute name.
Example 18-10 shows attribute name c1
in the DIFFERENCE USING
clause usinglist
.
alias: use this option when you want to include the results of an expression where an alias is specified.
Example 18-10 shows alias logval
in the DIFFERENCE USING
clause usinglist
.
position: use this option when you want to include the results of an expression where no alias is specified.
Specify position as a constant, positive integer starting at 1, reading from left to right.
Example 18-10 specifies the result of expression funct(c2, c3)
by its position (3) in the DIFFERENCE USING
clause usinglist
.
Example 18-10 Specifying the usinglist in a DIFFERENCE USING Clause
<query id="q1"> ISTREAM ( SELECT c1, log(c4) as logval, funct(c2, c3) FROM S [RANGE 1 NANOSECONDS] ) DIFFERENCE USING (c1, logval, 3) </query>
You can use the DIFFERENCE USING
clause with both IStream
and DStream
operators.
For more information, see:
You can parameterize an Oracle CQL query and bind parameter values at run time using the :
n
characater string as a placeholder, where n
is a positive integer that corresponds to the position of the replacement value in a params
element.
Example 18-11 shows a paramaterized Oracle CQL query.
Example 18-11 Parameterized Oracle CQL Query
<n1:config xmlns:n1="http://www.bea.com/ns/wlevs/config/application" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"> ... <processor> <name>myProcessor</name> <rules> <query id="MarketRule"><![CDATA[ SELECT symbol, AVG(price) AS average, :1 AS market FROM StockTick [RANGE 5 SECONDS] WHERE symbol = :2 ]]></query> </rules> <bindings> <binding id="MarketRule"> <params id="nasORCL">NASDAQ, ORCL</params> <params id="nyJPM">NYSE, JPM</params> <params id="nyWFC">NYSE, WFC</params> </binding> </bindings> </processor> <processor> <name>summarizeResults</name> <rules> <query id="SummarizeResultsRule"><![CDATA[ select crossRate1 || crossRate2 as crossRatePair, count(*) as totalCount, :1 as averageInternalPrice from CrossRateStream group by crossRate1,crossRate2 having :2 ]]></query> </rules> <bindings> <binding id="SummarizeResultsRule"> <params id="avgcount">avg(internalPrice), count(*) > 0</params> </binding> </bindings> </processor> </n1:config>
In this example, the:
MarketRule
query specifies two parameters: the third term in the SELECT
and the value of symbol
in the WHERE
clause
SummarizeResultsRule
query specifies two parameters: the third term in the SELECT
and the value of the HAVING
clause.
This section describes:
Section 18.2.11.1, "Parameterized Queries in Oracle CQL Statements"
Section 18.2.11.4, "Lexical Conventions for Parameter Values"
You may specify a placeholder anywhere an arithmetic expresion or a String
literal is legal in an Oracle CQL statement. For example:
SELECT
list items
WHERE
clause predicates
WINDOW
constructs (such as RANGE
, SLIDE
, ROWS
, and PARTITION
BY
)
PATTERN
duration clause
For more information, see:
Parameter values are contained by a bindings
element. There may be one bindings
element per processor
element.
For each parameterized query, the bindings
element must contain a binding
element with the same id
as the query.
The binding
element must contain one or more params
elements. Each params
element must have a unique id
and must contain a comma separated list of parameter values equal in number to the number of placeholder characters (:
n
) in the corresponding query.
The order of the parameter values corresponds to placeholder characters (:
n
) in the parameterized query, such that :1
corresponds to the first parameter value, :2
corresponds to the second parameter value, and so on. You may use placeholder characters (:
n
) in any order. That is, :1
corresponds to the first parameter value whether it precedes or follows :2
in a query. A placeholder number can be used only once in a query.
For more information, see:
When a binding instantiates a parameterized query, Oracle CEP creates a new query at run time with the name queryId_paramId. For example, in Example 18-11, the run-time name of the first query instantiated by the MarketRule binding is MarketRule_nasORCL
.
To avoid run-time naming conflicts, be sure query ID and parameter ID combinations are unique.
Each params
element must have a unique id
and must contain a comma separated list of parameter values equal in number to the number of placeholder characters (:
n
) in the corresponding query.
Table 18-2 Parameterized Query Parameter Value Lexical Conventions
Convention | Example | Replacement Value |
---|---|---|
Primitive type literals |
<params id="p1">NASDAQ, 200.0</params> |
|
Oracle CQL fragments |
<params id="p1">count(*), avg(val)</params> |
|
Quotes |
<params id="p1">'alert', "Seattle, WA", 'fun' || "house", one "two" 3</params> |
|
In an Oracle CQL query, a placeholder within single or double quotes is a String
literal. The following query is not a parameterized query:
SELECT ":1" as symbol, price FROM StockTick [RANGE 5 SECONDS]
Oracle CEP parses this query as assigning the String
literal ":1"
to alias symbol
. To make this query into a parameterized query, use:
SELECT :1 as symbol, price FROM StockTick [RANGE :2 SECONDS]
And define a params
element like this:
<params id="p1">"ORCL", 5</params>
Because the parameter value (ORCL
) does not contain a comma, the quotes are not required. You could specify a params
element like this:
<params id="p1">ORCL, 5</params>
However, if the parameter value does contain a comma, then you must use quotes around the parameter value. Consider this parameterized query:
SELECT :1 = cityAndState AS cityOfInterest FROM channel1 [RANGE :2 SECONDS]
Where cityAndState
has values like "Seattle, WA"
or "Ottawa, ON"
. In this case, you must specify a params
element like this:
<params id="p1">"Seattle, WA", 5</params> <params id="p1">"Ottawa, ON", 5</params>
Commas are allowed only in quoted parameter values that signify string values. Commas are not allowed as a separator character in unquoted parameter values. For example:
"Seattle, WA"
is valid, because the comma is part of the string.
PARTITION BY fromRate,toRate ROWS 10
is invalid. Create the following two parameters instead:
PARTITION BY fromRate ROWS 10 PARTITION BY toRate ROWS 10
Each params
element effectively causes a new Oracle CQL query to execute with the new parameters. At rule execution time, Oracle CQL substitutes parameter values for placeholder characters, from left to right. Example 18-11 is effectively equivalent to the queries that Example 18-12 shows.
Example 18-12 Equivalent Queries at Runtime
SELECT symbol, AVG(price) AS average, NASDAQ AS market FROM StockTick [RANGE 5 SECONDS] WHERE symbol = ORCL SELECT symbol, AVG(price) AS average, NYSE AS market FROM StockTick [RANGE 5 SECONDS] WHERE symbol = JPM SELECT symbol, AVG(price) AS average, NYSE AS market FROM StockTick [RANGE 5 SECONDS] WHERE symbol = WFC
If you use the CQLProcessorMBean.replaceAllBoundParameters() method to programmatically replace parameters in a parameterized query, any existing parameters not replaced by the method are automatically removed from the query.
Queries are the principle means of extracting information from data streams and relations. A view represents an alternative selection on a stream or relation that you can use to create subqueries.
A view is only accessible by the queries that reside in the same processor and cannot be exposed beyond that boundary.
You can specify any query type in the definition of your view. For more information, see Section 18.2, "Queries".
For complete details on the view statement, see "View".
In Example 18-13, query BBAQuery
selects from view MAXBIDMINASK
which in turn selects from other views such as BIDMAX
which in turn selects from other views. Finally, views such as lastEvents
select from an actual event source: filteredStream
. Each such view represents a separate derived stream drawn from one or more base streams.
Example 18-13 Using Views Instead of Subqueries
<view id="lastEvents" schema="cusip bid srcId bidQty ask askQty seq"><![CDATA[ select cusip, bid, srcId, bidQty, ask, askQty, seq from filteredStream[partition by srcId, cusip rows 1] ]]></view> <view id="bidask" schema="cusip bid ask"><![CDATA[ select cusip, max(bid), min(ask) from lastEvents group by cusip ]]></view> <view id="bid" schema="cusip bid seq"><![CDATA[ select ba.cusip as cusip, ba.bid as bid, e.seq from bidask as ba, lastEvents as e WHERE e.cusip = ba.cusip AND e.bid = ba.bid ]]></view> <view id="bid1" schema="cusip maxseq"><![CDATA[ select b.cusip, max(seq) as maxseq from bid as b group by b.cusip ]]></view> <view id="BIDMAX" schema="cusip seq srcId bid bidQty"><![CDATA[ select e.cusip, e.seq, e.srcId, e.bid, e.bidQty from bid1 as b, lastEvents as e where (e.seq = b.maxseq) ]]></view> <view id="ask" schema="cusip ask seq"><![CDATA[ select ba.cusip as cusip, ba.ask as ask, e.seq from bidask as ba, lastEvents as e WHERE e.cusip = ba.cusip AND e.ask = ba.ask ]]></view> <view id="ask1" schema="cusip maxseq"><![CDATA[ select a.cusip, max(seq) as maxseq from ask as a group by a.cusip ]]></view> <view id="ASKMIN" schema="cusip seq srcId ask askQty"><![CDATA[ select e.cusip, e.seq, e.srcId, e.ask, e.askQty from ask1 as a, lastEvents as e where (e.seq = a.maxseq) ]]></view> <view id="MAXBIDMINASK" schema="cusip bidseq bidSrcId bid askseq askSrcId ask bidQty askQty"><![CDATA[ select bid.cusip, bid.seq, bid.srcId as bidSrcId, bid.bid, ask.seq, ask.srcId as askSrcId, ask.ask, bid.bidQty, ask.askQty from BIDMAX as bid, ASKMIN as ask where bid.cusip = ask.cusip ]]></view> <query id="BBAQuery"><![CDATA[ ISTREAM(select bba.cusip, bba.bidseq, bba.bidSrcId, bba.bid, bba.askseq, bba.askSrcId, bba.ask, bba.bidQty, bba.askQty, "BBAStrategy" as intermediateStrategy, p.seq as correlationId, 1 as priority from MAXBIDMINASK as bba, filteredStream[rows 1] as p where bba.cusip = p.cusip) ]]></query>
Using this technique, you can achieve the same results as in the subquery case. However, using views you can better control the complexity of queries and reuse views by name in other queries.
If you create a join between two or more views that have some stream element names in common, then you must qualify stream element names with names of streams. Example 18-14 shows how to use view names to distinguish between the seq
stream element in the BIDMAX
view and the seq
stream element in the ASKMIN
view.
Example 18-14 Using View Names to Distinguish Between Stream Elements of the Same Name
<view id="MAXBIDMINASK" schema="cusip bidseq bidSrcId bid askseq askSrcId ask bidQty askQty"><![CDATA[ select bid.cusip, bid.seq, bid.srcId as bidSrcId, bid.bid, ask.seq, ask.srcId as askSrcId, ask.ask, bid.bidQty, ask.askQty from BIDMAX as bid, ASKMIN as ask where bid.cusip = ask.cusip ]]></view>
Otherwise, fully qualified stream element names are optional. However, it is a best practice to always qualify stream element references explicitly. Oracle CEP often does less work with fully qualified stream element names.
For more information, see Section 18.4, "Joins".
You may define the optional schema of the view using a space delimited list of event attribute names as Example 18-15 shows.
A join is a query that combines rows from two or more streams, views, or relations. Oracle CEP performs a join whenever multiple streams appear in the FROM
clause of the query. The select list of the query can select any stream elements from any of these streams. If any two of these streams have a stream element name in common, then you must qualify all references to these stream elements throughout the query with stream names to avoid ambiguity.
If you create a join between two or more streams, view, or relations that have some stream element names in common, then you must qualify stream element names with the name of their stream, view, or relation. Example 18-16 shows how to use stream names to distinguish between the customerID
stream element in the OrderStream
stream and the customerID
stream element in the CustomerStream
stream.
Example 18-16 Fully Qualified Stream Element Names
<query id="q0"><![CDATA[ select * from OrderStream[range 5] as orders, CustomerStream[range 3] as customers where orders.customerID = customers.customerID ]]></query>
Otherwise, fully qualified stream element names are optional. However, Oracle recommends that you always qualify stream element references explicitly. Oracle CEP often does less work with fully qualified stream element names.
Oracle CEP supports the following types of joins:
Note:
When joining against a cache, you must observe additional query restrictions as Section 18.5.1, "Creating Joins Against the Cache" describes.By default, Oracle CEP performs an inner join (sometimes called a simple join): a join of two or more streams that returns only those stream elements that satisfy the join condition.
Example 18-17 shows how to create a query q4
that uses an inner join between streams S0
, with schema (c1 integer, c2 float)
, and S1
, with schema (c1 integer, c2 float)
.
An outer join extends the result of a simple join. An outer join returns all rows that satisfy the join condition and also returns some or all of those rows from one table for which no rows from the other satisfy the join condition.
You specify an outer join in the FROM
clause of a query using LEFT
or RIGHT OUTER JOIN ... ON
syntax.
(non_mt_relation_list::=, relation_variable::=, non_mt_cond_list::=)
Example 18-18 shows how to create a query q5
that uses a left outer join between streams S0
, with schema (c1 integer, c2 float)
, and S1
, with schema (c1 integer, c2 float)
.
Example 18-18 Outer Joins
<query id="q5"><![CDATA[ SELECT a.c1+b.c1 FROM S0[range 5] AS a LEFT OUTER JOIN S1[range 3] AS b ON b.c2 = a.c2 WHERE b.c2 > 3 ]]></query>
Use the ON
clause to specify a join condition. Doing so lets you specify join conditions separate from any search or filter conditions in the WHERE
clause.
You can perform the following types of outer join:
To write a query that performs an outer join of streams A and B and returns all stream elements from A (a left outer join), use the LEFT OUTER JOIN
syntax in the FROM
clause as Example 18-19 shows. For all stream elements in A that have no matching stream elements in B, Oracle CEP returns null for any select list expressions containing stream elements of B.
To write a query that performs an outer join of streams A and B and returns all stream elements from B (a right outer join), use the RIGHT OUTER JOIN
syntax in the FROM
clause as Example 18-20 shows. For all stream elements in B that have no matching stream elements in A, Oracle CEP returns null for any select list expressions containing stream elements of A.
You can create an outer join that refers or looks-back to a previous outer join as Example 18-21 shows.
You can access an Oracle CEP cache from an Oracle CQL statement or user-defined function.
This section describes:
For more information, see:
"Configuring Oracle CEP Caching" in the Oracle Complex Event Processing Developer's Guide for Eclipse
"Accessing a Cache From an Oracle CQL Statement" in the Oracle Complex Event Processing Developer's Guide for Eclipse
"Accessing a Cache From an Oracle CQL User-Defined Function" in the Oracle Complex Event Processing Developer's Guide for Eclipse
"Oracle Continuous Query Language (CQL) Example" in the Oracle Complex Event Processing Getting Started
When writing Oracle CQL queries that join against a cache, you must observe the following restrictions:
For more information, see Section 18.4, "Joins".
The complex predicate's first subclause (from the left) with a comparison operation over a cache key attribute may only be a simple equality predicate.
The following predicate is invalid because the predicate is not the first sub-clause (from the left) which refers to cache attributes:
... S.c1 = 5 AND CACHE.C2 = S.C2 AND CACHE.C1 = S.C1 ...
However, the following predicate is valid:
... S.c1 = 5 AND CACHE.C1 = S.C1 AND CACHE.C2 = S.C2 ...
The subclause may not have any arithmetic operations on a cache key attribute.
The following predicate is invalid because arithmetic operations are not allowed on cache key attributes:
... CACHE.C1 + 5 = S.C1 AND CACHE.C2 = S.C2 ...
The complex predicate must not require a full scan of the cache.
Assume that your cache has cache key C1
.
The following predicates are invalid. Because they do not use the cache key attribute in comparisons, they must scan through the whole cache which is not allowed.
... CACHE.C2 = S.C1 ... ... CACHE.C2 > S.C1 ... ... S.C1 = S.C2 ... ... S.C1 = CACHE.C2 AND S.C2 = CACHE.C2 ...
The following predicates are also invalid. Although they do use the cache key attribute in comparisons, they use inequality operations that must scan through the whole cache which is not allowed.
... CACHE.C1 != S.C1 ... ... CACHE.C1 > 5 ... ... CACHE.C1 + 5 = S.C1 ...
The following predicate is also invalid. Although they do use the cache key attribute in comparisons, the first subclause referring to the cache attributes does not refer to the cache key attribute (in this example, C1
). That is, the first subclause refers to C2
which is not a cache key and the cache key comparison subclause (CACHE.C1 = S.C1
) appears after the non-key comparison subclause.
... CACHE.C2 = S.C2 AND CACHE.C1 = S.C1 ...
To support multiple conditions, inequality, or both, you must make the first sub-clause an equality predicate comparing a cache key value and specify the rest of the predicate subclauses separated by one AND
operator.
The following are valid predicates:
... S.c1 = 5 AND CACHE.C1 = S.C1 AND CACHE.C2 > S.C2 ... ... CACHE.C1 = S.C1 AND CACHE.C2 = S.C2 ... ... S.c1 = 5 AND CACHE.C1 = S.C1 AND CACHE.C2 != S.C2 ...
You can access a relational database table from an Oracle CQL query using:
table source: using a table source, you may join a stream only with a NOW
window and only to a single database table.
Note:
Because changes in the table source are not coordinated in time with stream data, you may only join the table source to an event stream using aNow
window and you may only join to a single database table. For more information, see "S[now]".
To integrate arbitrarily complex SQL queries and multiple tables with your Oracle CQL queries, consider using the Oracle JDBC data cartridge instead.
For more information, see "Configuring an Oracle CQL Processor Table Source" in the Oracle Complex Event Processing Developer's Guide for Eclipse.
Oracle JDBC data cartridge: using the Oracle JDBC data cartridge, you may integrate arbitrarily complex SQL queries and multiple tables and datasources with your Oracle CQL queries.
For more information, see Section 17.1, "Understanding the Oracle CEP JDBC Data Cartridge".
Note:
Oracle recommends that you use the Oracle JDBC data cartridge to access relational database tables from an Oracle CQL statement.In all cases, you must define datasources in the Oracle CEP server config.xml
file. For more information, see "Configuring Access to a Relational Database" in the Oracle Complex Event Processing Administrator's Guide.
Oracle CEP relational database table event sources are pull data sources: that is, Oracle CEP polls the event source on arrival of an event on the data stream.
