This chapter describes the Diagnostic Dashboard utility shipped with Oracle Identity Manager and contains the following topics:
Diagnostic Dashboard is a stand-alone application that helps you validate some of the Oracle Identity Manager prerequisites and installation.
You must have the appropriate system administrator permissions for your Application Server and Oracle Identity Manager environments to use this tool. You need DBA-level permissions to execute some database-related tests.
Note:
The Diagnostic Dashboard and Oracle Identity Manager must be installed on the same application server.The Diagnostic Dashboard utility is distributed on the installation CD-ROM with the Oracle Identity Manager Installer. It is available as a EAR file in the Diagnostic Dashboard directory on the CD-ROM.
This section discusses the steps you need to perform to install the Diagnostic Dashboard on Oracle WebLogic Server.
To install the Diagnostic Dashboard on Oracle WebLogic Server:
Log in to Oracle WebLogic Administration Console.
In the left navigation pane, click Deployments. It lists all the applications deployed on the server.
Click Install.
Navigate to the location for deploying the EAR file. Typically, the EAR file is located in the following directory:
OIM_ORACLE_HOME/server/webapp/optional/
Select XIMDD.ear from the Current Location panel.
Click Next on the Choose targeting style page.
Select ManagedServer (Oracle Identity Manager Server) from the Available targets for XIMDD panel, and click Next.
Click Finish. The following message appears:
All changes have been activated. No restarts are necessary. The deployment has been successfully installed.
You can access the Diagnostic Dashboard from the following location:
http://OIM_server_host_ip:port/XIMDD
After the Diagnostic Dashboard is deployed, you can access it by using a URL of the following format:
http://OIM_HOST:OIM_PORT/XIMDD
Log into Diagnostic Dashboard with administrator privileges. Click the Diagnostic Dashboard link on the left menu pane to display the Diagnostic Dashboard main page.
The Diagnostic Dashboard utility indicates on which application server the tool is deployed.
The Diagnostic Dashboard main page includes the sections listed in the following table:
| Section | Description |
|---|---|
| Application Server | Displays the name of the application server |
| Oracle Identity Manager Installation | Displays installation details such as product version, build number, host, and location of the product |
| Test Details
Test Parameters |
Displays the test name and its description
Displays the parameters required for testing |
To run a test:
Select the test by selecting the option on the Diagnostic Dashboard main page.
Enter the required parameters.
Click Verify to see the result.
The Diagnostic Dashboard Test Result page is displayed with the status information listed in the following table.
| Test Result | Description |
|---|---|
| Result Summary | Shows all the selected tests with icons (pass or fail) indicating the result. The test name is a Web link that allows the user to jump to the result details directly. |
| Test Name | Displays the name of the test |
| Description | Displays the description of the test |
| Input Parameters | Displays the parameters of the test |
| Result | Displays the outcome of the test |
| Details | Displays details about the outcome of the test |
Click Diagnostic Dashboard on the left menu pane or Return to Diagnostic Dashboard to return to the previous test page.
The following tests are available for different application servers.
Oracle Identity Manager Libraries and Extensions Version Report
Oracle Identity Manager Libraries and Extensions Manifest Report
Diagnose Creation of User and Role in Oracle Identity Manager and LDAP
Prerequisite: The following are the prerequisites for running this test:
| Prerequisite | Description |
|---|---|
| Database Server | Enter the location of the database server. |
| Port | Enter the port number. |
| Database Name | Enter the database name (SID). |
| Oracle Identity Manager Database User Name | Enter the Oracle Identity Manager database user name. |
| System User Name | Enter the system user name. |
| System User Password | Enter system user password. |
Description: Checks if the specified Oracle Database instance meets the prerequisites for Oracle Identity Manager installation. This test requires SYSTEM permissions.
Result: It displays the following information:
Necessary permissions for user
XA support enabled
JVM enabled
Oracle version Information
Prerequisite: None
Description: Run this test to verify whether or not Oracle Identity Manager is able to connect to the database. This test verifies the direct database connection and the J2EE data sources (XA).
Result: It displays the following information:
Direct database connectivity
XA execution
Prerequisite: The following is the prerequisite for verifying this test:
| Prerequisite | Description |
|---|---|
| User Login | Enter the user name. |
Description: Oracle Identity Manager locks an account when there are successive multiple invalid login attempts. This test checks whether or not a specified account is locked.
Result: Checks for locked or unlocked accounts in the database.
Prerequisite: None
Description: The data encryption key in an Oracle Identity Manager installation should be the same as the one used to encrypt the data in the Oracle Identity Manager database. This may not be the case when an Oracle Identity Manager installation is pointed to a database schema created for a different Oracle Identity Manager installation. This can also happen when a database dump from one Oracle Identity Manager installation is imported for a different Oracle Identity Manager installation without copying the corresponding key.
Result: Checks if the database key is present in the Oracle Identity Manager configuration directory.
Prerequisite: None
Description: Checks the status of the Oracle Identity Manager Scheduler Service running on the server.
Result: Displays the status of the scheduler service.
Prerequisite: None
Description: Reports the status of the Remote Managers that this Oracle Identity Manager installation is set to work with.
Result: Displays the status of the Remote Manager.
Prerequisite: None
Description: The purpose of this test is to verify that Oracle Identity Manager will be able to submit a JMS message and process it.
Result: Displays if Oracle Identity Manager is able to submit and process a JMS message.
Prerequisite: The following are the prerequisites for running this test:
| Prerequisite | Description |
|---|---|
| Target System | Enter the host name. |
| Port | Enter the port number. |
| Certificate Store Location | Enter the location for storage. |
| Certificate Store Password | Enter the password for storage. |
Description: Oracle Identity Manager must be set up to trust the target system certificates if the connectivity is over Secure Sockets Layer (SSL). Enter the host name and the port where a target system is listening for SSL connections.
Result: It displays the following information:
Valid and invalid host and port address
Trusted certificates
Prerequisite: None
Description: Displays all the Java VM system properties.
Result: Displays all the Java VM system properties.
Prerequisite: None
Description: Reports all the versions of the Oracle Identity Manager libraries and extensions.
Result: Displays the versions of the Oracle Identity Manager libraries and extensions.
Prerequisite: None
Description: Reports the manifest information of the Oracle Identity Manager libraries and extensions.
Result: Displays the manifest information of the Oracle Identity Manager libraries and extensions.
Prerequisite: The following are the prerequisites for running this test:
| Prerequisite | Description |
|---|---|
| IT Resource Type Name | Enter the IT resource type. |
| IT Resource Instance Name | Enter the IT resource name. |
Description: Tests the connection to the target system by using the IT resource for the target system.
Note:
If the specified IT resource type was created when you deployed a predefined connector, then see the Oracle Identity Manager Connector Pack release notes and documentation to determine whether or not this test can be applied for the release of the connector that you deployed.Result: Displays the results of the connectivity test. If the test fails, then the cause of the error is also displayed.
Prerequisite: The following are the prerequisites for running this test:
| Prerequisite | Description |
|---|---|
| IT Resource Type Name | Enter the IT resource type. |
| IT Resource Instance Name | Enter the IT resource name. |
Description: Performs a basic Create User operation on the target system.
Note:
If the specified IT resource type was created when you deployed a predefined connector, then see the Oracle Identity Manager Connector Pack release notes and documentation to determine whether or not this test can be applied for the release of the connector that you deployed.Result: Displays the results of the provisioning test. Test data created on the target system during the test is deleted at the end of the test.
Prerequisite: The following are the prerequisites for running this test:
| Prerequisite | Description |
|---|---|
| IT Resource Type Name | Enter the IT resource type. |
| IT Resource Instance Name | Enter the IT resource name. |
Description: Performs a basic reconciliation operation on the target system.
Note:
If the specified IT resource type was created when you deployed a predefined connector, then see the Oracle Identity Manager Connector Pack release notes and documentation to determine whether or not this test can be applied for the release of the connector that you deployed.Result: Displays the results of the reconciliation test. Test data reconciled into Oracle Identity Manager during the test is deleted at the end of the test.
Prerequisite: None
Description: Checks whether the details provided for SOA-wiring are valid or not.
Result: Displays the status for the following tests:
Validation for SOA connection with Oracle Identity Manager and authentication of user in SOA
Authentication and search of Oracle Identity Manager DB user
Prerequisite: The following is the prerequisite for running this test:
| Prerequisite | Description |
|---|---|
| Request ID | Enter the ID of the request for which diagnostic information is required |
Description: Provides the orchestration ID and the composite details for the given request ID.
Result: Displays the following information:
Orchestration process ID associated with the given request ID.
Composite details of the request along with details of approval and process task.
Prerequisite: The following are the prerequisites for running this test:
| Prerequisite | Description |
|---|---|
| Process Id | Enter the Id of the orchestration process. |
Description: Provides the status of the orchestration process in the Oracle Identity Manager Kernel. It also provides details and status about all the event handlers involved in that process.
Result: Displays the status of the orchestration process as Failed, Completed, or Active.

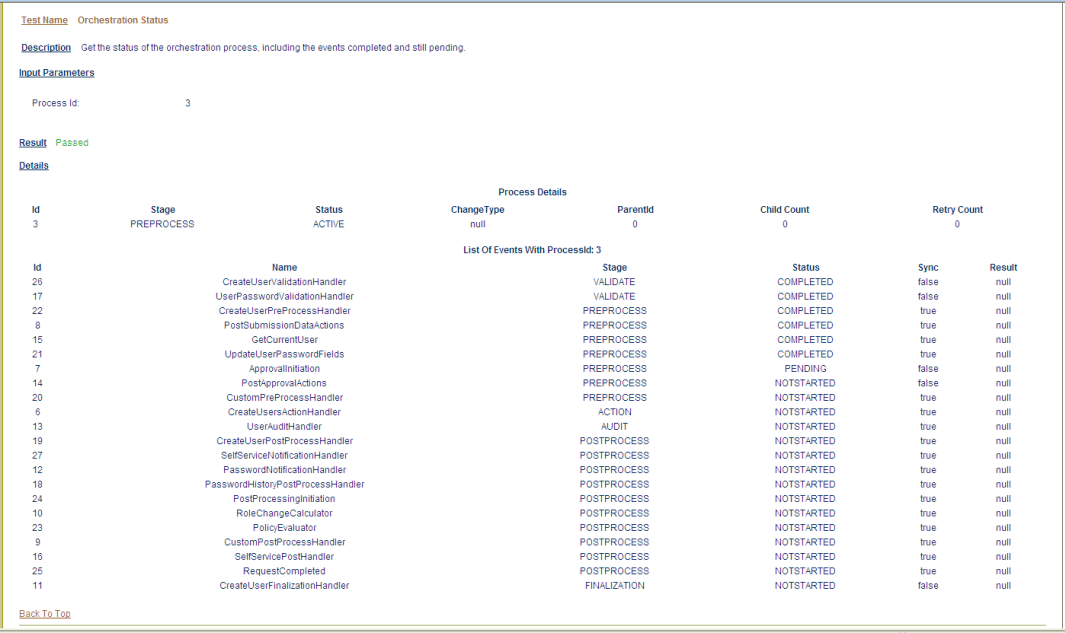

Figure 19-1 displays the status of the orchestration process, including the events completed and still pending.
Figure 19-1 Sample Output for Orchestration Status Test
Prerequisite: The following are the prerequisites for running this test:
| Prerequisite | Description |
|---|---|
| Process Id | Enter the Id of the orchestration process. |
Description: Obtains the response that indicates how to handle the failure for the given orchestration process.
Result: Displays the orchestration process in failed state and continues to retry based on the response.
Prerequisite: None
Description: Verifies that SPML WSDL is accessible and the Web service is up and running.
Result: Displays the contents of SPML WSDL file.
Prerequisite: None
Description: Verifies OWSM setup by submitting a request with OWSM header information. This also ensures a valid response is returned by submitting a request of listtarget with OWSM header set.
Result: Displays the targets supported by the SPML web-service.
Prerequisite: None
Description: SPML WS to Oracle Identity Manager is a signature-based login, This test ensures if this is working, by simulating a Oracle Identity Manager request.
Result: Displays whether signature-based login is working fine.
Prerequisite: None
Description: Lists all the mapping of SPML attributes to Oracle Identity Manager attributes which helps the administrator to check if the set up is correct.
Result: Displays a table showing the SPML to Oracle Identity Manager attributes mappings:
| SPML Attribute Name | Oracle Identity Manager Attribute Name |
|---|---|
| Number Format | Number Format |
| localityName | Locality Name |
| countryName | Country |
| manager | User Manager |
| facsimileTelephoneNumber | Fax |
| generationQualifier | Generation Qualifier |
| street | Street |
| state | State |
| surname | Last Name |
| Embedded Help | Embedded Help |
| Territory | FA Territory |
| organizationUnit | LDAP Organization Unit |
| givenName | First Name |
Prerequisite: None
Description: Lists the existing username generation policy defined in Oracle Identity Manager
Result: Displays the policy name.
Prerequisite: None
Description: Verifies the user creation and role creation are working fine in LDAP and Oracle Identity Manager individually.
Result: Displays the status specifying whether user and role creation was successful in Oracle Identity Manager and LDAP.
Prerequisite: None
Description: Verifies if Oracle Identity Manager is able to connect to the OVD.
Result: Displays whether Oracle Identity Manager was successful to connect to the OVD.
Prerequisite: None
Description: Oracle Identity Manager configuration file has the tree structure of reserve container. This test validates that the reserve container was created during the setup.
Result: Displays whether reserve container is created properly.
|
