Oracle Service Bus provides a SOA-DIRECT transport that lets you invoke Oracle SOA Suite service components, such as BPEL processes, human tasks, rules, and Oracle Mediator components.
Note:
The SOA-DIRECT transport is for communicating with Oracle SOA Suite 11g and later service components. Oracle Service Bus provides a bpel-pm transport to communicate with Oracle SOA Suite 10g Release 3. For information on that transport, see Chapter 35, "Oracle BPEL Process Manager Transport (for use with Oracle SOA Suite 10g only)."This document, which describes the SOA-DIRECT transport, contains the following sections:
The SOA-DIRECT transport provides native connectivity between Oracle Service Bus and Oracle SOA Suite service components. Oracle SOA Suite provides a "direct binding" framework that lets you expose Oracle SOA Suite service components in a composite application, and the Oracle Service Bus SOA-DIRECT transport interacts with those exposed services through the SOA direct binding framework, letting those service components interact in the service bus layer and leverage the capabilities and features of Oracle Service Bus.
For more information on SOA binding components, see "Getting Started with Binding Components" and "Using the Direct Binding Invocation API" in the Oracle Fusion Middleware Developer's Guide for Oracle SOA Suite.
Note:
The SOA-Direct transport supports WSDL type services with SOAP 1.1, SOAP 1.2, or, alternatively, XML bindings. The SOA direct binding framework only exposes direct binding services as WSDL with SOAP 1.1 and SOAP 1.2 bindings, not XML. However, if you want to use an XML binding, you must manually customize the imported SOA service WSDLs for the direct binding services. An XML binding has no effect on the message payload, since messages between the SOA-DIRECT transport and SOA binding components are always abstract (no binding).The SOA-DIRECT transport supports the following features:
Invocation of any SOA binding component services through Java remote method invocation (RMI)
WS-Addressing, including optional auto-generation of ReplyTo properties for asynchronous callbacks
Identity propagation
Transaction propagation
Attachments
Optimized RMI transport for invoking SOA services
High availability and clustering support
Failover and load balancing (not available for services in the Service Callback role
Connection and application retries on errors
The SOA-DIRECT transport uses only WS-Addressing for message correlation in synchronous and asynchronous communications. The transport automatically generates the following WS-Addressing properties in the SOAP header when you configure a callback proxy in the business service configuration:
ReplyTo – For setting the callback address and connection details in asynchronous callbacks.
ReferenceParameters – Contains the callback properties for ReplyTo, including JNDI and connection factory properties, for the following supported WS-Addressing versions:
http://www.w3.org/2005/08/addressing
http://schemas.xmlsoap.org/ws/2004/08/addressing
ReferenceProperties – Contains the callback properties for ReplyTo, including JNDI and connection factory properties, for the following supported WS-Addressing version: http://schemas.xmlsoap.org/ws/2003/03/addressing.
For ReplyTo and ReferenceParameters examples, see Section 25.4, "WS-Addressing Reference."
For all other WS-Addressing properties, you must add or transform them in Oracle Service Bus proxy service message flows if they are not available or suitable for pass-through to the SOA-DIRECT business service.
If you use correlation and callback mechanisms other than WS-Addressing, you must transform messages in proxy service pipelines to support WS-Addressing between Oracle Service Bus and SOA framework service components.
For WS-Addressing examples with the SOA-DIRECT transport, see Section 25.4, "WS-Addressing Reference" and Section 25.5, "XML Examples."
The SOA-DIRECT transport supports one-way SSL. To use SSL, enable SSL in the domain, use the secure protocol in the endpoint URI, such as https, iiops, or t3s, and reference the secure port in the URI. For more information on the SOA-DIRECT URI, see Section 25.3.1, "SOA-DIRECT Endpoint URI."
You can provide identity propagation with the SOA-DIRECT transport by passing the caller's subject through the service or with a service account bound to the service. Because the SOA-DIRECT transport deals with only normalized, abstract messages, the transport does not support WS-Security. For more information on security settings, see Section 25.3.2, "SOA-DIRECT Transport Configuration for Business Services."
The SOA-DIRECT transport stores the following environment values for SOA-DIRECT services:
JNDI Service Account (security category)
Pass Caller's Subject (security category)
Invocation Service account (security category)
Work Manager (environment category)
For information on these values, see Section 25.3.2, "SOA-DIRECT Transport Configuration for Business Services."
The SOA-DIRECT transport recognizes connection and application errors, letting you configure the appropriate retry settings in the transport configuration. The transport throws generic errors for errors that are neither connection nor application related.
The SOA-DIRECT transport raises connection errors in the following situations:
The target service does not exist
A naming exception occurs during the RMI lookup or invocation (with the exception of javax.naming.NamingSecurityException, which is a generic error).
A remote exception occurs during the RMI lookup or invocation.
The SOA-DIRECT transport raises application errors when the outbound business service receives a SOAP fault.
You can deselect Retry Application Errors on the service configuration page to prevent retries on application errors—errors that are likely to keep failing despite retries.
The SOA-DIRECT transport raises a generic error in the following situations:
All errors other than connection and application errors.
A javax.naming.NamingSecurityException, which is thrown during the JNDI lookup, is not considered a connection error as are other naming exceptions.
This section describes synchronous and asynchronous communication patterns between Oracle Service Bus and Oracle SOA Suite composites.
This section describes the simple, most common use cases for communicating natively to and from SOA composites through Oracle Service Bus: synchronous communication.
The Oracle Service Bus SOA-DIRECT transport can invoke any component in a SOA composite that is exposed as a direct binding service.
Figure 25-1 illustrates a synchronous communication pattern between a client and an Oracle SOA service component through Oracle Service Bus using a SOA-DIRECT business service and direct binding service.

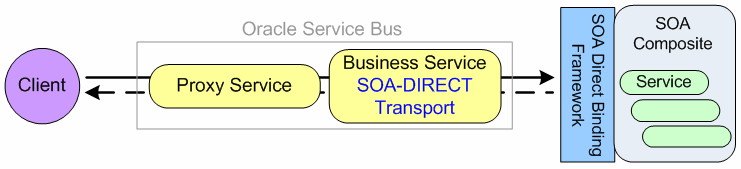

Figure 25-1 Client Invoking a SOA Binding Service Synchronously
Use the following guidelines to invoke an Oracle SOA direct binding service from a client through Oracle Service Bus:
Create a SOA-DIRECT business service in Oracle Service Bus that represents the SOA service component you want to invoke.
In Oracle Service Bus, create a WSDL resource based on the corresponding Oracle SOA direct binding service WSDL.
You can locate the SOA direct binding service WSDL in Oracle JDeveloper using the SOA Resource Browser, as described in "Developing SOA Composite Applications with Oracle SOA Suite" in the Oracle Fusion Middleware Developer's Guide for Oracle SOA Suite.
Create a new business service.
Select WSDL Web Service as the Service Type.
Select the WSDL resource you created, and choose the appropriate port or binding.
Note:
If you select the port, the transport type and URI will be automatically propagated in the next configuration page.Select the soa-direct transport in the business service configuration.
Set the endpoint URI as described in Section 25.3.1, "SOA-DIRECT Endpoint URI."
Configure the remainder of the business service, described in Section 25.3.2, "SOA-DIRECT Transport Configuration for Business Services."
Create a proxy service in Oracle Service Bus that invokes the business service. Choose the transport type that is used by the client. For proxy configuration details, see Section 4.3, "Proxy Service Configuration" and Chapter 3, "Transport Configuration."
If you are using stateful services to ensure that messages are associated with the correct conversation, see Section 25.2.1.3, "Associating Messages with the Correct Conversation."
A SOA composite can invoke any Oracle Service Bus SB WSDL-based proxy service. To invoke an SB proxy service, the SOA service component must use a direct binding reference of Target Type "Oracle Service Bus." (For more information on target types, see the Oracle Fusion Middleware Developer's Guide for Oracle SOA Suite.)
Table 25-0 illustrates a synchronous communication pattern between an Oracle SOA service component and an external service through Oracle Service Bus.
Figure 25-2 SOA Binding Service Invoking an External Service Synchronously
Use the following guidelines to invoke an external service from a SOA composite using direct binding references:
Create a business service in Oracle Service Bus that represents the external service you want to invoke. Choose the transport type that is supported by this service. For business service configuration details, see Section 4.2, "Business Service Configuration." and Chapter 3, "Transport Configuration."
Create an SB proxy service in Oracle Service Bus that invokes the business service.
Create a WSDL resource to be used by the proxy that invokes the business service.
Create a new proxy service.
Select WSDL Web Service as the Service Type.
Select the WSDL for the proxy service, and select the desired port or binding.
Select the sb transport in the proxy service configuration.
Configure the remainder of the proxy service. For more information, see Section 4.3, "Proxy Service Configuration" and Chapter 28, "SB Transport."
Note:
Use the SB proxy service effective WSDL and port type to define the direct binding reference that invokes Oracle Service Bus. You can import this WSDL into an Oracle SOA Suite project.If you are using stateful services, ensure that messages are associated with the correct conversation. See Section 25.2.1.3, "Associating Messages with the Correct Conversation."
When using stateful services, the messages sent synchronously between Oracle Service Bus and Oracle SOA composites are known as a conversation. To ensure that messages are correctly associated with each other as part of a conversation, the Oracle Service Bus SOA-DIRECT transport provides built-in support for WS-Addressing.
For more information on WS-Addressing, see Section 25.4.2, "MessageID / RelatesTo Headers." For an example of conversation ID setting, see Section 25.5.1, "Conversation ID Examples."
This section describes asynchronous communications between a SOA composite and Oracle Service Bus using the SOA-DIRECT transport.
Note:
Only the following SOA service components currently support asynchronous conversations using WS-Addressing: BPEL Process, Mediator, and Human Task.The Oracle Service Bus SOA-DIRECT transport can invoke asynchronous SOA service components that are exposed as direct binding services.
Figure 25-3 illustrates an asynchronous communication pattern between a client and an Oracle SOA composite through Oracle Service Bus using a direct binding service, the SOA-DIRECT transport, and the SB transport.

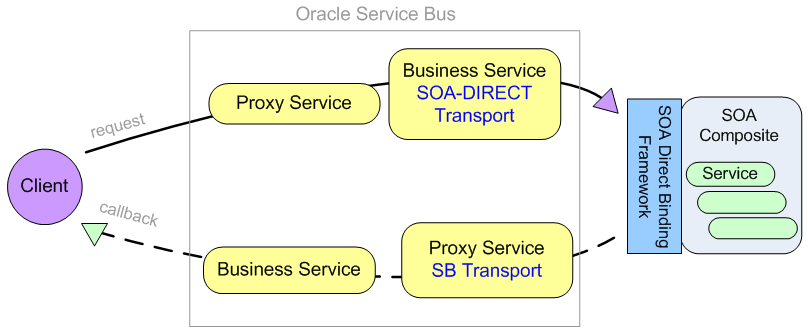

Figure 25-3 Client Invoking a SOA Binding Service Asynchronously
Use the following guidelines to invoke the SOA direct binding service asynchronously from a client through Oracle Service Bus:
On the inbound client side, create the Oracle Service Bus artifacts to interact with the client: a request proxy service that invokes the outbound SOA-DIRECT business service, and a callback business service that handles the callback to the client. Use the transport type used by the client.
Request Proxy Service
Configure the proxy service that receives the client request. This proxy service invokes the outbound request SOA-DIRECT business service.
Since the callback is sent to a different connection, Oracle Service Bus must be able to remember the original callback location when calling back the client. When using WS-Addressing, the callback address is sent to the request proxy service in the ReplyTo address header. Before invoking the SOA-DIRECT business service, the request proxy can pass this address as a referenceParameter property inside the ReplyTo header. Following the WS-Addressing specification, the referenceParameter property is inserted in the SOAP header block of the callback. The callback SB proxy can then extract this callback address and set the callback business service URI.
For information on setting a callback address, see Section 25.4.1, "ReplyTo Header" and Section 25.5.2, "Asynchronous Composite to Composite Native Communication Through Oracle Service Bus Example."
Callback Business Service
Configure the business service you need to handle the callback. This business service is invoked by the outbound callback SB proxy service.
For service and transport configuration guidance, see Section 4.2, "Business Service Configuration" and Chapter 3, "Transport Configuration".
On the Oracle Service Bus outbound side, create the artifacts to interact with the SOA composite: a request SOA-DIRECT business service that makes the request to the Oracle SOA direct binding service exposing the asynchronous service component you want to invoke, and a callback SB proxy service that handles the callback from the direct binding service and invokes the inbound callback business service.
Request SOA-DIRECT Business Service
In Oracle Service Bus, create a WSDL resource based on the corresponding Oracle SOA direct binding service WSDL.
You can locate the SOA direct binding service WSDL in Oracle JDeveloper using the SOA Resource Browser, as described in "Developing SOA Composite Applications with Oracle SOA Suite" in the Oracle Fusion Middleware Developer's Guide for Oracle SOA Suite.
Create a new business service.
Select WSDL Web Service as the Service Type. Browse to the WSDL resource you created and select the appropriate port or binding for the direct binding service.
If you select the port, the transport type and URI are automatically propagated in the next configuration page.
Select the soa-direct transport in the business service configuration.
Set the URI, described in Section 25.3.1, "SOA-DIRECT Endpoint URI."
On the transport configuration page, set the Role to Asynchronous Client.
Optionally use the Callback Proxy option to select the SB callback proxy service you created.
When you select a callback proxy, the SOA-DIRECT transport automatically generates the WS-Addressing headers to tell the SOA direct binding service that it expects the asynchronous callback response to be sent to the specified callback proxy.
For approaches to setting a callback address if you do not select a callback proxy in the SOA-DIRECT business service, see Section 25.4, "WS-Addressing Reference" and Section 25.5.2, "Asynchronous Composite to Composite Native Communication Through Oracle Service Bus Example."
Configure the remainder of the business service. For more information, see Section 25.3, "Transport Configuration Reference" and Section 4.2, "Business Service Configuration."
Invoke this business service from the request proxy service.
Callback SB Proxy Service
Create a new proxy service.
Select WSDL Web Service as the Service Type.
Browse to the WSDL corresponding to direct binding service's WSDL, and select the appropriate port or binding.
Select the sb transport in the proxy service configuration.
Complete the proxy service configuration. For more information, see Section 4.3, "Proxy Service Configuration" and Chapter 28, "SB Transport."
An asynchronous SOA service component in a SOA composite can invoke external services through Oracle Service Bus. To do so, the SOA service component must use a direct binding reference of Target Type of "Oracle Service Bus." (For more information on target types, see the Oracle Fusion Middleware Developer's Guide for Oracle SOA Suite.)
Figure 25-4 illustrates an asynchronous communication pattern between an Oracle SOA service component and an external service through Oracle Service Bus using a direct binding reference, the SB transport, and the SOA-DIRECT transport.

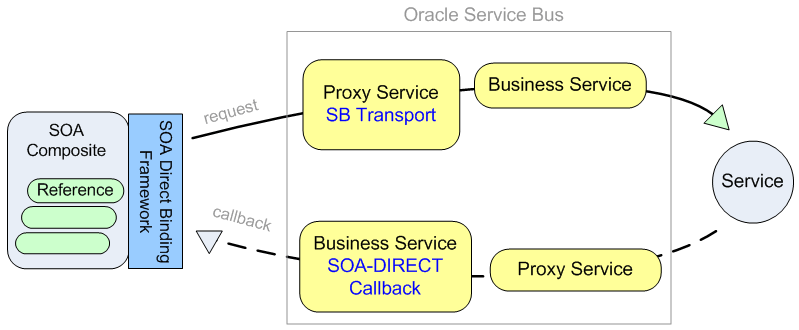

Figure 25-4 SOA Binding Service Invoking an External Service Asynchronously
Use the following guidelines to invoke an external service asynchronously from an Oracle SOA direct binding reference through Oracle Service Bus.
In Oracle Service Bus, on the inbound side, create the artifacts to interact with the SOA composite: a request SB proxy service that receives the SOA direct binding reference request and a callback SOA-DIRECT business service that handles the callback to the SOA direct binding reference.
Request SB Proxy Service
Create a WSDL resource representing the interface used to interact with the direct binding reference.
Create a new proxy service.
Select WSDL Web Service as the Service Type.
Browse to the WSDL you created and select the appropriate port or binding.
Select the sb transport in the proxy service configuration page.
Complete proxy service configuration. For more information, see Section 4.3, "Proxy Service Configuration" and Chapter 28, "SB Transport."
Since the callback is sent to a different connection, Oracle Service Bus must be able to "remember" the original callback location when calling back the client. When using WS-Addressing, the callback address is sent to the request proxy service in the ReplyTo address header. Before invoking the external service, the request proxy service passes this address as a referenceParameter property inside the ReplyTo header. Following the WS-Addressing specification, the referenceParameter property is inserted in the SOAP header block of the callback. The callback proxy service can then extract this callback address and set the callback business service URI.
For information on setting a callback address, see Section 25.4.1, "ReplyTo Header" and Section 25.5.2, "Asynchronous Composite to Composite Native Communication Through Oracle Service Bus Example."
Callback Business Service
Create a new business service.
Select WSDL Web Service as the Service Type.
Browse to the WSDL representing the callback interface with the direct binding reference, and select the appropriate port or binding.
Select the soa-direct transport in the business service configuration.
Set the service URI to "callback," as described in Section 25.3.1, "SOA-DIRECT Endpoint URI."
In general, the callback URI is dynamically set in the invoking proxy using URI rewriting. However, if the callback address is always known, you can provide the exact callback address instead of "callback."
Set the role to Service Callback on the SOA-DIRECT transport configuration page.
Configure the remainder of the business service, as described in Section 25.3.2, "SOA-DIRECT Transport Configuration for Business Services" and Section 4.2, "Business Service Configuration."
On the Oracle Service Bus outbound side, create the artifacts to interact with the external service: a request business service that makes the request to the external service and a callback proxy service that handles the callback from this service.
Request Business Service
Configure the business service to invoke the external service. This business service will be invoked by the request SB proxy service. Choose the transport type that is supported by this service. For business service configuration details, see Section 4.2, "Business Service Configuration" and Chapter 3, "Transport Configuration."
Callback Proxy Service
Configure the proxy service to pass the callback address to the business service. The callback URI is provided in the request. Use URI rewriting to extract the callback URI and forward it to the SOA-DIRECT business service. Choose the transport type that is supported by this service. For proxy service configuration details, see Section 4.3, "Proxy Service Configuration" and Chapter 3, "Transport Configuration."
For information on setting the callback addresses using WS-Addressing, see Section 25.4, "WS-Addressing Reference."
This section describes the endpoint URL format and configuration options for the SOA-DIRECT transport.
Following is the URI pattern for the SOA-DIRECT transport. Optional elements are in brackets [].
callback – This is the URI for SOA-DIRECT business services in the Service Callback role handling the inbound request. The actual URI is specified dynamically at run time in the proxy service pipeline. However, if the callback address is always known, you can provide the exact callback address.
For all other SOA-DIRECT business service roles:
[protocol://authority]/default/compositeName[!versionNumber[*label]]/serviceName
protocol
Use one of the following RMI / JNDI protocols:
iiop / iiops – For generic, server-agnostic use.
t3 / t3s – For use with Oracle WebLogic Server.
http / https – For tunneling and use with Oracle WebLogic Server.
For HTTP(S) protocols, enable HTTP tunneling on the server. For SSL protocols, enable SSL on the server.
The protocol and authority are optional when the SOA services are co-located on the same server as Oracle Service Bus.
Following are descriptions of the other endpoint URI elements:
authority – The IP address or host name and the port of the SOA server or cluster hosting the SOA service components.
The protocol and authority are optional when the SOA services are co-located on the same server as Oracle Service Bus.
default – This domain name value is always "default."
compositeName – The name of the composite application where the binding component service is defined.
!versionNumber – Optional. The composite application version number. If you do not specify a version, the current version is used.
*label – Optional, used with !versionNumber; the label hash used in the SOA service WSDL.
serviceName – The name of the SOA binding component service.
While you can specify more than one URI on a service for load balancing and failover, only one URI is allowed for services in the Service Callback role, described in Table 25-1. Therefore, load balancing and failover are not available for services in the Service Callback role.
Following is the format for the endpoint URI in a cluster:
t3://example_managed1:port1,example_managed2:port2/service_path
Where t3://example_managed1:port1,example_managed2:port2 is the JNDI provider URL.
Following are URI examples for the SOA-DIRECT transport:
t3s://example:7002/default/compositeApp/1.0/myService
Points to a service deployed on a single node.
/default/compositeApp!1.0/myService
Points to a service co-located on the same server as Oracle Service Bus.
t3://soaserver.example.com:7001/default/VacationRequest!1.0*ec2dd6c5-1667-4885-a634-2364547beb2d/directclient
Points to a service deployed on a single node using a version and hash code. This is the default format in SOA binding component service WSDLs.
t3://example_managed1:8001,example_managed2:8002/default/myComposite/myService
Points to a clustered SOA framework environment identified by "myService." Because no specific version is specified, the most recent version of the service is used.
Table 25-1 describes the transport-specific configuration options for the SOA-DIRECT transport.
Table 25-1 SOA-DIRECT Transport Configuration
| Property | Description |
|---|---|
|
JNDI Service Account |
Optional. Specifies the security credentials for the JNDI lookup of the target SOA service. The service account must be static. Click Browse and select a service account. If you do not specify a service account, an anonymous subject is used. |
|
Role |
Required. Identifies the communication pattern the service uses. Select one of the following options:
Load balancing or failover are not available for services in the Service Callback role. |
|
Callback Proxy |
Optional. Enabled only for the Asynchronous Client role. This option lets you specify the proxy service that receives callbacks. When you select a callback proxy, if no WS-Addressing is provided by the request or the proxy service pipeline, Oracle Service Bus automatically populates the ReplyTo property in the SOAP header. You must select a WSDL proxy service that uses the SB transport (for RMI), and the callback proxy service must understand WS-Addressing. WS-Addressing properties that are sent in the request or set in the proxy service pipeline are used instead of the callback proxy you set in this option. If you do not specify a Callback Proxy, and the request does not contain ReplyTo properties, you must provide ReplyTo properties in the SOAP header through the proxy service pipeline. |
|
Fault Proxy |
This option is not currently supported. You must configure your callback services to handle faults in an asynchronous pattern. |
|
WS-Addressing Version |
Required. Enabled only for the Asynchronous Client role. Specify the default WS-Addressing version to use when no WS-Addressing is provided in the request or the proxy service pipeline. WS-Addressing properties that are sent in the request or set in the proxy service pipeline are used instead of the WS-Addressing version you set in this option. For WS-Addressing version mismatches between environments, perform any necessary transformations in the proxy service pipeline. For more information, see Section 25.5.1.4, "Transformation Examples." |
|
Dispatch Policy |
Select the instance of Oracle WebLogic Server Work Manager that you want to use for the dispatch policy for this endpoint. The default Work Manager is used if no other Work Manager exists. For information about Work Managers, see:
|
|
Pass Caller's Subject |
Optional. Select this option to have Oracle Service Bus pass the authenticated subject from the proxy service when invoking the SOA service. The Invocation Service Account option, an alternative to Pass Caller's Subject, is disabled when you select this option. Note: Make sure that domain trust is enabled between client and target server if they are in different domains. For more information, see "Important Information Regarding Cross-Domain Security Support" in Oracle Fusion Middleware Securing Oracle WebLogic Server. |
|
Invocation Service Account |
Optional. Alternative to Pass Caller's Subject, which lets you specify custom security credentials by selecting a service account for RMI invocation. You can specify any type of service account (Pass Through, Static, Mapping). Click Browse and select a service account. If you do not specify a service account, an anonymous subject is used. |
This section describes specific WS-Addressing properties that the SOA-DIRECT transport uses to communicate natively with an Oracle SOA composite. This section also describes ways to provide callback addresses in asynchronous communication, as described in Section 25.2.2, "Advanced Use Cases – Asynchronous."
See Section 25.5, "XML Examples" for WS-Addressing examples.
In an asynchronous communication, a service callback is sent on a different connection than the request. As a service developer, you must supply the correct callback address in an asynchronous exchange so that the callback is sent to the correct client. When using the SOA-DIRECT transport with WS-Addressing correlation, the callback address is specified in the "ReplyTo" WS-Addressing header.
The SOA-DIRECT business service can optionally generate the ReplyTo header. In the business service configuration, if you select a Callback Proxy to handle the callback, the SOA-DIRECT transport sets the correct callback address corresponding to this callback proxy in the ReplyTo header. Note that this header is generated only if the incoming message does not already contain a ReplyTo header.
For more information, see Section 25.2.2.1, "Asynchronous Invocation of a SOA Composite."
When calling an external service from an Oracle SOA composite through Oracle Service Bus, you must manually set a callback address. To do this, set the callback address as the ReplyTo value in the proxy service that invokes the callback SOA-DIRECT business service.
For more information, see Section 25.2.2.2, "Asynchronous Invocation from a SOA Composite."
MessageID and RelatesTo WS-Addressing headers are used to store the conversation ID in conversations between Oracle Service Bus and Oracle SOA service components, ensuring related messages remain in the same conversation.
Unlike ReplyTo, the SOA-DIRECT transport does not provide built-in support for the MessageID or RelatesTo headers. Instead, you must set the correct values for those headers in the pipeline of the proxy service that invokes a SOA-DIRECT business service.
The following describe when MessageID and RelatesTo headers are used in synchronous and asynchronous conversations:
Synchronous conversation: The MessageID header value determines the conversation ID in the initial request. Then, for subsequent requests within the same conversation, the conversation ID must be provided in the RelatesTo header.
Asynchronous callbacks - The MessageID header value determines the conversation ID in the initial request. Then, for the callback, the conversation ID must be provided in the RelatesTo header.
For more implementation on establishing a conversation ID to make sure messages participate in the correct conversation, see Section 25.2.1.3, "Associating Messages with the Correct Conversation" and the Section 25.5.1, "Conversation ID Examples."
Following are examples of XML messaging between Oracle Service Bus and Oracle SOA service Components.
This section provides different examples of establishing a conversation ID among messages in a conversation between Oracle Service Bus and Oracle SOA composites.
In Figure 25-5, a client is synchronously invoking a BPEL Process component in an Oracle SOA composite. The business service (B1) uses the SOA-DIRECT transport to invoke a process. The proxy service (P1) handles any necessary conversation ID mapping. The SOA composite exposes the BPEL Process as a direct binding service.

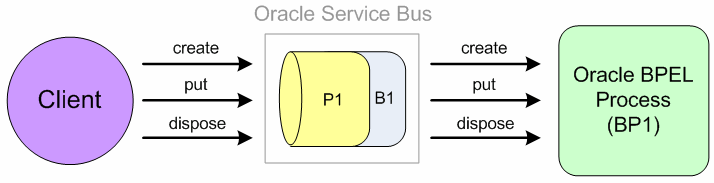

Figure 25-5 Operations in a Synchronous Exchange Through Oracle Service Bus
The examples in this section use the following port and message definitions defined in the WSDL.
<wsdl:types>
<xsd:schema
targetNamespace="http://www.sample.org/spec/samples/types"
elementFormDefault="qualified">
<xsd:complexType name="ValueHolder">
<xsd:all>
<xsd:any minOccurs="1"/>
</xsd:all>
</xsd:complexType>
</xsd:schema>
</wsdl:types>
<message name="create"/>
<message name="putRequest">
<part name="key" type="xsd:string"/>
<part name="value" type="types:ValueHolder"/>
</message>
<message name="putResponse">
<part name="value" type="types:ValueHolder"/>
</message>
...
<message name="dispose"/>
<portType name="ServiceMap">
<operation name="create">
<input message="tns:create"/>
</operation>
<operation name="put">
<input message="tns:putRequest"/>
<output message="tns:putResponse"/>
</operation>
...
<operation name="dispose">
<input message="tns:dispose"/>
</operation>
</portType>
This example shows how WS-Addressing is used to set the conversation ID among messages in a conversation.
Figure 25-5 shows the communication pattern.
Create Operation
<soap:Envelope>
<soap:Header>
<wsa03:MessageID>uuid:123456789</wsa03:MessageID>
</soap:Header>
<soap:Body>
<create/>
</soap:Body>
</soap:Envelope>
Put Operation
<soap:Envelope>
<soap:Header>
<wsa03:MessageID>uuid:111111111</wsa03:MessageID>
<wsa03:RelatesTo>uuid:123456789</wsa03:RelatesTo>
</soap:Header>
<soap:Body>
<put>
<key>key</key>
<value>
<PO/>
</value>
</put>
</soap:Body>
</soap:Envelope>
<soap:Envelope>
<soap:Body>
<putResponse>
<value/>
</putResponse>
</soap:Body>
</soap:Envelope>
The <put> operation also has a MessageID, but it is ignored because the RelatesTo has a value that provides the conversation ID.
This example shows how message payload data can be used to set the conversation ID among messages in a conversation.
In these examples, the proxy service maps the ID to the MessageID / RelatesTo SOAP headers.
Figure 25-5 shows the communication pattern.
Create Operation
Client to proxy service
<soap:Envelope>
<soap:Body>
<create/>
</soap:Body>
</soap:Envelope>
<soap:Envelope>
<soap:Body>
<createResponse>
<mapID>uuid:123456789</mapID>
</createResponse>
</soap:Body>
</soap:Envelope>
Proxy service to SOA composite (via a SOA-DIRECT business service)
<soap:Envelope>
<soap:Header>
<wsa03:MessageID>uuid:123456789</wsa03:MessageID>
</soap:Header>
<soap:Body>
<create/>
</soap:Body>
</soap:Envelope>
Not shown: The ID was generated in the request of the proxy service pipeline and inserted as a <wsa03:MessageID> before invoking the process. On the process side, the Create operation is one-way, so a SOAP response must be created before replying to the client. The response sends back the ID that was generated by the proxy service.
Put Operation
Client to proxy service
<soap:Envelope>
<soap:Body>
<put>
<mapID>uuid:123456789</mapID>
<key>key</key>
<value>
<PO/>
</value>
</put>
</soap:Body>
</soap:Envelope>
<soap:Envelope>
<soap:Body>
<putResponse>
<value/>
</putResponse>
</soap:Body>
</soap:Envelope>
Proxy service to SOA composite (via a SOA-DIRECT business service)
<soap:Envelope>
<soap:Header>
<wsa03:RelatesTo>uuid:123456789</wsa03:RelatesTo>
</soap:Header>
<soap:Body>
<put>
<key>key</key>
<value>
<PO/>
</value>
</put>
</soap:Body>
</soap:Envelope>
<soap:Envelope>
<soap:Body>
<putResponse>
<value/>
</putResponse>
</soap:Body>
</soap:Envelope>
Dispose Operation
Client to proxy service
<soap:Envelope>
<soap:Body>
<dispose>
<mapID>uuid:123456789</mapID>
</dispose>
</soap:Body>
</soap:Envelope>
Proxy service to SOA composite (via a SOA-DIRECT business service)
<soap:Envelope>
<soap:Header>
<wsa03:RelatesTo>uuid:123456789</wsa03:RelatesTo>
</soap:Header>
<soap:Body>
<dispose/>
</soap:Body>
</soap:Envelope>
In these examples, the client uses a more recent version of the WS-Addressing spec (wsa04 prefix). The proxy service is responsible for transforming the SOAP headers to use the wsa03 prefix. The proxy service developer configures the transformation.
Figure 25-5 shows communication pattern.
Create Operation
Client to proxy service
<soap:Envelope>
<soap:Header>
<wsa04:MessageID>uuid:123456789</wsa04:MessageID>
</soap:Header>
<soap:Body>
<create/>
</soap:Body>
</soap:Envelope>
Proxy service to SOA composite (via a SOA-DIRECT business service)
<soap:Envelope>
<soap:Header>
<wsa03:MessageID>uuid:123456789</wsa03:MessageID>
</soap:Header>
<soap:Body>
<create/>
</soap:Body>
</soap:Envelope>
Put Operation
Client to proxy service
<soap:Envelope>
<soap:Header>
<wsa04:MessageID>uuid:111111111</wsa04:MessageID>
<wsa04:RelatesTo>uuid:123456789</wsa04:RelatesTo>
</soap:Header>
<soap:Body>
<put>
<key>key</key>
<value>
<PO/>
</value>
</put>
</soap:Body>
</soap:Envelope>
<soap:Envelope>
<soap:Body>
<putResponse>
<value/>
</putResponse>
</soap:Body>
</soap:Envelope>
Proxy service to SOA composite (via a SOA-DIRECT business service)
<soap:Envelope>
<soap:Header>
<wsa03:MessageID>uuid:111111111</wsa03:MessageID>
<wsa03:RelatesTo>uuid:123456789</wsa03:RelatesTo>
</soap:Header>
<soap:Body>
<put>
<key>key</key>
<value>
<PO/>
</value>
</put>
</soap:Body>
</soap:Envelope>
<soap:Envelope>
<soap:Body>
<putResponse>
<value/>
</putResponse>
</soap:Body>
</soap:Envelope>
The following example shows the SOAP headers involved in a SOA composite invoking another SOA composite asynchronously through Oracle Service Bus. The first SOA composite uses a BPEL Process exposed as a direct binding reference to invoke Oracle Service Bus. The second SOA composite uses a BPEL process exposed as a direct binding service to receive requests from Oracle Service Bus.
In Figure 25-6, P1 and P2 are proxy services that pass messages (and perform transformations) to B1 and B2 business services, which are required to make calls to SOA composites using the Oracle Service Bus SOA-DIRECT transport.

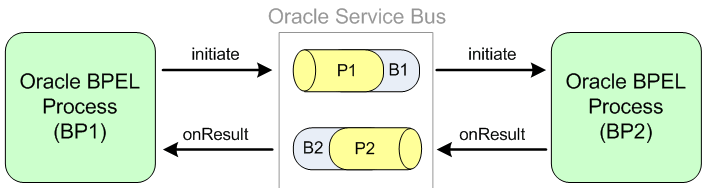

Figure 25-6 SOA Composite Invoking an SOA Composite Through Oracle Service Bus
Refer to Figure 25-6 for the following SOAP header examples.
<message name="LoanServiceRequestMessage">
<part name="payload" element="types:loanApplication"/>
</message>
<message name="LoanServiceResultMessage">
<part name="payload" element="types:loanOffer"/>
</message>
<portType name="LoanService">
<operation name="initiate">
<input message="tns:LoanServiceRequestMessage"/>
</operation>
</portType>
<portType name="LoanServiceCallback">
<operation name="onResult">
<input message="tns:LoanServiceResultMessage"/>
</operation>
</portType>
<soap:Envelope>
<soap:Header>
<wsa03:ReplyTo>
<wsa03:Address>
t3://soaserver:8001/default/AmericanLoanClient/LoanserviceRequester
</wsa03:Address>
</wsa03:ReplyTo>
<MessageID>AmericanLoanClient~1.0/60007</MessageID>
</soap:Header>
<soap:Body >
<loanApplication>
...
</loanApplication>
</soap:Body>
</soap:Envelope>
<soap:Envelope>
<soap:Header>
<wsa03:ReplyTo>
<wsa03:Address>http://serverB:7001/P2</wsa03:Address>
<wsa03:referenceParameters>
<osb:Callback>
<osb:Address>
t3://soaserver:8001/default/AmericanLoanClient/LoanserviceRequesterRef#LoanserviceRequesterBpel
</osb:Address>
</osb:Callback>
</wsa03:referenceParameters>
</wsa03:ReplyTo>
<MessageID>AmericanLoanClient~1.0/60007</MessageID>
</soap:Header>
<soap:Body >
<loanApplication>
...
</loanApplication>
</soap:Body>
</soap:Envelope>
The ReplyTo callback address is set by B1, which gets the value from the Callback Proxy field in the SOA-DIRECT transport configuration, as described in Section 25.3.2, "SOA-DIRECT Transport Configuration for Business Services." B1's callback proxy is P2.
You must wrap the original replyTo information and send it as reference properties so that it is echoed back in the onResult callback message (to follow).
Note:
This sample uses osb:Callback and osb:Address for illustration purpose only. There is no standard or Oracle Service Bus standard elements defined for WS-Addressing support.<soap:Envelope>
<soap:Header>
<wsa03:RelatesTo>AmericanLoanClient~1.0/60007</wsa03:RelatesTo>
<osb:Callback>
<osb:Address>
t3://soaserver:8001/default/AmericanLoanClient/LoanserviceRequesterRef#LoanserviceRequesterBpel
</osb:Address>
</osb:Callback>
</soap:Header>
<soap:Body >
<loanOffer>
...
</loanOffer>
</soap:Body>
</soap:Envelope>
The reference property osb:Callback is sent back as a SOAP header by the Oracle BPEL Process Manager engine.
<soap:Envelope>
<soap:Header>
<wsa03:RelatesTo>AmericanLoanClient~1.0/60007</wsa03:RelatesTo>
</soap:Header>
<soap:Body >
<loanOffer>
...
</loanOffer>
</soap:Body>
</soap:Envelope>
Proxy service P2 removes the temporary osb:Callback header; but prior to deleting this header, the replyTo address value is copied to the $outbound variable so that the SOA-DIRECT transport in business service B2 can send the callback message to the correct SOA service component.
|
 Copyright © 2008, 2011, Oracle and/or its affiliates. All rights reserved. Legal Notices |
|
