Oracle Enterprise Repository's System Settings section allows administrators to configure the basic Oracle Enterprise Repository operation and to enable/disable specific features.
This chapter contains the following sections:
To access the system settings, perform the following steps:
Click System Settings in the sidebar on the Oracle Enterprise Repository Admin screen.

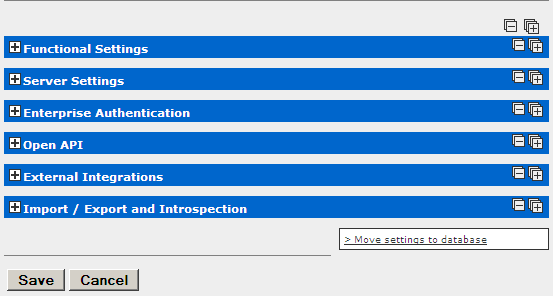

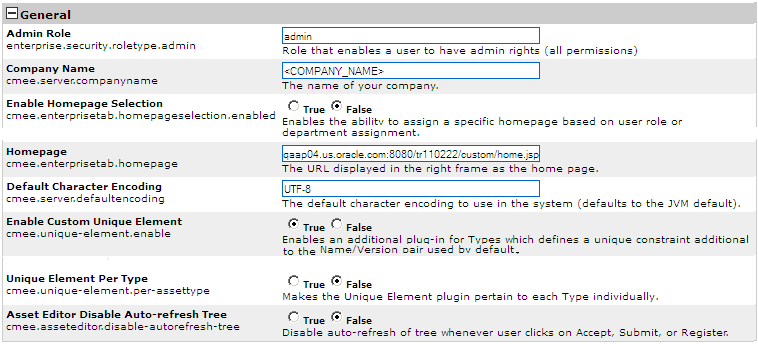

Figure 16-1 Oracle Enterprise Repository System Settings Page
The System Settings section opens in the main pane.
System Settings are organized into categories. Each category is further divided into feature groups.
Click the plus icon to expand the display of any category or feature group.
Click the minus icon to collapse the display.
System settings for particular features can be located using the System Settings Search.

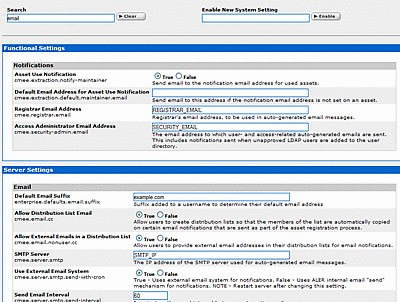

Enter a search term in the System Settings Search box. The relevant category sections expand to display the relevant System Settings.
Click the Clear button to clear the search results.
In some cases it may be necessary to enable specific properties in order to activate certain optional Oracle Enterprise Repository features. These properties are provided by Oracle Support.
Obtain the necessary system setting property.
Enter the system setting property in the Enable New System Setting text box.
Click Enable. The appropriate System Setting category will open in the lower pane.
Edit the system setting properties as necessary.
Click Save when finished.
Exercising this option moves all system settings stored in property files to the database. This action cannot be reversed.
Click Move settings to database. All system settings are saved to the database. This is for a clustered environment. All servers in the clustered environment will now have one source for system settings.
For more information, see the Move Application Properties to the Database section in the Oracle Fusion Middleware Installation Guide for Oracle Enterprise Repository.
This section describes all the system setting available in Oracle Enterprise Repository.
This section contains the following topics:

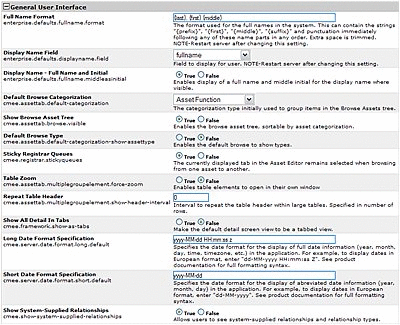

This section contains the following topics:
Properties
Default Browse Categorization
cmee.assettab.default-categorization
The list selection determines the initial asset categorization in the Browse Tree on the Assets screen.
Results in..

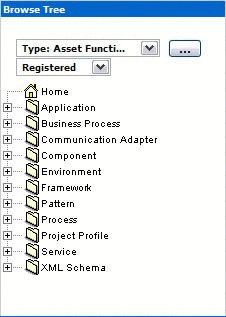

Default Browse Type
cmee.assettab.default-categorization-show-assettype
The True and False options toggle the default display of assets by Type in the Browse Tree on the Assets screen (subject to the system setting in Default Browse Categorization).
True Results in..
Sticky Registrar Queues
cmee.registrar.stickyqueues
The True and False options toggle the default display of the selected Asset Editor tab when browsing assets.
True: Each asset opens to the Asset Editor tab in view from the previously selected asset.
False: Defaults to the Overview tab for each asset viewed in the Asset Editor.
Table Zoom
cmee.assettab.multiplegroupelement.force-zoom
The True and False options toggle the ability to open table elements in their own window.
Repeat Table Header
cmee.assettab.multiplegroupelement.show-header-interval
The number entered in the text box determines the interval (number of rows) at which the table header repeats in large tables.

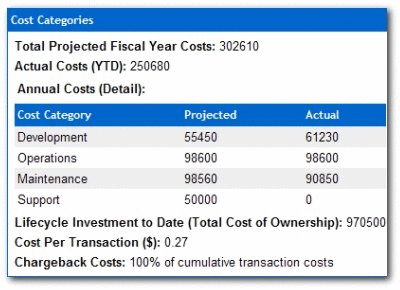

Value of 0 results in...

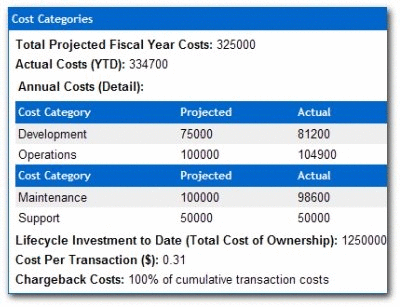

Value of 2 results in...
Show All Detail In Tabs
cmee.framework.show-as-tabs
The True and False options toggle the default display of the asset detail.

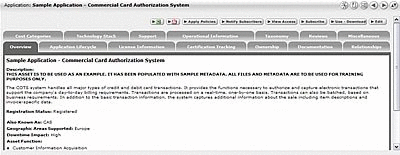

True results in the tabbed view...

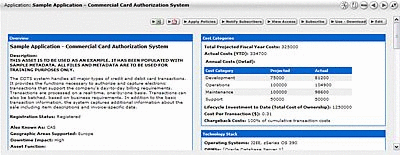

False results in the standard view...
Long Date Format Specification
cmee.server.date.format.long.default
Specifies the date format for the display of full date information (yyyy-MM-dd HH:mm:ss z).

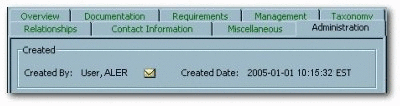

Results in..
Short Date Format Specification
cmee.server.date.format.short.default
Specifies the date format for the display of abreviated date information (yyyy-MM-dd).
Similar to Long Date Format Specification.
Full Name Format
enterprise.defaults.fullname.format
Specifies the format for the display of user names. Can contain the strings "{prefix}", "{first}", "{middle}", "{suffix}" and punctuation immediately following any of these name parts in any order. Extra space is trimmed.
Note: Changes to this setting require server restart.
Results in..
Show System-Supplied Relationships
cmee.show-system-supplied-relationships
The True and False options toggle the display of system-supplied relationships in the Asset Editor tab and and in the asset detail. The False setting will hide system-supplied relationships in the Asset Editor's Relationships tab and in the asset detail; however, they will remain visible in the Asset Editor's Configure Relationships dialog.
System-supplied relationships are used for system-specific relationships within Oracle Enterprise Repository, such as allowing for more complex matches when doing asset updates. Therefore, users cannot create or delete system-supplied relationships, nor can they modify a system-supplied relationship's direction, which is always read-only.
Display Name Field
enterprise.defaults.displayname.field
The list selection determines the information displayed for the user.
Note: Changes to this setting require server restart.
Results in..
Display Name - Full Name and Initial
enterprise.defaults.fullname.middleasinitial
When a user's middle name is supplied, the True and False options toggle the display of the middle name in full or as an initial.
True results in...
False results in..
Properties

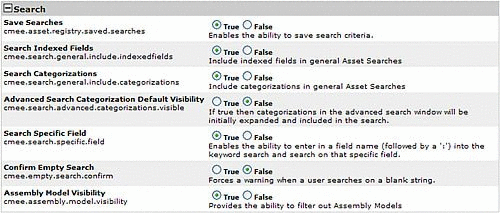

Save Searches
cmee.asset.registry.saved.searches
The True and False options toggle the Save Searches feature. This feature allows search criteria to be saved and reused.
True displays the Saved Searches section in the sidebar on the Assets screen, as illustrated below.
Search Indexed Fields
cmee.search.general.include.indexedfields
The True and False options toggle the inclusion of indexed fields in general asset searches.
Search Categorizations
cmee.search.general.include.categorizations
The True and False options toggle the inclusion of categorizations in general asset searches.
More Search Options Categorization Default Visibility
cmee.search.advanced.categorizations.visible
The True and False options toggle the default display of the Categorizations tree in the expanded form and included in the More Search Options dialog.
False results in..

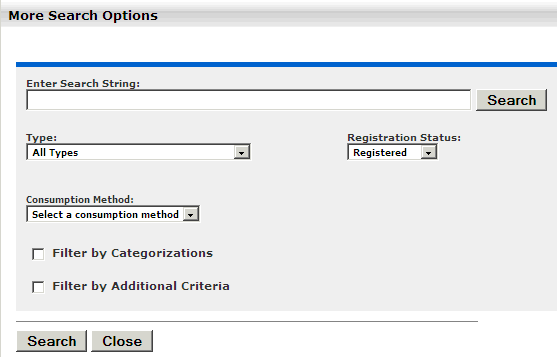

Figure 16-20 More Search Options - Categorizations Tree Not Expanded
True results in..

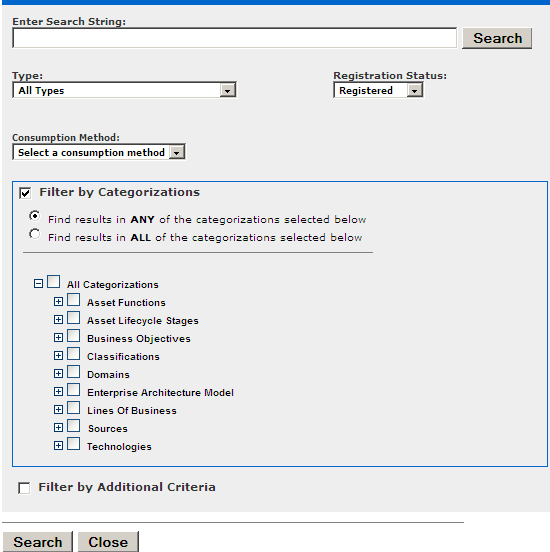

Figure 16-21 More Search Options - Categorizations Tree Expanded
Search Specific Field
cmee.search.specific.field
The True and False options toggle the ability to search specific fields during Standard Searches by identifying the field to be searched in the Keyword text box.
As illustrated below, the string description:MyAsset will search for the keyword the MyAsset in the Description field of every asset in the Repository.
Confirm Empty Search
cmee.empty.search.confirm
The True and False options toggle the display of a warning message when a user performs a search on a blank string.
True displays a warning message.
Minimum Number of Characters for User Search
cmee.users.min.text.search
The numerical value entered in the text box determines the minimum number of characters required to perform a search to locate user information.
Attempts to perform a user search with fewer than the minimum number of characters results in a warning message.

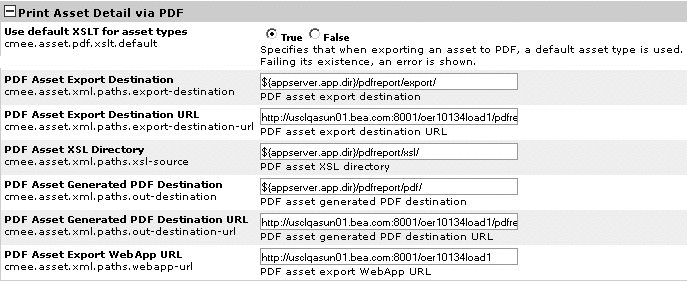

Properties
Use default XSLT for asset types
cmee.asset.pdf.xslt.default
The True and False options specifies that when exporting an asset to PDF, a default asset type is used. Failing its existence, an error is shown.
PDF Asset Export Destination
cmee.asset.xml.paths.export-destination
Text entered in the text box identifies the PDF asset export destination.
PDF Asset Export Destination URL
cmee.asset.xml.paths.export-destination-url
Text entered in the text box identifies the PDF asset export destination URL.
PDF Asset XSL Directory
cmee.asset.xml.paths.xsl-source
Text entered in the text box identifies the PDF asset XSL directory.
PDF Asset Generated PDF Destination
cmee.asset.xml.paths.out-destination
Text entered in the text box identifies the PDF asset generated PDF destination.
PDF Asset Generated PDF Destination URL
cmee.asset.xml.paths.out-destination-url
Text entered in the text box identifies the PDF asset generated PDF destination URL.
PDF Asset Export WebApp URL
cmee.asset.xml.paths.webapp-url
Text entered in the text box identifies the PDF asset export WebApp URL.
Properties

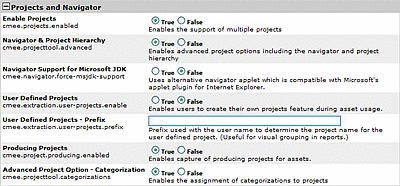

Enable Projects
cmee.projects.enabled
The True and False options toggle the support of multiple projects.
Navigator and Project Hierarchy
cmee.projecttool.advanced
The True and False options toggle advanced project options including the Navigator and project hierarchy.
Navigator Support for Microsoft JDK
cmee.navigator.force-msjdk-support
The True and False options toggle the use of an alternative Navigator applet that is compatible with Microsoft's applet plugin for Internet Explorer.
User Defined Projects
cmee.extraction.user-projects.enable
The True and False options toggle the feature that allows users to create a project on the fly during the asset Use/Download process.

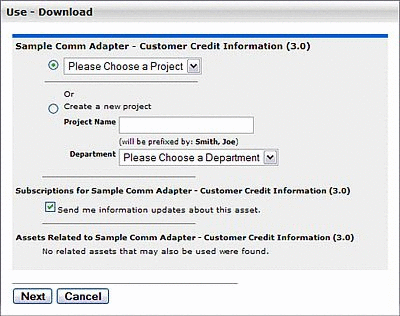

True results in...

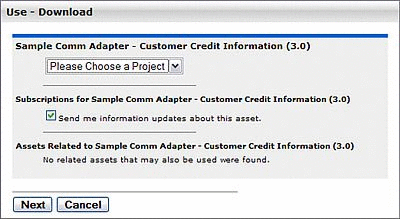

False results in...
User Defined Projects - Prefix
cmee.extraction.user-projects.prefix
As illustrated below, text entered in the property text box becomes the prefix for any user-defined projects. This is useful for visual grouping in reports. (User-defined Projects must be enabled.)
Results in..
Producing Projects
cmee.project.producing.enabled
The True and False options toggle the display of the Producing Projects section in the Asset Submission dialog (Standard Submission via the Submit and Asset link on the Oracle Enterprise Repository Assets screen.)

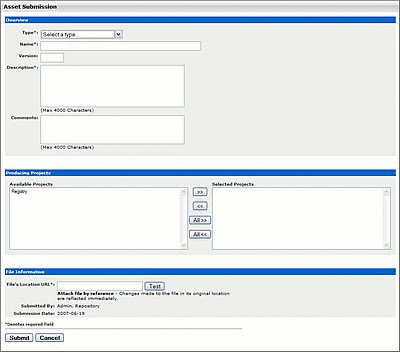

True results in...

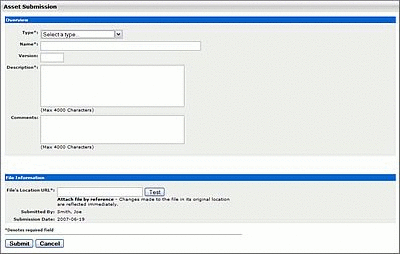

False results in...
Advanced Project Option - Categorization
cmee.projecttool.categorizations
The True and False options toggle the assignment of categorizations to projects.
Enable Project Reported Asset Value
cmee.projecttool.assetvalue.enabled
The True and False options toggle the metrics of the Reported Asset Value for projects.
Properties
View Assets in Progress
cmee.asset.in-progress.visible
Select True to enable the ability to see assets in progress outside the Asset Editor.
Properties
Enable Compliance Templates (See Figure 16-33)
cmee.compliance-template.enable
Enables the Compliance Template System.

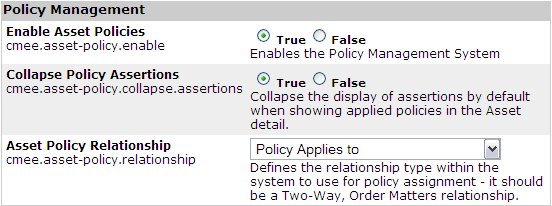

Enable Asset Policies
cmee.asset-policy.enable
Enables the Policy Management System.
Collapse Policy Assertions
cmee.asset-policy.collapse.assertions
Collapse the display of assertions by default when showing applied policies in the Asset detail.
Asset Policy Relationship
cmee.asset-policy.relationship
Defines the relationship type within the system to use for policy assignment - it should be a Two-way, Order Matters relationship.

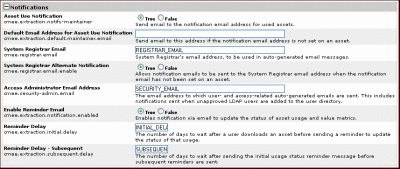

Properties
Asset Use Notification
cmee.extraction.notify-maintainer
The True and False options toggle the feature that automatically sends an email to the notification address listed for an asset when that asset is used.
When an email is sent, the following algorithm is used to determine the destination address:
If the asset has a notification address, use that as the email destination,
else, if the system setting cmee.extraction.default.maintainer.email has a value, use that value as the destination address,
else, if there is a "submitted-by" user that has an email address, use that email address,
else, if there is a "created-by" user that has an email address, use that email address,
else, do not send a usage notification email.
Default Email Address for Asset Use Notification
cmee.extraction.default.maintainer.email
This system setting is used to specify the default destination email address for notifications related to usage sent by the system.
System Registrar Email
cmee.registrar.email
Fill in the text box with the registrar's email address, to be used in auto-generated email messages.
System Registrar Alternate Notification
cmee.registrar.email.enable
Allows notification emails to be sent to the System Registrar email address when the notification email has not been set on an asset.
Access Administrator Email Address
cmee.security-admin.email
Fill in the text box with the email address of the individual(s) to whom user- and access-related auto-generated emails are to be sent. This includes notifications sent when unapproved LDAP users are added to the user directory.

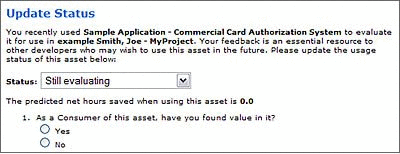

Enable Reminder Email
cmee.extraction.notification.enabled
Enables notification via email to update the status of asset usage and value metrics.
Reminder Delay
cmee.extraction.initial.delay
Fill in the text box with a numeric value indicating the number of days to wait after a user downloads an asset before sending a reminder to complete the Update Status form (see below).
Reminder Delay - Subsequent
cmee.extraction.subsequent.delay
Fill in the text box with a numeric value indicating the number of days to wait after the initial usage status reminder message before sending subsequent reminders.

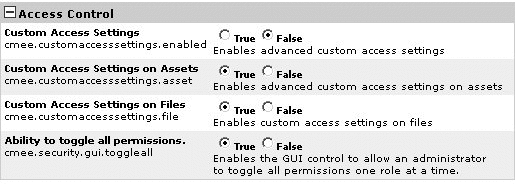

Properties
Custom Access Settings
cmee.customaccesssettings.enabled
Enables advanced custom access settings.
Custom Access Settings on Assets
cmee.customaccesssettings.asset
Enables advanced custom access settings on assets.
Custom Access Settings on Files
cmee.customaccesssettings.file
Enables custom access settings on files.
Ability to toggle all permissions
cmee.security.gui.toggleall
Enables the GUI control to allow an administrator to toggle all permissions one role at a time.
Properties
Enable Automated Usage Detection
cmee.usagedetection.enable
Enables the Automated Usage Detection plug-in to manage SFIDs, and allow automated detection of possible usage.
Enable Harvesting of Unrecognized SFIDs
cmee.sfid.harvesting.enable
Enables the collection of information related to detected SFIDs that are not yet registered in the system.
Figure 16-38 Software File Identification (SFID)
Properties
Asset Usage Custom Field List
cmee.extraction.exported-custom-field.
This unique setting allows the creation of Custom Asset Usage Fields.
Note:
This property appears with a period at the end. When you enter this property in the Search field, enter the property along with the period.Create Custom Usage Fields
Enter the property name in the Enable New System Setting box and press Enter.
As necesary, click Add to open additional text boxes.
Enter a name for each additional Custom Usage Field in the corresponding text box.

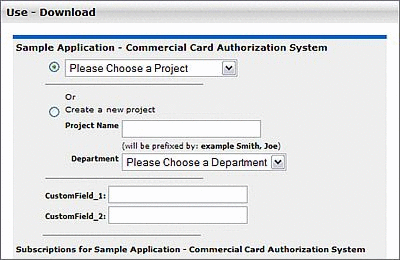

Click Save when finished. The new Custom Usage Fields appear in the Use - Download dialog.

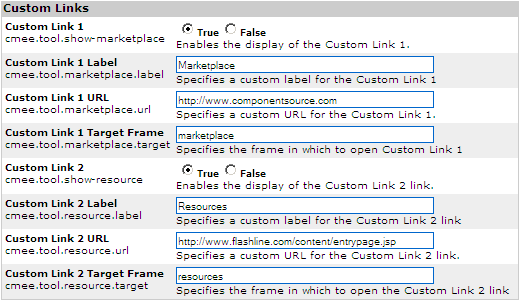

This group of settings controls the configuration and display of custom links on the right side of the Oracle Enterprise Repository menu bar.
Properties
Custom Link 1
cmee.tool.show-marketplace
The True and False options toggle the display of Custom Link 1.
Figure 16-43 Custom Link 1 and Custom Link 2
(Illustrates both Custom 1 Link and Custom 2 Link set to True.)
Custom Link 1 Label
cmee.tool.marketplace.label
Text entered in the text box will appear as the label for Custom Link 1 on the Oracle Enterprise Repository menu bar.
Custom Link 1 URL
cmee.tool.marketplace.url
Enter the URL for Custom Link 1.
Custom Link 1 Target Frame
cmee.tool.marketplace.target
Specifies the frame in which to open Custom Link 1
Custom Link 2
cmee.tool.show-marketplace
The True and False options toggle the display of Custom Link 2.
Custom Link 2 Label
cmee.tool.marketplace.label
Text entered in the text box will appear as the label for Custom Link 2 on the Oracle Enterprise Repository menu bar.
Custom Link 2 URL
cmee.tool.marketplace.url
Enter the URL for Custom Link 2.
Custom Link 2 Target Frame
cmee.tool.marketplace.target
Specifies the frame in which to open Custom Link 2.
Custom Help URL
cmee.tool.help.url
Specifies a custom URL for the Help link.
Note: Oracle Enterprise Repository help files are hosted remotely by default. If necessary, Help files can be hosted in your local environment. Change this setting to reflect the location of the Help files.
Properties

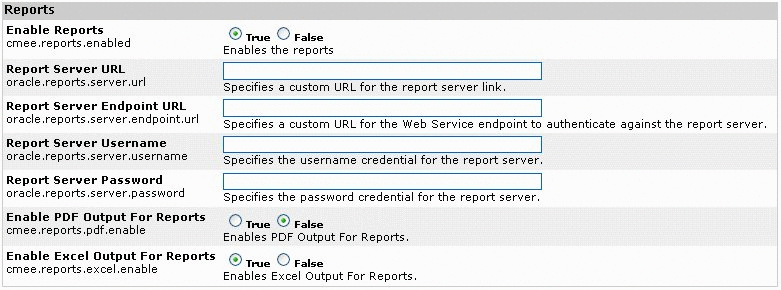

Report Server URL
oracle.reports.server.url
Specifies a custom URL for the report server link.
Report Server Endpoint URL
oracle.reports.server.endpoint.url
Specifies a custom URL for the Web Service endpoint to authenticate against the report server.
Report Server Username
oracle.reports.server.username
Specifies the username credential for the report server.
Report Server Password
oracle.reports.server.password
Specifies the password credential for the report server.
Enable PDF Output for Reports
oracle.reports.pdf.enable
Enables PDF Output for Reports.
Enable Excel Output for Reports
oracle.reports.excel.enable
Enables Excel Output for Reports.

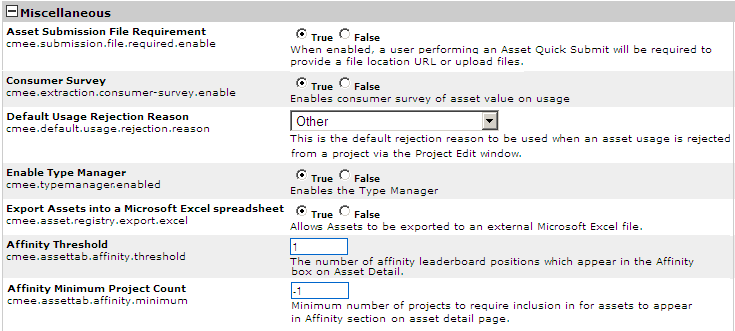

Properties
Asset Submission File Requirement
cmee.submission.file.required.enable
When enabled, a user performing a Standard Asset Submission is required to provide a file location URL or upload files.
Consumer Survey
cmee.extraction.consumer-survey.enable
The True and False options toggle the display of the complete asset usage Update Survey, available for any asset listed in the Asset Usage section of the My Stuff page.
True displays the full survey...
False displays only the Status list.
Default Usage Rejection Reason
cmee.default.usage.rejection.reason
Use the list to select the default asset rejection reason that is recorded when an asset is rejected when updating the status of the asset usage in the My Stuff section.
Figure 16-48 Default Usage Rejection Reason
Enable Type Manager
cmee.typemanager.enabled
The True and False options toggle the ability to display Type Manager.
True displays the Type Manager when you select the Manage Types option in the Asset Editor. False does not display the Type Manager.
Export Assets into a Microsoft Excel spreadsheet
cmee.asset.registry.export.excel
The True and False options toggle the ability to export asset detail information to an external Microsoft Excel spreadsheet.
True displays the Export to Excel menu selection in the asset search results frame and the Excel button in the asset detail.
False removes the menu selection and button.
Within the context of Oracle Enterprise Repository, Affinity is the condition that occurs when two or more assets are deployed in the same project. The Affinity element will appear in the asset detail for each asset that meets this condition, and will list other assets that have (deployed) projects in common.
The following Affinity System Settings determine the specific behaviour of the Affinity element and its contents.
Affinity Threshold
cmee.assettab.affinity.threshold
If the number of affinity matches exceeds the numerical value entered for this setting, a View All Affinity Assets" link appears in the Affinity element in the asset detail.
Affinity Minimum Project Count
cmee.assettab.affinity.minimum
The numerical value entered in this field determines the minimum number of projects to require inclusion in for assets to appear in Affinity section on Asset Detail page.
If the number of projects that have consumed the asset is less than the supplied numerical value, the Affinity element will indicate that the display criteria have not been met.
This section contains the following topics:
Admin Role
enterprise.security.roletype.admin
The text entered in this box designates the name applied to the role that has unlimited administrative rights and permissions within Oracle Enterprise Repository.
Company Name
cmee.enterprisetab.homepageselection.enabled
The True and False options toggle the ability to assign a specific homepage based on user role or department assignment.
True assigns a specific homepage based on user role or department. False displays the default home page.
Enable Homepage Selection
cmee.server.companyname
Enter the name of your company in the text box.

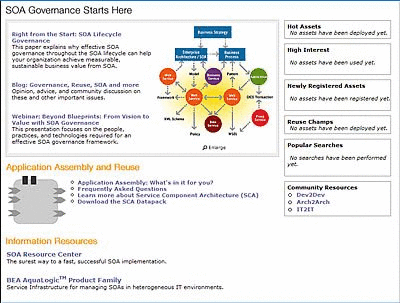

Homepage
cmee.enterprisetab.homepage
The default URL points to the default Oracle Enterprise Repository homepage, as it appears in the main (right) frame.
Change this URL as necessary to load a different page as the Oracle Enterprise Repository homepage.
Default Character Encoding
cmee.server.defaultencoding
The default character encoding to use in the system (defaults to the JVM default).
Examples are UTF-8 and ISO-8859-1. UTF-16 is not supported.
Enable Custom Unique Element
cmee.unique-element.enable
The True and False options toggle the ability to enable an additional plug-in for Types, which defines a unique constraint additional to the Name/Version pair that is used by default.
Unique Element Per Type
cmee.unique-element.per-assettype
The True and False options toggle the ability to make the Unique Element plugin pertain to each Type individually.
Asset Editor Disable Auto-refresh Tree
cmee.asseteditor.disable-autorefresh-tree
The True and False options toggle the ability to disable the auto-refresh of tree whenever user clicks Accept, Submit, or Register.

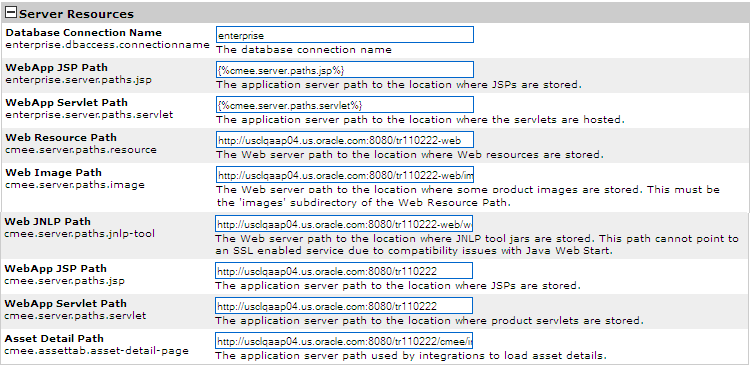

Properties
Database Connection Name
enterprise.dbaccess.connectionname
The name assigned to the database connection.
WebApp JSP Path
enterprise.server.paths.jsp
The filepath to the location on the application server where JSPs are stored.
WebApp Servlet Path
enterprise.server.paths.servlet
The filepath to the location on the application server where product servlets are stored.
Web Resource Path
cmee.server.paths.resource
The Web server path to the location where Web resources are stored.
Web Image Path
cmee.server.paths.image
The filepath to the location on the Web server where product images are stored. This setting must include the *images subdirectory of the Web Resource Path.
Web JNLP Path
cmee.server.paths.jnlp-tool
The filepath to the location on the Web server where JNLP tool jars are stored. Due to Java Web Start compatibility issues, this path must not point to an SSL-enabled service.
WebApp JSP Path
cmee.server.paths.jsp
The filepath to the location on the application server where JSPs are stored.
WebApp Servlet Path
cmee.server.paths.servlet
The filepath to the location on the application server where product servlets are stored.
Asset Detail Path
cmee.assettab.asset-detail-page
The application server path used by integrations to load asset details.

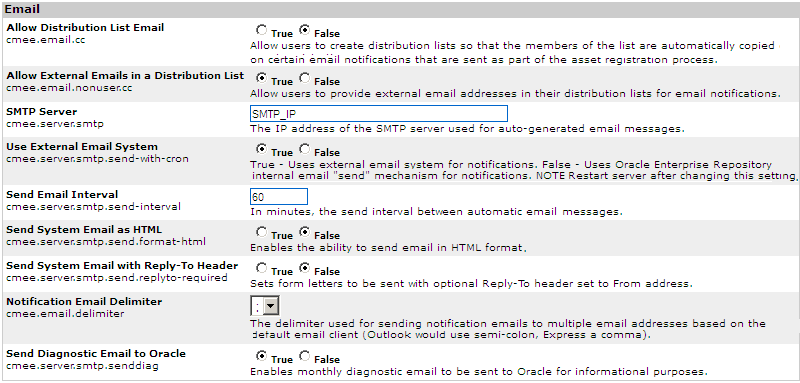

Properties
Allow Distribution List Email
cmee.email.cc
The True and False options toggle the availability of the email distribution list feature. This allows users to create distribution lists so that the list members are automatically copied on certain email notifications that are sent as part of the asset registration process.
Allow External Emails in a Distribution List
cmee.email.nonuser.cc
The True and False options determine the ability for a user to specify external email addresses in distribution lists. True allows external email addresses in distribution lists. False restricts distribution lists to only internal Oracle Enterprise Repository users.
SMTP Server
cmee.server.smtp
The hostname or IP address of the SMTP server used for auto-generated email messages.
Use External Email System
cmee.server.smtp.send-with-cron
True and False options determine the selection of the email mechanisms for automated Oracle Enterprise Repository messages. True enables the external mechanism. False enables Oracle Enterprise Repository's internal email send mechanism.
Note: Changes to this setting require server restart.
Send Email Interval
cmee.server.smtp.send-interval
This setting determines the number of minutes between automatic Oracle Enterprise Repository email messages.
Send System Email as HTML
cmee.server.smtp.send.format-html
The True and False options toggle the selection of HTML or plain-text formating of automatic Oracle Enterprise Repository messages.
True enables HTML formating.
False enables plain text formating.
Send System Email with Reply-To Header
cmee.server.smtp.send.replyto-required
The True and False options toggle the option to include a Reply-to header in automated Oracle Enterprise Repository messages. The Reply-to header includes the From address.
True enables the Reply-to header.
Notification Email Delimiter
cmee.email.delimiter
Use the list to select the appropriate delimiter (comma or semi-colon) for multiple email addresses as determined by the default email client. (For example, Microsoft Outlook uses the semi-colon, while Outlook Express uses the comma).
Send Diagnostic Email to Oracle
cmee.server.smtp.senddiag
The True and False options toggle an automatic monthly diagnostic email to Oracle, for internal informational purposes only.
Properties
Submission Upload Directory
cmee.server.paths.upload
Defines a locally referenced operating system path to upload files onto the application server directly via an HTTP file upload process. This property enables the following features:
Enables the Add Attachment Now option in the Asset Submission form. (Required if files are to be attached to assets during the submission process.)
Enables Uploaded Submission Files option in the Asset Editor.
Registrar Submission Upload Path
cmee.server.paths.upload-registrar
Enables file browsing through the Asset Editor (Optional).
The path, when hosted by UNC, requires Windows OS or Samba/Sharity.
Enables the appearance of the Browse button in Uploaded Submission Files in the Asset Editor.
Submission Upload Artifact Store
cmee.server.paths.upload-repository
Sets a configured artifact store to allow direct public access to the submitted files. This property is used for one-step acceptance of submitted files in the Asset Editor. When this property is set:
Asset files that are available for use/download are visible.
The Accept button is visible in the uploaded submission files section of the Asset Editor.
Properties
Asset Save Export Filename
cmee.asset.logging.filenamep
Text entered in the text box identifies the filename used to save asset data at every save (for archival and audit purposes).
Asset Save Export Fail on Error
cmee.asset.logging.failonerror
Select the True option to enable the ability to abort the save of the audit if unable to write to the asset export filename for any reason.
Properties
Preload Asset Cache at Start-up
cmee.assets.preload.at-startup
Select the True option to preload the asset cache on application server start-up.
True preloads the asset cache.
Preload Asset Cache as Seperate Thread
cmee.assets.preload.as-seperate-thread
Select the True option to spawn the preloaded asset cache as a separate thread on application server startup.
This section contains the following topics:
Default Email Suffix
enterprise.defaults.email.suffix
The information supplied in this text box is automatically suffixed to usernames to form the default user email address.

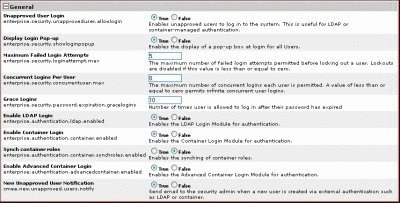

Unapproved User Login
enterprise.security.unapproveduser.allowlogin
The True and False options toggle the ability for unapproved users to log in to the system. This is useful when using LDAP or container-managed authentication.

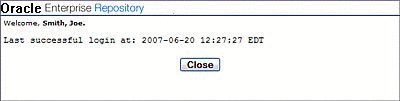

Display Login dialog
enterprise.security.showloginpopup
The True and False options toggle the default display of the Oracle Enterprise Repository login dialog. The dialog identifies the users and displays login information.

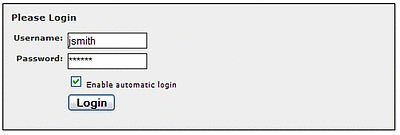

Figure 16-60 Oracle Enterprise Repository Login Page

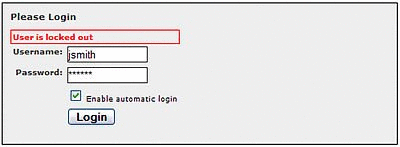

Maximum Failed Login Attempts
enterprise.security.loginattempt.max
The numerical entry in the text box determines the number of failed login attempts before user lock-out. A value of zero or less disables lock-out.
Figure 16-61 Oracle Enterprise Repository Login Page
Concurrent Logins Per User
enterprise.security.concurrentuser.max
The numerical value entered in the text box determines the maximum number of concurrent logins each user is permitted. A value of less than or equal to zero permits infinite concurrent user logins.
Grace Logins
enterprise.security.password.expiration.gracelogins
The numerical value entered in the text box determines the number of times a user is allowed to log in after his/her password has expired.
Enable LDAP Login
enterprise.authentication.ldap.enabled
Enables the LDAP Login Module for authentication.

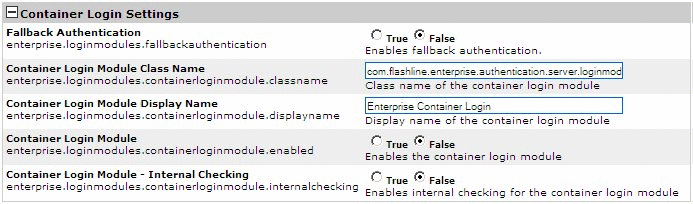

Enable Container Login
enterprise.authentication.container.enabled
Enables the Container Login Module for authentication.
Enable Advanced Container Login
enterprise.authentication.advancedcontainer.enabled
Select the True option to enable the Advanced Container Login Module for authentication.
Synchronize Container Roles
enterprise.authentication.container.synchroles.enabled
Enables the synchronization of existing Java EE container roles.
Default Email Suffix
enterprise.defaults.email.suffix
Suffix added to a username to determine their default email address.
New Unapproved User Notification
cmee.new.unapproved.users.notify
The True and False options toggle the feature that automatically sends an email to the security administrator when a new user is created via external authentication, such as LDAP or a Java EE container.

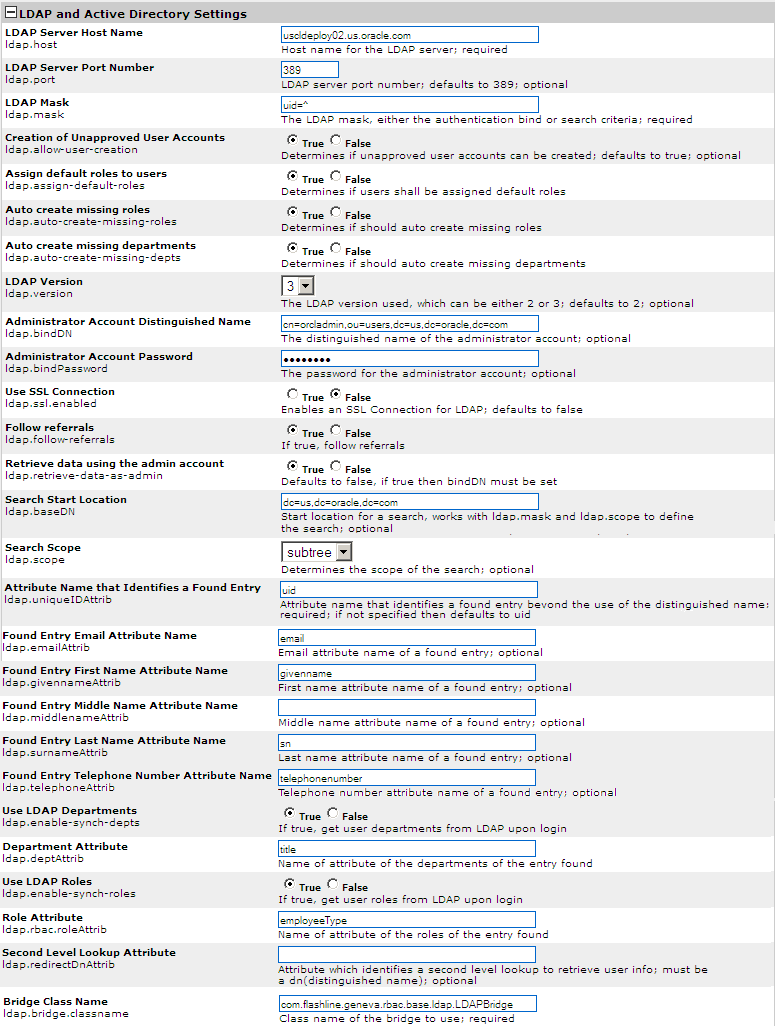

LDAP Settings and its description are as follows:
LDAP Settings | Description |
---|---|
ldap.ssl.enabled | Enables an SSL Connection for LDAP; defaults to false |
ldap.host | Host name for the LDAP server; required |
ldap.port | LDAP server port number; defaults to 389; optional |
ldap.mask | The LDAP mask, either the authentication bind or search criteria; required |
ldap.allow-user-creation | Determines if unapproved user accounts can be created; defaults to true; optional |
ldap.version | The LDAP version used, which can be either 2 or 3; defaults to 2; optional |
ldap.bindDN | The distinguished name of the administrator account; optional |
ldap.bindPassword | The password for the administrator account; optional |
ldap.baseDN | Start location for a search, works with ldap.mask and ldap.scope to define the search; optional |
ldap.scope | Determines the scope of the search; optional |
ldap.uniqueIDAttrib | Attribute Name that Identifies a Found Entry |
ldap.emailAttrib | Found Entry Email Attribute Name |
ldap.givennameAttrib | Found Entry First Name Attribute Name |
ldap.surnameAttrib | Found Entry Last Name Attribute Name |
ldap.telephoneAttrib | Found Entry Telephone Number Attribute Name |
ldap.middlenameAttrib | Found Entry Middle Name Attribute Name |
ldap.enable-sync-depts | If true, get user departments from LDAP upon login |
ldap.enable-synch-roles | If true, get user roles from LDAP upon login |
ldap.deptAttrib | Name of attribute of the departments of the entry found |
ldap.rbac.roleAttrib | Name of attribute of the roles of the entry found |
ldap.redirectDnAttrib | Attribute which identifies a second level lookup to retrieve user info; must be a dn(distinguished name); optional |
ldap.retrieve-data-as-admin | Retrieve data using the admin account |
ldap.assign-default-roles | If true, users shall be assigned default roles |
ldap.follow-referrals | If true, follow referral |
ldap.auto-create-missing-roles | If true, auto create missing roles |
ldap.auto-create-missing-depts | If true, auto create missing departments |
Authentication Token Expiration
enterprise.defaults.authtokens.expiration.value
The numerical value entered in the text box determines the period of time (in units determined by the Authentication Token Expiration Units menu selection) until an authentication token expires and is eligible to be purged.
Authentication Token Expiration Units
enterprise.defaults.authtokens.expiration.period
Use the list, as shown in Figure 16-63, to select the units of time to be used in conjunction with the Authentication Token Expiration setting.
Figure 16-63 Authentication Token Expiration Units List
Authentication Token Purge Expired Frequency
enterprise.defaults.authtokens.purgefrequency.value
The numerical value entered in the text box determines the period of time (in units determined by the Authentication Token Purge Expired Frequency Units menu selection) between purges of expired authentication tokens.
Authentication Token Purge Expired Frequency Units
enterprise.defaults.authtokens.purgefrequency.period
Use the list to select the units of time to be used in conjunction with the Authentication Token Purge Expired Frequency setting.

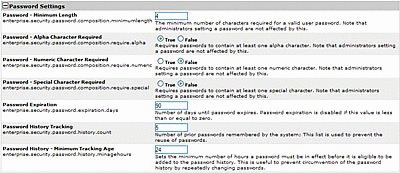

Password - Minimum Length
enterprise.security.password.composition.minimumlength
The numerical value entered in the text box determines the minimum number of characters required for a valid password.
Note: This setting does not apply to passwords created by individuals in the Admin role.
Password - Alpha Character Required
enterprise.security.password.composition.require.alpha
Select the True option to set the requirement that passwords contain at least one alphabetic character.
Note: This setting does not apply to passwords created by individuals in the Admin role.
Password - Numeric Character Required
enterprise.security.password.composition.require.numeric
Select the True option to set the requirement that passwords contain at least one numeric character.
Note: This setting does not apply to passwords created by individuals in the Admin role.
Password - Special Character Required
enterprise.security.password.composition.require.special
Select the True option to set the requirement that passwords contain at least one special character. The list of special characters used for the password are as follows:
` ~ ! @ # $ % ^ & * ( ) - _ = + [ { ] } \ \ | ; : ' \ " , < . > / ?
Note: This setting does not apply to passwords created by individuals in the Admin role.
Password Expiration
enterprise.security.password.expiration.days
The numerical value entered in the text box determines the number of days until password expiration.
A value of zero or less disables password expiration.
Password History Tracking
enterprise.security.password.history.count
The numerical value entered in the text box determines the number of prior passwords remembered by the system. The password history is used to prevent the reuse of passwords.
Password History - Minimum Tracking Age
enterprise.security.password.history.minagehours
The numerical value entered in the text box determines the minimum number of hours a password must be in effect before it is added to the password history. This feature is useful for preventing circumvention of the password history by repeatedly changing passwords.

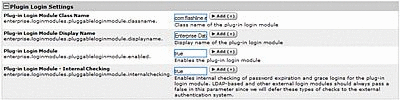

Plug-in Login Module Class Name
enterprise.loginmodules.pluggableloginmodule.classname
Text entered in the text box identifies the class name for the plug-in login module.
Click +Add as necessary to add class names for additional plug-in login modules.
Plug-in Login Module Display Name
enterprise.loginmodules.pluggableloginmodule.displayname
Text entered in the text box appears as the display name of the plug-in login module.
Click +Add as necessary to add display names for additional plug-in modules.
Plug-in Login Module
enterprise.loginmodules.pluggableloginmodule.enabled
Enter true in the text box to enable the plug-in login module.
Click +Add as necessary to add and enable/disable additional plug-in modules..
Plug-in Login Module - Internal Checking
enterprise.loginmodules.pluggableloginmodule.internalchecking
Enter true
in the text box to enable internal checking of password expiration and grace logins for the configured plug-in login module.
Enter false
in the text box when using LDAP-based, SSO-based, Container Managed or other external login modules to defer these types of checks to the external authentication system.
Click +Add as necessary to add and enable/disable internal checking for additional plug-in modules.
Figure 16-66 LDAP and Active Directory Settings
LDAP Server Host Name
ldap.host
Enter the host name for the LDAP server. This is a mandatory field.
LDAP Server Port Number
ldap.port
Enter the LDAP server port number. The default is 389. This is an optional field.
LDAP Mask
ldap.mask
Enter the LDAP mask, either the authentication bind or search criteria. This is a mandatory field.
Creation of Unapproved User Accounts
ldap.allow-user-creation
Select True to determine if unapproved user accounts can be created. The default value is true. This is an optional field.
Assign default roles to users
ldap.assign-default-roles
Select true to determine, if users shall be assigned default roles.
Auto create missing roles
ldap.auto-create-missing-roles
Select true to determine, if auto create missing roles is enabled.
Auto create missing departments
ldap.auto-create-missing-depts
Select true to determine if auto create missing departments is enabled.
LDAP Version
ldap.version
The LDAP version used, which can be either 2 or 3. The default value is 2. This is an optional field.
Administrator Account Distinguished Name
ldap.bindDN
The distinguished name of the administrator account. This is an optional field.
Administrator Account Password
ldap.bindPassword
The password for the administrator account. This is an optional field.
Use SSL Connection
ldap.ssl.enabled
Enables an SSL Connection for LDAP. The default is false.
Follow referrals
ldap.follow-referrals
If true, follow referrals.
Retrieve data using the admin account
ldap.retrieve-data-as-admin
If true, then bindDN must be set. The default is false.
Search Start Location
ldap.baseDN
Start location for a search, works with ldap.mask and ldap.scope to define the search. This is an optional field.
Search Scope
ldap.scope
Determines the scope of the search. This is an optional field.
Attribute Name that Identifies a Found Entry
ldap.uniqueIDAttrib
Attribute name that identifies a found entry beyond the use of the distinguished name, if not specified, then defaults to uid. This is a mandatory field.
Found Entry Email Attribute Name
ldap.emailAttrib
Email attribute name of a found entry. This is an optional field.
Found Entry First Name Attribute Name
ldap.givennameAttrib
First name attribute name of a found entry. This is an optional field.
Found Entry Middle Name Attribute Name
ldap.middlenameAttrib
Middle name attribute name of a found entry. This is an optional field.
Found Entry Last Name Attribute Name
ldap.surnameAttrib
Last name attribute name of a found entry. This is an optional field.
Found Entry Telephone Number Attribute Name
ldap.telephoneAttrib
Telephone number attribute name of a found entry. This is an optional field.
Use LDAP Departments
ldap.enable-synch-depts
If true, get user departments from LDAP upon login.
Department Attribute
ldap.deptAttrib
Name of attribute of the departments of the entry found.
Use LDAP Roles
ldap.enable-synch-roles
If true, get user roles from LDAP upon login.
Role Attribute
ldap.rbac.roleAttrib
Name of attribute of the roles of the entry found.
Second Level Lookup Attribute
ldap.redirectDnAttrib
Attribute which identifies a second level lookup to retrieve user info; must be a dn(distinguished name). This is an optional field.
Bridge Class Name
ldap.bridge.classname
This is a required field. The text for this property represents the class name of the bridge to be used.

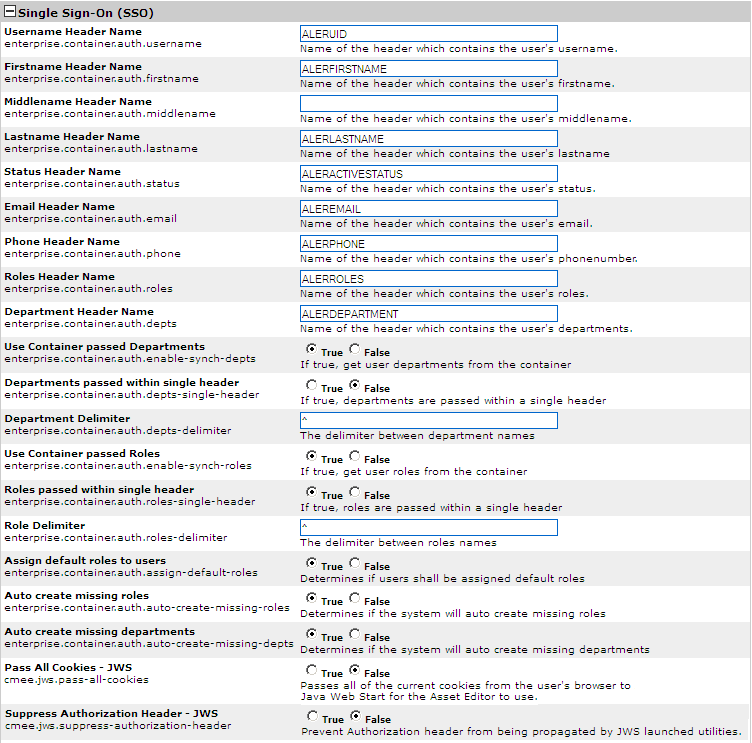

Figure 16-67 Single Sign-On (SSO) Settings
Username Header Name
enterprise.container.auth.username
The value entered in the text field represents the name of the header which contains the user's username.
Firstname Header Name
enterprise.container.auth.firstname
The value entered in the text field represents the name of the header which contains the user's firstname.
Middlename Header Name
enterprise.container.auth.middlename
The value entered in the text field represents the name of the header which contains the user's middlename.
Lastname Header Name
enterprise.container.auth.lastname
The value entered in the text field represents the name of the header which contains the user's lastname.
Status Header Name
enterprise.container.auth.status
The value entered in the text field represents the name of the header which contains the user's status.
Email Header Name
enterprise.container.auth.email
The value entered in the text field represents the name of the header which contains the user's email.
Phone Header Name
enterprise.container.auth.phone
The value entered in the text field represents the name of the header which contains the user's phonenumber.
Roles Header Name
enterprise.container.auth.roles
The value entered in the text field represents the name of the header which contains the user's roles.
Department Header Name
enterprise.container.auth.depts
The value entered in the text field represents the name of the header which contains the user's departments.
Use Container passed Departments
enterprise.container.auth.enable-synch-depts
Select the True option to get the user departments from the container.
Departments passed within single header
enterprise.container.auth.depts-single-header
Select the True option to pass the departments within a single header.
Department Delimiter
enterprise.container.auth.depts-delimiter
The value entered in the text field represents the delimiter between department names.
Use Container passed Roles
enterprise.container.auth.enable-synch-roles
Select the True option to get user the roles from the container.
Roles passed within single header
enterprise.container.auth.roles-single-header
Select the True option to pass the roles within a single header.
Role Delimiter
enterprise.container.auth.roles-delimiter
The value entered in the text field represents the delimiter between role names.
Assign default roles to users
enterprise.container.auth.assign-default-roles
Select the True option to determine if users shall be assigned with default roles.
Auto create missing roles
enterprise.container.auth.auto-create-missing-roles
Select the True option to determine if the system will auto create missing roles.
Auto create missing departments
enterprise.container.auth.auto-create-missing-depts
Select the True option to determine if the system will auto create the missing departments.
Pass All Cookies - JWS
cmee.jws.pass-all-cookies
Select the True option to pass all of the current cookies from the user's browser to Java Web Start for the Asset Editor to use.
Suppress Authorization Header - JWS
cmee.jws.suppress-authorization-header
Select the True option to prevent authorization header from being propagated by JWS launched utilities.
SSO Settings and its description are as follows:
SSO Settings | Description |
---|---|
enterprise.container.auth.username | Name of the header which contains the user's username |
enterprise.container.auth.firstname | Name of the header which contains the user's firstname |
enterprise.container.auth.middlename | Name of the header which contains the user's middlename |
enterprise.container.auth.lastname | Name of the header which contains the user's lastname |
enterprise.container.auth.status | Name of the header which contains the user's status. Values may be 0=ACTIVE, 10=UNAPPROVED, 20=LOCKED_OUT, 30=INACTIVE |
enterprise.container.auth.email | Name of the header which contains the user's email |
enterprise.container.auth.phone | Name of the header which contains the user's phonenumber |
enterprise.container.auth.roles | Name of the header which contains the user's roles |
enterprise.container.auth.depts | Name of the header which contains the user's departments |
enterprise.container.auth.enable-synch-depts | If true, get user departments from the container |
enterprise.container.auth.enable-synch-roles | If true, get user roles from the container |
enterprise.container.auth.assign-default-roles | If true, users shall be assigned default roles |
enterprise.container.auth.auto-create-missing-roles | If true, the system will auto create missing roles |
enterprise.container.auth.auto-create-missing-depts | If true, the system will auto create missing departments |
enterprise.container.auth.roles-single-header | If true, roles are passed within a single header |
enterprise.container.auth.roles-delimiter | The delimiter between roles names |
enterprise.container.auth.depts-single-header | If true, departments are passed within a single header |
enterprise.container.auth.depts-delimiter | The delimiter between department names |
Fallback Authentication
enterprise.loginmodules.fallbackauthentication
Enables fallback authentication.
Container Login Module Class Name
enterprise.loginmodules.containerloginmodule.classname
Text entered in the text box identifies the class name of the container login module.
Container Login Module Display Name
enterprise.loginmodules.containerloginmodule.displayname
Text entered in the text box appears as the display name of the container login module.
Container Login Module
enterprise.loginmodules.containerloginmodule.enabled
Select the True option to enable the container login module.
Container Login Module - Internal Checking
enterprise.loginmodules.containerloginmodule.internalchecking
Select the True option to enable internal checking for the container login module.
Allow Cookie Login
enterprise.security.cookielogin.allow
Select the True option to enable automatic login using a cookie. If disabled, manual login is required.
Default to Cookie Login
enterprise.security.cookielogin.default
Select the True option to set Enable automatic login as the default in the Oracle Enterprise Repository login dialog.
Figure 16-70 Oracle Enterprise Repository Login Page
Cookie Login Module Class Name
enterprise.loginmodules.cookieloginmodule.classname
Text entered in the text box identifies the class name of the coookie login module.
Cookie Login Module Display Name
enterprise.loginmodules.cookieloginmodule.displayname
Text entered in the text box appears as the display name of the cookie login module.
Cookie Login Module
enterprise.loginmodules.cookieloginmodule.enabled
Select the True option to enable the cookie login module.
Cookie Login Module - Internal Checking
enterprise.loginmodules.cookieloginmodule.internalchecking
Select the True option to enable internal checking for the cookie login module.

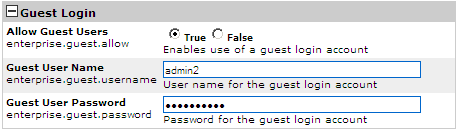

Allow Guest Users
enterprise.guest.allow
Select the True option to enable use of a guest login account.
Guest User Name
enterprise.guest.username
The value entered in the text field represents the user name for the guest login account.
Guest User Password
enterprise.guest.password
The value entered in the text field represents the password for the guest login account.

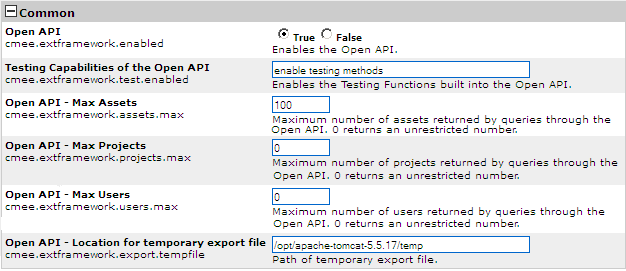

This section contains the following open API settings:
Properties
Open API
cmee.extframework.enabled
Enables the Open API.
Testing Capabilities of the Open API
cmee.extframework.test.enabled
Enables the testing Functions built into the Open API.
Open API - Max Assets
cmee.extframework.assets.max
Maximum number of assets returned by queries through the Open API..
Open API - Max Projects
cmee.extframework.projects.max
Maximum number of projects returned by queries through the Open API.
Open API - Max Users
cmee.extframework.users.max
Maximum number of users returned by queries through the Open API.
Open API - Location for temporary export file
cmee.extframework.export.tempfile
Path of temporary export file.
Note:
For more information about REX Open API, see the "Repository Extensibility Framework" chapter in Oracle Fusion Middleware Integration Guide for Oracle Enterprise Repository.This section contains the following topics:

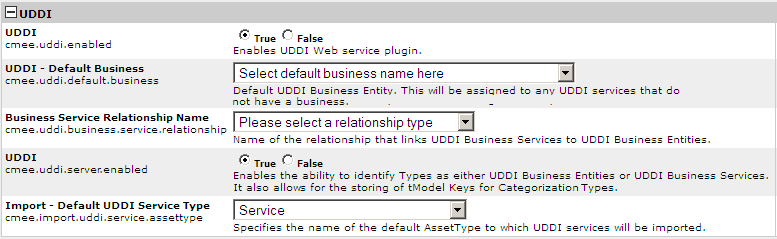

UDDI
cmee.uddi.enabled
Enables the UDDI Web Service Plugin.
UDDI - Default Business
cmee.uddi.default.business
Use the list to select the default business entity to be assigned to any UDDI services to which no business has been assigned.
Business Service Relationship Name
cmee.uddi.business.service.relationship
Use the list to select the relationship that will link UDDI Business Services to UDDI Business Entities.
UDDI
cmee.uddi.server.enabled
Select the True option to allow Oracle Enterprise Repository to act as a UDDI registry for selected applications.
Import - Default UDDI Service Type
cmee.import.uddi.service.assettype
Use the list to specify the default asset type to be assigned to imported UDDI services.
Advanced Access File Stores
registry.advanced.filestores.enabled
Select the True option to set advanced file store options.
Configuration Specification
cmee.config-spec.enabled
Select the True option to enable attachment of configuration specification files to assets.

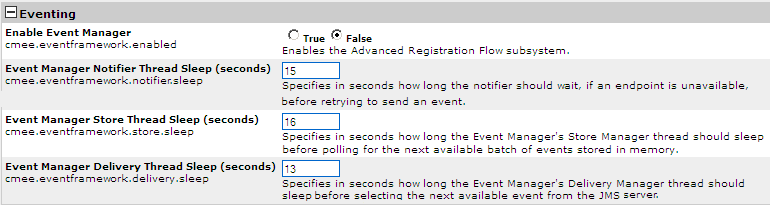

Enable Event Manager
cmee.eventframework.enabled
Select the True option to enable the Advanced Registration Flow subsystem.
Event Manager Notifier Thread Sleep (seconds)
cmee.eventframework.notifier.sleep
Specifies in seconds how long the notifier should wait, if an endpoint is unavailable, before retrying to send an event.
Event Manager Store Thread Sleep (seconds)
cmee.eventframework.store.sleep
Specifies in seconds how long the Event Manager's Store Manager thread should sleep before polling for the next available event stored in memory.
Event Manager Delivery Thread Sleep (seconds)
cmee.eventframework.delivery.sleep
Specifies in seconds how long the Event Manager's Delivery Manager thread should sleep before selecting the next available event from the JMS server.
This section contains the following topics:

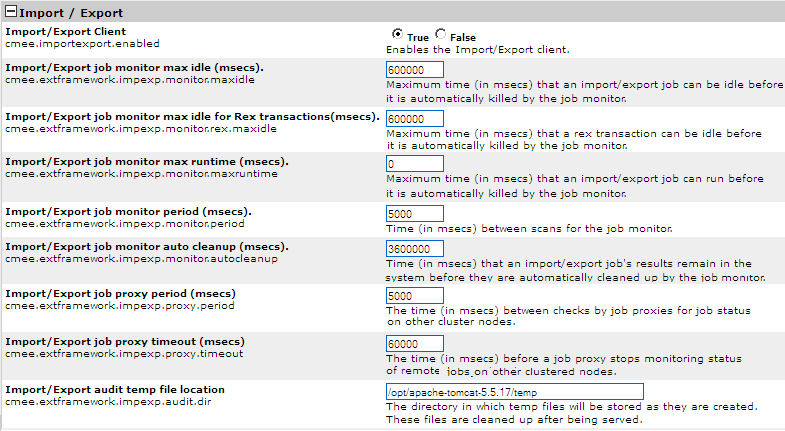

Import/Export Client
cmee.importexport.enabled
Select the True option to enable the Import / Export client.
Import/Export job monitor max idle (msecs)
cmee.extframework.impexp.monitor.maxidle
The value entered in the text field represents the maximum time (in msecs) that an import/export job can be idle before it is automatically killed by the job monitor.
Import/Export job monitor max idle for Rex transactions(msecs)
cmee.extframework.impexp.monitor.rex.maxidle
The value entered in the text field represents the maximum time (in msecs) that a rex transaction can be idle before it is automatically killed by the job monitor.
Import/Export job monitor max runtime (msecs)
cmee.extframework.impexp.monitor.maxruntime
The value entered in the text field represents the maximum time (in msecs) that an import/export job can run before it is automatically killed by the job monitor.
Import/Export job monitor period (msecs)
cmee.extframework.impexp.monitor.period
The value entered in the text field represents the time (in msecs) between scans for the job monitor.
Import/Export job monitor auto cleanup (msecs)
cmee.extframework.impexp.monitor.autocleanup
The value entered in the text field represents the time (in msecs) that an import/export job's results remain in the system before they are automatically cleaned up by the job monitor.
Import/Export job proxy period (msecs)
cmee.extframework.impexp.proxy.period
The value entered in the text field represents the time (in msecs) between checks by job proxies for job status on other cluster nodes.
Import/Export job proxy timeout (msecs)
cmee.extframework.impexp.proxy.timeout
The value entered in the text field represents the time (in msecs) before a job proxy stops monitoring status of remote jobs on other clustered nodes.
Import/Export audit temp file location
cmee.extframework.impexp.audit.dir
The value entered in the text field represents the directory in which temp files will be stored as they are created. These files are cleaned up after being served.
This section describes the issues found in Oracle Enterprise Repository system setting properties:
Duplicate System Setting Properties
In Oracle Enterprise Repository System Settings page, the following property names appear twice:
In Server Settings, the Server Resources settings section has the following duplicate properties:
WebApp JSP Path
enterprise.server.paths.jsp = {%cmee.server.paths.jsp%}
WebApp Servlet Path
enterprise.server.paths.servlet = {%cmee.server.paths.servlet%}
These two settings should remain static and reference their counterpart properties: cmee.server.paths.jsp
and cmee.server.paths.servlet
respectively.
