The Oracle Application Integration Architecture (AIA) Migration Utility seamlessly migrates AIA 2.4 and 2.5 BPEL and Enterprise Service Bus (ESB) services to AIA Foundation Pack 11g Release 1. The utility leverages the SOA upgrade utility to perform the bulk of the migration tasks and automates most of the pre- and post-migration tasks.
For more information about the SOA upgrade utility, see "Considerations When Upgrading All Oracle SOA Applications" in Oracle Fusion Middleware Upgrade Guide for Oracle SOA Suite, WebCenter, and ADF.
This chapter includes the following sections:
The following operations are performed by the AIA Migration Utility:
Detects the type of service, and depending on whether it is a BPEL process or an ESB process, invokes the appropriate version of the SOA upgrade utility to perform the migration.
Updates AIAComponents references in WSDLs and XSDs to point to Oracle Metadata Services (MDS) repository.
Updates the AIAAsyncErrorHandlingProcess reference in bpel.xml to point to the AIA Foundation Pack 11g Release 1 error handling service.
Updates domain-value map (DVM) and cross-reference (XREF) signatures in XSL files to point to AIAComponents in MDS. This step takes care of updating references to template and function calls in the XSL files used by the process.
Inserts annotations in composite.xml.
Annotations play a significant role in the AIA lifecycle and governance in AIA Foundation Pack 11g Release 1. The AIA Migration Utility injects annotations (empty placeholders) into the migrated composites.
Depending on whether a process is a Requester Application Business Connector Service (ABCS), Enterprise Business Service (EBS), Provider ABCS, or Adapter service, appropriate annotations are inserted into the composites. The utility uses the process.type variable in AIAMigrationUtility.properties for this purpose.
As a post-migration task, you must populate appropriate annotation values into the skeletal structure provided by the utility to be able to harvest AIA artifacts into Oracle Enterprise Repository.
For more information about annotation composites for harvesting, see "Annotating Composites" and "Harvesting Oracle AIA Content" in Oracle Fusion Middleware Developer's Guide for Oracle Application Integration Architecture Foundation Pack.
The AIA Migration Utility is delivered as a part of AIA Foundation Pack 11g Release 1.
To use the AIA Migration Utility:
The AIA Migration Utility is available in the AIA_HOME\utils folder. This is a standalone utility that can be used by unzipping it in any location, whether it is on a server or a developer's machine.

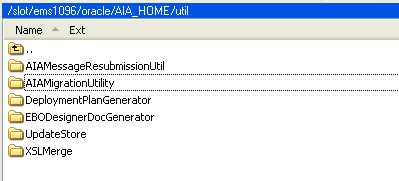

Figure 17-1 shows the content of the AIA_HOME\utils folder.
Update AIAMigrationUtility\AIAMigrationUtility.properties using the values provided in Table 17-1.
Ensure that your values use only forward slashes "/".
Table 17-1 AIAMigrationUtility.properties Values
Property | Description |
---|---|
jdev.home |
Value of JDeveloper home. Example for Windows: jdev.home= C:/oracle/Middleware/jdeveloper Example for Linux: jdev.home = /apps/oracle/Middleware/jdeveloper Example for ADE: jdev.home=/net/adc1006nap.us.oracle.com/vol/fade_ adc_txn/.fusionapps_ide/AIA/JDevs/JDEV_ 5536/jdeveloper |
service.home |
Location value of the source project. Example: service.home=D:/Work/11g/workspace/source/Samples AsyncCreateCustomerSiebelReqABCSImpl service.home=/slot/ems1739/oracle/workspace/source/ sampleapp/SamplesAsyncCreateCustomerSiebelReqABCSImpl |
target.dir |
Location value of the target folder. Example: target.dir=D:/Work/11g/workspace/destination service.home=/slot/ems1739/oracle/workspace/ destination |
service.name |
Project name value. If the project name and the service name (BPEL Process Name) are different, then you must provide the service name (BPEL Process Name) value. Example: service.name=SamplesAsyncCreateCustomerSiebelReq ABCSImpl |
http.hostname |
Server location where Foundation Pack 11g Release 1 is installed. Example: http.hostname=ap6014rems.us.oracle.com |
http.port |
Server port value. Example: http.port=8001 |
application.name |
Application name that the upgraded project should be a part of. Example: application.name=sampleapp |
process.type |
Indicates the type of AIA artifact that needs to be migrated. Basically, this property provides empty placeholder annotations within composite.xml. Input to this attribute can be one of the following values: Provider, Requestor, DBAdapter, JMSAdapter, OracleAppsAdapter, EBF, or EBS.Example: process.type=Provider |
Set the ANT and JDK paths by sourcing aiaenv.sh:
source <AIA_HOME>/aia_instances/<AIA_INSTANCE>/bin/aiaenv.sh
Invoke the AIAMigrationUtility as follows:
ant -f AIAMigrationUtility.xml
Open the migrated project in Oracle JDeveloper.
Point to the JPR file created in the project folder to which the service has been migrated. Open the project.
