G WebLogic Domain Configuration Screens

This appendix describes the screens of the Oracle Fusion Middleware Configuration Wizard that enables you to create or extend a WebLogic administration domain. This appendix contains the following topics:

G.1 Welcome

The Welcome screen is displayed each time you start the Oracle Fusion Middleware Configuration Wizard.

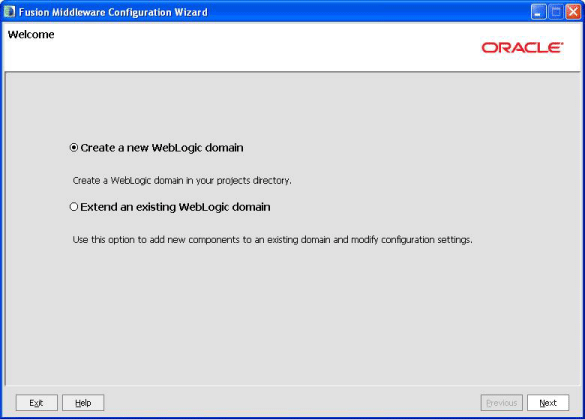

Figure G-1 Welcome Screen

Surrounding text describes Figure G-1 .

Select Create a new WebLogic domain to create a new WebLogic domain in your projects directory.

Select Extend an existing WebLogic domain if you want to add applications and services, or to override existing database access (JDBC) and messaging (JMS) settings.

Click Next to continue.

G.2 Select a WebLogic Domain Directory

This screen is displayed only if you choose to extend an existing WebLogic domain to support the new products.

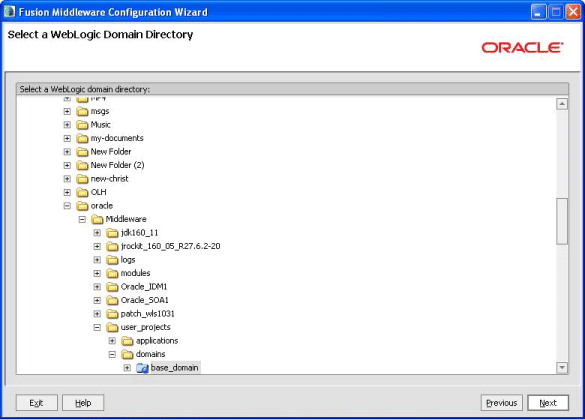

Figure G-2 Select a WebLogic Domain DIrectory Screen

Surrounding text describes Figure G-2 .

Select the WebLogic Domain directory to which you want to add your applications, or services, or both.

Click Next to continue.

G.3 Select Domain Source

The Select Domain Source screen enables you to select a domain source from which you want to create a new domain.

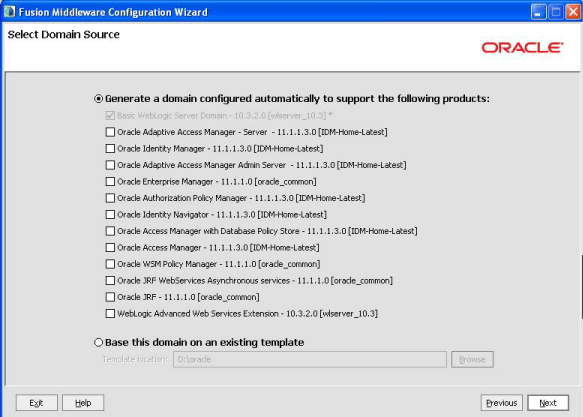

Figure G-3 Select Domain Source Screen

Surrounding text describes Figure G-3 .

Select Generate a domain configured automatically to support the following products: to create your domain to support selected products. Then, select the products for which you want support.

Select Base this domain on an existing template to create your domain based on an existing domain template. By default, domain templates for Oracle Identity Management 11g components are located in your ORACLE_HOME\common\templates\applications directory. Click Browse to navigate your directories to find an existing template.

Click Next to continue.

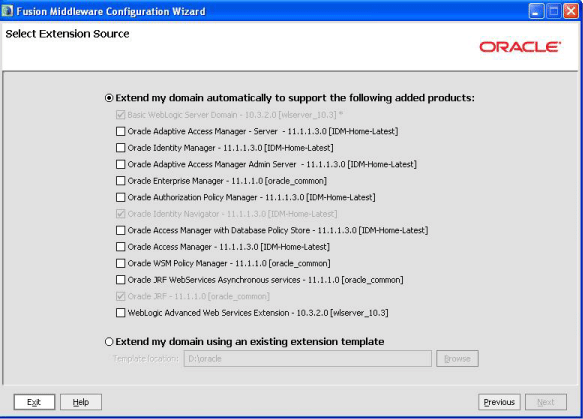

G.4 Select Extension Source

This screen is displayed only if you choose to extend an existing WebLogic domain to support the new products.

Figure G-4 Select Extension Source Screen

Surrounding text describes Figure G-4 .

Select Extend my domain automatically to support the following added products: to extend your domain to support selected products. Then, select the products for which you want support.

Select Extend my domain using an existing extension template to extend your domain based on an existing extension template. Click Browse to navigate your directories to find an existing template.

Click Next to continue.

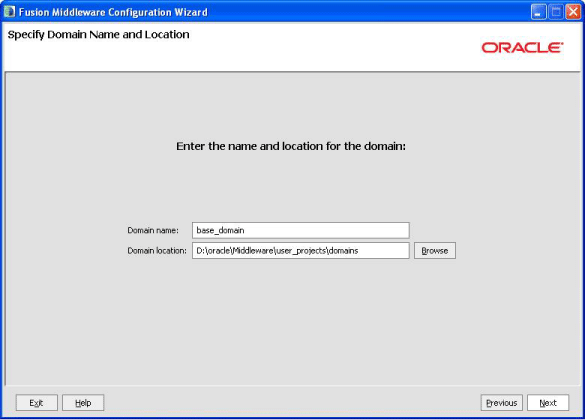

G.5 Specify Domain Name and Location

In this screen, you enter a name and location for the new WebLogic domain being created.

Figure G-5 Specify Domain Name and Location Screen

Surrounding text describes Figure G-5 .

Enter a name for the new WebLogic domain, and select the location where the new domain must be created.

Click Next to continue.

G.6 Configure Administrator User Name and Password

This screen is displayed only if you choose to create a new WebLogic domain.

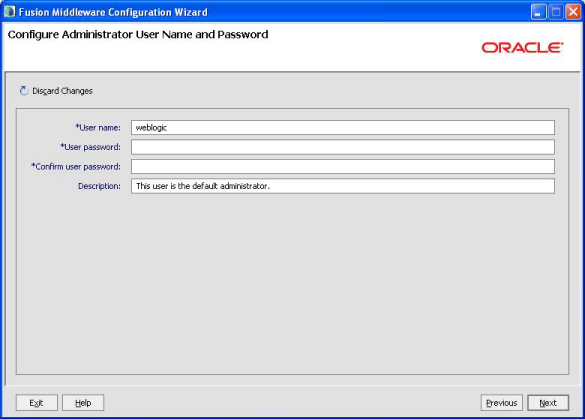

Figure G-6 Configure Administrator User Name and Password Screen

Surrounding text describes Figure G-6 .

Create a user that will be assigned to the Administrator role. This user is the default administrator used to start development mode servers.

Click Next to continue.

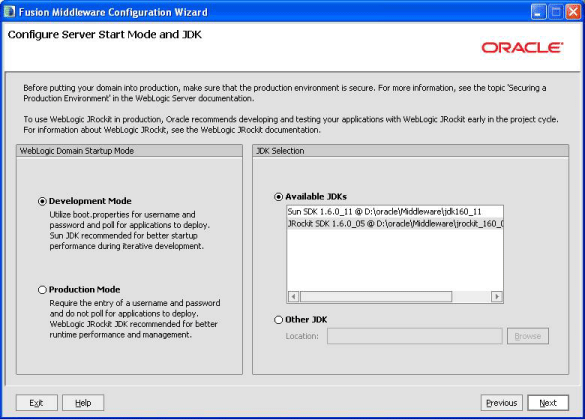

G.7 Configure Server Start Mode and JDK

This screen is displayed only if you choose to create a new WebLogic domain.

Figure G-7 Configure Server Start Mode and JDK Screen

Surrounding text describes Figure G-7 .

In the WebLogic Domain Startup Mode section, select one of the following startup modes:

In the JDK Selection section, select a JDK from the list of available JDKs, or select Other JDK and click Browse to find another JDK on your system.

Click Next to continue.

G.8 Configure JDBC Component Schema

This screen is displayed only if you choose to extend an existing WebLogic domain to support a new product.

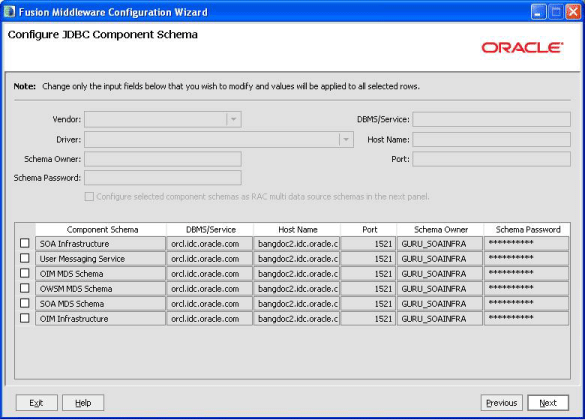

Figure G-8 Configure JDBC Component Schema Screen

Surrounding text describes Figure G-8 .

Use this screen to edit the configuration information for each JDBC data source.

A data source contains a pool of database connections. Your application uses a data source by looking it up in the JNDI tree, requesting a connection, using the connection, and then returning the connection to the data source.

Click Next to continue.

G.9 Test Component Schema

This screen displays the test results.

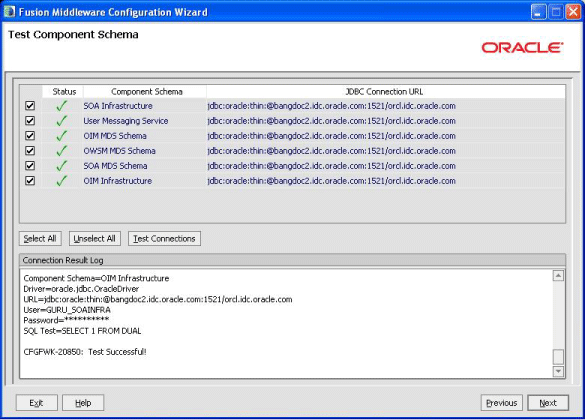

Figure G-9 Test Component Schema Screen

Surrounding text describes Figure G-9 .

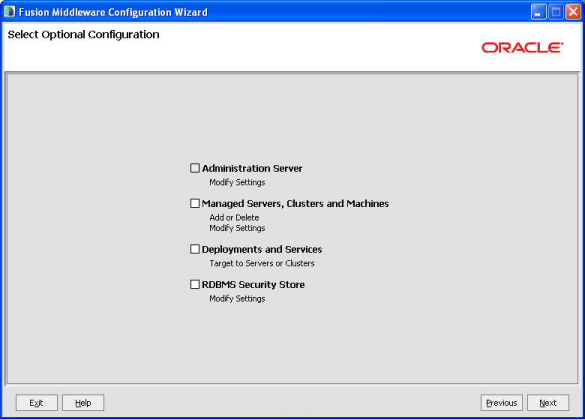

G.10 Select Optional Configuration

This screen provides you with options to configure and customize any of the server or cluster settings listed.

Figure G-10 Select Optional Configuration Screen

Surrounding text describes Figure G-10 .

G.11 Configure the Administration Server

This screen is displayed only if you choose to create a new WebLogic domain.

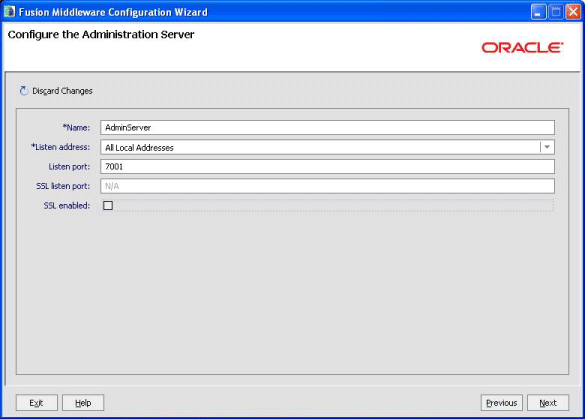

Figure G-11 Configure the Administration Server Screen

Surrounding text describes Figure G-11 .

Each WebLogic Server domain must have one Administration Server, which hosts the Administrative Console used to perform administration tasks.

Click Next to continue.

G.12 Configure Managed Servers

This screen enables you to configure Managed Servers. A Managed Server is an instance of Oracle WebLogic Server used to host enterprise applications. A typical production environment has at least one Managed Server.

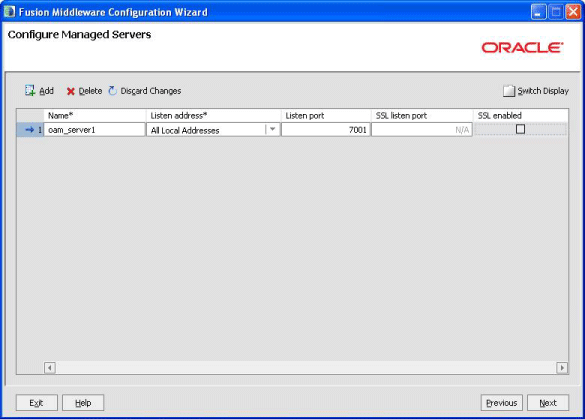

Figure G-12 Configure Managed Servers Screen

Surrounding text describes Figure G-12 .

Use this screen to add or delete Managed Servers. For each Managed Server, specify:

Click Next to continue.

G.13 Configure Clusters

This screen enables you to configure clusters. A cluster contains multiple WebLogic Server instances running simultaneously and working together for scalability and reliability. To clients, a cluster appears as a single WebLogic Server instance.

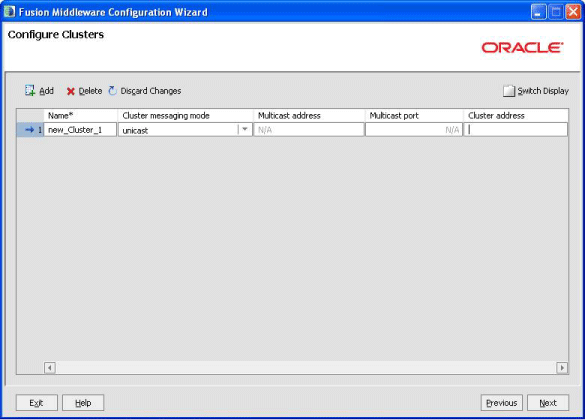

Figure G-13 Configure Clusters Screen

Surrounding text describes Figure G-13 .

Use this screen to add or delete configuration information for clusters.

For more information about configuring clusters for Oracle Identity Management products, see the "Configuring High Availability for Identity Management Components" topic in the guide Oracle Fusion Middleware High Availability Guide.

Click Next to continue.

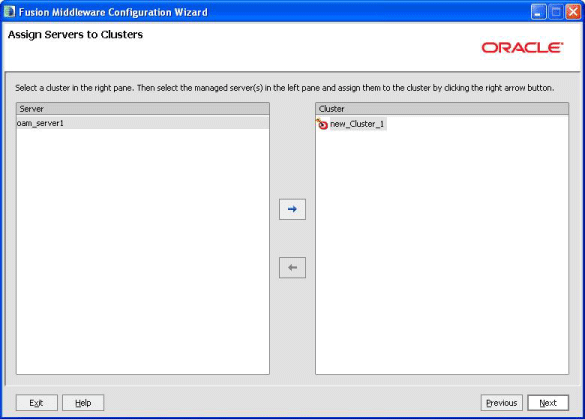

G.14 Assign Servers to Clusters

This screen enables you to assign a Managed Server to the cluster. This screen is required only if you choose to use Node Manager.

Figure G-14 Assign Servers to Clusters Screen

Surrounding text describes Figure G-14 .

Select a cluster in the right pane, and select a Managed Server in the left pane. Assign the Managed Server to the cluster by clicking the right arrow button.

Click Next to continue.

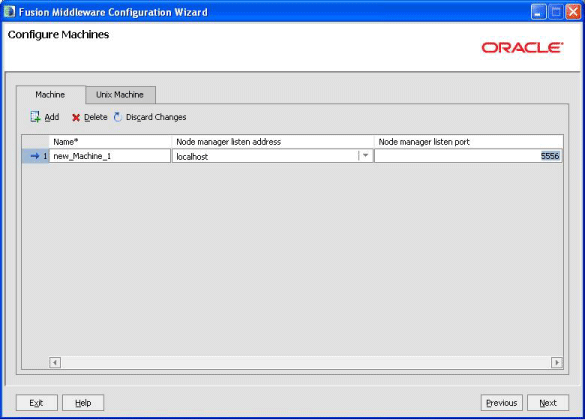

G.15 Configure Machines

This screen enables you to configure machines that host WebLogic Servers.

Figure G-15 Configure Machines Screen

Surrounding text describes Figure G-15 .

Use this screen to add or delete machines.

The Administration Server and Node Manager use the machine definition on this screen to start remote servers.

Click Next to continue.

G.16 Assign Servers to Machines

This screen enables you to assign each WebLogic Server instance to the corresponding machine on which it runs.

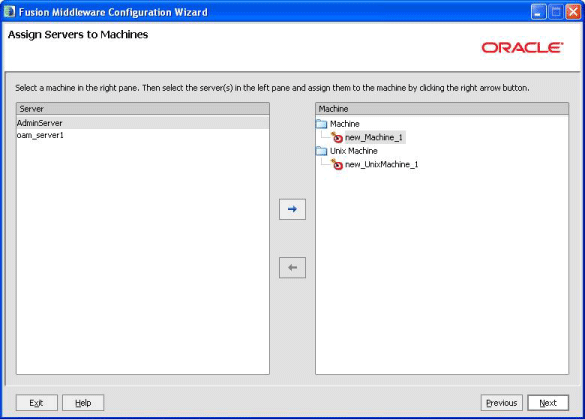

Figure G-16 Assign Servers to Machines Screen

Surrounding text describes Figure G-16 .

Select a machine in the right pane, and select a server in the left pane. Assign the server to the machine by clicking the right arrow button.

Click Next to continue.

G.17 Target Deployments to Clusters or Servers

This screen enables you to target your deployments to servers or clusters. Doing so enables WebLogic Server to serve the deployment to clients.

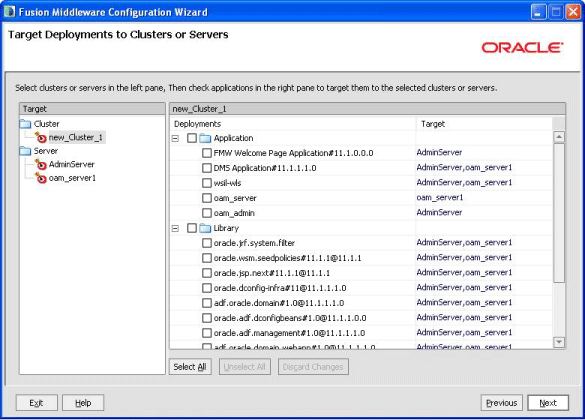

Figure G-17 Target Deployments to Clusters or Servers

Surrounding text describes Figure G-17 .

Select clusters or servers in the left pane, and select the check boxes corresponding to applications in the right pane to target them to the selected clusters or servers.

Click Next to continue.

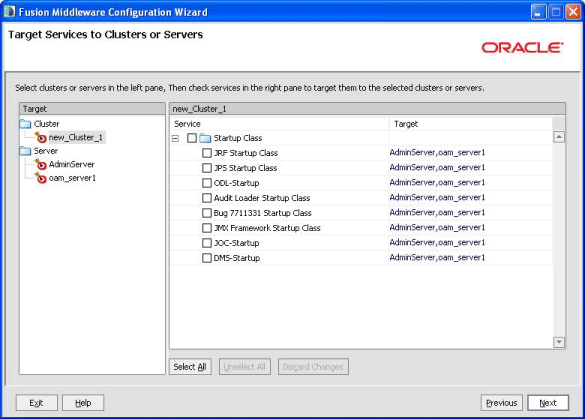

G.18 Target Services to Clusters or Servers

This screen enables you to target your services (for example, JMS, JDBC, startup and shutdown classes) to servers or clusters. Doing so enables your applications to use these services. It is an optional task.

Figure G-18 Target Services to Clusters or Servers Screen

Surrounding text describes Figure G-18 .

Select clusters or servers in the left pane, and select the check boxes corresponding to services in the right pane to target them to the selected clusters or servers.

Click Next to continue.

G.19 Configure RDBMS Security Store Database

This screen enables you to configure an RDBMS security store database.

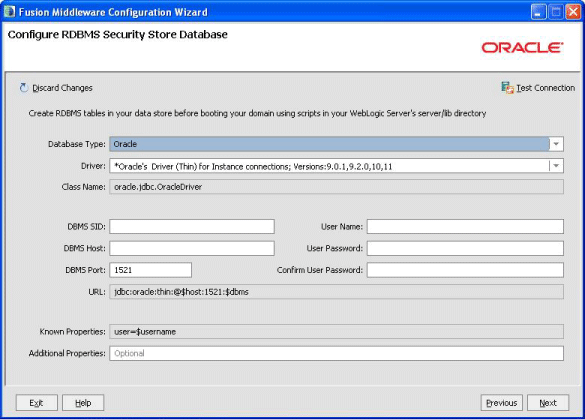

Figure G-19 Configure RDBMS Security Store Database

Surrounding text describes Figure G-19 .

Make changes to your RDBMS. Make sure that your RDBMS tables are created prior to booting your domain. The scripts used by the DBA are located in the WebLogic Server server/lib directory.

After entering information in the fields, click Next to continue.

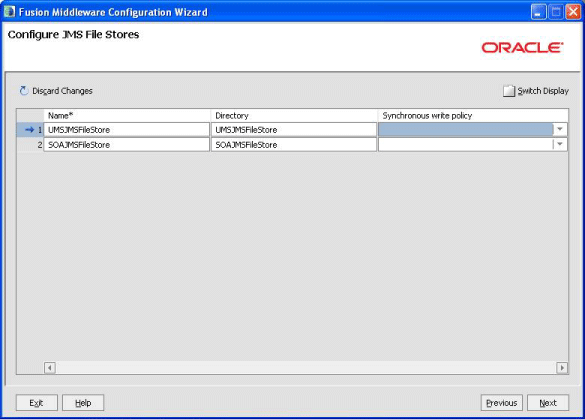

G.20 Configure JMS File Stores

This screen is displayed only if you choose to extend an existing WebLogic domain to support the new product.

Figure G-20 Configure JMS File Stores Screen

Surrounding text describes Figure G-20 .

In this screen, you can configure a JMS file store. In addition, you can select a synchronous write policy: Cache-Flush, Direct-Write, or Disabled

Click Next to continue.

G.21 Configuration Summary

This screen displays a summary of your domain configuration.

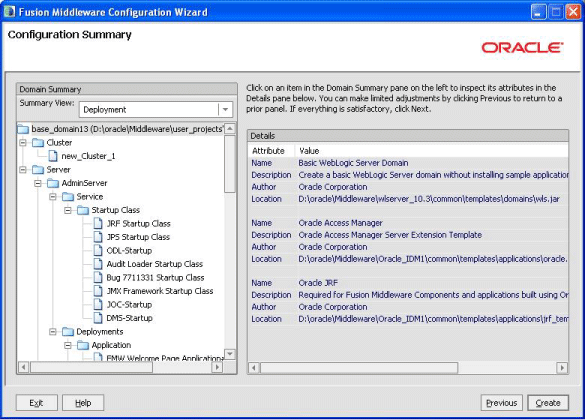

Figure G-21 Configuration Summary Screen

Surrounding text describes Figure G-21 .

Review the contents of your domain.

Click Create to start configuring your domain.
