If you plan to install Oracle Application Server behind firewalls, you need to open certain ports in the firewall during installation (and also during runtime).
When you are installing middle tiers or Identity Management components, you need access to the Oracle Internet Directory, OracleAS Metadata Repository, Oracle Notification Server, and OracleAS Web Cache (the invalidation port). You need to open ports used by these components in the firewall, as shown in Figure F-1:
LDAP: port 3060
LDAP SSL: port 3131
SQL*Net 2: port 1521
Oracle Notification Server: port 6200
Web Cache Invalidation: port 4001
|
Note: The port numbers listed here are the default ports for the components. You may have different ports in your environment. |

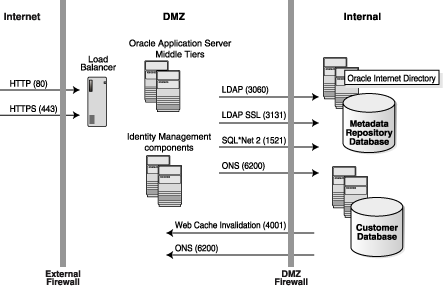

Figure F-1 Ports Needed to Be Opened in the Firewall When Installing Oracle Application Server Behind Firewalls
