Note: This chapter only applies to Discoverer Plus and Discoverer Viewer. For more information about configuring Discoverer Plus OLAP, see Chapter 6, "Configuring the Discoverer Catalog and Discoverer Plus OLAP".
This chapter explains how to use OracleBI Discoverer with URL parameters, and contains the following topics:
Section 13.3, "How to specify login information using a public connection"
Section 13.4, "About specifying workbooks and worksheets using URL parameters"
Section 13.6, "About syntax and notation used in URL parameter tables"
Discoverer end users usually start OracleBI Discoverer by manually choosing a Discoverer connection (or connecting directly), opening a worksheet, and optionally specifying workbook parameter values. To speed up this process, you can create a URL with parameters to start OracleBI Discoverer with specific settings (e.g. login details, workbook ID, worksheet ID, parameter values). For example, you might want to provide a URL to Discoverer end users that automatically logs into Discoverer and opens a particular worksheet. For examples of Discoverer URL parameters, see Section 13.5, "Examples of using URL parameters".
Having created a URL that meets your requirements, you can:
give the URL to end users to enter in their Web browser address box
add the URL as a link within an existing Web site so that end users can start Discoverer by selecting a single hot link
URL parameters must conform to the following syntax:
http://<host.domain>:<port>/<Discoverer application name>? arg1=value1...&argN=valueN
where:
host.domain is the server name and domain on which the Oracle HTTP Server is installed
port is the port number on which the Oracle HTTP Server is installed
Note: To start Discoverer Plus OLAP, you also need to specify a SID after the port number.
Discoverer application name is one of the following (depending on whether you want to start Discoverer Plus/Plus OLAP or Discoverer Viewer):
discoverer/plus
discoverer/viewer
? - the question mark tells Discoverer that the remaining text contains URL parameters
arg1=value1 is the first parameter and the value specified for it. Note that subsequent URL parameters are prefixed with an ampersand character (&)
Notes:
URL parameters are not case-sensitive. For example, 'Locale=' is the same as 'locale='.
URL parameter values are case-sensitive. For example, 'workbooksource=Database' is not the same as 'workbooksource=DataBase'.
The order of the URL parameters is not important.
When you specify login details, you can either specify a username, database, and EUL, or you can specify the connection ID of a public connection. If you specify a username, database, and EUL (e.g. http://<host.domain>:<port>/discoverer/viewer?us=video5&db=db1&eul=VIDEO5), the end user will be prompted to specify a database password before they can access Discoverer.
If you specify login details using the ID of a public connection, you specify the EUL when you create the connection.
When you specify login details, you cannot specify the database password as a URL parameter. The Discoverer end user is always prompted for a password, unless you specify the connection ID of a public connection (for more information, see Section 13.3, "How to specify login information using a public connection").
If the following mandatory parameters are not specified on the URL, end users are prompted for them:
user name
password
Responsibility (for an Oracle Applications login)
Security Group (for an Oracle Applications login)
(Discoverer Plus OLAP only) SID name
Where names contain spaces, concatenate the words with a plus symbol (+). For example, if a workbook is called 'January Analysis 2003', the URL parameter is &wb=January+Analysis+2003
To include other special characters in a URL, you must replace those characters with the equivalent ASCII (or in some cases UNICODE) codes. This process is known as URL encoding. For example, to replace a vertical bar ('|') you replace it with ~7c. Any characters not in the following lists must be URL encoded:
capital letters (i.e. A B C D E F G H I J K L M N O P Q R S T U V W X Y Z)
lower case letters (i.e. a b c d e f g h i j k l m n o p q r s t u v w x y z)
numerals (i.e. 0 1 2 3 4 5 6 7 8 9)
certain special characters (e.g. _ ! ~ ( ) * ' )
Discoverer uses a proprietary encoding mechanism that is similar to HTTP URL encoding, except that Discoverer uses a tilde character (~) instead of a percent character (%). For more information about URL encoding, refer to any standard HTML guide.
The maximum number of characters you can put in a URL depends on which Web browser you are using, as follows:
Internet Explorer 4 and later - 2048 characters
Netscape Navigator 4 and later - no known limit.
Note: The Apache Web Server on which the Oracle HTTP Server is based has a limit of 8192 characters.
When specifying format masks for dates and numbers, note the following:
Discoverer uses the format mask specified when the workbook was created in Discoverer Desktop or Discoverer Plus.
If numeric and date items in a worksheet have 'default' as the format mask value, Discoverer uses the default format mask in the specified browser environment, unless optional URL parameters are specified.
If optional URL parameters for the format masks are not provided, Discoverer will use the format mask specified when the EUL was created (e.g. using Discoverer Administrator).
When you specify connection information in URL parameters, note the following restrictions:
If Discoverer end users are not allowed to create private connections in Discoverer Plus or Discoverer Viewer, you can only use URL parameters containing public connection information. In other words, you must include the connection ID in a URL parameter string for a public connection because end users can only start Discoverer using public connections.
If a Discoverer URL parameter string does not work, it might be because you are trying to use a private connection when private connections are not allowed. In other words, the Allow users to define and use their own private connections in Discoverer Plus and Discoverer Viewer check box is cleared in the Discoverer Configuration page in Application Server Control.
Discoverer end users should navigate to the required Discoverer worksheet and store the URL as a bookmark in their browser.
For more information about the Allow users to define and use their own private connections in Discoverer Plus and Discoverer Viewer check box in Application Server Control, see Section 4.5, "About specifying whether Discoverer end users can create their own private connections".
For more information about connection IDs, see the cn=URL parameter in Section 13.7, "Discoverer Plus and Viewer URL parameters".
When you specify login details on a URL, you cannot specify the database password as a URL parameter. The Discoverer end user is always prompted for a password, unless you specify the connection ID of a public connection. A public connection is a set of login details created and maintained by Discoverer middle tier managers. For an example of using a connection ID, see Section 13.5.4, "Example 4: Starting Discoverer without exposing a password in the URL".
Note: To use public connections, the OracleBI installation must be associated with an OracleAS infrastructure (for more information, see Chapter 2, "Associating an OracleBI installation with an OracleAS infrastructure").
To specify login information using a public connection:
If a public connection is not available, create a public connection using login details that access the worksheet you want to open (for more information, see Section 4.6, "How to create public connections").
Find out the connection ID of this public connection (for more information, see Section 13.4.3, "How to find out the connection ID of a connection").
For example, a connection ID might be 'cf_a156'.
Create a URL using the cn= URL parameter, as follows:
http://<host.domain>:<port>/discoverer/viewer?cn=<connection ID value>
For example, if the connection ID is cf_a156, create a URL parameter as follows:
http://<host.domain>:<port>/discoverer/viewer?cn=cf_a156
The Discoverer end user will not be prompted for a database password when using this URL to start Discoverer.
When using URL parameters to specify workbooks and worksheets, you can use either unique IDs (recommended), or the workbook name or worksheet name.
Hint: To avoid encoding problems and problems caused by long workbook or worksheet names, Oracle recommends that you use unique IDs to specify workbooks and worksheets (for more information, see Section 13.4.1, "How to find out the unique workbook ID of a workbook" and Section 13.4.2, "How to find out the unique worksheet ID of a worksheet").
Note: Discoverer Plus OLAP only uses workbook names and worksheet names to identify workbooks and worksheet. For more information, see Section 6.7, "URL parameters for the Discoverer Plus OLAP Servlet".
The following table shows which URL parameters are used to specify Discoverer workbooks and worksheets.
Specifying a workbook using a URL parameter | Specifying a worksheet using a URL parameter |
---|---|
In Discoverer Plus, use opendbid= <workbook ID>
(or use opendb= <workbook name> for backwards compatibility) |
In Discoverer Plus, use sheetid= <worksheet ID>
(or use sheet= <worksheet name> for backwards compatibility) |
In Discoverer Viewer, use wbk= <workbook ID>
(or use wb= <workbook name> for backwards compatibility) |
In Discoverer Viewer, use wsk= <worksheet ID>
(or use ws= <worksheet name> for backwards compatibility) |
In Discoverer Plus OLAP, use workbook= <workbook name> | In Discoverer Plus OLAP, use worksheet= <worksheet name> |
Notes
To use the opendbid and wbk URL parameters, you need to know the unique ID of the workbook you want to specify (for more information, see Section 13.4.1, "How to find out the unique workbook ID of a workbook").
To use the sheetid and wsk URL parameters, you need to know the unique ID of the worksheet you want to specify (for more information, see Section 13.4.2, "How to find out the unique worksheet ID of a worksheet").
You find out the unique workbook ID of a workbook so that you can specify a workbook on a Discoverer URL using its unique workbook ID.
Note: You identify a workbook using its workbook ID in preference to using its workbook name to avoid encoding problems and problems caused by large workbook names (for more information, see Section 13.4, "About specifying workbooks and worksheets using URL parameters").
To find out the unique ID of a workbook in Discoverer Plus:
Start a Web browser.
Run Discoverer Plus and open a worksheet in the workbook.
Choose File | Manage Workbooks | Properties to display the Workbook Properties dialog.
To find out the unique ID of a workbook, look at the value in the Identifier field.
Notes
You can use a workbook ID value to specify a workbook as follows:
in a Discoverer Plus URL using opendbid <workbook ID>
in a Discoverer Viewer URL using wbk <workbook ID>
For examples, see Section 13.5, "Examples of using URL parameters".
You find out the unique worksheet ID of a worksheet so that you can specify a worksheet on a Discoverer URL using its unique worksheet ID.
Note: You identify a worksheet using its worksheet ID in preference to using its worksheet name to avoid encoding problems and problems caused by large worksheet names (for more information, see Section 13.4, "About specifying workbooks and worksheets using URL parameters").
To find out the unique ID of a worksheet in Discoverer Plus:
Start a Web browser.
Run Discoverer Plus and open the worksheet.
Choose Edit | Worksheet Properties to display the Worksheet Properties dialog.
Display the General tab and look at the value in the Identifier field.
Notes
You can use a worksheet ID value to specify a worksheet as follows:
in a Discoverer Plus URL using sheetid <worksheet ID>
in a Discoverer Viewer URL using wsk <worksheet ID>
For examples, see Section 13.5, "Examples of using URL parameters".
You find out the connection ID (sometimes referred to as a connection key) of a connection so that you can specify a connection using the key URL parameter. For example, you might want to start Discoverer without exposing a password in the Discoverer URL (for more information, see Section 13.5.4, "Example 4: Starting Discoverer without exposing a password in the URL").
You can find out the connection ID of a connection in either Discoverer Viewer or Discoverer Plus.
To find out the connection ID of a connection:
Start a Web browser.
Start Discoverer to display the connections containing the connection that you want to use, as follows:
if you use Discoverer Viewer, display the Connect to Discoverer Viewer page
if you use Discoverer Plus, display the Connect to Discoverer Plus page

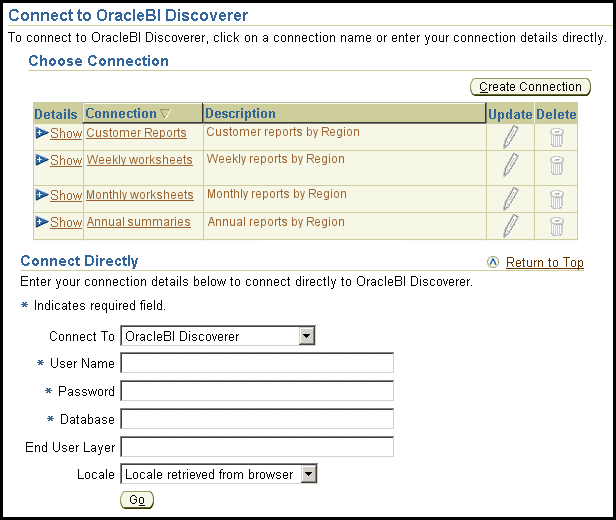

The example below shows the Connect to Discoverer Plus page.
In the Details column, select the Show link next to the connection to expand the connection details.
Hint: The Show links are not available in Netscape Navigator. Use Microsoft Internet Explorer to display the connection page.
Note down the value of Connection Key.
You can now use the value of Connection Key with the cn= URL parameter. For more information, see Section 13.3, "How to specify login information using a public connection".
Notes
This section contains the following examples of using URL parameters with Discoverer:
Section 13.5.1, "Example 1: Starting Discoverer Viewer using URL parameters"
Section 13.5.2, "Example 2: Starting Discoverer Viewer using URL parameters"
Section 13.5.3, "Example 3: Starting Discoverer Plus using URL parameters"
Section 13.5.4, "Example 4: Starting Discoverer without exposing a password in the URL"
Section 13.5.5, "Example 5: Starting Discoverer Viewer and prompt for a password"
Section 13.5.7, "Example 7: Starting Discoverer Plus and opening a scheduled workbook"
Note: Examples 1 to 4 use a public connection to specify login details. The public connection in these examples has the ID value cf_a156. Example 5 specifies login details using us=, db=, and eul=). Example 6 uses s public connection to an OLAP data source.
For information about how to create a public connection, see Section 4.6, "How to create public connections").
To start Discoverer Viewer, connect automatically as jchan, and open a worksheet called January Analysis in a workbook called Monthly Analysis, you might use the following URL:
http://<host.domain>:<port>/discoverer/viewer?cn=cf_a156&wbk=MONTHLY_ANALYSIS&wsk=179
Notes
http://<host.domain>:<port>/discoverer/viewer? is the Discoverer Viewer URL.
cn=<value> specifies the connection ID of a Discoverer connection.
For more information about finding out connection IDs, see Section 13.4.3, "How to find out the connection ID of a connection".
wbk=<value> specifies the workbook ID of a Discoverer workbook.
wsk=<value> specifies the worksheet ID of a Discoverer worksheet.
In this example, MONTHLY_ANALYSIS is the workbook ID of the Monthly Analysis workbook, and 179 is the worksheet ID of the January Analysis worksheet. For more information about finding out workbook IDs and worksheet IDs, see Section 13.4.1, "How to find out the unique workbook ID of a workbook" and Section 13.4.2, "How to find out the unique worksheet ID of a worksheet".
To start Discoverer Viewer, connect automatically as jchan to the Sales EUL, open a worksheet called January Analysis in a workbook called Monthly Analysis, and enter the worksheet parameter value East, you might use the following URL:
http://<host.domain>:<port>/discoverer/viewer?cn=cf_a156&wbk=MONTHLY_ANALYSIS&wsk=179&qp_regionparam=East
Notes
http://<host.domain>:<port>/discoverer/viewer? is the Discoverer Viewer URL.
cn=<value> specifies the connection ID of a Discoverer connection.
For more information about finding out connection IDs, see Section 13.4.3, "How to find out the connection ID of a connection".
wbk=<value> specifies workbook ID of a Discoverer workbook.
wsk=<value> specifies the worksheet ID of a Discoverer worksheet.
qp_regionparam=<value> specifies a parameter value.
In this example, MONTHLY_ANALYSIS is the workbook ID of the Monthly Analysis workbook, and 179 is the worksheet ID of the January Analysis worksheet. For more information about finding out workbook IDs and worksheet IDs, see Section 13.4.1, "How to find out the unique workbook ID of a workbook" and Section 13.4.2, "How to find out the unique worksheet ID of a worksheet".
To start Discoverer Plus, connect automatically as jchan to the Sales EUL, open a worksheet called January Analysis in a workbook called Monthly Analysis, you might use the following URL:
http://<host.domain>:<port>/discoverer/plus?cn=cf_a156&opendbid=MONTHLY_ANALYSIS&sheetid=179
Notes
http://<host.domain>:<port>/discoverer/plus? is the Discoverer Viewer URL.
cn=<value> specifies the connection ID of a Discoverer connection.
For more information about finding out connection IDs, see Section 13.4.3, "How to find out the connection ID of a connection".
opendbid=<value> specifies the workbook ID of a Discoverer workbook.
sheetid=<value> specifies the worksheet ID of a Discoverer worksheet.
In this example, MONTHLY_ANALYSIS is the workbook ID of the Monthly Analysis workbook, and 179 is the worksheet ID of the January Analysis worksheet. For more information about finding out workbook IDs and worksheet IDs, see Section 13.4.1, "How to find out the unique workbook ID of a workbook" and Section 13.4.2, "How to find out the unique worksheet ID of a worksheet".
To start Discoverer Viewer using a connection called Sales Data that has the connection ID cf_a157, you might use the following URL:
http://<host.domain>:<port>/discoverer/viewer?cn=cf_a157
Notes
http://<host.domain>:<port>/discoverer/plus? is the Discoverer Viewer URL.
cn=<value> specifies the connection ID of a Discoverer connection.
For more information about finding out connection IDs, see Section 13.4.3, "How to find out the connection ID of a connection".
You create public connections using Oracle Enterprise Manager (for more information, see Section 4.6, "How to create public connections").
If private connections are not allowed, you can only use the connection ID of a public connection (for more information, see Section 4.5, "About specifying whether Discoverer end users can create their own private connections".)
In this example, you want end users to be prompted to specify a password before they can access Discoverer. You therefore specify a a username, database, and EUL on the URL.
To start Discoverer Viewer, connect automatically as video5, and open a worksheet called January Analysis in a workbook called Monthly Analysis, you might use the following URL:
http://<host.domain>:<port>/discoverer/viewer?us=video5&db=db1&eul=VIDEO5&wbk=MONTHLY_ANALYSIS&wsk=179
Notes
http://<host.domain>:<port>/discoverer/viewer? is the Discoverer Viewer URL.
us=<value> specifies the database username.
db=<value> specifies the database.
eul=<value> specifies the End User Layer (EUL).
wbk=<value> specifies the workbook ID of a Discoverer workbook.
wsk=<value> specifies the worksheet ID of a Discoverer worksheet.
In this example, MONTHLY_ANALYSIS is the workbook ID of the Monthly Analysis workbook, and 179 is the worksheet ID of the January Analysis worksheet. For more information about finding out workbook IDs and worksheet IDs, see Section 13.4.1, "How to find out the unique workbook ID of a workbook" and Section 13.4.2, "How to find out the unique worksheet ID of a worksheet".
To start Discoverer Plus OLAP, you might use the following URL:
http://<host.domain>:<port>/discoverer/plus?db=host1:1521:ora925
Notes
http://<host.domain>:<port>/discoverer/plus? is the Discoverer Plus and Plus OLAP URL.
db=host1:1521:ora925 specifies the host name (i.e. host1), port number (i.e. 1521), and SID (i.e. ora925).
For more information about URL parameters for Discoverer Plus OLAP, see Chapter 6, "Configuring the Discoverer Catalog and Discoverer Plus OLAP".
To start Discoverer Plus, connect automatically as jchan to the Sales EUL, and open a scheduled workbook, you might use the following URL:
http://<host.domain>:<port>/discoverer/plus?cn=cf_a156&opendbid=SALES_ANALYSIS2&sheetid=42&workbooksource=Scheduled
Notes
http://<host.domain>:<port>/discoverer/plus? is the Discoverer Viewer URL.
cn=<value> specifies the connection ID of a Discoverer connection.
For more information about finding out connection IDs, see Section 13.4.3, "How to find out the connection ID of a connection".
opendbid=<value> specifies the workbook ID of a Discoverer scheduled workbook.
sheetid=<value> specifies the worksheet ID of a Discoverer scheduled worksheet.
workbooksource=Scheduled identifies the workbook as scheduled.
To open a scheduled workbook in Discoverer Viewer, specify the workbook ID (e.g. using wbk=), the results number (e.g. 3), and the worksheet ID (e.g. using wsk=). For example, to open results number 1 for a scheduled workbook, you might use the following URL:
http://<host.domain>:<port>/discoverer/viewer?cn=cf_a156&wbk=MONTHLY_ANALYSIS&3&wsk=179
Hint: To obtain the results number, display the Scheduling Manager dialog in Discoverer Plus (i.e. choose Tools | Manage Schedules), expand the scheduled workbook, and note down the results number of the worksheets processed.
This document uses the following syntax and notation rules in the URL parameter tables:
parameter names are in normal type (e.g. framedisplaystyle=)
variable parameter values are in italic type (e.g. cn=connection ID>
actual parameter values are in normal type (e.g. framedisplaystyle=<separate or embedded>
This table defines generic Discoverer URL parameters that you can use with both Discoverer Plus and Discoverer Viewer.
Parameter and Values | Description | Example |
---|---|---|
cn=<connection ID> | Specifies the connection containing the login details with which to start Discoverer (for more information about how to find out the connection ID of a connection, see Section 13.4.3, "How to find out the connection ID of a connection").
For an example, see Section 13.5.4, "Example 4: Starting Discoverer without exposing a password in the URL"). See also Notes below. |
cn=cf_m2 |
cs=[APPS_SECURE]<dbc file name>
|
Specifies whether to connect in secure mode. <dbc file name> refers to the Applications DBC file that contains Applications connection information. | cs=[APPS_SECURE]genledger_payables |
eul=<EUL name> | Specifies the name of the EUL to which to connect. You only need to specify this parameter if you want to override the default EUL.
Note: EUL names are case-sensitive. |
eul=myEUL |
nls_date_format=<date format> | Specifies the default date format for the session. | nls_date_format='MM/DD/YY' |
nls_date_language=<date language> | Specifies the language for day and month names displayed in Discoverer. | nls_date_language=Spanish |
nls_lang=<language> | Specifies the language, territory, and character displayed in Discoverer.
Use Oracle naming conventions to specify language, territory, and character set. |
nls_lang=Spanish |
nls_numeric_characters=<separator characters> | Specifies decimal character and group separator for numbers. | nls_numeric_characters=., |
nls_numeric_characters=<separator characters> | Specifies the default characters to use as the group separator and decimal.
You must specify the decimal separator first, followed by the group separator. |
nls_numeric_characters=',.' |
nls_sort=<sort name or binary> | Specifies the session collating sequence for ORDER BY queries and string comparisons, as follows:
|
nls_sort=binary |
nls_sort=<sort type> | Specifies a character sort sequence. For more information about the nlssort command, see Oracle9i Globalization Support Guide. | nls_sort=XSpanish |
sg=<security group> | Specifies the Oracle Applications Security Group you want to connect with.
Note: If you do not specify a user name, password, responsibility, or security group, the Discoverer end user is prompted to enter the missing login information. |
sg=securityGroup |
us=<database user name> | Specifies a database user name with which to connect to Discoverer.
Hint: You can also use the us parameter to specify a database, user name, and password as a single parameter. Note: If you do not specify a user name, the Discoverer end user is prompted a user name. |
us=video5 |
Notes
When using the cn= URL parameter, note the following:
If Discoverer end users are not allowed to create private connections, the specified connection must be a public connection. For more information, see Section 4.5, "About specifying whether Discoverer end users can create their own private connections".
This table describes Discoverer Plus-specific URL parameters that can be used in addition to the generic URL parameters in Section 13.7, "Discoverer Plus and Viewer URL parameters".
Hint: Do not use Discoverer Plus URL parameters on the same URL as Discoverer Viewer URL parameters.
Note: For information about Discoverer Plus OLAP URL parameters, see Chapter 6, "Configuring the Discoverer Catalog and Discoverer Plus OLAP".
Parameter and Values | Description | Example |
---|---|---|
_plus_popup=<true or false> | Specifies whether to launch Discoverer Plus in a new browser window or in the Discoverer Connections page, as follows:
This URL parameter can be used in conjunction with framedisplaystyle (for more information, see framedisplaystyle=). |
_plus_popup=true
|
database=<database name or alias> | Specifies which database to connect to when Discoverer starts.
Hint: You can also use the connect URL parameter to specify a database, user name, and password as a single parameter. |
database=mydb |
framedisplaystyle=<separate or embedded> | Specifies how to launch the Discoverer main window.
Note: To deploy Discoverer Plus in conjunction with a screen-reader (e.g. JAWS), set the value to 'separate'. For more information about accessibility and Discoverer, see "Using the JAWS screen reader with Discoverer". When using _pop_up in conjunction with framedisplaystyle=, the possible combinations are:
|
framedisplaystyle=separate |
helpset=<path>/<locale>/<HS file> | Specifies a different help set location that is different to the default Discoverer Plus help set.
Note: The help must be in sub-directories named by its standard two character locale. Hint: As an alternative to using the HelpSet URL parameter to customize the help, edit plusug.hs and its related files. |
locale=Plus_files/My_custom_help
(i.e. where the Plus_files/My_custom_help directory contains the language folders, e.g. /en, /es, /fr). |
lookandfeelname=<system or oracle or browser or plastic or <custom> | Specifies a browser look and feel. For example, a user might want to run Discoverer Plus using the Windows look and feel.
This setting overrides the LAF specified in Oracle Application Server Control (for more information, see Section 9.1.3, "How to change the Discoverer Plus/Plus OLAP LAF for all end users"). If you specify the lookandfeelname value as 'custom', Discoverer uses the LAF class and JAR specified in the configuration.xml file. For more information about specifying a custom LAF on the Discoverer middle tier, see Section 9.1.4, "How to define a custom LAF for Discoverer Plus/Plus OLAP"). |
lookandfeelname=plastic |
opendb=<workbook name> | Specifies the name of a workbook to open (Discoverer assumes that the workbook is stored in the database, not as a scheduled workbook). If you use the opendb parameter more than once in the URL, Discoverer uses the last one.
Hint: This URL parameter is included for backward compatibility. Oracle recommends that you use opendbid to specify workbooks. Note: 'opendb=Video+Sales+Workbook' is the equivalent of 'workbookname=Video+Sales+Workbook&workbooksource=Database'. See also workbookname and workbooksource. |
opendb=Video+Sales+Workbook
Note: You also need to specify a workbook source (i.e. workbooksource=Database or Scheduled). E.g. workbooksource=Scheduled&opendb=Video+Sales+Workbook. |
opendbid=<unique ID> | Specifies the unique ID of the workbook you want to open.
Discoverer assumes that the workbook is stored in the database, not as a scheduled workbook. For more information about how to find the unique ID of a workbook, see Section 13.4.1, "How to find out the unique workbook ID of a workbook". For examples, see Section 13.5, "Examples of using URL parameters". |
opendbid=JanuarySales
Note: You also need to specify a workbook source (i.e. workbooksource=Database or Scheduled). E.g. workbooksource=Scheduled&opendbid=JanuarySales. |
param_<parameter_name>=<parameter_value> | Specifies values for parameters.
Note: If the workbook does not contain a parameter of that name, Discoverer ignores the parameter. |
param_regionparam=East |
responsibility=<responsibility name> | Specifies the Oracle Applications responsibility for Oracle Applications end users.
Note: If you do not specify a user name, password, responsibility, or security group, the Discoverer end user is prompted to enter the missing login information. |
responsibility=Manager
(i.e. Discoverer bypasses the Responsibility dialog and assigns the end user an Oracle Applications responsibility of Manager) |
sheet=<worksheetname> | Specifies the name of the worksheet to open by default.
Note: If you use the sheet parameter more than once in the URL, Discoverer opens the last one. Hint: This URL parameter is included for backward compatibility. Oracle recommends that you use sheetid to specify worksheets. |
sheet=Sales+Detail+Sheet |
sheetid=<unique ID> | Specifies the unique identifier of the worksheet to open.
For more information about how to find the unique ID of a worksheet, see Section 13.4.2, "How to find out the unique worksheet ID of a worksheet". Note: You must also specify a workbook using opendbid. For examples, see Section 13.5, "Examples of using URL parameters". |
sheetid=7 |
username=<database user name> | Specifies a database user name with which to connect to Discoverer.
Hint: You can also use the connect parameter to specify a database, user name, and password as a single parameter. Note: If you do not specify a user name, password, responsibility, or security group, the Discoverer end user is prompted to enter the missing login information. |
username=video_user |
windowheight=<number of pixels> | Specifies the height in pixels of the Discoverer application frame. If you do not use this parameter, Discoverer uses a default value. | windowheight=600
|
windowwidth=<number of pixels> | Specifies the width in pixels of the Discoverer application frame. If you do not use this parameter, Discoverer uses a default value. | windowwidth=800
|
workbookname=<workbookname> | Specifies the name of the Discoverer workbook to open.
Hint: Use this URL parameter in conjunction with workbooksource. E.g. 'workbookname=Video+Sales+Workbook&workbooksource=Database' is the equivalent of 'opendb=Video+Sales+Workbook'. Hint: This URL parameter is included for backward compatibility. Oracle recommends that you use opendbid to specify workbooks. |
workbookname=Video+Sales+Workbook
|
workbooksource=<Database or Scheduled> | Specifies the location of the workbook to open:
Hint: Use this URL parameter in conjunction with opendbid or workbookname. |
workbooksource=Database
|
This table describes Discoverer Viewer-specific URL parameters that can be used in addition to the generic URL parameters in Section 13.7, "Discoverer Plus and Viewer URL parameters".
Hint: Do not use Discoverer Viewer URL parameters on the same URL as Discoverer Plus URL parameters.
Note: These URL parameters do not apply to worksheets created in Discoverer Plus OLAP.
Parameter and Values | Description | Example |
---|---|---|
anlsdf=<date format> | Specifies the date format for the session for Oracle Applications end users (synonym of nls_date_format). | anlsdf='MM/DD/YY' |
anlsdl=<date language> | Specifies the language to use for the spelling of day and month names and date abbreviations (AM, PM, AD, BC) for Oracle Applications end users (synonym of nls_date_language). | anlsdl=fr |
anlsl=<language> | Specifies the session language for Oracle Applications end users (synonym of nls_lang). | anlsl=en-gb |
anlsnc=<separator characters> | Specifies the default characters to use as the group separator and decimal for Oracle Applications end users (synonym of nls_numeric_characters).
You must specify the decimal separator first, followed by the group separator. |
anlsnc=',.' |
anlss=<sortname or binary> | Specifies the session collating sequence for ORDER BY queries and string comparisons for Oracle Applications end users (synonym of nls_sort).
Values are: the name of an alphabetical sort sequence binary to specify a binary sort |
anlss=binary |
db=<database name> | Specifies which database to which to connect when Discoverer starts. | db=video |
lm=<applications or discoverer> | Specifies the login method, as follows:
Note: If this parameter is not present, the default login method specified in the ui_config.xml configuration file is used. |
lm=applications |
pi_<page item name>=<[page item value> | Specifies the name of a page item and the value to select. | pi_Region=West |
qp_<parameter name>=<parameter value>
|
Specifies values for parameters. | qp_City=Denver |
rs=<responsibility> | Specifies the Oracle Applications Responsibility you want to connect with.
Note: If you do not specify a user name, password, responsibility, or security group, the Discoverer end user is prompted to enter the missing login information. |
rs=Manager |
wb=<workbook name> | Specifies the name of the Discoverer workbook to open.
Hint: This URL parameter is included for backward compatibility. Oracle recommends that you use wbk to specify workbooks. Note: Use + to indicate spaces in workbook names. |
wb=My+Workbook |
wbk=<unique ID> | Specifies the unique ID of the workbook to open.
Discoverer assumes that the workbook is stored in the database, not as a scheduled workbook. For more information about how to find the unique ID of a workbook, see Section 13.4.1, "How to find out the unique workbook ID of a workbook". Note: If you specify a scheduled workbook, you must use the wbr URL parameter to specify a unique run identifier for that workbook. |
wbk=JanuarySales |
ws=<worksheet name>
|
Specifies the name of the worksheet to open by default.
Hint: This URL parameter is included for backward compatibility. Oracle recommends that you use wsk to specify worksheets. |
ws=My+Worksheet |
wsk=<unique ID> | Specifies the unique identifier of the worksheet to open.
For more information about how to find the unique ID of a worksheet, see Section 13.4.2, "How to find out the unique worksheet ID of a worksheet". Note: You must also specify a workbook using wbk. For examples, see Section 13.5, "Examples of using URL parameters". |
wsk=7 |
