This appendix explains how you can set up SSH connectivity before installing Oracle Management Agent (Management Agent) on Microsoft Windows operating systems. In particular, this appendix covers the following:
Note:
This chapter is applicable only for the following cases:When the destination host on which you are installing a Management Agent is running on Microsoft Windows.
When the OMS host from where you are accessing the Agent Deployment Wizard is running on Microsoft Windows.
SSH (Secure Shell) Setup is the connectivity that is established between the host running Oracle Management Service (OMS) and the host where the Management Agent needs to be installed. This is primarily required for the Agent Deployment Wizard to install Management Agents over HTTP on remote hosts.
The Agent Deployment Wizard is an application that is part of the Enterprise Manager Grid Control console. It is used for deploying Management Agents in your environment using an interactive user interface. The installation of a Management Agent from the source host to the remote destination host happens using SSH protocol, and for this communication to happen over SSH, an SSH setup is required between the two hosts. This also helps to avoid SSH authentication calls during future Agent Deploy operations.
Caution:
The SSH Setup must always be set between the destination hosts and the OMS, and never among the destination hosts.In Enterprise Manager 11g Grid Control Release 1 (11.1.0.1.0), the Agent Deployment Wizard sets up and drops the SSH connectivity automatically, but if the Management Agent is going to be on a Microsoft Windows operating systems, then you need to manually install and configure Cygwin on that host.
Note:
The Agent Deployment Wizard is certified and supported with Cygwin 1.5.Before starting with the SSHD setup, ensure you are not using OpenSSH and MKSNT when using the Agent Deploy application. To do so, perform the following checks:
Ensure OpenSSH\bin
and mksnt
are not in your PATH environment variable. If they are, remove them by doing the following:
Right-click on My Computer and go to Properties.
In the System Properties window that appears, click Advanced.
In this tab, click Environment Variables.
Here, search for the Path system variable, select it, and if the OpenSSH\bin
and mksnt
are present in the PATH, click Edit.
In the Edit System Variable dialog box that appears, delete these two values from the PATH, and click OK.
Stop the SSH Daemon if it is running from OpenSSH,MKS
or any other vendor. If the SSH Daemon is running, stop it by doing the following:
Right-click on My Computer, and select Manage.
In the Computer Management window, in the left pane, expand Services and Applications, and select Services.
In the right-pane, right click the SSH Daemon/MKS Secure Shell service and click Stop.
To install Cygwin and start the SSH daemon on Microsoft Windows hosts, follow these steps:
Download the setup-legacy.exe file corresponding to Cygwin 1.5 from the following Website, and install the Cygwin software in the C:\cygwin
directory:
If you go directly to http://cygwin.com
and download the setup.exe file, it will install Cygwin 1.7 which is not supported on this version.
Note:
If you install Cygwin in a different directory than what has been previously mentioned, ensure you update the$OMS_INSTANCE_HOME/sysman/prov/resources/ssPaths_msplats.properties
file with the proper Cygwin binary values after installing Oracle Enterprise Manager Grid Control.Caution:
If you are installing Cygwin at a directory that is other thanC:\cygwin
on a remote machine, you must also ensure that Cygwin is installed on the OMS machine at the exact same location.
The Cygwin installation directory should not contain any spaces.

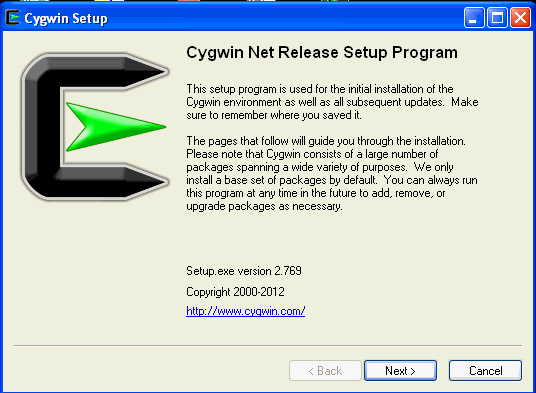

Invoke Cygwin setup, and click Next to proceed.

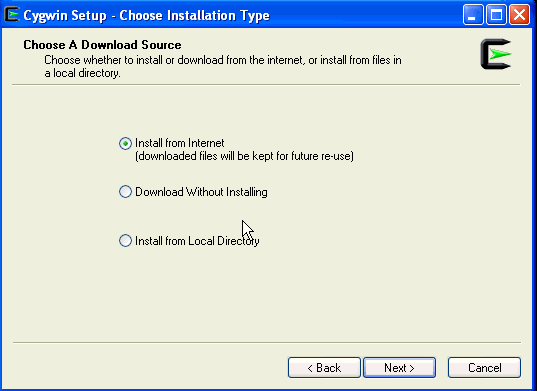

On the Choose Installation Type screen, select Install from Internet, and click Next.

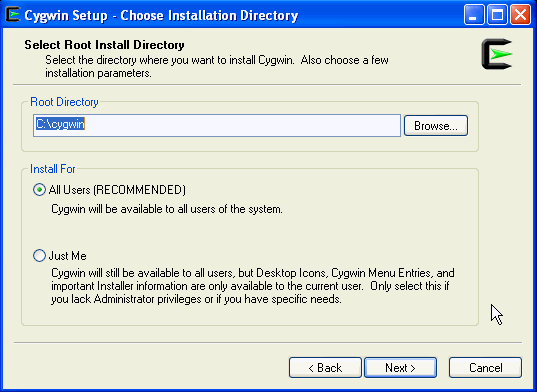

On the Choose Installation Directory screen, enter C:\cygwin as the Root Directory, and click Next.

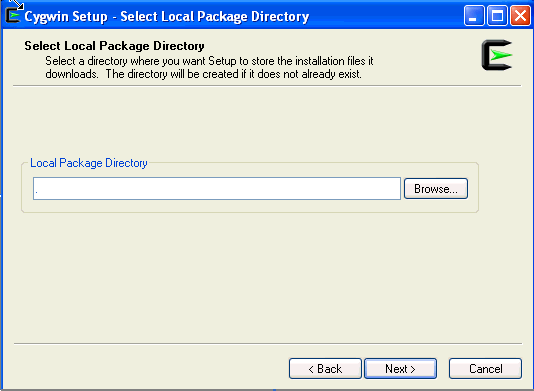

On the Select Local Package Directory screen, select a directory on your local machine where you want the Setup to store the installation files it downloads, and click Next.

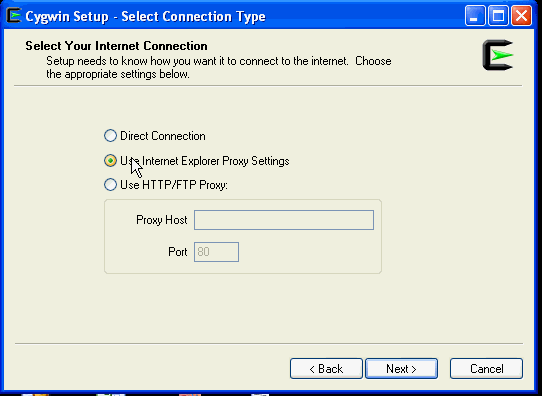

On the Select Connection Type screen, select appropriate settings to connect to the internet, and click Next.

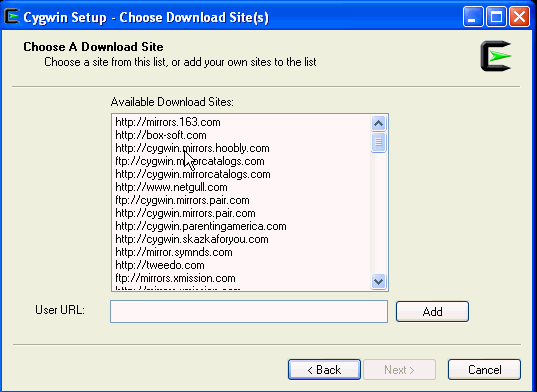

On the Choose Download Site(s) screen, select any site from the available list, and click Next.
On the select packages screen, ensure that you select the following packages, and click Next:
From the Archive category, select unzip
and zip
as follows:
From the Net category, select openssh
as follows:
After selecting the packages, a Resolving Dependencies screen is displayed. Click Next to proceed.

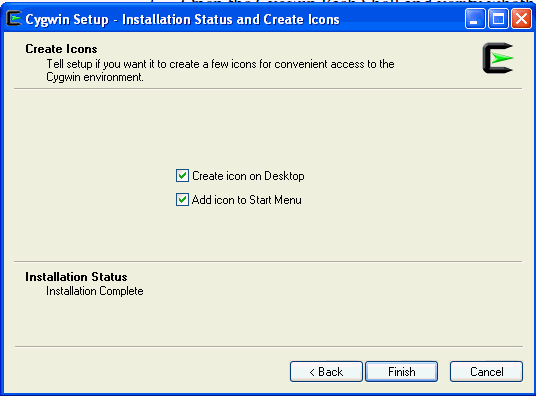

On the Installation Status and Create Icons screen, do not make any changes. Click Finish to complete the installation process.
After you install Cygwin, navigate to the C:\cygwin
directory, open the Cygwin.bat
file in edit mode, and add the following line before invoking the bash shell.
set CYGWIN=binmode tty ntsec
To verify if Cygwin (cygrunsrv)
is installed properly, run C:\cygwin\Cygwin.bat
, and execute the following command:
cygrunsrv -h
If Cygwin is installed properly, then all the Cygwin help options are displayed on the screen. However, if this returns an error message, then it means you are not on the right track, and might have to reinstall Cygwin.
Note:
If you are prompted to provide a Cygwin value, enterbinmode tty ntsec
. If this returns an error message stating "service does not exist", you are on the right track, and can proceed to the next step.To install SSHD service, run C:\cygwin\Cygwin.bat
, and execute the following command:
ssh-host-config
Note:
Enter "no" when prompted to create sshd user account (message reads "sshd user account needs to be created
").
Enter "yes" at all other prompts.
When prompted to answer the question "Which value should the environment variable CYGWIN
have when sshd starts?", Oracle recommends that you set the value to at least "ntsec" as shown in the following example. This will enable you to change the user context without having to specify the password.
As an answer to the previously mentioned question, specify a value that is similar to the following and press Enter:
CYGWIN="binmode tty ntsec"
Backup the /etc/passwd
file and then use a vim or vi editor to open it in edit mode. Remove only those entries of the user that you will use to connect to the destination host on which you want to install the Management Agent. Ask the user to make a backup of the /etc/passwd
file before editing.
If the user that you are employing to connect to the destination host on which you want to install the Management Agent is a local user, run C:\cygwin\Cygwin.bat
and execute the following:
/bin/mkpasswd -l –u <USER> >> /etc/passwd
If the user you are employing to connect to the destination host on which you want to install the Management Agent running is a domain user, run C:\cygwin\Cygwin.bat
and execute the following:
/bin/mkpasswd -d -u <USER> >> /etc/passwd /bin/mkgroup -d >> /etc/group mkdir -p /home/<USER> (for example, mkdir -p /home/pjohn) chown <USER> /home/<USER> (for example, chown pjohn /home/pjohn)
(domain user only) If the user you are employing to connect to the destination host on which you want to install the Management Agent is a domain user, do the following to start the SSH daemon:
Right-click on My Computer, and select Manage.
In the Computer Management dialog box that appears, go to Services and Applications, and select CYGWIN sshd.
Right-click CYGWIN sshd and select Properties.
In the Properties dialog box, go to the Log On tab.
Here, specify the domain/username and password. Click Apply.
Run C:\cygwin\Cygwin.bat
, and execute the following:
chown <USERNAME> /var/log/sshd.log chown -R <USERNAME> /var/empty chown <USERNAME> /etc/ssh* chmod 755 /var/empty chmod 644 /var/log/sshd.log
Note:
If/var/log/sshd.log
does not exist, you do not have to execute the following commands:
chown <USERNAME> /var/log/sshd.log chmod 644 /var/log/sshd.log
Perform one of the following steps to start the SSH daemon:
Run C:/cygwin/Cygwin.bat
and execute the following command:
/usr/sbin/sshd
OR
Run C:/cygwin/Cygwin.bat
and execute the following command:
cygrunsrv -S sshd
Note:
Usecygrunsrv -E sshd
to stop the SSH daemon.You can now test your cygwin
setup.
To do this, go to a different machine (that has the ssh
client running), and execute the following command:
ssh -l <USERNAME> <localhost> 'date' OR ssh -l <USERNAME> <this node> 'date'
For example,
ssh -l pjohn egal07.db.funds.com 'date'
This command will prompt you to specify the password. When you specify the correct password, the command should return the accurate date.
Note:
Before executing thesshUserSetupNT.sh
script, execute the following commands to ensure the home directory has been correctly set:
Execute echo $HOME
Ensure this displays the home directory of the current user.
If it points to the home directory of another user, execute the following command:
export HOME=<Windows style absolute path of homedir>
Now, execute echo
$HOME
again, to verify the home directory. The $HOME
value must be the same as that passed to -homeDir
This is the script that should be executed to set up SSH on Microsoft Windows operating systems. The usage of the script is as follows:
./sshUserSetupNT.sh -user -asUser -asUserGrp -sshLocalDir -homeDir -hosts -hostfile
Note:
After theSSHUserSetupNT.sh
script has been executed, you must verify the successful SSH user setup on all the hosts, individually.
That is, if you have run the script to set up SSH on two hosts (host1, and host2), you must run the following command on each host to verify successful SSH setup:
ssh -l <username> host1 'date' and then run: ssh -l <username> host2 'date'
Caution:
You must execute thesshUserSetupNT.sh
script on the local OMS machine from within the cygwin
(BASH) shell only. The script will fail to execute if done from outside this location.All the previously mentioned options are mandatory, and should be passed while executing the script.
Note:
It is assumed thatC:\cygwin
is the default installation directory for the Cygwin binaries.
If you install cygwin
at a location other than c:\cygwin
(default location), it can cause the SSH setup to fail, and in turn, the agent installation will fail.
To work around this issue, you must either install cygwin
in the default directory (c:\cygwin
), or update the ssPaths_msplats.properties
file with the correct path to the cygwin
binaries. The ssPaths_msplats.properties
is available in <OMS_INSTANCE_HOME>/sysman/prov/resources/
.
This script is used on Microsoft Windows operating systems to set up SSH from the host on which it is run to the specified remote hosts. After this script is run, you can use SSH to execute commands on the remote hosts, or copy files between the local host and the remote hosts without being prompted for passwords or confirmations.
The list of remote hosts and their user names are specified as command-line parameters to the script.
-asUser
This is the user of the local machine on which the setup must be performed. For example, SYSTEM.
-asuserGrp
This is the group to which the specified asUser
belongs.
-sshLocalDir
This is the full path to the directory where the keys should be generated for the asUser
on the local machine.
-homeDir
This is the full path to the home directory of the current user.
If the /home
key (in regedit
) is seen as a subkey under the Cygnus Solutions key, then the value of the /home
key must have /<username>
as a suffix and then be used as -homeDir
m value.
If the /home
key is not found, go to the Cygwin BASH prompt and check the value of $HOME
. You can now use the same value of $HOME
as the value for -homeDir
.
If $HOME
does not have any value (is empty), then you must update the /etc/passwd
file.
Identifying the Correct Entry in the /etc/passwd File
If the /etc/passwd
file has only one entry for the user, you can simply modify that value. In the event that there are multiple entries in this file, you must first identify the correct entry and then modify it.
To identify the correct entry:
Execute the following command if you have specified a local user during SSH setup:
/bin/mkpasswd -l -u <username>
Execute the following command if you have specified a domain user during SSH setup:
/bin/mkpasswd -d -u <username>
Now, match the output with the corresponding entry in the /etc/passwd
file. This is the entry that you must modify.
Updating the -homeDir value
All values for all users are listed as colon (:) separated entries (or fields). To update the user entry that you have identified previously, go to the penultimate value (or field) of that user entry, and modify the value of the home directory for that user.
Always specify the absolute path needed by Cygwin as value for the home directory. For example, if the path is C:\Documents and Settings\pjohn
, modify it to:
/cygdrive/c/Documents and Settings/pjohn
Or, if the path reads C:\cygwin\pjohn
, modify this to:
/cygdrive/c/cygwin/pjohn
Now, save the password file and reenter the BASH shell.
Note:
If you have used spaces in the$HOME
value (for example, /cygdrive/c/Documents and Settings/pjohn
), specify the $HOME
value in Microsoft Windows style and within double quotation marks (for example, "C:\ Documents and Settings\pjohn"
).Note:
Specify the full path within double quotation marks (" ").Caution:
You must execute thesshUserSetupNT.sh
script on the local OMS machine from within the cygwin
(BASH) shell only. The script will fail to execute if done from outside this location.This section lists the steps you must follow to set up the timezone environment variable on remote hosts.
To verify if the timezone environment variable (TZ
) is accessible by the SSH server on the remote hosts, execute the following command from the OMS host:
ssh -l <user_name> -n <remote_node> 'echo $TZ'
If this command does not return the TZ
environment variable value, you must set the TZ
variable and ensure this is accessible by the SSH server. You can set the TZ
environment variable on remote hosts in the following sections:
If the shell being used is BASH, add the following line to the .bashrc
file in the home directory of the user (being used) for ssh
access:
export TZ=<your machine's timezone>
If you are using a CSH shell, then add the following line to the .cshrc
file in that directory:
setenv TZ <your machine's timezone>
Depending on the shell that is present on the host, set the TZ variable by executing the following command:
For a CSH Shell, specify: setenv TZ PST8PDT
Restart the SSH daemon by executing:
sudo /etc/init.d/sshd restart
Now, execute the following command from the OMS home to verify if the SSH server can access the TZ variable.
ssh -l <user_name> -n <node_name> 'echo $TZ'
The timezone variable must be set in the rc
file of the shell that the host is using.
For example, if the host is using a BASH shell, go to the user's home directory ($HOME
) and add the following to the ~/.bashrc
file to set the TZ variable:
TZ=PST8PDT; export TZ
If the host is using a CSH shell, go to $HOME
and add the following to the ~/.cshrc
file:
setenv TZ PST8PDT
Now, execute the following command from the OMS home to verify if the SSH server can access the TZ variable.
ssh -l <user_name> -n <node_name> 'echo $TZ'
