3 Configuring Siebel Enterprise Targets

Adding a Siebel Enterprise

Siebel Enterprise enables administrators to logically organize distributed targets for efficient and effective management and monitoring.

To add a Siebel Enterprise to Cloud Control for monitoring, perform the following steps:

1. From the Targets menu of the Enterprise Manager Console, select Siebel.

2. On the Siebel page, click the Add Enterprise button.

   The Add Siebel Enterprise page appears, shown in Figure 3–1.

3. Define the values for all the parameters and click OK.

   Note:

   In typical installations, the gateway server port is 2320.

   The progress page notifies you when the Siebel Enterprise and its associated targets are created.

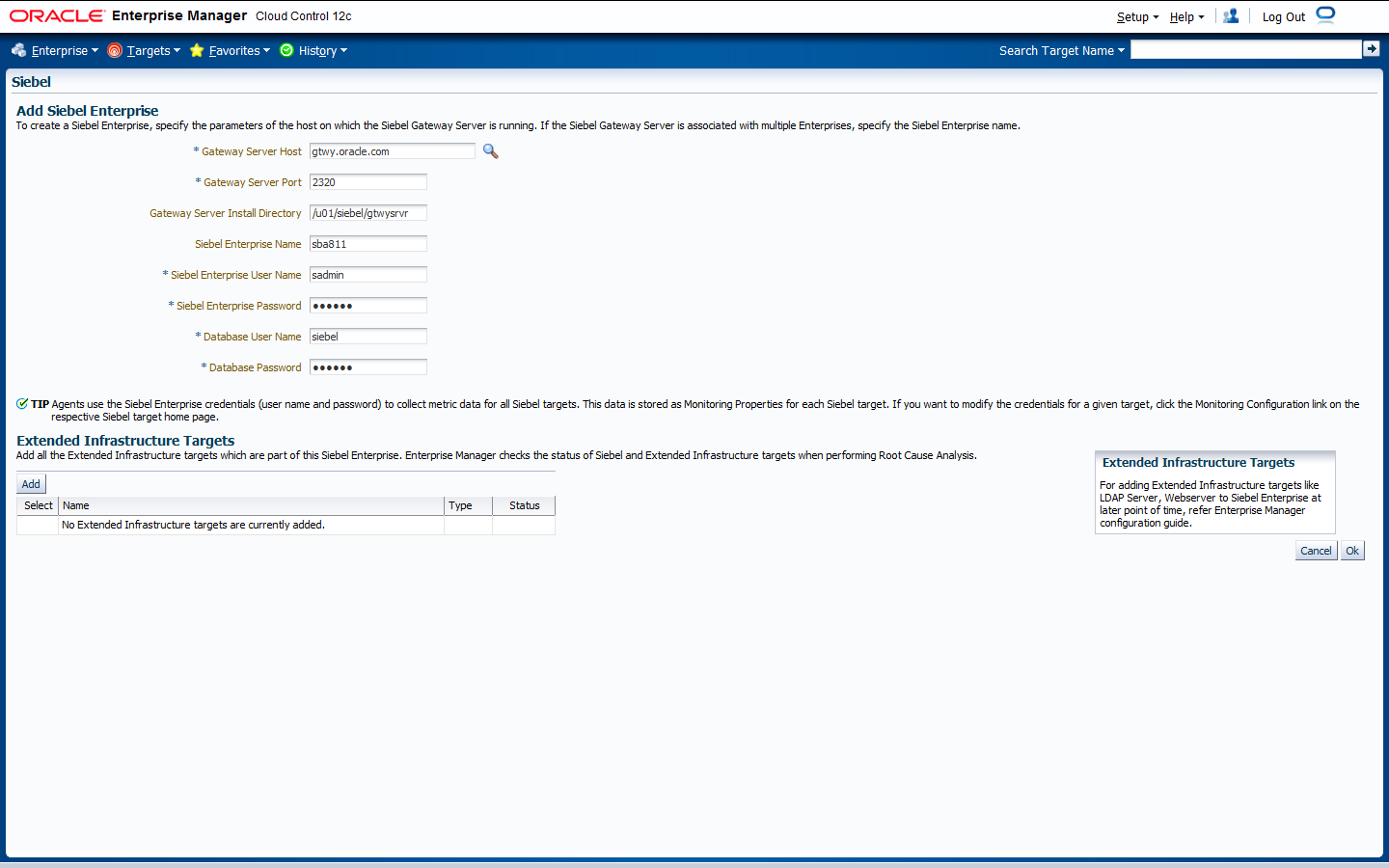

Figure 3-1 Add Siebel Enterprise Page

Updating the Siebel Enterprise Topology

After you add or remove Siebel servers or server components from your Siebel Enterprise, you must resynchronize the topology maintained by the Gateway with the topology maintained by Enterprise Manager.

Perform the following steps to synchronize both topologies:

1. From the Targets menu of the Enterprise Manager Console, select Siebel.

2. In the Enterprise View, click the Siebel Enterprise you want to synchronize.

   The Siebel Enterprise Home page appears, as shown in Figure 3–2.

3. In the right-bottom corner of the page, click Update Now. This functionality rediscovers your Enterprise Manager system topology and generates a comprehensive report.

4. Review the report, and if you agree with the changes to be performed to your Enterprise Manager topology, click OK.

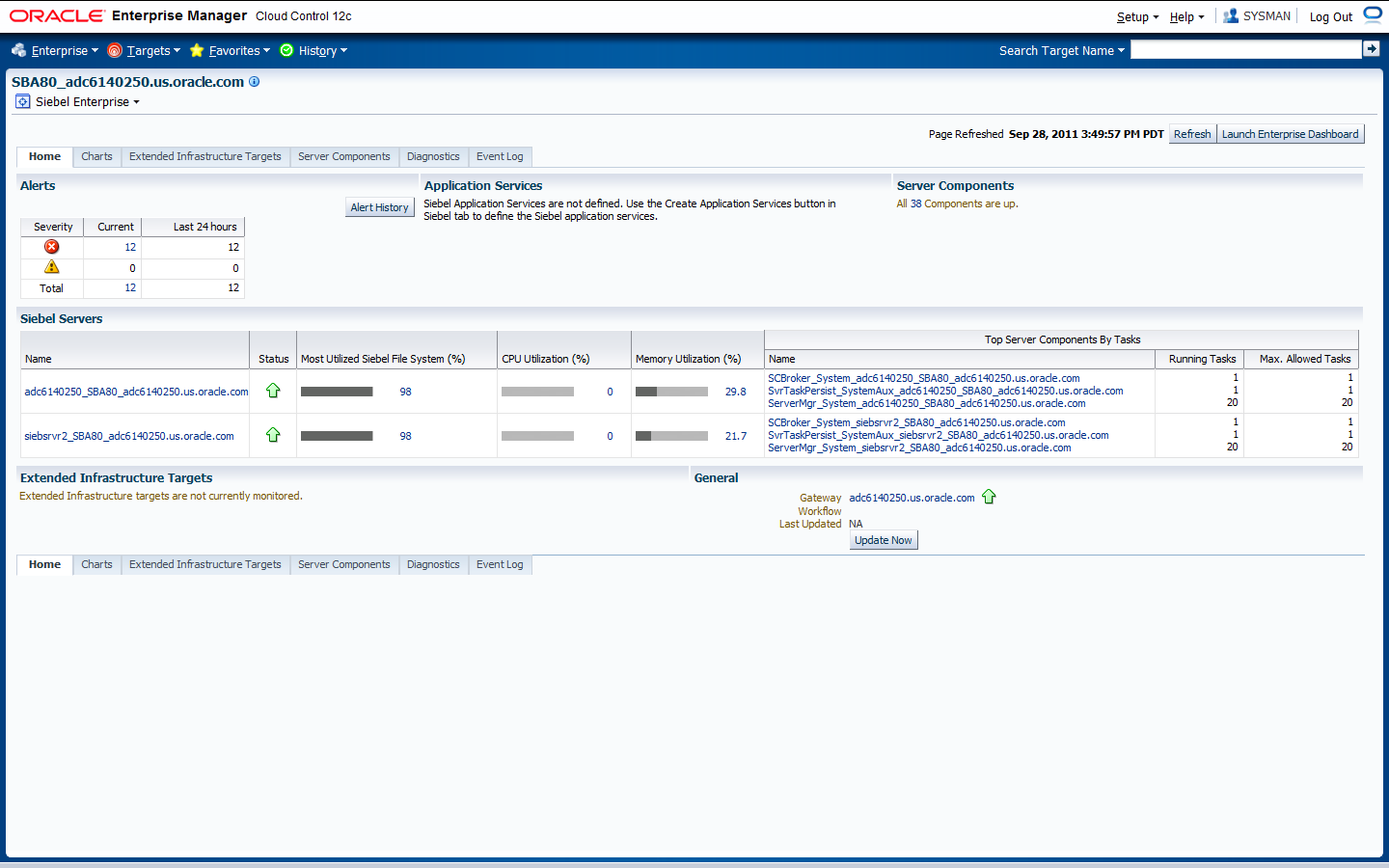

Figure 3-2 Siebel Enterprise Home Page

Adding Non-Siebel Targets to an Existing Siebel Enterprise Target

To add Siebel targets to a Siebel Enterprise target, you can use the Update Now functionality available on the Siebel Enterprise home page.

To add a non-Siebel target to a Siebel Enterprise target:

1. Go to the Oracle Technology Network (OTN) site:

   http://www.oracle.com/technology/software/products/oem/ index.html


2. Download the appropriate third party plug-in, and create the respective target in Enterprise Manager.

3. From the Targets menu of the Enterprise Manager Console, select Siebel.

4. Select Enterprise View from the View list and click the Configure button.

   A table appears displaying the existing Enterprise View components.

5. Click Add and select the target you created above.

   The non-Siebel target you just added is now a part of your Siebel Enterprise.

Defining Manually Added Non-Siebel Targets as Critical Targets for a Service

After manually adding non-Siebel targets to an enterprise, if you want to make these targets available to the Root Cause Analysis functionality available in Enterprise Manager, you need to tag these targets as Key Components.

Perform the following steps to make your non-Siebel target a critical target for any Siebel application service:

1. From the Targets menu of the Enterprise Manager Console, select Siebel.

2. Select Application Service View from the View drop-down list.

3. Select the Siebel application service and click the Configure button.

4. Click System Configuration.

   The System Configuration page appears.

5. Mark the newly added target as Key Component and click the OK button.

Removing Servers or Components From an Existing Enterprise

After creating a Siebel Enterprise target, you can manually remove individual servers or components from the enterprise. However, this deletes the respective target information from the Enterprise Manager repository.

After this entry is deleted, Enterprise Manager does not monitor this target anymore. If you perform a manual resynchronization for this enterprise, Enterprise Manager includes the component in the new system topology.

The two possible paths for manually removing components from an existing enterprise are:

• From the All Targets page, move your mouse over the server or component you want to delete, right-click, select Target Setup from the menu, then Remove Target.

• From the Siebel page, select Siebel Enterprise View, navigate to the enterprise you want to remove, select the radio button next to the enterprise name, then click the Remove button.

  This option removes the Siebel server, targets, and all the enterprise components.
