B Overview of Notification in Enterprise Manager Cloud Control

Note:

This appendix is applicable only if you are upgrading from Enterprise Manager 10g Grid Control Release 5 (10.2.0.5) or Enterprise Manager 11g Grid Control Release 1 (11.1.0.1).

Prior to Enterprise Manager Cloud Control, the notification system notified administrators of target availability status changes, metric alerts, and status changes of job executions. In addition to notifying the administrators, the notification system performed actions such as running operating system commands, including scripts, and PL/SQL procedures when an alert was triggered.

This appendix describes how the notification system has changed significantly in Enterprise Manager Cloud Control. In particular, this appendix covers the following:

Understanding Events, Incidents, and Incident Rulesets

In the earlier releases of Enterprise Manager, the notification system operated using Notification Rules, which were a set of predetermined rules or conditions indicating when a notification had to be sent and what actions had to be taken.

In Enterprise Manager Cloud Control, this concept of Notification Rules has been enhanced and subsumed into a much larger and newer concept called Incident Rulesets.

Before discussing Incident Rulesets, understand the concept of Events and Incidents.

Incident Ruleset is a set of rules that typically operate on a set of targets, and include individual rules to notify appropriate personnel and take appropriate action on events, incidents, and problems.

Note:

For information about the problems, refer to the Oracle Enterprise Manager Administrator's and User's Guide available in the Enterprise Manager documentation library at:

http://www.oracle.com/technetwork/indexes/documentation/index.html

A rule can operate on events to send notifications as well as create incidents. It can also operate on specific incidents, so you can auto-assign, prioritize, or even escalate them via time-based conditions.

Incident Rulesets are further classified into enterprise and private rulesets.

All Incident Rulesets can be edited by the owner of the ruleset and any super administrator. In addition, the owners can designate other users as coauthors of Enterprise Rulesets. This enables shared management of the ruleset.

Accessing Incident Rulesets

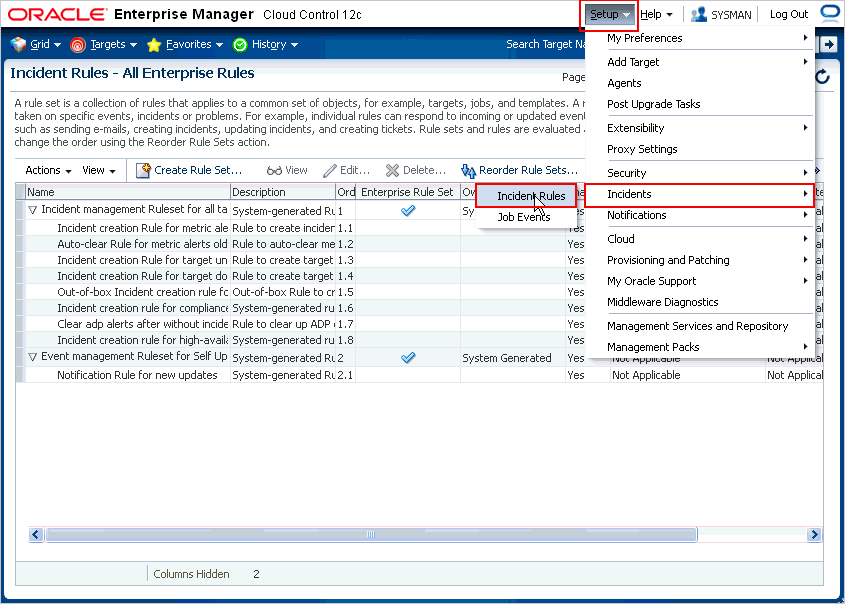

To view all Incident Rulesets, in Enterprise Manager Cloud Control, from the Setup menu, click Incidents, and then, select Incident Rules. Figure B-1 shows the Incident Ruleset page:

Figure B-1 Viewing Incident Rulesets

Incident Rules

Migrating Notification Rules to Incident Rulesets

During upgrade, all Notification Rules created in the earlier release of Enterprise Manager are automatically migrated to corresponding Incident Rulesets that act on the targets originally defined in the Notification Rule.

The following Notification Rules are migrated to Enterprise Rulesets:

The following Notification Rules are migrated to Private Rulesets:

Each of the three possible criteria—availability, metrics, jobs—defined in an old Notification Rule are migrated to three individual rules that operate on appropriate events. The action defined at the Notification Rule level is copied over to each of these rules.

One exception is that the concept of Policy Violations is being withdrawn in Enterprise Manager Cloud Control, and therefore, all policy-specific criteria are ignored and none of the rules that solely operate on policies are migrated.

The owners of Notification Rules, which were created in the earlier release of Enterprise Manager, become the owners of the corresponding Incident Rulesets in Enterprise Manager Cloud Control. These owners can edit the Enterprise Rulesets and Private Rulesets. In addition, all administrators can create Private Rulesets to send e-mails to themselves.

Going forward, the super administrators should determine which administrators can create Enterprise Rulesets by granting the Create Enterprise Ruleset resource privilege.

Note:

For situations where the target type modeling has changed in Enterprise Manager Cloud Control, you must manually adjust the rules as described in Updating Incident Rules.

Working with Notification Methods and Actions

Notification methods and actions defined in earlier releases of Enterprise Manager will continue to work in Enterprise Manager Cloud Control, and the input to these original notification methods are backward compatible in Enterprise Manager Cloud Control. So if you had an OS command or a PL/SQL notification method that operated on metric alerts, you will continue to receive the same input after upgrade. However, all new notification methods you create in Enterprise Manager Cloud Control will accept input based on the new event and incident model.

Note:

Oracle strongly recommends you to replace the Notification Methods created in the earlier releases of Enterprise Manager with the new Enterprise Manager Cloud Control-specific notification methods that operate on the new event model. With the next major release of Enterprise Manager Cloud Control, the older notification methods will no longer function.
