Accessing the Automatic Storage Management Home Page

All Automatic Storage Management (ASM) administration tasks begin with the ASM Home page in Database Control. The ASM Home page displays:

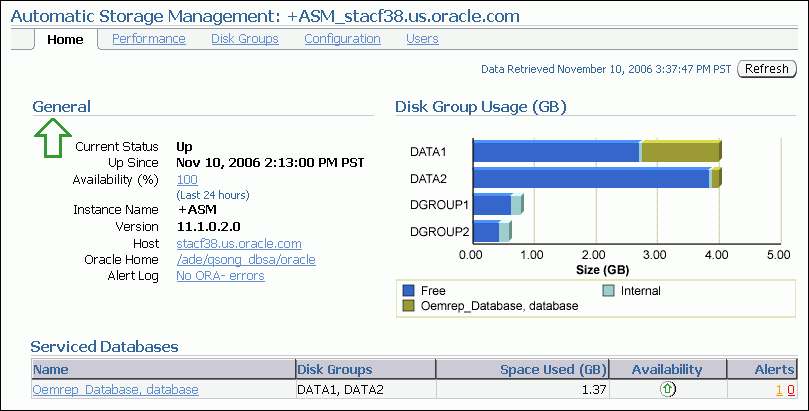

Description of asm_home_11g_b4.gif follows
Description of the illustration asm_home_11g_b4.gif

The procedure for accessing the ASM Home page differs depending on whether your database is a single-instance database or an Oracle Real Application Clusters database. Details are provided in the following sections:

Accessing the ASM Home Page on a Single-Instance System

On a single-instance system, you access the ASM Home page starting from the Database Home page.

To access the ASM Home page on a single-instance system:

  1. Go to the Database Home page, logging in as any database user.

    See "Accessing the Database Home Page".

  2. Under the General heading, click the link next to the label ASM.

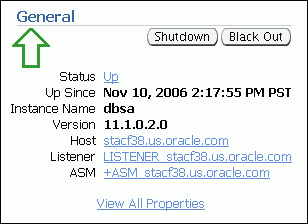

    Description of asm_si_11g_b4.gif follows
    Description of the illustration asm_si_11g_b4.gif

  3. If prompted for ASM login credentials, enter the user SYS, provide the SYS password that was set for the ASM instance upon installation, and connect as SYSASM.

Accessing the ASM Home Page on an Oracle RAC System

On an Oracle RAC system, you access the ASM Home page starting from the Cluster Database Home page.

To access the ASM Home page on an Oracle RAC system:

  1. Log in to Oracle Enterprise Manager on any node that is running the Oracle Management Service (OMS).

    OMS is automatically started on the node where DBCA was run to create the cluster database. Depending on your configuration, OMS may also be running on other nodes.

    See "Accessing the Database Home Page".

  2. On the Cluster Database Home page, under the Instances heading, click the link for the desired ASM instance.
