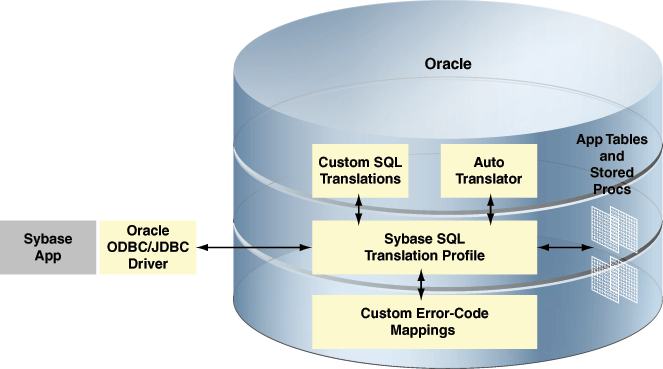

5-1 Sybase Application Running Against Oracle Database

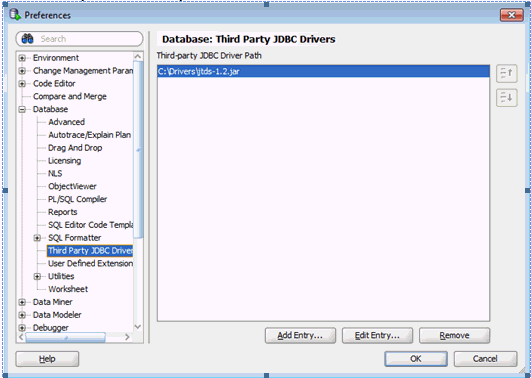

5-2 Setting JTDS JDBC Driver

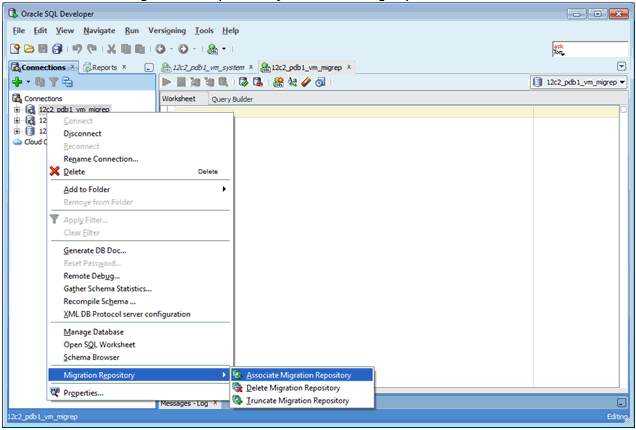

5-3 Associating a User with Migration Repository

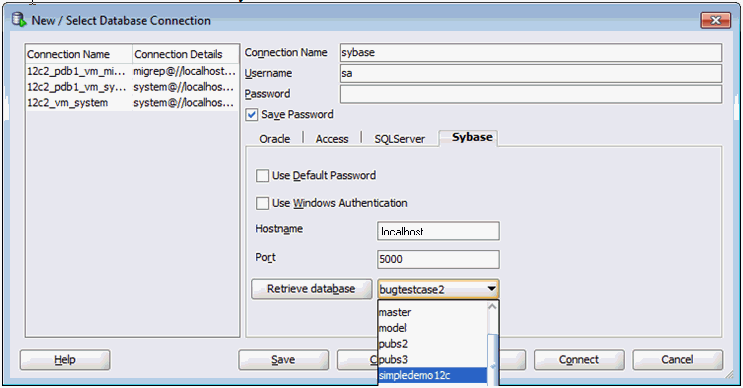

5-4 Creating a Connection to the Sybase Database

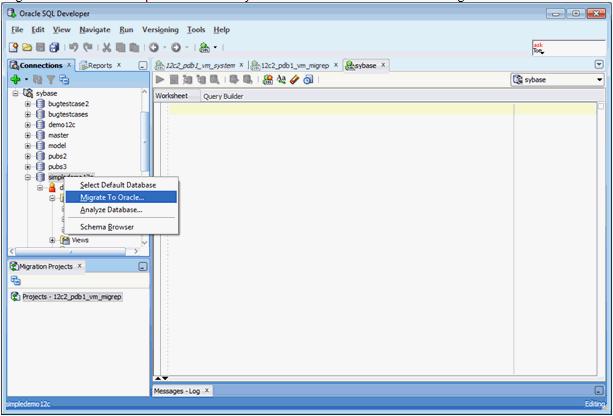

5-5 Starting Capture Phase of Migration Process

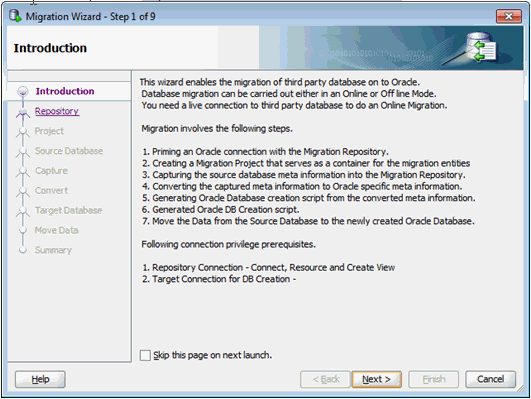

5-6 Migration Wizard Introduction Screen

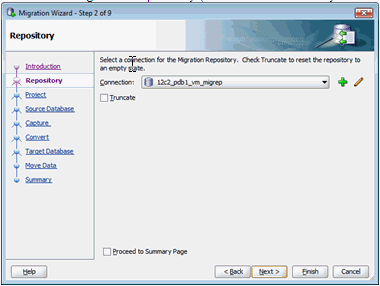

5-7 Choosing the Migration Repository

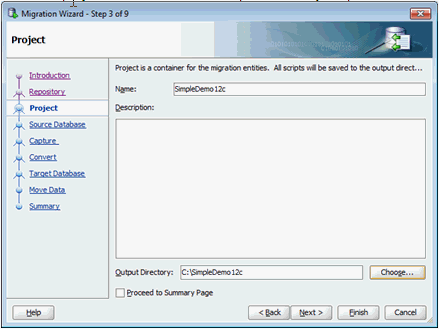

5-8 Specifying Project Name and Output Directory

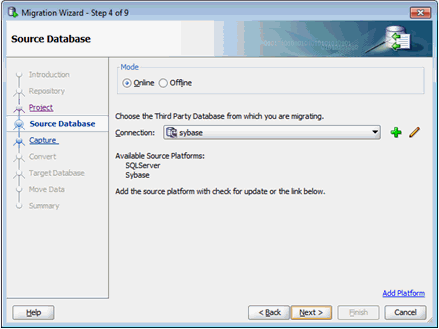

5-9 Selecting the Database Connection and Mode

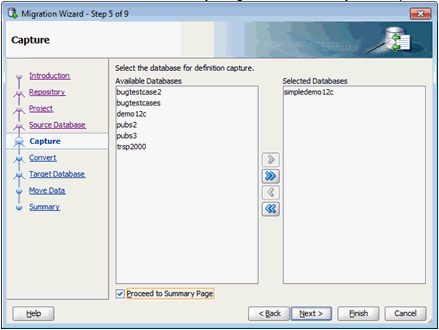

5-10 Selecting the Database to be Migrated

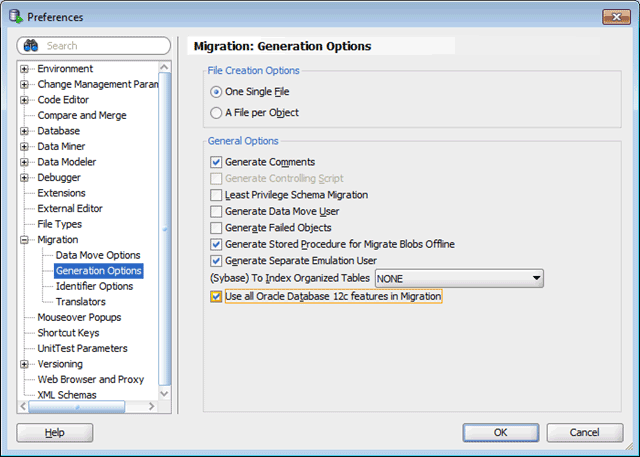

5-11 Setting Migration Preferences

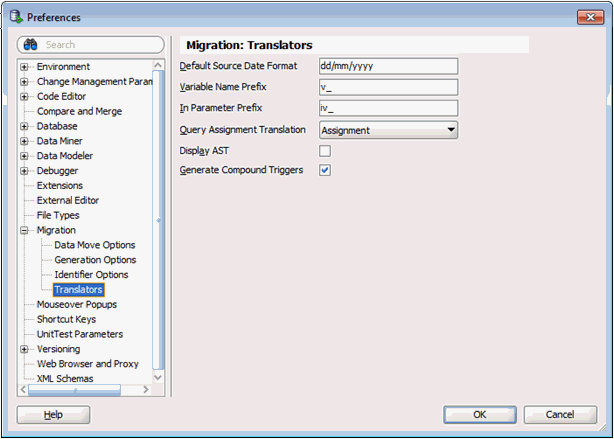

5-12 Setting Migration Preferences

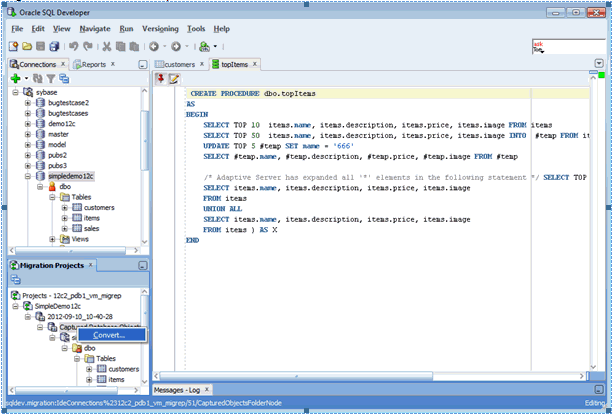

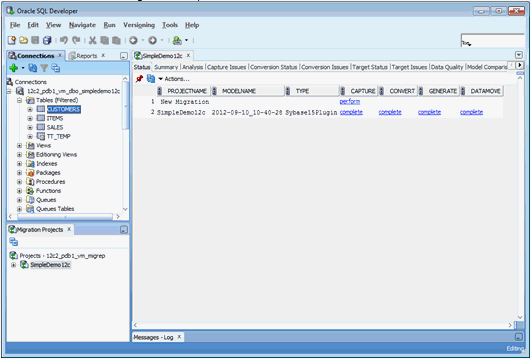

5-13 Starting Convert Phase of Migration Process

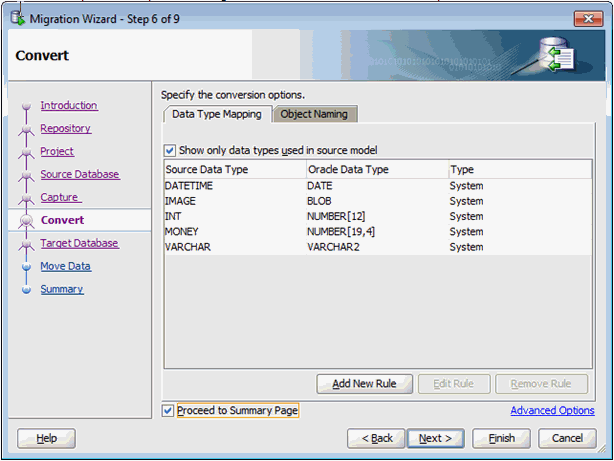

5-14 Converting the Migrated Data

5-15 Selecting the Database Mode

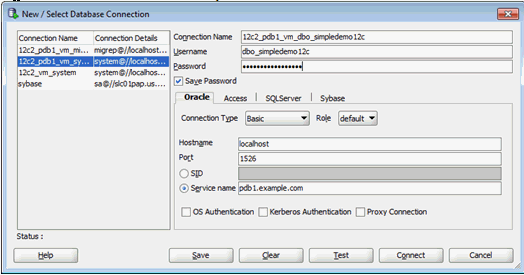

5-16 Creating Oracle Database Connection for Target User dbo_simpledemo12c

5-17 Targeting an Oracle User

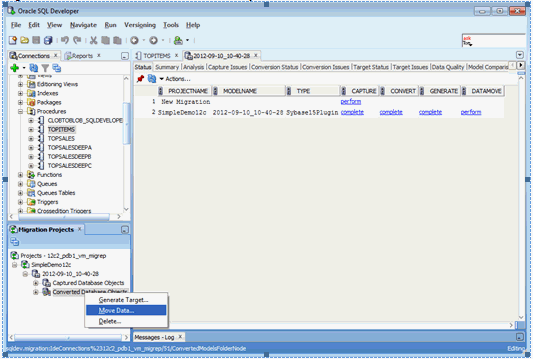

5-18 Moving the Data from Sybase Database to Oracle Database

5-19 Generating Migration Reports

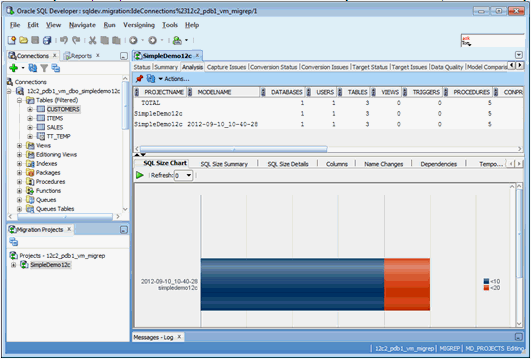

5-20 Migration Analysis Report

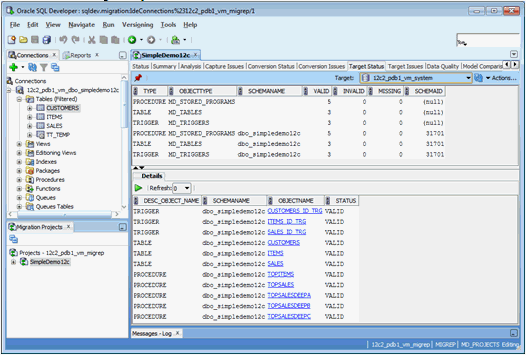

5-21 Target Status Report

6-1 MySQL Application Code Using liboramysql Driver to Connect to Oracle

List of Tables

1-1 Supported Database Versions for Migration Using Oracle SQL Developer

1-2 Supported Applications in Databases

7-1 Mapping Oracle Data Types to MySQL Data Types

7-2 Converting MySQL Program Variable Data Types to Oracle Column Data Types

7-3 Data Type Conversions for LOB Data Type Descriptors

7-4 Data Conversions for Datetime and Internal Data Type

8-1 Translation Properties

8-2 OracleTranslatingConnection Enumeration

8-3 OracleTranslatingConnection Methods

Preface

This guide describes the installation, configuration, and administration tasks for all activities related to migrating applications developed for non-Oracle databases, such as DB2, MySQL, Sybase, and legacy applications, to Oracle Database. This guide also provides migration scenarios that users may implement in sequence.

Audience

This guide is for database administrators and application developers who are interested in migrating from databases other than Oracle to an Oracle Database.

Documentation Accessibility

For information about Oracle's commitment to accessibility, visit the Oracle Accessibility Program website at http://www.oracle.com/pls/topic/lookup?ctx=acc&id=docacc.

Access to Oracle Support

Oracle customers have access to electronic support through My Oracle Support. For information, visit http://www.oracle.com/pls/topic/lookup?ctx=acc&id=info or visit http://www.oracle.com/pls/topic/lookup?ctx=acc&id=trs if you are hearing impaired.

Related Documents

For more information, see the following documents in the Oracle Database Release 12.1 documentation set:

Oracle Database SQL Language Reference

Oracle Database Administrator's Guide

Oracle Database Development Guide

Oracle Database Reference

Conventions

The following text conventions are used in this document:

Convention | Meaning
boldface | Boldface type indicates graphical user interface elements associated with an action, or terms defined in text or the glossary.
italic | Italic type indicates book titles, emphasis, or placeholder variables for which you supply particular values.
monospace | Monospace type indicates commands within a paragraph, URLs, code in examples, text that appears on the screen, or text that you enter.

1 Introduction to Tools and Products that Support Migration

This chapter contains the following sections:

Migration Overview

Oracle Database 12c Release 1 Features for Migration Support

Other Oracle Products that Enable Migration

Migration Support for Other Database Vendors

Migration Overview

Before migrating your application to Oracle Database, you must be aware of several key points that are described in Oracle Database Concepts.

When discussing the migration of a database-centered enterprise, it is useful to keep in mind that the actual migration of database schema and data is only a part of the process. The migration of a core business solution often involves several databases and applications that work together to deliver the product and services that drive the revenue of an organization. For more information about preparing a migration plan, see Oracle SQL Developer User's Guide.

Oracle Database 12c Release 1 Features for Migration Support

The following features introduced in Oracle Database 12c Release 1, collectively enhance the migration process of non-Oracle database applications to Oracle Database:

SQL Translation Framework

Support for MySQL Applications

Identity Columns

Implicit Statement Results

Enhanced SQL to PL/SQL Bind Handling

Native SQL Support for Query Row Limits and Row Offsets

JDBC Driver Support for Application Migration

ODBC Driver Support for Application Migration

SQL Translation Framework

A key part of migrating non-Oracle databases to Oracle Database involves the conversion of non-Oracle SQL statements to SQL statements that are acceptable to Oracle Database. The conversion of the non-Oracle SQL statements of the applications is a manual and tedious process. To minimize the effort, or to eliminate the necessity for converting these statements, Oracle Database Release 12c introduces a new feature called SQL Translation Framework using which these SQL statements can be accepted from client applications and then can be translated at run-time before execution.

Inside the Database, the SQL statements are translated by the SQL Translator, registered with the SQL Translation Profile, to handle the translation for the non-Oracle client application. If an error occurs while a SQL statement is executed, then the SQL Translator can also translate the Oracle error code and the ANSI SQLSTATE to the vendor-specific values expected by the application. The translated statements are then saved in the SQL Translation Profile, so that you can examine and edit at your discretion.

The advantages of SQL Translation Framework are the following:

The translation of SQL statements, Oracle error codes, and ANSI SQLSTATE is automatic.

The translations are centralized and examinable.

You can extract the translations and insert them back to the applications at a later point.

Support for MySQL Applications

Oracle Database driver for MySQL eases migration of applications initially developed to work with MySQL database. This feature has two key benefits:

It enables the enterprise to reuse the same application to use data stored in both MySQL Database and Oracle Database

It reduces the cost and complexity of migrating MySQL applications to Oracle Database

Oracle Database supports all MySQL functions in the client interface with the same semantics. SQL statements are translated with the following restrictions:

The following SQL constructs are ignored:

ENGINE specification for a table as there is only one storage engine, namely Oracle

The ENUM and SET types are used as VARCHAR2. Therefore, these values are not converted to their index value if retrieved in a numeric context.

The following SQL constructs give an error, so that the application is forced to recode:

Creation of tables with spatial datatypes such as GEOMETRY, POINT, LINESTRING, POLYGON, GEOMETRYCOLLECTION, MULTILINESTRING, MULTIPOINT, and MULTIPOLYGON

MySQL-specific NLS commands

The following SQL commands give Oracle-specific output or have Oracle-specific effect:

SHOW DATABASES shows only one database, namely oracle

SHOW ENGINES shows the Oracle engine only

CREATE PROCEDURE must follow Oracle PL/SQL specification in Oracle Database 12c Release 1.

The following data types have different behavior:

Columns of ENUM data types are created as VARCHAR2(4000). No validation is performed for insertion.

Columns of SET data types are created as VARCHAR2(64). No validation is performed for insertion.

For further details, see Chapter 6, "MySQL Client Library Driver for Oracle" and Chapter 7, "API Reference for Oracle MySQL Client Library Driver".

Identity Columns

Oracle Database 12c Release 1 implements ANSI-compliant IDENTITY columns. Migration from database systems that use identity columns is simplified and can take advantage of this new functionality.

This feature implements auto increment by enhancing DEFAULT or DEFAULT ON NULL semantics for use by SEQUENCE.NEXTVAL and SYS_GUID, supports built-in functions and implicit return of default values.

Example 1-1 creates a table with an identity column, which generated by default. When explicit nulls are inserted into the identity column, the default behavior is to use the sequence generator. For further details, see Oracle Database SQL Language Reference.

Example 1-1 How to create an identity column

CREATE TABLE t1 (c1 NUMBER GENERATED BY DEFAULT ON NULL AS IDENTITY,
                   c2 VARCHAR2(10));
INSERT INTO t1(c2) VALUES (&rsquor;abc');
INSERT INTO t1 (c1, c2) VALUES (null, &rsquor;xyz');
SELECT c1, c2 FROM t1;

Implicit Statement Results

Starting with Oracle Database 12c Release 1, Oracle supports results of SQL statements executed in a stored procedure to be returned implicitly to the client applications without the necessity to explicitly use a REF CURSOR. This feature eliminates the overhead of re-writing the client-side code.

Implicit statement results enable you to write a stored procedure, where each intended query (the statement after the FOR keyword) is part of the OPEN cursor variable. The PL/SQL layer adds the equivalent capability and enables SELECT statements to pass the results to the client, when code is migrated to Oracle Database from other vendors environments. The stored procedures can return the results directly to the client with the DBMS_SQL.RETURN_RESULT procedure. The SQL*Plus FORMAT command and its variations may be invoked to customize the output.

For information about the DBMS_SQL package, see Oracle Database PL/SQL Packages and Types Reference. For information about how to use format output, SQL*Plus User's Guide and Reference.

JDBC Support for Implicit Results

Starting with Oracle Database 12c Release 1, JDBC applications provide support for implicit results through the following new functions:

getMoreResults

getMoreResults(int)

getResultSet

You can use these methods to retrieve and process the implicit results returned by PL/SQL procedures or blocks, as demonstrated in Example 1-2.

Example 1-2 Retrieving and Processing Implicit Results from PL/SQL Blocks

Suppose you have a procedure called foo:

 create procedure foo as
  c1 sys_refcursor;
  c2 sys_refcursor;
begin
  open c1 for select * from hr.employees;
  dbms_sql.return_result(c1); --return to client
  -- open 1 more cursor
  open c2 for select * from hr.departments;
  dbms_sql.return_result (c2); --return to client
end;

The following code demonstrates how to retrieve the implicit results returned by PL/SQL procedures using the JDBC getMoreResults methods:

String sql = "begin foo; end;";
...
Connection conn = DriverManager.getConnection(jdbcURL, user, password);
 try {
        Statement stmt = conn.createStatement ();
        stmt.executeQuery (sql);

        while (stmt.getMoreResults())
        {
              ResultSet rs = stmt.getResultSet();
              System.out.println("ResultSet");
              while (rs.next())
             {
                   /* get results */
             }
         }
      }

For more information, see Oracle Database JDBC Developer's Guide

OCI Support for Implicit Results

Starting with Oracle Database 12c Release 1, Oracle Call Interface (OCI) provides support for implicit results through a new function, OCIStmtGetNextResult(). It is called iteratively by C applications to retrieve each implicit result from stored procedures and anonymous blocks. Implicit results consume rows directly from a stored procedure without going through a RefCursor.

Example 1-3 shows how to use the OCIStmtGetNextResult() function to retrieve and process the implicit results returned by either a PL/SQL stored procedure or an anonymous block:

Example 1-3 Using OCIStmtGetNextResult() to Process Implicit Results

OCIStmt *stmthp;
  ub4      rsetcnt;
  void    *result;
  ub4      rtype;
  char    *sql = "begin foo; end;";

  OCIHandleAlloc((void *)envhp, (void **)&stmthp,
                  OCI_HTYPE_STMT, 0, (void **)0);

  /* Prepare and execute the PL/SQL procedure. */
  OCIStmtPrepare(stmthp, errhp, (oratext *)sql, strlen(sql),
                 OCI_NTV_SYNTAX, OCI_DEFAULT);
  OCIStmtExecute(svchp, stmthp, errhp, 1, 0,
                 (const OCISnapshot *)0,
                 (OCISnapshot *)0, OCI_DEFAULT);

  /* Now check if any implicit results are available. */
  OCIAttrGet((void *)stmthp, OCI_HTYPE_STMT, &rsetcnt, 0,
             OCI_ATTR_IMPLICIT_RESULT_COUNT, errhp);

  /* Loop and retrieve the implicit result-sets.
   * ResultSets are returned in the same order as in the PL/SQL
   * procedure/block.
   */
  while (OCIStmtGetNextResult(stmthp, errhp, &result, &rtype,
                              OCI_DEFAULT) == OCI_SUCCESS)
{    /* Check the type of implicit ResultSet, currently
     * only supported type is OCI_RESULT_TYPE_SELECT
*/    if (rtype == OCI_RESULT_TYPE_SELECT)
{      OCIStmt *rsethp = (OCIStmt *)result;
       /* Perform normal OCI actions to define and fetch rows. */
    }    else
      printf("unknown result type %d\n", rtype);
     /* The result set handle should not be freed by the user. */
  }   OCIHandleFree(stmthp, OCI_HTYPE_STMT); /* All implicit result-sets are also freed. */

See Also:

Oracle Call Interface Programmer's Guide

ODBC Support for Implicit Results

Starting with Oracle Database 12c Release 1, ODBC applications provide support for implicit results through a new function, SQLMoreResults(). ODBC driver is enhanced to make use of the following new OCI APIs that enhance the migration process:

OCIStmtGetNextResult() function

OCI_ATTR_IMPLICIT_RESULT_COUNT attribute

OCI_RESULT_TYPE_SELECT attribute

ODBC support for implicit results enables the migration of Sybase and SQL Server applications that use multiple result sets bundled in the stored procedures. Oracle achieves this by sending the statements or procedures to the server, where the non-Oracle SQL is translated to Oracle syntax. Example 1-4 and Example 1-5 demonstrate how to retrieve implicit results in ODBC. See Oracle Call Interface Programmer's Guide for more information on this topic.

Example 1-4 Using ODBC to retrun implicit results with DBMS_SQL.RETURN_RESULT

create or replace procedure foo
is
c1 sys_refcursor;
c2 sys_refcursor;
begin
  open c1 for select employee_id, first_name from employees where employee_id=7369;
  dbms_sql.return_result(c1);
  open c2 for select department_id, department_name from departments where rownum <=2;
  dbms_sql.return_result(c2);
end;
/

Example 1-5 Using ODBC to return implicit results with SQLMoreResults

SQLLEN enind,jind;
SQLUINTEGER eno = 0;
SQLCHAR empname[STR_LEN] = "";
//Allocate HENV, HDBC, HSTMT handles
rc = SQLPrepare(hstmt, "begin foo(); end;", SQL_NTS);
rc = SQLExecute(hstmt);
//Bind columns for the first SELECT query in the procedure foo( )
rc = SQLBindCol (hstmt, 1, SQL_C_ULONG, &eno, 0, &jind);
rc = SQLBindCol (hstmt, 2, SQL_C_CHAR, empname, sizeof (empname),
&enind);
…
//so on for all the columns that needs to be fetched as per the SELECT
//query in the procedure.
//Fetch all results for first SELECT query
while ((rc = SQLFetch (hstmt)) != SQL_NO_DATA)
{
//do something
}
//Again check if there are any results available by calling
//SQLMoreResults. SQLMoreResults will return SQL_SUCCESS if any
//results are available else returns errors appropriately as explained
//in MSDN ODBC spec.
rc = SQLMoreResults ( hstmt );
if( rc == SQL_SUCCESS)
{
//If the columns for the second SELECT query are different the rebind
//the columns for the second SELECT SQL statement.
rc = SQLBindCol (hstmt, 1,…);
rc = SQLBindCol (hstmt, 2,…);
…
//Fetch the second result set
while ((rc = SQLFetch (hstmt)) != SQL_NO_DATA)
//do something
}
SQLFreeStmt(hstmt,SQL_DROP);
SQLDisconnect (hdbc);

SQLFreeConnect (hdbc);
SQLFreeEnv (henv);

Enhanced SQL to PL/SQL Bind Handling

In earlier releases of Oracle Database, a SQL expression could not invoke a PL/SQL function that had a formal parameter or return type that was not a SQL data type.

Starting with Oracle Database Release 12c, a PL/SQL anonymous block, a SQL CALL statement, or a SQL query can invoke a PL/SQL function that has parameters of the following types:

Boolean

Record declared in a package specification

Collection declared in a package specification

Also, the SQL TABLE operator is enhanced, so that you can query on PL/SQL collections of locally scoped types as an argument to TABLE operator. Here, the collections can be of nested table types, VARRAY, or PL/SQL index table that are indexed by PLS_INTEGER.

This feature, in particular, the extended flexibility of the TABLE operator enables non-Oracle stored procedure code to be easily migrated to PL/SQL.

Example 1-6 shows how to dynamically call a subprogram with a nested table formal parameter. See Oracle Database PL/SQL Language Reference for more information on this topic.

Example 1-6 Invoking a subprogram with a nested table formal parameter

CREATE OR REPLACE PACKAGE pkg AUTHID CURRENT_USER AS

  TYPE names IS TABLE OF VARCHAR2(10);

  PROCEDURE print_names (x names);
END pkg;
/
CREATE OR REPLACE PACKAGE BODY pkg AS
  PROCEDURE print_names (x names) IS
  BEGIN
    FOR i IN x.FIRST .. x.LAST LOOP
      DBMS_OUTPUT.PUT_LINE(x(i));
    END LOOP;
  END;
END pkg;
/
DECLARE
  fruits   pkg.names;
  dyn_stmt VARCHAR2(3000);
BEGIN
  fruits := pkg.names('apple', 'banana', 'cherry');

  dyn_stmt := 'BEGIN print_names(:x); END;';
  EXECUTE IMMEDIATE dyn_stmt USING fruits;
END;

Native SQL Support for Query Row Limits and Row Offsets

Starting with this release, Oracle Database provides a row limiting clause that enables native SQL support for query row limits and row offsets. If your application has queries that limit the number of rows returned or offset the starting row of the results, this feature significantly reduces SQL complexity for such queries.

Example 1-7 shows how to limit bulk selection with the FETCH FIRST clause. See Oracle Database SQL Language Reference for more information on this topic.

Example 1-7 How to limit bulk selection

DECLARE
  TYPE SalList IS TABLE OF employees.salary%TYPE;
  sals SalList;
BEGIN
  SELECT salary BULK COLLECT INTO sals FROM employees
    WHERE ROWNUM <= 50;

  SELECT salary BULK COLLECT INTO sals FROM employees
    SAMPLE (10);

  SELECT salary BULK COLLECT INTO sals FROM employees
    FETCH FIRST 50 ROWS ONLY;
END;
/

JDBC Driver Support for Application Migration

Many applications that you want to migrate to Oracle Database from other databases have Java applications that use JDBC to connect to the database. To facilitate SQL translation, Oracle Database 12c Release 1 introduces a new set of JDBC APIs that are specific to SQL translation.

See Also:

"SQL Translation of JDBC Applications"

Chapter 8, "API Reference for SQL Translation of JDBC Applications"

http://www.oracle.com/technetwork/database/enterprise-edition/jdbc-112010-090769.html for an updated list of JDBC drivers

ODBC Driver Support for Application Migration

ODBC driver supports the migration of third-party applications to Oracle Databases by using the SQL Translation Framework. This enables non-Oracle database SQL statements to run against Oracle Database. See "How to Use SQL Translation Framework" before migratng third-party ODBC application to Oracle Database.

To use this feature with an ODBC application, you must specify the service name, which was created as part of SQL Translation Framework setup, as the ServerName= entry in the .odbc.ini file.

If you require support for translation of Oracle errors (ORA errors) to your the native database, once your application starts running against Oracle Database, then you must enable the SQLTranslateErrors=T entry in the .odbc.ini file. See "SQL Translation of ODBC Applications" for more information on this topic.

Other Oracle Products that Enable Migration

Oracle recommends the use of the following products as part of an overall migration strategy:

OEM Tuning and Performance Packs

Oracle GoldenGate

Oracle Database Gateways

Oracle SQL Developer

OEM Tuning and Performance Packs

For every type of migration, a few of the SQL statements used in the application must change, and some indexes must be re-built. Oracle SQL Tuning and Performance Packs provide guidance for the optimization step of the application migration.

Oracle GoldenGate

Oracle GoldenGate is a comprehensive software package for enabling the replication of data in heterogeneous data environments. The product set enables high availability solutions, real-time data integration, transactional change data capture, data replication, transformations, and verification between operational and analytical enterprise systems.

Oracle GoldenGate enables the exchange and manipulation of data at the transaction level among multiple, heterogeneous platforms across the enterprise. Its modular architecture provides the flexibility to extract and replicate selected data records, transactional changes, and changes to DDL (data definition language) across a variety of topologies.

When you migrate very large databases, the actual process of copying data from one database to another is time-consuming. During this time, the enterprise must continue delivering services using the old solution, which changes some of the data. These run-time changes must be captured and propagated to Oracle Database. Oracle GoldenGate captures these changes and enables side-by-side testing to ensure that the new solution performs as planned.

Oracle Database Gateways

Oracle Database Gateways address the needs of disparate data access. In a heterogeneously distributed environment, Gateways make it possible to integrate with any number of non-Oracle systems from an Oracle application. They enable integration with data stores such as IBM DB2, Microsoft SQL Server and Excel, transaction managers like IBM CICS and message queuing systems like IBM WebSphere MQ.

For more information about Oracle Database Gateways, see http://www.oracle.com/technetwork/database/gateways/index.html

Oracle SQL Developer

Oracle SQL Developer, as described in Oracle SQL Developer User's Guide, has a large suite of features that enable migration, including the following features:

Support for database migration, such as schema, data, and server-side objects, from non-Oracle databases to Oracle Database (Migration Wizard)

Support for application migration, including SQL statement pre-processing and data type translation support (Application Migration Assistant)

Migration Support for Other Database Vendors

Oracle provides migration support for applications running on various databases. Table 1-1 lists the supported database versions for migration using Oracle SQL Developer; this is not a comprehensive list. SQL translation may not work properly for every database.

Table 1-1 Supported Database Versions for Migration Using Oracle SQL Developer

RDBMS
Supported Versions

SQL Server

7.0, 2000, 2005,2008

Sybase Adaptive Server (ASE)

12, 15

Access

97, 2000, 2002 and 2003

MySQL

3,4,5

DB2

AS400 V4R3, V4R5

DB2 LUW

8, 9

Teradata

12

Informix

7.3, 9.1, 9.2, 9.3, 9.4

Table 1-2 provides information about the applications supported in several third-party databases. Note that while translation framework is available for DB2 LUW, a translator for DB2 is not available.

Table 1-2 Supported Applications in Databases

Application
SQL Server
DB2 LUW
DB2 AS400
Sybase ASE
Teradata
Informix

Oracle SQL Developer

Yes

Yes

No

Yes

Yes

No

Oracle Migration Workbench

No

No

Yes

No

No

Yes

SQL Translation Framework (SQL Translation Profile)

Yes

Yes

Yes

Yes

Yes

Yes

SQL Translation Framework (SQL Translator)

yes

Partial

No

Yes

No

No

2 SQL Translation Framework Overview and Architecture

This chapter describes the overview and architecture of SQL Translation Framework in the following sections:

When to Use SQL Translation Framework

What is SQL Translation Framework

Architecture of SQL Translation Framework

How to Use SQL Translation Framework

When to Use SQL Translation Framework

Use SQL Translation to migrate a client application that uses SQL statements with vendor-proprietary SQL syntax.

Currently, SQL Translators are available only for Sybase and SQL Server, and there is limited support for DB2.

SQL Translation Framework is designed for use with open API applications, such as ODBC or JDBC, and applications that use SQL statements that may be translated into semantically-equivalent Oracle syntax. These applications must relink to the Oracle ODBC or JDBC driver and then execute through the translation service.

Following are the possible scenarios for the connection mechanism:

If the application uses ODBC, JDBC, OLE DB or .NET driver, or data provider to connect to the database, then the driver or data provider for Oracle must be replaced.

If the application uses MySQL client library to connect to MySQL, then the library with Mysql Client Library Driver for Oracle must be replaced.

No direct translator is available for DB2. For more information, refer to "Migration Support for Other Database Vendors".

If the application uses IBM DRDA network protocol to connect to DB2, then the database connection settings must be changed to connect to Oracle through DRDA Application Server for Oracle.

If the application uses a vendor-proprietary C client API (the case of Sybase), then the API calls must be replaced with appropriate Oracle OCI APIs.

What is SQL Translation Framework

Various client-side applications, designed to work with non-Oracle Databases, cannot be used with Oracle Database without significant alterations. This is because SQL dialect varies among vendors of database technologies and different vendors use different syntaxes to express SQL queries and statements.

Starting with Oracle Database Release 12c, there is a new mechanism called SQL Translation Framework that translates the SQL statements of a client program from a foreign (non-Oracle) SQL dialect into the SQL dialect used by the Oracle Database SQL compiler.

In addition to translating non-Oracle SQL statements, the SQL Translation Framework can also be used to substitute an Oracle SQL statement with another Oracle statement to address a semantic or a performance issue. In this way, you can address an application issue without patching the client application.

The SQL translation framework consists of the following two components:

The SQL Translator

The SQL Translation Profile

The SQL Translator

The SQL Translator is a software component, provided by Oracle or third-party vendors, which can be installed in Oracle Database. It translates the SQL statements of a client program before they are processed by the Oracle Database SQL compiler. If an error results from translated SQL statement execution, then Oracle Database SQL compiler generates an Oracle error message.

The SQL Translator automatically translates non-Oracle SQL to Oracle SQL, thereby enabling the existing client-side application code to run largely unchanged against an Oracle Database. This reduces the cost of migration to Oracle Database storage significantly. As a corollary, the translation feature may be used in other scenarios, where it may be expedient to intervene between the original SQL statement submitted by the client and its actual execution.

The SQL Translation Profile

The SQL Translation Profile is a database object that contains the set of captured non-Oracle SQL statements, and their translations or translation errors. The SQL Translation Profile is used to review, approve, and modify translations. A profile is associated to a single translator. However, a translator can be used in one or more SQL Translation Profiles. Typically, there is one SQL Translation Profile per application, otherwise applications can share translated queries. You can export profiles among various databases.

Figure 2-1 illustrates the run-time overview the SQL Translation Framework.

Figure 2-1 SQL Translation Framework at Runtime

Architecture of SQL Translation Framework

The key component of SQL Translation Framework is the SQL Translation Profile. The profile is a collection of non-Oracle statements that are processed through the translator. The application sets the profile to use when connecting to the Oracle Database. The translator handles the actual translation work.

In most cases, the non-Oracle SQL statements and errors are translated by a SQL Translator registered in the profile. The translator may be supplied by Oracle or by a third-party vendor. If the translator does not have a translation for a particular SQL statement or error, then you may register your own custom translation to fill its place. You may also register your own custom translation if you want to override the translation of the translator with customized translation.

How to Use SQL Translation Framework

Perform the following steps for using SQL Translation Framework:

Install a SQL Translator, either from Oracle or a third-party vendor, in Oracle Database.

Create a SQL Translation Profile and register the SQL Translator with the profile.

Create a Database service and specify the SQL Translation Profile as a service attribute to which the application can connect.

Note that setting the SQL Translation Profile at the service level ensures that everything running through that listener service is translated automatically.

The translator can also be activated at connection level by using the ALTER SESSION statement or the LOGON triggers.

Link the application with an Oracle driver to connect the application to Oracle Database. You must also change the connection settings to connect to the Database service with the SQL Translation Profile.

Test all functionalities of the application against Oracle Database. As the application runs, the SQL Translation Profile translates SQL statements of the application from the third-party SQL dialect to semantically-equivalent Oracle syntax and register them in the profile.

If the translator does not have a translation for a particular SQL statement or error, then you may register your own translation to fill its place.

Verify the custom translations and edit them, if required, or register new ones to ensure that the application performs as intended until testing is complete.

Oracle recommends establishing a test environment and rigorously testing the application, ideally through a regression test suite.

Set up the server-side application objects and data in the production Oracle Database for deployment to a production environment.

Create a database service with the profile set as a service attribute and change the connection settings of the application, so that it connects to the database service in the production database. The application is expected to run as tested.

Oracle recommends that the application be monitored to guard against the possibility of errors due to unavailability of translation of any SQL statement. You must first disable the automatic translation of new and unseen SQL statements in the profile; when any such statement is encountered, it raises an error that is logged. In cases of alerts for mis-translation, you must make adjustments to the profile.

See Also:

The new DBMS_SQL_TRANSLATOR PL/SQL package and updated DBMS_SQL and DBMS_SERVICE PL/SQL packages in the Oracle Database PL/SQL Packages and Types Reference.

Updated GRANT and REVOKE statements and new system privileges in the Oracle Database SQL Language Reference.

Oracle Database PL/SQL Packages and Types Reference

Oracle Database Administrator's Guide

3 SQL Translation Framework Configuration

This chapter discusses the following topics:

Installing and Configuring SQL Translation Framework with Oracle SQL Developer

Installing and Configuring SQL Translation Framework from Command Line

Granting Necessary Permissions for Installing the SQL Translator

Installing and Configuring SQL Translation Framework with Oracle SQL Developer

You can use the DBA Navigator in Oracle SQL Developer 3.2 to install and manage the translator and translation profile.

This section contains the following topics:

Overview of Oracle SQL Developer Migration Support

Setting Up Oracle SQL Developer 3.2 for Windows

Creating a Connection to Oracle Database

Testing SQL Translation

Creating a Translation Profile and Installing SQL Translator

Using the SQL Translator Profile

Overview of Oracle SQL Developer Migration Support

The SQL Translation framework is installed as part of Oracle Database installation. However, it must be configured to recognize the non-Oracle SQL dialect of the application and you must install at least one translator to fully utilize the framework.

Before using the SQL Translation feature, you must migrate your data, schema, stored procedures, triggers, and views. Oracle implements database schema migration and data migration through Oracle SQL Developer functionality. Oracle SQL Developer simplifies the process of migrating a non-Oracle database to an Oracle Database through the use of Migration Wizard. The Migration wizard provides convenient and comprehensive guidance through the phases involved in migrating a database.

Oracle SQL Developer captures information from the source non-Oracle database and displays it in a captured model, which is a representation of the structure of the source database. This representation is stored in a migration repository, which is a collection of schema objects that Oracle SQL Developer uses to store migration information.

The information in the repository is used to generate the converted model, which is a representation of the structure of the destination database as it will be implemented in the Oracle database. You can then use the information in the captured model and the converted model to compare database objects, identify conflicts with Oracle reserved words, and manage the migration progress. When you are ready to migrate, generate the Oracle schema objects, and then migrate the data.

This section describes how to perform the subsequent tasks that enable automatic run-time migration. These examples use SQL Translator with a JDBC application that runs against a Sybase database; they can be easily adapted for other client/database configurations. Note that Oracle SQL Developer is shipped with an installed Sybase translator.

See Oracle SQL Developer User's Guide for more information.

Setting Up Oracle SQL Developer 3.2 for Windows

Oracle SQL Developer 3.2 is shipped with Oracle Database 11g JDBC drivers and there is no client for Windows in this release. If you are using a Windows system, then you must enable Oracle SQL Developer 3.2 to use Oracle Database 12c JDBC driver, so that all the features of the current release are enabled. Perform the following steps to achieve this:

Rename the sqldeveloper\jdbc\lib folder to sqldeveloper\jdbc\lib_11g.

Create a new empty folder as sqldeveloper\jdbc\lib.

Unzip Oracle Database 12c Release 1 JDBC JAR files into the new sqldeveloper\jdbc\lib folder.

See Oracle Database JDBC Developer's Guide for more information about Oracle Database 12c Release 1 JDBC files.

Setting Up Oracle SQL Developer 3.2 Startup

Oracle SQL Developer automatically uses JDBC drivers found in any ORACLE_HOME\client directory. To override this behavior and make Oracle SQL Developer use JDBC drivers in the sqldeveloper\jdbc\lib directory, create a new sqldeveloper.bat file in the sqldeveloper directory:

set ORACLE_HOME=%CD%
start sqldeveloper.exe

Starting Oracle SQL Developer

Run the sqldeveloper.bat file to run Oracle SQL Developer.

To check the JDBC driver configuration:

Select About from Help menu.

Select Properties. It must display the configuration as shown in Figure 3-1:

Figure 3-1 Checking JDBC Configuration for Oracle SQL Developer

Creating a Connection to Oracle Database

Create a connection to the Database with the credentials as shown in Figure 3-2:

Figure 3-2 Creating an Oracle Database Connection

You can use the following command to check the database you are connected to and the JDBC driver being used:

show jdbc

Setting Up Migration Preferences

You must set up the migration preferences in the following way:

Select Preferences from the Tools menu.

Select Generation Options from Migration option on the left panel, as shown in Figure 3-3.

Figure 3-3 Setting Up Migration Preferences in Oracle SQL Developer

Testing SQL Translation

Perform the following steps to determine whether Sybase SQL Translator is properly installed or not:

Open Oracle SQL Developer.

From the Tools menu, select Migration, and then select Translation Scratch Editor.

In the Scratch Editor toolbar, select Sybase T_SQL To PL/SQL option, which is the Sybase translator.

In the left panel of the Scratch Editor, enter the following query in Sybase SQL dialect:

select top 10 * from dual

Click the Translate icon.

The translated query text is displayed in the right panel of the editor.

Creating a Translation Profile and Installing SQL Translator

Oracle SQL Developer is installed with Oracle Database Release 12c. It loads Java classes of the Sybase Translator, approximately 15 MB, into Oracle Database. Due to the size and the number of Java classes loaded, Oracle recommends you to install the translator locally, and not over a WAN.

If the translator is installed under a user profile that has a pre-existing migration repository, the translator picks up the context of the database, such as name changes. Therefore, you must create a new user with the following specifications:

CONNECT, RESOURCE, and CREATE VIEW privileges

Access to storage in the SYSTEM and/or USER tablespace

Installing SQL Translator

To install SQL Translator:

Log into the database using ADMIN privileges.

At the command line, enter the following commands.

GRANT CONNECT, RESOURCE, CREATE VIEW TO TranslUser identified by TranslUser;
ALTER USER TranslUser QUOTA UNLIMITED ON SYSTEM;

From the View menu, select DBA.

In the DBA Navigator, right-click Connections and select Add Connection.

In the Select Connection box, select the connection if you want to use an existing connection. If you want to create a new connection, then add the information for transluser discussed in step 2.

Click Connect.

In the DBA navigator, right-click the connection created in the preceding steps, and select Install SQL Translator.

The Install SQL Translator dialog box opens.

You must have special permissions to install the SQL Translator and create a SQL Translation Profile. You will be prompted to provide the SYS password, so that these privileges can be granted. Refer to "Granting Necessary Permissions for Installing the SQL Translator" for more information about these privileges.

Create a SQL Translation Profile, following steps described in "Creating a Translation Profile".

Verify that the user has sufficient privileges to run the translation profile.

You may have to login as SYS user to grant additional privileges.

Install SQL Translator.

To ensure that both the Profile and Translator are properly installed, verify whether the appropriate package and Java class files are present or not in the Connections pane.

Creating a Translation Profile

To create a translation profile:

From the SQL Translator drop-down box, select Sybase or SQL Translator.

Check Create New Profile.

Enter SYBASE_PROFILE in Profile Name field.

In Profile Schema, select the name of the user created in section "Creating a Translation Profile and Installing SQL Translator".

Click Apply.

Using the SQL Translator Profile

To test the SQL Translation Profile, use SQL Worksheet:

Right-click the SYBASE_PROFILE node.

Select Open SQL Worksheet with Profile.

Enter a T-SQL statement that you want to translate.

Click SYBASE_PROFILE and select the SQL Translation tab to inspect the profile and view the translated statement.

An alternative way to view the profile SQL in a better way when you double-click on it, the fingerprint and template open in a Translation Scratch Editor as shown in the following images:

Installing and Configuring SQL Translation Framework from Command Line

The following sections describe how to install and configure the SQL Translation Framework from the command line:

Installing Oracle Sybase Translator

Setting up a SQL Translation Profile

Setting Up a Database Service to Use the SQL Translation Profile

Testing Sybase SQL Translation Using the SQL Translation Profile

Installing Oracle Sybase Translator

To install Oracle Sybase Translator, Use Oracle SQL Developer as described in "Installing and Configuring SQL Translation Framework with Oracle SQL Developer".

Setting up a SQL Translation Profile

Perform the following steps to set up a SQL Translation Profile through a command-line interface:

Login as a system user.

> sqlplus system/<password>

Grant create privileges to the standard user.

This allows the standard user to create a SQL Translation Profile.

 SQL> grant create sql translation profile to <user>;

Login as a standard user.

sqlplus <user>/<password>

Invoke the methods of DBMS_SQL_TRANSLATOR PL/SQL package to create and configure the translation profile.

SQL> exec dbms_sql_translator.create_profile('sybase_profile')
SQL> exec dbms_sql_translator.set_attribute('sybase_profile',
     dbms_sql_translator.attr_translator,
     'migration_repo.sybase_tsql_translator')

Grant all privileges for the SQL Translation Profile to Oracle Sybase translation schema.

SQL> grant all on sql translation profile sybase_profile to migration_repo;

Setting Up a Database Service to Use the SQL Translation Profile

This section describes how to add a database service in a standard environment and in an Oracle Real Application Clusters environment.

Setting Up a Database Service in a Standard Environment

To set up a database service in a standard environment:

Login as a DBA

Issue the following commands to use the DBMS_SERVICE PL/SQL package to create and invoke the database service:

SQL> declare
  params dbms_service.svc_parameter_array;
begin
  params('SQL_TRANSLATION_PROFILE') := 'user.sybase_profile';
  dbms_service.create_service('sybase_service', 'network_name', params);
  dbms_service.start_service('sybase_service');
end;
/

Setting Up a Database Service in Oracle Real Application Clusters

To set up a database service in Oracle Real Application Clusters:

Add the database service:

srvctl add service -db db_name -service sybase_service
-sql_translation_profile user.sybase_profile

Start the database service:

srvctl start service -db db_name -service sybase_service

Testing Sybase SQL Translation Using the SQL Translation Profile

Perform the following steps to test the translation:

Login as a standard user:

sqlplus user/password

Specify the SQL Translation Profile at the SQL prompt:

SQL> alter session set sql_translation_profile = sybase_profile;

Force the database to treat SQL*Plus as a foreign SQL application:

SQL> alter session set events = '10601 trace name context forever, level 32';

Run a SQL query that uses Sybase SQL dialect. For example:

select top 3 * from emp;

The query returns the following results:

EMPNO   ENAME    JOB        MGR   HIREDATE       SAL    COMM    DEPTNO
----------------------------------------------------------------------
7369    SMITH     CLERK     7902  17-DEC-80      800                20
7499    ALLEN     SALESMAN  7698  20-FEB-81     1600     300        30
7521    WARD      SALESMAN  7698  22-FEB-81     1250     500        30

Granting Necessary Permissions for Installing the SQL Translator

This section discusses the privileges that you must have to install the SQL Translator. The SYBASE_PROFILE created here has the following two users:

MIGREP, where the translator is installed

TARGET_USER, where the profile is installed

To grant privileges necessary for installing the SQL Translator:

Connect as SYS to grant the required privileges:

connect sys/oracle as sysdba

Allow MIGREP to create a view and have access to unlimited quota:

GRANT connect, resource, create view to MIGREP;
ALTER USER MIGREP QUOTA UNLIMITED ON USERS;

Allow TARGET_USER to create a view and have access to unlimited quota:

GRANT connect, resource, create view to TARGET_USER;
ALTER USER MIGREP QUOTA UNLIMITED ON TARGET_USER;

Allow MIGREP to load a SQL Translator:

BEGIN
  DBMS_JAVA.GRANT_PERMISSION(UPPER('MIGREP'), 'SYS:java.lang.RuntimePermission', 'getClassLoader', '');
END;
/

Allow TARGET_USER to create profiles:

GRANT CREATE SQL TRANSLATION PROFILE TO TARGET_USER;

Allow TARGET_USER to explicitly alter the session to use a profile:

GRANT ALTER SESSION TO TARGET_USER;

This privilege is not granted in SQL Developer by default.

Allow the translator to make reference to the profile:

CONNECT TARGET_USER/TARGET_USER;
GRANT ALL ON SQL TRANSLATION PROFILE SYBASE_PROFILE TO MIGREP;

Allow the profile to make reference to the translator:

CONNECT MIGREP/MIGREP;
GRANT EXECUTE ON SYBASE_TSQL_TRANSLATOR TO TARGET_USER;

4 SQL Translation of JDBC and ODBC Applications

This chapter discusses the following topics:

SQL Translation of JDBC Applications

SQL Translation of ODBC Applications

SQL Translation of JDBC Applications

This section describes the following concepts that you must understand to use a SQL Translator with a JDBC application:

SQL Translation Profile

Error Message Translation

Converting JDBC Standard Parameter Markers

Executing the Translated Oracle Dialect Query

Error Translation

SQL Translation Profile

A SQL Translation Profile is a database schema object that directs how SQL statements in non-Oracle dialects are translated into Oracle SQL dialects. It also directs how Oracle error codes and SQLSTATES are translated into the SQL dialect of other vendors.

When you want to migrate a client application written for a non-Oracle SQL database to Oracle, you can create a SQL Translation Profile and configure it to translate the SQL statements and errors for the application. At runtime, the application sets the profile for the connection in Oracle Database to translate its SQL statements and errors. This profile is set using the oracle.jdbc.sqlTranslationProfile property.

When necessary, you can register custom translations of SQL statements and errors with the SQL Translation Profile on the Server. When a SQL statement or error is translated, then first, the custom translation is looked up and then, the translator is invoked only if no match is found.

See "Architecture of SQL Translation Framework" and "Setting up a SQL Translation Profile".

Error Message Translation

You may prefer receiving error messages in the form of messages that used to be thrown by the native database. You must then use the error message translation file, which translates error messages when there is no valid connection to the database. Once a connection to the database is established, the JDBC driver bypasses this file completely and all errors are handled by the translator on the server. Similar to query translation, you can also register custom error translations on the server.

The error message translation file is not written by a specific component. You must provide the file for translation and specify the name of the file. You can also provide the file path as the value of the corresponding connection property.

The error message translation file is in XML format; it contains a series of error translations. Each error translation contains the following information:

Translation Error | Type
ORA error number | positive integer
Oracle error message | String
Translated error code | positive integer
Translated SQL State | positive integer

Converting JDBC Standard Parameter Markers

The JDBC driver internally converts the JDBC standard parameter markers (?) into Oracle style parameter markers of the format :b<n>, before submitting the SQL statements for translation. Here, the naming format for the parameter markers is :b<n>, where, n is an incremental number to specify the position of the (?) marker in the JDBC PreparedStatement. For example, consider the UPDATE employees SET salary = salary * ? WHERE employee_id = ? PreparedStatement statement, where, the first parameter marker (?) will become :b1 and the second parameter marker (?) will become :b2. So, after conversion, the driver sends the following query to the server for translation:

UPDATE employees SET salary = salary * :b1 WHERE employee_id = :b2

Note that any query that contains "?" as a parameter marker fails during the connection translation phase if you change the value of the processEscapes property to FALSE. For a successful translation, you must retain the default value of the processEscapes property.

Conversion of parameter markers helps the driver to automatically reorder any parameter changes that occurred at translation. During the conversion, if any custom translation must be registered on the server, then it should be registered from the Oracle style parameter marker version, in which the server receives the statements, and not from the JDBC style parameter marker version. Also, the custom translation must have the same number of parameter markers in the Oracle style as the number of parameter markers in the original query.

For more information about supported JDBC APIs, Chapter 8, "API Reference for SQL Translation of JDBC Applications".

Executing the Translated Oracle Dialect Query

After the JDBC standard parameter markers are converted into Oracle style parameter markers, the driver makes a round-trip to the server for translating the query into Oracle dialect. Once the translated query is received by the server, any reordering in the parameters in handled transparently by the driver, and the query is executed as a normal query.

If a query cannot be translated due to the unavailability of translation, then the server can either raise an error or return a NULL, based on the value of the DBMS_SQL_TRANSLATOR.ATTR_RAISE_TRANSLATION_ERROR profile attribute. If the server returns a NULL, then the original untranslated query is assumed to be the query translated by the driver and executed.

The driver keeps the translation in the local caches to save the future round-trip.

Note that the JDBC driver can support the translation errors (when the query cannot be translated due to the unavailability of translation) set by either value of the DBMS_SQL_TRANSLATOR.ATTR_RAISE_TRANSLATION_ERROR attribute. However, the value must be set on the server before the connection is established. Because a change in the value of this attribute in the middle of a session may result in inconsistent behavior, Oracle recommends that you do not flip the value of this attribute during a session. See Oracle Database PL/SQL Packages and Types Reference for more information about the TRANSLATE_SQL procedure.

Error Translation

If any SQLException is thrown during the query execution, the driver transparently makes a trip to the server and translates the exception from Oracle codes to the original vendor-specific code. So, the resulting SQLException has both vendor-specific code and SQLSTATE along with the Oracle-specific SQLException as the cause.

Similar to query translation, custom error translations can also be registered on the server and given priority over standard translation. The DBMS_SQL_TRANSLATOR.ATTR_RAISE_TRANSLATION_ERROR attribute has the same effect on custom error translation as on query translation.

Note that the errors are translated only after a connection to the server is established. So, for errors that occur before the connection to the server is established, Error Message Translation is used.

SQL Translation Using a JDBC Driver

Example 4-1 demonstrates how to use a JDBC driver for SQL translation. You must first grant the CREATE SQL TRANSLATION PROFILE privilege to HR as follows:

conn system/manager;
grant create sql translation profile to HR;
exit

Now, connect to the database as HR and execute the following SQL statements:

drop table sample_tab;
create table sample_tab (c1 number, c2 varchar2(100));
insert into sample_tab values (1, 'A');
insert into sample_tab values (1, 'A');
insert into sample_tab values (1, 'A');
commit;
exec dbms_sql_translator.drop_profile('FOO');
exec  dbms_sql_translator.create_profile('FOO');
exec  dbms_sql_translator.register_sql_translation('FOO','select row of select c1, c2 from sample_tab
where c1=:b1 and c2=:b2','select c1, c2 from sample_tab where c1=:b1 and c2=:b2');

Now, you can run the following program that translates SQL statements that use JDBC standard parameter markers.

Example 4-1 Translating Non-Oracle SQL Statements to Oracle SQL Dialect Using JDBC Driver

public class SQLTransPstmt
{
  static String url="jdbc:oracle:thin:@localhost:5521:jvx1";
  static String user="HR", pwd="hr";
  static String PROFILE = "FOO";
  static String primitiveSql = "select row of select c1, c2 from sample_tab where c1=? and c2=?";

// Note that this query contains JDBC style parameter markers
// But the preceding custom translation registered in SQL is using Oracle style markers

  public static void main(String[] args) throws Exception
  {
    OracleDataSource ods = new OracleDataSource();
    ods.setURL(url);

    Properties props = new Properties();
    props.put("user", user);
    props.put("password", pwd);

    // The Following connection property makes the connection translating
    props.put(OracleConnection.CONNECTION_PROPERTY_SQL_TRANSLATION_PROFILE, PROFILE);
    ods.setConnectionProperties(props);
    Connection conn = ods.getConnection();
    System.out.println("connection for SQL translation: "+conn);

    try{
      // Any statements created using a translating connection are
      // automatically translating. If you want to get a non-translating
      // statement out of a translating connection please have a look at
      // the oracle.jdbc.OracleTranslatingConnection Interface.
      // Refer to "OracleTranslatingConnection Interface"
      // for more information
      PreparedStatement trStmt = conn.prepareStatement(primitiveSql);
      trStmt.setInt(1, 1);
      trStmt.setString(2, "A");
      System.out.println("executeQuery for: "+primitiveSql);
      ResultSet trRs = trStmt.executeQuery();
      while (trRs.next())
        System.out.println("C1:"+trRs.getInt(1)+", C2:"+trRs.getString(2));
      trRs.close();

      trStmt.close();
    }catch (Exception e) {
      e.printStackTrace();
    }

    conn.close();
  }
}

SQL Translation of ODBC Applications

This section describes the following concepts that you must to know to use a SQL Translator with an ODBC application:

SQL Translation profile

Error Message Translation

Translating Error Messages

SQL Translation profile

For ODBC applications, the SQL Translation Profile is set at the service level. So, you do not require to set it in the .odbc.ini file.

Error Message Translation

You may prefer receiving error messages in the form of messages that used to be thrown by the native database. In such cases, when the application is set to run on Oracle Database, you must set the SQLTranslateErrors=T entry in the .odbc.ini file to translate the ORA errors to their native form.

Translating Error Messages

Example 4-2 demonstrates how to use the ODBC driver in SQL translation. The SQL statement used in the example uses Sybase TOP N syntax.

Note that you must set the ServerName= entry in the .odbc.ini file with the Database service name created in "How to Use SQL Translation Framework" section. Also, set the 'SQLTranslateErros=T entry in the .odbc.ini file, if you require translation of Oracle errors to native database errors.

Example 4-2 Translating Non-Oracle SQL to Oracle SQL Dialect Using ODBC Driver

int main()
{
 HENV m_henv;          /* environment handle */
 HDBC m_hdbc;          /* connection handle */
 HSTMT m_hstmt;        /* statement handle */
 int retCode;          /* return code */
 char dbdsn[100];      /* Initialize with the DSN name of connection */
 const  char szUID[10];/*Initialize with appropriate Username of DB */
 const char szPWD[10]; /* Initialize with appropriate Password */

 char query1[100]="select top 3 col1 from babel_tab3 order by col1";
 SQLLEN paramInd = SQL_NTS;
 SQLUINTEGER   no = 0;

 //Allocate HENV, HDBC, HSTMT handles
 retCode = SQLAllocHandle (SQL_HANDLE_ENV, SQL_NULL_HANDLE, &m_henv);
 if (retCode != SQL_SUCCESS && retCode != SQL_SUCCESS_WITH_INFO)
 {
    printf ("SQLAllocHandle failed \n");
    printSQLError (1, m_henv);
 }

 retCode = SQLSetEnvAttr (m_henv, SQL_ATTR_ODBC_VERSION, (void *) SQL_OV_ODBC3,
           SQL_IS_INTEGER);
 if (retCode != SQL_SUCCESS && retCode != SQL_SUCCESS_WITH_INFO)
 {
    printf ("SQLSetEnvAttr failed\n");
    printSQLError (1, m_henv);
 }

 retCode = SQLAllocHandle (SQL_HANDLE_DBC, m_henv, &m_hdbc);
 if (retCode != SQL_SUCCESS && retCode != SQL_SUCCESS_WITH_INFO)
 {
    printf ("SQLAllocHandle failed\n");
    printSQLError (2, m_hdbc);
 }

 retCode = SQLConnect (m_hdbc, (SQLCHAR *) dbdsn,SQL_NTS,
                       (SQLCHAR *) szUID, SQL_NTS,
                       (SQLCHAR *) szPWD, SQL_NTS);
 if (retCode != SQL_SUCCESS && retCode != SQL_SUCCESS_WITH_INFO)
 {
    printf ("SQLConnect failed to connect\n");
    printSQLError (2, m_hdbc);
 }

 retCode = SQLAllocHandle (SQL_HANDLE_STMT, m_hdbc, &m_hstmt);
 if (retCode != SQL_SUCCESS && retCode != SQL_SUCCESS_WITH_INFO)
 {
    printf ("SQLAllocHandle with SQL_HANDLE_STMT failed\n");
    printSQLError (3, m_hstmt);
 }

 /* Prepare and Execute the Sybase Top-N syntax SQL statements */

 retCode = SQLPrepare (m_hstmt, (SQLCHAR *) query1, SQL_NTS);
 if (retCode != SQL_SUCCESS && retCode != SQL_SUCCESS_WITH_INFO)
 {
    printf ("SQLPrepare failed\n");
    printSQLError (3, m_hstmt);
 }

 retCode=SQLExecute(m_hstmt);
 if (retCode != SQL_SUCCESS && retCode != SQL_SUCCESS_WITH_INFO)
 {
    printf ("SQLExecute-failed\n");
    printSQLError (3, m_hstmt);
 }

 while (retCode = SQLFetch(m_hstmt)!=SQL_NO_DATA)
 {
    retCode=SQLGetData(m_hstmt,1,SQL_C_ULONG, &no, 0, &paramInd);
    if (retCode != SQL_SUCCESS && retCode != SQL_SUCCESS_WITH_INFO)
    {
       printf ("SQLFetch failed\n");
       printSQLError (3, m_hstmt);
    }
    printf("Value is %d\n",no);
 }

 retCode = SQLCloseCursor (m_hstmt);
 if (retCode != SQL_SUCCESS && retCode != SQL_SUCCESS_WITH_INFO)
    printf ("SQLCloseCursor failed\n");

 printf ("cleanup()\n");
 retCode = SQLFreeHandle (SQL_HANDLE_STMT, m_hstmt);
 if (retCode != SQL_SUCCESS && retCode != SQL_SUCCESS_WITH_INFO)
 {
    printf ("SQLFreeHandle failed\n");
    printSQLError (3, m_hstmt);
 }

 retCode = SQLDisconnect (m_hdbc);
 if (retCode != SQL_SUCCESS && retCode != SQL_SUCCESS_WITH_INFO)
 {
    printf ("SQLDisconnect failed\n");
    printSQLError (2, m_hdbc);
 }

 retCode = SQLFreeHandle (SQL_HANDLE_DBC, m_hdbc);
 if (retCode != SQL_SUCCESS && retCode != SQL_SUCCESS_WITH_INFO)
 {
    printf ("SQLFreeHandle failed\n");
    printSQLError (2, m_hdbc);
 }

 retCode = SQLFreeHandle (SQL_HANDLE_ENV, m_henv);
 if (retCode != SQL_SUCCESS && retCode != SQL_SUCCESS_WITH_INFO)
 {
    printf ("SQLFreeHandle failed\n");
    printSQLError (1, m_henv);
 }
}

5 Application Migration Using SQL Translation Framework Example

This chapter contains the following migration examples:

Migrating a Sybase JDBC Application

Generating Migration Reports

Migrating a Sybase JDBC Application

Figure 5-1 illustrates how an application that is coded to query a Sybase database may use SQL Translation Framework to query information stored in Oracle Database instead.

Figure 5-1 Sybase Application Running Against Oracle Database

This section contains the following information:

Application Overview

Setting Up Migration

Capturing Migration

Converting Migration

Generating a Migration

Moving the Data

Application Overview

The Sybase database used in this example has three tables and five procedures and includes the following features:

IDENTITY columns

INSERT statements into tables with IDENTITY columns

VARCHAR columns with size greater than 4000 characters

Multiple implicit result sets returned from procedures

A Java application connects to this Sybase database using JDBC.

Setting Up Migration

Perform the following steps to set up migration:

Download the JDBC driver JTDS 1.2.

Add JTDS as a third-party JDBC driver as follows:

Select Preferences from the Tools menu.

Select Third Party JDBC Driver from the Database option on the right panel, as shown in Figure 5-2.

Figure 5-2 Setting JTDS JDBC Driver

Click Add Entry.

The Select Path Entry box is displayed.

Select the jtds-1.2.jar file and click Select.

Click OK.

Connect to the Oracle Database where you want to migrate the information.

Verify that the connection is using Oracle Database 12c JDBC drivers, with the following command:

show jdbc

Create a new user migrep in Oracle database, for the migration repository, with the following command:

GRANT CONNECT,RESOURCE,CREATE VIEW to migrep INDENTIFIED BY migrep;
ALTER USER migrep QUOTA UNLIMITED to users;

Connect to the database as the migrep user and associate the migration repository with the user, as shown in Figure 5-3.

Figure 5-3 Associating a User with Migration Repository

Create a connection to the Sybase database, in this example, simpledemo12c, as shown in Figure 5-4.

Figure 5-4 Creating a Connection to the Sybase Database

Note:

The migration process has four phases - Capture, Convert, Generate, and Data Move. It is best practice to complete each phase of the migration process, review any issues on the Summary page, and then continue to the next phase. The Migration Wizard enables you to complete each step in turn and then return back to the wizard to complete further steps. To do this, after completing each phase, select the Proceed to Summary Page check box and click Next.

Capturing Migration

Perform the following steps to capture migration:

Right-click on the simpledemo12c Sybase database and select the Migrate to Oracle option, as shown in Figure 5-5.

Figure 5-5 Starting Capture Phase of Migration Process

This opens the Migration Wizard, as shown in Figure 5-6.

Click Next.

Figure 5-6 Migration Wizard Introduction Screen

Choose the Migration Repository, as shown in Figure 5-7.

Click Next.

Figure 5-7 Choosing the Migration Repository

Enter a project name and specify an output directory to place files, as shown in Figure 5-8.

Click Next.

Figure 5-8 Specifying Project Name and Output Directory

Select the database connection and the mode, as shown in Figure 5-9.

Click Next.

Figure 5-9 Selecting the Database Connection and Mode

Select the database, in this case, simpledemo12c, by moving it from Available Databases to Selected Databases, as shown in Figure 5-10.

Click Proceed to Summary Page to review the Capture phase before moving to the next phase of the migration process.

Click Next.

Figure 5-10 Selecting the Database to be Migrated

The capture phase saves a snapshot of the selected database at this point of time. Only the object definitions are captured, not the actual table data. This captured snapshot can be viewed in the Migration Projects navigator.

Note that the snapshot is not a connection to the database, and it only enables you to browse through the information saved in the Migration Repository.

Converting Migration

Before starting the conversion phase, you must set the migration preferences. Perform the following steps to achieve this:

From the Tools menu, select Preferences, then Migration, and then Translators. Select the Generate Compound Triggers option, as shown in Figure 5-11.

Figure 5-11 Setting Migration Preferences

From the Tools menu, select Preferences, then Migration, and then Generation Options. Select the Use all Oracle Database 12c features in Migration option, as shown in Figure 5-12.

Figure 5-12 Setting Migration Preferences

Perform the following steps to start convert phase of the migration process:

Right-click the Capture Model node and choose Convert, as shown in Figure 5-13.

Figure 5-13 Starting Convert Phase of Migration Process

The Migration Wizard is opened at the Convert phase, as shown in Figure 5-14.

Figure 5-14 Converting the Migrated Data

Select Proceed to Summary Page and click Next.

Click Finish.

During the convert phase, object names are resolved to valid Oracle names. Data types are converted to Oracle Database types and T-SQL defined objects like stored procedures, views, and so on are converted to Oracle PL/SQL. A converted model is created that can be browsed in the Migration Projects navigator. The converted procedures can be reviewed in the converted model.

Note that the converted model is not an actual Oracle database, but a prototype of an Oracle Database. The information is still stored only in the Migration Repository tables.

Generating a Migration

The migration generation phase creates the objects in the target Oracle Database. A script is created and it is run against a selected Oracle connection in the following two ways:

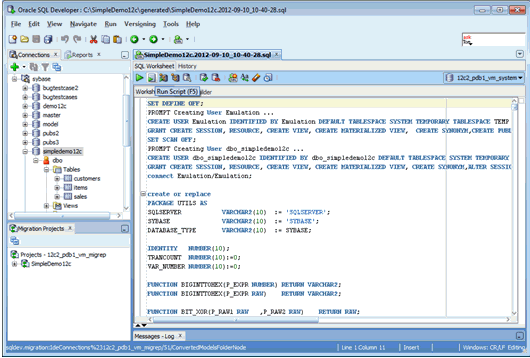

In offline mode, the script is opened in a SQL Worksheet and you have to select the connection and run it manually.

In online mode, you must provide the target connection in the wizard and the wizard runs the script automatically.

The following steps demonstrate how to perform the generate phase of the migration process in offline mode:

Right-click on Converted Database Objects in the Migration Projects panel and select Generate Target.

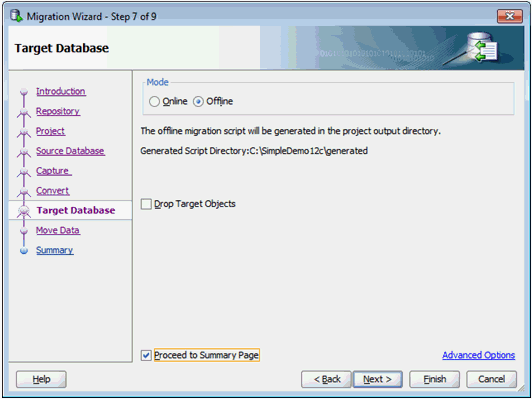

Select offline as the database mode in the Migration Wizard, as shown in Figure 5-15.

Click Next.

Figure 5-15 Selecting the Database Mode

Choose a connection in the target Oracle Database, as shown in Figure 5-16.

Figure 5-16 Creating Oracle Database Connection for Target User dbo_simpledemo12c

The database objects are not created under the connection selected in this step. However, this connection must have enough privileges to create other users and objects.

Creating a Target Oracle User

Create a connection to the newly created user (described in step 3), as shown in Figure 5-17. At this point, the Sybase database objects are migrated to Oracle Database, but the data is not migrated till now.

Figure 5-17 Targeting an Oracle User

Moving the Data

Perform the following steps to move the data to Oracle Database:

Right-click the Converted Database Objects node and select Move Data, as shown in Figure 5-18.

Click Next.

Figure 5-18 Moving the Data from Sybase Database to Oracle Database

Select online as the data move mode in the Move Data screen.

You can select offline as the data move mode if the migration process involves large amount of data.

Click Next. The Summary screen appears.

Click Finish.

You can browse the database objects to verify the data is moved to Oracle database.

See Oracle SQL Developer User's Guide for details.

Generating Migration Reports

Oracle SQL Developer provides a number of reports on the migration process to help identify tasks and issues to resolve. Click or double-click on the migrated project in the Migration Projects navigator. A report will appear on the right panel with a number of tabs and children reports, as shown in Figure 5-19.

Figure 5-19 Generating Migration Reports

The Analysis report provides information about the size of the migrated database like the number of objects, line sizes, and so on, as shown in Figure 5-20.

Figure 5-20 Migration Analysis Report

The Target Status report provides information about the status of the migrated objects in the Target database. First, select a target connection with enough privileges to view the status of other schema objects and then select refresh. Objects that are present in the converted model, but are missing from the target Oracle Database, are listed as missing. These objects can be either valid or invalid.

Figure 5-21 Target Status Report

The Data Quality tab provides information about the number of rows in the target Oracle Database compared with the source database. Perform the following steps to compare the databases:

Select a converted model, a source connection, and a target connection.

Click Analyse.

Click Refresh.

This performs a count(*) function on each table in the source and the target database. So, it is advisable not to perform this operation on production data.

6 MySQL Client Library Driver for Oracle

This chapter discusses MySQL Client Library Driver for Oracle Database, and its use in migrating applications from MySQL to Oracle.

This chapter contains the following topics:

Introduction to MySQL Client Library Driver for Oracle

Overview of Migration with MySQL Client Library Driver for Oracle

Using MySQL Client Library Driver for Oracle

See Also:

Chapter 7, "API Reference for Oracle MySQL Client Library Driver" for more information about MySQL programmatic support

Introduction to MySQL Client Library Driver for Oracle

MySQL Client Library Driver for Oracle Database 12c Release 1, liboramysql, is a drop-in replacement for MySQL Commercial Connector/C 6.0 client library. The liboramysql driver implements a similar API, enabling C-based applications and tools developed for MySQL to connect to Oracle Database. The driver may be used to migrate applications from MySQL to Oracle Database with minimal changes to the application code.

The liboramysql driver uses Oracle Call Interface (OCI) to connect to Oracle Database.

Figure 6-1 MySQL Application Code Using liboramysql Driver to Connect to Oracle

The C code snippet in Example 6-1 demonstrates how to connect to MySQL and how to insert a row into a table. After updating the connection credentials, this code can run unchanged against Oracle Database when the executable is linked using the liboramysql library, instead of the libmysqlclient library.

Example 6-1 Connecting to MySQL and Inserting a New Row

c = mysql_init(NULL);
mysql_real_connect(c, "myhost", "myun", "mypw", "mydb", 0, NULL, 0);
mysql_query(c, "insert into mytable values (1,2)");
mysql_close(c);

Although the database schema and data must be migrated to Oracle separately, and although the liboramysql library does not translate SQL statements, considerable amount of effort is conserved when migrating to Oracle Database because no changes have to be made to the application code.

Custom C applications can use the liboramysql library to easily migrate to Oracle Database.

Installation and First Use of MySQL Client Library Driver for Oracle

The MySQL Client Library Driver for Oracle is provided as a file in the liboramysql.so shared library for Linux and as the oramysql.dll dynamic link library (DLL) for Windows. The driver is also packaged as part of the Oracle Instant Client Basic and Basic Lite packages for download from OTN. See http://www.oracle.com/technetwork/topics/linuxsoft-082809.html and http://www.oracle.com/technetwork/topics/winsoft-085727.html.

The driver must be installed in the same directory as the Oracle Client Shared Library, that is, libclntsh.so for Linux and oci.dll for Windows. Typically, you must set the operating system environment variable (LD_LIBRARY_PATH on Linux or PATH on Windows) to include this installation directory.

For ORACLE_HOME installations, the driver library is installed in the $ORACLE_HOME/lib directory for Linux and the %ORACLE_HOME%\bin directory for Windows. For Instant Client ZIP files, the library is in the instantclient_12_1 directory. For Instant Client RPM installations, the library is in the /usr/lib/oracle/12.1/client/lib or /usr/lib/oracle/12.1/client64/lib directory on 32-bit and 64-bit Linux platforms, respectively.

Overview of Migration with MySQL Client Library Driver for Oracle

Migrating a C-based MySQL application to Oracle Database involves the following steps:

Confirm that the application runs against MySQL Database.

This ensures that the migration process starts at a known baseline of functionality.

Replace the libmysqlclient library with the liboramysql library.

The application must be relinked to use the liboramysql library instead of the libmysqlclient library.

Migrate the application schema to Oracle Database.

The schema must be migrated to use Oracle DDL and types. Oracle SQL Developer assists in this process.

See Oracle SQL Developer User's Guide for further details.

Review all SQL statements used by the application.

If necessary, change the SQL statements of the application to use Oracle syntax, or implement a SQL Translator to automatically perform the conversion at application run time. Rewrite any logic that depends on MySQL features that are not supported by Oracle Database.

See Chapter 4, "SQL Translation of JDBC and ODBC Applications".

Update the connection string of the application to connect to Oracle Database.

Use Oracle Easy Connect syntax or a tnsnames.ora connect identifier in the host parameter of the connection call.

Test the application with Oracle Database.

Verify the application against Oracle Database.

Using MySQL Client Library Driver for Oracle

The liboramysql API is compatible with MySQL Commercial Connector/C 6.0. MySQL Driver for Oracle Database, liboramysql, translates MySQL API calls to Oracle Call Interface (OCI) calls, and between Oracle and MySQL data types.

Existing MySQL-based applications may be relinked to use the liboramysql driver, making Oracle Database the new data source. Note that the liboramysql driver supports connections only to Oracle Database. Simultaneous connections to both MySQL Database and Oracle Database in the same application are not possible.

See Chapter 7, "API Reference for Oracle MySQL Client Library Driver" for details on data type mapping and API compatibility. Additional information may also be found in Oracle SQL Developer User's Guide.

The liboramysql driver does not translate SQL statements. You must rewrite the statements that are not valid for Oracle Database. You can do this directly in the application, or by using a SQL Translator. The application schema and data must also be migrated separately. Oracle SQL Developer automates this process.

Whenever cross-version OCI connectivity exists for older versions of Oracle Database, you can use the liboramysql driver to connect to these older versions.

The following sections discusses these topics:

Relinking the Application with the liboramysql Driver

Connecting to Oracle Database

Supported Platforms

Error Handling

Globalization

Expected Differences

Relinking the Application with the liboramysql Driver

The fundamental step of using the liboramysql library is to relink the application to use the new library. The liboramysql library is compatible with the libmysqlclient.so library from MySQL Commercial Connector/C 6.0.2 package, so you must build and verify version-sensitive applications with MySQL Commercial Connector/C 6.0.2 before migrating to Oracle Database.

The installation scripts of public software compiled from source code typically expect MySQL components to follow a predefined system directory structure. You can use the setuporamysql.sh script in the demo directory of Instant Client SDK to achieve this.

Depending on the application, you can use one or more of the following ways to relink the application with the liboramysql library:

Build directly with the liboramysql library.

You can update your build scripts to use the liboramysql library and build custom applications directly with this Oracle library.

Use the liboramysql library to emulate a MySQL Commercial Connector/C directory

The setuporamysql.sh library in the Instant Client SDK shows how a directory structure emulating a MySQL Commercial Connector/C installation can be created. You may build applications using this emulated directory.

Use the LD_PRELOAD environment variable.

Preconfigured programs may be able to use the LD_PRELOAD environment variable to link with the liboramysql library. However, changing the value of this environment variable may not work if the program uses the dlopen() method.

Duplicate the liboramysql library.

Perform the following steps to rename the liboramysql library to the MySQL client library name used by the application:

Use the ldd command to identify the MySQL library with which the application is linked:

$ ldd yourprogram
...
libmysqlclient.so.16 => /usr/lib/libmysqlclient.so.16 (0x00007f9004e7f000)
...

Create the following symbolic link as the Oracle software owner user:

$ ln -s $ORACLE_HOME/lib/liboramysql12.so $ORACLE_HOME/lib/libmysqlclient.so.16

Add $ORACLE_HOME/lib to the LD_LIBRARY_PATH environment variable for any application that formerly used the libmysqlclient library:

$ export LD_LIBRARY_PATH=$ORACLE_HOME/lib

Replace the system MySQL client library.

Rename the target system MySQL client library and link the new library in its place. Because this option affects every application on the system that uses MySQL, and should be done only if absolutely necessary.

# mv /usr/lib64/libmysqlclient.so.16 /usr/lib64/libmysqlclient.so.16.backup
# ln -s $ORACLE_HOME/lib/liboramysql12.so /usr/lib64/libmysqlclient.so.16

If MySQL applications are not rebuilt from the source code, then you must first link the applications against the libmysqlclient.so library from MySQL Commercial Connector/C 6.0.2 package. This ensures binary compatibility with the data structures in the liboramysql library.

Connecting to Oracle Database

To connect to Oracle Database with the liboramysql library, use Oracle Easy Connect syntax or a tnsnames.ora connect identifier in the host parameter of the connection call:

mysql_real_connect(c, "localhost/pdborcl", "myun", "mypw", NULL, 0, NULL, 0);

Supported Platforms

MySQL Client Library Driver for Oracle is available on platforms that support the Oracle Instant Client.

See the list of supported platforms on the Oracle Support Certification site: https://support.oracle.com

Error Handling

All errors generated by OCI client code or the Oracle server are passed to the application when either the mysql_errno() method or the mysql_error() method is invoked after an error.

Globalization

The date format expected by the application may be set using NLS_DATE_FORMAT environment variable of Oracle Database, or changed with the equivalent ALTER SESSION command after connecting. The NLS_DATE_FORMAT environment variable is only used if NLS_LANG is also set in the environment.

Expected Differences

Some APIs in the liboramysql library necessarily return different results because of the underlying differences between MySQL Database and Oracle Database. Existing applications that use these APIs may require logic changes. For details of these differences, see Chapter 7, "API Reference for Oracle MySQL Client Library Driver".

7 API Reference for Oracle MySQL Client Library Driver

This chapter describes APIs that support migration from MySQL, which are available starting with Oracle Database Release 12c.

This chapter contains the following topics:

Mapping Data Types

Available MySQL APIs

Error Handling

For documentation of MySQL C APIs, refer to MySQL 5.5 documentation.

Mapping Data Types

Oracle database types are described in the Internal Data Types section of Oracle Call Interface Programmer's Guide.

MySQL data types are fully described in MySQL documentation.

MySQL C APIs use MYSQL_TYPE_symbols to process data to and from MySQL database. These type symbols are mapped to MySQL data types in the server.

For instance, MYSQL_TYPE_VAR_STRING is mapped to VARCHAR in the server.

Mapping Oracle Data Types to MySQL Data Types

This table shows the value of the type field in MYSQL_FIELD parameter returned from mysql_fetch_field_* calls. The Oracle database type is mapped to a MySQL C API data type.

For example: A VARCHAR2 column is represented by MYSQL_TYPE_VAR_STRING.

It is recommended that users use this table when migrating MySQL applications to Oracle. The MySQL Client Library driver for Oracle will perform Data type conversions between MySQL and Oracle.

Table 7-1 Mapping Oracle Data Types to MySQL Data Types

Oracle Data Type
Maps to MySQL Data Type

CHAR

MYSQL_TYPE_VAR_STRING

NCHAR

MYSQL_TYPE_VAR_STRING

NVARCHAR2

MYSQL_TYPE_VAR_STRING

VARCHAR2

MYSQL_TYPE_VAR_STRING

NUMBER

MYSQL_TYPE_NEWDECIMAL

LONG

MYSQL_TYPE_BLOB

CLOB

MYSQL_TYPE_BLOB

NCLOB

MYSQL_TYPE_BLOB

DATE

MYSQL_TYPE_DATETIME

RAW

MYSQL_TYPE_VAR_STRING

BLOB

MYSQL_TYPE_BLOB

LONG RAW

MYSQL_TYPE_BLOB

ROWID

MYSQL_TYPE_VAR_STRING

UROWID

MYSQL_TYPE_VAR_STRING

BINARY FLOAT

MYSQL_TYPE_FLOAT

BINARY DOUBLE

MYSQL_TYPE_DOUBLE

User-defined type (object type, VARRAY, Nested Table)

Not supported

REF

Not supported

BFILE

MYSQL_TYPE_BLOB

TIMESTAMP

MYSQL_TYPE_DATETIME

TIMESTAMP WITH TIME ZONE

MYSQL_TYPE_DATETIME

TIMESTAMP WITH LOCAL TIME ZONE

MYSQL_TYPE_DATETIME

INTERVAL YEAR TO MONTH

MYSQL_TYPE_VAR_STRING

INTERVAL DAY TO SECOND

MYSQL_TYPE_VAR_STRING

Data Type Conversions for MySQL Program Variable Data Types

The calls to mysql_stmt_bind_param() and mysql_stmt_bind_result() may be used to convert between C program variables and database column values. Similarly, OCI provides rich conversion support from server data types to many client data types.

Input conversions from a C program value to a database column value are handled by invoking mysql_stmt_bind_param(). Output to a C program value is handled through a call to mysql_stmt_bind_result().

Table 7-2 summarizes viable conversions between MySQL program variable data types and Oracle column data types. The possible values in the table are:

I: input conversion is supported

O: output conversion is supported

I/O: both input and output conversion is supported

-: conversion is not supported.

Be sure to read the corresponding notes for each data type before finalizing conversion choices.

Table 7-2 Converting MySQL Program Variable Data Types to Oracle Column Data Types

MySQL Program Variable Data Types
CHAR
VARCHAR2
NUMBER
LONG
ROWID
UROWID
DATE
RAW
LONG RAW

MYSQL_TYPE_TINY

I/O

I/O

I/O

I

-

-

-

-

-

MYSQL_TYPE_SHORT

I/O

I/O

I/O

I

-

-

-

-

-

MYSQL_TYPE_LONG

I/O

I/O

I/O

I

-

-

-

-

-

MYSQL_TYPE_LONGLONG

I/O

I/O

I/O

I

-

-

-

-

-

MYSQL_TYPE_FLOAT

I/O

I/O

I/O

I

-

-

-

-

-

MYSQL_TYPE_DOUBLE

I/O

I/O

I/O

I

-

-

-

-

-

MYSQL_TYPE_DATE

I/O

I/O

-

I

-

-

I/O

-

-

MYSQL_TYPE_TIME

I/O

I/O

-

I

-

-

I/O

-

-

MYSQL_TYPE_DATETIME

I/O

I/O

-

I

-

-

I/O

-

-

MYSQL_TYPE_TIMESTAMP

I/O

I/O

-

I

-

-

I/O

-

-

MYSQL_TYPE_STRING

I/O

I/O

I/O

I/O

I/O

I/O

I/O

I/O

I/O

MYSQL_TYPE_VAR_STRING

O

O

O

O

O

O

O

O

O

MYSQL_TYPE_BLOB

I/O

I/O

-

I/O

-

-

-

I/O

I/O

MYSQL_TYPE_TINY_BLOB

O

O

-

O

-

-

-

O

O

MYSQL_TYPE_MEDIUM_BLOB

O

O

-

O

-

-

-

O

O

MYSQL_TYPE_LONG_BLOB

O

O

-

O

-

-

-

O

O

MYSQL_TYPE_NEWDECIMAL

O

O

O

-

-

-

-

-

-

MYSQL_TYPE_BLOB

CHAR and VARCHAR2: Conversion is valid for input or output. On input, column value is stored in hexadecimal format.

LONG: Conversion is valid for input or output. On input, column value is stored in hexadecimal format.

RAW: Conversion is valid for input or output.

LONG RAW: Conversion is valid for input or output.

Conversion is not supported for NUMBER, ROWID, UROWID, and DATE.

MYSQL_TYPE_DATE

CHAR and VARCHAR2: Conversion is valid for input or output. For input, host string must be in Oracle DATE character format. For output, column value is returned in Oracle DATE format.

DATE: Conversion is valid for input or output.

LONG: Conversion valid for input to database column value.

Conversion not supported for NUMBER, ROWID, UROWID, RAW, and LONG RAW.

MYSQL_TYPE_DATETIME

CHAR and VARCHAR2: Conversion is valid for input or output. For input, host string must be in Oracle DATE character format. For output, column value is returned in Oracle DATE format.

DATE: Conversion is valid for input or output.

LONG: Conversion valid for input to database column value.

Conversion not supported for NUMBER, ROWID, UROWID, RAW, and LONG RAW.

MYSQL_TYPE_DOUBLE

CHAR and VARCHAR2: Conversion is valid for input or output. For output, column value must represent a valid number.

NUMBER: Conversion is valid for input or output.

LONG: Conversion valid for input to database column value.

Conversion not supported for ROWID, UROWID, DATE, RAW, and LONG RAW.

MYSQL_TYPE_FLOAT

CHAR and VARCHAR2: Conversion is valid for input or output. For output, column value must represent a valid number.

NUMBER: Conversion is valid for input or output.

LONG: Conversion valid for input to database column value.

Conversion not supported for ROWID, UROWID, DATE, RAW, and LONG RAW.

MYSQL_TYPE_LONG

CHAR and VARCHAR2: Conversion is valid for input or output. For output, column value must represent a valid number.

NUMBER: Conversion is valid for input or output.

LONG: Conversion valid for input to database column value.

Conversion not supported for ROWID, UROWID, DATE, RAW, and LONG RAW.

MYSQL_TYPE_LONG_BLOB

CHAR, VARCHAR2, LONG, RAW, and LONG RAW: Conversion is valid for output.

Conversion is not supported for NUMBER, ROWID, UROWID, and DATE.

MYSQL_TYPE_LONGLONG

CHAR and VARCHAR2: Conversion is valid for input or output. For output, column value must represent a valid number.

NUMBER: Conversion is valid for input or output.

LONG: Conversion valid for input to database column value.

Conversion not supported for ROWID, UROWID, DATE, RAW, and LONG RAW.

MYSQL_TYPE_MEDIUM_BLOB

CHAR, VARCHAR2, LONG, RAW, and LONG RAW: Conversion is valid for output.

Conversion is not supported for NUMBER, ROWID, UROWID, and DATE.

MYSQL_TYPE_NEWDECIMAL

CHAR and VARCHAR2: Conversion is valid for output. Column value must represent a valid number.

NUMBER: Conversion is valid for output to C program value.

Conversion is not supported for LONG, ROWID, UROWID, DATE, RAW, and LONG RAW.

MYSQL_TYPE_SHORT

CHAR and VARCHAR2: Conversion is valid for input or output. For output, column value must represent a valid number.

NUMBER: Conversion is valid for input or output.

LONG: Conversion valid for input to database column value.

Conversion not supported for ROWID, UROWID, DATE, RAW, and LONG RAW.

MYSQL_TYPE_STRING

CHAR and VARCHAR2: Conversion is valid for input or output.

NUMBER: Conversion is valid for input or output. For input, the host string must represent a valid number.

LONG: Conversion valid for input or output.

ROWID: Conversion is valid for input or output. For input, the host string must be in Oracle ROWID format. For output, column value is returned in Oracle ROWID format.

UROWID: Conversion is valid for input or output. For input, the host string must be in Oracle UROWID format. For output, column value is returned in Oracle UROWID format.

DATE: Conversion is valid for input or output. For input, host string must be in Oracle DATE character format. For output, column value is returned in Oracle DATE format.

RAW: Conversion is valid for input or output. For input, host string must be in hexadecimal format.

LONG RAW: Conversion is valid for input or output. For input, host string must be in hexadecimal format.

MYSQL_TYPE_TIME

CHAR and VARCHAR2: Conversion is valid for input or output. For input, host string must be in Oracle DATE character format. For output, column value is returned in Oracle DATE format.

DATE: Conversion is valid for input or output.

LONG: Conversion valid for input to database column value.

Conversion not supported for NUMBER, ROWID, UROWID, RAW, and LONG RAW.

MYSQL_TYPE_TIMESTAMP

CHAR and VARCHAR2: Conversion is valid for input or output. For input, host string must be in Oracle DATE character format. For output, column value is returned in Oracle DATE format.

DATE: Conversion is valid for input or output.

LONG: Conversion valid for input to database column value.

Conversion not supported for NUMBER, ROWID, UROWID, RAW, and LONG RAW.

MYSQL_TYPE_TINY

CHAR and VARCHAR2: Conversion is valid for input or output. For output, column value must represent a valid number.

NUMBER: Conversion is valid for input or output.

LONG: Conversion valid for input to database column value.

Conversion not supported for ROWID, UROWID, DATE, RAW, and LONG RAW.

MYSQL_TYPE_TINY_BLOB

CHAR, VARCHAR2, LONG, RAW, and LONG RAW: Conversion is valid for output.

Conversion is not supported for NUMBER, ROWID, UROWID, and DATE.

MYSQL_TYPE_VAR_STRING

CHAR and VARCHAR2: Conversion is valid for output to C program value.

NUMBER: Conversion is valid for output to C program value.

LONG: Conversion is valid for output to C program value.

ROWID: Conversion is valid for output to C program value. On output, column value is returned in Oracle ROWID format.

UROWID: Conversion is valid for output to C program value. On output, column value is returned in Oracle UROWID format.

DATE: Conversion is valid for output to C program value. On output, column value is returned in Oracle DATE format.

RAW: Conversion is valid for output to C program value.

LONG RAW: Conversion is valid for output to C program value.

Data Type Conversions for MySQL External Data Types (LOB Data Type Descriptors)

The external data types Table 7-3 may be converted to the specified Oracle internal data types.

Table 7-3 Data Type Conversions for LOB Data Type Descriptors

MySQL External Data Types
ORACLE INTERNAL CLOB/NCLOB
ORACLE INTERNAL BLOB

MYSQL_TYPE_BIT

I/O

I/O

MYSQL_TYPE_STRING

I/O

I/O

MYSQL_TYPE_VAR_STRING

O

O

MYSQL_TYPE_BLOB

I/O

I/O

MYSQL_TYPE_TINY_BLOB

O

O

MYSQL_TYPE_MEDIUM_BLOB

O

O

MYSQL_TYPE_LONG_BLOB

O

O

Data Type Conversions for Datetime and Interval Data Types

When working with a DATETIME or INTERVAL columns, it is possible to use one of the character data types to define a host variable used in a FETCH or INSERT operation The driver automatically converts between the character data type and DATETIME or INTERVAL data type.

Table 7-4 lists external data types that may be converted to the specified internal Oracle data types.

Table 7-4 Data Conversions for Datetime and Internal Data Type

External/Internal Types
VARCHAR, CHAR
DATE
TS
TSTZ
TSLTZ
INTERVAL YEAR TO MONTH
INTERVAL DAY TO SECOND

MYSQL_TYPE_STRING

I/O

I/O

I/O

I/O

I/O

I/O

I/O

MYSQL_TYPE_VAR_STRING

O

O

O

O

O

O

O

MYSQL_TYPE_DATE

I/O

I/O

I/O

I/O

I/O

-

-

MYSQL_TYPE_TIME

I/O

I/O

I/O

I/O

I/O

-

-

MYSQL_TYPE_DATETIME

I/O

I/O

I/O

I/O

I/O

-

-

MYSQL_TYPE_TIMESTAMP

I/O

I/O

I/O

I/O

I/O

-

-

Error Handling

All errors generated by OCI or Oracle server pass to the application when methods mysql_errno() or mysql_error() are invoked after an error. The application receives an Oracle-specific error. Oracle error messages are more specific then MySQL error codes, and are therefore more pertinent to resolving the error condition.

The errors that are generated by the driver itself are in an error range reserved for the MySQL driver in the OCI error space.

The mysql_sqlstate() call attempts to map the error to the appropriate SQLSTATE whenever possible. In most cases, it returns HY000, which corresponds to the general error state.

Possible SQLSTATE values are:

00000 success

HY000 all other errors

However, this also means that client applications that expect more specific SQLSTATE errors must be partially re-written.

Available MySQL APIs

This section documents functional groupings of the APIs and provides links to more extensive information. However, it does not provide full documentation of function behavior and parameters.

Oracle MySQL driver implements the APIs listed in MySQL C API documentation. Please note the following:

Some MySQL functions have changed behavior, typically due to not having an equivalent behavior in Oracle; the description notes the changed behavior.

Some MySQL functions are not supported; the description marks them accordingly. The driver returns an error for these functions, and prompts the application to work around the unsupported functionality.

Client Library Initialization and Termination

The following interfaces support client library initialization and termination:

mysql_library_end()

mysql_library_init()

mysql_server_end()

mysql_server_init()

Connection Management

The following interfaces support connection management.

my_init()

mysql_change_user()

mysql_close()

mysql_connect()

mysql_get_character_set_info()

mysql_get_ssl_cipher()

mysql_init()

mysql_options()

mysql_ping()

mysql_real_connect()

mysql_select_db()

mysql_set_character_set()

mysql_ssl_set()

Error Reporting

The following interfaces support error reporting.

mysql_errno()

mysql_error()

mysql_sqlstate()

Statement Construction and Execution

The following interfaces support statement construction and execution.

mysql_affected_rows()

mysql_escape_string()

mysql_hex_string()

mysql_kill()

mysql_query()

mysql_real_escape_string()

mysql_real_query()

mysql_reload()

Result Set Processing

The following interfaces support result set processing.

mysql_data_seek()

mysql_eof()

mysql_fetch_field()

mysql_fetch_field_direct()

mysql_fetch_fields()

mysql_fetch_lengths()

mysql_fetch_row()

mysql_field_count()

mysql_field_seek()

mysql_field_tell()

mysql_free_result()

mysql_insert_id()

mysql_list_dbs()

mysql_list_fields()

mysql_list_processes()

mysql_list_tables()

mysql_more_results()

mysql_next_result()

mysql_num_fields()

mysql_num_rows()

mysql_row_seek()

mysql_row_tell()

mysql_store_result()

mysql_use_result()

Prepared Statements

The following interfaces support statement preparation.

mysql_stmt_affected_rows()

mysql_stmt_attr_get()

mysql_stmt_attr_set()

mysql_stmt_bind_param()

mysql_stmt_bind_result()

mysql_stmt_close()

mysql_stmt_data_seek()

mysql_stmt_errno()

mysql_stmt_error()

mysql_stmt_execute()

mysql_stmt_fetch()

mysql_stmt_fetch_column()

mysql_stmt_field_count()

mysql_stmt_free_result()

mysql_stmt_init()

mysql_stmt_insert_id()

mysql_stmt_next_result()

mysql_stmt_num_rows()

mysql_stmt_param_count()

mysql_stmt_param_metadata()

mysql_stmt_prepare()

mysql_stmt_reset()

mysql_stmt_result_metadata()

mysql_stmt_row_seek()

mysql_stmt_row_tell()

mysql_stmt_send_long_data()

mysql_stmt_sqlstate()

mysql_stmt_store_result()

Transaction Control

The following interfaces support transaction control

mysql_autocommit()

mysql_commit()

mysql_rollback()

Information Routines

The following interfaces support information routines.

mysql_character_set_name()

mysql_get_client_info()

mysql_get_client_version()

mysql_get_host_info()

mysql_get_proto_info()

mysql_get_server_info()

mysql_get_server_version()

mysql_info()

mysql_stat()

mysql_thread_id()

mysql_warning_count()

Administrative Routines

The following interfaces support administrative routines.

mysql_refresh()

mysql_set_server_option()

mysql_set_local_infile_default()

mysql_set_local_infile_handler()

mysql_shutdown()

Miscellaneous Routines

The following interfaces support all remaining routines.

mysql_create_db()

mysql_debug()

mysql_debug_info()

mysql_drop_db()

mysql_dump_debug_info()

mysql_read_query_result()

mysql_send_query()

mysql_thread_end()

mysql_thread_init()

mysql_thread_safe()

my_init()

This function is a no-op function. It is called by my_init macro in my_sys.h file. All initializations are done by the mysql_library_init().

Return Value

0

mysql_affected_rows()

Returns the number of rows processed for INSERT, UPDATE, and DELETE statements executed.

For UPDATE statements, note that the semantics of MySQL do not report rows where the new value is the same as the old value. In contrast, Oracle reports that rows are affected, even if the new value is the same as the old value. This function implements Oracle semantics. Therefore, existing applications that rely on this call may have to make programmatic changes.

For SELECT statement, the return is (my_ulonglong) -1.

Return Value

A number of rows that were processed by DML statement; >0. 0 indicates no updates were made by the statement. -1 indicates that the statement was a query (SELECT), or an error.

mysql_autocommit()

Sets auto commit mode to ON or OFF.

Return Value

0, if the auto commit mode is changed successfully. Non-zero if an error occurred in the process.

mysql_change_user()

Changes the user, including user name, password, and database on the same or different host. In Oracle Database 12c Release 1, change of the database is not supported, so the value entered for the db parameter is ignored.

A call to mysql_change_user() rolls back any active transactions, ends the current session, and then re-establishes a new connection based on information stored in the host parameter.

Existing applications must make necessary application logic changes to implement this behavior in Oracle Database 12c Release 1.

Return Value

0 if connection can be reestablished with the original host for the supplied user name and password. Non-zero if an error occurred.

mysql_character_set_name()

Not supported in Oracle Database 12c Release 1. Applications that rely on results of this call must change their application logic.

Return Value

Empty string.

mysql_close()

Closes the connection and frees all associated data structures.

Return Value

none

mysql_commit()

Commits the transaction currently associated with the service context.

A mysql_commit() call supports the default mode in Oracle Database 12c Release 1. It therefore ignores the completion type system variable.

Existing applications that use this API to perform MySQL-specific completion type operations must change their application logic.

Return Value

0 if successful, non-zero otherwise.

mysql_connect()

Deprecated; use mysql_real_connect().

Return Value

Initialized MYSQL structure. NULL if an error occurred.

mysql_create_db()

Not supported in Oracle Database 12c Release 1. Applications that rely on results of this call must change their application logic.

Return Value

0 if successful; non-zero if an invalid MYSQL structure is passed in.

mysql_data_seek()

Seeks to a row in a result set based on the value specified in the offset parameter.

Offset value, being a row number, can range from 0 to mysql_num_rows(result) -1.

Return Value

None

mysql_debug()

Not supported in Oracle Database 12c Release 1. Applications that rely on results of this call must change their application logic.

mysql_debug_info()

Not supported in Oracle Database 12c Release 1. Applications that rely on results of this call must change their application logic.

Return Value

0 if successful; non-zero if invalid MYSQL structure.

mysql_drop_db()

Not supported in Oracle Database 12c Release 1. Applications that rely on results of this call must change their application logic.

Return Value

0 if successful; non-zero if invalid MYSQL structure.

mysql_dump_debug_info()

Not supported in Oracle Database 12c Release 1. Applications that rely on results of this call must change their application logic.

Return Value

0 if successful; non-zero if an invalid MYSQL structure is passed in.

mysql_eof()

DEPRECATED. Use mysql_errno() or mysql_error() instead.

Determines if the last row of a result set has been read.

Return Value

1 if fetched the last row; otherwise 0.

mysql_errno()

Returns Oracle error number of the last error on the connection or the global context.

If the previous call did not have an established connection, pass in NULL; this returns the last error number on global context.

Return Value

Last error number on the MYSQL connection, or the last error number on the global context.

mysql_error()

Returns Oracle error messages for the last error on the connection or the global context.

If the previous call did not have an established connection, pass in NULL; this returns the last error message on global context.

Return Value

Last error message on the MYSQL connection, or the last error message on the global context.

mysql_escape_string()

Encodes the string in the source (from parameter), places it in the destination (to parameter), and appends a terminating NULL.

Supports encoding of only one character, '\' using the current character set in the connection.

See mysql_real_escape_string().

Return Value

The length of the value placed into to, excluding the terminating NULL.

mysql_fetch_field()

Returns the definition of one column of a result set as a MYSQL_FIELD structure.

Only the following attributes of the MYSQL_FIELD structure are supported: flag, name, name_length, org_name, org_name_length, type, and max_length.

The flag attribute supports only the following values: NOT_NULL_FLAG, NUM_FLAG, and BINARY_FLAG.

The attribute org_name is set to have the same value as name attribute.

The attribute org_name_length is set to have the same value as name_length attribute.

Return value

The MYSQL_FIELD structure for the current column. NULL if no columns are left.

mysql_fetch_field_direct()

Retrieves the column's field definition for a specified field number as a MYSQL_FIELD structure.

Return Value

Field definition for the specific field. NULL if an error occurred, or if field number fieldnr is not in range.

mysql_fetch_fields()

Returns an array of all MYSQL_FIELD structures for a result set. Each MYSQL_FIELD structure gives the field definition for one column of the result set.

Return Value

NULL if an error occurred.

mysql_fetch_lengths()

Returns an array of lengths of the column on the current row.

Return Value

An array of unsigned long integers that represent the size of each column. NULL if an error occurred.

mysql_fetch_row()

Retrieves the next row of a result set.

Return Value

A MYSQL_ROW structure for the next row. NULL if there are no more rows to retrieve or if an error occurred.

mysql_field_count()

Returns the number of columns in the result set for the recent query on the connection.

Return Value

Number of fields in the result set within the MYSQL structure.; 0 if an error occurred.

mysql_field_seek()

Sets the field cursor to the specified offset.

Return Value

The offset to the field set

mysql_field_tell()

Returns the position of the field; used for the current field.

Return Value

Offset of the current field

mysql_free_result()

Frees the memory allocated for the result set.

Return Value

None

mysql_get_character_set_info()

Not supported in Oracle Database 12c Release 1. Applications that rely on results of this call must change their application logic.

Return Value

None

mysql_get_client_info()

Returns MySQL version number defined by MYSQL_SERVER_VERSION macro in mysql_version.h header file, in string format. The macro definition is used in the mysql_version.h file that builds oramysql library; it is not the mysql_version.h file used by the application.

Return Value

A character string that represents MySQL client library version.

mysql_get_client_version()

Returns current MySQL version, as defined by MYSQL_VEERSION_ID macro in the mysql_version.h header file. The macro definition is used in the mysql_version.h file that builds oramysql library; it is not the mysql_version.h file used by the application.

Return Value

An unsigned long integer for MySQL version stored in the MYSQL_VERSION_ID macro. The macro definition is used in the mysql_version.h file that builds oramysql library; it is not the mysql_version.h file used by the application.

mysql_get_host_info()

Returns the host name used to connect to the database.

Return Value

A character string of host name. NULL in case of an error.

mysql_get_proto_info()

This is a no-op under Oracle environment. Applications that rely on results of this call must change their application logic.

Return Value

0

mysql_get_server_info()

Returns the Oracle server version in text string format, such as "12.1.0.1.0".

Applications that rely on results of this call must change their application logic.

Return Value

A character string that represents Oracle Server Number. NULL if an error occurred.

mysql_get_server_version()

Returns Oracle Database version number, such as 120100. This is in integer XXYYZZ format, where XX represents the major version, YY represents the minor version, and ZZ represents the version within the release level.

Return Value

Oracle Database version number. 0 if an error occurred.

mysql_get_ssl_cipher()

This is a no-op API. Applications that rely on results of this call must change their application logic.

Return Value

NULL

mysql_hex_string()

Encodes string specified by from parameter to hexadecimal format. Each character is encoded as two hexadecimal digits. The result is placed in the to parameter, with a terminal NULL byte.

The to buffer should have a minimum size equal to length*2+1 bytes.

Return Value

Length of the value placed into to parameter, excluding the terminating NULL character.

mysql_info()

This is a no-op API. Applications that rely on results of this call must change their application logic.

Return Value

NULL

mysql_init()

Allocates a MYSQL structure if NULL is passed. Otherwise, this call initializes the passed in MYSQL structure.

Return Value

Initialized MYSQL structure. NULL if MYSQL structure cannot be allocated or initialized.

mysql_insert_id()

This is a no-op API. Applications that rely on results of this call must change their application logic.

Return Value

0

mysql_kill()

This is a no-op API. Applications that rely on results of this call must change their application logic.

Return Value

0, and non-zero if an invalid MYSQL structure is passed in.

mysql_library_end()

Terminates oramysql library.

Return Value

none

mysql_library_init()

Initializes oramysql library.

Return Value

0 if successful, non-zero in case of a failure to initialize MySQL library.

mysql_list_dbs()

Returns a list of database names that match the wild parameter on the server.

To use this API, the DBA creates the oramysql_dbs_view view, and grants privileges to PUBLIC.

For Oracle Database 12c

For Oracle Database 12c Release 1, view oramysql_dbs_view is based on the V$DATABASE and V$PDBS system objects.

When connecting to Oracle Database 12c and subsequent versions, use the following SQL script to create the view oramysql_dbs_view in Oracle Database 12c:

create view oramysql_dbs_view(name) as select left.name from v$pdbs left
  union select right.name from v$database right;
create public synonym oramysql_dbs_view for oramysql_dbs_view;
grant select on oramysql_dbs_view to public;

If oramysql_dbs_view view does not exist when an application calls the mysql_list_dbs() function, the information is retrieved from the V$ PDBS and V$ DATABASE tables. However, this generates errors if the user does not have privileges to access these tables.

For Oracle Databases prior to Oracle Database 12c

Use the following SQL script to create the view oramysql_dbs_view in the Oracle Database:

create view oramysql_dbs_view(name) as select name form v$database;
create public synonym oramysql_dbs_view for oramysql_dbs_view;
grant select on oramysql_dbs_view to public;

If the view does not exist, the wild parameter is ignored, and the call executes the following SQL statement:

select SYS_CONTEXT( 'USERENV', 'DB_NAME') from DUAL;

Return Value

NULL if an error occurs, a MYSQL_RES result set if successful.

mysql_list_fields()

Returns the column names that match the wild parameter for a specified table.

Return Value

NULL if an error occurred, a MySql result set if successful.

mysql_list_processes()

This is a no-op API. Applications that rely on results of this call must change their application logic.

Return Value

NULL

mysql_list_tables()

This is a no-op function. Applications that rely on results of this call must change their application logic.

Return Value

NULL

mysql_more_results()

Verifies if more results are available from the currently executing statement.

Return Value

TRUE if more results exist; FALSE if no more result sets exist.

mysql_next_result()

Gets the next result set.

Returns Value

0 if successful and there are more results; -1 if successful and there are no more results; >0 if an error occurred.

mysql_num_fields()

Returns the number of columns in a result set.

Return Value

An unsigned integer that represents the number of columns in the result set; returns 0 if not successful.

mysql_num_rows()

Returns the number of rows in the result set.

Return Value

The number of rows in the result set; otherwise 0.

mysql_options()

This is a no-op function. Applications that rely on results of this call must change their application logic.

Return Value

0 if successful, non-zero if an invalid MYSQL structure is passed in.

mysql_ping()

If the server cannot be accessed, returns an error with connection failure details.

Return Value

0 if success, non-zero if error occurred.

mysql_query()

Executes the SQL statement pointed to by the null-terminated string.

Return Value

0 if successful, non-zero if an error occurred.

mysql_read_query_result()

This is a no-op function; query results from mysql_send_query() are available when that call completes.

Return Value

0

mysql_real_connect()

The db parameter is not used in Oracle Database 12c Release 1. Existing applications using this parameter to connect to a db must supply the connection identifier or service name in the host parameter. The connection string has the following format:

[//]host[:port][/service_name][:server][/instance_name]

For instance, the host parameter would appear as: ca-tools3.us.oracle.com/orcl3, when connecting to host ca-tools3.us.oracle.com with SID orcl3.

The parameters db, port, unix_socket, and client_flag are not in use. When the user must specify the port, it has to be in the syntax method used for host parameter.

Return Value

MYSQL structure initialized if successful. NULL in case initialization does not work.

mysql_real_escape_string()

Encodes the string in the source (from parameter) and the result is placed in the destination (to parameter) and a terminating null byte is appended.

Note that only single-quote characters are escaped. Each single-quote is escaped using Oracle semantics. The to buffer should have a minimum size of length*2+1 bytes. Each single quote in the original string is replaced by two consecutive single quotes.

See mysql_escape_string().

Return Value

The length of the value placed into to buffer, excluding the terminating NULL. 0 otherwise.

mysql_real_query()

This function executes the query string.

Return Value

0 if successful, non-zero in case of an error.

mysql_refresh()

This is a no-op API. Applications that rely on results of this call must change their application logic.

Return Value

0 if successful. Non-zero if an invalid MySQL structure was passed in.

mysql_reload()

Reloads the grant tables. This function is deprecated, and has not been implemented. Use mysql_query() instead. Applications that rely on results of this call must change their application logic.

mysql_rollback()

Rolls back the current transaction defined as the set of statements executed after the last mysql_commit() or mysql_real_connect() call. If the application is running under object mode, the modified or updated objects in the object cache for this transaction are also rolled back.

A mysql_rollback() call supports the default mode in Oracle Database 12c Release 1. It therefore ignores the completion type system variable.

Existing applications that use this API to perform MySQL-specific completion type operations must change their application logic.

Return Value

Error if an attempt is made to roll back a global transaction that is not currently active.

mysql_row_seek()

Sets to a particular row and returns offset of previous row.

Return Value

Offset of previous row in MYSQL_ROW_OFFSET structure.

mysql_row_tell()

Gives the current row position in the result set.

Return Value

Offset of current row in MYSQL_ROW_OFFSET structure. NULL if an error occurred.

mysql_select_db()

This is a no-op API. Applications that rely on results of this call must change their application logic.

Return Value

0

mysql_send_query()

Sends a query. This function is not asynchronous in oramysql library. Instead, the call blocks until the query is executed.

Return Value

0 if successful, non-zero if an error occurred.

mysql_server_end()

Terminates and cleans up oramysql library.

Return Value

none

mysql_server_init()

Initializes the oramysql client library before any connections are created. The function mysql_library_init() macro is defined to be mysql_server_init() in mysql.h header file. This call is not thread-safe. Only one thread is expected to call it.

Return Value

0 if successful, non-zero if an error occurred.

mysql_set_character_set()

This is a no-op API. Applications that rely on results of this call must change their application logic.

Return Value

0

mysql_set_local_infile_default()

This is a no-op API. Applications that rely on results of this call must change their application logic.

Return Value

0

mysql_set_local_infile_handler()

This is a no-op API. Applications that rely on results of this call must change their application logic.

Return Value

0

mysql_set_server_option()

This is a no-op API. Applications that rely on results of this call must change their application logic.

Return Value

0

mysql_shutdown()

Helps shutdown an Oracle Database instance. Before using the mysql_shutdown API, the C program must connect to server with SYSDBA or SYSOPER session.

The parameters mysql_shutdown_level and mysql_enum_shutdown_level are ignored. Internally, the OCIDBShutdown() call is executed in the OCI_DEFAULT mode.

Return Value

0 if successful. Non-zero if an error occurred.

mysql_sqlstate()

Returns SQLSTATE string which is not null-terminated. There are many SQLSTATE codes in MySQL which are not in use.

Return Value

SQLSTATE code: 00000 - Success, or HY000 - All other errors.

mysql_ssl_set()

This is a no-op API. Applications that rely on results of this call must change their application logic.

Return Value

0 if successful. Non-zero if an invalid MYSQL structure was passed.

mysql_stat()

This is a no-op API. Applications that rely on results of this call must change their application logic.

Return Value

A string of 4 blanks (" ") if successful. NULL if an invalid MYSQL structure was passed.

mysql_stmt_affected_rows()

This function returns the number of rows affected by the execution on the prepared statement.

Return Value

Number of rows affected by the DML operation if successful. (my_ulonglong)-1 if an error occurred, or a SELECT statement was executed.

mysql_stmt_attr_get()

This is a no-op API. Applications that rely on results of this call must change their application logic.

Return Value

0

mysql_stmt_attr_set()

This is a no-op API. Applications that rely on results of this call must change their application logic.

Return Value

0

mysql_stmt_bind_param()

This function binds all the parameters in the prepared statement.

Return Value

0 if parameters are bound successfully. Non-zero if an error occurred.

mysql_stmt_bind_result()

Binds program variables for all SELECT list columns of a prepared statement.

Return Value

0 if successful. Non-zero if an error occurred.

mysql_stmt_close()

Closes a MYSQL_STMT object.

Return Value

0

mysql_stmt_data_seek()

This function seeks to get data for a particular row.

Return Value

None

mysql_stmt_errno()

Returns error number for the last error that occurred on the MYSQL_STMT object.

Return Value

none

mysql_stmt_error()

This function returns error message for the last error that occurred on the MYSQL_STMT object.

Return Value

A const *char error message.

mysql_stmt_execute()

This function executes the prepared statement.

Return Value

0 if the statement executed successfully; non-zero if an error occurred.

mysql_stmt_fetch()

This function fetches one row in program variables bound by the mysql_stmt_bind_result call.

Return Value

0 if one row is successfully fetched. MYSQL_NO_DATA if no more rows/data exists. MYSQL_DATA_TRUNCATED if data truncation occurred. 1 if an error occurred.

mysql_stmt_fetch_column()

This function fetches one column from the current result set row.

Return Value

0 if the value was fetched successfully. Non-zero if an error occurred.

mysql_stmt_field_count()

Fetches the number of fields in the MYSQL_STMT object.

Return Value

0 if an error occurred; otherwise, the number of fields in the result set associated with the MYSQL_STMT object.

mysql_stmt_free_result()

Frees the result set associated with the MYSQL_STMT object.

Return Value

0

mysql_stmt_init()

Creates a new MYSQL_STMT object from the MYSQL connection object.

Return Value

MYSQL_STMT object if successful. NULL if an error occurred.

mysql_stmt_insert_id()

This is a no-op API. Applications that rely on results of this call must change their application logic.

Return Value

0

mysql_stmt_next_result()

This function is not implemented. Applications that rely on results of this call must change their application logic.

Return Value

0

mysql_stmt_num_rows()

Returns the number of rows in a stored result set. In case of a non-stored (unbuffered result set), it returns the total number of rows fetched so far.

Return Value

0 if an error occurred in fetching the number of rows.

mysql_stmt_param_count()

Returns the number of bind parameters in the prepared statement.

Return Value

0 if an error occurred in returning the number of bind parameters.

mysql_stmt_param_metadata()

This function is cast to MySql result set (MYSQL_RES *) NULL

Return Value

NULL

mysql_stmt_prepare()

Prepares a statement in the MYSQL_STMT for execution.

Return Value

0 if successful, non-zero if an error occurred.

mysql_stmt_reset()

Resets the prepared statement in the MYSQL_STMT.

Return Value

0

mysql_stmt_result_metadata()

Returns the metadata for the result of a SELECT statement that is executed through a MYSQL_STMT object.

Return Value

A result set that describes the metadata of the prepared SELECT statement. NULL if an error occurred.

mysql_stmt_row_seek()

Seeks to a row position and returns the offset of the previous row.

Return Value

An offset of the previous row in MYSQL_ROW_OFFSET structure.

mysql_stmt_row_tell()

Gives the current row position in the result set.

Return Value

Current row position. NULL if an error occurred.

mysql_stmt_send_long_data()

Sends parameter data to the server in parts.

The function mysql_stmt_bind_param() must be called first, then mysql_stmt_send_long_data(), followed by mysql_stmt_execute().

The function can be called multiple times to send parts of a character or binary data value for a column.

Return Value

0 if the data is sent to the server successfully, non-zero if an error occurred.

mysql_stmt_sqlstate()

Returns SQLSTATE string for the recent prepared statement. There are many SQLSTATE codes in MySQL that are not used.

Return Value

SQLSTATE codes: "00000" - Success, or "HY0000" - All other errors.

mysql_stmt_store_result()

Stores the result set from the last query.

If the last query was a SELECT, a result set is returned. If the last statement was a non-SELECT or error, a NULL result set is returned.

Return Value

A valid result set if successful, NULL if an error occurred, or a non-SELECT statement.

mysql_store_result()

Stores the result set from the last query.

If the last query was SELECT, returns a result set.

If the last statement was a non-SELECT or an error, a NULL result set is returned.

Return Value

A valid result set if successful; otherwise, NULL for errors or non-SELECT statements.

mysql_thread_end()

This is a no-op API. Applications that rely on results of this call must change their application logic.

Return Value

none

mysql_thread_id()

Returns Oracle session identifier (SID) for the connection. This is obtained internally by executing the following SQL statement:

select SYS_CONTEXT('USERENV', 'SID') from DUAL;

Applications that rely on results of this call must change their application logic.

Return Value

Oracle session identifier (SID). 0 if an error occurs.

mysql_thread_init()

This is a no-op API. Applications that rely on results of this call must change their application logic.

Return Value

0

mysql_thread_safe()

The oramysql library is thread-safe, so this function always returns TRUE.

Return Value

TRUE

mysql_use_result()

Initiates a result set retrieval.

Return Value

NULL if an error occurred, a valid result set if successful.

mysql_warning_count()

This is a no-op API. Applications that rely on results of this call must change their application logic.

Return Value

0 if successful, non-zero if an error occurred.

8 API Reference for SQL Translation of JDBC Applications

These APIs are part of the oracle.jdbc package. This chapter describes only the elements of oracle.jdbc that are specific to SQL translation.

This chapter contains the following topics:

Translation Properties

OracleTranslatingConnection Interface

Error Translation Configuration File

See Also:

Complete documentation of the oracle.jdbc package in Oracle Database JDBC Java API Reference

Translation Properties

The translation properties are listed in Table 8-1

Table 8-1 Translation Properties

Property
Description

sqlTranslationProfile

Specifies the name of the transaction profile

sqlErrorTranslationFile

Specifies the path of the SQL error translation file

sqlTranslationProfile

The property oracle.jdbc.sqlTranslationProfile specifies the name of the transaction profile.

Declaration

oracle.jdbc.sqlTranslationProfile

Constant

OracleConnection.CONNECTION_PROPERTY_SQL_TRANSLATON_PROFILE

The value of the constant is oracle.jdbc.sqlTranslationProfile. This is also the property name.

Property Value

The value is a string. There is no default value.

Remarks

The property sqlTranslationProfile can be set as either a system property or a connection property. The property is required to use SQL translation. If this property is set then all statements created by the connection have SQL translation enabled unless otherwise specified.

sqlErrorTranslationFile

The property oracle.jdbc.sqlErrorTranslationFile specifies the path of the SQL error translation file.

Declaration

oracle.jdbc.sqlErrorTranslationFile

Constant

Oracle.connection.CONNECTION_PROPERTY_SQL_ERROR_TRANSLATION_FILE.

Property Value

The value is a path name. It has no default value.

Exceptions

An error in establishing a connection results in a SQLException but without a valid connection. However the SQL error translation file path is available either as a system property or connection property and will be used to translate the error.

Remarks

This file is used only for translating errors which occur when connection establishment fails. Once the connection is established this file is bypassed and is not considered even if it contains the translation details for any error which occurs after the connection is established. The property sqlErrorTranslationFile can be either a system property or a connection property. The content of this file is used to translate Oracle SQLExceptions into foreign SQLExceptions when there is no valid connection.

OracleTranslatingConnection Interface

This interface is only implemented by a Connection object that supports SQL Translation. The main purpose of this interface is to get non-translating statements (including preparedStatement and CallableStatement) from a translating connection.

The public interface oracle.jdbc.OracleTranslatingConnection defines the factory methods for creating translating and non-translating Statement objects.

The OracleTranslatingConnection enumerations are listed in Table 8-2:

Table 8-2 OracleTranslatingConnection Enumeration

Name
Description

SqlTranslationVersion

Provides the Keys to the map

The OracleTranslatingConnection methods are listed in Table 8-3:

Table 8-3 OracleTranslatingConnection Methods

Name
Description

createStatement()

Creates a Statement object with option to translate or not translate SQL.

prepareCall()

Creates a CallableStatement object with option to translate or not translate SQL.

prepareStatement()

Creates a PreparedStatement object with option to translate or not translate SQL.

getSQLTranslationVersions()

Returns a map of all the translation versions of the query during SQL Translation.

SqlTranslationVersion

The SqlTranslationVersion enumerated values specify the keys to the getSQLTranslationVersions() method.

Syntax

  public enum SqlTranslationVersion {
    ORIGINAL_SQL,
    JDBC_MARKER_CONVERTED,
    TRANSLATED
  }

The following table lists all the SqlTranslationVersion enumeration values with a description of each enumerated value.

Member Name
Description

ORIGINAL_SQL
Specifies the original vendor specific sql

JDBC_MARKER_CONVERTED

Specifies that JDBC parameter markers ('?') is replaced with Oracle style parameter markers (':b<n>'). Hence consecutive '?'s will be converted to :b1, :b2, :b3 and so on. This change is required to take care of any changes in the order of parameters during translation. This version is sent to the server for translation. Hence any custom translations on the server must be registered from this version and not the ORIGINAL_SQL version.

TRANSLATED

Specifies the translated query returned from the server

createStatement()

This group of methods create a Statement object, and specify whether the statement supports SQL translation. If the value of parameter translating is TRUE, then the returning statement supports translation and is identical to the corresponding version in the java.sql.Connection interface without the translating argument. If the value is FALSE, then the returning statement does not support translation.

Syntax
Description

public Statement createStatement(
  boolean translating)
throws SQLException;

Creates a Statement object with option to translate or not translate SQL.

public Statement createStatement(
  int resultSetType,  int resultSetConcurrency,  boolean translating)
throws SQLException;

Creates a Statement object with the given type and concurrency with option to translate or not translate SQL.

public Statement createStatement(
  int resultSetType,
  int resultSetConcurrency,
  int resultSetHoldability,
  boolean translating)
throws SQLException;

Creates a Statement object with the given type, concurrency, and holdability with option to translate or not translate SQL.

Parameters

Parameter
Description

resultSetType

Specifies the int value representing the result set type.

resultSetConcurrency

Specifies the int value representing the result set concurrency type.

resultSetHoldability
Specifies the int value representing the result set holdability type.

translating

Specifies whether or not the statement supports translation.

Return Value

The createStatement() method returns a Statement object.

Exceptions

The createStatement() method throws SQLException.

Example

Import the following packages before running the example:

import java.sql.*;
import java.util.Properties;

import oracle.jdbc.OracleConnection;
import oracle.jdbc.OracleTranslatingConnection;
import oracle.jdbc.pool.OracleDataSource;

Run the following SQL statements:

conn system/manager;
grant create sql translation profile to HR;

conn HR/hr;
drop table sample_tab;
create table sample_tab (c1 number, c2 varchar2(100));
insert into sample_tab values (1, 'A');
insert into sample_tab values (2, 'B');
commit;
exec dbms_sql_translator.drop_profile('FOO');
exec  dbms_sql_translator.create_profile('FOO');
exec  dbms_sql_translator.register_sql_translation('FOO','select row of (c1, c2) from sample_tab','select c1, c2 from sample_tab');

Example 8-1 Using the createStatement() method

public class SQLTransStmt
{
  static String url="jdbc:oracle:thin:@localhost:5521:orcl";
  static String user="HR", pwd="hr";
  static String PROFILE = "FOO";
  static String primitiveSql = "select row of (c1, c2) from sample_tab";

  public static void main(String[] args) throws Exception
  {
    OracleDataSource ods = new OracleDataSource();
    ods.setURL(url);

    Properties props = new Properties();
    props.put("user", user);
    props.put("password", pwd);
    props.put(OracleConnection.CONNECTION_PROPERTY_SQL_TRANSLATION_PROFILE, PROFILE);
    ods.setConnectionProperties(props);
    Connection conn = ods.getConnection();
    System.out.println("connection for SQL translation: "+conn);

    try{
      OracleTranslatingConnection trConn = (OracleTranslatingConnection) conn;
      System.out.println("Call: oracle.jdbc.OracleTranslatingConnection.createStatement(true)");
      Statement trStmt = trConn.createStatement(true);
      System.out.println("executeQuery for: "+primitiveSql);
      ResultSet trRs = trStmt.executeQuery(primitiveSql);
      while (trRs.next())
        System.out.println("C1:"+trRs.getInt(1)+", C2:"+trRs.getString(2));
      trRs.close();
      trStmt.close();
    }catch (Exception e) {
      e.printStackTrace();
    }

    try{
      OracleTranslatingConnection trConn = (OracleTranslatingConnection) conn;
      System.out.println("Call: oracle.jdbc.OracleTranslatingConnection.createStatement(false)");
      Statement trStmt = trConn.createStatement(false);
      System.out.println("executeQuery for: "+primitiveSql);
      ResultSet trRs = trStmt.executeQuery(primitiveSql);
      while (trRs.next())
        System.out.println("C1:"+trRs.getInt(1)+", C2:"+trRs.getString(2));
      trRs.close();
      trStmt.close();
    }catch (Exception e) {
      System.out.println("expected Exception: "+e.getMessage());
    }

    try{
      OracleTranslatingConnection trConn = (OracleTranslatingConnection) conn;
      System.out.println("Call: oracle.jdbc.OracleTranslatingConnection.
createStatement(ResultSet.TYPE_SCROLL_SENSITIVE, ResultSet.CONCUR_UPDATABLE, true)");
      Statement trStmt = trConn.createStatement(ResultSet.TYPE_SCROLL_SENSITIVE, ResultSet.CONCUR_UPDATABLE, true);
      System.out.println("executeQuery for: "+primitiveSql);
      ResultSet trRs = trStmt.executeQuery(primitiveSql);
      while (trRs.next())
        System.out.println("C1:"+trRs.getInt(1)+", C2:"+trRs.getString(2));
      System.out.println("move resultset back to 2nd row...");
      trRs.absolute(2);
      while (trRs.next())
        System.out.println("C1:"+trRs.getInt(1)+", C2:"+trRs.getString(2));
      trRs.close();
      trStmt.close();
    }catch (Exception e) {
      e.printStackTrace();
    }

    try{
      conn.setAutoCommit(false);
      OracleTranslatingConnection trConn = (OracleTranslatingConnection) conn;
      System.out.println("Call: oracle.jdbc.OracleTranslatingConnection.createStatement(ResultSet.TYPE_SCROLL_SENSITIVE, ResultSet.CONCUR_UPDATABLE,
 ResultSet.HOLD_CURSORS_OVER_COMMIT, true)");
      Statement trStmt = trConn.createStatement(ResultSet.TYPE_SCROLL_SENSITIVE, ResultSet.CONCUR_UPDATABLE, ResultSet.HOLD_CURSORS_OVER_COMMIT, true);
      System.out.println("executeQuery for: "+primitiveSql);
      ResultSet trRs = trStmt.executeQuery(primitiveSql);
      trRs.last();
      System.out.println("C1:"+trRs.getInt(1)+", C2:"+trRs.getString(2));
      trRs.updateString(2, "Hello");
      trRs.updateRow();
      conn.commit();
      System.out.println("accept the update and list all of the rows again...");
      trRs.beforeFirst();
      while (trRs.next())
        System.out.println("C1:"+trRs.getInt(1)+", C2:"+trRs.getString(2));
      trRs.close();
      trStmt.close();
    }catch (Exception e) {
      e.printStackTrace();
    }

    conn.close();
  }
}

prepareCall()

This group of methods create a CallableStatement object, and specify whether the statement supports SQL translation. If the value of parameter translating is TRUE, then the returning statement supports translation. If the value is FALSE, then the returning statement does not support translation.

Syntax
Description

public CallableStatement prepareCall(
  String sql,
  boolean translating)
throws SQLException;

Creates a CallableStatement object with option to translate or not translate SQL

public CallableStatement prepareCall(
  String sql,
  int resultSetType,
  int resultSetConcurrency,
  boolean translating)
throws SQLException;

Creates a CallableStatement object with the given type and concurrency with option to translate or not translate SQL

public CallableStatement prepareCall(
  String sql,
  int resultSetType,
  int resultSetConcurrency,
  int resultSetHoldability,
  boolean translating)
throws SQLException;

Creates a CallableStatement object with the given type, concurrency, and holdability with option to translate or not translate SQL

Parameters

Parameter
Description

sql
Specifies the String SQL statement value to be sent to the database; may contain one or more parameters

resultSetType

Specifies the int value representing the result set type

resultSetConcurrency

Specifies the int value representing the result set concurrency type

resultSetHoldability
Specifies the int value representing the result set holdability type

translating

Specifies whether or not the statement supports translation

Return Value

The prepareCall() method returns a CallableStatement object.

Exceptions

The prepareCall() method throws SQLException.

Example

Import the following packages before running the example:

import java.sql.*;
import java.util.Properties;

import oracle.jdbc.OracleConnection;
import oracle.jdbc.OracleTranslatingConnection;
import oracle.jdbc.pool.OracleDataSource;

Run the following SQL statements:

conn system/manager;
grant create sql translation profile to HR;

conn HR/hr;

create or replace procedure sample_proc (p_num number, p_vchar in out varchar2) AS
begin
    p_vchar := 'p_num'||p_num||',  p_vchar'||p_vchar;
end;
/

exec dbms_sql_translator.drop_profile('FOO');
exec  dbms_sql_translator.create_profile('FOO');
exec  dbms_sql_translator.register_sql_translation('FOO', 'exec sample_proc(:b1, :b2)', '{call sample_proc(:b1, :b2)}');

Example 8-2 Using the prepareCall() method

public class SQLTransCstmt
{
  static String url="jdbc:oracle:thin:@localhost:5521:orcl";
  static String user="HR", pwd="hr";
  static String PROFILE = "FOO";
  static String primitiveSql = "exec sample_proc(:b1, :b2)";

  public static void main(String[] args) throws Exception
  {
    OracleDataSource ods = new OracleDataSource();
    ods.setURL(url);

    Properties props = new Properties();
    props.put("user", user);
    props.put("password", pwd);
    props.put(OracleConnection.CONNECTION_PROPERTY_SQL_TRANSLATION_PROFILE,
      PROFILE);
    ods.setConnectionProperties(props);
    Connection conn = ods.getConnection();
    System.out.println("connection for SQL translation: "+conn);

    try{
      OracleTranslatingConnection trConn = (OracleTranslatingConnection) conn;
      System.out.println(
        "Call: oracle.jdbc.OracleTranslatingConnection.prepareCall(sql, true)");
      CallableStatement trStmt = trConn.prepareCall(primitiveSql, true);
      trStmt.setInt("b1", 1);
      trStmt.setString("b2", "A");
      trStmt.registerOutParameter("b2", Types.VARCHAR);
      System.out.println("execute for: "+primitiveSql);
      trStmt.execute();
      System.out.println("out param: "+trStmt.getString("b2"));

      trStmt.close();
    }catch (Exception e) {
      e.printStackTrace();
    }

    try{
      OracleTranslatingConnection trConn = (OracleTranslatingConnection) conn;
      System.out.println(
        "Call: oracle.jdbc.OracleTranslatingConnection.prepareCall(sql, false)");
      CallableStatement trStmt = trConn.prepareCall(primitiveSql, false);
      trStmt.setInt(1, 1);
      trStmt.setString(2, "A");
      System.out.println("execute for: "+primitiveSql);
      ResultSet trRs = trStmt.executeQuery();
      while (trRs.next())
        System.out.println("C1:"+trRs.getInt(1)+", C2:"+trRs.getString(2));
      trRs.close();

      trStmt.close();
    }catch (Exception e) {
      System.out.println("expected Exception: "+e.getMessage());
    }

    conn.close();
  }
}

prepareStatement()

This group of methods create a PreparedStatement object, and specify whether the statement supports SQL translation. If the value of parameter translating is TRUE, then the returning statement supports translation. If the value is FALSE, then the returning statement does not support translation.

Syntax
Description

public PreparedStatement prepareStatement(
  String sql,
  boolean translating)
throws SQLException;

Creates a PreparedStatement object with option to translate or not translate SQL

public PreparedStatement prepareStatement(
  String sql,
  int resultSetType,
  int resultSetConcur,
  boolean translating)
throws SQLException;

Creates a PreparedStatement object with the given type and concurrency with option to translate or not translate SQL

public PreparedStatement prepareStatement(
        String sql,
        int resultSetType,
        int resultSetConcur,
        int resultSetHold,
        boolean translating)
throws SQLException;

Creates a PreparedStatement object with the given type, concurrency, and holdability with option to translate or not translate SQL

Parameter
Description

sql
Specifies the String SQL statement value to be sent to the database; may contain one or more parameters

resultSetType

Specifies the int value representing the result set type

resultSetConcur

Specifies the int value representing the result set concurrency type

resultSetHold
Specifies the int value representing the result set holdability type

translating

Specifies whether or not the statement supports translation

Return Value

The prepareStatement() method returns a PreparedStatement object.

Usage Notes

When the "?" placeholder is used with the prepareStatement() method, the driver internally changes the "?" to Oracle-style parameters because the server side translator can only work with Oracle-style markers. This is necessary to distinguish the bind variables. If not, any change in the order of the bind variables will be indistinguishable. The replaced oracle style markers follow the format :b<n> where <n> is an incremental number. For example, exec sample_proc(?,?) becomes exec sample_proc(:b1,:b2).

To further exemplify, consider a scenario of a vendor format where the vendor query selecting top three rows is SELECT * FROM employees WHERE first_name=? AND employee_id=? TOP 3. The query has to be converted to oracle dialect. In this case the following translation is to be registered on the server:

From:

SELECT * FROM employees WHERE first_name=:b1 AND employee_id=:b2 TOP 3

To:

SELECT * FROM employees WHERE first_name=:b1 AND employee_id=:b2 AND ROWNUM <= 3

See SqlTranslationVersion and "SQL Translation of JDBC Applications" for more information.

Exceptions

The prepareStatement() method throws SQLException.

Example

Import the following packages before running the example:

import java.sql.*;
import java.util.Properties;

import oracle.jdbc.OracleConnection;
import oracle.jdbc.OracleTranslatingConnection;
import oracle.jdbc.pool.OracleDataSource;

Run the following SQL statements:

conn system/manager;
grant create sql translation profile to HR;

conn HR/hr;
drop table sample_tab;
create table sample_tab (c1 number, c2 varchar2(100));
insert into sample_tab values (1, 'A');
insert into sample_tab values (1, 'A');
insert into sample_tab values (1, 'A');
commit;
exec dbms_sql_translator.drop_profile('FOO');
exec  dbms_sql_translator.create_profile('FOO');
exec  dbms_sql_translator.register_sql_translation('FOO','select row of select c1, c2 from sample_tab
 where c1=:b1 and c2=:b2','select c1, c2 from sample_tab where c1=:b1 and c2=:b2');

Example 8-3 Using the prepareStatement() method

public class SQLTransPstmt
{
  static String url="jdbc:oracle:thin:@localhost:5521:orcl";
  static String user="HR", pwd="hr";
  static String PROFILE = "FOO";
  static String primitiveSql = "select row of select c1, c2 from sample_tab
    where c1=:b1 and c2=:b2";

  public static void main(String[] args) throws Exception
  {
    OracleDataSource ods = new OracleDataSource();
    ods.setURL(url);

    Properties props = new Properties();
    props.put("user", user);
    props.put("password", pwd);
    props.put(OracleConnection.CONNECTION_PROPERTY_SQL_TRANSLATION_PROFILE,
      PROFILE);
    ods.setConnectionProperties(props);
    Connection conn = ods.getConnection();
    System.out.println("connection for SQL translation: "+conn);

    try{
      OracleTranslatingConnection trConn = (OracleTranslatingConnection) conn;
      System.out.println("Call:
        oracle.jdbc.OracleTranslatingConnection.prepareStatement(sql, true)");
      PreparedStatement trStmt = trConn.prepareStatement(primitiveSql, true);
      trStmt.setInt(1, 1);
      trStmt.setString(2, "A");
      System.out.println("executeQuery for: "+primitiveSql);
      ResultSet trRs = trStmt.executeQuery();
      while (trRs.next())
        System.out.println("C1:"+trRs.getInt(1)+", C2:"+trRs.getString(2));
        trRs.close();
        trStmt.close();
      }catch (Exception e) {
      e.printStackTrace();
    }

    try{
      OracleTranslatingConnection trConn = (OracleTranslatingConnection) conn;
      System.out.println("Call:
        oracle.jdbc.OracleTranslatingConnection.prepareStatement(sql, false)");
      PreparedStatement trStmt = trConn.prepareStatement(primitiveSql, false);
      trStmt.setInt(1, 1);
      trStmt.setString(2, "A");
      System.out.println("executeQuery for: "+primitiveSql);
      ResultSet trRs = trStmt.executeQuery();
      while (trRs.next())
        System.out.println("C1:"+trRs.getInt(1)+", C2:"+trRs.getString(2));
      trRs.close();

      trStmt.close();
    }catch (Exception e) {
    System.out.println("expected Exception: "+e.getMessage());
    }

    try{
      OracleTranslatingConnection trConn = (OracleTranslatingConnection) conn;
      System.out.println("Call:
        oracle.jdbc.OracleTranslatingConnection.prepareStatement(
        sql, ResultSet.TYPE_SCROLL_SENSITIVE, ResultSet.CONCUR_UPDATABLE, true)");
      PreparedStatement trStmt = trConn.prepareStatement(
        primitiveSql, ResultSet.TYPE_SCROLL_SENSITIVE,
        ResultSet.CONCUR_READ_ONLY, true);
      trStmt.setInt(1, 1);
      trStmt.setString(2, "A");
      System.out.println("executeQuery for: "+primitiveSql);
      ResultSet trRs = trStmt.executeQuery();
      while (trRs.next())
        System.out.println("C1:"+trRs.getInt(1)+", C2:"+trRs.getString(2));

      System.out.println("trRs.beforeFirst and show resultSet again...");
      trRs.beforeFirst();
      while (trRs.next())
        System.out.println("C1:"+trRs.getInt(1)+", C2:"+trRs.getString(2));
      trRs.close();
      trStmt.close();
    }catch (Exception e) {
    e.printStackTrace();
    }

  conn.close();
  }
}

getSQLTranslationVersions()

Returns a map of all the translation versions of the query during SQL Translation. In case of an exception, and if suppressExceptions is true, then the translated version in the map is NULL.

Syntax

public Map<SqlTranslationVersion, String> getSqlTranslationVersions(
  String sql,
  boolean suppressExceptions)
throws SQL Exception;

Return Value

Map with all translation versions of a query. See SqlTranslationVersion enum for more details about returning versions.

Exception

This method throws SQLException if there is a problem in query translation, provided suppressExceptions is false.

Error Translation Configuration File

An XML configuration file (path) is provided as a value of the oracle.jdbc.sqlErrorTranslationFile property. This file contains the translations information for errors. These errors occur when a connection to the server cannot be established and thus translation cannot happen on the server. Error messages are of the type that define the state of the database that prevents the connection from being established.

The structure of the configuration XML file is defined in the DTD as follows:

<!DOCTYPE LocalTranslationProfile[

<!ELEMENT LocalTranslationProfile (Exception+)>
<!ELEMENT Exception (ORAError, ErrorCode, SQLState )>
<!ELEMENT ORAError (#PCDATA)>
<!ELEMENT ErrorCode (#PCDATA)>
<!ELEMENT SQLState (#PCDATA)>
]>

where,

ORAError is an int value and specifies the error code for the oracle error.

ErrorCode is an int value and specifies the vendor error code, that is, the translated code.

SQLState is a String value and specifies the vendor SQL state.

Glossary

adapter

A real-time, proprietary tool used to enable access to data stored in one database from another database. Adapters are commonly used to translate SQL, map data types, and facilitate the integration of SQL statements, triggers, and stored procedures.

custom SQL translation

A scenario in which users can register their customer-specific translations of SQL statements with the SQL Translation Profile. During the translation of non-Oracle statements, the profile looks up the custom translations first. Then, if no match is found, it invokes the SQL Translator.

data integration

The exchange of data between different databases, either asynchronously in real-time transactions or synchronously as batch processes.

data integration framework

A set of tools and processes used to enable data exchanges between different databases. Traditional frameworks include many nightly processes such as large batch extractions and feeds, and bulk loading of data. Newer frameworks can include small daily processes and feeds occurring in near real time.

database schema migration

The process of identifying and converting tables, columns, and other objects in a non-Oracle schema to conform to the naming, size, and other conventions required by Oracle Database.

error translation

A scenario in which users can register vendor-specific translations of error codes and messages with the SQL Translation Profile. During SQL execution, client applications rely on vendor-specific error codes and messages. When errors occur, the translated error codes and messages are returned instead of the Oracle error codes and messages.

migration

The process of modifying a non-Oracle application, including all of its components (such as architecture, data, SQL code, and client) to use the Oracle RDBMS rather than a proprietary database management system.

migration repository

A data store in Oracle Database that Oracle SQL Developer uses to manage the metadata for the source and target schema models during a migration. Multiple migration repositories can be used to migrate from several databases to Oracle Database at the same time.

Oracle Database Gateways

A set of Oracle products that support data integration with non-Oracle systems synchronously using consistent APIs.

Oracle GoldenGate

An Oracle product that supports modular, transaction-level data integration between diverse data sources that are stored in SQL Server, Sybase, DB2, Oracle, and other databases.

Oracle SQL*Loader

A fast, flexible, and free Oracle utility that supports loading data from flat files into Oracle Database. It supports several data formats and many different encodings. It also supports parallel data loading.

Oracle SQL Developer Migration Wizard

An Oracle tool that enables the migration of a third-party database to an Oracle database in batch mode. Migration includes data, schemas, objects, triggers, and stored procedures.

SQL dialect

A variation or extension of SQL implemented by a database vendor. When migrating client applications from third-party databases to Oracle, all non-Oracle SQL statements must be translated into Oracle SQL. Because these non-Oracle SQL statements are embedded within the source code of client applications, locating and translating them is a time-consuming, manual task. This release enhances the Oracle database to accept non-Oracle SQL statements from external vendors, and translate them automatically at run time before execution.

SQL Translation Profile

A database schema object that directs how non-Oracle SQL statements are translated into Oracle SQL dialects. This schema also contains translations of error codes, SQLSTATEs, and error messages to be returned when errors occur during the SQL execution.

When migrating a client application with non-Oracle SQL statements to Oracle, the user creates a SQL Translation Profile and configures it to translate the SQL statements and errors for the application. At run time, the application sets the translation profile in the Oracle database to translate its SQL statements and errors.

SQL Translator

The SQL Translator is a software component, provided by Oracle or third-party vendors, which can be installed in Oracle Database. It translates the SQL statements of a client program before they are processed by the Oracle Database SQL compiler. If an error results from translated SQL statement execution, then Oracle Database SQL compiler generates an Oracle error message.

SQLSTATE

A status parameter defined by the ANSI SQL standard. It is a 5-character string that indicates the status of a SQL operation. Some of these values are:

00XXX: Unqualified Successful Completion

01XXX: Warning

02XXX: No Data

07XXX: Dynamic SQL Error

08XXX: Connection Exception

09XXX: Triggered Action Exception

Index

A  C  D  E  F  G  I  J  L  M  N  O  P  R  S  T

A

administrative routines APIs, 7.3

ATTR_RAISE_TRANSLATION_ERROR, 4.1.4

C

client library initialization and termination APIs, 7.3

connection management APIs, 7.3

createStatement(), 8

D

data types,mapping, 7.1

datetime and interval data types, 7.1.4

E

enhanced SQL to PL/SQL bind handling, 1.2.5

error handling, 7.2

error reporting APIs, 7.3

F

features supporting migration, 1.2

G

getSQLTranslationVersions(), 8

I

identity columns, 1.2.3

implicit statement results, 1.2.4

information routines APIs, 7.3

interface

OracleTranslatingConnection, 8

J

JDBC API, 8

configuration file, 8

SQLErrorTranslation.xml, 8

methods

createStatement(), 8

getSQLTranslationVersions(), 8

prepareCall(), 8

prepareStatement(), 8

OracleTranslatingConnection interface, 8

translation properties, 8

sqlErrorTranslationFile, 8

sqlTranslationProfile, 8

JDBC driver support for application migration, 1.2.7

JDBC support for implicit results, 1.2.4.1

L

liboramysql driver, 6.1

liboramysql library

connecting, 6.1

connecting to Oracle Database, 6.4.2

error handling, 6.4.4

expected differences, 6.4.6

globalization, 6.4.5

migration overview, 6.3

supported platforms, 6.4.3

usage, 6.4

M

mapping data types, 7.1

Oracle MySQL client library driver, 7.1

mapping Oracle data types to MySQL data types, 7.1.1

methods

createStatement(), 8

getSQLTranslationVersions(), 8

prepareCall(), 8

prepareStatement(), 8

Migrating a Sybase JDBC application, 5.1

capturing migration, 5.1.3

converting migration, 5.1.4

generating migration, 5.1.5

moving the data, 5.1.6

setting up migration, 5.1.2

migration support for other database vendors, 1.4, 1.4

miscellaneous APIs, 7.3

my_init(), 7.3.1

MySQL APIs, 7.3

MySQL client library driver

installation, 6.2

mysql_affected_rows(), 7.3.2

mysql_autocommit(), 7.3.3

mysql_change_user(), 7.3.4

mysql_character_set_name(), 7.3.5

mysql_close(), 7.3.6

mysql_commit(), 7.3.7

mysql_connect(), 7.3.8

mysql_create_db(), 7.3.9

mysql_data_seek(), 7.3.10

mysql_debug(), 7.3.11

mysql_debug_info(), 7.3.12

mysql_drop_db(), 7.3.13

mysql_dump_debug_info(), 7.3.14

mysql_eof(), 7.3.15

mysql_errno(), 7.3.16

mysql_error(), 7.3.17

mysql_escape_string(), 7.3.18

mysql_fetch_field(), 7.3.19

mysql_fetch_field_direct(), 7.3.20

mysql_fetch_fields(), 7.3.21

mysql_fetch_lengths(), 7.3.22

mysql_fetch_row(), 7.3.23

mysql_field_count(), 7.3.24

mysql_field_seek(), 7.3.25

mysql_field_tell(), 7.3.26

mysql_free_result(), 7.3.27

mysql_get_character_set_info(), 7.3.28

mysql_get_client_info(), 7.3.29

mysql_get_client_version(), 7.3.30

mysql_get_host_info(), 7.3.31

mysql_get_proto_info(), 7.3.32

mysql_get_server_info(), 7.3.33

mysql_get_server_version(), 7.3.34

mysql_get_ssl_cipher(), 7.3.35

mysql_hex_string(), 7.3.36

mysql_info(), 7.3.37

mysql_init(), 7.3.38

mysql_insert_id(), 7.3.39

mysql_kill(), 7.3.40

mysql_library_end(), 7.3.41

mysql_library_init(), 7.3.42

mysql_list_dbs(), 7.3.43

mysql_list_fields(), 7.3.44

mysql_list_processes(), 7.3.45

mysql_list_tables(), 7.3.46

mysql_more_results(), 7.3.47

mysql_next_result(), 7.3.48

mysql_num_fields(), 7.3.49

mysql_num_rows(), 7.3.50

mysql_options(), 7.3.51

mysql_ping(), 7.3.52

mysql_query(), 7.3.53

mysql_read_query_result(), 7.3.54

mysql_real_connect(), 7.3.55

mysql_real_escape_string(), 7.3.56

mysql_real_query(), 7.3.57

mysql_refresh(), 7.3.58

mysql_reload(), 7.3.59

mysql_rollback(), 7.3.60

mysql_row_seek(), 7.3.61

mysql_row_tell(), 7.3.62

mysql_select_db(), 7.3.63

mysql_send_query(), 7.3.64

mysql_server_end(), 7.3.65

mysql_server_init(), 7.3.66

mysql_set_character_set(), 7.3.67

mysql_set_local_infile_default(), 7.3.68

mysql_set_local_infile_handler(), 7.3.69

mysql_set_server_option(), 7.3.70

mysql_shutdown(), 7.3.71

mysql_sqlstate(), 7.3.72

mysql_ssl_set(), 7.3.73

mysql_stat(), 7.3.74

mysql_stmt_affected_rows(), 7.3.75

mysql_stmt_attr_get(), 7.3.76

mysql_stmt_attr_set(), 7.3.77

mysql_stmt_bind_param(), 7.3.78

mysql_stmt_bind_result(), 7.3.79

mysql_stmt_close(), 7.3.80

mysql_stmt_data_seek(), 7.3.81

mysql_stmt_errno(), 7.3.82

mysql_stmt_error(), 7.3.83

mysql_stmt_execute(), 7.3.84

mysql_stmt_fetch(), 7.3.85

mysql_stmt_fetch_column(), 7.3.86

mysql_stmt_field_count(), 7.3.87

mysql_stmt_free_result(), 7.3.88

mysql_stmt_init(), 7.3.89

mysql_stmt_insert_id(), 7.3.90

mysql_stmt_next_result(), 7.3.91

mysql_stmt_num_rows(), 7.3.92

mysql_stmt_param_count(), 7.3.93

mysql_stmt_param_metadata(), 7.3.94

mysql_stmt_prepare(), 7.3.95

mysql_stmt_reset(), 7.3.96

mysql_stmt_result_metadata(), 7.3.97

mysql_stmt_row_seek(), 7.3.98

mysql_stmt_row_tell(), 7.3.99

mysql_stmt_send_long_data(), 7.3.100

mysql_stmt_sqlstate(), 7.3.101

mysql_stmt_store_result(), 7.3.102

mysql_store_result(), 7.3.103

mysql_thread_end(), 7.3.104

mysql_thread_id(), 7.3.105

mysql_thread_init(), 7.3.106

mysql_thread_safe(), 7.3.107

MYSQL_TYPE_BLOB data type, 7.1.2.1

MYSQL_TYPE_DATE data type, 7.1.2.2

MYSQL_TYPE_DATETIME data type, 7.1.2.3

MYSQL_TYPE_DOUBLE data type, 7.1.2.4

MYSQL_TYPE_FLOAT data type, 7.1.2.5

MYSQL_TYPE_LONG data type, 7.1.2.6

MYSQL_TYPE_LONG_BLOB data type, 7.1.2.7

MYSQL_TYPE_LONGLONG data type, 7.1.2.8

MYSQL_TYPE_MEDIUM_BLOB data type, 7.1.2.9

MYSQL_TYPE_NEWDECIMAL data type, 7.1.2.10

MYSQL_TYPE_SHORT data type, 7.1.2.11

MYSQL_TYPE_STRING data type, 7.1.2.12

MYSQL_TYPE_TIME data type, 7.1.2.13

MYSQL_TYPE_TIMESTAMP data type, 7.1.2.14

MYSQL_TYPE_TINY data type, 7.1.2.15

MYSQL_TYPE_TINY_BLOB data type, 7.1.2.16

MYSQL_TYPE_VAR_STRING data type, 7.1.2.17

mysql_use_result(), 7.3.108

mysql_warning_count(), 7.3.109

N

native SQL support for query row limits and row offsets, 1.2.6

O

OCI support for implicit results, 1.2.4.2

ODBC driver support for application migration, 1.2.8

ODBC support for implicit results, 1.2.4.3

OEM tuning and performance packs, 1.3.1

Oracle Database Gateways, 1.3.3

Oracle GoldenGate, 1.3.2

Oracle MySQL client library driver, 7

Oracle SQL developer

migration support, 3.1.1

set up, 3.1.2.1

Oracle SQL Developer, 1.3.4

OracleTranslatingConnection interface, 8

createStatement() method, 8

getSQLTranslationVersions() method, 8

prepareCall() method, 8

prepareStatement() method, 8

P

permissions for installing the SQL translator, 3.3

prepareCall(), 8

prepared statements APIs, 7.3

prepareStatement(), 8

products supporting migration, 1.3

R

result set processing APIs, 7.3

S

SQL translation framework, 1.2.1

architecture, 2.3

configuration, 3.1, 3.2

installation, 3.1, 3.2

SQL translation profile, 2.2

SQL translator, 2.2

use, 2.4

when to use, 2.1

SQL translation of JDBC aplications, 4

SQL translation of JDBC applications, 4.1

error message translation, 4.1.2

error translation, 4.1.5

execution of translated Oracle dialect query, 4.1.4

parameter marker conversion, 4.1.3

SQL translation profile, 4.1.1

SQL translation of ODBC applications, 4, 4.2

error message translation, 4.2.2

SQL translation profile, 4.2.1

SQL translation profile

set up, 3.2.2

sqlErrorTranslationFile, 8

SQLErrorTranslation.xml, 8

sqlTranslationProfile, 8

SqlTranslationVersion enumerated values, 8

statement construction and execution APIs, 7.3

T

transaction control APIs, 7.3

translation properties

sqlErrorTranslationFile, 8

sqlTranslationProfile, 8

Oracle Legal Notices

Copyright Notice

Copyright © 1994-2015, Oracle and/or its affiliates. All rights reserved.

Trademark Notice

Oracle and Java are registered trademarks of Oracle and/or its affiliates. Other names may be trademarks of their respective owners.

Intel and Intel Xeon are trademarks or registered trademarks of Intel Corporation. All SPARC trademarks are used under license and are trademarks or registered trademarks of SPARC International, Inc. AMD, Opteron, the AMD logo, and the AMD Opteron logo are trademarks or registered trademarks of Advanced Micro Devices. UNIX is a registered trademark of The Open Group.

License Restrictions Warranty/Consequential Damages Disclaimer

This software and related documentation are provided under a license agreement containing restrictions on use and disclosure and are protected by intellectual property laws. Except as expressly permitted in your license agreement or allowed by law, you may not use, copy, reproduce, translate, broadcast, modify, license, transmit, distribute, exhibit, perform, publish, or display any part, in any form, or by any means. Reverse engineering, disassembly, or decompilation of this software, unless required by law for interoperability, is prohibited.

Warranty Disclaimer

The information contained herein is subject to change without notice and is not warranted to be error-free. If you find any errors, please report them to us in writing.

Restricted Rights Notice

If this is software or related documentation that is delivered to the U.S. Government or anyone licensing it on behalf of the U.S. Government, the following notice is applicable:

U.S. GOVERNMENT END USERS: Oracle programs, including any operating system, integrated software, any programs installed on the hardware, and/or documentation, delivered to U.S. Government end users are "commercial computer software" pursuant to the applicable Federal Acquisition Regulation and agency-specific supplemental regulations. As such, use, duplication, disclosure, modification, and adaptation of the programs, including any operating system, integrated software, any programs installed on the hardware, and/or documentation, shall be subject to license terms and license restrictions applicable to the programs. No other rights are granted to the U.S. Government.

Hazardous Applications Notice

This software or hardware is developed for general use in a variety of information management applications. It is not developed or intended for use in any inherently dangerous applications, including applications that may create a risk of personal injury. If you use this software or hardware in dangerous applications, then you shall be responsible to take all appropriate fail-safe, backup, redundancy, and other measures to ensure its safe use. Oracle Corporation and its affiliates disclaim any liability for any damages caused by use of this software or hardware in dangerous applications.

Third-Party Content, Products, and Services Disclaimer

This software or hardware and documentation may provide access to or information on content, products, and services from third parties. Oracle Corporation and its affiliates are not responsible for and expressly disclaim all warranties of any kind with respect to third-party content, products, and services. Oracle Corporation and its affiliates will not be responsible for any loss, costs, or damages incurred due to your access to or use of third-party content, products, or services.

Alpha and Beta Draft Documentation Notice

If this document is in preproduction status:

This documentation is in preproduction status and is intended for demonstration and preliminary use only. It may not be specific to the hardware on which you are using the software. Oracle Corporation and its affiliates are not responsible for and expressly disclaim all warranties of any kind with respect to this documentation and will not be responsible for any loss, costs, or damages incurred due to the use of this documentation.
