SHOW

Purpose

Use the SHOW command to display the CONFIGURE commands used to set the current RMAN configuration for one or more databases. RMAN default configurations are suffixed with #default.

Prerequisites

Execute this command only at the RMAN prompt. Either of the following conditions must be met:

  • RMAN must be connected to a target database, which must be mounted or open.

  • RMAN must be connected to a recovery catalog and SET DBID must have been run.

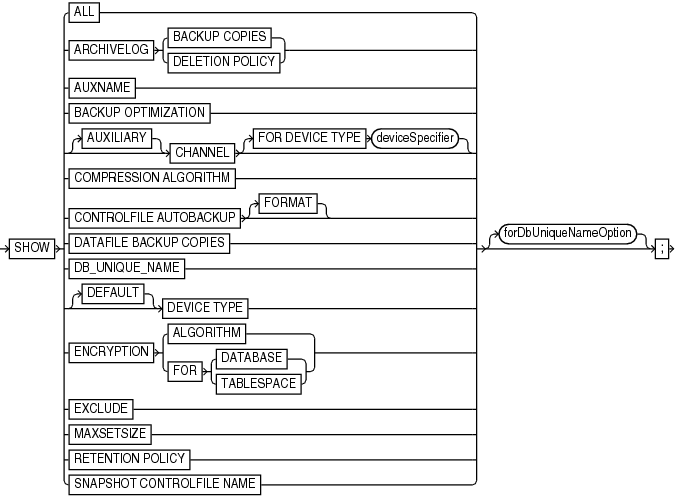

Semantics

Syntax Element Description
ALL Shows all user-entered CONFIGURE commands and default configurations.
ARCHIVELOG BACKUP COPIES Shows the currently configured degree of duplexing for archived redo log backups.
ARCHIVELOG DELETION POLICY Shows the CONFIGURE ARCHIVELOG DELETION POLICY setting.
AUXNAME Shows the CONFIGURE AUXNAME settings.
BACKUP OPTIMIZATION Shows the CONFIGURE BACKUP OPTIMIZATION settings: ON or OFF (default).
[AUXILIARY] CHANNEL Shows the CONFIGURE CHANNEL settings. You can specify a normal channel or an AUXILIARY channel.

   FOR DEVICE TYPE
   deviceSpecifier
Specifies the device type of the channel. For example, SHOW CHANNEL FOR DEVICE TYPE DISK shows only channel settings for disk channels.
COMPRESSION ALGORITHM Shows the configured backup compression algorithm.
CONTROLFILE AUTOBACKUP Shows the CONFIGURE CONTROLFILE AUTOBACKUP settings: ON or OFF.
   FORMAT Shows the format for the control file autobackup file for configured devices.
DATAFILE BACKUP COPIES Shows the CONFIGURE ... BACKUP COPIES setting for data files: 1, 2, 3, or 4.
DB_UNIQUE_NAME Shows the DB_UNIQUE_NAME values known to the recovery catalog.
[DEFAULT] DEVICE TYPE Shows the configured device types and parallelism settings. If DEFAULT is specified, then SHOW displays the default device type and settings.
ENCRYPTION Shows currently configured encryption settings for the database or tablespaces within the database, when used with ALGORITHM or FOR {DATABASE | TABLESPACE}.
   ALGORITHM Shows the configured default algorithm to use for encryption when writing encrypted backup sets. Possible values are listed in V$RMAN_ENCRYPTION_ALGORITHMS.
   FOR DATABASE Shows current encryption settings for the database.
   FOR TABLESPACE Shows current encryption settings for each tablespace.
EXCLUDE Shows only the tablespaces that you excluded.
MAXSETSIZE Shows the CONFIGURE MAXSETSIZE settings.
RETENTION POLICY Shows the settings for CONFIGURE RETENTION POLICY for the current target database.
SNAPSHOT CONTROLFILE NAME Shows the CONFIGURE SNAPSHOT CONTROLFILE settings.
forDbUniqueNameOption Shows the configuration in the recovery catalog for a uniquely named database even when RMAN is not connected to this database as TARGET. You can specify a database with db_unique_name or use ALL for all uniquely named databases.

The unique name for a database is the value of its DB_UNIQUE_NAME initialization parameter setting. The FOR DB_UNIQUE_NAME clause is useful for showing the configurations of standby databases in a Data Guard environment.

RMAN must be connected to a recovery catalog. RMAN must be connected to a mounted target database or you must identify the target database with SET DBID. For example, you could run SET DBID with the DBID of the target database and then show the configuration for all standby databases known to the recovery catalog (see Example 2-55).

See Also: forDbUniqueNameOption for descriptions of the options in this clause


Examples

Example 3-56 Showing All Configurations for a Target Database

Assume that you want to know all persistent RMAN configurations for a target database. You start the RMAN client, CONNECT to the target database and recovery catalog, and run the SHOW command as follows (sample output included):

RMAN> SHOW ALL;

RMAN configuration parameters for database with db_unique_name PROD1 are:
CONFIGURE RETENTION POLICY TO REDUNDANCY 1; # default
CONFIGURE BACKUP OPTIMIZATION OFF; # default
CONFIGURE DEFAULT DEVICE TYPE TO DISK; # default
CONFIGURE CONTROLFILE AUTOBACKUP ON;
CONFIGURE CONTROLFILE AUTOBACKUP FORMAT FOR DEVICE TYPE DISK TO '/disk1/oracle/dbs/%F';
CONFIGURE CONTROLFILE AUTOBACKUP FORMAT FOR DEVICE TYPE SBT_TAPE TO '%F'; # defa ult
CONFIGURE DEVICE TYPE DISK PARALLELISM 1 BACKUP TYPE TO BACKUPSET; # default
CONFIGURE DEVICE TYPE SBT_TAPE PARALLELISM 1 BACKUP TYPE TO BACKUPSET; # default
CONFIGURE DATAFILE BACKUP COPIES FOR DEVICE TYPE DISK TO 1; # default
CONFIGURE DATAFILE BACKUP COPIES FOR DEVICE TYPE SBT_TAPE TO 1; # default
CONFIGURE ARCHIVELOG BACKUP COPIES FOR DEVICE TYPE DISK TO 1; # default
CONFIGURE ARCHIVELOG BACKUP COPIES FOR DEVICE TYPE SBT_TAPE TO 1; # default
CONFIGURE CHANNEL DEVICE TYPE 'SBT_TAPE'
  PARMS "SBT_LIBRARY=/usr/local/oracle/backup/lib/libobk.so";
CONFIGURE MAXSETSIZE TO UNLIMITED; # default
CONFIGURE ENCRYPTION FOR DATABASE ON;
CONFIGURE ENCRYPTION ALGORITHM 'AES128'; # default
CONFIGURE COMPRESSION ALGORITHM 'BASIC' AS OF RELEASE 'DEFAULT' OPTIMIZE FOR LOAD TRUE ;
  # default
CONFIGURE RMAN OUTPUT TO KEEP FOR 7 DAYS; # default
CONFIGURE ARCHIVELOG DELETION POLICY TO NONE; # default
CONFIGURE SNAPSHOT CONTROLFILE NAME TO '/disk1/oracle/dbs/cf_snap .f'
