This chapter describes the Parlay X Multimedia Messaging web service that is available with Oracle User Messaging Service and how to use the Parlay X Web Services Multimedia Messaging API to send and receive messages through Oracle User Messaging Service.
Note:
To learn about the architecture and components of Oracle User Messaging Service, see Oracle Fusion Middleware Getting Started with Oracle SOA Suite.This chapter includes the following sections:
Section 64.1, "Introduction to Parlay X Messaging Operations"
Section 64.5, "Parlay X Messaging Client API and Client Proxy Packages"
Note:
To learn more about the code samples for Oracle User Messaging Service, or to run the samples yourself, see the Oracle SOA Suite samples.Once you have navigated to this page, you can find code samples for Oracle User Messaging Service by entering the search term "UMS" and clicking Search.
Note:
Oracle User Messaging Service also ships with a Java client library that implements the Parlay X API.The following sections describe the semantics of each of the supported operations along with implementation-specific details for the Parlay X Gateway. The following tables, describing input/output message parameters for each operation, are taken directly from the Parlay X specification.
Oracle User Messaging Service implements a subset of the Parlay X 2.1 Multimedia Messaging specification. Specifically Oracle User Messaging Service supports the SendMessage and ReceiveMessage interfaces. The MessageNotification and MessageNotificationManager interfaces are not supported.
The SendMessage interface enables you to send a message to one or more recipient addresses by using the sendMessage
operation, or get the delivery status for a previously sent message by using the getMessageDeliveryStatus operation. The following requirements apply:
A recipient address must conform to the address format requirements of Oracle User Messaging Service (in addition to being a valid URI). The general format is delivery_type
:
protocol_specific_address
, such as email:user@domain
, sms:5551212
or im:user@jabberdomain
.
Certain characters are not allowed in URIs; if it is necessary to include them in an address they can be encoded or escaped. Refer to the JavaDoc for java.net.URI
for details on how to create a properly encoded URI.
While the WSDL specifies that sender addresses can be any string, Oracle User Messaging Service requires that they be valid Messaging addresses.
Oracle User Messaging Service requires that you specify sender addresses on a per-delivery type basis. So for a sender address to apply to a recipient of a given delivery type, say EMAIL, the sender address must also have delivery type of EMAIL. Since this operation allows multiple recipient addresses but only one sender address, the sender address only applies to the recipients with the same delivery type.
Oracle User Messaging Service does not support the MessageNotification interface, and therefore do not produce delivery receipts, even if a receiptRequest is specified. In other words, the receiptRequest parameter is ignored.
Table 64-1 describes message descriptions for the sendMessageRequest
input in the sendMessage
operation.
Table 64-1 sendMessage Input Message Descriptions
Part Name | Part Type | Optional | Description |
---|---|---|---|
addresses |
xsd:anyURI[0..unbounded] |
No |
Destination address for this Message. |
senderAddress |
xsd:string |
Yes |
Message sender address. This parameter is not allowed for all 3rd party providers. The Parlay X server must handle this according to a SLA for the specific application and its use can therefore result in a PolicyException. |
subject |
xsd:string |
Yes |
Message subject. If mapped to SMS, this parameter is used as the senderAddress, even if a separate senderAddress is provided. |
priority |
MessagePriority |
Yes |
Priority of the message. If not present, the network assigns a priority based on the operator policy.Charging to apply to this message. |
charging |
common: |
Yes |
Charging to apply to this message. |
receiptRequest |
common:SimpleReference |
Yes |
Defines the application endpoint, interface name and correlator that is used to notify the application when the message has been delivered to a terminal or if delivery is impossible. |
Table 64-2 describes sendMessageResponse
output messages for the sendMessage
operation.
The getMessageDeliveryStatus
operation gets the delivery status for a previously sent message. The input "requestIdentifier" is the "result" value from a sendMessage operation. This is the same identifier that is referred to as a Message ID in other Messaging documentation.
Table 64-3 describes the getMessageDeliveryStatusRequest
input messages for the getMessageDeliveryStatus
operation.
Table 64-3 getMessageDeliveryStatusRequest Input Message Descriptions
Part Name | Part Type | Optional | Description |
---|---|---|---|
registrationIdentifier |
xsd:string |
No |
Identifier related to the delivery status request. |
Table 64-4 describes the getMessageDeliveryStatusResponse output messages for the getMessageDeliveryStatus
operation.
Table 64-4 getMessageDeliveryStatusResponse Output Message Descriptions
Part Name | Part Type | Optional | Description |
---|---|---|---|
result |
DeliveryInformation |
Yes |
An array of status of the messages that were previously sent. Each array element represents a sent message, its destination address and its delivery status. |
The ReceiveMessage interface has three operations. The getReceivedMessages
operation polls the server for any messages received since the last invocation of getReceivedMessages
. Note that getReceivedMessages
does not necessarily return any message content; it generally only returns message metadata.
The other two operations, getMessage
and getMessageURIs
, are used to retrieve message content.
This operation polls the server for any received messages. Note the following requirements:
The registration ID parameter is a string that identifies the endpoint address for which the application wants to receive messages. See the discussion of the ReceiveMessageManager interface for more details.
The Parlay X specification says that if the registration ID is not specified, all messages for this application should be returned. However, the WSDL says that the registration ID parameter is mandatory. Therefore our implementation treats the empty string ("") as the "not-specified" value. If you call getReceivedMessages with the empty string as your registration ID, you get all messages for this application. Therefore the empty string is not an allowed value of registration ID when calling startReceiveMessages.
According to the Parlay X specification, if the received message content is "pure ASCII text", then the message content is returned inline within the MessageReference object, and the messageIdentifier (Message ID) element is null. Our implementation treats any content with Content-Type "text/plain", and with encoding "us-ascii" as "pure ASCII text" for the purposes of this operation. As per the MIME specification, if no encoding is specified, "us-ascii" is assumed, and if no Content-Type is specified, "text/plain" is assumed.
The priority parameter is currently ignored.
Table 64-5 describes the getReceivedMessagesRequest
input messages for the getReceivedMessages
operation.
Table 64-5 getReceivedMessagesRequest Input Message Descriptions
Part Name | Part Type | Optional | Description |
---|---|---|---|
registrationIdentifier |
xsd:string |
No |
Identifies the off-line provisioning step that enables the application to receive notification of Message reception according to the specified criteria. |
priority |
MessagePriority |
Yes |
The priority of the messages to poll from the Parlay X gateway. All messages of the specified priority and higher are retrieved. If not specified, all messages shall be returned, that is, the same as specifying "Low." |
Table 64-6 describes the getReceivedMessagesResponse
output messages for the getReceivedMessages
operation.
Table 64-6 getReceivedMessagesResponse Output Message Descriptions
Part Name | Part Type | Optional | Description |
---|---|---|---|
registrationIdentifier |
xsd:string |
No |
Identifies the off-line provisioning step that enables the application to receive notification of Message reception according to the specified criteria. |
priority |
MessagePriority |
Yes |
The priority of the messages to poll from the Parlay X gateway. All messages of the specified priority and higher are retrieved. If not specified, all messages shall be returned. This is equal to specifying Low. |
The getMessage
operation retrieves message content, using a message ID from a previous invocation of getReceivedMessages. There is no SOAP body in the response message; the content is returned as a single SOAP attachment.
Table 64-7 describes the getMessageRequest
input messages for the getMessage
operation.
Table 64-7 getMessageRequest Input Message Descriptions
Part Name | Part Type | Optional | Description |
---|---|---|---|
messageRefIdentifier |
xsd:string |
No |
The identity of the message. |
There are no getMessageResponse
output messages for the getMessage
operation.
The getMessageURIs
retrieves message content as a list of URIs. Note the following requirements:
These URIs are HTTP URLs that can be dereferenced to retrieve the content.
If the inbound message has a Content-Type of "multipart", then there are multiple URIs returned, one per subpart. If the Content-Type is not "multipart", then a single URI are returned.
Per the Parlay X specification, if the inbound messages a body text part, defined as "the message body if it is encoded as ASCII text", it is returned inline within the MessageURI object. For the purposes of our implementation, you define this behavior as follows:
If the message's Content-Type is "text/*" (any text type), and if the charset parameter is "us-ascii", then the content is returned inline in the MessageURI object. There are no URIs returned since there is no content other than what is returned inline.
If the message's Content-Type is "multipart/" (any multipart type), and if the first body part's Content-Type is "text/" with charset "us-ascii", then that part is returned inline in the MessageURI object, and there are no URIs returned corresponding to that part.
Per the MIME specification, if the charset parameter is omitted, the default value of "us-ascii" is assumed. If the Content-Type header is not specified for the message, then a Content-Type of "text/plain" is assumed.
Table 64-8 describes the getMessageURIsRequest
input messages for the getMessageURIs
operation.
Table 64-8 getMessageURIsRequest Input Message Descriptions
Part Name | Part Type | Optional | Description |
---|---|---|---|
messageRefIdentifier |
xsd:string |
No |
The identity of the message to retrieve. |
Table 64-9 describes the getMessageURIsResponse
output messages for the getMessageURIs
operation.
The Parlay X Messaging specification leaves certain parts of the messaging flow undefined. The main area that is left undefined is the process for binding a client to an address for synchronous receiving (through the ReceiveMessage interface).
Oracle User Messaging Service includes an extension interface to Parlay X to support this process. The extension is implemented as a separate WSDL in an Oracle XML namespace to indicate that it is not an official part of Parlay X. Clients can choose to not use this additional interface or use it in some modular way such that their core messaging logic remains fully compliant with the Parlay X specification.
ReceiveMessageManager is the Oracle-specific interface for managing client registrations for receiving messages. Clients use this interface to start and stop receiving messages at a particular address. (This is analogous to the concept of registering/unregistering access points in the Messaging API).
Invoking this operation allows a client to bind itself to a given endpoint for receiving messages. Note the following requirements:
An endpoint consists of an address and an optional "criteria", defined by the Parlay X specification as the first white space-delimited token of the message subject or content.
In addition to the endpoint information, the client also specifies a "registration ID" when invoking this operation; this ID is just a unique string which can be used later to refer to this particular binding in the stopReceiveMessage
and getReceivedMessages
operations.
If an endpoint is already registered by another client application, or the registration ID is already being used, a Policy Error results.
Certain characters are not allowed in URIs; if it is necessary to include them in an address they can be encoded/escaped. See the javadoc for java.net.URI for details on how to create a properly encoded URI. For example, when registering to receive XMPP messages you must specify an address such as IM:jabber|user@example.com
, however the pipe (|
) character is not allowed in URIs, and must be escaped before submitting to the server.
There is no guarantee that the server can actually receive messages at a given endpoint address. That depends on the overall configuration of Oracle User Messaging Service, particularly the Messaging drivers that are deployed in the system. No error is indicated if a client binds to an address where the server cannot receive messages.
The startReceiveMessage
operation has the following inputs and outputs:
Table 64-10 describes the startReceiveMessageRequest
input messages for the startReceiveMessage
operation.
Table 64-10 startReceiveMessageRequest Input Message Descriptions
Part Name | Part Type | Optional | Description |
---|---|---|---|
registrationIdentifier |
xsd:string |
No |
A registration identifier. |
messageService |
xsd:anyURI |
No |
Message Service Activation Number. |
criteria |
xsd:string |
Yes |
Descriptive string. |
There are no startReceiveMessageResponse
output messages for the startReceiveMessage
operation.
Invoking this operation removes the previously-established binding between a client and a receiving endpoint. The client specifies the same registration ID that was supplied when startReceiveMessage
was called to identify the endpoint binding that is being broken. If there is no corresponding registration ID binding known to the server for this application, a Policy Error results.
Table 64-11 describes the stopReceiveMessageRequest
input messages for the stopReceiveMessage
operation.
Table 64-11 stopReceiveMessageRequest Input Message Descriptions
Part Name | Part Type | Optional | Description |
---|---|---|---|
registrationIdentifier |
xsd:string |
No |
A registration identifier. |
There are no stopReceiveMessageResponse
output messages for the stopReceiveMessage
operation.
While it is possible to assemble a Parlay X Messaging Client using only the Parlay X WSDL files and a web service assembly tool, prebuilt web service stubs and interfaces are provided for the supported Parlay X Messaging interfaces. Due to difficulty in assembling a web service with SOAP attachments in the style mandated by Parlay X, Oracle recommends the use of the provided API rather than starting from WSDL.
For a complete listing of the classes available in the Parlay X Messaging API, see the Messaging JavaDoc. The main entry points for the API are through the following client classes:
oracle.sdp.parlayx.multimedia_messaging.send.SendMessageClient
oracle.sdp.parlayx.multimedia_messaging.receive.ReceiveMessageClient
oracle.sdp.parlayx.multimedia_messaging.extension.receive_manager.
ReceiveMessageManager
Each client class allows a client application to invoke the operations in the corresponding interface. Additional web service parameters such as the remote gateway URL and any required security credentials, are provided when an instance of the client class is constructed. See the Javadoc for more details. The security credentials are propagated to the server using standard WS-Security headers, as mandated by the Parlay X specification.
The general process for a client application is to create one of the client classes above, set the necessary configuration items (endpoint, username, password), then invoke one of the business methods (for example, SendMessageClient.sendMessage()
, and so on). For examples of how to use this API, see the Messaging samples on Oracle Technology Network (OTN), and specifically usermessagingsample-parlayx-src.zip
.
This chapter describes how to create, deploy and run the sample chat application with Parlay X APIs provided with Oracle User Messaging Service on OTN.
Note:
To learn more about the code samples for Oracle User Messaging Service, or to run the samples yourself, see the Oracle SOA Suite samples.Once you have navigated to this page, you can find code samples for Oracle User Messaging Service by entering the search term "UMS" and clicking Search.
Note:
To learn about the architecture and components of Oracle User Messaging Service, see Oracle Fusion Middleware Getting Started with Oracle SOA Suite.This chapter contains the following sections:
This sample demonstrates how to create a web-based chat application to send and receive messages through email, SMS, or IM. The sample uses standards-based Parlay X Web Service APIs to interact with a User Messaging server. The sample application includes web service proxy code for each of three web service interfaces: the SendMessage and ReceiveMessage services defined by Parlay X, and the ReceiveMessageManager service which is an Oracle extension to Parlay X. You define an application server connection in Oracle JDeveloper, and deploy and run the application.The application is provided as a pre-built Oracle JDeveloper project that includes a simple web chat interface.
Perform the following steps to run and deploy the pre-built sample application:
Open the usermessagingsample-parlayx.jws (contained in the .zip file) in Oracle JDeveloper.
In the Oracle JDeveloper main window the project appears.

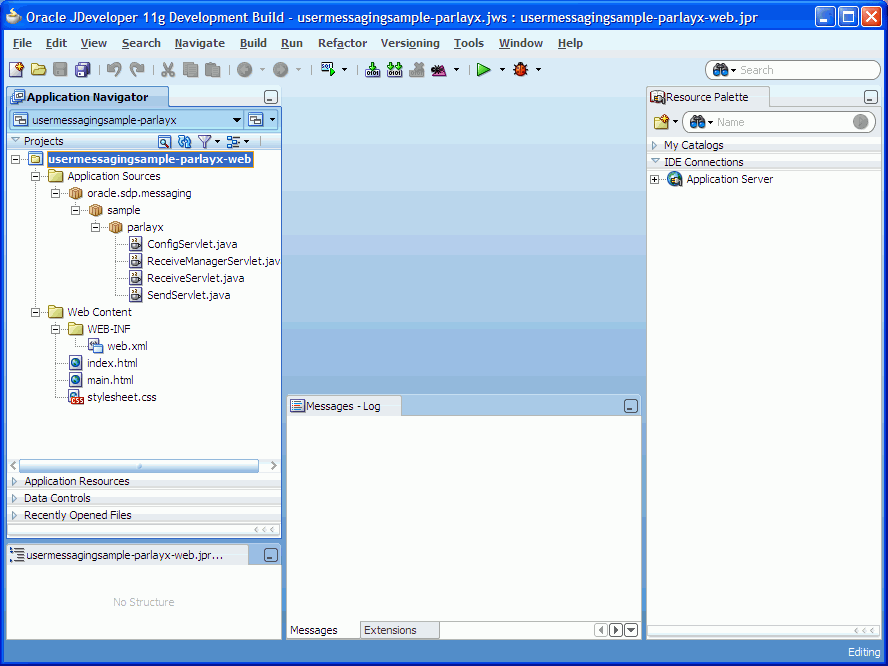

Figure 64-1 Oracle JDeveloper Main Window
In Oracle JDeveloper, select File > Open..., then navigate to the directory above and open workspace file "usermessagingsample-parlayx.jws".
This opens the precreated JDeveloper application for the Parlay X sample application. The application contains one web module. All of the source code for the application is in place. You must configure the parameters that are specific to your installation.
Satisfy the build dependencies for the sample application by ensuring the "Oracle UMS Client" library is used by the web module.
In the Application Navigator, right-click web module usermessagingsample-parlayx-war, and select Project Properties.
In the left pane, select Libraries and Classpath.
Click OK.
Create an Application Server Connection by right-clicking the project in the navigation pane and selecting New. Follow the instructions in Section 64.6.4, "Creating a New Application Server Connection".
Deploy the project by selecting the usermessasgingsample-parlayx project, Deploy, usermessasgingsample-parlayx, to, and SOA_server (Figure 64-3).
Verify that the message Build Successful
appears in the log.
Enter the default revision and click OK.
Verify that the message Deployment Finished
appears in the deployment log.
You have successfully deployed the application.
Before you can run the sample you must configure any additional drivers in Oracle User Messaging Service and configure a default device for the user receiving the message in User Messaging Preferences, as described in the following sections.
Note:
Refer to Oracle Fusion Middleware Administrator's Guide for Oracle SOA Suite and Oracle Business Process Management Suite for more information.Perform the following steps to run and test the sample:
Open a web browser.
Navigate to the URL of the application as follows, and log in:
http://
host
:
port
/usermessagingsample-parlayx/

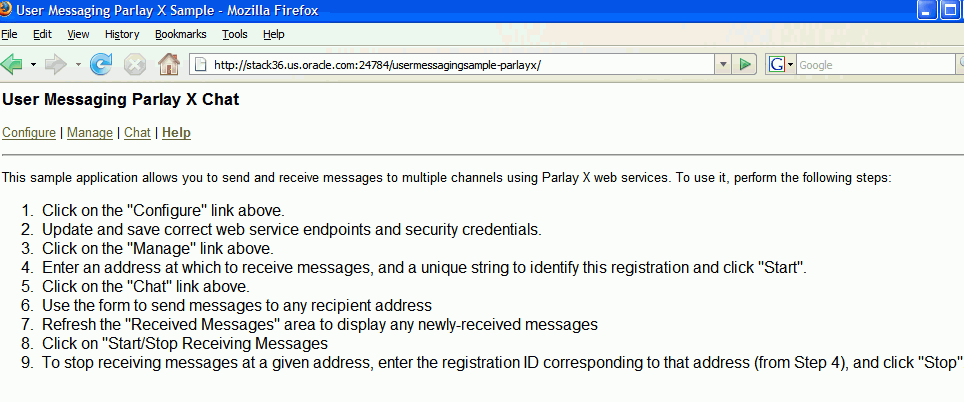

The Messaging Parlay X Sample web page appears (Figure 64-4). This page contains navigation tabs and instructions for the application.
Figure 64-4 Messaging Parlay X Sample Web Page

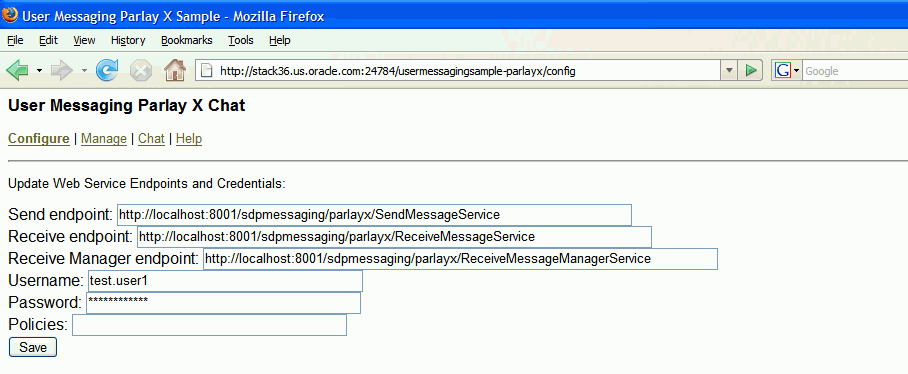

Click Configure and enter the following values (Figure 64-5):
Specify the Send endpoint. For example, http://localhost:port/sdpmessaging/parlayx/SendMessageService
Specify the Receive endpoint. For example, http://localhost:port/sdpmessaging/parlayx/ReceiveMessageService
Specify the Receive Manager endpoint. For example, http://localhost:port/sdpmessaging/parlayx/ReceiveMessageMessageService
Specify the Username and Password.
Specify a Policy (required if the User Messaging Service instance has WS security enabled).
Figure 64-5 Configuring the Web Service Endpoints and Credentials
Click Save.

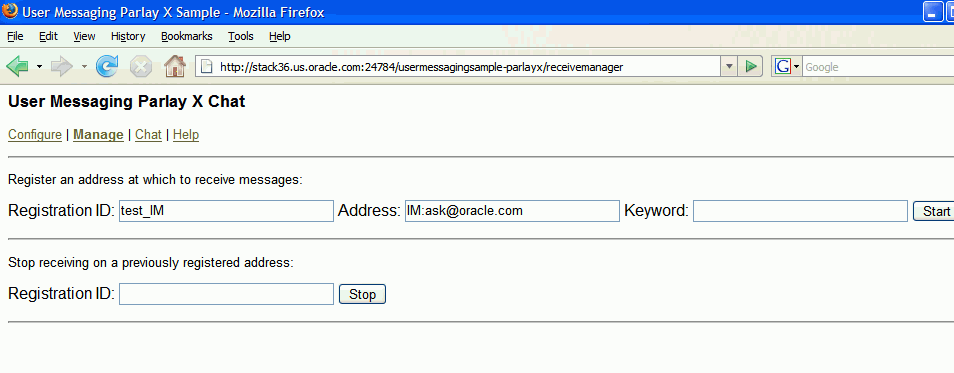

Click Manage.
Enter a Registration ID to specify the registration and address at which to receive messages (Figure 64-6). You can also use this page to stop receiving messages at an address.
Click Start.
Verify that the message Registration operation succeeded
appears.

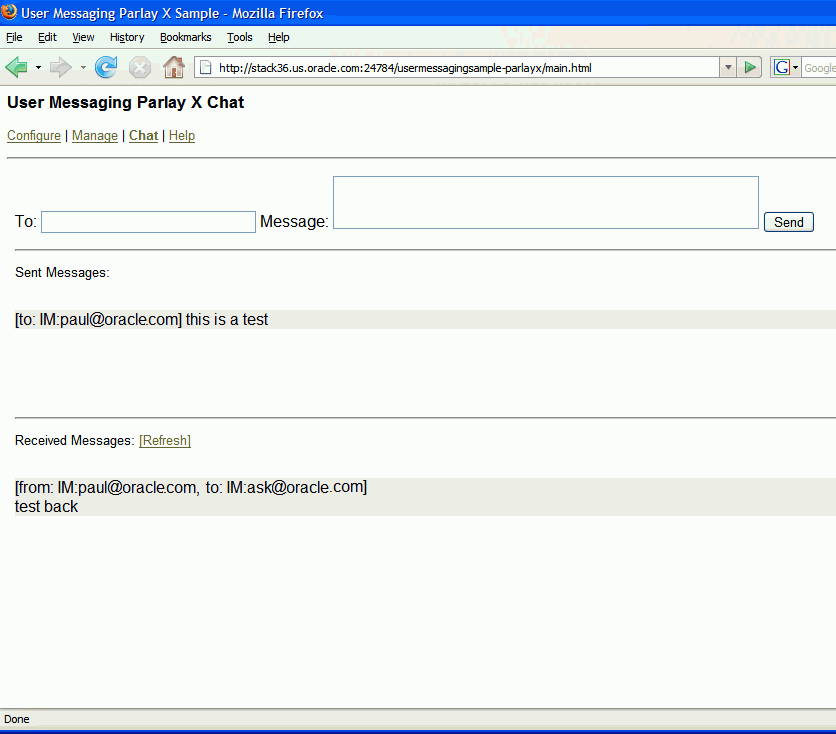

Click Chat (Figure 64-7).
Enter recipients in the To: field in the format illustrated in Figure 64-7.
Enter a message.
Click Send.
Verify that the message is received.
Perform the following steps to create an Application Server Connection.
Create a new Application Server Connection by right-clicking the project and selecting New, Connections, and Application Server Connection (Figure 64-8).
Figure 64-8 New Application Server Connection
Name the connection SOA_server
and click Next (Figure 64-9).
Select WebLogic 10.3 as the Connection Type.
Figure 64-9 New Application Server Connection
Enter the authentication information. The typical value for username is weblogic
.
In the Connection dialog, enter the hostname, port and SSL port for the SOA admin server, and enter the name of the domain for the Oracle WebLogic Server Domain.
Click Next.
On the Test dialog, click Test Connection.
Verify that the message Success!
appears.
The Application Server Connection has been created.
