This chapter describes Oracle Enterprise Scheduling Service Security security features that provide access control for its resources and application identity propagation for job execution.
Section 18.1, "Introduction to Oracle Enterprise Scheduling Service Security"
Section 18.2, "Configuring Metadata Security for Oracle Enterprise Scheduling Service"
Section 18.3, "Configuring Web Service Security for Oracle Enterprise Scheduling Service"
Section 18.4, "Configuring PL/SQL Job Security for Oracle Enterprise Scheduling Service"
Section 18.5, "Elevating Privileges for Oracle Enterprise Scheduling Service Jobs"
Section 18.6, "Configuring a Single Policy Stripe in Oracle Enterprise Scheduling Service"
Oracle Enterprise Scheduling Service Security includes the following:
Protected operations on MetadataService
; protected by MetadataPermission
, which enforces metadata access control. Access control on metadata objects. Only privileged user may create, delete, and update job and schedule metadata. For more information see Section 18.1.1, "Oracle Enterprise Scheduling Service Metadata Access Control."
Support for the use of an application identity. Using an application identity enables elevated privileges for completing a job that requires higher privileges than those allotted to the submitting user. For more information, see Section 18.1.2, "Oracle Enterprise Scheduling Service Job Execution Security."

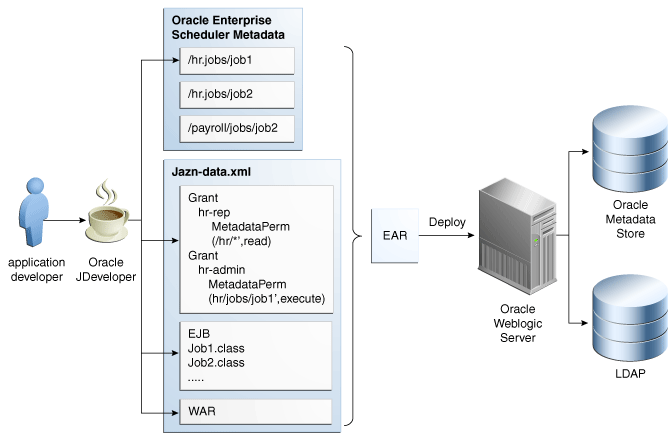

At design time the Metadata creator needs to decide which job functions can access which Metadata objects. This is expressed by associating each Metadata object with one or more roles and specifying one or more actions for each role. Figure 18-1 shows the metadata security summary.
During job submission, the user under whose permissions the job request is submitted is called the submitting user. At request execution time all user Java code including pre-processing, post-processing, Java jobs, and substitution, is run as the submitting user, retaining all roles and credentials.
If the job metadata specifies SYS_RUNAS_APPLICAITONID
, however, the job runs under the elevated privileges of an application ID. For more information, see Section 18.5, "Elevating Privileges for Oracle Enterprise Scheduling Service Jobs."
When a user accesses Oracle Enterprise Scheduling Service services using the RuntimeService or MetadataService
, the identity of the user is acquired and Oracle Enterprise Scheduling Service checks if the user has the required permissions to access resources (for example Metadata objects). For example, if a user named teller1 needs to call getJobDefinition
to access a Metadata object named caclulateFees
, Oracle Enterprise Scheduling Service ensures that teller1 has READ
permission for the Metadata object caclulateFees
before returning the object.
At design time the Metadata creator needs to decide which job functions can access which Metadata objects. This is expressed by associating each Metadata object with one or more roles and specifying one or more actions for each role.
There are two options for Metadata role assignments:
Using Oracle JDeveloper Tools Oracle ADF Security Wizard
Using Oracle JDeveloper Oracle Enterprise Scheduling Service add-in Metadata pages
Oracle JDeveloper ADF Security wizard creates the roles you use; the roles must be created before you can register roles with a metadata object.
These steps describe a minimal, validated security setup for an application using Oracle Enterprise Scheduling Service.
Follow these steps to create a working jps-config.xml
and a partially-populated jazn-data.xml
. Use these steps to configure servlets to work with JPS.
To enable security using the ADF Security wizard:
In Oracle JDeveloper, with an application open, from the Application menu select Secure.
From the dropdown list, select Configure ADF Security. The Configure ADF Security wizard displays.
In the Enable ADF Security page, select either ADF Authentication and Authorization or ADF Authentication and click Next.
In the Select authentication type page, select either HTTP Basic Authentication or Form-Based Authentication and click Next.
In the Enable automatic policy grants page, select the appropriate options from the Enable Automatic Grant area, and click Next.
In the Specify authenticated welcome page, select options as needed and click Next.
In the Summary page verify the options and click Finish.
In the Security Infrastructure Created dialog, click OK.
Next, to enable security and to ensure that the jazn-data.xml
is included in the application deployment, perform the following steps after assembling the EAR file for the application. For more information, see Section 5.6.3, "How to Assemble the EAR File for Oracle Enterprise Scheduling Service Sample Application."
Ensure the security related files are included with EAR file:
In Oracle JDeveloper, select Application > Application Properties.
In the Application Properties page, in the Navigator select Deployment.
In the Deployment Profiles area, select the EAR file Deployment descriptor. For example, for the sample application this is shown in Section 5.6.3, "How to Assemble the EAR File for Oracle Enterprise Scheduling Service Sample Application".
Click Edit. This displays the Edit EAR Deployment Profile Properties page.
In the Edit EAR Deployment Profile Properties page, expand File Groups > Application Descriptors > Filters.
In the Filters area, select the Files tab.
Ensure that the files jazn-data.xml
, jps-config.xml
, and weblogic-application.xml
are selected under the META-INF
folder.
Click OK to save the descriptor.
You need to define roles before the roles are used in Oracle Enterprise Scheduling Service security. There are two types of roles that may be defined:
Enterprise roles: These are defined directly in Oracle WebLogic Server either using the Oracle WebLogic Server console, using the WLST scripts, or using the ADF Security Wizard in Oracle JDeveloper.
Application roles: These can be defined in the jazn-data.xml
file or using the ADF Security Wizard.
To define principals security:
In Oracle JDeveloper, open the application and expand Application Resources in the Application Navigator.
In the Application Resources area, expand Descriptors and META-INF.
In META-INF, double-click to open jazn-data.xml
.
In the page showing jazn-data.xml
, select the Overview tab. Note, if the Overview tab is not shown, try closing jazn-data.xml
and then opening it again.
Click Application Roles...(Manage Users and Roles).
On the Edit JPS Identity and Policy Store page, in the navigator expand Identity Store and jazn.com.
In the navigator, select Roles and click Add.... This displays the Add Role dialog.
In the Add Role dialog, enter a name in the Name field.
Click OK.
On the Edit JPS Identity and Policy Store page, in the navigator select Application Policy Store. If there is a sub-element with the same name as the application, go to the next step, Otherwise, do the following:
Select Application Policy Store.
Click New... . This displays the Create Application Policy dialog.
In the Create Application Dialog the Display Name field should contain the application name.
Click OK to accept the default Display Name.
On the Edit JPS Identity and Policy Store page, in the navigator expand Application Policy Store and expand the application name.
In the navigator, select Application Roles. This displays the Application Roles page.
In the Application Roles page, click Add... to add roles. For correct functionality at least one enterprise role must be mapped to the application role by adding enterprise roles in the Member Roles tab.
Click OK.
Access to all Metadata is controlled by grants. In order to ensure access by the right identities, you need to give the correct grants. It is expected that most Metadata grants will be done using the Oracle Enterprise Scheduling Service Oracle JDeveloper add-in.
First, create any required Oracle Enterprise Scheduling Service Metadata in an application using File > New > Business Tier > Enterprise Scheduler Metadata. For more information on creating Metadata, see Section 5.5, "Creating Metadata for Oracle Enterprise Scheduling Service Sample Application."
Using Oracle JDeveloper, you can add security grants to Oracle Enterprise Scheduling Service metadata objects.
To secure Oracle Enterprise Scheduling Service metadata objects:
Open the Editor page for any Oracle Enterprise Scheduling Service Metadata object.
In the Access Control area, click Add to add a new access control item.
In the Add Access Control dialog, select a Role from the dropdown list. This selects a role to grant access privileges.
Select one or more actions from the list, Read, Execute, Update, or Delete.

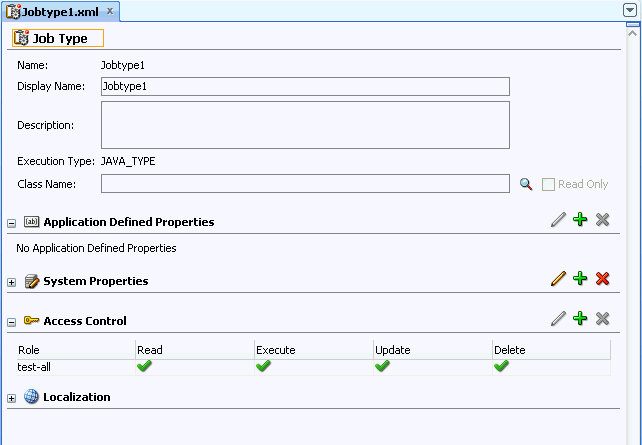

Click OK. This displays the updated role, as shown in Figure 18-2.
Repeat for as many roles as needed.
There may be occasions where you want to create grants explicitly, for example when using wildcards. These steps show how to set up grants using the ADF Security wizard.
Note that these steps assume you have already created application roles.
To specify grants with the ADF Security wizard:
In the Application Navigator, expand the Application Resources panel.

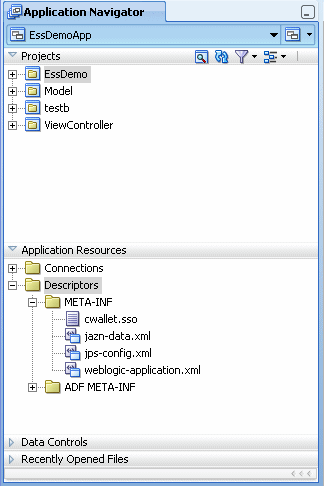

Expand Descriptors and META-INF, as shown in Figure 18-3.
Double-click jazn-data.xml
to open the file. In the editor panel for jazn-data.xml
, select the Overview tab, and click Application Roles... (Manage Users and Roles). This displays the JPS Identity & Policy Store dialog. Note, if the Overview tab is not shown, try closing jazn-data.xml
and then opening it again.
In the JPS Identity & Policy Store dialog, in the navigator expand Application Policy Store.
Expand application-name, and select Application Roles.
Click New.
Enter the display name you wish for this grant, and click OK.
Select the Principals tab, and click Add... .
Enter the name of the application role which will receive the grant; this should be one of the role names created. Leave the Class field as is.
Click OK.
With the new role selected in the Principals tab, make sure the Type is role
.
Select the Permissions tab, and click Add....
For the Name field, enter a full permission string or a partial string with wildcards; see Table 18-1 for examples. In the Class field, enter oracle.as.scheduler.security.MetadataPermission
. Click OK.
With the new permission selected in the Permissions tab, enter the desired actions in the Actions Field.
Click OK to save the grant.
Note:
If necessary, use the following workaround:Right-click the jazn-data.xml
file and select Open.
Click the Source tab.
Under <jazn-policy><grant><grantee>
, remove the elements <display-name>
and <type>
.
Table 18-1 Sample Permission Grants for Security Using Oracle ADF
Name | Actions | Effect |
---|---|---|
|
|
Grants the ability to submit requests for a single Metadata item. |
|
|
Grants to ability to create and execute any new Metadata items in /mypackage/subpackage |
|
|
Grants ad hoc submission permission |
|
|
Grants wide-open permissions |
Grants for Metadata are part of the class oracle.as.scheduler
. security.MetadataPermission
. The name, or target of the permission is based on the package, Metadata object type, and name of the Metadata object being protected; this identifier can be retrieved from MetdataObjectId#toPermissionString()
.
Table 18-2 lists the actions for the grants. The notation <Type> is a placeholder for all of the metadata object types. For example, get<Type>() refers to the methods getJobDefinition()
, getJobType()
, getJobSet()
.
Table 18-2 Grant Actions for Metadata Security
Action | Implies | Metadata Functions |
---|---|---|
|
|
get<Type>(), query<Type>() |
|
|
submitRequest() |
|
|
add<Type>() |
|
|
update<Type>() |
|
|
delete<Type>() |
If you are submitting ad-hoc requests, you can have full wildcard ("*") permission with both EXECUTE
and CREATE
actions. When submitting ad-hoc requests, that is, using submitRequest()
without certain MetadataObjectIds
, you can grant permissions with the full wildcard ("*") name using the EXECUTE
and CREATE
actions.
Each time a user application calls a MetdataService
or RuntimeService
method, Oracle Enterprise Scheduling Service checks the current subject for privileges on the metadata accessed by the methods. For example, submitting a request requires EXECUTE
permissions on the job definition or job set metadata object associated with the submission. Methods that change metadata, for example calling updateJobDefinition()
, require UPDATE
permissions.
For all MetadataService
methods except queries, an exception is thrown when the user tries to access a Metadata object for which the user does not have permission.
The MetadataService
query methods have different behavior. When a user performs a query Oracle Enterprise Scheduling Service only returns Metadata objects that have READ
permission. Thus a user who has no permissions on Metadata objects receives an empty list for all queries, but this user would not see an exception thrown due to lack of permissions.
The value of SystemProperty.
USER_NAME
is overwritten at submission time; the user cannot spoof an identity at submission time using SystemProperty
.USER_NAME
.
For information about securing the Oracle Enterprise Scheduling Service web service, see Section 11.9, "Securing the Oracle Enterprise Scheduling Service Web Service."
The PL/SQL job does not enforce data security checks when calling ess_runtime package apis.
When a user accesses Oracle Enterprise Scheduling Service services using the RuntimeService
or MetadataService
interfaces, the identity of the user calling the methods is acquired. This identity is used to check whether the user has the required permissions to access certain resources such as metadata objects. For example, if user teller1
calls the method getJobDefinition
for metadata object caclulateFees
, Oracle Enterprise Scheduling Service ensures that teller1
has read permissions for metadata object caclulateFees
before returning the object.
The caller identity is also used to run jobs requested by the user. For example, if user teller1
calls the method submitRequest()
for a Java job, the requested jobs run under teller1
and retain all roles and credentials assigned to that user.
Oracle Enterprise Scheduling Service supports the use of an application identity. Using an application identity enables elevated privileges for completion of a job that requires higher privileges than those allotted to the submitting user.
Oracle Platform Security policy store serves as the repository for authorization policies. Authorization policies load at run time into the Java Virtual Machine, and are used to make decisions regarding authorization. Authorization policies comprise a hierarchy of application roles, the mapping of enterprise roles to application roles and permissions grants to application roles. Application roles can also be hierarchical.
Aside from authorization policies, Oracle Platform Security policy store also stores administrative constructs that help in maintaining these authorization policies, including resource catalogs (with associated resource types), permission sets and role categories. The authorization polices and administrative components are scoped to an application. This is known as an application stripe.
An application stripe is a collection of JAAS policies applicable to the application with which it is associated. Out of the box, an application stripe maps to an Oracle Java EE application. Oracle Platform Security also supports mapping multiple Java EE applications to one application stripe. The application ID string identifies the name of the application or applications.
Oracle Enterprise Scheduling Service allows specifying an applicationStripe
name and mapping it to a JPS policy context ID. You can assign multiple Oracle Enterprise Scheduling Service hosting applications to a single policy context.
To configure an Oracle Enterprise Scheduling Service hosting application to a specific applicationStripe:
Open the ejb-jar.xml
file.
Under the message-driven
element, add an activation-config-properties
element with the value applicationStripe
.
Under the jpsinterceptor-class
element, configure the JpsInterceptor
.
Make sure to match the value of applicationStripe
under the <message-driven>
element with the application.name
value under the <interceptor>
element.
Example 18-1 shows an applicationStripe
configuration for the policy context ESS_FUNCTIONAL_TEST_APP_STRIPE
.
Example 18-1 Configuring the applicationStripe and the JpsInterceptor
<ejb-jar> .... <enterprise-beans> <message-driven> <ejb-name>ESSAppEndpoint</ejb-name> <ejb-class>oracle.as.scheduler.ejb.EssAppEndpointBean</ejb-class> <activation-config> .... <activation-config-property> <activation-config-property-name>applicationStripe</activation-config-property-name> <activation-config-property-value>ESS_FUNCTIONAL_TESTS_APP_ STRIPE</activation-config-property-value> </activation-config-property> </activation-config> </message-driven> ..... </enterprise-beans> <interceptors> <interceptor> <interceptor-class>oracle.security.jps.ee.ejb.JpsInterceptor</interceptor-class> <env-entry> <env-entry-name>application.name</env-entry-name> <env-entry-type>java.lang.String</env-entry-type> <env-entry-value>ESS_FUNCTIONAL_TESTS_APP_STRIPE</env-entry-value> <injection-target> <injection-target-class>oracle.security.jps.ee.ejb.JpsInterceptor </injection-target-class> <injection-target-name>application_name</injection-target-name> </injection-target> </env-entry> </interceptor> </interceptors> </ejb-jar>
If your application has a web module, configure the web module JpsFilter
to use the same applicationStripe
in the file web.xml
. Example 18-2 shows a code sample.
Example 18-2 Configuring the Web Module in web.xml
<web-app> <filter> <filter-name>JpsFilter</filter-name> <filter-class>oracle.security.jps.ee.http.JpsFilter</filter-class> ... <init-param> <param-name>application.name</param-name> <param-value>ESS_FUNCTIONAL_TESTS_APP_STRIPE</param-value> </init-param> </filter> </web-app>
At design time, an application stripe manifests as:
An <application>
element under the <policystore>
element in the jazn-data.xml
file.
A node under the node cn=<Weblogic.domain.name>,cn=JPSContext,cn=<root.node>
, such as cn=ATGDemo,cn=base_domain,cn=JPSContext,cn=MY_Node
.
