A listening channel listens on an endpoint for messages. If a listening channel is marked as internal, then it can be used by any internal business application. If it is used as an external channel, then any trading partner can send a message to Oracle B2B using this channel.
This chapter contains the following topics:
Listening channels are used globally. You do not need to select a listening delivery channel in an agreement. Listening channels are used for any trading partner to send inbound messages to Oracle B2B or for any back-end business application to send outbound messages to Oracle B2B.
When you add a listening channel, you also specify the protocol that the channel uses, as shown in Figure 16-1.

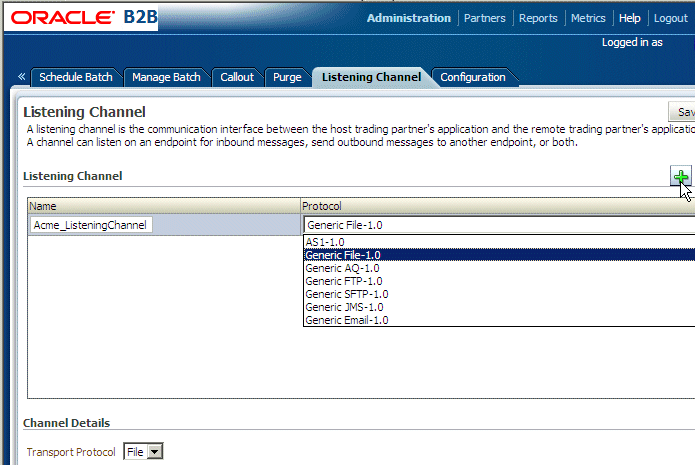

Figure 16-1 Adding a Protocol for a Listening Channel
By using a global listening channel, you can keep all messages in one directory from which Oracle B2B pulls. This approach is useful for File, FTP, and SFTP (SSH FTP) exchanges.
Table 16-1 describes the listening channel protocols supported by Oracle B2B.
Table 16-1 Listening Channel Protocols
Protocol | Description |
---|---|
AS1-1.0 |
Applicability Statement 1 (AS1) provides S/MIME and uses SMTP to transmit data using e-mail. Security, authentication, message integrity, and privacy are assured by the use of encryption and digital signatures. Use nonrepudiation to make it impossible for the intended recipient of a message to deny having received it. AS1 works with almost any type of data. |
Generic File-1.0, Generic AQ-1.0, Generic FTP-1.0, Generic SFTP-1.0, Generic JMS-1.0, Generic Email-1.0 |
Using the Generic options, you can send messages with or without security. The Generic exchange protocol supports MIME and S/MIME, including S/MIME 3.0-based signing and encryption. There is no receipt acknowledgment support with the Generic protocols (the acknowledgment mode must be set to None). |
The transport protocol used to send the message is determined by the listening channel you select, as shown in the Channel Details area in Figure 16-2.

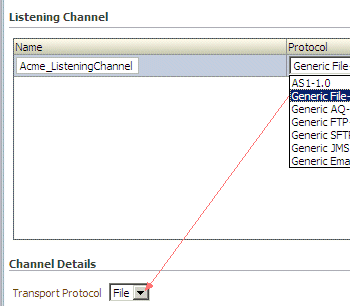

Figure 16-2 Channel Details: The Transport Protocol
Table 16-2 describes the transport protocols available in Oracle B2B.
Table 16-2 Transport Protocols Available in Oracle B2B
Protocol | Description |
---|---|
|
Use Email for AS1 and Email listening channels. |
File |
The File transport enables files to be picked up from a shared file directory. |
AQ |
Oracle AQ provides secure, bidirectional, asynchronous communication. The location of the application location is transparent, using any number of Oracle connectivity options, including OCI, JDBC, or PL/SQL. Both XML and non-XML message payloads are supported. |
FTP |
FTP enables files to be passed with FTP between applications. FTP runs on default port 21. To change to another port, provide the value in the Control Port field. To enable SSL, use the Channel Mask field. The default is None (no SSL). |
SFTP |
SFTP enables files to be passed using SSH FTP. SFTP runs on default port 22, which can be changed to another port. SFTP supports two modes of authentication, password authentication and public key authentication. To use password authentication, provide a password, which is used for authentication. To use public key authentication, provide the private key file location. You may also need to provide a pass phrase if the private key file is pass-phrase protected. |
JMS |
JMS enables applications to send and receive messages to and from the queues and topics administered by any Java Message Service (JMS) provider, including Oracle WebLogic JMS and non-Oracle providers such as MQSeries JMS (IBM). If a user name and password are not provided, the local JNDI is used, including in a clustered environment, provided that the destinations are distributed. Oracle B2B does not support |
Listening channel details include transport protocol parameters, channel attributes, exchange protocol parameters, and security specifications.
A transport protocol defines the properties specific to a given use of a protocol endpoint. The transport is responsible for message delivery using the selected transport protocol, mode (synchronous or asynchronous), server, and protocol endpoint address (the trading partner address, such as a URI). Table 16-3 describes the transport protocol parameters and lists the protocols to which the parameters apply.
Table 16-3 Transport Protocol Parameters
Protocol/Parameter | Description | Protocol Used With |
---|---|---|
Archival Directory |
B2B channels move the processed files to this directory. By default, it is a destructive read—processed files are deleted from the endpoint. In this case, files are moved to the path provided. |
Generic File-1.0 (optional) Generic FTP-1.0 (optional) Generic SFTP-1.0 (optional) |
Cache Connections |
If enabled, file listing and processing of the file occur in the same session (contrary to the default, in which listing and processing occur in different sessions). |
Generic FTP-1.0 (optional) |
Channel mask |
To enable SSL for FTP, enter one of the following:
The default is None (no SSL). |
Generic FTP-1.0 (optional) |
Cipher suites |
Sets of ciphers defined in SSL. |
Generic FTP-1.0 (optional) |
Connection factory |
The JNDI location or Java class name for the connection factory, as in |
Generic JMS-1.0 (optional) |
Consumer |
The client that receives the message. |
Generic AQ-1.0 (optional) |
Content type |
The content type of the payload being sent over e-mail. The default content type is |
AS1-1.0 (optional) Generic Email-1.0 (optional) |
Control port |
Provide a value to change the default FTP port value (21) |
Generic FTP-1.0 (optional) |
Data port |
For active FTP connections, use this option to configure the static/fixed data port of the FTP server. |
Generic FTP-1.0 (optional) |
Datasource |
The JNDI name of the JDBC data source to access AQ queues. |
Generic AQ-1.0 (optional) |
Destination name |
The JMS destination name. |
Generic JMS-1.0 (optional) |
Destination Provider |
Enables B2B to connect to JMS queues or topics available on remote servers. JNDI properties required to connected to the target server are expected as the value. Use |
Generic JMS-1.0 (optional) |
Email ID |
The e-mail address to which messages are delivered (similar to specifying the path for a file channel or queues in AQ or JMS). |
AS1-1.0 (required) Generic Email-1.0 (required) |
Email Server |
Select IMAP or POP3. |
AS1-1.0 (required) Generic Email-1.0 (required) |
Enable CCC |
Enables B2B to authenticate in an SSL session and do the rest of the file transfer commands on a plain socket. |
Generic FTP-1.0 (optional) |
Enable Marker |
If enabled, creates a zero-byte file with the same name as the source, indicating completion of reading or writing. The file carries the same name as the source, but with the extension |
Generic File-1.0 (optional) Generic FTP-1.0 (optional)-1.0 Generic SFTP-1.0 (optional) |
Encoding |
The encoding used in B2B to convert the contents of the inbound files. |
Generic FTP-1.0 (optional) |
Filename formatFoot 1 |
The following filename formats can be used: %FROM_PARTY% %TO_PARTY% %DOCTYPE_NAME% %DOCTYPE_REVISION% %MSG_ID% %TIMESTAMP% This filename format can be used for ebMS documents only: %ACTIONNAME% These formats can be used in any combination; for example, %TO_PARTY%_%DOCTYPE_NAME%_%DOCTYPE_REVISION%.dat produces something like See footnote below. |
Generic File-1.0 (optional) Generic FTP-1.0 (optional) Generic SFTP-1.0 (optional) |
Folder |
An absolute directory path is recommended. |
AS1-1.0 (optional) Generic Email-1.0 (optional) |
Folder name |
An absolute directory path is recommended. |
Generic File-1.0 (required) Generic FTP-1.0 (required) |
Host name |
The trading partner's transport or e-mail server exchanging messages. |
AS1-1.0 (required) Generic AQ-1.0 (optional) Generic FTP-1.0 (required) Generic SFTP-1.0 (required) Generic Email-1.0 (required) |
Is Binary |
Treats the message as binary content, with no translation or validation. Agreements are identified based on the file naming convention. |
This parameter is not available with Generic File-1.0, Generic FTP-1.0, and Generic SFTP-1.0, although it appears in the B2B interface for these protocols. |
Is Map Payload Alone |
Indicates that the payload is sent alone as part of a JMS message of type j |
Generic JMS-1.0 (optional) |
Is topic |
Select to indicate that JMS is communicating with a topic (not a queue). |
Generic JMS-1.0 (optional) |
Is Van Mailbox |
If enabled, B2B treats the endpoint as a VAN Mailbox and operates accordingly. |
Generic FTP-1.0 (optional) |
Message type |
Select a JMS messages type: BYTES, TEXT, or MAP. |
Generic JMS-1.0 (optional) |
Minimum Age |
Files arriving at the endpoint are processed after the time interval entered, in milliseconds. |
Generic File-1.0 (optional) Generic FTP-1.0 (optional) Generic SFTP-1.0 (optional) |
Pass phrase and Confirm pass phrase |
If you enter a private key file location, and if the private key file is pass-phrase protected, then enter the pass phrase. |
Generic SFTP-1.0 (optional) |
Password and Confirm Password |
To use password authentication, provide a key store password, which is used for authentication. |
AS1-1.0 (optional) Generic AQ-1.0 (optional) Generic FTP-1.0 (optional) Generic SFTP-1.0 (optional) Generic JMS-1.0 (optional) Generic Email-1.0 (optional) |
Path |
The absolute directory path where messages are sent from or received. |
Generic SFTP-1.0 (required) |
Polling interval |
The time interval in seconds during which Oracle B2B polls the server for inbound messages. |
AS1-1.0 (optional) Generic File-1.0 (optional) Generic AQ-1.0 (optional) Generic FTP-1.0 (optional) Generic SFTP-1.0 (optional) Generic JMS-1.0 (optional) Generic Email-1.0 (optional) |
Port number |
AQ runs on default port 1521. SFTP runs on default port 22, which can be changed to another port. FTP runs on default port 21, which is not displayed. See the description of Control Port for how to change this port number. |
Generic AQ-1.0 (optional) Generic SFTP-1.0 (required) |
Preserve Filename |
Retains the file name. |
Generic File-1.0 (optional) Generic FTP-1.0 (optional) Generic SFTP-1.0 (optional) |
Private key |
To use public key authentication, provide the private key file location. You may also need to provide a pass phrase if the private key file is pass-phrase protected. |
Generic SFTP-1.0 (optional) |
Queue name |
The AQ queue name. |
Generic AQ-1.0 (optional) |
Recipient |
The value used when delivering a message to the AQ queue. For example, if you set the recipient to |
Generic AQ-1.0 (optional) |
Send as attachment |
If enabled, the message (payload) is sent as an e-mail attachment instead of the typical delivery in which the payload is the message body. |
This parameter is not available with AS1-1.0 and Generic Email-1.0, although it appears in the B2B interface for these protocols. |
SID |
System ID to identify an Oracle database. |
Generic AQ-1.0 (optional) |
Subject |
The subject header of the e-mail message. |
This parameter is not available with AS1-1.0 and Generic Email-1.0, although it appears in the B2B interface for these protocols. |
Subscriber ID |
The JMS subscriber ID is required if JMS is communicating with a topic. |
Generic JMS-1.0 |
Transfer Type |
Select binary or ascii for the file transfer mode. |
Generic FTP-1.0 (optional) |
Use JMS ID |
Uses the JMS message ID as the B2B message ID. This facilitates correlation at the JMS level. |
Generic JMS-1.0 (optional) |
Use proxy |
Select this option if a proxy server is used. |
Generic FTP-1.0 (optional) Generic SFTP-1.0 (optional) |
User name |
The user name (login name) to connect to the target servers. This value is optional for AQ and JMS because B2B can use the configured JNDI data sources to connect to queues. |
AS1-1.0 (required) Generic AQ-1.0 (optional) Generic FTP-1.0 (required) Generic SFTP-1.0 (required) Generic JMS-1.0 (optional) Generic Email-1.0 (required) |
Footnote 1 In File/FTP channels, if the filename format
is set then the directory name format
is ignored.
The channel is the communication interface between the host trading partner's host application and its installation. Table 16-4 describes the channel attributes and lists the protocols to which the attributes apply.
Table 16-4 Channel Attributes
Protocol/Parameter | Description | Protocol Used With |
---|---|---|
Ack Mode |
Select Sync, Async, or None for the mode in which the trading partner receives messages. Select None for all generic exchanges. |
This parameter is not available with AS1-1.0, although it appears in the B2B interface for this protocol. |
Description |
Provide an optional description. |
AS1-1.0 (optional) Generic File-1.0 (optional) Generic AQ-1.0 (optional) Generic FTP-1.0 (optional) Generic SFTP-1.0 (optional) Generic JMS-1.0 (optional) Generic Email-1.0 (optional) |
Enable/Disable Channel |
The channel is the communication interface between the host trading partner's host application and its installation. |
AS1-1.0 (required) Generic File-1.0 (required) Generic AQ-1.0 (required) Generic FTP-1.0 (required) Generic SFTP-1.0 (required) Generic JMS-1.0 (required) Generic Email-1.0 (Required) |
Internal |
Select this option if the channel is internal to the host trading partner's enterprise. This feature is disabled for AS1. |
Generic File-1.0 (optional) Generic AQ-1.0 (optional) Generic FTP-1.0 (optional) Generic SFTP-1.0 (optional) Generic JMS-1.0 (optional) Generic Email-1.0 (optional) |
Response Mode |
Select Sync, Async, or None, |
This parameter is not available with AS1-1.0, although it appears in the B2B interface for this protocols. |
Retry Count |
The number of times that Oracle B2B retries sending the message. |
This parameter is not available with AS1-1.0, Generic File-1.0, Generic AQ-1.0, Generic FTP-1.0, Generic SFTP-1.0, Generic JMS-1.0, and Generic Email-1.0, although it appears in the B2B interface for these protocols. |
Retry Interval |
The time interval in seconds during which Oracle B2B attempts to resend the message. A time interval of 2 minutes increments the HH:MM:SS timestamp as follows: If the sent timestamp is 3:42:58, then 42 minutes is incremented by 2 minutes and the retry is sent at 3:44:00. The seconds are dropped in the retry increment. Subsequent retries are at 2 minute intervals. For protocols with acknowledgments, B2B waits for the acknowledgment (formerly called the Time to Acknowledge parameter). If it is not received, the retry interval setting causes B2B to retry |
This parameter is not available with AS1-1.0, Generic File-1.0, Generic AQ-1.0, Generic FTP-1.0, Generic SFTP-1.0, Generic JMS-1.0, and Generic Email-1.0, although it appears in the B2B interface for these protocols. |
Transport Callout |
For the inbound message, B2B invokes the transport callout immediately after it receives a message from the transport. For the outbound message, B2B invokes the transport callout immediately before it sends a message to the transport. |
AS1-1.0 (optional) Generic File-1.0 (optional) Generic AQ-1.0 (optional) Generic FTP-1.0 (optional) Generic SFTP-1.0 (optional) Generic JMS-1.0 (optional) Generic Email-1.0 (optional) |
The exchange protocol defines the headers, acknowledgments, and packaging that puts the headers and payload together (the message exchange mechanism). The exchange protocol also defines signing and compression. Table 16-5 describes the exchange protocol parameters and lists the protocols to which the parameters apply.
Security parameters are not available for any of the protocols, although the B2B interface displays security parameters for the AS1-1.0 protocol, as described in Table 16-6.
Table 16-6 Security Parameters: Not Available for Listening Channel Protocols
Protocol/Parameter | Description | Protocol Used With |
---|---|---|
Ack Signed |
Select this option to ensure that the responder acknowledges receipt of the messages; nothing needs to be provided. |
This parameter is not available with AS1-1.0, although it appears in the B2B interface for this protocol. |
Digital Signature |
If Message Signed is selected, then select one of the following: SMIME 3.0 with MD5 - RSA SMIME 3.0 with SHA1 - RSA |
This parameter is not available with AS1-1.0, although it appears in the B2B interface for this protocol. |
Encryption |
If Message Encrypted is selected, then select one of the following: SMIME 3.0 with DES SMIME 3.0 with 3DES SMIME 3.0 with RC2 - 40 SMIME 3.0 with RC2 - 64 SMIME 3.0 with RC2 - 128 |
This parameter is not available with AS1-1.0, although it appears in the B2B interface for this protocol. |
Message Encrypted |
Select this option to enable message encryption. This option requires you to select an encryption schema in the Encryption field. |
This parameter is not available with AS1-1.0, although it appears in the B2B interface for this protocol. |
Message Signed |
Select this option to provide one of the digital signatures in the Digital Signature field. |
This parameter is not available with AS1-1.0, although it appears in the B2B interface for this protocol. |
To configure a listening channel, add a listening channel protocol, and then transport protocol parameters, channel attributes, exchange protocol parameters, and security parameters, depending on the channel protocol you selected.
To add a listening channel protocol:
Click the Administration link.
Click the Listening Channel tab.
Click Add.
Provide a name for the listening channel.
Select a protocol.
Figure 16-3 shows the list of protocols.

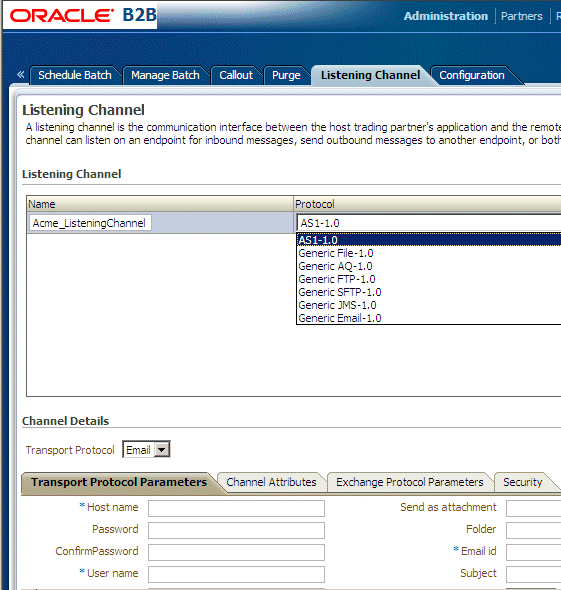

Figure 16-3 Adding a Listening Channel Protocol
See Table 16-1 for a description of the protocols.
The transport protocol that appears under Channel Details is based on your protocol selection in Step 5.
Click Save.
To add transport protocol parameters:
Click the Transport Protocol Parameters tab.
Provide transport protocol parameters, depending on the channel/transport protocols.
Table 16-3 describes the transport protocol parameters (listed in alphabetical order) and the protocols to which the parameters apply.
Click Save.
Click the Channel Attributes tab.
Provide channel attributes, depending on the channel/transport protocols selected.
Table 16-4 describes the channel attributes (listed in alphabetical order) and the protocols to which the attributes apply.
Click Save.
To add exchange protocol parameters:
Click the Exchange Protocol Parameters tab.
Provide exchange protocol parameters, depending on the channel/transport protocols selected.
Table 16-5 describes the exchange protocol parameters (listed in alphabetical order) and the protocols to which the attributes apply.
Click Save.
There are two options available to enable document sequencing for an AQ or JMS Trading Partner-facing listening channel.
The Trading Partner can send messages with sequence target if inbound message sequencing is desired.
The host Trading Partner can enable the sequencing option in the AQ or JMS Trading Partner-facing listening channel to sequence inbound messages. In this case select the queue name as the sequence target.
Note that if both sequencing options are enabled then first option takes precedence.
For a full discussion of sequencing on Trading Partner channels see Section 5.5.2, "Message Sequencing."
