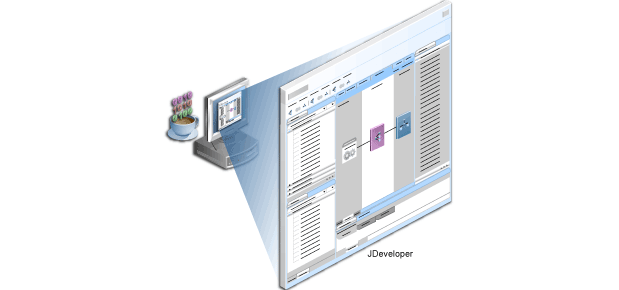

Oracle JDeveloper

Oracle JDeveloper is the development component of Oracle SOA Suite. It forms a comprehensive Integrated Service Environment (ISE) for creating and deploying composite applications and managing the composite.

Oracle JDeveloper enables developers to model, create, discover, assemble, orchestrate, test, deploy, and maintain composite applications based on services.

The SOA Composite Editor enables you to create, edit, and deploy services, and also to assemble them in a composite application, all from a single location. These components are integrated together into one application and communicate with the outside world through binding components such as Web services and JCA adapters.

The SOA Composite Editor enables you to use either of two approaches for designing SOA composite applications:

• The top-down approach of building a composite application puts interfaces first and implementation next. For example, you first add BPEL processes, human tasks, business rules, and Oracle Mediator routing services components to an application, and later define the specific content of these service components.
• The bottom-up approach takes existing implementations of service components and wraps them with Web service interfaces for assembly into a composite application. For example, you first create and define the specific content of BPEL processes, human tasks, business rules, and Oracle Mediator routing services components, and later create an SOA composite application to which you add these service components.

Oracle JDeveloper provides the following additional editors to design service components:

• Oracle BPEL Designer: You can create a BPEL process service component in the SOA composite application of Oracle JDeveloper and then design it by using the BPEL Designer, which is displayed, when you double-click a BPEL process in the SOA Composite Editor.
• Oracle Mediator Editor: You can create a mediator service component in the SOA composite application of Oracle JDeveloper, and then design it by using the Mediator Editor, which is displayed when you double-click a Mediator in SOA Composite Editor.
• Human Task Editor: You can create a human task service component in the SOA composite application of Oracle JDeveloper and then design it by using the Human Task Editor, which is displayed when you double-click a human task in the SOA Composite Editor.
• Business Rules Designer: You can create a business rules service component in the SOA composite application of Oracle JDeveloper and then design it by using the Business Rules Designer, which is displayed when you double-click a business rule in the SOA Composite Editor.
