16 Oracle CQL Statements

This chapter describes the various Oracle CQL data definition language (DDL) and data modification language (DML) statements that Oracle CEP supports.

16.1 Introduction to Oracle CQL Statements

Oracle CQL supports the following DDL statements:

Query
View

Note:

In stream input examples, lines beginning with h (such as h 3800) are heartbeat input tuples. These inform Oracle CEP that no further input will have a timestamp lesser than the heartbeat value.

For more information, see:

Query

Purpose

Use the query statement to define a Oracle CQL query that you reference by identifier in subsequent Oracle CQL statements.

Prerequisites

If your query references a stream or view, then the stream or view must already exist.

If the query already exists, Oracle CEP server throws an exception.

For more information, see:

Syntax

You express a query in a <query></query> element as Example 16-1 shows. Specify the identifier as the query element id attribute.

Example 16-1 Query in a <query></query> Element

<query id="q0"><![CDATA[
    select * from OrderStream where orderAmount > 10000.0
]]></query>

query::=

(sfw_block::=, xstream_clause::=, binary::=)

sfw_block::=

(select_clause::=, from_clause::=, opt_where_clause::=, opt_group_by_clause::=, order_by_clause::=, order_by_top_clause::=, opt_having_clause::=)

select_clause::=

(non_mt_projterm_list::=)

non_mt_projterm_list::=

(projterm::=)

projterm::=

(identifier::=)

from_clause::=

(non_mt_relation_list::=, relation_variable::=, non_mt_cond_list::=)

non_mt_relation_list::=

(relation_variable::=)

relation_variable::=

(identifier::=, window_type::=, pattern_recognition_clause::=, xmltable_clause::=)

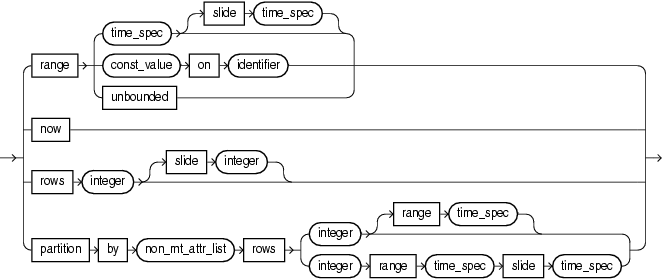

window_type::=

(identifier::=, non_mt_attr_list::=, time_spec::=)

opt_where_clause::=

(non_mt_cond_list::=)

opt_group_by_clause::=

(non_mt_attr_list::=)

order_by_clause::=

(order_by_list::=)

order_by_top_clause::=

(pattern_partition_clause::=, order_by_list::=)

order_by_list::=

(orderterm::=)

orderterm::=

(order_expr::=, null_spec::=, asc_desc::=)

null_spec::=

asc_desc::=

opt_having_clause::=

(non_mt_cond_list::=)

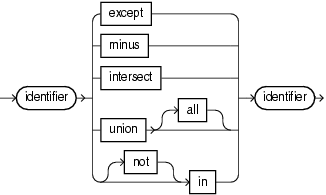

binary::=

xstream_clause::=

xmltable_clause::=

(xmlnamespace_clause::=, const_string::=, xqryargs_list::=, xtbl_cols_list::=)

xmlnamespace_clause::=

(xmlnamespaces_list::=)

xmlnamespaces_list::=

(xml_namespace::=)

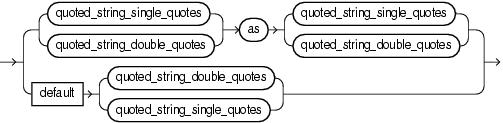

xml_namespace::=

(const_string::=)

xtbl_cols_list::=

(xtbl_col::=)

xtbl_col::=

Semantics

named_query

Specify the Oracle CQL query statement itself (see "query").

If you plan to configure the query with USE UPDATE SEMANTICS, you must declare one or more stream elements as a primary key (out_of_line_constraint::=).

For syntax, see "Query".

query

You can create an Oracle CQL query from any of the following clauses:

sfw_block: a select, from, and other optional clauses (see "sfw_block").
binary: an optional set operation clause (see "binary").
xstream_clause: apply an optional relation-to-stream operator to your sfw_block or binary clause to control how the query returns its results (see "xstream_clause").

For syntax, see query::=.

sfw_block

Specify the select, from, and other optional clauses of the Oracle CQL query. You can specify any of the following clauses:

select_clause: the stream elements to select from the stream or view you specify (see "select_clause").
from_clause: the stream or view from which your query selects (see "from_clause").
opt_where_clause: optional conditions your query applies to its selection (see "opt_where_clause")
opt_group_by_clause: optional grouping conditions your query applies to its results (see "opt_group_by_clause")
order_by_clause: optional ordering conditions your query applies to its results (see "order_by_clause")
order_by_top_clause: optional ordering conditions your query applies to the top-n elements in its results (see "order_by_top_clause")
opt_having_clause: optional clause your query uses to restrict the groups of returned stream elements to those groups for which the specified condition is TRUE (see "opt_having_clause")

For syntax, see sfw_block::= (parent: query::=).

select_clause

Specify the select clause of the Oracle CQL query statement.

If you specify the asterisk (*), then this clause returns all tuples, including duplicates and nulls.

Otherwise, specify the individual stream elements you want (see "non_mt_projterm_list").

Optionally, specify distinct if you want Oracle CEP to return only one copy of each set of duplicate tuples selected. Duplicate tuples are those with matching values for each expression in the select list. For an example, see "Select and Distinct Examples".

For syntax, see select_clause::= (parent: sfw_block::=).

non_mt_projterm_list

Specify the projection term ("projterm") or comma separated list of projection terms in the select clause of the Oracle CQL query statement.

For syntax, see non_mt_projterm_list::= (parent: select_clause::=).

projterm

Specify a projection term in the select clause of the Oracle CQL query statement. You can select any element from any of stream or view in the from_clause (see "from_clause") using the identifier of the element.

Optionally, you can specify an arithmetic expression on the projection term.

Optionally, use the AS keyword to specify an alias for the projection term instead of using the stream element name as is.

For syntax, see projterm::= (parent: non_mt_projterm_list::=).

from_clause

Specify the from clause of the Oracle CQL query statement by specifying the individual streams or views from which your query selects (see "non_mt_relation_list").

To perform an outer join, use the LEFT or RIGHT OUTER JOIN ... ON syntax. To perform an inner join, use the WHERE clause.

For more information, see:

"opt_where_clause"
"Joins"

For syntax, see from_clause::= (parent: sfw_block::=).

non_mt_relation_list

Specify the stream or view ("relation_variable") or comma separated list of streams or views in the from clause of the Oracle CQL query statement.

For syntax, see non_mt_relation_list::= (parent: from_clause::=).

relation_variable

Use the relation_variable statement to specify a stream or view from which the Oracle CQL query statement selects.

You can specify a previously registered or created stream or view directly by its identifier you used when you registered or created the stream or view. Optionally, use the AS keyword to specify an alias for the stream or view instead of using its name as is.

To specify a built-in stream-to-relation operator, use a window_type clause (see "window_type"). Optionally, use the AS keyword to specify an alias for the stream or view instead of using its name as is.

To apply advanced comparisons optimized for data streams to the stream or view, use a pattern_recognition_clause (see "pattern_recognition_clause"). Optionally, use the AS keyword to specify an alias for the stream or view instead of using its name as is.

To process xmltype stream elements using XPath and XQuery, use an xmltable_clause (see "xmltable_clause"). Optionally, use the AS keyword to specify an alias for the stream or view instead of using its name as is.

To perform an outer join, use the LEFT or RIGHT OUTER JOIN ... ON syntax. To perform an inner join, use the WHERE clause.

For more information, see:

"View"

For syntax, see relation_variable::= (parent: non_mt_relation_list::=).

window_type

Specify a built-in stream-to-relation operator.

For more information, see Section 1.1.3, "Stream-to-Relation Operators (Windows)".

For syntax, see window_type::= (parent: relation_variable::=).

time_spec

Specify the time over which a range or partitioned range sliding window should slide.

Default: if units are not specified, Oracle CEP assumes [second|seconds].

For more information, see "Range-Based Stream-to-Relation Window Operators" and "Partitioned Stream-to-Relation Window Operators".

For syntax, see time_spec::= (parent: window_type::=).

opt_where_clause

Specify the (optional) where clause of the Oracle CQL query statement.

For syntax, see opt_where_clause::= (parent: sfw_block::=).

opt_group_by_clause

Specify the (optional) GROUP BY clause of the Oracle CQL query statement. Use the GROUP BY clause if you want Oracle CEP to group the selected stream elements based on the value of expr(s) and return a single (aggregate) summary result for each group.

Expressions in the GROUP BY clause can contain any stream elements or views in the FROM clause, regardless of whether the stream elements appear in the select list.

The GROUP BY clause groups stream elements but does not guarantee the order of the result set. To order the groupings, use the ORDER BY clause.

For syntax, see opt_group_by_clause::= (parent: sfw_block::=).

order_by_clause

Specify the ORDER BY clause of the Oracle CQL query statement as a comma-delimited list ("order_by_list") of one or more order terms (see "orderterm"). Use the ORDER BY clause to specify the order in which stream elements on the left-hand side of the rule are to be evaluated. The expr must resolve to a dimension or measure column.

For more information, see Section 14.2.6, "Sorting Query Results".

For syntax, see order_by_clause::= (parent: sfw_block::=).

order_by_top_clause

Specify the ORDER BY clause of the Oracle CQL query statement as a comma-delimited list ("order_by_list") of one or more order terms (see "orderterm") followed by a ROWS keyword and integer number (n) of elements. Use this form of the ORDER BY clause to select the top-n elements over a stream or relation. This clause always returns a relation.

Consider the following example queries:

At any point of time, the output of the following example query will be a relation having top 10 stock symbols throughout the stream.
```
select stock_symbols from StockQuotes order by stock_price rows 10
```
At any point of time, the output of the following example query will be a relation having top 10 stock symbols from last 1 hour of data.
```
select stock_symbols from StockQuotes[range 1 hour] order by stock_price rows 10
```

For more information, see

For syntax, see order_by_top_clause::= (parent: sfw_block::=).

order_by_list

Specify a comma-delimited list of one ore more order terms (see "orderterm") in an (optional) ORDER BY clause.

For syntax, see order_by_list::= (parent: order_by_clause::=).

orderterm

A stream element (attr::=) or positional index (constant int) to a stream element. Optionally, you can configure whether or not nulls are ordered first or last using the NULLS keyword (see "null_spec").

order_expr (order_expr::=) can be an attr or constant_int. The attr (attr::=) can be any stream element or pseudo column.

For syntax, see orderterm::= (parent: order_by_list::=).

null_spec

Specify whether or not nulls are ordered first (NULLS FIRST) or last (NULLS LAST) for a given order term (see "orderterm").

For syntax, see null_spec::= (parent: orderterm::=).

asc_desc

Specify whether an order term is ordered in ascending (ASC) or descending (DESC) order.

For syntax, see asc_desc::= (parent: orderterm::=).

opt_having_clause

Use the HAVING clause to restrict the groups of returned stream elements to those groups for which the specified condition is TRUE. If you omit this clause, then Oracle CEP returns summary results for all groups.

Specify GROUP BY and HAVING after the opt_where_clause. If you specify both GROUP BY and HAVING, then they can appear in either order.

For an example, see "HAVING Example".

For syntax, see opt_having_clause::= (parent: sfw_block::=).

binary

Use the binary clause to perform set operations on the tuples that two streams or views return.

For examples, see:

"BINARY Example: UNION and UNION ALL"
"BINARY Example: INTERSECT"
"BINARY Example: MINUS"

For syntax, see binary::= (parent: query::=).

xstream_clause

Use an xstream_clause to specify a relation-to-stream operator that applies to the query.

For more information, see Section 1.1.4, "Relation-to-Stream Operators".

For syntax, see xstream_clause::= (parent: query::=).

xmltable_clause

Use an xmltable_clause to process xmltype stream elements using XPath and XQuery. You can specify a comma separated list (see xtbl_cols_list::=) of one or more XML table columns (see xtbl_col::=), with or without an XML namespace.

For examples, see:

"XMLTABLE Query Example"
"XMLTABLE With XML Namespaces Query Example"

For syntax, see xmltable_clause::= (parent: relation_variable::=).

pattern_recognition_clause

Use a pattern_recognition_clause to perform advanced comparisons optimized for data streams.

For more information and examples, see Chapter 15, "Pattern Recognition With MATCH_RECOGNIZE".

For syntax, see pattern_recognition_clause::= (parent: relation_variable::=).

Examples

The following examples illustrate the various semantics that this statement supports:

"Simple Query Example"
"HAVING Example"
"BINARY Example: UNION and UNION ALL"
"BINARY Example: INTERSECT"
"BINARY Example: MINUS"
"Select and Distinct Examples"
"XMLTABLE Query Example"
"ORDER BY ROWS Query Example"

For more examples, see Chapter 14, "Oracle CQL Queries, Views, and Joins".

Simple Query Example

Example 16-2 shows how to register a simple query q0 that selects all (*) tuples from stream OrderStream where stream element orderAmount is greater than 10000.

Example 16-2 REGISTER QUERY

<query id="q0"><![CDATA[
    select * from OrderStream where orderAmount > 10000.0
]]></query>

HAVING Example

Consider the query q4 in Example 16-3 and the data stream S2 in Example 16-4. Stream S2 has schema (c1 integer, c2 integer). The query returns the relation in Example 16-5.

Example 16-3 HAVING Query

<query id="q4"><![CDATA[
    select
        c1,
        sum(c1)
    from
        S2[range 10]
    group by
        c1
    having
        c1 > 0 and sum(c1) > 1
]]></query>

Example 16-4 HAVING Stream Input

Timestamp   Tuple
1000        ,2
2000        ,4
3000        1,4
5000        1,
6000        1,6
7000        ,9
8000        ,

Example 16-5 HAVING Relation Output

Timestamp   Tuple Kind  Tuple
5000:       +           1,2
6000:       -           1,2
6000:       +           1,3

BINARY Example: UNION and UNION ALL

Given the relations R1 and R2 in Example 16-7 and Example 16-8, respectively, the UNION query q1 in Example 16-6 returns the relation in Example 16-9 and the UNION ALL query q2 in Example 16-6 returns the relation in Example 16-10.

Example 16-6 Set Operators: UNION Query

<query id="q1"><![CDATA[
    R1 UNION R2
]]></query>
<query id="q2"><![CDATA[
    R1 UNION ALL R2
]]></query>

Example 16-7 Set Operators: UNION Relation Input R1

Timestamp   Tuple Kind  Tuple
   200000:  +           20,0.2
   201000:  -           20,0.2
   400000:  +           30,0.3
   401000:  -           30,0.3
100000000:  +           40,4.04
100001000:  -           40,4.04

Example 16-8 Set Operators: UNION Relation Input R2

Timestamp   Tuple Kind  Tuple
     1002:  +           15,0.14
     2002:  -           15,0.14
   200000:  +           20,0.2
   201000:  -           20,0.2
   400000:  +           30,0.3
   401000:  -           30,0.3
100000000:  +           40,4.04
100001000:  -           40,4.04

Example 16-9 Set Operators: UNION Relation Output

Timestamp   Tuple Kind  Tuple
     1002:  +           15,0.14
     2002:  -           15,0.14
   200000:  +           20,0.2
   201000:  -           20,0.2
   400000:  +           30,0.3
   401000:  -           30,0.3
100000000:  +           40,4.04
100001000:  -           40,4.04

Example 16-10 Set Operators: UNION ALL Relation Output

Timestamp   Tuple Kind  Tuple
     1002:  +           15,0.14
     2002:  -           15,0.14
   200000:  +           20,0.2
   200000:  +           20,0.2
    20100:  -           20,0.2
   201000:  -           20,0.2
   400000:  +           30,0.3
   400000:  +           30,0.3
   401000:  -           30,0.3
   401000:  -           30,0.3
100000000:  +           40,4.04
100000000:  +           40,4.04
 10001000:  -           40,4.04
100001000:  -           40,4.04

BINARY Example: INTERSECT

Given the relations R1 and R2 in Example 16-12 and Example 16-13, respectively, the INTERSECT query q1 in Example 16-11 returns the relation in Example 16-14.

Example 16-11 Set Operators: INTERSECT Query

<query id="q1"><![CDATA[
    R1 INTERSECT R2
]]></query>

Example 16-12 Set Operators: INTERSECT Relation Input R1

Timestamp   Tuple Kind  Tuple
1000:        +          10,30
1000:        +          10,40
2000:        +          11,20
3000:        -          10,30
3000:        -          10,40

Example 16-13 Set Operators: INTERSECT Relation Input R2

Timestamp   Tuple Kind  Tuple
1000:       +           10,40
2000:       +           10,30
2000:       -           10,40
3000:       -           10,30

Example 16-14 Set Operators: INTERSECT Relation Output

Timestamp   Tuple Kind  Tuple
1000:       +           10,30
1000:       +           10,40
1000:       -           10,30
1000:       -           10,40
1000:       +           10,40
2000:       +           11,20
2000:       -           11,20
2000:       +           10,30
2000:       -           10,40
3000:       -           10,30

BINARY Example: MINUS

Given the relations R1 and R2 in Example 16-16 and Example 16-17, respectively, the MINUS query q1 in Example 16-15 returns the relation in Example 16-18.

Example 16-15 Set Operators: MINUS Query

<query id="q1BBAQuery"><![CDATA[
    R1 MINUS R2
]]></query>

Example 16-16 Set Operators: MINUS Relation Input R1

Timestamp   Tuple Kind  Tuple
1500:       +           10,40
2000:       +           10,30
2000:       -           10,40
3000:       -           10,30

Example 16-17 Set Operators: MINUS Relation Input R2

Timestamp   Tuple Kind  Tuple
1000:       +           11,20
2000:       +           10,40
3000:       -           10,30

Example 16-18 Set Operators: MINUS Relation Output

Timestamp   Tuple Kind  Tuple
1000:       +           10,40.0
2000:       -           10,40.0

Select and Distinct Examples

Consider the query q1 in Example 16-19. Given the data stream S in Example 16-20, the query returns the relation in Example 16-21.

Example 16-19 Select DISTINCT Query

<query id="q1"><![CDATA[
    SELECT DISTINCT FROM S WHERE c1 > 10
]]></query>

Example 16-20 Select DISTINCT Stream Input

Timestamp   Tuple
 1000       23
 2000       14
 3000       13
 5000       22
 6000       11
 7000       10
 8000        9
10000        8
11000        7
12000       13
13000       14

Example 16-21 Select DISTINCT Stream Output

Timestamp   Tuple
1000        23
2000        14
3000        13
5000        22
6000        11

XMLTABLE Query Example

Consider the query q1 in Example 16-22 and the data stream S in Example 16-23. Stream S has schema (c1 xmltype). The query returns the relation in Example 16-24. For more information, see Section 14.2.5, "XMLTable Query".

Example 16-22 XMLTABLE Query

<query id="q1"><![CDATA[
    SELECT
        X.Name,
        X.Quantity
    from
        S1
    XMLTable (
        "//item" PASSING BY VALUE S1.c2 as "."
        COLUMNS
            Name CHAR(16) PATH "/item/productName",
            Quantity INTEGER PATH "/item/quantity"
    ) AS X
]]></query>

Example 16-23 XMLTABLE Stream Input

Timestamp   Tuple
3000        "<purchaseOrder><shipTo><name>Alice Smith</name><street>123 Maple Street</street><city>Mill Valley</city><state>CA</state><zip>90952</zip> </shipTo><billTo><name>Robert Smith</name><street>8 Oak Avenue</street><city>Old Town</city><state>PA</state> <zip>95819</zip> </billTo><comment>Hurry, my lawn is going wild!</comment><items> <item><productName>Lawnmower </productName><quantity>1</quantity><USPrice>148.95</USPrice><comment>Confirm this is electric</comment></item><item> <productName>Baby Monitor</productName><quantity>1</quantity> <USPrice>39.98</USPrice> <shipDate>1999-05-21</shipDate></item></items> </purchaseOrder>"
4000        "<a>hello</a>"

Example 16-24 XMLTABLE Relation Output

Timestamp   Tuple Kind  Tuple
3000:       +           <productName>Lawnmower</productName>,<quantity>1</quantity>
3000:       +           <productName>Baby Monitor</productName>,<quantity>1</quantity>

XMLTABLE With XML Namespaces Query Example

Consider the query q1 in Example 16-25 and the data stream S1 in Example 16-26. Stream S1 has schema (c1 xmltype). The query returns the relation in Example 16-27. For more information, see Section 14.2.5, "XMLTable Query".

Example 16-25 XMLTABLE With XML Namespaces Query

<query id="q1"><![CDATA[
    SELECT * from S1
    XMLTable (
        XMLNAMESPACES('http://example.com' as 'e'),
        'for $i in //e:emps return $i/e:emp' PASSING BY VALUE S1.c1 as "."
        COLUMNS
            empName char(16) PATH 'fn:data(@ename)',
            empId integer PATH 'fn:data(@empno)'
        ) AS X
]]></query>

Example 16-26 XMLTABLE With XML Namespaces Stream Input

Timestamp   Tuple
3000        "<emps xmlns=\"http://example.com\"><emp empno=\"1\" deptno=\"10\" ename=\"John\" salary=\"21000\"/><emp empno=\"2\" deptno=\"10\" ename=\"Jack\" salary=\"310000\"/><emp empno=\"3\" deptno=\"20\" ename=\"Jill\" salary=\"100001\"/></emps>"
h 4000

Example 16-27 XMLTABLE With XML Namespaces Relation Output

Timestamp   Tuple Kind  Tuple
3000:       +     John,1
3000:       +     Jack,2
3000:       +     Jill,3

ORDER BY ROWS Query Example

Consider the query q1 in Example 16-28. Given the data stream S0 in Example 16-29, the query returns the relation in Example 16-30.

Example 16-28 ORDER BY ROWS Query

<query id="q1"><![CDATA[
    create query q1 as select c1 ,c2 from S0 order by c1,c2 rows 5
]]></query>

Example 16-29 ORDER BY ROWS Stream Input

Timestamp   Tuple
1000        7, 15
2000        7, 14
2000        5, 23
2000        5, 15
2000        5, 15
2000        5, 25
3000        2, 13
3000        3, 19
4000        4, 17
5000        1, 9
h 1000000000

Example 16-30 ORDER BY ROWS Output

Timestamp   Tuple Kind  Tuple
1000:       +           7,15
2000:       +           7,14
2000:       +           5,23
2000:       +           5,15
2000:       +           5,15
2000:       -           7,15
2000:       +           5,25
3000:       -           7,14
3000:       +           2,13
3000:       -           5,25
3000:       +           3,19
4000:       -           5,23
4000:       +           4,17
5000:       -           5,15
5000:       +           1,9

View

Purpose

Use view statement to create a view over a base stream or relation that you reference by identifier in subsequent Oracle CQL statements.

Prerequisites

For more information, see:

Syntax

You express the a view in a <view></view> element as Example 16-31 shows. Specify the identifier as the view element id attribute. Optionally, specify the schema as the view element schema attribute.

Example 16-31 View in a <view></view> Element

<view id="v2" schema="cusip bid ask"><![CDATA[
    IStream(select * from S1[range 10 slide 10])
]]></view>

The body of the view has the same syntax as a query. For more information, see "Query".

Examples

The following examples illustrate the various semantics that this statement supports. For more examples, see Chapter 14, "Oracle CQL Queries, Views, and Joins".

Registering a View Example

Example 16-32 shows how to register view v2.

Example 16-32 REGISTER VIEW

<view id="v2" schema="cusip bid ask"><![CDATA[
    IStream(select * from S1[range 10 slide 10])
]]></view>
