B Troubleshooting Oracle SOA Suite

B.1 Best Practice for Starting and Stopping a Managed Server

As a best practice, it is always recommended that you start and stop a managed server through one, but not both, of the following methods. Do not mix these methods, such as starting the managed server from the command line and stopping it from Oracle Enterprise Manager Fusion Middleware Control Console, or vice versa.

• Oracle Enterprise Manager Fusion Middleware Control Console

  With this method, the node manager must be up and running. The node manager tracks all managed server startups and shutdowns performed from Oracle Enterprise Manager Fusion Middleware Control Console. With this method, the server state is not an issue.

• Command line

  With this method, the node manager does not track the server state. Therefore, if you start the server from the command line and shut it down from Oracle Enterprise Manager Fusion Middleware Control Console, the Oracle WebLogic Administration Server accesses the node manager to determine its status, which returns a state of Unknown.

Perform the following steps to stop and start the server from Oracle Enterprise Manager Fusion Middleware Control Console.

1. Expand the WebLogic domain.

2. Select the managed server (for example, named soa_server1).

3. Select Control > Shut Down.

4. Select Control > Start Up.

For information on starting and stopping managed servers from the command line, see Oracle Fusion Middleware Installation Guide for Oracle SOA Suite.

B.2 Optimizing the Loading of Pages with Instance and Faults Metrics

Since production systems can include numerous composite instances and faults, there is a possibility of timeouts in the SOA Oracle Enterprise Manager Fusion Middleware Control Console pages as information retrieval becomes relatively slow. To optimize the loading performance of pages, you can enable a property setting in the SOA Infrastructure Common Properties page that disables the loading of all metrics information upon page load. The instances and faults metrics can be obtained on demand from the server.

1. In the navigator, click soa-infra.

2. Note that values appear in the Running and Total fields in the Recent Composite Instances section and the Instances column of the Deployed Composites section. When these values are large, it can take time to load this page and other pages with similar information.

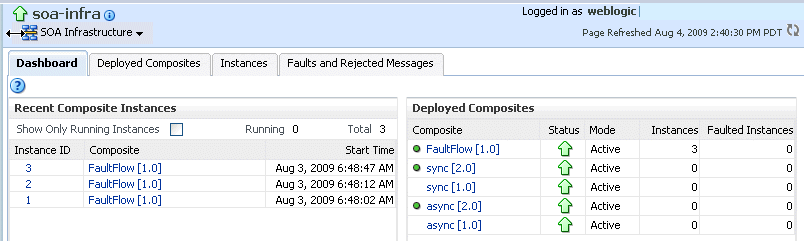

   Description of the illustration soaadmin_fetch1.gif



3. From the SOA Infrastructure menu, select SOA Administration > Common Properties.

4. In the Display Data Counts section, select the Disable fetching of instance and fault count metrics check box.

5. Click Apply.

6. Return to the Dashboard page of the SOA Infrastructure.

7. Note that the values that previously displayed have been replaced with links.

8. Click a link.

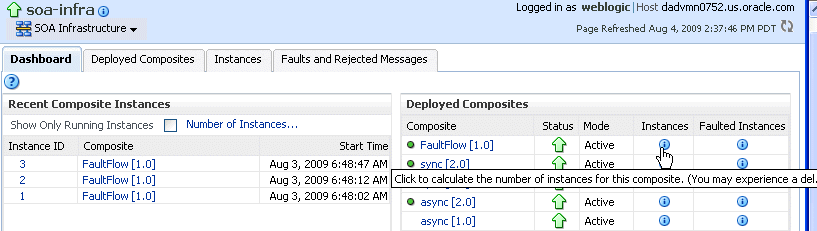

   Description of the illustration soaadmin_fetch2.gif



   The values are calculated for the link you selected. When the calculation is complete, a message displays the total values.

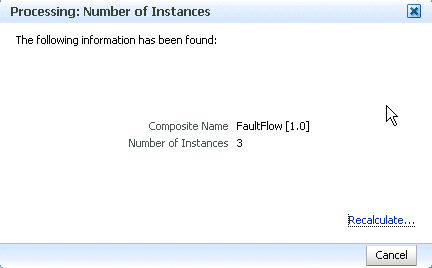

   Description of the illustration soaadmin_fetch3.gif



For more information about setting this property, see Section 3.1, "Configuring SOA Infrastructure Properties."

B.3 Resolving Message Failure Caused By Too Many Open Files

You can receive the following error at run time or compilation time, depending on the number of JAR files being used, the use of file descriptors by JDK 6/JRE, or both.

Message send failed: Too many open files

To resolve this error, increase the number of file descriptors to at least 4096.

1. Use the limit command (for the C shell) or the ulimit command (for the Bash shell) to identify the value for descriptors. A value of 1024 is typically too low, especially for JDK 6.

   % limit

   cputime      unlimited
   filesize     unlimited
   datasize     unlimited
   stacksize    10240 kbytes
   coredumpsize unlimited
   memoryuse    unlimited
   vmemoryuse   unlimited
   descriptors  1024
   memorylocked 500000 kbytes
   maxproc      46720


2. Log in as the root user on your operating system.

3. Edit the /etc/security/limits.conf file to increase the value for descriptors.

   For this example, the limits.conf file looks as follows after increasing the limit for all users to 4096:

   #<domain>      <type>  <item>         <value>
   #

   #*               soft    core            0
   #*               hard    rss             10000
   #@student        hard    nproc           20
   #@faculty        soft    nproc           20
   #@faculty        hard    nproc           50
   #ftp             hard    nproc           0
   #@student        -       maxlogins       4

   # End of file
   @svrgroup    soft    memlock         500000
   @svrgroup    hard    memlock         500000
   *           soft    nofile          4096
   *           hard    nofile          4096


4. Close your terminal and reopen for the change to take effect. A system restart is not required.

B.4 Extending Tablespaces to Avoid Problems at Run Time

If the database tablespace is not extended, run time processing can be impacted. Messages are not processed or persisted, and exception errors similar to the following can appear in the log files. This is because Oracle BPEL Process Manager relies on the database to store instance data. If the database is not available, run-time processing is impacted.

INFO: MediatorServiceEngine returning after processing the request for
operation = processResponse

[EL Warning]: 2009.01.14 11:46:16.783--UnitOfWork(32372128)--Exception
[EclipseLink-4002] (Eclipse Persistence Services - 1.1 (Build
SNAPSHOT-20081007)): org.eclipse.persistence.exceptions.DatabaseException
Internal Exception: java.sql.BatchUpdateException: ORA-01691: unable to
extend lob segment SH_SOAINFRA.SYS_LOB0000145067C00007$$ by 1024 in
tablespace SH_SOAINFRA

Error Code: 1691
Query: InsertObjectQuery(com.collaxa.cube.persistence.dto.AuditTrail@199b33d)
[EL Warning]: 2009.01.14 11:46:16.782--UnitOfWork(32372128)--Exception
[EclipseLink-4002] (Eclipse Persistence Services - 1.1 (Build
SNAPSHOT-20081007)): org.eclipse.persistence.exceptions.DatabaseException
Internal Exception: java.sql.BatchUpdateException: ORA-01691: unable to
extend lob segment SH_SOAINFRA.SYS_LOB0000145067C00007$$ by 1024 in
tablespace SH_SOAINFRA
. . .
. . .

Ensure that you set a tablespace to automatically extend itself by a specified amount when it reaches its size limit. If you do not enable autoextend, ensure that you respond when alerted that the tablespace is reaching its critical or warning threshold size. You can respond to size alerts by manually increasing the tablespace size.

B.5 Resolving Connection Timeouts

You can receive a connection timeout error under circumstances such as the following:

• You run a SOA composite application with a large payload that takes more than 30 seconds to process.

• You are invoking a stress test using a large payload from the Test Web Service page of Oracle Enterprise Manager Fusion Middleware Control Console.

• You are passing a large number of message files (one million) into a composite with a file adapter service.

• You are retrieving instance and fault count metrics in Oracle Enterprise Manager Fusion Middleware Control Console.

To avoid receiving timeout errors, increase the transaction timeout property as follows:

1. Log into Oracle WebLogic Administration Console.

2. Click JTA.

3. Change the value of Timeout Seconds (the default is 30).

4. Click Save.

5. Restart Oracle WebLogic Server.

B.6 Increasing Database Connection Values

You can receive the following error message because of slow connections to the database.

Exception [TOPLINK-4002] (Oracle TopLink - 11g Release 1 (11.1.1.1.0) (Build
090304)): oracle.toplink.exceptions.DatabaseException
Internal Exception: java.sql.SQLException: Internal error: Cannot obtain
XAConnection weblogic.common.resourcepool.ResourceDeadException: Pool
SOADataSource has been disabled because of hanging connection tests, cannot
allocate resources to applications.

If this occurs, perform the following steps:

1. Open the DOMAIN_HOME\bin\setSOADomainEnv.cmd file.

2. Uncomment the lines shown in bold.

   # 8331492: Value of weblogic.resourcepool.max_test_wait_secs is 10
   # seconds. It can be increased by uncommenting line below if your database
   # connections are slow. See SOA documentation for more details.
    EXTRA_JAVA_PROPERTIES="${EXTRA_JAVA_PROPERTIES}
   -Dweblogic.resourcepool.max_test_wait_secs=30"
   export EXTRA_JAVA_PROPERTIES


3. Save your changes and restart the managed Oracle WebLogic Server.

B.7 Accessing Oracle Enterprise Manager Fusion Middleware Control Console on Dual Stack Hosts that Support IPv4 and IPv6

If you run Oracle SOA Suite on a dual stack host that supports both IPv4 and IPv6, you must update the etc/hosts file as shown in Table B-1 for IPv4 clients to access IPv6 URLs in Oracle Enterprise Manager Fusion Middleware Control Console.

xx.xxx.xxx.xxx myhost10-ipv6

fdf5:74cc:db0a::0:1  myhost10-ipv6 myhost10-ipv6.us.oracle.com
