This chapter describes how to use Oracle Composer's declarative and programmable extensibility mechanism to customize Oracle Composer to suit your business needs. It contains the following sections:
Section 8.4, "Configuring Event Handlers for Oracle Composer UI Events"

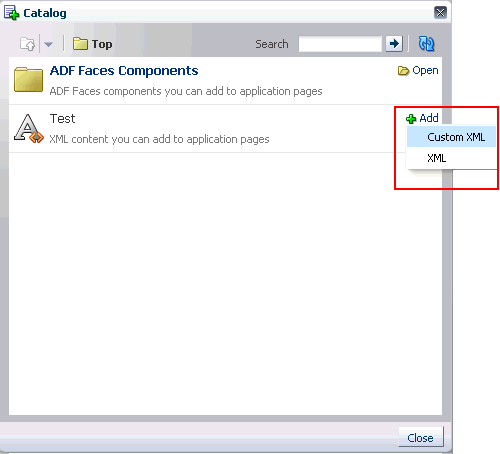

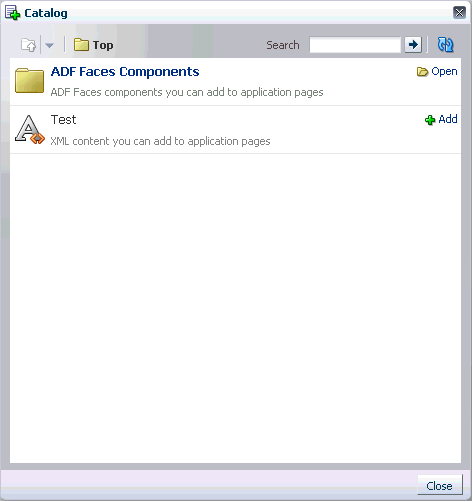

Section 8.5, "Configuring Drop Handlers in the Oracle Composer Catalog"
Section 8.8, "Troubleshooting Problems with Oracle Composer Extensibility Features"
Oracle Composer provides a framework on which to build customizable application pages. In addition to its default capabilities, you can extend the Oracle Composer framework to augment the runtime capabilities available to end users. You must configure the extensions in your application's adf-config.xml
file and the Oracle Composer extension file, pe_ext.xml
. For information about these files, see Section 8.1.7, "Configuration Files."
This section describes the options available for extending Oracle Composer runtime capabilities declaratively. It contains the following subsections:
The Page Properties and Reset Page buttons on the Oracle Composer toolbar (Figure 8-1) are examples of add-ons. Click these buttons to display panels for editing page properties and resetting page customizations. Typically, add-ons are custom task flows that are rendered as buttons on the Oracle Composer toolbar in page Edit mode. You can create add-ons that appear along with the Page Properties and Reset Page add-ons. For example, you can create an add-on to display page revision history such that it displays a Revisions button on the Oracle Composer toolbar. Clicking this button would display the page's revision history. You can also replace the Page Properties and Reset Page add-ons with custom add-ons that you create.
Figure 8-1 Default Add-Ons on the Oracle Composer Toolbar
The process of configuring custom add-ons includes creating the task flows, packaging them into JAR files, and defining them in the Oracle Composer extension file. For more information, see Section 8.2, "Creating Oracle Composer Add-Ons."
The Component Properties dialog displays categories of attributes on different tabs. Each tab can be referred to as a property panel. The default Component Properties dialog in Oracle Composer is analogous to the Oracle JDeveloper Property Inspector. You can create and register custom property panels for a component, populate them with component properties, and display them as tabs along with the default tabs in the Component Properties dialog.
The process of configuring custom property panels includes creating them as task flows, packaging them into JAR files, and defining them in the Oracle Composer extension file. For more information, see Section 8.3, "Creating Custom Property Panels."
Oracle Composer provides an intuitive user interface for editing pages at runtime. This includes such UI components as the Save, Close, and Delete buttons. When a user clicks a button or icon in Oracle Composer, an event handler ensures that a specific action is performed. An event handler is the code that is called back by Oracle Composer when a composer event is invoked. Each UI event in Oracle Composer is associated with an event handler. Sometimes it may be necessary to augment Oracle Composer's innate capabilities by performing a different action or multiple actions on invoking an event. For example, when a user clicks Save, in addition to the save operation that Oracle Composer provides by default, you might want to configure the application to perform additional workflows, such as clean up cached information and connections to resources. You can accomplish this with event handlers. For more information, see Section 8.4, "Configuring Event Handlers for Oracle Composer UI Events."
Oracle Composer Catalog provides resources that users can add to their pages. An Add link next to a resource name enables users to add it to the page. Oracle Composer provides drop handlers to handle the add operation in the Catalog. Drop handlers are Java classes registered with Oracle Composer and called when users click an Add link in the Oracle Composer Catalog. By default, a drop handler is configured for each resource in the Catalog. If you want to provide complete control of the drop action to the resource, you can create additional drop handlers for that resource. The Add link then displays a context menu with different options for adding the resource to the page. You can create one or more drop handlers to handle different flavors for resources in your Catalog. For more information, see Section 8.5, "Configuring Drop Handlers in the Oracle Composer Catalog."
The Component Properties dialog displays properties of a selected component. By default, Oracle Composer filters certain component properties and displays a subset of properties to users. You can define filters declaratively to further hide properties that the user need not see, or to show properties that are hidden. For more information, see Section 8.6, "Defining Property Filters."
The default Oracle Composer toolbar displays elements on two rows. The first row displays the page name and status indicator, and the second row displays the View menu, Page Properties button, Reset Page button, and Close button, as shown in Figure 8-2.

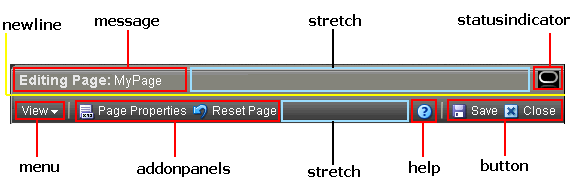

Figure 8-2 Oracle Composer Toolbar with Default Elements
You can customize the toolbar by adding, deleting, or rearranging elements. You can also override existing elements with custom elements. For example, you can remove the message showing the page name if you do not want users to see the name of the page they are editing.
For information about customizing the Oracle Composer toolbar, see Section 8.7, "Customizing the Oracle Composer Toolbar."
Before you start with the extensibility configurations described in this chapter, there are two important configuration files that you must know about. Most of the extensions discussed in this chapter are defined in these files:
Oracle Composer extension file (pe_ext.xml
)
The Oracle Composer extension file, pe_ext.xml
, enables you to extend the editing capabilities provided by Oracle Composer. Within this file you can add elements to register new Oracle Composer add-ons and custom property panels, selectively render panels, register event handlers, and define property filters. The pe_ext.xml
file is not available in your application by default. You must create it the first time you perform such tasks as including add-ons, property panels, or event handlers. Create this file in the META-INF
directory under the project's Web context root or in the application_home
/
project
/src/META-INF
directory. When you run the application, the pe_ext.xml
file is picked up from the JAR file included in the application classpath. Your application can include more than one extension file. However, you must ensure that the JARs containing the extension files are available on the application classpath so that the pe_ext.xml
files are picked up for processing. Every JAR with a pe_ext.xml
in its META-INF
folder is processed, and the Composer extensions are loaded and combined. For information about the different elements you can define in pe_ext.xml
to extend Oracle Composer capabilities, see Section B.2.1, "pe_ext.xml."
Application's adf-config.xml
file
The adf-config.xml
file specifies application-level settings that are usually determined at deployment and often changed at runtime. When you perform such tasks as registering new add-ons and custom property panels in Oracle Composer, or creating customization layers, you must add appropriate entries in the adf-config.xml
file. The adf-config.xml
file is created automatically when you create an application, and when you add a Page Customizable
component to the page, certain configurations are added to this file.
For information about the Oracle Composer-specific configurations you can make in adf-config.xml
, see Section B.2.2, "adf-config.xml."
Oracle Composer provides the following default add-ons for runtime editing:
Page Properties
This dialog opens when users click the Page Properties button on the Oracle Composer toolbar. The Page Properties dialog displays the current page's properties and enables users to modify property values.
Reset Page
The Reset Page dialog opens when users click the Reset Page button on the Oracle Composer toolbar. The Reset Page dialog enables users to remove customizations made to a page and reset it to a previously-saved version or to its original out-of-the-box state. For more information, see Section 5.4.11, "Reset Page."
In addition to these, you can register new add-ons with Oracle Composer. For example, you can create an add-on to display page revision history such that it displays a Revisions button on the Oracle Composer toolbar. Clicking this button would display the page's revision history.
This section contains the following topics:
You can create and register custom task flows that can be invoked from buttons on the Oracle Composer toolbar. All registered add-ons have an associated button that displays on the toolbar.
This section steps through the procedure of creating an add-on and registering it with Oracle Composer. It includes an example that demonstrates how to create an add-on that displays information about the Fusion Order Demo (FOD) application. The example add-on renders an About FOD button on the Oracle Composer toolbar (Figure 8-3) that users can click to invoke a task flow that contains information about FOD.
Figure 8-3 About FOD Button in Oracle Composer Toolbar
This section contains the following subsections:
Oracle Composer add-ons are task flows you create using JSPX pages or page fragments.
To create an add-on:
In your WebCenter application project, create a JSFF file called custompanelview.jsff
:
From the File menu, select New.
In the New Gallery dialog, expand Web Tier, select JSF, then JSF Page or JSF Fragment.
Click OK.
Design the fragment by adding the code shown in Example 8-1.
Example 8-1 Sample code in the JSFF Fragment
<?xml version='1.0' encoding='UTF-8'?> <jsp:root xmlns:jsp="http://java.sun.com/JSP/Page" version="2.1" xmlns:af="http://xmlns.oracle.com/adf/faces/rich"> <af:panelGroupLayout id="pnlgrp1" layout="vertical" halign="center"> <af:spacer id="sp1" height="20" /> <af:image id="customimage" source="/images/FusionOrderDemoLogo.jpg" shortDesc="Fusion Order Demo Logo"/> <af:spacer id="sp2" height="20"/> <af:outputText id="output1" value="Fusion Order Demo (FOD) is a sample shopping cart application based on Oracle ADF Framework. It also uses the Webcenter Framework to enable Collaboration,Customization and Personalization features."/> <af:spacer id="sp3" height="20"/> <af:outputText id="output2" value="Build : 11.1.1" inlineStyle="font-weight:bold;"/> </af:panelGroupLayout> </jsp:root>
Note:
At runtime, the add-on panel is automatically sized to fit the content in this fragment.Create a task flow definition called custom-panel-task-flow
:
From the File menu, choose New.
In the New Gallery dialog, expand Web Tier, select JSF, then ADF Task Flow.
Click OK.
Drop the custompanelview.jsff
fragment that you created onto the task flow definition.
See Also:
"Getting Started with ADF Task Flows" in Oracle Fusion Middleware Fusion Developer's Guide for Oracle Application Development Framework for information about creating task flows.Save the task flow definition file.
Optionally, if you create the task flow in one application but want to consume it in another application, you must first package the task flow in an ADF library and add the resulting JAR in the consuming application.
To package the task flow in an ADF library:
Create a deployment profile for the task flow:
Right-click ViewController and choose New.
In the New Gallery, expand General, select Deployment Profile, and then ADF Library JAR File, and click OK.
In the Create Deployment Profile -- ADF Library JAR File dialog, enter a name for your deployment profile and click OK.
In the ADF Library JAR Deployment Profile Properties dialog, click OK.
In the Project Properties dialog, click OK.
In the Application Navigator, right-click the project folder, choose Deploy, deployment profile name, to, and then choose to ADF Library JAR file. This creates a deploy folder including the JAR file, in the project folder located at <
Application_Root
>\ViewController\deploy\
.
You can add this JAR file to any application in which you want to consume the add-on.
After you create the task flows, you must register them with Oracle Composer so that they are displayed on the Oracle Composer toolbar along with the default options.
To register an add-on with Oracle Composer:
If it does not already exist, create the Oracle Composer extension file, pe_ext.xml
in the META-INF
directory under the project's Web context root:
From the File menu, select New.
In the New Gallery dialog, expand General, select XML, then XML Document.
Click OK.
Name the file pe_ext.xml
.
Add an <addon-config>
element in the file, with a nested <panels>
element.
Add one <panel>
element for each task flow that you want to register as an add-on.
Any number of panels can be declared under the <panels>
element in the extension file.
Example 8-2 shows the code of the extension file with a <panel>
entry.
Example 8-2 Oracle Composer Extension File
<?xml version="1.0" encoding="US-ASCII" ?> <pe-extension xmlns="http://xmlns.oracle.com/adf/pageeditor/extension"> <addon-config> <panels> <panel name="oracle.fod.custom.panel" title="About FOD" icon="http://myforums.oracle.com/jive3/images/question-pts-available-16x16.gif" taskflow-id="/WEB-INF/custom-panel-task-flow.xml#custom-panel-task-flow" /> </panels> </addon-config> </pe-extension>
For more information about the addon-config
and other nested elements, see Section B.2.1.1, "addon-config."
To register an add-on, you must add a reference to it in the application's adf-config.xml
file. Add the addon-panels
entry to define new add-ons.
To register add-ons in the adf-config.xml
file:
Open the application's adf-config.xml
file, located in the ADF META-INF
folder under Descriptors
in the Application Resources panel.
Add the following namespace within the adf-config
element in the file:
xmlns:pe="http://xmlns.oracle.com/adf/pageeditor/config"
Add a <page-editor-config>
entry with the namespace and include an <addon-panels>
entry.
Within page-editor-config
, add <addon-panel>
entries for the default options and the new panels, as shown in Example 8-3.
You must include entries for the default add-ons along with those for new panels. Without these entries, the default add-ons are not displayed in Oracle Composer.
The name
attribute must contain the name you used to register the panel in the Oracle Composer extension file.
Example 8-3 New Add-Ons Referenced in adf-config.xml
<pe:page-editor-config xmlns="http://xmlns.oracle.com/adf/pageeditor/config">
<addon-panels>
<!-- Page Properties add-on -->
<addon-panel name="oracle.adf.pageeditor.addonpanels.page-settings" />
<!-- Page Reset add-on -->
<addon-panel name="oracle.adf.pageeditor.addonpanels.page-reset" />
<addon-panel name="oracle.fod.custom.panel" />
</addon-panels>
</pe:page-editor-config>
Note:
If you do not specify any<addon-panel>
entries under <addon-panels>
, then only the default options are displayed in Oracle Composer.For information about the Oracle Composer-specific configurations you can make in adf-config.xml
, see Section B.2.2, "adf-config.xml."
Custom add-ons that you register with Oracle Composer are rendered on the Oracle Composer toolbar along with the default add-ons.
In the example, an About FOD button is rendered on the Oracle Composer toolbar (Figure 8-4).
Figure 8-4 About FOD Button in Oracle Composer Toolbar

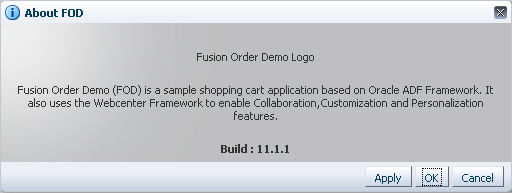

Clicking this button displays the About FOD task flow (Figure 8-5).
Note:
The add-on panel is automatically sized to fit the content inside the task flow.You can see a similar implementation in the StoreFrontModule
in the Fusion Order Demo application. For information about this application, see Chapter 2, "Introduction to the WebCenter Sample Application."
You can choose to show or hide the Page Properties and Reset Page buttons in Oracle Composer. To display only the Page Properties or Reset Page button, you can selectively include the button's associated add-on in the adf-config.xml
file. The built-in add-ons appear on the Oracle Composer toolbar as though they are configured in the adf-config.xml
with the code shown in Example 8-4.
Example 8-4 Default Built-In Options
<!-- Page Properties add-on --> <addon-panel name="oracle.adf.pageeditor.addonpanels.page-settings" /> <!-- Page Reset add-on --> <addon-panel name="oracle.adf.pageeditor.addonpanels.page-reset" />
To exclude one of the built-in add-ons, you must explicitly add an entry for the other in the adf-config.xml
file. In Example 8-5, to hide the Page Properties add-on, the Reset Page add-on entry is added to the file.
Example 8-5 The adf-config.xml File with Only One Built-In Add-On
<addon-panels> <!-- Page Reset add-on --> <addon-panel name="oracle.adf.pageeditor.addonpanels.page-reset" /> . . . </addon-panels>
The excluded add-on (Page Properties) is not displayed on the Oracle Composer toolbar. The included add-ons are displayed on the toolbar in the order in which they are defined in the adf-config.xml
file.
Depending on your business requirement, you may need to selectively hide the add-ons available to different users in Oracle Composer. To hide an add-on, you must set the rendered
attribute for the panel to false
using a constant value or an EL expression, as shown in Example 8-6.
Example 8-6 rendered Attribute Setting in the adf-config.xml File
<addon-panels> <addon-panel name="oracle.adf.pageeditor.addonpanels.page-reset" rendered="#{securityBean.userInPageResetRole}" /> . . . </addon-panels>
In this example, the securityBean
backing bean returns either true
or false
, depending on the role of the logged-in user. If the returned value is false
, Oracle Composer does not display the Reset Page button on the Oracle Composer toolbar. If the returned value is true
, Oracle Composer displays the Reset Page button.
Note:
If you hide the Reset Page button on the Oracle Composer toolbar, the Reset Task Flow button displayed while editing task flow content is also hidden.The default value for rendered
is true
. That is, if you do not specify a rendered
attribute for an add-on, the add-on is always displayed.
Oracle Composer displays the properties of a component in the Component Properties dialog when a user clicks the Edit icon on the component. The Component Properties dialog provides a series of tabs. Each tab displays a group of related attributes. The attributes have associated values that control a component's behavior and visual style properties. For example, the Style tab displays the component's style-related properties, such as width, height, and background color.
Similarly, when a user clicks the Page Properties button, a Page Properties dialog opens with its own series of tabs. These tabs contain display-related page properties, page parameters, and security settings.
You can create and register custom property panels to render along with the tabs displayed in the Component Properties or Page Properties dialog. In addition, you can remove the default panels or replace them with custom property panels. For example, you can develop a friendlier property panel for an Image
component by displaying a picker for its Source
property. This would make it easier for users to select an image from the available options.
This section describes how to create custom property panels. It also describes how to exclude, override, and selectively render default property panels. It contains the following subsections:
Creating a custom property panel is similar to creating an add-on. That is, you create custom property panels as task flows and register them in the Oracle Composer extension file. You can configure a custom property panel to display in the Component Properties dialog always. Alternatively, you can configure the panel to display only when a particular component or task flow is selected for editing.
This section describes how to create and register a custom property panel. It contains the following subsections:
Section 8.3.1.2, "Registering a Custom Property Panel for a Component"
Section 8.3.1.3, "Registering a Custom Property Panel for a Task Flow"
Property panels provide a means of editing page or component properties. For example, a user can click the Edit icon on a selected task flow and modify its parameter values and change its visual attributes in the Component Properties dialog.
Oracle Composer enables you to associate property panels with components and task flows. When a user clicks the Edit icon on the component or task flow, Oracle Composer opens the Component Properties dialog and displays the custom property panels you associated with the object along with the default property panels.
The steps for creating a custom property panel and declaring it in the Oracle Composer extension file are similar to those for creating and declaring Oracle Composer add-ons. For detailed information, see Section 8.2.1.1, "Creating an Add-On Task Flow" and Section 8.2.1.2, "Registering Add-Ons with Oracle Composer."
After declaring a custom property panel in the extension file, you must also register it in the extension file and associate it with a component, if required. Registering a custom property panel ensures that the panel displays automatically in the Oracle Composer Component Properties and Page Properties dialog.
Use the property-panels
element to register the custom property panel in the pe_ext.xml
file and to associate the custom panel with a component.
To register a property panel for a component:
Create an Oracle Composer extension file, pe_ext.xml
, if it does not already exist.
For information about creating the extension file, see Section 8.2.1.2, "Registering Add-Ons with Oracle Composer."
Add a <property-panels>
element inside the <addon-config>
section in the pe_ext.xml
file.
Add a <property-
panel>
declaration within the <property-panels>
element.
You can have multiple <property-panel>
entries.
Within the <property-panel>
element, add a <component>
element to specify the runtime class name of the component (optional) and a <panel>
element to specify the name you used to declare the panel in the <addon-config>
section of the file.
Example 8-7 shows a custom property panel that is associated with a Command Button
component by specifying the component's fully qualified class name. For information about Oracle ADF components and their runtime classes, see Oracle Fusion Middleware Fusion Developer's Guide for Oracle Application Development Framework.
Example 8-7 Code to Register a Property Panel for a Component
<pe-extension xmlns="http://xmlns.oracle.com/adf/pageeditor/extension"> <addon-config> <property-panels> <property-panel name="cmdbtn"> <component>oracle.adf.view.rich.component.rich.nav.RichCommandButton</component> <panel name="prop.panel.cmdbtn" /> <panel name="prop.panel.generic" /> </property-panel> </property-panels> </addon-config> . . . </pe-extension>
Note:
When registering a property panel, if you do not associate it with a component or task flow, then the registered panel is rendered for all pages, task flows, and components in the Component Properties and Page Properties dialogs.To configure multiple property panels for a component, you can include multiple panel
elements within a property-panel
element. For more information about the property-panels
element and its nested elements, see Section B.2.1.2, "property-panels."
You can define custom property panels for a task flow by registering it with the Oracle Composer extension file. Example 8-8 shows the sample code used to register a custom property panel for a task flow.
A custom property panel registered for a specific task flow appears only when its associated task flow is selected. Otherwise, default property panels appear.
Note:
Use task flow-specific custom property panels only to customize task flow parameters or any other aspect of the task flow's working. Note that a custom property panel does not function if its associated task flow is rendered using the Oracle JSF Portlet Bridge.To register a property panel for a task flow:
Add a <property-panels>
element within the <addon-config>
element in the pe_ext.xml
file.
For information about creating the extension file, see Section 8.2.1.2, "Registering Add-Ons with Oracle Composer."
Add a property-
panel
declaration within this.
You can have multiple property-panel
entries.
Add taskflow-id
and panel
elements within the property-
panel
element.
Add the taskflow-id
element to specify the task flow name. Add the panel
element to specify the name you used to declare the property panel in the addon-config
section of the file.
Example 8-8 shows a custom property panel associated with a dashboard
task flow.
Example 8-8 Code to Register a Property Panel for a Task Flow Instance
<pe-extension xmlns="http://xmlns.oracle.com/adf/pageeditor/extension"> <addon-config> <property-panels> <property-panel name="dashboard"> <taskflow-id>/WEB-INF/dashboard-taskflow#prop-panel</taskflow-id> <panel name="dashboard.prop-panel" /> </property-panel> </property-panels> </addon-config> . . . </pe-extension>
Note:
When registering a property panel, if you do not associate it with a component or task flow, then the registered panel is rendered for all pages, task flows, and components in the Component Properties and Page Properties dialogs.You can register multiple panel
elements within a property-panel
element. For more information about the property-panels
element and its nested elements, see Section B.2.1.2, "property-panels."
If you associated the custom property panel with a specific component or task flow, at runtime the panel renders as a tab in the Component Properties dialog invoked from the specified component or task flow. If you did not associate the custom property panel with a specific component or task flow, at runtime the custom property panel renders as a tab in both the Page Properties and Component Properties dialogs for all pages, components, and task flows.
Note:
In the Component Properties and Page Properties dialogs, custom panels are sized by the tab component containing the task flows. The size of the tab component itself is determined by a rule in the currently-applied skin. This rule is calledaf|panelTabbed.ComposerTab
.You can use the rendered
attribute to show or hide a default property panel in the Page Properties and Component Properties dialogs. Set the attribute value to true
to show the default property panel; set it to false
to hide a default property panel.
Example 8-9 shows the rendered
attribute set to false
for the Content Style property tab of a Command Button
component. For information about default property panels, see Section B.3, "Oracle Composer Default Add-Ons and Property Panels."
Example 8-9 rendered Attribute for a Property Panel
<pe-extension xmlns="http://xmlns.oracle.com/adf/pageeditor/extension">
<addon-config>
<property-panels>
<property-panel name="cmdbtn">
<component>oracle.rich.CommandButton</component>
<panel name="prop.panel.cmdbtn" />
<panel name="oracle.adf.pageeditor.pane.content-style-editor" rendered="false" />
</property-panel>
</property-panels>
</addon-config>
. . .
</pe-extension>
You can override a default property panel with a custom panel by setting the rendered
attribute on the default panel to false
and registering your custom panel with the same title that was used for the default panel in the Component Properties or Page Properties dialog. That is, provide the title of the default panel as the value for the title
attribute within the panel
element. Your custom property panel is then rendered on the default tab in lieu of the tab's default properties.
For a list of default property panels that you can override, see Section B.3, "Oracle Composer Default Add-Ons and Property Panels."
Custom property panels registered in the application are rendered in the Component Properties dialog when users click the Edit icon on a specified component. You can configure your application to render a property panel selectively based on different criteria like the role of a logged-in user, the page being viewed, and so on. To display property panels selectively, you can use an EL value in the property-panel
's rendered
attribute as shown in the following example:
<property-panel name="global-but-just" rendered="#{bean.showProperty}">
Event handlers are Java classes registered with Oracle Composer and called when a users performs an action on the page. For example, when a user clicks a Save button, Oracle Composer calls back into the application code to give the application a chance to respond to the Save action—or event. In addition to the event handlers that Oracle Composer provides by default, you might want to configure the application to perform additional workflows. This is useful in performing application-specific tasks on such events. Moreover, this is the recommended approach to, for example, save the changes on a custom property panel.
Oracle Composer provides a means of registering event handlers for different events. This section describes how. It contains the following subsections:
Section 8.4.1, "How to Create and Register Handlers for Composer UI Events"
Section 8.4.2, "What Happens When You Create and Register Event Handlers"
When you register an event handler with Oracle Composer, it is called when the corresponding event is fired in the Composer UI. This section describes how to create an event handler and register it with Oracle Composer. It contains the following subsections:
Section 8.4.1.1, "UI Events that Support Event Handler Registration"
Section 8.4.1.3, "Registering an Event Handler with Oracle Composer"
Table 8-1 lists the UI events for which Oracle Composer currently supports registering of handlers.
Table 8-1 Events for Which Registering Handlers are Supported
Event | Cause | Event Type | Listener Interface to Be Implemented | Method to Be Implemented | Event Parameters |
---|---|---|---|---|---|
Save |
Invoked when a user clicks the Save button on the Oracle Composer toolbar, or the Apply or OK button in the Component Properties dialog or Page Properties dialog. |
|
|
|
|
Close |
Invoked when a user clicks the Close button on the Oracle Composer toolbar. |
|
|
|
|
Deletion |
Invoked when a user deletes the component. |
|
|
|
Get the deleted component using |
Addition |
Invoked when a user adds a component to the page from the catalog, by clicking the Add button against an item in the Catalog dialog. |
|
|
|
|
Selection |
Invoked when a user selects:
|
|
|
|
|
To register an event with Oracle Composer, you must first create a Java class and implement the appropriate listener for the event handler. This section describes the steps to create a Save event handler. You can perform similar steps to create event handlers for all the supported events listed in Table 8-1.
A Save event handler is called when a user clicks the Save button on the Oracle Composer toolbar or the Apply or OK button in the Component Properties or Page Properties dialog. A Save event handler must implement oracle.adf.view.page.editor.event.SaveListener
. The isCommit
method of the Save event can be used to differentiate between changes made to the page and to component properties. A value of true
implies that the user clicked the Save button on the Oracle Composer toolbar to save changes made to the page. A value of false
implies that the user clicked the Apply or OK button in the Component Properties dialog to save changes made to component properties.
To create a Save event handler:
In JDeveloper, select the ViewController project, and from the File menu, choose New.
In the New Gallery dialog, expand General, select Java, then Java Class, and click OK.
In the Create Java Class dialog, specify a name for the class, for example, SaveHandler
.
Under the Optional Attributes section, add the oracle.adf.view.page.editor.event.SaveListener
interface.
Note:
If you are not able to see theoracle.adf.view.page.editor
classpath, make sure that Oracle Composer is included in the project's libraries and classpath. To do this, right-click the project in the Application Navigator and select Project Properties. In the Project Properties dialog, select Libraries and Classpath, and add Oracle Composer to the list.Click OK.
The Java class source looks like the following:
package view; import javax.faces.event.AbortProcessingException; import oracle.adf.view.page.editor.event.SaveEvent; import oracle.adf.view.page.editor.event.SaveListener; public class SaveHandler implements SaveListener { public Class1() { super(); } public void processSave(SaveEvent saveEvent) throws AbortProcessingException { // Your implementation goes here } }
You must declare the processSave
method as throws AbortProcessingException
because the method may throw this exception if the event must be canceled. You can include the reason for canceling this event in the Exception object when you create it.
On throwing this exception, further processing of this event is canceled and the listeners that are in the queue are skipped.
You can create event handlers for all supported events by performing steps similar to these.
Tip:
You can use theSaveEvent.isCommit
method toAfter creating and implementing an event handler, you must register it with Oracle Composer. Registration is necessary for ensuring that the handler is called back by Composer when the corresponding event occurs in the UI.
Register event handlers in the Oracle Composer extension file, /META-INF/pe_ext.xml
. For more information about creating this file, see Section 8.2.1.2, "Registering Add-Ons with Oracle Composer."
To register an event handler:
In the application's pe_ext.xml
file, add the following entries:
<event-handlers> <event-handler event="save">view.SaveHandler</event-handler> </event-handlers>
The values you provide for the event
attribute and between the event-handler
tags are unique to the type of event being entered and the name you specified for the event class.
Save the file.
At runtime, registered event handlers are called according to the sequence in the extension file and according to the order in which they were found on the class path. Oracle Composer's native event handler is called last.
On invocation of an event handler's process
EventName
method, if an event handler throws AbortProcessingException
, then the event is canceled and no further event handlers are called, including Composer's native event handlers.If, however, an error occurs while instantiating an event handler, then Oracle Composer continues with the next event handler. A warning message is logged.
For every UI event triggered on the page in Oracle Composer, the corresponding event handler calls back a method from a listener registered with the application. By performing some additional configurations, you can specify the sequence in which event handlers must be executed and configure a listener to terminate a process or notify Oracle Composer that the event has been handled.
Specify a Sequence Number for an Event Handler
By specifying the sequence for event handlers, you can decide on the order in which the event handlers, and therefore the listeners, are called. You can assign a sequence number to a listener or modify the default value by defining a sequence
attribute against the registered event handler in the pe_ext.xml
file.
To specify a sequence number for a listener:
In the application's pe_ext.xml
file, locate the event-handler
element for the handler that you want to sequence.
Add a sequence
attribute as follows:
<event-handlers> <event-handler event="save" sequence="101">view.SaveHandler</event-handler> </event-handlers>
The value for the sequence
attribute must be a positive integer. If you do not define this attribute, the event handler is internally assigned a default sequence number of 100
.
Oracle Composer built-in listeners and listeners with no sequence numbers are assigned a default sequence number of 100
. If you want your event handler to be called before other event handlers, you must specify a value lesser than 100
.
Save the file.
Stop Event Processing and Notify Oracle Composer
You can configure an event handler to terminate processing of the current event and all subsequent events by throwing an exception. For this, you must declare the method used while implementing the listener as throws AbortProcessingException
. In addition, you can configure the handler to notify Oracle Composer that the event has been processed by using the Event.setEventHandled(true)
method.
For example, you can configure a delete
event handler to terminate the current event and all pending delete events and throw an exception when a user attempts to delete a component in Oracle Composer. To enable this, you must implement the DeletionListener
interface as shown in Example 8-10.
Example 8-10 DeletionListener Implementation
public class DeleteHandler implements DeletionListener { ... public void processDeletion(DeletionEvent delEvent) throws AbortProcessingException { // Get the component that must be deleted UIComponent comp = delEvent.getComponent(); if (comp != null) { try { // Assuming that a custom method, handleDelete(comp), handles deletion of // a component and returns true on successful deletion and false in case // of failure boolean deleteSucceeded = handleDelete(comp); // If deletion failed, then notify Oracle Composer that the delete event // has been handled. No further events are processed. if (!deleteSucceeded) delEvent.setEventHandled(true); } catch (Exception e) { // Catch Exception throw by handleDelete(comp) and handle it by throwing // AbortProcessingException to stop processing of delete events. throw new AbortProcessingException(e) } } } ... }
Drop handlers are Java classes registered with Oracle Composer and called when users click an Add link in the Oracle Composer Catalog. A drop handler declares the data flavors it can handle. Each resource in the Oracle Composer Catalog has a flavor. When a user clicks an Add link next to a resource, Oracle Composer queries all the registered drop handlers if they can handle the flavor. If only one drop handler can handle that flavor, then control is passed to that drop handler and the resource is added to the page immediately. If more than one drop handler can handle the flavor, then a context menu displays available drop handlers to users. A user selects a drop handler from the context menu and that drop handler adds the resource to the page. An example for a resource with multiple drop handlers is the Personal Documents subfolder available within the Documents folder, if you configured the Documents service in your Catalog. This subfolder can be added as a Content Presenter, Document List Viewer, or Document Library.
Note:
TheAdditionListener
mechanism used to handle an Add
operation in release 11.1.1.1 is still available, but now Oracle Composer calls drop handlers first to handle an Add
operation in the Catalog. It is recommended that you convert existing AdditionListener
s to drop handlers.This section describes the procedure to create and register drop handlers in your application. It contains the following subsections:
This section describes how to create a sample drop handler for adding XML content from the Oracle Composer Catalog and register the drop handler with Oracle Composer. It contains the following subsections:
To create a drop handler with Oracle Composer, you must first extend the abstract base class, DropHandler
, and implement the getName()
, getAcceptableFlavors()
, and handleDrop()
methods. This section describes an example to add an XML component called Test
to the Oracle Composer Catalog and create a drop handler named Custom XML
for adding XML content.
To create a drop handler:
In JDeveloper, select the ViewController project, and from the File menu, choose New.
In the New Gallery dialog, expand General, select Java, then Java Class, and click OK.
In the Create Java Class dialog, specify a name for the class, for example, TestDropHandler
.
In the Extends field, enter or browse to select the Drophandler
class, oracle.adf.view.page.editor.drophandler.DropHandler
.
Note:
If you are not able to see theoracle.adf.view.page.editor
classpath, make sure that Oracle Composer is included in the project's libraries and classpath. To do this, right-click the project in the Application Navigator and select Project Properties. In the Project Properties dialog, select Libraries and Classpath, and add Oracle Composer to the list.Add the required import statements and click OK.
The Java class source must look like the following:
package test; import java.awt.datatransfer.DataFlavor; import java.awt.datatransfer.Transferable; import java.io.ByteArrayInputStream; import javax.faces.component.UIComponent; import javax.faces.context.FacesContext; import javax.xml.parsers.DocumentBuilder; import javax.xml.parsers.DocumentBuilderFactory; import oracle.adf.rc.component.XmlComponentFactory; import oracle.adf.view.page.editor.drophandler.DropEvent; import oracle.adf.view.page.editor.drophandler.DropHandler; import org.apache.myfaces.trinidad.change.AddChildDocumentChange; import org.apache.myfaces.trinidad.change.ChangeManager; import org.apache.myfaces.trinidad.change.DocumentChange; import org.apache.myfaces.trinidad.context.RequestContext; import org.w3c.dom.Document; import org.w3c.dom.DocumentFragment; public class TestDropHandler extends DropHandler { public TestDropHandler() { super(); } public String getName() { return null; } public DataFlavor[] getAcceptableFlavors() { return new DataFlavor[0]; } public boolean handleDrop(DropEvent dropEvent) { return false; } }
Implement the getName()
method as follows to return the name of the drop handler:
public class TestDrophandler extends DropHandler { public TestDrophandler() { super(); } public String getName() { return "Custom XML"; } . . .
This value (Custom XML
) appears in the context menu on the Add link next to the XML component in the Oracle Composer Catalog.
Implement the getAcceptableFlavors()
method as follows to get a list of supported data flavors for the XML component:
public class TestDropHandler extends DropHandler { private static final DataFlavor[] ACCEPTABLE_FLAVORS = { XmlComponentFactory.XML_STRING_FLAVOR }; . . . public DataFlavor[] getAcceptableFlavors() { return ACCEPTABLE_FLAVORS; } . . .
Implement the handleDrop(DropEvent)
method as shown in the following sample file to handle the drop event and add the XML component to the page.
public class TestDropHandler extends DropHandler
{
. . .
public boolean handleDrop(DropEvent de) {
Transferable transferable = de.getTransferable();
UIComponent container = de.getContainer();
int index = de.getDropIndex();
try {
FacesContext context = FacesContext.getCurrentInstance();
RequestContext rctx = RequestContext.getCurrentInstance();
String fragMarkup = null;
// Get the TransferData from the Transferable (expecting a String)
Object data = getTransferData(transferable);
if (data instanceof String) {
fragMarkup = "<?xml version='1.0' encoding='UTF-8'?>" + (String)data;
} else {
return false;
}
// Get a DocumentBuilder
DocumentBuilderFactory factory = DocumentBuilderFactory.newInstance();
factory.setNamespaceAware(true);
factory.setValidating(false);
DocumentBuilder builder = factory.newDocumentBuilder();
// Parse the xml string into a Document object using DocumentBuilder
byte[] markupBytes = fragMarkup.getBytes();
Document newDoc =
builder.parse(new ByteArrayInputStream(markupBytes));
// Transform the Document into a DocumentFragment
DocumentFragment docFrag = newDoc.createDocumentFragment();
docFrag.appendChild(newDoc.getDocumentElement());
// Create an "add child" document change, that is, insert the fragment
DocumentChange change = null;
if (index < container.getChildCount()) {
// Get the ID of the component we'll be adding just before
String insertBeforeId = container.getChildren().get(index).getId();
change = new AddChildDocumentChange(insertBeforeId, docFrag);
} else {
change = new AddChildDocumentChange(docFrag);
}
// Apply the "add child" DocumentChange using ChangeManager
ChangeManager changeManager = rctx.getChangeManager();
changeManager.addDocumentChange(context, container, change);
// Refresh the target container using PPR
rctx.addPartialTarget(container);
// Mark the drop as completed.
return true;
} catch (Exception e) {
return false;
}
}
In this example, a DropEvent
parameter is passed to the handleDrop
method. This parameter has three attributes that can be described as follows:
transferable
, like DataFlavor
, is a standard Java class that contains the data being added.
container
is the container into which component must be dropped.
index
is the position of the component inside the container. For example, first, second, and so on.
Save the TestDropHandler.java
file.
After implementing the drop handler, you must register it with Oracle Composer. Registration is necessary for ensuring that the handler is called by Oracle Composer when a user clicks an Add link in the Catalog. Register drop handlers in the Oracle Composer extension file, /META-INF/pe_ext.xml
. For more information about creating this file, see Section 8.2.1.2, "Registering Add-Ons with Oracle Composer."
To register a drop handler:
In the pe_ext.xml
file, add the following entries:
<drop-handlers> <drop-handler>test.TestDropHandler</drop-handler> </drop-handlers>
where TestDropHandler
is the name of the drop handler implementation.
Save the file.
You can register any number of drop handlers in the extension file by adding that many <drop-handler>
elements.
Since you created a drop handler for XML components generated by the XmlComponentFactory
class, you can test how the drop handler works at runtime by adding an XML component to the Resource Catalog and then adding that component to your page at runtime.
To add an XML component to the Catalog:
Open the default catalog definition file, default-catalog.xml
, from the Application_Root
\mds\oracle\adf\rc\metadata
directory.
Add the following code within the <contents>
section of the file:
<component id="pc" factoryClass="oracle.adf.rc.component.XmlComponentFactory"> <attributes> <attribute attributeId="Title" value="Test"/> <attribute attributeId="Description" value="XML content you can add to application pages"/> <attribute attributeId="IconURI" value="/adf/pe/images/elementtext_qualifier.png"/> </attributes> <parameters> <parameter id="xml"> <![CDATA[<af:outputText value="Hello!" xmlns:af="http://xmlns.oracle.com/adf/faces/rich"/> ]]> </parameter> </parameters> </component>
Save the default-catalog.xml
file.
At runtime, the Oracle Composer Catalog shows the XML component, as shown in Figure 8-6. For more information, see Section 12.4, "Adding XML Content to the Resource Catalog."
When a user clicks the Add link against a component in the Oracle Composer Catalog, all drop handlers supporting that flavor are displayed as options on the context menu of the Add link. However, if only a single drop handler is available to handle that flavor, then the resource is added to the page immediately.
Figure 8-7 shows the context menu displayed on clicking the Add link of the Test
XML component with the Custom XML
option and the default XML option.
Figure 8-7 Drop Handlers on an XML Component in the Catalog
Some component properties are not displayed in Oracle Composer's Component Properties dialog because they are filtered out by default. The default filters are defined in the <filter-config>
section of the Composer's extension file (/META-INF/pe_ext.xml).
Global filters filter attributes for all components. They are defined using the <global-attribute-filter>
tag. Tag-level filters filter attributes for a specified component only. They are defined using the <taglib-filter>
tag.
Note:
In an extension file, you can have any number of<taglib-filter>
tags under <filter-config>
, but you can have only one <global-attribute-filter>
tag to define all global attribute filters.You can define additional filters to hide more properties in the Component Properties dialog. This section describes how. It contains the following subsections:
Oracle Composer defines a built-in filter configuration. You can use the extension file, pe_ext.xml
, to define additional property filters and to delete filters. You can define any number of filters, even for a single tag, in different extension files. Oracle Composer merges the filtering information from all the extension files.
To define property filters in an extension file:
In the pe_ext.xml
file, add the filter-config
element as shown in the following example:
Note:
For information about creating thepe_ext.xml
file, see Section 8.2.1.2, "Registering Add-Ons with Oracle Composer."<filter-config> <global-attribute-filter> <attribute name="accessKey" /> <attribute name="attributeChangeListener" /> <attribute name="autoSubmit" /> <attribute name="binding" /> </global-attribute-filter> <taglib-filter namespace="http://xmlns.oracle.com/adf/faces/rich"> <tag name="commandButton"> <attribute name="text" /> <attribute name="icon" /> </tag> </taglib-filter> </filter-config>
Save the file.
At runtime, when you edit a component's properties, the properties that were filtered out are not rendered in the Component Properties dialog.
You can remove global and tag-level filters so that previously filtered properties are now rendered in the Component Properties dialog. This is useful for displaying properties that are filtered out by Oracle Composer's built-in filters or by another extension file defined elsewhere the application.
Note:
After you remove a property filter, it is rendered in the Component Properties dialog even if a filter is defined for that property in another extension file.To remove a property filter:
Edit the Oracle Composer extension file, pe_ext.xml
, available in the META-INF
directory.
You can remove property filters by editing entries in this file.
Search for the attribute from which to remove the filter, and set filtered
to false
in the <attribute>
tag as shown in the following example:
<pe-extension xmlns="http://xmlns.oracle.com/adf/pageeditor/extension"> . . . <filter-config> <global-attribute-filter> <attribute name="accessKey" filtered="false" /> <attribute name="attributeChangeListener" /> . . . </global-attribute-filter> <taglib-filter namespace="http://xmlns.oracle.com/adf/faces/rich"> <tag name="activeCommandToolbarButton"> . . . <attribute name="windowWidth" filtered="false"/> </tag> </taglib-filter> </filter-config> </pe-extension>
Save the file.
You can customize the default Oracle Composer toolbar by adding, removing, or rearranging elements and overriding existing elements. To enable toolbar extensibility, the Oracle Composer toolbar elements have been grouped into sections. You can work with these sections to customize your toolbar. Each section has a specific name and contains one or more elements inside it, as shown in Figure 8-8.
Notes:
The Save button is displayed on the toolbar only if the application is configured to use a sandbox. For more information, see Section 10.2, "Using Oracle Composer Sandbox."The Help icon is displayed on the toolbar only if you have configured a help provider in your application or hooked up help from Oracle Composer panels or dialogs. For more information, see Section B.4, "Oracle Composer Help Topic IDs."
The Oracle Composer toolbar is created using the ADF Faces Toolbox
tag. Each row in the toolbar is a Toolbar
tag. Consequently, UI components such as separator bars are inherited from the Toolbar
component.
Table 8-2 describes the toolbar areas.
Table 8-2 Toolbar Areas
Section or Area | Description |
---|---|
|
Area containing the message with the page name. |
|
Area containing the status indicator. |
|
Area containing the View menu that allows users to switch between Design view and Source view. |
|
Area containing Oracle Composer add-ons. The add-ons are all displayed in a sequence within this area. For more information, see Section 8.2, "Creating Oracle Composer Add-Ons." |
|
Area containing the Help icon. |
|
Area containing the Save and Close buttons. |
|
Space between two sections. It causes the section following it to be pushed to the far end of the toolbar. You can have only one |
|
A line break between sections. All sections after a line break are pushed to a new line on the toolbar. You can have only one |
Using toolbar sections, you can customize the Oracle Composer toolbar in the following ways:
Rearrange and hide built-in elements
Add new sections with custom elements
Modify default sections to display custom elements
This section describes the steps to customize the Oracle Composer toolbar. It contains the following sections:
Use the toolbarLayout
attribute on a Page Customizable
component to control which toolbar sections are displayed and the order in which they appear.
To customize the toolbar for all editable pages in the application, you can create a template, add a Page Customizable
component to the template, and specify the toolbarLayout
attribute against the Page Customizable
component. You can then base all the pages in the application on that template.
If you do not specify a value for toolbarLayout
, this attribute is internally set to message stretch statusindicator newline menu addonpanels stretch help button
, which is the default layout for the Oracle Composer toolbar sections.
To customize the toolbar on an application page:
Open your customizable JSPX page in JDeveloper and select the Page Customizable
component in the Structure window.
In the Property Inspector, specify space-separated values for the toolbarLayout
attribute.
The section names in Table 8-2 are valid values for this attribute.
Note:
You can add only onestretch
value per row on the toolbar. If you add more than one stretch
value, only the first one is displayed; all others are ignored.In Source view, the toolbarLayout
attribute appears as shown in the following example:
<pe:pageCustomizable id="pageCustomizable1"
toolbarLayout="button stretch statusindicator menu"
<cust:panelCustomizable id="panelCustomizable1" layout="scroll"/>
<f:facet name="editor">
<pe:pageEditorPanel id="pep1"/>
</f:facet>
</pe:pageCustomizable>
Save the JSPX file.
At runtime, the toolbar displays the sections you specified in the order you specified them (Figure 8-9).
Figure 8-9 Customized Oracle Composer Toolbar
You can add custom sections by creating facets and specifying the facet names in the toolbarLayout
attribute. Populate the new facets with elements you want to display on the toolbar. The following example shows you how to create a section; specifically, how to add a Report a Bug button that opens a popup that enables users to report a bug.
To add a custom section:
Open the JPSX page for which you want to customize the toolbar.
Add a facet
inside the Page Customizable
and name it bugreport
.
Add a Command Toolbar Button
component inside the facet and set the text
attribute to Report a Bug
.
To add an image to the button, specify the path to the image using the icon
attribute.
Add the Show Popup Behavior
component to invoke a popup on clicking the Command Toolbar Button
.
In Source view, the Page Customizable
would appear as follows:
<pe:pageCustomizable id="pageCustomizable1" toolbarLayout="message stretch bugrep newline menu stretch button" <f:facet name="bugrep"> <af:commandToolbarButton id="cmd1" text="Report a bug" icon="/images/bug.png" clientComponent="true"> <af:showPopupBehavior popupId="p1" triggerType="action"/> </af:commandToolbarButton> </f:facet> . . . <af:popup id="p1"> <af:dialog id="dlg1" title="File a Bug" affirmativeTextAndAccessKey="File"> <af:panelFormLayout labelWidth="30%" id="pfl1"> <af:inputText id="it0" maximumLength="80" label="Product/Component" required="true"/> <af:inputText id="it1" maximumLength="80" label="Subject" required="true"/> <af:inputText id="it2" rows="3" label="Problem" required="true"/> <af:inputText id="it3" rows="3" label="Steps" required="true"/> </af:panelFormLayout> </af:dialog> </af:popup> . . . </pe:pageCustomizable>
Save the page.
At runtime, the Oracle Composer toolbar displays a Report a Bug button, as shown in Figure 8-10.
Figure 8-10 Oracle Composer Toolbar with Custom Section
Clicking the Report a Bug button displays the File a Bug dialog that enables users to report a bug.
You can display custom content in a default toolbar section by adding a facet of the same name as the section and populating it with custom content. The facet content overrides the content of the default section. For example, to display a custom message to users in place of the Editing Page:
Page_Name
message, you can create a custom facet named message
and include an Output Text
component with the text you want to display to users. The Output Text
component then displays in place of the default message. The following example shows a Page Customizable
component with a custom toolbar message:
<pe:pageCustomizable id="pageCustomizable1"
toolbarLayout="message newline button stretch statusindicator menu"
<cust:panelCustomizable id="panelCustomizable1" layout="scroll"/>
<f:facet name="message">
<af:outputText value="Welcome!"/>
</f:facet>
<f:facet name="editor">
<pe:pageEditorPanel id="pep1"/>
</f:facet>
</pe:pageCustomizable>
Figure 8-11 shows the Oracle Composer toolbar displayed for the page at runtime.
Figure 8-11 Oracle Composer Toolbar with a Custom Message
This section provides information to assist you in troubleshooting problems you may encounter while using the Oracle Composer extensibility features.
For information about configuring logging, see "Configuring ADF Logging for Oracle Composer".
Problem
You created an add-on, but it does not appear on the Oracle Composer toolbar.
Solution
Ensure the following:
The pe_ext.xml
file is in /META-INF
folder in a JAR file or the application and is available in the class path.
The task flow binding ID specified while registering the panel in pe_ext.xm
l is correct.
An addon-panel
entry exists under the page-editor-config
section in the adf-config.xml
file.
If the add-on is in a JAR file, ensure that the JAR file is created as an ADF Library.
For information about add-ons, see Section 8.2, "Creating Oracle Composer Add-Ons."
Problem
You have registered a custom property panel. However, it does not appear in the Component Properties dialog when your select a component to display its properties.
Solution
Ensure the following:
The pe_ext.xml
file is in /META-INF
folder in a JAR file or the application and is available in the class path.
The task flow binding ID specified while registering the panel in pe_ext.xm
l is correct.
The property-panel
registration is correct and is specified against the component you want the panel to appear against. Further, the fully qualified class name of the component is correctly specified using the component
node.
A duplicate property panel registration is not overriding your panel entry.
If the panel is configured to use the rendered attribute, ensure that the value or EL evaluates to true
.
If the add-on is in a JAR file, ensure that the JAR file is created as an ADF Library.
For information about custom property panels, see Section 8.3, "Creating Custom Property Panels."
Problem
You do not see some properties of a component in the Component Properties dialog.
Solution
Ensure that the component properties are not filtered or restricted. For more information, see Section 8.6.1, "How to Define Property Filters" and Section 11.4, "Applying Attribute-Level Security."
