94 Configuring Session Broker and Client Sessions

This chapter describes the various components that you must configure in order to use session broker sessions.

This chapter includes the following sections:

Table 94-1 lists the configurable options for session broker sessions.

94.1 Introduction to Session Broker and Client Session Configuration

Table 94-1 lists the configurable options for session broker sessions.

Table 94-1 Configurable Options for Session Broker Session

Option to Configure	Oracle JDeveloper	TopLink Workbench	Java
Removing, renaming, or adding sessions (see Section 94.2, "Removing, Renaming, or Adding Sessions")
Primary mapping project (see Section 89.2, "Configuring a Primary Mapping Project")
Session login (see Section 89.3, "Configuring a Session Login")
Logging (see Section 89.4, "Configuring Logging")
Multiple mapping projects (see Section 89.5, "Configuring Multiple Mapping Projects")
Performance profiler (see Section 89.6, "Configuring a Performance Profiler")
Exception handler (see Section 89.7, "Configuring an Exception Handler")
Session customizer class (see Section 89.8, "Configuring a Session Customizer Class")
Server platform (see Section 89.9, "Configuring the Server Platform")
Session event listeners (see Section 89.10, "Configuring Session Event Listeners")
Coordinated cache (see Section 103, "Configuring a Coordinated Cache")
Integrity checker (see Section 89.11, "Configuring the Integrity Checker")
Named queries (see Section 89.13, "Configuring Named Queries at the Session Level")

You can manage the sessions contained by a session broker with Oracle JDeveloper or TopLink Workbench.

Note:

Add only sessions of the same type to any given session broker. Do not mix sessions of different types within a session broker.

To add sessions to, remove sessions from, or rename sessions in a session broker, use this procedure:

Select a session broker in the Navigator. Its properties appear in the Editor.
Click the General tab. The General tab appears.
Click the Sessions subtab. The Sessions subtab appears.

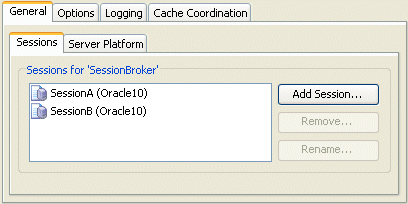

Figure 94-1 General Tab, Sessions Subtab

Description of "Figure 94-1 General Tab, Sessions Subtab"

To manage the sessions in this session broker, choose one of the following:

To remove a session, select the session in the Sessions tab's list and click Remove.
To rename a session, select the session in the Sessions tab's list and click Rename. The Rename dialog box appears. Enter a new name and click OK.
To add a session, click Add Session. The Sessions dialog box appears showing a list of all the sessions currently configured in the session configuration that owns this session broker.

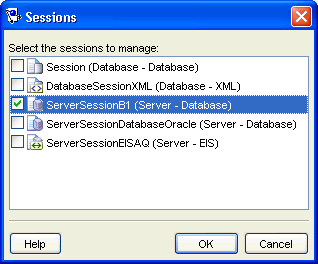

Figure 94-2 Sessions Dialog Box

Description of "Figure 94-2 Sessions Dialog Box"

Check the sessions in the Session dialog that you want to add to the session broker and click OK.
