6 Starting Enterprise Manager Fusion Middleware Control

6.1 Displaying Fusion Middleware Control Console

Fusion Middleware administrators can login to Fusion Middleware Control Console and access Oracle WebCenter pages. Your role determines what you can see and do after logging in. To find out more, see Table 1-6, "WebCenter Operations and Oracle WebLogic Server Roles".

To access the Fusion Middleware Control Console:

1. Start Fusion Middleware Control.

   Fusion Middleware Control is configured for a domain, and it is automatically started when you start the Oracle WebLogic Server Administration Server. See "Starting and Stopping Fusion Middleware Control" in Oracle Fusion Middleware Administrator's Guide.

2. Navigate to the following URL: http://host_name.domain_name:port_number/em

   For example: http://myhost.mycompany.com:7001/em

   You can find the exact URL, including the administration port number, in config.xml:

   • On Windows: DOMAIN_HOME\config\config.xml

   • On UNIX: DOMAIN_HOME/config/config.xml

   See also, "Managing Ports" in Oracle Fusion Middleware Administrator's Guide.

3. Enter a valid administrator User Name and Password details for the farm.

   The default user name for the administrator user is weblogic. This is the account you can use to log in to Fusion Middleware Control for the first time.

4. Click Login.

   The first page you see is the Farm home page. You can also view this page at any time by selecting the name of the farm in the navigation pane (Figure 6-1).

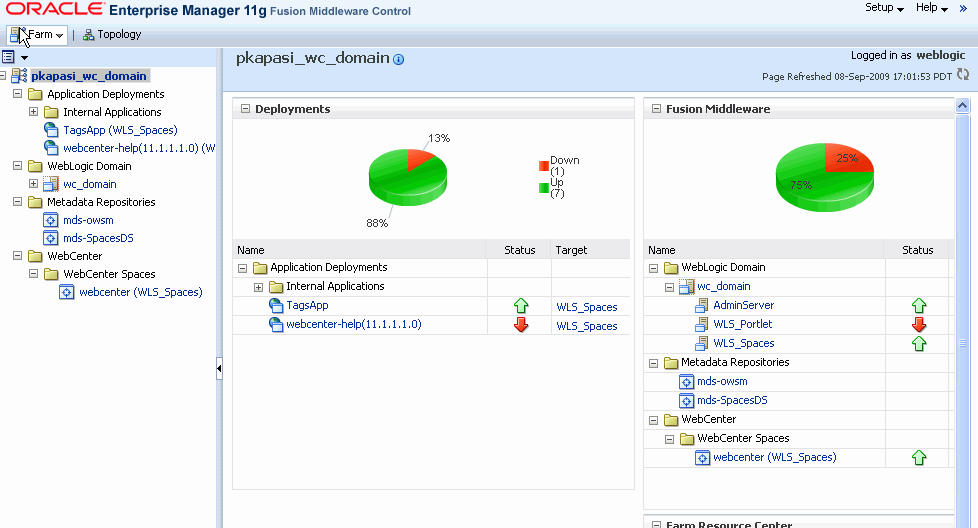

   Figure 6-1 Farm Home Page




From the navigation pane, you can drill down to view and manage all components in your farm, including WebCenter Spaces and any custom WebCenter applications that you may have deployed. For detailed instructions, see

• Section 6.2, "Navigating to the Home Page for WebCenter Spaces".

• Section 6.3, "Navigating to the Home Page for Custom WebCenter Applications".

6.2 Navigating to the Home Page for WebCenter Spaces

The WebCenter Spaces home page is your starting place for managing WebCenter Spaces. The page displays status, performance and availability of all the components and services that make up WebCenter Spaces.

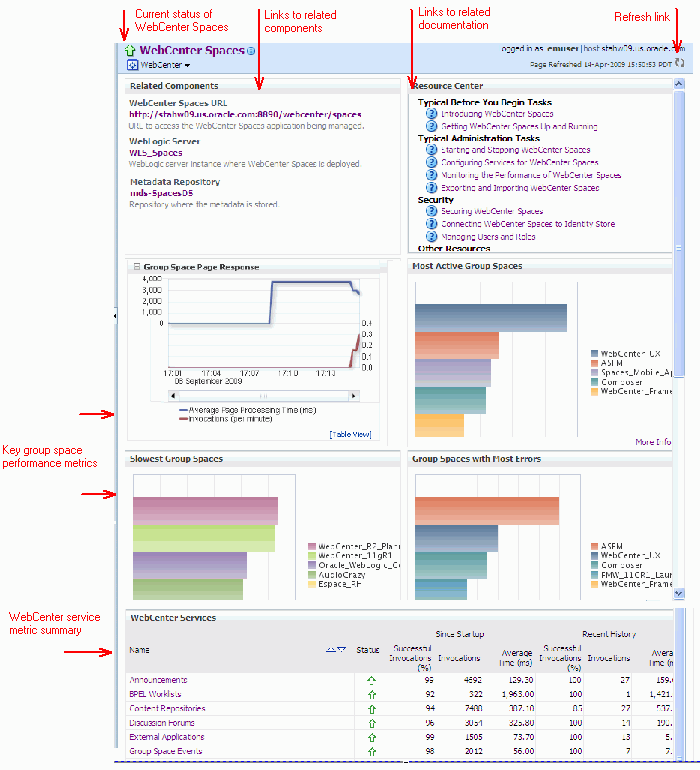

Figure 6-2 WebCenter Spaces Home Page

From here you can:

• Check the status of WebCenter Spaces.

• View key group space performance data. Track overall response time compared with the user access rate to see how the application preforms under different loads and to diagnose system resource issues. Quickly see which group spaces are used the most, the slowest performers, and determine which group spaces are recording the most errors.

• Navigate to key WebCenter Spaces components, including the application itself, the WebLogic Server installation, and the MDS repository.

• View status and key performance metrics for WebCenter services used in the application.

• Drill down to detailed performance information for individual group spaces, services, external applications, portlets, and producers.

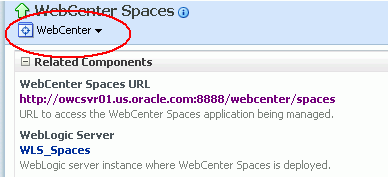

The WebCenter Spaces home page also displays a WebCenter menu (Figure 6-3).

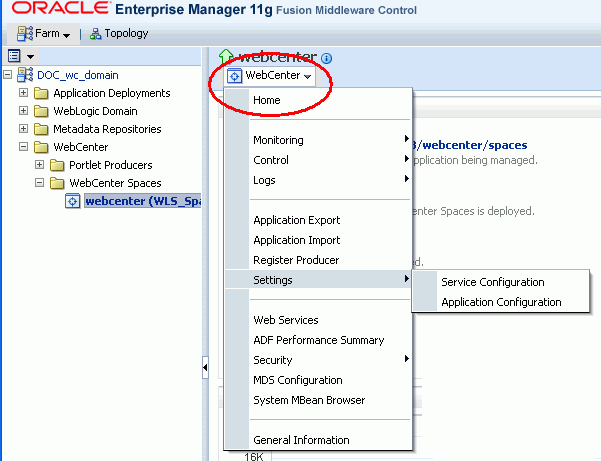

Figure 6-3 WebCenter Menu for WebCenter Spaces

From the WebCenter menu, you can:

• Start and stop WebCenter Spaces

• Configure application settings

• Manage back-end services

• Manage external applications

• Register and manage portlet producers

• Monitor detailed performance metrics for all components

• Select and chart live metrics

• Analyze diagnostic information and configure logs

• Export and import WebCenter Spaces

• Configure security policies and roles.

• Configure ADF and MDS options.

• View Web Services-related information.

To navigate to the main home page for WebCenter Spaces:

1. Login to Fusion Middleware Control.

   See Section 6.1, "Displaying Fusion Middleware Control Console".

2. In the Navigator (Figure 6-4), expand WebCenter.

3. Expand WebCenter Spaces.

4. Select webcenter to navigate to the home page for your WebCenter Spaces installation.

   Figure 6-4 Navigating to the WebCenter Spaces Home Page




Notice how the Navigator menu changes to WebCenter (Figure 6-5).

Figure 6-5 Displaying the WebCenter Spaces Home Page and Menu

6.3 Navigating to the Home Page for Custom WebCenter Applications

The J2EE Application Deployment home page (Figure 6-6) is your starting place for managing custom WebCenter application deployments developed with Oracle WebCenter Framework. The page displays status, performance and availability of all the components and services that make up the custom WebCenter application.

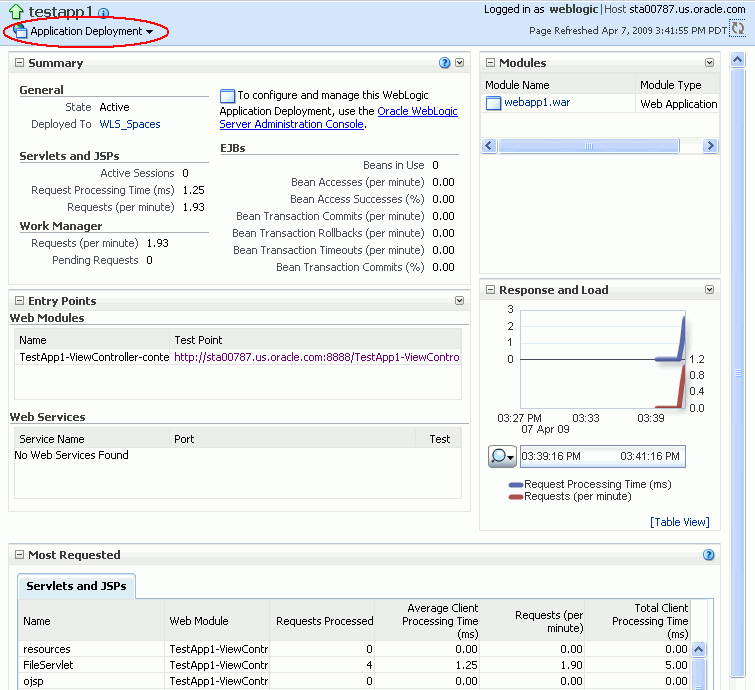

Figure 6-6 Custom WebCenter Application Home Page

From here you can:

• Check custom WebCenter application status.

• Navigate to the Oracle WebLogic Server Administration Console.

• Access various Application Deployment menu options:

  • Start, restart, and shutdown the application

  • View and configure log files.

  • Undeploy and redeploy the application.

  • Configure security policies and roles.

  • Configure ADF and MDS options.

• View a performance summary, entry points to the application, Web Services and modules associated with the application, and the response and load data which shows the requests per second and the request processing time.

• Navigate to key components of the custom WebCenter application.

• Drill down to detailed performance information for individual modules and services.

For custom WebCenter applications, the Application Deployment menu displays an additional menu option—WebCenter. From the WebCenter menu, you can perform WebCenter-specific tasks such as:

• Manage external applications (see Chapter 22, "Managing External Applications").

• Manage back-end services (see Chapter 10, "Managing Oracle WebCenter Services").

• Manage portlet producers (see Chapter 21, "Managing Portlet Producers").

• Monitor detailed performance metrics for WebCenter services (see Chapter 30, "Monitoring Oracle WebCenter Performance").

To navigate to the main home page for your custom WebCenter application:

1. Login to Fusion Middleware Control.

   See Section 6.1, "Displaying Fusion Middleware Control Console".

2. In the Navigator (Figure 6-7), expand Application Deployments.

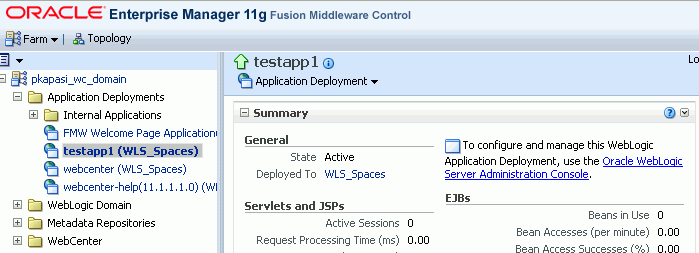

   Figure 6-7 Navigating to a Custom WebCenter Application Home Page




3. Select the name of your custom WebCenter application to display the application's home page.

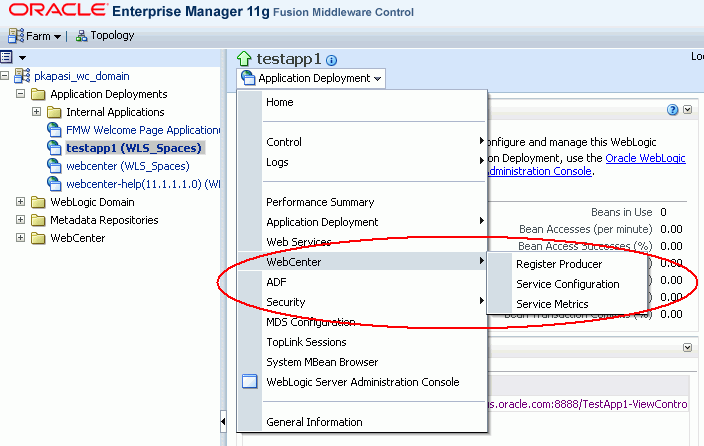

   Notice WebCenter menu options display on the Application Deployment menu (Figure 6-8).

   Figure 6-8 Displaying the Custom WebCenter Application Home Page and Menu




6.4 Navigating to Dependent Components

From WebCenter application pages it is easy to navigate to pages belonging to related components, such as, WebLogic Server domains, servers, Java components, MDS repository, and so on.

• WebCenter Spaces - From the home page, click links in "Related Components" to navigate to the WebCenter Spaces application itself, WebLogic Server installation pages, and MDS repository pages in Fusion Middleware Control. See also, Section 6.2, "Navigating to the Home Page for WebCenter Spaces".

• Custom WebCenter applications - The Application Deployment menu on the J2EE application home page offers direct navigation to the Oracle WebLogic Server Administration Console, and pages relating to ADF, MDS repository, and security. See also, Section 6.3, "Navigating to the Home Page for Custom WebCenter Applications".
