10 Managing Deployments

10.1.1 How to View the Applications Deployed to an Oracle CEP Server

Using the Oracle CEP Visualizer, you can view the applications deployed to a selected Oracle CEP server.

To view the applications deployed to an Oracle CEP server:

1. In the left pane, click the Domain > Server node, where Domain refers to the name of your Oracle CEP domain and Server refers to the name of the server instance.

2. In the right pane, click the Applications tab.

   The Applications tab is displayed as Figure 10-1 shows.

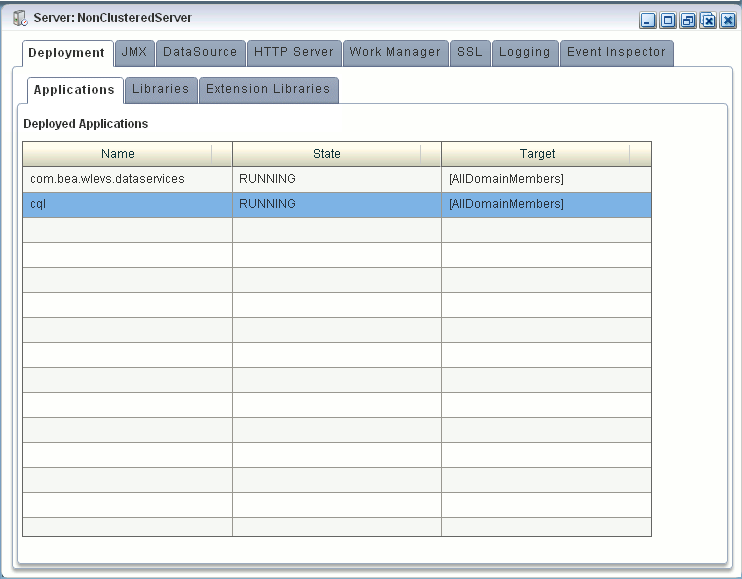

   Figure 10-1 Applications Tab


   Description of "Figure 10-1 Applications Tab"



3. View the list of deployed applications as Table 10-1 describes.

   Table 10-1 Deployed Application Attributes

   Attribute	Description
   Name	The name of the application.
   State	The operational state of the application.
   Target	The group to which the application is deployed.




10.1.2 How to View the Application Libraries Deployed to an Oracle CEP Server

Using the Oracle CEP Visualizer, you can view the application libraries deployed to a selected Oracle CEP server.

You can view:

• Extension Libraries: these libraries are deployed first along with the Oracle CEP server extension modules.

  For more information, see "Library Extensions Directory" in the Oracle Complex Event Processing Developer's Guide for Eclipse.

• Libraries: these libraries are deployed after the components in the library extensions directory but before any Oracle CEP applications

  For more information, see "Library Directory" in the Oracle Complex Event Processing Developer's Guide for Eclipse.

To view the application libraries deployed to an Oracle CEP server:

1. In the left pane, click the Domain > Server node, where Domain refers to the name of your Oracle CEP domain and Server refers to the name of the server instance.

2. View the libraries associated with applications deployed to this server:

   1. To view extension libraries, in the right pane, click the Extension Libraries tab.

      The Extension Libraries tab is displayed as Figure 10-2 shows.

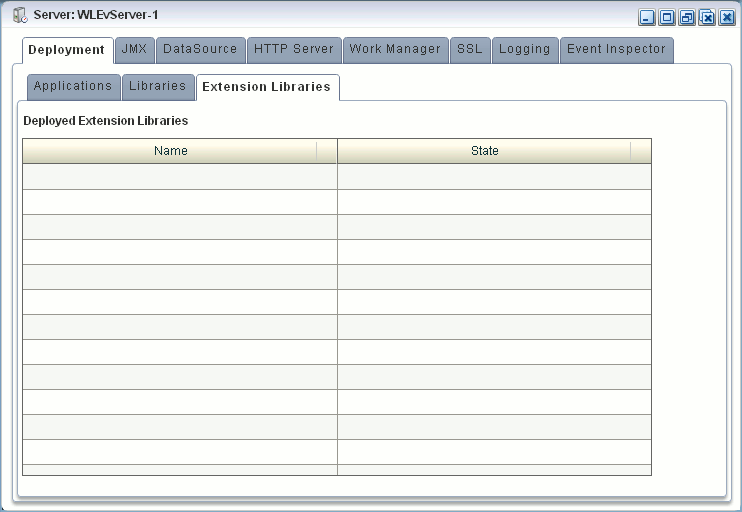

      Figure 10-2 Extension Libraries Tab


      Description of "Figure 10-2 Extension Libraries Tab"



      View the list of deployed application libraries as Table 10-2 describes.

      Table 10-2 Application Extension Library Attributes

      Attribute	Description
      Name	The name of the application library.
      State	The operational state of the application library.




   2. To view libraries, in the right pane, click the Libraries tab.

      The Libraries tab is displayed as Figure 10-3 shows.

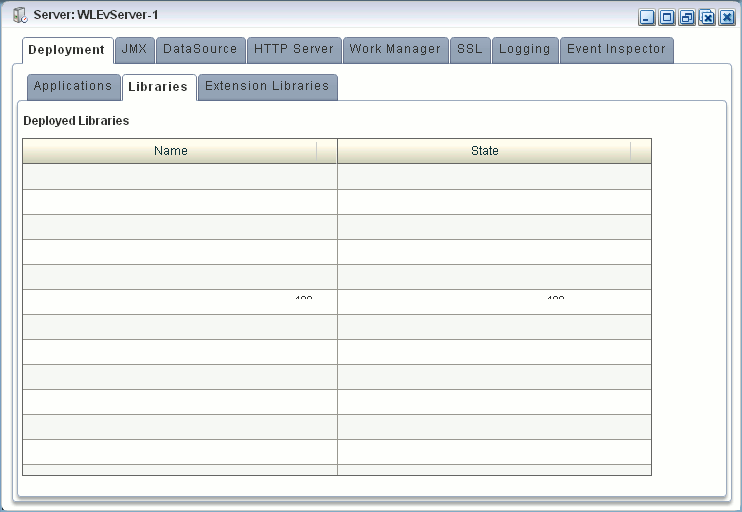

      Figure 10-3 Libraries Tab


      Description of "Figure 10-3 Libraries Tab"



      View the list of deployed application libraries as Table 10-3 describes.

      Table 10-3 Application Library Attributes

      Attribute	Description
      Name	The name of the application library.
      State	The operational state of the application library.




10.2.1 How to Add or Delete an Application

For more information, see:

• Section 5.1.1, "How to Deploy an Application in a Standalone-Server Domain"

• Section 5.1.2, "How to Deploy an Application in a Multi-Server Domain"

• Section 5.4, "Uninstalling an Application"

10.2.2 How to Add or Delete an Application Library

To add or remove application libraries, you must manually add or remove files from the appropriate Oracle CEP server directory.

For more information, see:

• "Library Extensions Directory" in the Oracle Complex Event Processing Developer's Guide for Eclipse

• "Library Directory" in the Oracle Complex Event Processing Developer's Guide for Eclipse

• "Managing an Application Library" in the Oracle Complex Event Processing Developer's Guide for Eclipse
