H.7 LDAP Server

This screen is displayed only if you select the Enable LDAP Sync option on the LDAP Sync and OAM screen. In the LDAP Server screen, you should specify the authentication information for the Oracle Virtual Directory server, as you want to synchronize Oracle Identity Manager roles, users, and their hierarchy to an LDAP directory.

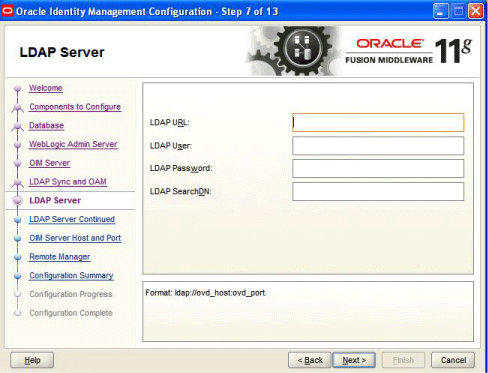

Figure H-7 LDAP Server Screen

Table H-4 describes the Oracle Virtual Directory Server parameters that you must specify.

Table H-4 LDAP Server Information

Field Name	Description
LDAP URL	Enter the LDAP URL in the format: `ldap://ovd_host:ovd_port`
LDAP User	Enter the user name for the Oracle Virtual Directory administrator.
LDAP Password	Enter the password for the Oracle Virtual Directory administrator.
LDAP SearchDN	Enter the Distinguished Names (DN). For example, `dc=acme`, `dc=com` This is the top-level container for users and roles in LDAP that is used for Oracle Identity Manager for reconciliation purposes.

After entering information in the fields, click Next to continue.
