H.9 OIM Server Host and Port

This screen is displayed only if you choose to configure Oracle Identity Manager Design Console on the Components to Configure screen, on Windows operating systems. Note that you must configure Oracle Identity Manager (OIM) Server on a local machine or a remote machine before running Design Console. In the OIM Server Host and Port screen, you must specify the host name and port information for the Oracle Identity Manager Server.

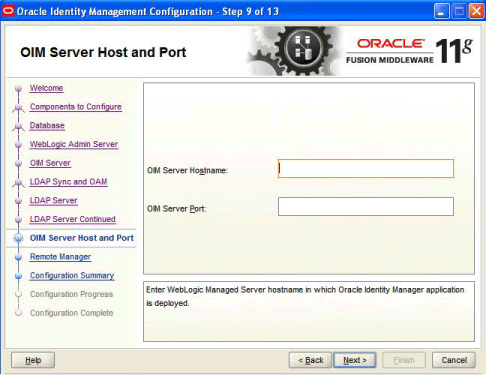

Figure H-9 OIM Server Host and Port Screen

In the OIM Server Hostname text box, enter the host name of the Oracle Identity Manager Managed Server that you configured during while configuring OIM in a new or existing WebLogic domain.

In the OIM Server Port text box, enter the port number for the Oracle Identity Manager Managed Server. This port is the Listen port you or your administrator specified while configuring OIM in a new or existing WebLogic administration domain.

After entering information in the fields, click Next to continue.
