This chapter provides information on setting up the ADF Mobile Client environment for application development and deployment.
This chapter includes the following sections:
Section 2.1, "Introduction to the ADF Mobile Client Environment"
Section 2.2, "Prerequisites for Developing ADF Mobile Client Applications"
Section 2.6, "Setting Up Development Tools for Windows Mobile Platform"
Section 2.7, "Setting Up Development Tools for BlackBerry Platform"
Section 2.8, "Installing SQLite Mobile Sync Client on BlackBerry Smartphone or Simulator"
Section 2.9, "Setting Up the Fusion Order Demo Mobile Client Application"
Before developing an ADF Mobile client application, you must set up your development environment by downloading, installing, and configuring various software components.
Prerequisites for developing an ADF Mobile client application vary depending on the type of work you are planning to do, as well as your target mobile platforms:
What You Need to Get Started With the ADF Mobile Client Sample Application
What You Need to Deploy an ADF Mobile Client Application to a Development Environment
Before you start working with the mobile client sample application (see Chapter 3, "Introduction to the ADF Mobile Client Sample Application"), ensure that you have the following components installed:
Oracle JDeveloper (see Section 2.3, "Setting Up JDeveloper")
Oracle JDeveloper extension for ADF Mobile client (see Section 2.3, "Setting Up JDeveloper")
Oracle Database (Standard or Enterprise Edition) (see Section 2.4, "Setting Up Oracle Database")
Oracle Database Lite (see Section 2.5, "Setting Up Oracle Database Lite")
Fusion Order Demo Mobile Client application (see Section 2.9, "Setting Up the Fusion Order Demo Mobile Client Application")
The sample application deployed to a smartphone, mobile device, or emulator (see Section 3.4, "Running the Fusion Order Demo Mobile Client Application")
In addition:
If Windows Mobile is your target platform, the following is required:
Java Runtime Environment (JRE) in the form of Oracle Java Micro Edition Connected Device Configuration HotSpot Implementation (Oracle Java ME CDC HI)
Windows Mobile SDK.
Note that this software is required if you are planning to use a Windows Mobile device emulator only.
Windows Mobile device or device emulator
For more information, see Section 2.6, "Setting Up Development Tools for Windows Mobile Platform."
If BlackBerry is your target platform, the following is required:
BlackBerry JDE
BlackBerry smartphone or simulator.
Note that BlackBerry JDE download includes a number of smartphone simulators. You only need to install a separate, standalone simulator if the JDE does not include a simulator for your target device.
BlackBerry Desktop Software
For more information, see Section 2.7, "Setting Up Development Tools for BlackBerry Platform."
Before you start creating a mobile client application (see Chapter 4, "Getting Started with ADF Mobile Client"), ensure that you have the following components installed:
Oracle JDeveloper (see Section 2.3, "Setting Up JDeveloper")
Oracle JDeveloper extension for ADF Mobile client (see Section 2.3, "Setting Up JDeveloper")
Oracle Database (Standard or Enterprise Edition) (see Section 2.4, "Setting Up Oracle Database")
Oracle Database Lite (see Section 2.5, "Setting Up Oracle Database Lite")
An existing ADF application: because you are extending an application to a mobile device, you cannot begin application development by creating a standalone mobile client application. An ADF application must first exist and stand as the base (server) application for the mobile client. The view objects and entity objects used by the mobile client application are likewise based on the view objects and entity objects of the base application. For more information, see Section 4.5, "Extending the Base Application for the Mobile Client Application."
Synchronization initiated using mSync (see Section 9.3, "Initiating Data Synchronization").
In addition:
If Windows Mobile is your target platform, the following is required:
Java Runtime Environment (JRE) in the form of Oracle Java Micro Edition Connected Device Configuration HotSpot Implementation
Windows Mobile SDK
Note that this software is required if you are planning to use a Windows Mobile device emulator only
Windows Mobile device or device emulator
For more information, see Section 2.6, "Setting Up Development Tools for Windows Mobile Platform."
If BlackBerry is your target platform, the following is required:
BlackBerry JDE
BlackBerry smartphone or simulator.
Note that BlackBerry JDE download includes a number of smartphone simulators. You only need to install a separate, standalone simulator if the JDE does not include a simulator for your target device.
BlackBerry Desktop Software
Note that this software is required if you are planning to use a BlackBerry smartphone only.
For more information, see Section 2.7, "Setting Up Development Tools for BlackBerry Platform."
Before you start deploying your mobile client application (see Chapter 4, "Getting Started with ADF Mobile Client"), ensure that you have the following components installed:
All components listed in Section 2.2.2, "What You Need to Create an ADF Mobile Client Application"
The mobile client application
Various database connections and login credentials
The server application's model project deployed as an ADF library. This library contains ADF Business Components from the base ADF application that you are extending to the mobile client application (see Section 4.3, "Deploying the Model Project of the Base Application as an ADF Library").
In addition, if you are deploying to Windows Mobile devices, install the following:
Microsoft ActiveSync 4.5 or Microsoft Windows Mobile Device Center 6.1 or later: this component connects a mobile device or emulator to your computer and transfers your application to the device or emulator once it is running (see Section 2.6.3, "How to Connect the Mobile Device or Emulator").
Microsoft Device Emulator 3.0: this component represents a program that can emulate Window Mobile devices (see Section 2.6.2, "How to Install and Set Up the Windows Mobile Emulator").
One or more Microsoft emulator images that enable functionality of Microsoft Device Emulator (see Section 2.6.2, "How to Install and Set Up the Windows Mobile Emulator").
For more information, see Section 2.6, "Setting Up Development Tools for Windows Mobile Platform."
There is a number of additional components that are part of the mobile client environment setup with the purpose of the application development and deployment. However, these components do not require explicit installation as they are installed by default during installation of other components. These pre-installed components include the following:
SQLite database: this component comes with Oracle Database Lite and is preinstalled on BlackBerry smartphones. For Windows Mobile devices, the required files are installed as part of the synchronization and runtime installation. Moreover, the sample application includes an SQL script to automatically generate the database.
SQLite Mobile Client installed on the mobile device or emulator (see Section 2.8, "Installing SQLite Mobile Sync Client on BlackBerry Smartphone or Simulator"): this component comes with Oracle Database Lite.
BlackBerry Desktop Manager pack: this component is included in the BlackBerry Desktop Software installation (see Section 2.7.2, "How to Install BlackBerry Desktop Software").
Microsoft Device Emulator Manager: this component is installed as part of Microsoft Device Emulator 3.0 package. The Device Emulator Manager simulates an ActiveSync connection. It connects the emulator for file synchronization using Microsoft ActiveSync (see Section 2.6.2, "How to Install and Set Up the Windows Mobile Emulator").
Oracle Java Micro Edition Connected Device Configuration HotSpot Implementation: this component is included in the ADF Mobile client extension as the Windows Mobile JVM (see Section 2.6.5, "How to Install Java Runtime Environment on the Mobile Device or Emulator").
Oracle Database Lite Mobile Server: this component is a part of Oracle Database Lite and enables data synchronization (see Section 2.5, "Setting Up Oracle Database Lite").
BlackBerry Mobile Data Service Simulator (MDS simulator): this component installs with the BlackBerry JDE and represents the BlackBerry network access server (see Section 2.7.1.1, "What You May Need to Know About BlackBerry Mobile Data Service Simulator").
Setting up your ADF Mobile client development environment begins with Oracle JDeveloper and its ADF Mobile client extension.
Before you develop an application or run the ADF Mobile client sample application, you must perform the following steps:
Download and install Oracle JDeveloper.
For more information, see Oracle Fusion Middleware Installation Guide for Oracle JDeveloper.
Download the Fusion Order Demo Mobile client application ZIP file.
For more information, see "Introduction to the ADF Sample Application" in Oracle Fusion Middleware Fusion Developer's Guide for Oracle Application Development Framework.
Download the ADF Mobile client extension as follows:

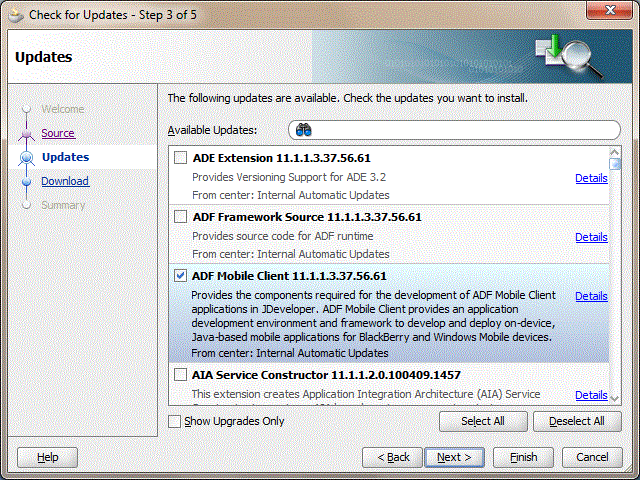

In JDeveloper, choose Help, then Check for Updates, and then click Next.

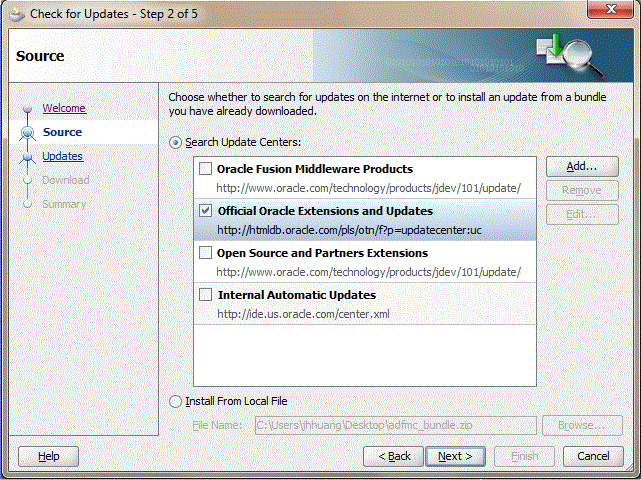

In the Source page that Figure 2-1 shows, select Official Oracle Extensions and Updates, and then click Next.
Note:
You might need to configure proxy settings by selecting Tools > Preferences from the main menu, and then Web Browser and Proxy from the tree on the left of the Preferences dialog.In the Updates dialog that Figure 2-2 shows, select the ADF Mobile Client update.
Click Next, and then click Finish.
While the ADF Mobile client application does not require a database, the server-side application with which it synchronizes does. For this reason, you must install Oracle Database.
This database hosts the application data and the Oracle Database Lite Mobile Server repository schema. For more information, see Section 2.5, "Setting Up Oracle Database Lite."
Note:
Since Oracle Database Lite Mobile Server requires either the Standard or Enterprise Edition of Oracle Database, you cannot use the Express Edition.Because there is no local application database when you first create the mobile client application, you must be able to access the same Oracle Database that houses the data used by the server-side application you are extending.
Download Oracle Database from http://www.oracle.com/technology/software/products/database/index.html
If your mobile client application requires data to be synchronized from a server database, you need to install Oracle Database Lite by downloading it from http://www.oracle.com/technology/software/products/lite/index.html
Oracle Database Lite installation provides the following tools necessary for developing ADF Mobile client applications:
Mobile Database Workbench (MDW), which is a development tool for creating publications and publication items. You can also use MDW to view and modify publications and publication items after application data has been published to the device. For more information, see Oracle Database Lite Developer's Guide.
Mobile Sync Client (mSync), which is a small footprint application that resides on a mobile device and enables you to synchronize published application data between Oracle databases, handheld devices, and desktop and laptop computers.
Oracle Database Lite Mobile Server, which is a server-side component that works in conjunction with Oracle Database and mSync to synchronize data between multiple client devices and computers.
Oracle Database Lite 10g MDK. For more information, see Oracle Database Lite Developer's Guide.
Note:
After installing any component of Oracle Database Lite, you must remove the following two entries from yourPATH
environment variable, and then restart your system:
<OLITE_HOME>\jre\1.4.2\bin
<OLITE_HOME>\jre\1.4.2\bin\client
For more information, see the following:
In addition to general-purpose tools listed in Section 2.2.2, "What You Need to Create an ADF Mobile Client Application," getting ready for development of an ADF Mobile client application for the Windows Mobile platform involves installation and configuration of the following tools:
A Windows Mobile device (see Section 2.6.1, "How to Set Up the Windows Mobile Device") or device emulator (see Section 2.6.2, "How to Install and Set Up the Windows Mobile Emulator")
A connection utility (see Section 2.6.3, "How to Connect the Mobile Device or Emulator")
Oracle Database Lite on the mobile device or emulator (see Section 2.6.4, "How to Install the Oracle Database Lite Client on the Mobile Device or Emulator")
Java Runtime Environment (JRE) (see Section 2.6.5, "How to Install Java Runtime Environment on the Mobile Device or Emulator")
ADF Mobile client supports the following Windows Mobile devices:
Windows Mobile 6.0 Professional
Windows Mobile 6.1 Professional
Windows Mobile 6.5 Professional
To set up your mobile device, you simply have to connect it to the USB port of the computer running JDeveloper. At this point, either Microsoft ActiveSync or Microsoft Windows Mobile Device Center establishes a connection from the mobile device to your development computer (see Section 2.6.3, "How to Connect the Mobile Device or Emulator").
Note:
Only a single Windows Mobile device can be plugged in at any given time. If ActiveSync or Microsoft Windows Mobile Device Center does not automatically initiate a connection to the device, check to make sure no other device is attached and no emulator is running.Also try selecting or deselecting the Enable advanced network functionality option on your device. You access this option through Settings >USB to PC menu.
During development, you can use the mobile device emulator instead of an actual device (see Section 2.2, "Prerequisites for Developing ADF Mobile Client Applications") to test your application.
ADF Mobile client supports the following device emulators:
Windows Mobile 6 Professional
Windows Mobile 6.1 Professional
Windows Mobile 6.5 Professional
Note:
The current ADF Mobile client release does not provide support for Windows Mobile Standard and Windows Mobile 7 (Windows Phone 7) device emulators.Before you begin:
Download and install one of the following Windows Mobile SDK packages:
Windows Mobile 6 Professional SDK from Microsoft download site at http://www.microsoft.com/downloads/en
Windows Mobile 6.5 Developer Tool Kit from Microsoft download site at http://www.microsoft.com/downloads/en
Note:
Since there is no Windows Mobile 6.1 SDK, you should download Windows Mobile 6 Professional SDK for development using Windows Mobile 6.1 Professional device emulator.To complete the set-up:
Download and install Microsoft Device Emulator 3.0 from Microsoft download site at http://www.microsoft.com/downloads/en
For information on how to use Microsoft Device Emulator, search http://msdn.microsoft.com
site for "Step by Step: Using Microsoft Device Emulator In-Depth in Your Application Development Experience".
Download one or more Microsoft emulator images that enable functionality of Microsoft Device Emulator 3.0:

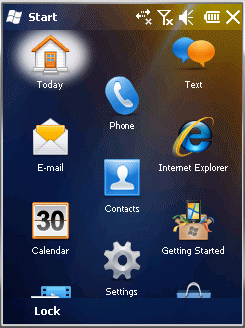

Figure 2-3 shows a Windows Mobile device emulator.
After you install the Windows Mobile device emulator, you have to connect it to your computer (see Section 2.6.3, "How to Connect the Mobile Device or Emulator").
To connect your development computer to the mobile device or emulator and enable transfer of your mobile client application to the mobile device or emulator once it is running, you use one of the following utilities:
Microsoft ActiveSync 4.5: This installation is required for Microsoft Windows XP and 2000 systems and is available from Microsoft download site (see also http://www.microsoft.com/windowsphone/en-ca/apps/65-downloads.aspx
).
Microsoft Windows Mobile Device Center 6.1 or later: This installation is required for Microsoft Windows Vista and 7 systems and is available from Microsoft download site (see also http://www.microsoft.com/downloads/en
).
Once installed, this utility starts automatically when you plug in the mobile device or cradle the emulator.
To connect to the Windows Mobile device emulator using Microsoft ActiveSync:
From the Windows Start menu, select Program Files > Windows Mobile 6 SDK > Standalone Emulator Images, and then select an emulator.

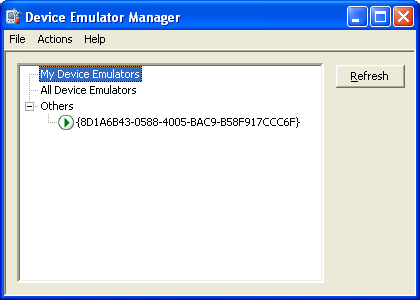

From the Windows Start menu, choose Program Files > Windows Mobile 6 SDK > Tools > Device Emulator Manager.
From the Device Emulator Manager, click Refresh, and then select the preferred simulator, as Figure 2-4 shows.
Choose Actions, and then select Cradle from the context menu. ActiveSync will automatically appear upon successful connection.
Note:
If you are prompted by ActiveSync to establish a partnership, you can dismiss this dialog by clicking Cancel.Ensure that Allow connections to one of the following and DMA are both selected, as Figure 2-5 shows, and then click OK.
To connect to the Windows Mobile device emulator using Windows Mobile Device Center:

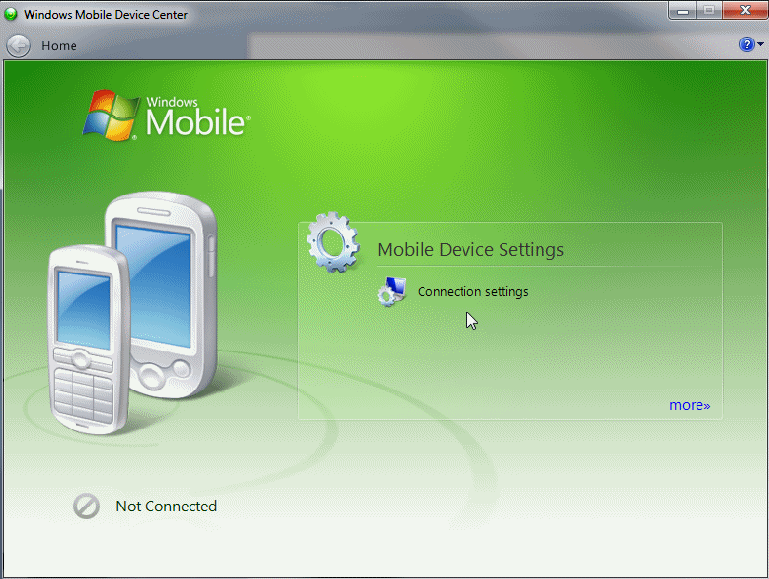

From the Windows Start menu, select Program Files > Windows Mobile Device Center to open the Windows Mobile Device Center dialog (see Figure 2-6).

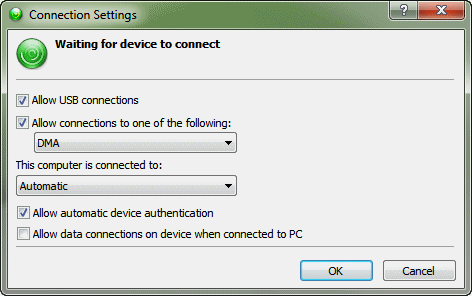

Select Mobile Device Settings, and then click Connection Settings (see Figure 2-7).

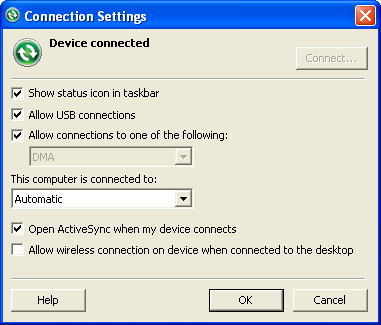

On the Connection Settings dialog, select Allow connections to one of the following, and then select DMA.
Click OK.
You must install the Oracle Database Lite client on the mobile device or emulator in order to synchronize data and access SQLite databases.
Before you begin:
Ensure that your computer and mobile device are connected (see Section 2.6.3, "How to Connect the Mobile Device or Emulator").
To install the Oracle Database Lite client:
In JDeveloper, from the main menu select Tools > Deploy ADF Mobile Client Runtime > to Windows Mobile device/emulator.

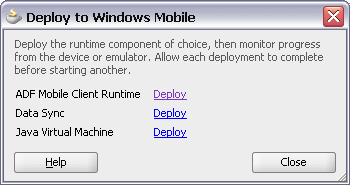

On the Deploy to Windows Mobile dialog that Figure 2-8 shows, select Data Sync > Deploy, and then click OK.
To complete the installation, follow the instructions that appear on the screen of your device or emulator.
To run ADF Mobile client applications, you must have Oracle Java Micro Edition Connected Device Configuration HotSpot Implementation (Oracle Java ME CDC HI) installed on the mobile device or emulator.
Before you begin:
Ensure that your computer and mobile device or emulator are connected (see Section 2.6.3, "How to Connect the Mobile Device or Emulator").
To install JRE:
In JDeveloper, from the main menu select Tools > Deploy ADF Mobile Client Runtime > to Windows Mobile device/emulator.
On the Deploy to Windows Mobile dialog that Figure 2-8 shows, select Java Virtual Machine > Deploy, and then click OK.
To complete the installation, follow the instructions that appear on the screen of your device or emulator.
Note:
If you are using the Window Mobile device emulator, you must install JRE to its internal main memory. JRE does not function properly if installed to the emulator's storage card.There is a number of limitations that are associated with the usage of Windows Mobile platform in the current release of ADF Mobile client:
Windows Mobile Standard and Windows Mobile 7 (Windows Phone 7) device emulators are not supported.
At any given time, only a single Windows Mobile device or emulator can be connected to your development computer. If ActiveSync or Microsoft Windows Mobile Device Center does not automatically initiate a connection to the device, you have to ensure no other device is attached and no emulator is running. You may also try selecting or deselecting the Enable advanced network functionality option on your device. This option is accessible through the Settings >USB to PC menu.
The Window Mobile JVM does not function properly if installed to the device emulator's storage card. Instead, it must be installed to the internal main memory of the emulator.
In addition to general-purpose tools listed in Section 2.2.2, "What You Need to Create an ADF Mobile Client Application," getting ready for development of an ADF Mobile client application for BlackBerry platform involves installation and configuration of the following:
BlackBerry JDE (see Section 2.7.1, "How to Install BlackBerry JDE")
BlackBerry Desktop Software (see Section 2.7.2, "How to Install BlackBerry Desktop Software")
BlackBerry smartphone (see Section 2.7.3, "How to Set Up a BlackBerry Smartphone") or simulator (see Section 2.7.4, "How to Set Up a BlackBerry Smartphone Simulator")
BlackBerry JDE includes all of the Java libraries and development tools that you need to build applications for a BlackBerry smartphone.
ADF Mobile client provides support for BlackBerry JDE 5.0 and 6.0.
To install BlackBerry JDE:
Download BlackBerry JDE from http://na.blackberry.com/eng/developers/javaappdev/javadevenv.jsp
Note:
Due to certain limitations, if you are using Microsoft Windows Vista or 7 system, you should download BlackBerry JDE 6.0. For more information, see Section 2.7.8, "What You May Need to Know About Limitations of BlackBerry Platform Usage."Figure 2-9 shows a BlackBerry smartphone simulator.
The BlackBerry Mobile Data Service (MDS) Simulator is a part of the BlackBerry JDE and simulates a BlackBerry Enterprise Server for the simulator, providing network access for the smartphone simulator.
For data security and network bandwidth efficiency, RIM provides server components (BES and BIS) that act as a gateway between a BlackBerry smartphone and corporate networks or the Internet. BlackBerry MDS Simulator is capable of simulating these server components on your development computer for testing purposes.
BlackBerry Desktop Software connects physical BlackBerry smartphones to your development computer and enables you to install applications to those smartphones.
Note:
If you are planning to work with smartphone simulators only, this software is not required.To install BlackBerry Desktop Software:
Download BlackBerry Desktop Software from the download site.
Run the installer and follow its on-screen instructions.
In your mobile client application development and deployment, you can use either the BlackBerry smartphone itself, or its simulator (see Section 2.7.4, "How to Set Up a BlackBerry Smartphone Simulator"). If you are planning to use the smartphone, you simply need to connect it to your computer in order to establish a link between the two devices.
In your mobile client application development and deployment, you can use either the BlackBerry smartphone itself (see Section 2.7.3, "How to Set Up a BlackBerry Smartphone") or its simulator. Deploying to a simulator is usually much faster than deploying to a device, and it also means that you do not have to sign the application first.
If you are planning to use one of the smartphone simulators included with JDE, you do not need to download and install a separate smartphone simulator. In case JDE does not contain a simulator for your target BlackBerry smartphone and you need to download a standalone simulator, see the how-to section of the ADF Mobile page on Oracle Technology Network (OTN) at http://www.oracle.com/technetwork/developer-tools/adf/overview/adf-mobile-096323.html
for instructions on installing these simulators.

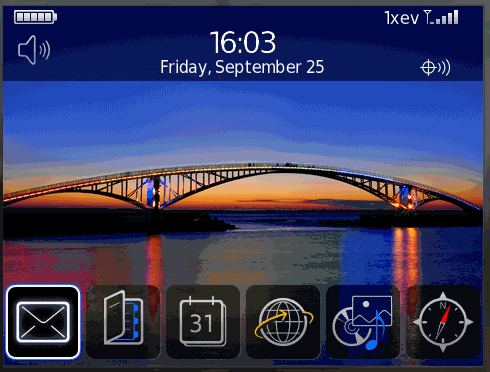

To set up the BlackBerry smartphone simulator:
Start the BlackBerry Mobile Data Service (MDS) simulator by double-clicking the run.bat
file, which is typically located in C:\Program Files\Research In Motion\BlackBerry JDE <version number>\MDS
directory.
Note:
For information on how to configure MDS simulator to work behind a proxy, see Section 2.7.6, "How to Configure Proxy Settings."Start the smartphone simulator.
To activate the default simulator, double-click the defaultSimulator.bat
file that is typically located in C:\Program Files\Research In Motion\BlackBerry JDE <version number>\simulator\
directory.
After you install the following components, you have to configure JDeveloper to make use of them:
BlackBerry JDE (see Section 2.7.1, "How to Install BlackBerry JDE")
Optionally: standalone BlackBerry smartphone simulators, if the JDE does not contain a simulator for your target BlackBerry smartphone (see Section 2.7.4, "How to Set Up a BlackBerry Smartphone Simulator")
Optionally: Oracle Database Lite 10g MDK, if your application requires data synchronization (see Section 2.5, "Setting Up Oracle Database Lite")
To configure JDeveloper for BlackBerry development:
In JDeveloper, select Tools > Preferences > ADF Mobile Client from the main menu.
Set the directory of the BlackBerry JDE. Because the default BlackBerry simulator installs with the JDE, the location of the BlackBerry simulator is populated automatically when you enter the location for the BlackBerry JDE.
If you use a simulator that is not part of BlackBerry JDE, then enter the location of this simulator.
Enter the root location of the MDK installation.
Click OK.

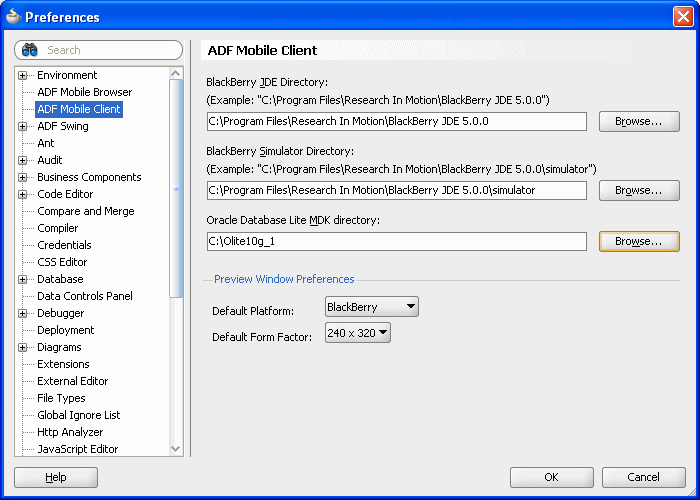

Figure 2-10 shows the locations set for BlackBerry JDE, the included simulator, and Oracle Database Lite MDK installation directory.
You might need to configure network proxy settings by modifying the rimpublic.property
file that is typically located in the C:\Program Files\Research In Motion\BlackBerry JDE <version number>\MDS\config
directory. The configuration settings vary depending on the proxy server that is required to access the network, and may include any of the following:
[HTTP HANDLER] application.handler.http.logging = true application.handler.http.CookieSupport = true application.handler.http.AuthenticationSupport = true application.handler.http.AuthenticationTimeout = 3600000 application.handler.http.device.connection.timeout = 120000 application.handler.http.server.connection.timeout = 120000 application.handler.http.proxyEnabled = true application.handler.http.proxyAutoConfig = true application.handler.http.proxyAutoConfigURL=http://wpad.us.oracle.com/wpad.dat application.handler.http.proxyAutoConfig.ScriptCacheTime=0
For more information on how to configure MDS simulator to work behind a proxy, see BlackBerry Developers Knowledge Base page at http://www.blackberry.com/knowledgecenterpublic
The BlackBerry file browser may not display the true path to a file. For instance, /Media Card
is displayed for /SDCard
directory, and /Device Memory
is displayed for /store
directory. Therefore, when referencing paths on the BlackBerry file system, either in code or in configuration files (such as adf-config.xml
and connections.xml
), ensure that you use the actual directory names.
Even though the mobile client supports both BlackBerry JDE 5.0 and 6.0, there is a number of issues that are associated with the usage of these environments:
BlackBerry JDE 5.0: It is not possible to close a BlackBerry smartphone simulator from the UI on Microsoft Windows Vista or 7 systems. The only means available to terminate the simulator is to use the End Task utility of the Microsoft Windows Task Manager on the fledge.exe
file to force stop the program. When this happens, the state of the simulator is not saved, resulting in the loss of information as the data is not saved on the simulator between the restarts. In addition, exceptions occur and the simulator is left in a faulty state.
BlackBerry JDE 6.0: The standalone synchronization of data is not possible. To transfer data to the smartphone, you can only rely on the integrated synchronization that is invoked by the application when data is not found on the smartphone. For more information, see Chapter 9, "Synchronizing ADF Mobile Client Data and Transactions."
Table 2-1 summarizes compatibility of BlackBerry components and specific Microsoft Windows platforms.
Table 2-1 Platform Compatibility
Microsoft Windows platform | BlackBerry JDE | BlackBerry Desktop Software | BlackBerry smartphone simulator |
---|---|---|---|
32-bit editions of Microsoft Windows XP, Vista, and 7 |
5.0 and 6.0 |
5.0 and 6.0 |
Included with JDE 5.0 and 6.0 |
64-bit editions of Microsoft Windows XP, Vista, and 7 |
6.0 |
6.0 |
Included with JDE 6.0 |
To synchronize data, you must install the SQLite Mobile Sync client on BlackBerry smartphone or simulator.
Before you begin:
Ensure that your computer and the smartphone or simulator are connected (see Section 2.7.3, "How to Set Up a BlackBerry Smartphone" and Section 2.7.4, "How to Set Up a BlackBerry Smartphone Simulator").
To install the SQLite Mobile Sync client to a smartphone:
In JDeveloper, from the main menu select Tools > Deploy ADF Mobile Client Runtime > to BlackBerry device.
To install the SQLite Mobile Sync client to a simulator:
In JDeveloper, from the main menu select Tools > Deploy ADF Mobile Client Runtime > to BlackBerry simulator.
For information, see Chapter 3, "Introduction to the ADF Mobile Client Sample Application."
