62 Sending and Receiving Messages using the User Messaging Service Web Service API

This chapter describes how to use the User Messaging Service (UMS) Web Service API to develop applications. This API serves as a programmatic entry point for Fusion Middleware application developers to implement UMS messaging applications that run in a remote container relative to the UMS server.

This chapter includes the following sections:

Section 62.1, "Introduction to the UMS Web Service API"
Section 62.2, "Creating a UMS Client Instance and Specifying Runtime Parameters"
Section 62.3, "Sending a Message"
Section 62.4, "Retrieving Message Status"
Section 62.5, "Receiving a Message"
Section 62.6, "Configuring for a Cluster Environment"
Section 62.7, "Configuring Security"
Section 62.8, "Threading Model"
Section 62.9, "Sample Chat Application with Web Services APIs"
Section 62.10, "Creating a New Application Server Connection"

Note:

To learn more about the code samples for Oracle User Messaging Service, or to run the samples yourself, refer to the Oracle Technology Network code sample page at the following URL: https://soasamples.samplecode.oracle.com/

Once you have navigated to this page, you can find code samples for Oracle User Messaging Service by entering the search term "UMS" and clicking Search.

62.1 Introduction to the UMS Web Service API

The UMS Web Service API is functionally identical to the Java API. The JAX-WS and JAXB bindings of the web service types and interfaces are named similarly to the corresponding Java API classes, but are in their own package space. Classes from the two APIs are not interoperable.

Consumers of the API can get an instance of a MessagingClient object using a factory method. The deployment is as a shared library, "oracle.sdp.client".

The UMS Web Service API consists of packages grouped as follows:

Common and Client Packages
- oracle.ucs.messaging.ws
- oracle.ucs.messaging.ws.types
Web Service API Web Service Definition Language (WSDL) files:
- messaging.wsdl:defines the operations invoked by a Web service client.
- listener.wsdl:defines the callback operations that a client must implement to receive asynchronous message or status notifications.

The samples with source code are available on Oracle Technology Network (OTN).

62.2 Creating a UMS Client Instance and Specifying Runtime Parameters

This section describes the requirements for creating a UMS Client. You can create a instance of oracle.ucs.messaging.ws.MessagingClient by using the public constructor. Client applications can specify a set of parameters at runtime when instantiating a client object. For example, you configure a MessagingClient instance by specifying parameters as a map of key-value pairs in a java.util.Map<String, Object>. Among other things, the configuration parameters serve to identify the Web Service endpoint URL identifying the UMS server to communicate with, and other Web Service-related information such as security policies. Client applications are responsible for storing and loading the configuration parameters using any available mechanism.

You are responsible for mapping the parameters to/from whatever configuration storage mechanism is appropriate for your deployment. The MessagingClient class uses the specified key/value pairs for configuration, and passes through all parameters to the underlying JAX-WS service. Any parameters recognized by JAX-WS are valid. Table 62-1 lists the most common configuration parameters:

Table 62-1 Configuration Parameters Specified at Runtime

Key	Use
`javax.xml.ws.BindingProvider.ENDPOINT_ADDRESS_PROPERTY`	Endpoint URL for the remote UMS WS. This is typically "http://<host>:<port>/ucs/messaging/webservice".
`javax.xml.ws.BindingProvider.USENAME_PROPERTY`	Username to be asserted in WS-Security headers when relevant
`oracle.ucs.messaging.ws.ClientConstants.POLICIES`	Set of OWSM WS-Security policies to attach to the client's requests. These must match the policies specified on the server side.
oracle.wsm.security.util.SecurityConstants.Config.KEYSTORE_RECIPIENT_ALIAS_PROPERTY	Used for OWSM policy attachment. Specifies an alternate alias to use for looking up encryption and signing keys from the credential store.
oracle.wsm.security.util.SecurityConstants.ClientConstants.WSS_CSF_KEY	Used for OWSM policy attachment. Specifies a credential store key to use for looking up remote username/password information from the Oracle Web Services Management credential store map.

A MessagingClient cannot be reconfigured after it is instantiated. Instead, a new instance of the MessagingClient class must be created using the new configuration.

Example 62-1 shows code for creating a MessagingClient instance using username/token security, using the programmatic approach:

Example 62-1 Programmatic Approach to Creating a MessagingClient Instance, Username/Token Security

HashMap<String, Object> config = new HashMap<String, Object>();
config.put(BindingProvider.ENDPOINT_ADDRESS_PROPERTY,
 "http://example.com:8001/ucs/messaging/webservice");
config.put(ClientConstants.POLICIES, new String[] {"oracle/wss11_username_token_
with_message_protection_client_policy"});
config.put(BindingProvider.USERNAME_PROPERTY, "user1");
config.put(oracle.wsm.security.util.SecurityConstants.Config.CLIENT_CREDS_
LOCATION, oracle.wsm.security.util.SecurityConstants.Config.CLIENT_CREDS_LOC_
SUBJECT);
config.put(oracle.wsm.security.util.SecurityConstants.ClientConstants.WSS_CSF_KEY,
 "user1-passkey");
config.put(MessagingConstants.APPLICATION_NAME, "MyUMSWSApp");
mClient = new MessagingClient(config);

Example 62-2 shows code for creating a MessagingClient instance using SAML token security, using the programmatic approach:

Example 62-2 Programmatic Approach to Creating a MessagingClient Instance, SAML Token Security

HashMap<String, Object> config = new HashMap<String, Object>();
config.put(BindingProvider.ENDPOINT_ADDRESS_PROPERTY,
 "http://example.com:8001/ucs/messaging/webservice");
config.put(ClientConstants.POLICIES, new String[] {"oracle/wss11_saml_token_
identity_switch_with_message_protection_client_policy"});
config.put(BindingProvider.USERNAME_PROPERTY, "user1");
config.put(oracle.wsm.security.util.SecurityConstants.Config.CLIENT_CREDS_
LOCATION, oracle.wsm.security.util.SecurityConstants.Config.CLIENT_CREDS_LOC_
SUBJECT);
config.put(oracle.wsm.security.util.SecurityConstants.Config.KEYSTORE_RECIPIENT_
ALIAS_PROPERTY, "example.com");
config.put(MessagingConstants.APPLICATION_NAME, "MyUMSWSApp");
mClient = new MessagingClient(config);

A MessagingClient cannot be reconfigured after it is instantiated. Instead, you must create a new instance of the MessagingClient class using the desired configuration.

Factory methods are provided for creating Web Service API types in the class "oracle.ucs.messaging.ws.MessagingFactory".

62.3 Sending a Message

Invoking the send method causes the message to be delivered to UMS and processed accordingly. The send method returns a String message identifier that the client application can later use to retrieve message delivery status, or to correlate with asynchronous status notifications that are delivered to a Listener. The status returned is the latest known status based on UMS internal processing and delivery notifications received from external gateways.

The types of messages that can be created include plaintext messages, multipart messages that can consist of text/plain and text/html parts, and messages that include the creation of delivery channel (DeliveryType) specific payloads in a single message for recipients with different delivery types.

62.3.1 Creating a Message

This section describes the various types of messages that can be created.

62.3.1.1 Creating a Plaintext Message

Example 62-3 shows how to create a plaintext message using the UMS Web Service API.

Example 62-3 Creating a Plaintext Message Using the UMS Web Service API

Message message = MessagingFactory.createTextMessage("This is a Plain Text
 message.");
Message message = MessagingFactory.createMessage();
message.setContent(new DataHandler(new StringDataSource("This is a Plain Text
 message.", "text/plain; charset=UTF-8")));

62.3.1.2 Creating a Multipart/Mixed Message (with Text and Binary Parts)

Example 62-4 shows how to create a multipart/mixed message using the UMS Web Service API.

Example 62-4 Creating a Multipart/Mixed Message Using the UMS Web Service API

Message message = MessagingFactory.createMessage();
MimeMultipart mp = new MimeMultipart("mixed");

// Create the first body part
MimeBodyPart mp_partPlain = new MimeBodyPart();
StringDataSource plainDS = new StringDataSource("This is a Plain Text part.",
 "text/plain; charset=UTF-8");
mp_partPlain.setDataHandler(new DataHandler(plainDS));
mp.addBodyPart(mp_partPlain);

byte[] imageData;
// Create or load image data in the above byte array (code not shown for brevity)

// Create the second body part
MimeBodyPart mp_partBinary = new MimeBodyPart();
ByteArrayDataSource binaryDS = new ByteArrayDataSource(imageData, "image/gif");
mp_partBinary.setDataHandler(binaryDS);
mp.addBodyPart(mp_partBinary);

message.setContent(new DataHandler(mp, mp.getContentType()));

62.3.1.3 Creating a Multipart/Alternative Message (with Text/Plain and Text/HTML Parts)

Example 62-5 shows how to create a multipart/alternative message using the UMS Web Service API.

Example 62-5 Creating a Multipart/Alternative Message Using the UMS Web Service API

Message message = MessagingFactory.createMessage();
MimeMultipart mp = new MimeMultipart("alternative");
MimeBodyPart mp_partPlain = new MimeBodyPart();
StringDataSource plainDS = new StringDataSource("This is a Plain Text part.", "text/plain; charset=UTF-8");
mp_partPlain.setDataHandler(new DataHandler(plainDS));
mp.addBodyPart(mp_partPlain);

MimeBodyPart mp_partRich = new MimeBodyPart();
StringDataSource richDS = new StringDataSource(
    "<html><head></head><body><b><i>This is an HTML part.</i></b></body></html>",
    "text/html");
mp_partRich.setDataHandler(new DataHandler(richDS));
mp.addBodyPart(mp_partRich);

message.setContent(new DataHandler(mp, mp.getContentType()));

62.3.1.4 Creating Delivery Channel-Specific Payloads in a Single Message for Recipients with Different Delivery Types

When sending a message to a destination address, there could be multiple channels involved. Oracle UMS application developers are required to specify the correct multipart format for each channel.

Example 62-6 shows how to create delivery channel (DeliveryType) specific payloads in a single message for recipients with different delivery types.

Each top-level part of a multiple payload multipart/alternative message should contain one or more values of this header. The value of this header should be the name of a valid delivery type. Refer to the available values for DeliveryType in the enum DeliveryType.

Example 62-6 Creating Delivery Channel-specific Payloads in a Single Message for Recipients with Different Delivery Types

Message message = MessagingFactory.createMessage();

// create a top-level multipart/alternative MimeMultipart object.
MimeMultipart mp = new MimeMultipart("alternative");

// create first part for SMS payload content.
MimeBodyPart part1 = new MimeBodyPart();
part1.setDataHandler(new DataHandler(new StringDataSource("Text content for SMS.",
 "text/plain; charset=UTF-8")));
part1.setHeader(Message.HEADER_NS_PAYLOAD_PART_DELIVERY_TYPE, "SMS");
// add first part
mp.addBodyPart(part1);

// create second part for EMAIL and IM payload content.
MimeBodyPart part2 = new MimeBodyPart();
MimeMultipart part2_mp = new MimeMultipart("alternative");
MimeBodyPart part2_mp_partPlain = new MimeBodyPart();
part2_mp_partPlain.setDataHandler(new DataHandler(new StringDataSource("Text
 content for EMAIL/IM.", "text/plain; charset=UTF-8")));
part2_mp.addBodyPart(part2_mp_partPlain);
MimeBodyPart part2_mp_partRich = new MimeBodyPart();
part2_mp_partRich.setDataHandler(new DataHandler(new
 StringDataSource("<html><head></head><body><b><i>" + "HTML content for EMAIL/IM."
 +
    "</i></b></body></html>", "text/html; charset=UTF-8")));
part2_mp.addBodyPart(part2_mp_partRich);
part2.setContent(part2_mp, part2_mp.getContentType());
part2.addHeader(Message.HEADER_NS_PAYLOAD_PART_DELIVERY_TYPE, "EMAIL");
part2.addHeader(Message.HEADER_NS_PAYLOAD_PART_DELIVERY_TYPE, "IM");
// add second part
mp.addBodyPart(part2);

// set the content of the message
message.setContent(new DataHandler(mp, mp.getContentType()));

// set the MultiplePayload flag to true
MimeHeader multiHeader = new MimeHeader();
multiHeader.setName(oracle.sdp.messaging.Message.HEADER_SDPM_MULTIPLE_PAYLOAD);
multiHeader.setValue(Boolean.TRUE.toString());
message.getHeaders().add(multiHeader);

62.3.2 API Reference for Interface Message

The API reference for interface Message can be accessed from the Javadoc.

62.3.3 API Reference for Enum DeliveryType

The API reference for enum DeliveryType can be accessed from the Javadoc.

62.3.4 Addressing a Message

This section describes type of addresses and how to create address objects.

62.3.4.1 Types of Addresses

There are two types of addresses, device addresses and user addresses. A device address can be of various types, such as email addresses, instant messaging addresses, and telephone numbers. User addresses are user IDs in a user repository.

62.3.4.2 Creating Address Objects

You can address senders and recipients of messages by using the class MessagingFactory to create Address objects defined by the Address interface.

62.3.4.2.1 Creating a Single Address Object

Example 62-7 shows code for creating a single Address object:

Example 62-7 Creating a Single Address Object

Address recipient = MessagingFactory.createAddress("Email:john.doe@oracle.com");

62.3.4.2.2 Creating Multiple Address Objects in a Batch

Example 62-8 shows code for creating multiple Address objects in a batch:

Example 62-8 Creating Multiple Address Objects in a Batch

String[] recipientsStr = {"Email:john.doe@oracle.com", "IM:john.doe@oracle.com"};
Address[] recipients = MessagingFactory.createAddress(recipientsStr);

62.3.4.2.3 Adding Sender or Recipient Addresses to a Message

Example 62-9 shows code for adding sender or recipient addresses to a message:

Example 62-9 Adding Sender or Recipient Addresses to a Message

Address sender = MessagingFactory.createAddress("Email:john.doe@oracle.com");
Address recipient = MessagingFactory.createAddress("Email:jane.doe@oracle.com");
message.addSender(sender);
message.addRecipient(recipient);

62.3.4.3 Creating a Recipient with a Failover Address

Example 62-10 shows code for creating a recipient with a failover address:

Example 62-10 Creating a Single Address Object with Failover

String recipientWithFailoverStr = "Email:john.doe@oracle.com, IM:john.doe@oracle.com";
Address recipient = MessagingFactory.createAddress(recipientWithFailoverStr);

62.3.4.4 Recipient Types

The WS API provides support for sending and receiving messages with To/Cc/Bcc recipients for use with the email driver:

To send a message and specify a Cc/Bcc recipient, create the oracle.ucs.messaging.ws.Address object using oracle.ucs.messaging.ws.MessagingFactory.buildAddress method. The arguments are the address value (for example, user@domain.com), delivery type (for example, DeliveryType.EMAIL), and email mode (for example, "Cc" or "Bcc").
To determine the recipient type of an existing address object, for example in a received message, use the oracle.ucs.messaging.ws.MessagingFactory.getRecipientType method, passing it the Address object. It returns a string indicating the recipient type.

62.3.4.5 API Reference for Class MessagingFactory

The API reference for class MessagingFactory can be accessed from the Javadoc.

62.3.4.6 API Reference for Interface Address

The API reference for interface Address can be accessed from the Javadoc.

62.3.5 User Preference Based Messaging

When sending a message to a user recipient (to leverage the user's messaging preferences), you can pass facts (current values) for various business terms in the message as metadata. The UMS server matches the supplied facts in the message against conditions for business terms specified in the user's messaging filters.

Note:

All facts must be added as metadata in the oracle.sdp.messaging.Message.NAMESPACE_NOTIFICATION_PREFERENCES namespace. Metadata in other namespaces are ignored (for resolving user messaging preferences).

Example 62-11 shows how to specify a user recipient and supply facts for business terms for the user preferences in a message. For a complete list of supported business terms, refer to Chapter 64, "User Messaging Preferences."

Example 62-11 User Preference Based Messaging

Message message = MessagingFactory.createMessage();
// create and add a user recipient
Address userRecipient1 = MessagingFactory.createAddress("USER:sampleuser1");
message.addRecipient(userRecipient1);
// specify business term facts
MessagingFactory.setMetadata(message, oracle.sdp.messaging.Message.NAMESPACE_
NOTIFICATION_PREFERENCES, "Customer Name", "ACME");
//  where "Customer Name" is the Business Term name, and "ACME" is the
Business Term value (i.e, fact).

62.4 Retrieving Message Status

After sending a message, you can use Oracle UMS to retrieve the message status either synchronously or asynchronously.

62.4.1 Synchronous Retrieval of Message Status

To perform a synchronous retrieval of current status, use the following flow from the MessagingClient API:

String messageId = messagingClient.send(message);
List<Status> statuses = messagingClient.getStatus(messageId, null)

or,

List<Status> statuses = messagingClient.getStatus(messageId, addresses) --- where
addresses is a "List<Address>" of one or more of the recipients set in the message.

62.4.2 Asynchronous Receiving of Message Status

To receive statuses asynchronously, a client application must implement the Listener Web service as described in listener.wsdl. There is no constraint on how the listener endpoint must be implemented. For example, one method is to use the javax.xml.ws.Endpoint JAX-WS Service API to publish a web service endpoint. This mechanism is available in Java SE 6 and does not require the consumer to explicitly define a Java EE servlet module.

However, a servlet-based listener implementation is acceptable as well.

When sending a message, the client application can provide a reference to the listener endpoint, consisting of the endpoint URL and a SOAP interface name. As statuses are generated during the processing of the message, the UMS server invokes the listener endpoint' s onStatus method to notify the client application.

62.4.2.1 Creating a Listener Programmatically

Listeners are purely programmatic. You create a listener by implementing the oracle.ucs.messaging.ws.Listener interface. You can implement it as any concrete class - one of your existing classes, a new class, or an anonymous or inner class.

The following code example shows how to implement a status listener:

@PortableWebService(serviceName="ListenerService",
targetNamespace="http://xmlns.oracle.com/ucs/messaging/",
endpointInterface="oracle.ucs.messaging.ws.Listener",
wsdlLocation="META-INF/wsdl/listener.wsdl",
portName="Listener")
public class MyListener implements Listener {
  public MyListener() {
  }

  @Override
  public void onMessage(Message message, byte[] correlator) throws MessagingException {
    System.out.println("I got a message!");
  }  @Override
  public void onStatus(Status status, byte[] correlator) throws MessagingException {
    System.out.println("I got a status!");
  }
}

62.4.2.2 Publish the Callback Service

When the To publish the callback service, you can either declare a servlet in web.xml in a web module within your application, or use the JAX-WS javax.xml.ws.Endpoint class's publish method to programmatically publish a WS endpoint (Example 62-12):

Example 62-12 Publish the Callback Service

Listener myListener = new MyListener();
String callbackURL = "http://host:port/umswscallback";
Endpoint myEndpoint = javax.xml.ws.Endpoint.publish(callbackURL, myListener);

62.4.2.3 Stop a Dynamically Published Endpoint

To stop a dynamically published endpoint, call the stop() method on the Endpoint object returned from Endpoint.publish() (Example 62-13).

Example 62-13 Stop a Dynamically Published Endpoint

// When done, stop the endpoint, ideally in a finally block or other reliable cleanup mechanism
myEndpoint.stop();

62.4.2.4 Registration

Once the listener web service is published, you must register the fact that your client has such an endpoint. There are the following relevant methods in the MessagingClient API:

setStatusListener(ListenerReference listener)
send(Message message, ListenerReference listener, byte[] correlator)

setStatusListener() registers a "default" status listener whose callback is invoked for any incoming status messages. A listener passed to send() is only invoked for status updates related to the corresponding message.

62.5 Receiving a Message

This section describes how an application receives messages. To receive a message you must first register an access point. From the application perspective there are two modes for receiving a message, synchronous and asynchronous.

62.5.1 Registering an Access Point

The client application can create and register an access point, specifying that it wants to receive incoming messages sent to a particular address. When registering an access point, the client application can provide a reference to the listener endpoint, consisting of the endpoint URL and a SOAP interface name. As messages arrive, the UMS server invokes the listener endpoint' s onMessage method to notify the client application.

The client application can then invoke the receive method to fetch the pending messages. When receiving messages without specifying an access point, the application receives messages for any of the access points that it has registered. Otherwise, if an access point is specified, the application receives messages sent to that access point.

AccessPoint represents one or more device addresses to receive incoming messages. An application that wants to receive incoming messages must register one or more access points that represent the recipient addresses of the messages. The server matches the recipient address of an incoming message against the set of registered access points, and routes the incoming message to the application that registered the matching access point.

You can use MessagingFactory.createAccessPoint to create an access point and MessagingClient.registerAccessPoint to register it for receiving messages.

To register an SMS access point for the number 9000:

AccessPoint accessPointSingleAddress =
 MessagingFactory.createAccessPoint(AccessPointType.SINGLE_ADDRESS,
 DeliveryType.SMS, "9000");
messagingClient.registerAccessPoint(accessPointSingleAddress);

To register SMS access points in the number range 9000 to 9999:

AccessPoint accessPointRangeAddress =
 MessagingFactory.createAccessPoint(AccessPointType.NUMBER_RANGE,
 DeliveryType.SMS,"9000,9999");
messagingClient.registerAccessPoint(accessPointRangeAddress);

62.5.2 Synchronous Receiving

Receive is a nonblocking operation. If there are no pending messages for the application or access point, the call returns immediately with an empty list. Receive is not guaranteed to return all available messages, but may return only a subset of available messages for efficiency reasons.

You can use the method MessagingClient.receive to synchronously receive messages. This is a convenient polling method for light-weight clients that do not want the configuration overhead associated with receiving messages asynchronously. This method returns a list of messages that are immediately available in the application inbound queue.

It performs a nonblocking call, so if no message is currently available, the method returns null.

Note:

A single invocation does not guarantee retrieval of all available messages. You must poll to ensure receiving all available messages.

62.5.3 Asynchronous Receiving

To receive messages asynchronously, a client application must implement the Listener web service as described in listener.wsdl. There is no constraint on how the listener endpoint must be implemented. For example, one mechanism is using the javax.xml.ws.Endpoint JAX-WS Service API to publish a Web service endpoint. This mechanism is available in Java SE 6 and does not require the consumer to explicitly define a Java EE servlet module. However, a servlet-based listener implementation is also acceptable.

62.5.3.1 Creating a Listener Programmatically

The following code example shows how to implement a message listener:

@PortableWebService(serviceName="ListenerService",
targetNamespace="http://xmlns.oracle.com/ucs/messaging/",
endpointInterface="oracle.ucs.messaging.ws.Listener",
wsdlLocation="META-INF/wsdl/listener.wsdl",
portName="Listener")
public class MyListener implements Listener {
  public MyListener() {
  }

  @Override
  public void onMessage(Message message, byte[] correlator) throws MessagingException {
    System.out.println("I got a message!");
  }  @Override
  public void onStatus(Status status, byte[] correlator) throws MessagingException {
    System.out.println("I got a status!");
  }
}

You pass a reference to the Listener object to the setMessageListener or registerAccessPoint methods, as described in "Default Message Listener" and "Per Access Point Message Listener". When a message arrives for your application, the UMS infrastructure invokes the Listener's onMessage method.

62.5.3.2 Default Message Listener

The client application typically sets a default message listener (Example 62-14). This listener is invoked for any delivery statuses for messages sent by this client application that do not have an associated listener. When Oracle UMS receives messages addressed to any access points registered by this client application, it invokes the onMessage callback for the client application's default listener.

To remove a default listener, call this method with a null argument.

Example 62-14 Default Message Listener

messagingClient.setMessageListener(new MyListener());

62.5.3.3 Per Access Point Message Listener

The client application can also register an access point and specify a Listener object and an optional correlator object (Example 62-15). When incoming messages arrive at the specified access point address, the specified listener' s onMessage method is invoked. The originally-specified correlator object is also passed to the callback method.

Example 62-15 Per Access Point Message Listener

messagingClient.registerAccessPoint(accessPoint, new MyListener(), null);

62.5.4 Message Filtering

A MessageFilter is used by an application to exercise greater control over what messages are delivered to it. A MessageFilter contains a matching criterion and an action. An application can register a series of message filters; they are applied in order against an incoming (received) message; if the criterion matches the message, the action is taken. For example, an application can use MessageFilters to implement necessary blacklists, by rejecting all messages from a given sender address.

You can use MessagingFactory.createMessageFilter to create a message filter, and MessagingClient.registerMessageFilter to register it. The filter is added to the end of the current filter chain for the application. When a message is received, it is passed through the filter chain in order; if the message matches a filter's criterion, the filter's action is taken immediately. If no filters match the message, the default action is to accept the message and deliver it to the application.For example, to reject a message with the subject "spam":

MessageFilter subjectFilter = MessagingFactory.createMessageFilter("spam",
 FilterFieldType.SUBJECT, null, FilterActionType.REJECT);
messagingClient.registerMessageFilter(subjectFilter);

To reject messages from email address spammer@foo.com:

MessageFilter senderFilter =
 MessagingFactory.createBlacklistFilter("spammer@foo.com");
messagingClient.registerMessageFilter(senderFilter);

62.6 Configuring for a Cluster Environment

The API supports an environment where client applications and the UMS server are deployed in a cluster environment. For a clustered deployment to function as expected, client applications must be configured correctly. The following rules apply:

Two client applications are considered to be instances of the same application if they use the same ApplicationName configuration parameter.
The ApplicationInstanceName configuration parameter enables you to distinguish instances from one another.
Application sessions are instance-specific. You can set the session flag on a message to ensure that any reply is received by the instance that sent the message.
Listener correlators are instance-specific. If two different instances of an application register listeners and supply different correlators, then when instance A' s listener is invoked, correlator A is supplied; when instance B' s listener is invoked, correlator B is supplied.

62.7 Configuring Security

The following sections discuss security considerations:

Section 62.7.1, "Client and Server Security"
Section 62.7.2, "Listener/Callback Security"

62.7.1 Client and Server Security

There are two supported security modes for the UMS Web Service: Security Assertions Markup Language (SAML) tokens and username tokens.

The supported SAML-based policy is "oracle/wss11_saml_token_with_message_protection_client_policy". This policy establishes a trust relationship between the client application and the UMS server based on the exchange of cryptographic keys. The client application is then allowed to assert a user identity that is respected by the UMS server. To use SAML tokens for WS-Security, some keystore configuration is required for both the client and the server. See Example 62-2 for more details about configuring SAML security in a UMS Web service client.

The supported username token policy is "oracle/wss11_username_token_with_message_protection_client_policy". This policy passes an encrypted username/password token in the WS-Security headers, and the server authenticates the supplied credentials. It is highly recommended that the username and password be stored in the Credential Store, in which case only a Credential Store key must be passed to the MessagingClient constructor, ensuring that credentials are not hard-coded or stored in an unsecure manner. See Example 62-1 for more details about configuring SAML security in a UMS Web service client.

62.7.2 Listener/Callback Security

Username token and SAML token security are also supported for the Listener callback web services. When registering a listener, the client application must supply additional parameters specifying the security policy and any key or credential lookup information that the server requires to establish a secure connection.

Example 62-16 illustrates how to establish a secure callback endpoint using username token security:

Example 62-16 Establishing a Secure Callback Endpoint Using Username Token Security

MessagingClient client = new MessagingClient(clientParameters);
...
ListenerReference listenerRef = new ListenerReference();
// A web service implementing the oracle.ucs.messaging.ws.Listener
// interface must be available at the specified URL.
listenerRef.setEndpoint(myCallbackURL);
Parameter policyParam = new Parameter();
policyParam.setName(ClientConstants.POLICY_STRING);
policyParam.setValue("oracle/wss11_username_token_with_message_protection_client_policy");
listenerRef.getParameters.add(policyParam);
// A credential store entry with the specified key must be
// provisioned on the server side so it will be available when the callback
// is invoked.
Parameter csfParam = new Parameter();
csfParam.setName(oracle.wsm.security.util.SecurityConstants.ClientConstants.WSS_CSF_KEY);
csfParam.setValue("callback-csf-key");
listenerRef.getParameters.add(csfParam);
client.setMessageListener(listenerRef);

62.8 Threading Model

Instances of the WS MessagingClient class are not thread-safe due to the underlying services provided by the JAX-WS stack. You are responsible for ensuring that each instance is used by only one thread at a time.

62.9 Sample Chat Application with Web Services APIs

This chapter describes how to create, deploy and run the sample chat application with Web Services APIs provided with Oracle User Messaging Service on OTN.

Note:

Once you have navigated to this page, you can find code samples for Oracle User Messaging Service by entering the search term "UMS" and clicking Search.

Note:

To learn about the architecture and components of Oracle User Messaging Service, see Oracle Fusion Middleware Getting Started with Oracle SOA Suite.

This chapter contains the following sections:

Section 62.9.1, "Overview"
Section 62.9.2, "Running the Pre-Built Sample"
Section 62.9.3, "Testing the Sample"

62.9.1 Overview

This sample demonstrates how to create a web-based chat application to send and receive messages through email, SMS, or IM. The sample uses the Web Service APIs to interact with a User Messaging server. You define an application server connection in Oracle JDeveloper, and deploy and run the application.The application is provided as a pre-built Oracle JDeveloper project that includes a simple Web chat interface.

62.9.1.1 Provided Files

The following files are included in the sample application:

usermessagingsample-ws-src.zip – the archive containing the source code and Oracle JDeveloper project files.
usermessagingsample-ws.ear - the pre-built sample application that can be deployed to the container.

62.9.2 Running the Pre-Built Sample

Perform the following steps to run and deploy the pre-built sample application:

Extract "usermessagingsample-ws-src.zip" and open usermessagingsample-ws.jws in Oracle JDeveloper.

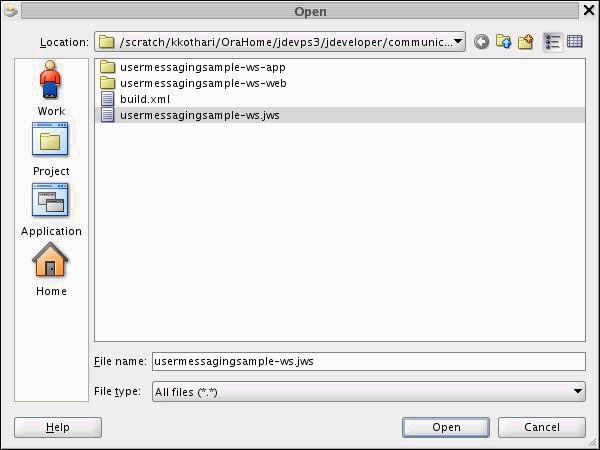

Figure 62-1 Opening the Project in Oracle JDeveloper

Description of "Figure 62-1 Opening the Project in Oracle JDeveloper"

In the Oracle JDeveloper main window the project appears.

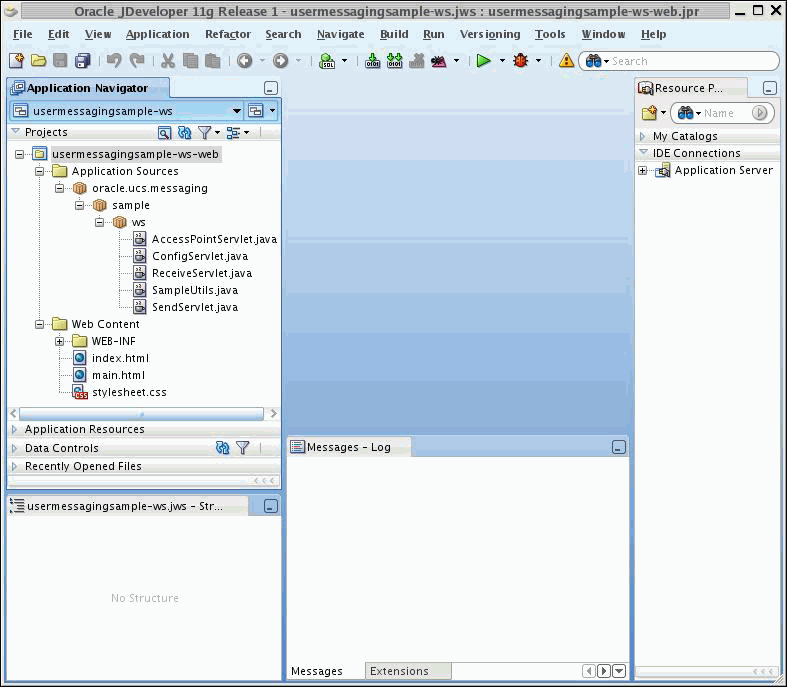

Figure 62-2 Oracle JDeveloper Main Window

Description of "Figure 62-2 Oracle JDeveloper Main Window"

The application contains one Web module. All of the source code for the application is in place.
Satisfy the build dependencies for the sample application by ensuring the "Oracle UMS Client" library is used by the Web module.
1. In the Application Navigator, right-click web module usermessagingsample-ws-war, and select Project Properties.
2. In the left pane, select Libraries and Classpath.

  Figure 62-3 Adding a Library

  Description of "Figure 62-3 Adding a Library"
3. Click OK.
Create an Application Server Connection by right-clicking the project in the navigation pane and selecting New. Follow the instructions in Section 62.10, "Creating a New Application Server Connection".
Deploy the project by selecting the usermessasgingsample-ws project, Deploy, usermessasgingsample-ws, to, and SOA_server (Figure 62-4).

Figure 62-4 Deploying the Project

Description of "Figure 62-4 Deploying the Project"
Verify that the message Build Successful appears in the log.
Verify that the message Deployment Finished appears in the deployment log.

You have successfully deployed the application.

62.9.3 Testing the Sample

Perform the following steps to run and test the sample:

Open a web browser.
Navigate to the URL of the application as follows, and log in:

http://host:port/usermessagingsample-ws/

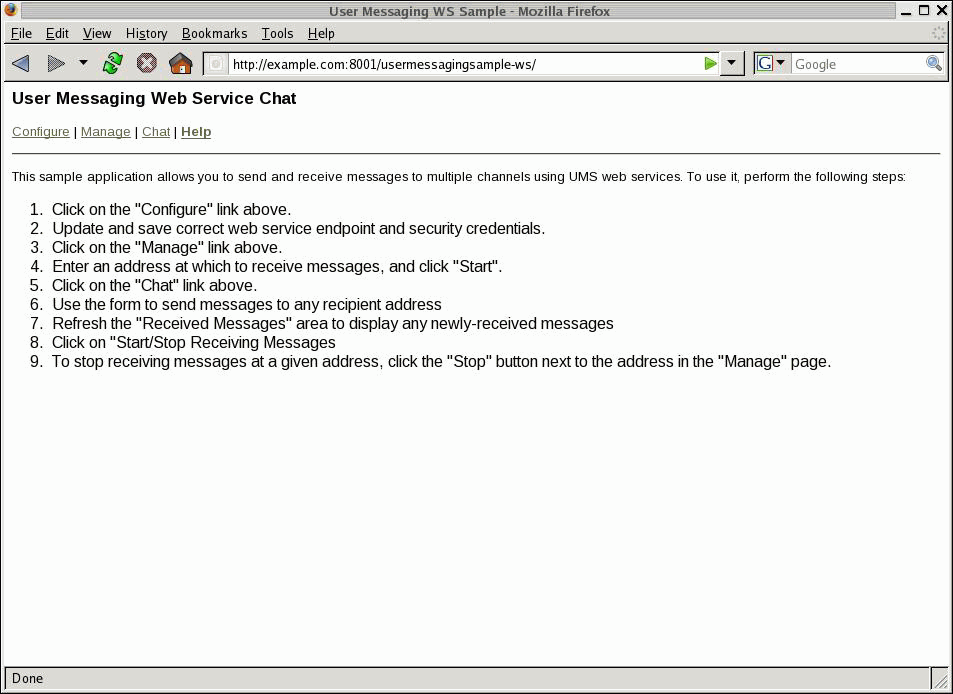

The Messaging Web Services Sample web page appears (Figure 62-5). This page contains navigation tabs and instructions for the application.

Figure 62-5 Messaging Web Services Sample Web Page

Description of "Figure 62-5 Messaging Web Services Sample Web Page"

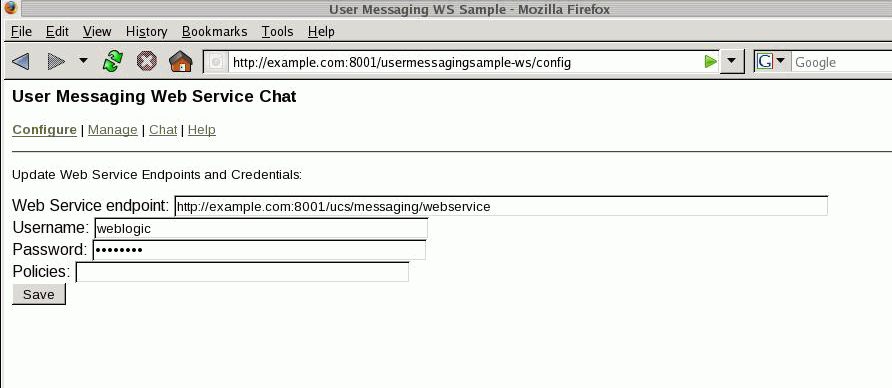

Click Configure and enter the following values (Figure 62-6):
- Specify the Web Service endpoint. For example, http://example.com:8001/ucs/messaging/webservice
- Specify the Username and Password.
- Specify a Policy (required if the User Messaging Service instance has WS security enabled).
- Figure 62-6 Configuring the Web Service Endpoints and Credentials

  Description of "Figure 62-6 Configuring the Web Service Endpoints and Credentials"
Click Save.
Click Manage.
Enter an address and optional keyword at which to receive messages (Figure 62-7).

Figure 62-7 Registering an Access Point

Description of "Figure 62-7 Registering an Access Point"
Click Start.

Verify that the message Registration operation succeeded appears.

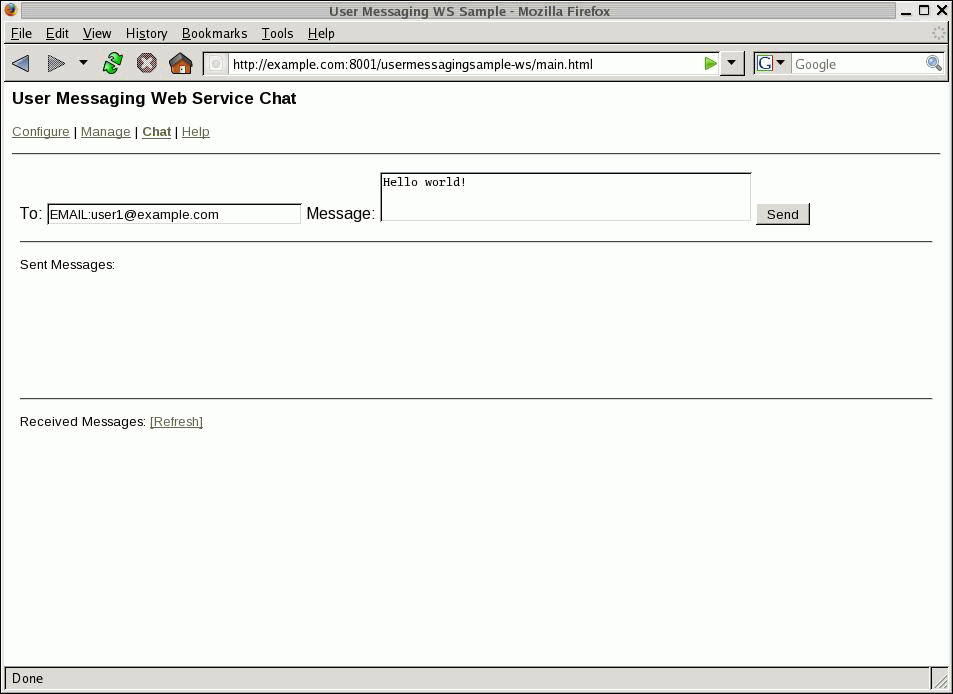

Click Chat (Figure 62-8).
Enter recipients in the To: field in the format illustrated in Figure 62-8.
Enter a message.
Click Send.
Verify that the message is received.
Figure 62-8 Running the Sample

Description of "Figure 62-8 Running the Sample"

62.10 Creating a New Application Server Connection

Perform the following steps to create an Application Server Connection.

Create a new Application Server Connection by right-clicking the project and selecting New, Connections, and Application Server Connection (Figure 62-9).

Figure 62-9 New Application Server Connection

Description of "Figure 62-9 New Application Server Connection"
Name the connection SOA_server and click Next (Figure 62-10).
Select WebLogic 10.3 as the Connection Type.

Figure 62-10 New Application Server Connection

Description of "Figure 62-10 New Application Server Connection"
Enter the authentication information. A typical value for user name is weblogic.
In the Connection dialog, enter the hostname, port, and SSL port for the SOA admin server, and enter the name of the domain for WLS Domain.
Click Next.
In the Test dialog, click Test Connection.
Verify that the message Success! appears.

The Application Server Connection has been created.
