F Auxiliary Procedures for Changing Infrastructure Services

F.1.1 What is an LDAP-based Replica?

Oracle Internet Directory replication is the process of copying and maintaining the same data (or naming context) on multiple directory servers. Simply put, replication is a means of having two identical directories that contain the same information. One directory is called the master (or supplier). This directory contains the master copy of the naming context. The other directory is called the replica (or consumer). The master supplies replication updates to the replica, which keeps the master and replica in sync.

There are different types of replicas. This procedure uses an LDAP-based Replica, which means the protocol for transferring data between the master and the replica is LDAP.

For the purposes of this procedure, the master and replica directories are part of a larger environment that includes the Identity Management installations that contain the directories, and the Metadata Repositories that support them. This is called the LDAP-based Replica Environment, and it contains the following:

Master—The Identity Management installation containing the Oracle Internet Directory that holds the master copy of the naming context. It supplies replication updates to the Replica.

Master Repository—The Metadata Repository that the Master uses to store its Identity Management schemas.

Replica—The Identity Management installation containing the replicated Oracle Internet Directory.

Replica Repository—The Metadata Repository that the Replica uses to store its Identity Management schemas.

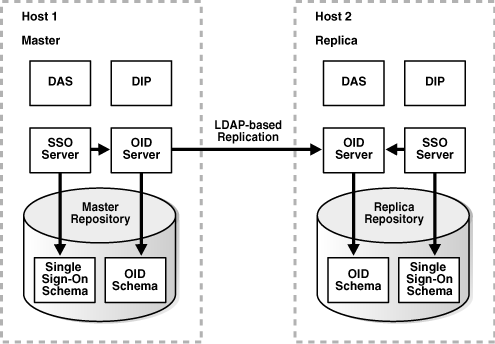

Figure F-1 illustrates the LDAP-based Replica environment.

Figure F-1 LDAP-based Replica Environment

Description of the illustration asadm008.gif

F.1.2 How is the LDAP-based Replica Used for Changing Infrastructure Services?

Typically, an LDAP-based Replica is used to provide high availability and improved performance for directory users. For the purposes of changing Infrastructure services, the LDAP-based Replica is used as follows:

• For Section 8.4, "Moving Identity Management to a New Host", the LDAP-based Replica is created as a way of moving Identity Management from one host to another. The Master is the original Identity Management installation, and the Replica is the new Identity Management installation. In this case, replication is used to create an identical copy of the original Identity Management on a new host. You can then change your middle tiers from the old Identity Management (Master) to the new Identity Management (Replica) and discard the Master.

• For Section 8.5, "Changing from a Test to a Production Environment", the Replica is used to create a Test to Production environment. The Master is the Production Identity Management, and the Replica is the Test Identity Management. When you are ready to merge your Test Environment into your Production Environment, you can migrate data from your Test Identity Management (Replica) to your Production Identity Management (Master) and change your middle-tiers from the Test Identity Management to the Production Identity Management. You can then discard the Test Identity Management or continue to use it for testing.

F.2.1 Things to Know Before You Start

You should be aware of these important items before you start the procedure:

• This procedure uses a single Infrastructure Oracle home that contains Identity Management and the Metadata Repository. However, it is fine to split the Infrastructure installation so Identity Management is in one Oracle home and the Metadata Repository is in another Oracle home. You can also distribute the Identity Management components (SSO, OID, DAS, DIP) across different hosts. If you do this, perform the operations on each component in their respective Oracle homes.

• The Replica always uses port 389 for the non-SSL OID port, and 636 for the SSL OID port, regardless of what is reported by Oracle Universal Installer, or printed in ORACLE_HOME/install/portlist.ini. Make sure no other processes are using ports 389 and 636 on the Replica host before you start the procedure.

• On Windows, you must install the MKS Toolkit before performing this procedure.

• The commands in this procedure are in UNIX format. Invert the slashes for Windows format.

• Make sure you use the ldapsearch and ldapmodify commands that are in ORACLE_HOME/bin. (Some operating systems ship their own version of these commands—do not use those.)

• These procedures use the remtool and oidpasswd commands. The messages returned by these commands are in UTF-8 encoding and are unreadable in most non-English environments. To workaround this, set the NLS_LANG environment variable to american_america.character_set before running these commands. Most character sets (for example, US7ASCII) will work.




  See Also: Oracle Application Server 10g Globalization Guide




• The procedure contains many Oracle Internet Directory operations and requires a familiarity with Oracle Internet Directory administration and replication.

• The procedure contains many steps. It is important to follow each step precisely and not skip any steps.

• The procedure includes Validation Steps. You should perform these checks to verify that you are proceeding successfully.

• Make sure the ORACLE_HOME and ORACLE_SID environment variables are set. This applies to all platforms.

• The procedure requires you to provide many parameters. Rather than describe these parameters multiple times throughout the procedure, they are listed in Table F-1, in the order in which they are first used. As you work through the procedure, each time you encounter a new parameter, you can refer to the table to learn how to obtain its value. Make a note of each value as you obtain it, and refer back to your notes as you continue through the procedure.

ASDB.MYCO.COM =
  (DESCRIPTION = ....

F.2.2 Procedure

This section contains the procedure for setting up an LDAP-based Replica. It contains the following tasks:

• Task 1: Obtain the Master and Master Repository

• Task 2: Install Middle-Tier Instances (Optional)

• Task 3: Install and Configure the Replica

• Task 4: Configure and Start Replication

• Task 5: Register the Replica OID with the Application Server Control Console

• Task 6: Enable SSO, DAS, and DIP on the Replica

Task 1: Obtain the Master and Master Repository

Most likely, you already have your Master and Master Repository.

• If you are following the procedure in Section 8.4, "Moving Identity Management to a New Host", the Master and Master Repository are the installations you would like to move to a new host, and the LDAP-base Replica will be the relocated installations.

• If you are following the procedure in Section 8.5, "Changing from a Test to a Production Environment", the Master and Master Repository are your Production environment, and the Replica will be your Test environment.

If you are starting from scratch, you can install a Master and Master Repository as follows:

1. Install Oracle Application Server using Oracle Universal Installer.

2. Choose the Infrastructure Installation.

3. Choose to install Identity Management and OracleAS Metadata Repository.

4. Choose to configure the following components: Oracle Internet Directory, OracleAS Single Sign-On, Delegated Administration Services, and Directory Integration and Provisioning

Task 2: Install Middle-Tier Instances (Optional)

Most likely, you already have middle-tier instances using the Master for Identity Management services. This is fine, and, if desired, you can install and configure additional instances to use the Master now, or at the end of this procedure after you have configured the Replica, or both.

These middle-tier instances can use the Master Repository for their product metadata, or they can use a different repository.

Task 3: Install and Configure the Replica

In this task, you install and configure the Replica and Replica Repository. The general procedure is to install an Infrastructure and choose Identity Management and Metadata Repository. However, you deselect all Identity Management components (OID, SSO, DAS, and DIP). After installation, you perform manual steps to configure and start up OID, SSO, DAS, and DIP.

1. Install the Replica.

   Be sure to install the Replica on a different host than the Master.

   1. Install Oracle Application Server using Oracle Universal Installer.

   2. Choose the Infrastructure Installation.

   3. Choose to install Identity Management and OracleAS Metadata Repository.

   4. Deselect all of the components that you can, so only OracleAS Metadata Repository, Oracle HTTP Server, and OracleAS Containers for J2EE are selected.

   5. When asked if you would like to register the Metadata Repository with Oracle Internet Directory, check Yes and supply the connection information for the Master Oracle Internet Directory.

2. Start OID on the Replica.

   1. Create a wallet for the ODS password:

      REPLICA_HOME/bin/oidpasswd connect=replica_db_name create_wallet=TRUE current_password=replica_ods_passwd



   2. Make sure OPMN is running:

      REPLICA_HOME/opmn/bin/opmnctl ping



      If OPMN is not running, start it:

      REPLICA_HOME/opmn/bin/opmnctl start



   3. Enable OID by editing the following file:

      REPLICA_HOME/opmn/conf/opmn.xml



      Modify the ias-component entry for OID so the status is enabled, as follows:

      <ias-component id="OID" status="enabled">



      Save and close the file.

   4. Run the following command:

      REPLICA_HOME/dcm/bin/dcmctl updateConfig



   5. Reload opmn.xml:

      REPLICA_HOME/opmn/bin/opmnctl reload



   6. Start OID:

      REPLICA_HOME/opmn/bin/opmnctl startproc ias-component=OID



3. Validation Step: Make sure the Replica OID is started:

   REPLICA_HOME/bin/ldapbind -D cn=orcladmin -w replica_orcladmin_passwd -p replica_oid_port



   If the command fails, check the following files for information on why the server did not start:

   REPLICA_HOME/ldap/log/oidmon.log
   REPLICA_HOME/ldap/log/oidldap01*.log



   You can check the files manually, or use Log Viewer (refer to Section 4.2, "Listing and Viewing Log Files With Enterprise Manager")




   See Also: Oracle Internet Directory Administrator's Guide, appendix on Syntax for LDIF and Command Line Tools, for more information




4. Enable SSL for OID.

   1. On the Replica host, create a file named mod.ldif that contains the following lines:

      dn:cn=configset0,cn=osdldapd,cn=subconfigsubentry
      changetype:modify
      replace:orclsslenable
      orclsslenable:2



   2. Run the following command:

      REPLICA_HOME/bin/ldapmodify -D cn=orcladmin -w replica_orcladmin_passwd -p replica_oid_port -v -f mod.ldif



   3. Restart OID:

      REPLICA_HOME/opmn/bin/opmnctl restartproc ias-component=OID



5. Validation Step: Make sure the SSL port is enabled on the Replica OID:

   REPLICA_HOME/bin/ldapbind -D cn=orcladmin -w replica_orcladmin_passwd -U 1 -p replica_ssl_oid_port



   If the command fails, perform Step 4, "Enable SSL for OID" again.

Task 4: Configure and Start Replication

In this task, you register the Replica with the Master.

1. Set environment variables.

   1. Make sure the ORACLE_HOME environment variable is set.

   2. Set the library path.

      • On HPUX systems, make sure the SHLIB_PATH environment variable includes $ORACLE_HOME/lib32

      • On all other UNIX systems, make sure the LD_LIBRARY_PATH environment variable includes $ORACLE_HOME/lib

2. Run the following command to configure replication:

   (UNIX) REPLICA_HOME/ldap/bin/remtool -paddnode
   (Windows) REPLICA_HOME\bin\remtool -paddnode



   The tool prompts for information, as shown Table F-2.

   Table F-2 Prompts for the remtool Command

   At this prompt...	Enter...
   Enter supplier directory details: Enter hostname of host running OID server	Master hostname (master_host)
   Enter port on which OID server is listening	Master non-SSL OID port number (master_oid_port)
   Enter replication dn password	Master Repository ODS schema password (master_ods_passwd)
   Enter consumer directory details: Enter hostname of host running OID server	Replica hostname (replica_host)
   Enter port on which OID server is listening	Replica non-SSL OID port number (replica_oid_port)
   Enter replication dn password	Replica Repository ODS schema password (replica_ods_passwd)
   Enter naming context (e-end, q-quit)	* (Enter the asterisk character.)
   Enter naming context (e-end, q-quit)	e
   Following naming contexts will be included for replication: 1. * Do you want to continue? [y/n]	y




3. Validation Step: Check if replication is configured:

   REPLICA_HOME/bin/ldapsearch -D cn=orcladmin -w replica_orcladmin_passwd -h replica_host -p replica_oid_port -b "cn=replication configuration" -s sub "objectclass=orclreplnamectxconfig" dn orclincludednamingcontexts



   This command should return two entries of the following types:

   orclincludednamingcontexts=cn=oraclecontext
   orclincludednamingcontexts=*



   If it only returns one entry, and it is of the first listed type, there was a problem configuring replication. To recover, delete the Replica and repeat step 2, "Run the following command to configure replication".

   To delete the Replica:

   (UNIX) REPLICA_HOME/ldap/bin/remtool -pdelnode
   (Windows) REPLICA_HOME\bin\remtool -pdelnode





   See Also: Oracle Internet Directory Administrator's Guide, appendix on Syntax for LDIF and Command Line Tools, for more information on remtool




4. Change the server on the Replica to read-write mode.

   1. On the Replica host, create a file named mod.ldif that contains the following lines:

      dn:
      changetype:modify
      replace:orclservermode
      orclservermode:rw



   2. Run the following command:

      REPLICA_HOME/bin/ldapmodify -D cn=orcladmin -w replica_orcladmin_passwd -p replica_oid_port -v -f mod.ldif



5. Obtain the Master replica ID by running the following command:

   MASTER_HOME/bin/ldapsearch -h master_host -p master_oid_port -D cn=orcladmin -w master_orcladmin_passwd -b "" -s base "objectclass=*" orclreplicaid



   The replica ID will look something like "myhost_asdb".

6. Obtain the Master agreement identifier by running the following command:

   MASTER_HOME/bin/ldapsearch -h master_host -p master_oid_port -D cn=orcladmin -w master_orcladmin_passwd -b "orclreplicaid=master_replicaid,cn=replication configuration" -s sub "objectclass=orclreplagreemententry" dn



   Where master_replicaid is the Master replica ID you obtained in the previous step.

   The agreement identifier will look something like "000002".

7. Perform this step on the Master.

   1. Create a file named mod.ldif that contains the following lines:

      dn:cn=includednamingcontext000001,cn=replication namecontext,
      orclagreementid=master_agreementid,orclreplicaid=master_replicaid,cn=replication configuration
      changetype:modify
      replace:orclexcludednamingcontexts
      orclexcludednamingcontexts:orclapplicationcommonname=orasso_ssoserver,cn=sso,cn=products,cn=oraclecontext



      Where master_agreementid is the Master agreement identifier and master_replicaid is the Master replica ID you obtained in the previous steps.

      Note that in the above code example, the first 3 lines should be a single line in your file; the next line is a single line; the next line is a single line; and the final two lines should be a single line in your file.

   2. Run the following command:

      MASTER_HOME/bin/ldapmodify -D cn=orcladmin -w master_orcladmin_passwd -p master_oid_port -v -f mod.ldif



8. Obtain the Replica replica ID by running the following command:

   REPLICA_HOME/bin/ldapsearch -h replica_host -p replica_oid_port -D cn=orcladmin -w replica_orcladmin_passwd -b "" -s base "objectclass=*" orclreplicaid



   The replica ID will look something like "myhost_asdb".

9. On the Replica host, modify the replica subentry to configure bootstrap.

   1. Create a file named mod.ldif that contains the following lines:

      dn:orclreplicaid=replica_replicaid,cn=replication configuration
      changetype:modify
      replace:orclreplicastate
      orclreplicastate:0



      replica_replicaid is the Replica replica ID you obtained in the previous step.

   2. Run the following command:

      REPLICA_HOME/bin/ldapmodify -D cn=orcladmin -w replica_orcladmin_passwd -p replica_port -v -f mod.ldif



10. Start the Replica:

    REPLICA_HOME/bin/oidctl connect=replica_db_name server=oidrepld instance=1 flags="-p replica_oid_port" start



    Wait for the Replica to bootstrap before proceeding to the next step. You can monitor the progress of the bootstrap by watching the messages appended to the oidrepld log file with the following command:

    tail -f REPLICA_HOME/ldap/log/oidrepld00.log



    For example:

    Starting scheduler...
    Start to BootStrap from supplier=pdsun-qa5_orcl to consumer=pdsun-qa8_repsid
    gslrbssSyncDIT:Replicating namingcontext=cn=oraclecontext......
    gslrbssSyncDIT:Sync done successfully for cn=oraclecontext, 266 entries matched
    gslrbssSyncDIT:Replicating namingcontext=dc=com ......
    gslrbssSyncDIT:Sync done successfully for dc=com, 197 entries matched
    gslrbssSyncDIT:Replicating namingcontext=cn=oracleschemaversion ......
    gslrbssSyncDIT:Sync done successfully for cn=oracleschemaversion, 10 entries matched



    Note that if you cannot locate the above log file, the Replica may have failed to start. Check the command you used at the beginning of this step to start the Replica and retry if you find any problems.

11. Validation Step: Verify the Replica has bootstrapped successfully.

    The following commands should each return entries:

    REPLICA_HOME/bin/ldapsearch -D cn=orcladmin -w replica_orcladmin_passwd -h replica_host -p replica_oid_port -b "dc=com" -s sub "objectclass=*" dn

    REPLICA_HOME/bin/ldapsearch -D cn=orcladmin -w replica_orcladmin_passwd -h replica_host -p replica_oid_port -b "cn=oraclecontext" -s sub "objectclass=*" dn



    If either of the above commands does not return entries then there was a problem with the bootstrap.

12. Validation Step: Verify the SSO server entry is excluded from replication.

    The following search against the Replica should not return an entry. It should return two entries: "No such object" and a matched entry.

    REPLICA_HOME/bin/ldapsearch -D cn=orcladmin -w replica_orcladmin_passwd -h replica_host -p replica_oid_port -b "orclapplicationcommonname=orasso_ssoserver, cn=sso, cn=products, cn=oraclecontext" -s base "objectclass=*" dn



    The same search, when performed against the Master, should return an entry.

    MASTER_HOME/bin/ldapsearch -D cn=orcladmin -w master_orcladmin_passwd -h master_host -p master_oid_port -b "orclapplicationcommonname=orasso_ssoserver, cn=sso, cn=products, cn=oraclecontext" -s base "objectclass=*" dn



    If there are any problems, repeat steps 7, 8, and 9 in Task 4, then restart the Replica as follows:

    REPLICA_HOME/bin/oidctl connect=replica_db_name server=oidrepld instance=1 flags="-p replica_oid_port" restart


Task 5: Register the Replica OID with the Application Server Control Console

In this task, you enable the Replica OID to show up in the Application Server Control Console.

1. Create the ldaptarget.xml file by making a copy of the template:

   cd REPLICA_HOME/ldap/templates
   cp ldaptarget.xml.template ldaptarget.xml



2. Edit the ldaptarget.xml file and replace the following variables with values for your installation:

   s_instanceName is the instance name of the Replica. You can obtain this name with the following command:

   REPLICA_HOME/dcm/bin/dcmctl whichInstance



   s_hostName is the fully qualified Replica host name—the same value as replica_host.

   ORACLE_HOME is the Replica Oracle home—the same value as REPLICA_HOME.

   s_odsPwd is the password for the Replica ODS schema—the same value as replica_ods_passwd.

   s_tnsAddress is the Net Description string for the Replica repository. You can obtain this from REPLICA_HOME/network/admin/tnsnames.ora. For example:

   (DESCRIPTION=(ADDRESS_LIST=(ADDRESS=(PROTOCOL=TCP)(HOST=myhost.myco.com) (PORT=1521)))(CONNECT_DATA=(SERVICE_NAME=infra.myco.com)))



   Note you should enter the entire string with no new-line characters and no white-space characters.

   For example:

   <Target TYPE="oracle_ldap" NAME="infra.myhost.myco.com_LDAP" DISPLAY_NAME="OID" VERSION="2.5" ON_HOST="myhost.myco.com">
     <Property NAME="OracleHome" VALUE="/home/infra"/>
     <Property NAME="password" VALUE="ods" ENCRYPTED="FALSE"/>
     <Property NAME="LDAPScriptsPath" VALUE="/sysman/admin/scripts"/>
     <Property NAME="host" VALUE="myhost.myco.com"/>
     <Property NAME="UserName" VALUE="ods" ENCRYPTED="FALSE"/>
     <Property NAME="LDAPBindDN" VALUE="cn=emd admin,cn=oracle internet directory" ENCRYPTED="FALSE"/>
     <Property NAME="LDAPBindPwd" VALUE=""/>
     <Property NAME="version" VALUE="9.0.4"/>
     <Property NAME="ConnectDescriptor" VALUE="(DESCRIPTION=(ADDRESS_LIST=(ADDRESS=(PROTOCOL=TCP)(HOST=myhost.myco.com)(PORT=1521)))(CONNECT_DATA=(SERVICE_NAME=asdb.myco.com)))"/>
     <CompositeMembership>
        <MemberOf TYPE="oracle_ias" NAME="infra.myhost.myco.com" ASSOCIATION=" "/>
     </CompositeMembership>
   </Target>



3. Upload the OID target using the following command (note that the following is a single command; type it all on one line):

   REPLICA_HOME/bin/emctl config addtarget REPLICA_HOME/ldap/templates/ldaptarget.xml REPLICA_HOME



4. Verify that OID shows up in the Application Server Control Console:

   1. Make sure the Application Server Control Console is started:

      REPLICA_HOME/bin/emctl startifdown iasconsole



   2. Navigate to the Application Server Control Console:

      http://replica_host:replica_em_port



      The ias_admin password on the Replica is set to the value specified during the Replica installation.

   3. Use the Application Server Control to navigate to the Instance Home Page for the Replica instance.

   4. Verify that Oracle Internet Directory is listed in the System Components section.

5. Remove the ldaptarget.xml file; it contains secure information such as the ODS schema password:

   rm REPLICA_HOME/ldap/templates/ldaptarget.xml


Task 6: Enable SSO, DAS, and DIP on the Replica

In this task, you enable SSO, DAS, and DIP on the Replica.

1. Modify the replication configuration for SSO.

   1. Obtain the Replica Repository dn:

      REPLICA_HOME/bin/ldapsearch -h replica_host -p replica_oid_port -D cn=orcladmin -w replica_orcladmin_passwd -b "cn=oraclecontext" -s one "objectclass=orcldbserver" dn



      This command will return two DNs in the form of:

      cn=short_gdbname,cn=oraclecontext



      Find the one that corresponds to the Replica Repository.

      Note that if this command returns the error "ldap_search: No such object" you should go back to the previous step and make sure the Replica was started properly.

   2. On the Replica host, create a file named mod.ldif that contains the following lines:

      dn:orclreplicaid=replica_replicaid,cn=replication configuration
      changetype:modify
      replace:seeAlso
      seeAlso:replica_repository_dn



      Where replica_repository_dn is the Replica Repository dn you obtained in the previous step.

   3. Run the following command:

      REPLICA_HOME/bin/ldapmodify -D cn=orcladmin -w replica_orcladmin_passwd -p replica_oid_port -v -f mod.ldif



2. Edit REPLICA_HOME/config/ias.properties to reflect the Replica OID server host and port. Change the following lines:

   OIDhost=replica_host
   OIDport=replica_oid_port
   OIDsslport=replica_ssl_oid_port
   VirtualHostName=replica_host



3. Stop the Replica instance:

   REPLICA_HOME/bin/emctl stop iasconsole
   REPLICA_HOME/opmn/bin/opmnctl stopall



4. Edit REPLICA_HOME/network/admin/ldap.ora to reflect the Replica OID server host and port. Change the following line:

   DIRECTORY_SERVERS = (replica_host:replica_oid_port:replica_ssl_oid_port)



5. Start the Replica instance:

   REPLICA_HOME/opmn/bin/opmnctl startall
   REPLICA_HOME/bin/emctl start iasconsole



6. Configure SSO in the Application Server Control Console.

   1. Make sure the Application Server Control Console is started:

      REPLICA_HOME/bin/emctl startifdown iasconsole



   2. Navigate to the Application Server Control Console:

      http://replica_host:replica_em_port



   3. Use the Application Server Control Console to navigate to the Instance Home Page for the Replica instance.

   4. On the Instance Home Page, in the System Components section, click Configure Component.

   5. On the Select Component screen, select Single Sign-On Server in the dropdown menu. Click Continue.

   6. On the Login screen:

      • In the User Name field, enter cn=orcladmin.

      • In the Password field, enter the Replica cn=orcladmin password ("welcome").

   7. Click Finish.

   8. When the confirmation message appears, click OK.

7. Validation Step: If the confirmation message does not appear, or there is an error displayed, there are a few possible reasons. Check the following log files for errors:

   REPLICA_HOME/sysman/log/emias.log
   REPLICA_HOME/sso/log/ssoem.log
   REPLICA_HOME/opmn/logs/OC4J~OC4J_SECURITY~default_island~1



   • If the error messages on the screen or in the log files indicate an LDAP or OID error, check that the Replica OID server is running and that you supplied a valid password for cn=orcladmin. Also check that you updated ias.properties correctly in step 2 and that you configured the OID replica correctly. Then repeat step 6.

   • If the error messages in the log files indicate a database error, check that the Replica Repository is running and that you updated the ldap.ora file correctly in step 4. Then repeat step 6.

8. Perform this step only if your Replica is on an HPUX system.

   1. Edit the following file:

      REPLICA_HOME/opmn/conf/opmn.xml



   2. Locate the entry for OC4J_SECURITY.

   3. In the environment element, replace LD_LIBRARY_PATH with SHLIB_PATH. For example, change:

      <process-type id="OC4J_SECURITY" module-id="OC4J">
        <environment>
          <variable id="LD_LIBRARY_PATH" value="/private/oracleas/lib"/>



      To:

      <process-type id="OC4J_SECURITY" module-id="OC4J">
        <environment>
          <variable id="SHLIB_PATH" value="/private/oracleas/lib32"/>



   4. Save and close the file.

   5. Run the following command:

      REPLICA_HOME/dcm/bin/dcmctl updateConfig



   6. Reload OPMN:

      REPLICA_HOME/opmn/bin/opmnctl reload



9. Register mod_osso.

   1. Set environment variables.

      • On HPUX systems, make sure the SHLIB_PATH environment variable includes $ORACLE_HOME/lib32

      • On all other UNIX systems, make sure the LD_LIBRARY_PATH environment variable includes $ORACLE_HOME/lib

   2. Run the following command:

      REPLICA_HOME/jdk/bin/java -jar REPLICA_HOME/sso/lib/ossoreg.jar
      -oracle_home_path REPLICA_HOME
      -site_name replica_host
      -config_mod_osso TRUE
      -mod_osso_url http://replica_host:replica_http_port
      -u user



      Note that user is the user that starts Oracle HTTP Server. On UNIX, if the Oracle HTTP Server port number is < 1024, this user is root. Otherwise, it is usually the user that installed Oracle Application Server.

10. Configure DAS in the Application Server Control Console.

    1. Navigate to the Application Server Control Console:

       http://replica_host:replica_em_port



    2. Use the Application Server Control Console to navigate to the Instance Home Page for the Replica instance.

    3. On the Instance Home Page, in the System Components section, click Configure Component.

    4. On the Select Component screen, select Delegated Administration Service in the dropdown menu. Click Continue.

    5. On the Login screen:

       • In the User Name field, enter cn=orcladmin.

       • In the Password field, enter the Replica cn=orcladmin password ("welcome").

    6. Click Finish.

    7. When the confirmation message appears, click OK.

11. Update the DAS URL entry.

    1. On the Replica host, create a file named mod.ldif with the following lines:

       dn:cn=OperationURLs,cn=DAS,cn=Products,cn=OracleContext
       changetype:modify
       replace:orcldasurlbase
       orcldasurlbase:http://replica_host:replica_http_port/



       Note the slash at the end of the URL.

    2. Run the following command:

       REPLICA_HOME/bin/ldapmodify -D cn=orcladmin -w replica_orcladmin_passwd -p replica_oid_port -v -f mod.ldif



12. Restart the Replica instance:

    REPLICA_HOME/opmn/bin/opmnctl stopall
    REPLICA_HOME/opmn/bin/opmnctl startall



13. Validation Step: Verify that SSO was configured successfully.

    Navigate to the following URL and click Login:

    http://replica_host:replica_http_port/pls/orasso



    Log in as orcladmin and use the password you specified during the installation of the Master. If the page does not appear or the login fails, check the following log files:

    REPLICA_HOME/Apache/Apache/logs/error_log.most_recent_timestamp
    REPLICA_HOME/sso/log/ssoServer.log





    See Also: Oracle Application Server Single Sign-On Administrator's Guide




14. Validation Step: Verify that DAS was configured successfully.

    Using the Application Server Control Console, navigate to the Instance Home Page where DAS is running. Verify that OC4J_SECURITY is listed in the System Components section. Verify that the Farm value displayed on the page is the Replica Repository.

    Verify DAS is running properly:

    1. Log in to DAS using the following URL:

       http://replica_host:replica_http_port/oiddas



       You can log in as orcladmin. The password is master_orcladmin_passwd.

    2. Click the My Profile tab

    3. Make sure the correct login user information is shown on this page

    4. Click on the Directory tab

    5. Type in a keyword in the "Search for user" field and click the Go button

    6. Make sure the correct list of users is shown on the search result table

    If these steps fail, turn on DAS debugging mode by setting the DEBUG flag to true in the following file:

    REPLICA_HOME/ldap/das/das.properties



    and restart DAS as follows:

    REPLICA_HOME/opmn/bin/opmnctl stopproc process-type=OC4J_SECURITY
    REPLICA_HOME/opmn/bin/opmnctl startproc process-type=OC4J_SECURITY



    Repeat the steps for verifying DAS is running properly to reproduce the problem. Examine the errors in the DAS log file:

    REPLICA_HOME/ldap/log/das.log



15. Migrate the DIP data:

    MASTER_HOME/bin/dipassistant reassociate -src_ldap_host master_host -src_ldap_port master_oid_port -dst_ldap_host replica_host -dst_ldap_port replica_oid_port -src_ldap_passwd master_orcladmin_passwd -dst_ldap_passwd replica_orcladmin_passwd



    This command prints log messages to:

    MASTER_HOME/ldap/odi/log/reassociate.log



16. Configure DIP in the Application Server Control Console.

    1. Navigate to the Application Server Control Console:

       http://replica_host:replica_em_port



    2. Use the Application Server Control Console to navigate to the Instance Home Page for the Replica instance.

    3. On the Instance Home Page, in the System Components section, click Configure Component.

    4. On the Select Component screen, select Directory Integration and Provisioning in the dropdown menu. Click Continue.

    5. On the Login screen:

       • In the User Name field, enter cn=orcladmin.

       • In the Password field, enter the Replica cn=orcladmin password ("welcome").

    6. Click Finish.

    7. When the confirmation message appears, click OK.

17. Start the DIP server on the Replica:

    REPLICA_HOME/bin/oidctl server=odisrv instance=1 flags="port=replica_oid_port" start



18. Restart the Application Server Control Console:

    REPLICA_HOME/bin/emctl stop iasconsole
    REPLICA_HOME/bin/emctl start iasconsole



19. Validation Step: Verify that DIP was configured successfully.

    Navigate to the Directory Integration Page on the Application Server Control Console. The DIP server instance "1" should have a status of "UP", the DIP host should be the Replica host, and the OID node should be the Replica host. If this is not the case, the DIP server was not registered and brought up on the Replica host successfully. To debug this problem, check the DIP server log file:

    REPLICA_HOME/ldap/log/odisrv01.log



    All provisioning profiles should be getting executed successfully. If any of the profiles show a "Database connection error" in the errors field, then the reassociation of the profiles was not successful. To debug this problem, check the application-specific trace file in this directory:

    REPLICA_HOME/ldap/odi/log



    The trace file names are of the form application_name_realm_name_E.trc or application_name_realm_name_E.aud.

You have finished setting up an LDAP-based Replica. You can return the main procedure you are following in either Section 8.4, "Moving Identity Management to a New Host" or Section 8.5, "Changing from a Test to a Production Environment".
