A
Calculation Examples

This appendix contains the following sections:

• Getting More Information

• About the examples in this chapter

• Additional formatting

• Simple Calculation Examples

• Analytic Function Examples

• More about the Analytic Function Template

• Analytic Functions and Sequencing

A.1 Getting More Information

For more information about Analytic Functions, and Oracle functions in general, refer to the following Oracle publications:

• Oracle 8i SQL Reference Release 2 (8.1.6) - Part Number A76989-01

• Oracle 8i Data Warehousing Guide Release 2 (8.1.6) - Part Number A76994-01

A.2 About the examples in this chapter

The examples in the following sections use the Video Stores Tutorial.

A.3 Additional formatting

The examples in this chapter use the following additional formatting:

• Currency is displayed with no decimal places, and is prefixed with a Dollar sign ($).

• Integers are displayed with no decimal places. For example, Ranks.

A.4 Simple Calculation Examples

This section provides the following examples to help you create Calculations.

• A.4.1 Calculate the number of rows returned by a query

• A.4.2 Calculate a 25% increase in sales

• A.4.3 Convert text to upper-case

A.4.1 Calculate the number of rows returned by a query

This example calculates the number of rows returned by a query.

Workbook options	Details
Select Items	Video Analysis Information: Year (Calendar Year), Region, City, Sales SUM
Sort Order	Year, Region, City
Conditions	Department = Video Sale OR Department = Video Rental Year = 2000 AND Region = Central
Calculation Name	Rows returned
Calculation	ROWCOUNT
Notes	ROWCOUNT does not count NULL values. To calculate the number of rows returned by a query, including NULL values, first create a temporary item One record, (Calculation = `1'). Then, create a Calculation Rows returned to count the occurrences of One record, (SUM(Video Sales Analysis.One record))

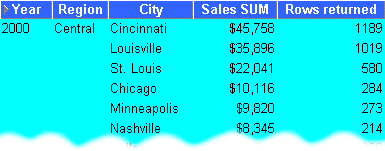

Display Data	Text description of the illustration simple2.gif

A.4.2 Calculate a 25% increase in sales

This example calculates a 25% increase in sales figures.

Workbook options	Details
Select Items	Video Analysis Information: Year (Calendar Year), Region, City, Sales SUM
Sort Order	Year, Region, City
Conditions	Department = Video Sale OR Department = Video Rental Year = 2000 AND Region = Central
Calculation Name	25% Increase
Calculation	Sales SUM * 1.25

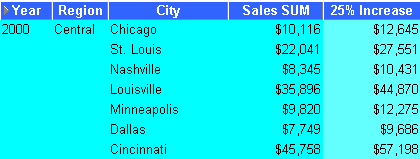

Display Data	Text description of the illustration simple1.gif

A.4.3 Convert text to upper-case

As well as the extensive range of mathematical functions available in Discoverer, you also have access to a wide range of number and text formatting functions. This example uses a Calculation to re-format City text data to upper-case.

Workbook options	Details
Select Items	Video Analysis Information: Year (Calendar Year), Region, City, Sales SUM
Sort Order	Year, Region
Conditions	Department = Video Sale OR Department = Video Rental Year = 2000 AND Region = Central
Calculation Name	City(Upper Case)
Calculation	UPPER(City)

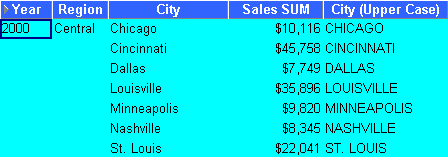

Display Data	Text description of the illustration simple3.gif

A.5 Analytic Function Examples

Oracle Discoverer supports the Analytic Functions that are included in Oracle Server 8.1.6 and above. Discoverer also extends the functionality of standard SQL by allowing you to nest Analytic Functions. You can use these advanced functions to perform sophisticated analysis on your data.

This section contains the following sub-sections:

• A.5.1 Analytic Function Categories

• A.5.2 Calculations and Drilling Into and out of data

• A.5.3 About The Analytic Function Template

• A.5.4 Ranking Function Examples

• A.5.5 Banding Function Examples

• A.5.6 Windowing Function Examples

• A.5.7 Reporting Function Examples

• A.5.8 Lag/Lead Function Examples

• A.5.9 Statistical Function Examples

• A.6 More about the Analytic Function Template

• A.7 Analytic Functions and Sequencing

A.5.1 Analytic Function Categories

Analytic Functions are classified in the following categories:

• Ranking - Address business questions like: `What are the top 10 and bottom 10 salespeople per region?'.

• Banding - Address business questions like `What brands make up 25% of sales?'.

• Windowing - Address business questions like `What is the 13-week moving average of a stock price?' or `What is the cumulative sum of sales per region?'.

• Reporting Aggregates - After a query has been processed, aggregate values like the number of resulting rows, or the sum of a column in a set of rows. Address questions like `What are each product's Sales as a percentage of Sales for its product group?'.

• Lag/Lead - Address business questions like `Which regions growth of sales of 1998 as compared to 1997 was greater than 20%?', and `What is the value of Sales in Financial Year 1996 minus Sales in Financial Year 1996?'.

• Statistics - Perform statistical analysis with Business Intelligence OLAP/spreadsheet applications. For example, covariance and linear regression functions.

A.5.2 Calculations and Drilling Into and out of data

When you use Analytic Functions, note that they have a precise definition which does not change as you drill, pivot, or sort the result set. For example, if you use the RANK function to assign ranks to sales figures partitioned by Quarter, if you drill down the Month level, the rank still only applies to the Quarter level.

A.5.3 About The Analytic Function Template

When creating Analytic Functions in Discoverer, you can either type or paste them directly into the Calculation dialog box, or you can select them from the function list.

If you select them from the function list, you are presented with a generic Analytic Function Template that helps you define the function by telling you what information you may need to provide. Templates should be used as a guide. Because templates are designed to cover most types of usage, you will not always need to use every part of the template.

For example, when you paste a new RANK Analytic Function into a calculation box, Discoverer provides the following template:

OVER (PARTITION BY expr1 ORDER BY expr2)

Although you can define a complex function using both expressions (expr1 and expr2), you can often define a simple function using only the ORDER BY expression; for example:

RANK()OVER(ORDER BY 'Sales')

This example ranks sales figures (defined in the `Sales' item).

NOTE: By default, results data is sorted in ascending order (ASC), nulls first (NULLS FIRST).

For more information about expressions used by the Analytic Function template, refer to "More about the Analytic Function Template".

A.5.4 Ranking Function Examples

A.5.4.1 About Ranking

Ranking functions compute the rank of an item with respect to other items in an ordered list.

A.5.4.2 Assign Ranks to sales figures

This example ranks to a set of sales figures.

Workbook options	Details
Select Items	Video Analysis Information: Year (Calendar Year), Region, City, Sales SUM
Sort Order	Year, Region
Conditions	Department = Video Sale OR Department = Video Rental Year = 2000 AND Region = Central
Calculation Name	Rank
Calculation	RANK() OVER(ORDER BY Sales SUM DESC)
Notes	By default, ranked results data is sorted in ascending order (ASC), nulls first (NULLS FIRST). The additional DESC parameter sorts the results in descending order, which ranks the highest value with the Rank 1.

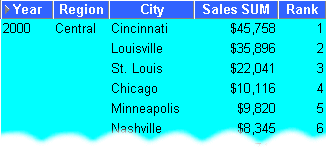

Display Data	Text description of the illustration rank.gif

A.5.4.3 Assign Ranks to sales figures within Region

This example ranks a set of sales figures within each Region for each Year.

Workbook options	Details
Select Items	Video Analysis Information: Year (Calendar Year), Region, City, Sales SUM
Sort Order	Year, Region
Conditions	Department = Video Sale OR Department = Video Rental Year = 2000
Calculation Name	Rank Top
Calculation	RANK() OVER(PARTITION BY Year, Region ORDER BY Sales SUM DESC)

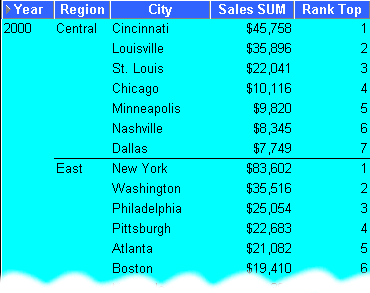

Display Data	Text description of the illustration rsubg.gif

A.5.4.4 Show the top three selling Cities per Region

This example ranks a set of sales figures and displays the top three selling Cities for each Region.

Workbook options	Details
Select Items	Video Analysis Information: Year (Calendar Year), Region, City, Sales SUM
Sort Order	Year, Region
Conditions	Department = Video Sale OR Department = Video Rental Year = 2000 Rank Top <= 3
Calculation Name	Rank Top
Calculation	RANK() OVER(PARTITION BY Year, Region ORDER BY Sales SUM DESC)
Tip	To quickly filter the list to the first, second, or third ranked cities, pivot the Rank Top item to the page axis, (see also Section 4.1.2, "Pivoting Data on a Table").

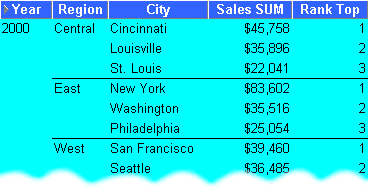

Display Data	Text description of the illustration rank_top.gif

A.5.4.5 Show the top three and bottom three selling Cities per Region

This example ranks a set of sales figures and displays the top three and bottom three performing Cities per Region.

Workbook options	Details
Select Items	Video Analysis Information: Year (Calendar Year), Region, City, Sales SUM
Sort Order	Year, Region
Conditions	Department = Video Sale OR Department = Video Rental Year = 2000 Rank Top <= 3 OR Rank Bottom <= 3
Calculation Name	Rank Top
Calculation	RANK() OVER(PARTITION BY Year, Region ORDER BY Sales SUM DESC)
Additional Calculations Required	Rank Bottom = RANK() OVER(PARTITION BY Year, Region ORDER BY Sales SUM ASC)
Notes	This analysis involves three steps: 1 - Assign ranks to Cities on Sales SUM in descending order, as Rank Top. 2 - Assign ranks to Cities on Sales SUM in ascending order, as Rank Bottom. 3 - Displaying only Rank Top, filter the data using a Condition to return only the top three and bottom three ranked Brands. In the example shown below, in the `Central' Region, the top three cities are ranked 1, 2, and 3; the bottom three cities are ranked 5, 6, and 7. In the `East' Region, the top three cities are ranked 1, 2, and 3; the bottom three cities are ranked 6, 7, and 8, and so on.

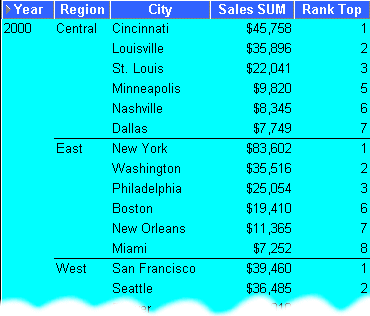

Display Data	Text description of the illustration rtb3.gif

A.5.5 Banding Function Examples

A.5.5.1 About Banding

Banding is a type of ranking that divides a list of values in a partition into a specified number of groups called Bands (also known as buckets) and assigns each value to a Band.

Two common types of banding are:

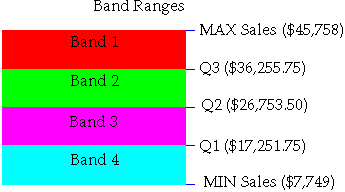

• Banding by value - this divides values into groups according to their value, (also known as equi-width bands).

  Here, the function typically takes the largest value minus the lowest value, and divides the result by the number of bands required. This value defines the range of each Band.

  Values are then assigned to bands according to which range they fall into. Therefore, the number of values in each Band may differ. For example, if we have 100 values and divide them into four equi-width bands, each band may contain different numbers of values.



  Text description of the illustration appendi7.gif

  Use the GREATEST function or the CASE function to produce equi-width bands based on value.

• Banding by rank - this divides values into groups according to their rank, (also known as equi-height bands).

  Here, the function divides the number of values in the partition by the number of bands, which gives the number of values in each band.

  An equal number of values are then placed in each band. For example, if we have 100 values and divide them into four equi-height bands, each band contains 25 values.



  Text description of the illustration append5a.gif

  Use the NTILE function to produce equi-height bands based on rank.

A.5.5.2 Producing equi-width Bands (1)

This example divides Sales figures into bands according to their value, (also known as equi-width bands).

Workbook options	Details
Select Items	Video Analysis Information: Year (Calendar Year), Region, City, Sales SUM
Sort Order	Year, Region
Conditions	Department = Video Sale OR Department = Video Rental Year = 2000, Region = Central
Calculation Name	Sales Bands
Calculation	GREATEST(1,4-FLOOR((Sales SUM-Min Sales for Region)/GREATEST(1,FLOOR((Max Sales for Region-Min Sales for Region+1)/4))))
Additional Calculations Required	Max Sales for Region = MAX(Sales SUM) OVER(PARTITION BY Region,Year) Min Sales for Region = MIN(Sales SUM) OVER(PARTITION BY Region,Year)
Notes	Using the Central Region and Year 2000 as an example, this function takes the largest value (45,758) minus the smallest value (7,749) and divides it by four, ((45,758-7,749)/4), giving four equal Bands of 9,502.25. This gives four bands with the following ranges: Band 1 - 36,255.75 to 45,758 Band 2 - 26,753.5 to 36,255.75 Band 3 - 17,251.25 to 26,753.5 Band 4 - 7,749 to 17,251.25 Each value is placed in one of the four Bands depending on which range the Sales SUM value falls into.

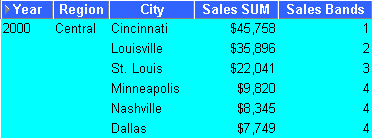

Display Data	Text description of the illustration beqw.gif

A.5.5.3 Producing equi-width Bands (2)

This example creates the same results as the example in "Producing equi-width Bands (1)", except that it uses a CASE statement rather than the GREATEST function.
Again, the example divides Sales figures into bands according to their value, using a CASE function, (see also "Producing equi-width Bands (1)").

Workbook options	Details
Select Items	Video Analysis Information: Year (Calendar Year), Region, City, Sales SUM
Sort Order	Year, Region
Conditions	Department = Video Sale OR Department = Video Rental Year = 2000, Region = Central
Calculation Name	Sales Bands 2
Calculation	CASE WHEN Sales SUM < Q1 THEN 4 WHEN Sales SUM < Q2 THEN 3 WHEN Sales SUM < Q3 THEN 2 WHEN Sales SUM >= Q3 THEN 1 END
Additional Calculations Required	MAX Sales = MAX(Sales SUM) OVER(PARTITION BY Year) MIN Sales = MIN(Sales SUM) OVER(PARTITION BY Year) Range = (MAX Sales - MIN Sales)/4 Q1 = MIN Sales + Range Q2 = MIN Sales + (Range*2) Q3 = MAX Sales - Range
Notes	This function uses a series of IF statements in the form of a CASE function to assign sales figures into bands, (see Band Ranges below). Text description of the illustration append14.gif

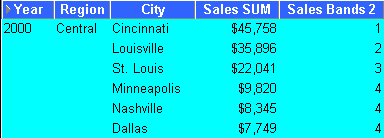

Display Data	Text description of the illustration beqw2.gif

A.5.5.4 Producing equi-height Bands

This example assigns a set of sales figures into two equi-height Bands.

Workbook options	Details
Select Items	Video Analysis Information: Year (Calendar Year), Region, City, Sales SUM
Sort Order	Year, Region
Conditions	Department = Video Sale OR Department = Video Rental Year = 2000, Region = Central
Calculation Name	Sales Bands 3
Calculation	NTILE(2) OVER(PARTITION BY Year, Region ORDER BY Sales SUM DESC)
Notes	Using the Central Region and Year 2000 as an example, this function takes the number of values (which is six) and divides it by two, giving three values per Band. It then takes the list of values ordered by Sales SUM and places values one, two, and three in Band 1, values four, five, and six in Band 2.

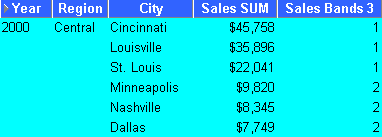

Display Data	Text description of the illustration beqh.gif

A.5.6 Windowing Function Examples

A.5.6.1 About Windowing

Windowing functions are used to compute aggregates using values from other rows. For example, cumulative, moving, and centered aggregates.

Two common types of windowing are:

• Windowing with logical offsets - here, the offset is based on a value relative to an existing value, e.g. three months preceding a date value.

  For example, if we have a list of monthly sales figures, a logical window could compute a moving average of the previous three months, (inclusive of the current month).

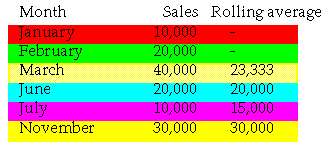

  Text description of the illustration append19.gif

  When calculating the average, the calculation assumes a NULL value for months missing from the list. In the example, the three-month moving average for November assumes NULL values for the missing months September and October.

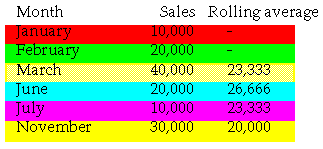

• Windowing with physical offsets - here, the offset is based on a value that is a specified number of rows from an existing value, e.g. three rows from the current item.

  For example, if we have a list of monthly sales figures, a physical window could compute a moving average of the previous three rows ignoring missing months.



  Text description of the illustration append20.gif

  When calculating the average, the calculation ignores months missing from the list. In the example, the three-month moving average for November uses June, July, and November in the calculation.

A.5.6.2 Calculate a three month moving sales average

This example uses a logical window to calculate a moving three month Sales average.

Workbook options	Details
Select Items	Video Analysis Information: Year (Calendar Year), Region, City, Sales SUM
Sort Order	Year, Region
Conditions	Department = Video Sale OR Department = Video Rental Year = 2000, Region = Central
Calculation Name	Sales Bands 3
Calculation	NTILE(2) OVER(PARTITION BY Year, Region ORDER BY Sales SUM DESC)
Notes	Using the Central Region and Year 2000 as an example, this function takes the number of values (which is six) and divides it by two, giving three values per Band. It then takes the list of values ordered by Sales SUM and places values one, two, and three in Band 1, values four, five, and six in Band 2.
Display Data	Text description of the illustration beqh.gif

A.5.6.3 Show the cumulative values of sales

This example uses a physical window to calculate the cumulative value of sales.

Workbook options	Details
Select Items	Video Analysis Information: Year (Calendar Year), Region, City, Sales SUM
Sort Order	Year, Region
Conditions	Department = Video Sale OR Department = Video Rental Year = 2000, Region = Central
Calculation Name	Cumulative Total
Calculation	SUM(Sales SUM) OVER(ORDER BY Sales SUM DESC ROWS UNBOUNDED PRECEDING)

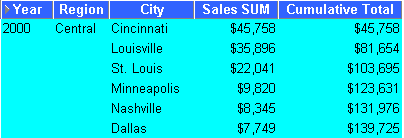

Display Data	Text description of the illustration cump2.gif

A.5.7 Reporting Function Examples

A.5.7.1 About Reporting Functions

Reporting functions are used to compute aggregates.

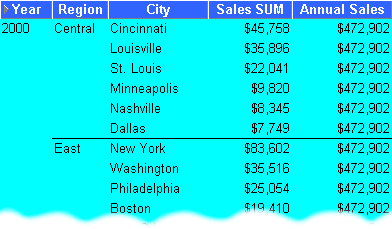

A.5.7.2 Calculate annual sales by Year

This example calculates annual sales by Year.

Workbook options	Details
Select Items	Video Analysis Information: Year (Calendar Year), Region, City, Sales SUM
Sort Order	Year, Region
Conditions	Department = Video Sale OR Department = Video Rental Year = 2000
Calculation Name	Annual Sales
Calculation	SUM(Sales SUM) OVER()
Display Data	Text description of the illustration reportin.gif

A.5.7.3 Calculate annual sales by region

This example calculates the total annual sales by Year and Region.

Workbook options	Details
Select Items	Video Analysis Information: Year (Calendar Year), Region, City, Sales SUM
Sort Order	Year, Region
Conditions	Department = Video Sale OR Department = Video Rental Year = 2000
Calculation Name	Annual Sales by Region
Calculation	SUM(Sales SUM) OVER(PARTITION BY Year, Region ORDER BY Year, Region)

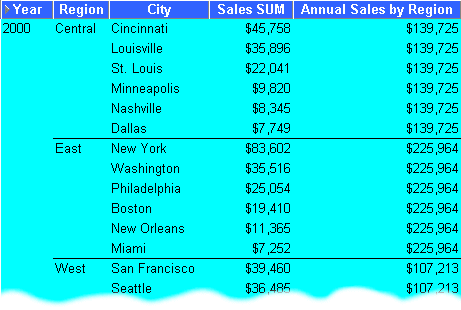

Display Data	Text description of the illustration reportia.gif

A.5.7.4 Calculate percentage of annual sales by Region

This example calculates the percentage of annual sales per Region for each City in each Year.

Workbook options	Details
Select Items	Video Analysis Information: Year (Calendar Year), Region, City, Sales SUM
Sort Order	Year, Region, % of Annual Sales
Conditions	Department = Video Sale OR Department = Video Rental Year = 2000
Calculation Name	% of Annual Sales
Calculation	Sales SUM*100/Annual Sales by Region
Additional Calculations Required	Annual Sales by Region= SUM(Sales SUM) OVER(PARTITION BY Year, Region ORDER BY Year, Region)
Display Data	Text description of the illustration reportib.gif

A.5.7.5 Calculate sales as a percentage of total Sales

This example calculates sales as a percentage of total Sales.

Workbook options	Details
Select Items	Video Analysis Information: Year (Calendar Year), Region, City, Sales SUM
Sort Order	Year, Region, % of total Sales
Conditions	Department = Video Sale OR Department = Video Rental Year = 2000, Region = Central
Calculation Name	% of total Sales
Calculation	RATIO_TO_REPORT(Sales SUM) OVER()*100

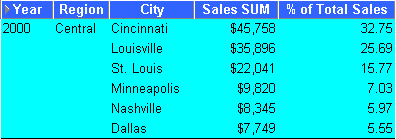

Display Data	Text description of the illustration reportic.gif

A.5.8 Lag/Lead Function Examples

A.5.8.1 About Lag/Lead Functions

LAG and LEAD functions are typically used to compare values in different time periods. For example, compare sales figures in 2000 with sales figures in 2001.

• LAG - provides access to more than one row of a table at the same time without a self-join.

• LEAD - provides access to a row at a given offset after the current position.

A.5.8.2 Compare sales figures across time

This example compares sales figures across time.

Workbook options	Details
Select Items	Video Analysis Information: Year (Calendar Year), Sales SUM
Sort Order	Year
Conditions	Department = Video Sale OR Department = Video Rental Region = Central
Calculation Name	Previous Year
Calculation	LAG(Sales SUM,1) OVER(ORDER BY Year)
Notes	Because there are no comparative figures for 1998, the Previous Year value for 1998 is blank.
Display Data	Text description of the illustration laglead1.gif

A.5.8.3 Calculate sales growth across time

Using the comparative sales figures from example 11.8.2, this example calculates the sales growth across time.

Workbook options	Details
Select Items	Video Analysis Information: Year (Calendar Year), Sales SUM
Sort Order	Year
Conditions	Department = Video Sale OR Department = Video Rental Region = Central
Calculation Name	Growth
Calculation	(Sales SUM-Previous Year)*100/Previous Year
Additional Calculations Required	Previous Year = LAG(Sales SUM,1) OVER(ORDER BY Year)
Notes	Because there are no comparative figures for 1998, the Previous Year value for 1998 is blank.
Display Data	Text description of the illustration laglead2.gif

A.5.8.4 Rank sales growth

Using the comparative sales figures from examples A.2.8.2 and A.2.8.3, this example ranks sales growth by year.

Workbook options	Details
Select Items	Video Analysis Information: Year (Calendar Year), Sales SUM
Sort Order	Year
Conditions	Department = Video Sale OR Department = Video Rental Region = Central
Calculation Name	Rank Growth
Calculation	RANK() OVER(ORDER BY Growth DESC)
Additional Calculations Required	Previous Year = LAG(Sales SUM,1) OVER(PARTITION BY 'Year' ORDER BY 'Year' ) Growth = (Sales SUM-Previous Year)*100/Previous Year
Notes	Because there are no comparative figures for 1998, the Previous Year and Growth values for 1998 are blank and the Rank Growth is calculated as `1'.
Display Data	Text description of the illustration laglead4.gif

A.5.9 Statistical Function Examples

A.5.9.1 About Statistics Functions

Statistics functions are used to compute covariance, correlation, and linear regression statistics. Each function operates on an unordered set. They also can be used as windowing and reporting functions.

A.5.9.2 Calculate linear regression

This example computes an ordinary least-squares regression line that expresses the Profit SUM per Month as a linear function of its Sales SUM. The following functions are used:

• SLOPE - slope of determination of the regression line

• INTERCEPT - intercept of determination of the regression line

• REGR_R2 - coefficient of determination of the regression line

• REGR_COUNT - number of items

• REGR_AVGX - average salary

• REGR_AVGY - average bonus

  Workbook options	Details
  Select Items	Video Analysis Information: Year (Calendar Year), Month (Calendar Month), Sales SUM, Profit SUM
  Sort Order	Year
  Conditions	Department = Video Sale OR Department = Video Rental Year = 2000
  Calculations	Slope = REGR_SLOPE(Profit SUM,Sales SUM) OVER(ORDER BY Profit SUM) Intercept = REGR_INTERCEPT(Profit SUM,Sales SUM) OVER(ORDER BY Profit SUM) Coefficient = REGR_R2(Profit SUM,Sales SUM) OVER(ORDER BY Profit SUM) Count = REGR_COUNT(Profit SUM,Sales SUM) OVER(ORDER BY Profit SUM) Average = REGR_AVGX(Profit SUM,Sales SUM) OVER(ORDER BY Profit SUM) Average 2 = REGR_AVGY(Profit SUM,Sales SUM) OVER(ORDER BY Profit SUM)

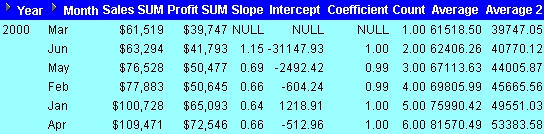

  Display Data	Text description of the illustration stats1.gif

A.6 More about the Analytic Function Template

When you paste a new Analytic Function into a Calculation box, Discoverer provides the following generic template:

OVER (PARTITION BY expr1 ORDER BY expr2)

The expressions are used as follows.

• OVER - indicates that the function operates on a query result set, after the other query clauses have been applied, (such as FROM, WHERE, HAVING etc.

• PARTITION BY - partition (or group) the query results set. E.g. PARTITION BY `Region'.

• ORDER BY - specify how the results set is logically ordered. E.g. ORDER BY `Sales SUM'.

For more information about Oracle expressions, refer to "Getting More Information".

A.7 Analytic Functions and Sequencing

When you use Analytic Functions in Conditions, the way that you combine them with non-Analytic Functions affects the Discoverer data returned by the query. The following sequencing rules apply:

• Where Conditions contain only non-Analytic functions, these are applied before Conditions that contain Analytic functions.

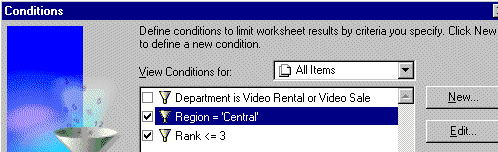

  Text description of the illustration order1.gif

  In the example above, the `Region = `Central' condition is applied first, then the Rank is computed, then the `Rank <= 3' condition is applied, (which contains an Analytic function).

• Where Conditions contain a combination of non-Analytic functions and Analytic functions, the Analytic functions are applied before the non-Analytic functions.

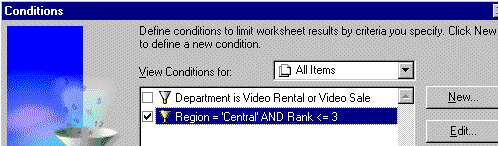

  Text description of the illustration order3.gif

  In the example above, the Rank is evaluated, then the `Rank <= 3' condition is applied, then the `Region = `Central' condition is applied.

To illustrate how sequencing affects the Discoverer data returned by a query, consider the following two scenarios.

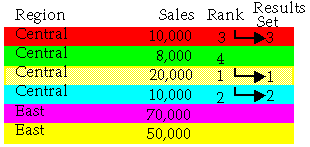

Text description of the illustration append29.gif

In the first scenario above, we apply two simple Conditions: Region = `Central', and Rank <= 3 (where Rank is an Analytic Function). The Region = `Central' condition is applied first, then Rank <= 3. Therefore, only Sales figures for the Central Region that have a ranking of three or less are included in the Results Set.

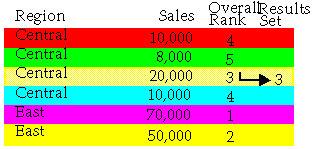

Text description of the illustration append30.gif

In the second scenario above, we apply a single advanced Condition: Region = `Central' AND Rank <= 3, (where Rank is an Analytic Function). The Rank <= 3 condition is applied first, then the Region = `Central' condition. Therefore, only figures in the Central Region that have an overall ranking of three or less are included in the Results Set.
