4 Notifications

4.1.1 Setting Up a Mail Server for Notifications

Before Enterprise Manager can send e-mail notifications, you must first specify the Outgoing Mail (SMTP) servers to be used by the notification system. Once set, you can then define e-mail notifications for yourself or, if you have Super Administrator privileges, you can also define notifications for other Enterprise Manager administrators.

You specify the Outgoing Mail (SMTP) server on the Notification Methods page (Figure 4-1). To display the Notification Methods page, from the Setup menu, select Notifications, then select Notification Methods.

Specify one or more outgoing mail server names, the mail server authentication credentials (User Name, Password, and Confirm Password), if required, the name you want to appear as the sender of the notification messages, and the e-mail address you want to use to send your e-mail notifications. This address, called the Sender's Mail Address, must be a valid address on each mail server that you specify. A message will be sent to this e-mail address if any problem is encountered during the sending of an e-mail notification. Example 4-1 shows sample notification method entries.

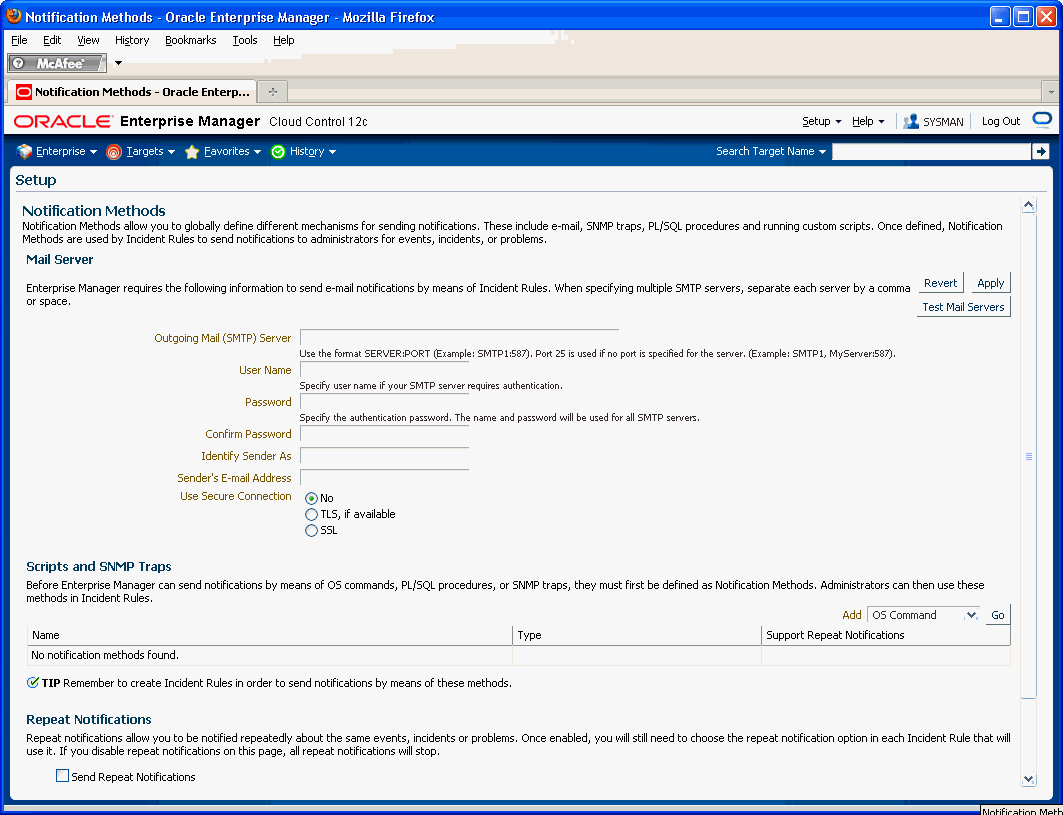

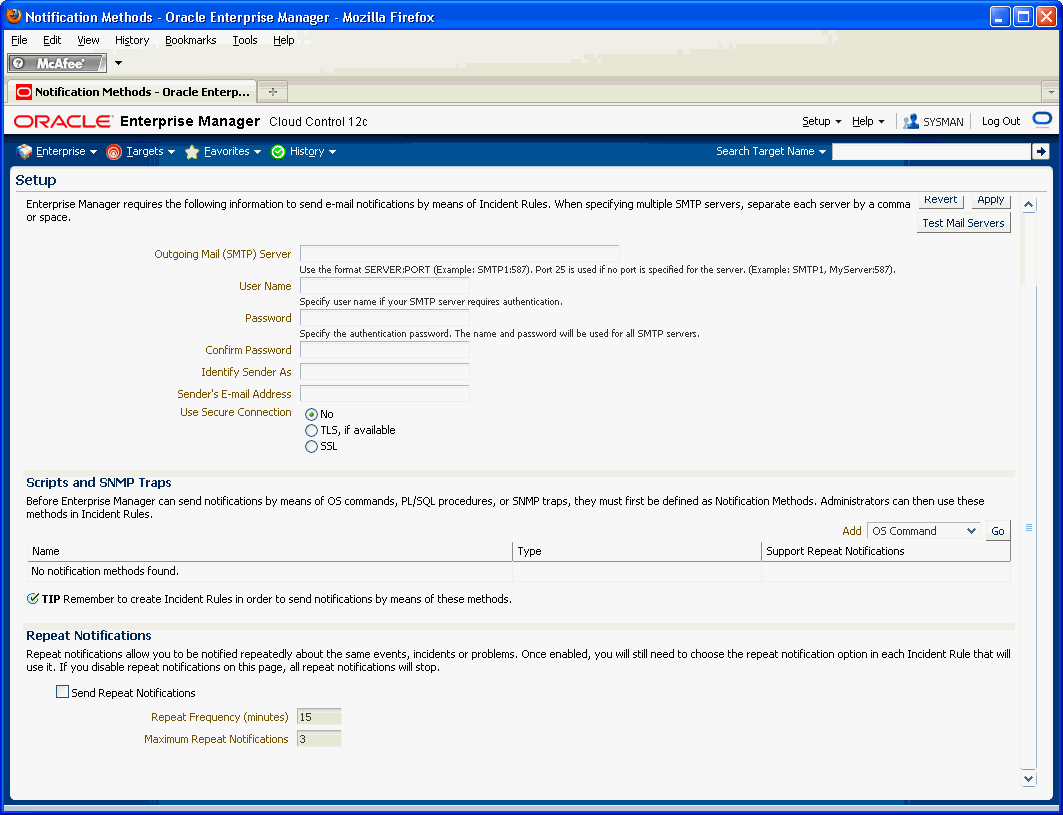

Figure 4-1 Defining a Mail Server

Description of "Figure 4-1 Defining a Mail Server"

After configuring the e-mail server, click Test Mail Servers to verify your e-mail setup. You should verify that an e-mail message was received by the e-mail account specified in the Sender's E-mail Address field.

Defining multiple mail servers will improve the reliability of e-mail notification delivery. E-mail notifications will be delivered if at least one e-mail server is up. The notification load is balanced across multiple e-mail servers by the OMS, which switches through them (servers are allocated according to availability) after 20 e-mails have been sent. Switching is controlled by the oracle.sysman.core.notification.emails_per_connection emoms property.

4.1.1.1 Setting Up Repeat Notifications

Repeat notifications allow administrators to be notified repeatedly until an incident is either acknowledged or the number of Maximum Repeat Notifications has been reached. Enterprise Manager supports repeat notification for all notification methods (e-mail, OS command, PL/SQL procedure, and SNMP trap). To enable this feature for a notification method, select the Send Repeat Notifications option. In addition to setting the maximum number of repeat notifications, you can also set the time interval at which the notifications are sent.

Important:

For Oracle database versions 10 and higher, it is recommend that no modification be made to aq_tm_processes init.ora parameter. If, however, this parameter must be modified, its value should be at least one for repeat notification functionality. If the Enterprise Manager Repository database version is 9.2, the aq_tm_processes init.ora parameter must be set to at least one to enable repeat notification functionality.

Repeat Notifications for Incident Rules

Setting repeat notifications globally at the notification method level may not be provide sufficient flexibility. For example, you may want to have different repeat notification settings based on event type. Enterprise Manager accomplishes this by allowing you to set repeat notifications for individual incident rule sets or individual rules within a rule set. Repeat notifications set at the rule level take precedence over those defined at the notification method level.

Important:

Repeat notifications for rules will only be sent if the Send Repeat Notifications option is enabled in the Notification Methods page.

For PL/SQL, OS command, and SNMP trap notification methods, you must enable each method to support repeat notifications. You can select Supports Repeat Notifications option when adding a new notification method or by editing an existing method.

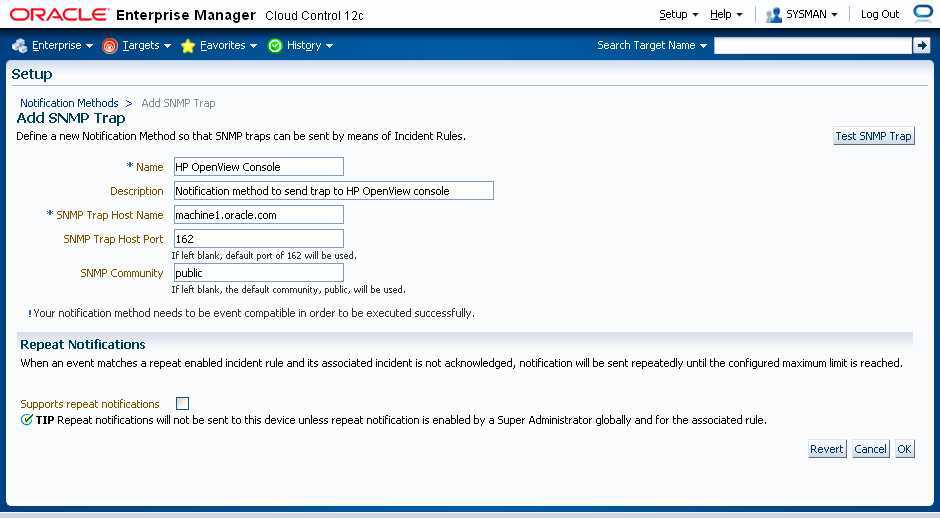

Figure 4-2 Enabling Repeat Notification for an OS Command Notification Method

Description of "Figure 4-2 Enabling Repeat Notification for an OS Command Notification Method"

4.1.2 Setting Up E-mail for Yourself

If you want to receive notifications by e-mail, you will need to specify your e-mail address(s) in the Password & E-mail page (from the Setup menu, select MyPreferences, then select Enterprise Manager Password & E-mail). In addition to defining notification e-mail addresses, you associate the notification message format (long, short, pager) to be used for your e-mail address.

Setting up e-mail involves three steps:

Step 1: Define an e-mail addresses.

Step 2: Set up a Notification Schedule.

Step 3: Subscribe to incident rules in order to receive e-mails.

Target type=Host Target name=machine6140830.example.com Message=Filesystem / has 54.39% available space, fallen below warning (60) or critical (30) threshold. Severity=Warning Event reported time=Apr 28, 2011 2:33:55 PM PDT Event Type=Metric Alert Event name=Filesystems:Filesystem Space Available (%) Metric Group=FilesystemsMetric=Filesystem Space Available (%)Metric value=54.39Key Value=/Key Column 1=Mount PointRule Name=NotifRuleSet1,Event rule1 Rule Owner=SYSMAN

Subject is :

EM:Unreachable Start:myhost

Body is :

Nov 16, 2006 2:02:19 PM EST:Agent is Unreachable (REASON = Connection refused)

but the host is UP

emctl get [-sysman_pwd "sysman password"]-name oracle.sysman.core.notification.short_format_length

emctl set  property -name oracle.sysman.core.notification.short_format_length -value 155

emctl set  property -name oracle.sysman.core.notification.short_format_length -value 155
emctl set property -name oracle.sysman.core.notification.short_format -value both

4.1.3 Setting Up E-mail for Other Administrators

If you have Super Administrator privileges, you can set up e-mail notifications for other Enterprise Manager administrators. To set up e-mail notifications for other Enterprise Manager administrators, you need to:

Step 1: Ensure Each Administrator Account has an Associated E-mail Address

Each administrator to which you want to send e-mail notifications must have a valid e-mail address.

1. From the Setup menu, select Security and then Administrators.

2. For each administrator, define an e-mail address. This sets up a 24x7 notification schedule for this user that uses all the e-mail addresses specified.

Enterprise Manager also allows you to specify an administrator address when editing an administrator's notification schedule.

Step 2: Define Administrators' Notification Schedules

Once you have defined e-mail notification addresses for each administrator, you will need to define their respective notification schedules. Although a default 24x7 notification schedule is created when you specify an e-mail address for the first time, you should review and edit the notification schedule as needed.

1. From the Setup menu, select Notifications, then select Notification Schedule.

   From the vertical navigation bar, click Schedules (under Notification). The Notification Schedule page appears.

2. Specify the administrator who's notification schedule you wish to edit and click Change.

3. Click Edit Schedule Definition. The Edit Schedule Definition: Time Period page appears. If necessary, modify the rotation schedule.

4. Click Continue. The Edit Schedule Definition: E-mail Addresses page appears.

5. Follow the directions on the Edit Schedule Definition: E-mail Addresses page to modify the notification schedule.

6. Click Finish when you are done.

7. Repeat steps three through seven for each administrator.

Step 3: Assign Incident Rules to Administrators

With the notification schedules set, you now need to assign the appropriate incident rules for each designated administrator.

1. From the Setup menu, select Incidents, then select Incident Rules.

2. Select the desired Ruleset and click Edit.

3. Click on the Rules tab, select the desired rule and click Edit.

4. Click Add Actions, select desire action and click Edit.

5. Enter the Administrator name on either E-mail To or E-mail Cc field in the Basic Notification region.

6. Click Continue, click Next, click Next, click Continue, and finally click Save.

4.1.4 E-mail Customization

Enterprise Manager allows Super Administrators to customize global e-mail notifications for the following types: All events, incidents, problems, and specific event types installed. You can alter the default behavior for all events by customizing Default Event Email Template. In addition, you can further customize the behavior for a specific event type by customizing the template for the event type. For instance, you can customize the Metric Alert Events template for the metric alert event type. Using predefined building blocks (called attributes and labels) contained within a simple script, Super Administrators can customize alert e-mails by selecting from a wide variety of information content.

To customize an e-mail:

1. From the Setup menu, select Notifications, then select Customize Email Formats.

2. Choose the Type and Format.

3. Click Customize. The Customize E-mail Template page displays.

From the Customize E-mail Template page, you can modify the content of the e-mail template Enterprise Manager uses to generate e-mail notifications. Extensive information on script formatting, syntax, and options is available from the Edit E-mail Template page via imbedded assistance and online help.

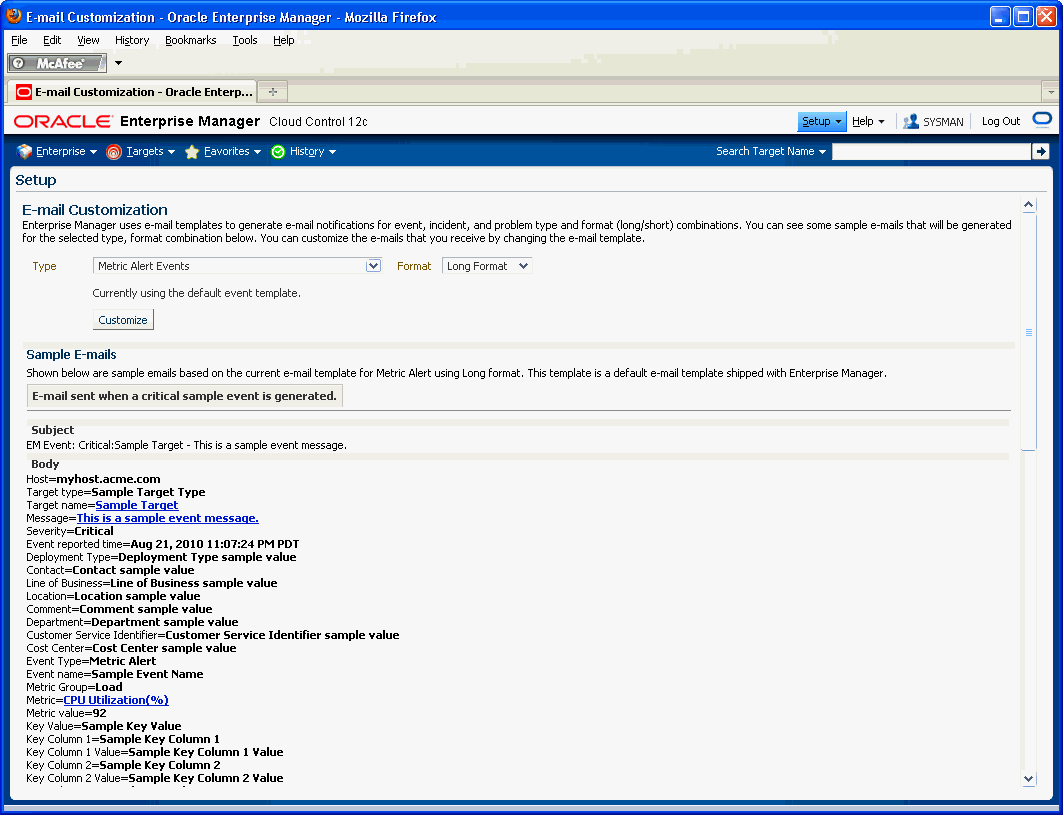

Figure 4-3 E-mail Customization

Description of "Figure 4-3 E-mail Customization"

[IF REPEAT_COUNT EQ “1” AND SEVERITY EQ “CRITICAL” THEN]

[IF EXECUTION_STATUS NEQ NULL]
       [JOB_NAME_LABEL]=[EXECUTION_STATUS]

       [JOB_OWNER_LABEL]=[JOB_OWNER]

[ENDIF]



[IF SEVERITY_CODE EQ CRITICAL ]
       [MTRIC_NAME_LABEL]=[METRIC_GROUP]

       [METRIC_VALUE_LABEL]=[METRIC_VALUE]

       [TARGET_NAME_LABEL]=[TARGET_NAME]

       [KEY_VALUES]

[ENDIF]

[IF SEVERITY_CODE EQ CRITICAL]           statement1[ELSIF SEVERITY_CODE EQ WARNING]           statement2[ELSIF SEVERITY_CODE EQ CLEAR]           statement3[ELSE]           statement4[ENDIF]

-- Code added on 8/3/2009     [IF REPEAT_COUNT NEQ NULL]     . . .

[IF SEVERITY_SHORT EQ W] -- for Warning alert

4.3.1 Environment Variables Related to Event Sources

Number of event sources will be set in EVENT_SOURCE_COUNT environment variable. Using the EVENT_SOURCE_COUNT information, a script can be written to loop through the relevant environment variables to fetch the information about multiple event sources. Environment variables for all event sources are prefixed with EVENT_SOURCE_. Environment variables for source objects are suffixed with SOURCE_<attribute_name> . For example, EVENT_SOURCE_1_SOURCE_TYPE provides the source object type of first event source. Environment variables for a target are suffixed with TARGET_<attribute_name>. For example, EVENT_SOURCE_1_TARGET_NAME provides the target name of first event source.

The following table lists the environment variables for source object of x-th Event Source.

The following table lists the environment variables for target of xth Event Source.

4.3.2 Script Examples

The sample OS script shown in Example 4-6 appends environment variable entries to a log file. In this example, the script logs a severity occurrence to a file server. If the file server is unreachable then an exit code of 100 is returned to force the Oracle Management Service Notification System to retry the notification

#!/bin/ksh

LOG_FILE=/net/myhost/logs/event.log

if test -f $LOG_FILE

then
echo $TARGET_NAME $MESSAGE $EVENT_REPORTE_TIME >> $LOG_FILE

else

   exit 100

fi

Example 4-7 shows an OS script that logs alert information for both incidents and events to the file 'oscmdNotify.log'. The file is saved to the /net/myhost/logs directory.

#!/bin/sh#
  LOG_FILE=/net/myhost/logs/oscmdNotify.log

  echo '-------------' >> $LOG_FILE

  echo 'issue_type=' $ISSUE_TYPE >> $LOG_FILE
  echo 'notif_type=' $NOTIF_TYPE >> $LOG_FILE
  echo 'message=' $MESSAGE >> $LOG_FILE
  echo 'message_url'  = $MESSAGE_URL >>$LOG_FILE
  echo 'severity=' $SEVERITY >> $LOG_FILE
  echo 'severity_code'  = $SEVERITY_CODE >>$LOG_FILE
  echo 'ruleset_name=' $RULESET_NAME >> $LOG_FILE
  echo 'rule_name=' $RULE_NAME >> $LOG_FILE
  echo 'rule_owner=' $RULE_OWNER >> $LOG_FILE
  echo 'repeat_count=' $REPEAT_COUNT >> $LOG_FILE
  echo 'categories_count'  = $CATEGORIES_COUNT >>$LOG_FILE
  echo 'category_1'  = $CATEGORY_1 >>$LOG_FILE
  echo 'category_2'  = $CATEGORY_2 >>$LOG_FILE
  echo 'category_code_1'  = $CATEGORY_CODE_1 >>$LOG_FILE
  echo 'category_code_2'  = $CATEGORY_CODE_2 >>$LOG_FILE
  echo 'category_codes_count'  = $CATEGORY_CODES_COUNT >>$LOG_FILE

# event
if [ $ISSUE_TYPE -eq 1 ]
then
  echo 'host_name=' $HOST_NAME >> $LOG_FILE
  echo 'event_type=' $EVENT_TYPE >> $LOG_FILE
  echo 'event_name=' $EVENT_NAME >> $LOG_FILE
  echo 'event_occurrence_time=' $EVENT_OCCURRENCE_TIME >> $LOG_FILE
  echo 'event_reported_time=' $EVENT_REPORTED_TIME >> $LOG_FILE
  echo 'sequence_id=' $SEQUENCE_ID >> $LOG_FILE
  echo 'event_type_attrs=' $EVENT_TYPE_ATTRS >> $LOG_FILE
  echo 'source_obj_name=' $SOURCE_OBJ_NAME >> $LOG_FILE
  echo 'source_obj_type=' $SOURCE_OBJ_TYPE >> $LOG_FILE
  echo 'source_obj_owner=' $SOURCE_OBJ_OWNER >> $LOG_FILE
  echo 'target_name'  = $TARGET_NAME >>$LOG_FILE
  echo 'target_url'  = $TARGET_URL >>$LOG_FILE
  echo 'target_owner=' $TARGET_OWNER >> $LOG_FILE
  echo 'target_type=' $TARGET_TYPE >> $LOG_FILE
  echo 'target_version=' $TARGET_VERSION >> $LOG_FILE
  echo 'lifecycle_status=' $TARGET_LIFECYCLE_STATUS >> $LOG_FILE
  echo 'assoc_incident_escalation_level'  = $ASSOC_INCIDENT_ESCALATION_LEVEL >>$LOG_FILE
  echo 'assoc_incident_id'  = $ASSOC_INCIDENT_ID >>$LOG_FILE
  echo 'assoc_incident_owner'  = $ASSOC_INCIDENT_OWNER >>$LOG_FILE
  echo 'assoc_incident_acknowledged_by_owner'  = $ASSOC_INCIDENT_ACKNOWLEDGED_BY_OWNER >>$LOG_FILE
  echo 'assoc_incident_acknowledged_details'  = $ASSOC_INCIDENT_ACKNOWLEDGED_DETAILS >>$LOG_FILE
  echo 'assoc_incident_priority'  = $ASSOC_INCIDENT_PRIORITY >>$LOG_FILE
  echo 'assoc_incident_status'  = $ASSOC_INCIDENT_STATUS >>$LOG_FILE
  echo 'ca_job_status'  = $CA_JOB_STATUS >>$LOG_FILE
  echo 'event_context_attrs'  = $EVENT_CONTEXT_ATTRS >>$LOG_FILE
  echo 'last_updated_time'  = $LAST_UPDATED_TIME >>$LOG_FILE
  echo 'sequence_id'  = $SEQUENCE_ID >>$LOG_FILE
  echo 'test_date_attr_noref'  = $TEST_DATE_ATTR_NOREF >>$LOG_FILE
  echo 'test_raw_attr_noref'  = $TEST_RAW_ATTR_NOREF >>$LOG_FILE
  echo 'test_str_attr1'  = $TEST_STR_ATTR1 >>$LOG_FILE
  echo 'test_str_attr2'  = $TEST_STR_ATTR2 >>$LOG_FILE
  echo 'test_str_attr3'  = $TEST_STR_ATTR3 >>$LOG_FILE
  echo 'test_str_attr4'  = $TEST_STR_ATTR4 >>$LOG_FILE
  echo 'test_str_attr5'  = $TEST_STR_ATTR5 >>$LOG_FILE
  echo 'test_str_attr_ref'  = $TEST_STR_ATTR_REF >>$LOG_FILE
  echo 'total_occurrence_count'  = $TOTAL_OCCURRENCE_COUNT >>$LOG_FILE
fi

# incident
if [ $ISSUE_TYPE -eq 2 ]
then
  echo 'action_msg=' $ACTION_MSG >> $LOG_FILE
  echo 'incident_id=' $INCIDENT_ID >> $LOG_FILE
  echo 'incident_creation_time=' $INCIDENT_CREATION_TIME >> $LOG_FILE
  echo 'incident_owner=' $INCIDENT_OWNER >> $LOG_FILE
echo 'incident_acknowledged_by_owner'  = $INCIDENT_ACKNOWLEDGED_BY_OWNER >>$LOG_FILE
  echo 'incident_status'  = $INCIDENT_STATUS >>$LOG_FILE
  echo 'last_modified_by=' $LAST_MODIFIED_BY >> $LOG_FILE
  echo 'last_updated_time=' $LAST_UPDATED_TIME >> $LOG_FILE
  echo 'assoc_event_count=' $ASSOC_EVENT_COUNT >> $LOG_FILE
  echo 'adr_incident_id=' $ADR_INCIDENT_ID >> $LOG_FILE
  echo 'occurrence_count=' $OCCURRENCE_COUNT >> $LOG_FILE
  echo 'escalated=' $ESCALATED >> $LOG_FILE
  echo 'escalated_level=' $ESCALATED_LEVEL >> $LOG_FILE
  echo 'priority=' $PRIORITY >> $LOG_FILE
  echo 'priority_code'  = $PRIORITY_CODE >>$LOG_FILE
  echo 'ticket_id=' $TICKET_ID >> $LOG_FILE
  echo 'ticket_status=' $TICKET_STATUS >> $LOG_FILE
  echo 'ticket_url=' $TICKET_ID_URL >> $LOG_FILE
  echo 'total_duplicate_count=' $TOTAL_DUPLICATE_COUNT >> $LOG_FILE
  echo 'source_count=' $EVENT_SOURCE_COUNT >> $LOG_FILE
  echo 'event_source_1_host_name'  = $EVENT_SOURCE_1_HOST_NAME >>$LOG_FILE
  echo 'event_source_1_target_guid'  = $EVENT_SOURCE_1_TARGET_GUID >>$LOG_FILE
  echo 'event_source_1_target_name'  = $EVENT_SOURCE_1_TARGET_NAME >>$LOG_FILE
  echo 'event_source_1_target_owner'  = $EVENT_SOURCE_1_TARGET_OWNER >>$LOG_FILE
  echo 'event_source_1_target_type'  = $EVENT_SOURCE_1_TARGET_TYPE >>$LOG_FILE
  echo 'event_source_1_target_url'  = $EVENT_SOURCE_1_TARGET_URL >>$LOG_FILE
  echo 'event_source_1_target_lifecycle_status'  = $EVENT_SOURCE_1_TARGET_LIFECYCLE_STATUS >>$LOG_FILE
  echo 'event_source_1_target_version'  = $EVENT_SOURCE_1_TARGET_VERSION >>$LOG_FILE
fi
exit 0

Example 4-8 shows a script that sends an alert to an HP OpenView console from Enterprise Manager Cloud Control. When a metric alert is triggered, the Enterprise Manager Cloud Control displays the alert. The HP OpenView script is then called, invoking opcmsg and forwarding the information to the HP OpenView management server.

/opt/OV/bin/OpC/opcmsg severity="$SEVERITY" app=OEM msg_grp=Oracle msg_text="$MESSAGE" object="$TARGET_NAME"

4.3.3 Migrating pre-12c OS Command Scripts

This section describes how to map pre-12c OS Command notification shell environment variables to 12c OS Command shell environment variables.

Please note that Policy Violations are no longer supported beginning with the 12c release.

Migrating Metric Alert Event Types

Following table is the mapping for the OS Command shell environment variables when the event_type is metric_alert.

To get KEY_VALUE_NAME and KEY_VALUE from NG, perform the following steps.

• If $NUM_KEYS variable is null, then $KEY_VALUE_NAME and $KEY_VALUE are null.

• If $NUM_KEYS equals 1

  KEY_VALUE_NAME=$KEY_COLUMN_1

  KEY_VALUE=$KEY_VALUE_1_VALUE

• If $NUM_KEYS is greater than 1

  KEY_VALUE_NAME="$KEY_COLUMN_1;$KEY_COLUMN_2;..;KEY_COLUMN_x"

  KEY_VALUE="$KEY_COLUMN_1_VALUE;$KEY_COLUMN_2_VALUE;..;KEY_COLUMN_x_VALUE "

  Where x is the value of $NUM_KEYS and ";" is the separator.

Migrating Target Availability Event Types

Following table is the mapping for the OS Command shell environment variables when the event_type is 'target_availability'.

Migrating Job Status Change Event Types

Following table is the mapping for the OS Command shell environment variables when the event_type is 'job_status_change'.

Migrating Corrective Action-Related OS Scripts

Refer to section "Migrating Metric Alert Event Types" for mapping the following environment variables while receiving notifications for corrective actions.

KEY_VALUE

KEY_VALUE_NAME

METRIC

METRIC_VALUE

RULE_NAME

RULE_OWNER

SEVERITY

TIMESTAMP

VIOLATION_CONTEXT

Use the map below for mapping other environment variables.

Notification Type Mapping

4.4.1 Migrating Pre-12c PL/SQL Advanced Notification Methods

Pre-12c notifications map to event notifications in Enterprise Manager 12c. Event types metric_alert, target_availability and job_status_alert correspond to the pre-12c notification functionality. Note that policy violations functionality is removed for this release.This section describes the mapping between Enterprise Manager 12c PL/SQL notification payload to the pre-12c PL/SQL notification payload. You can use this information for updating the existing pre-12c PL/SQL user callback procedures to use the 12c PL/SQL notification payload.Please note that Policy Violations are no longer supported in the 12c release.

Mapping for MGMT_NOTIFY_SEVERITY

When event type is metric_alert

Use the following map when gc$notif_event_payload .event_type='metric_alert'.

The following example shows you how to obtain similar pre-12c KEY_VALUE and KEY_VALUE_NAME from an Enterprise Manager 12c notification payload.First, check its gc$notif_event_attr.value where its name='num_keys' in gc$notif_event_attr_array.If it is null or its value is equal to 0, then KEY_VALUE and KEY_VALUE_NAME are null for this event.If it is not null and value is equal to 1, then it is single key metric.

KEY_VALUE_NAME= value of gc$notif_event_attr where name='key_column_1' in gc$notif_event_attr_array.

KEY_VALUE = value of gc$notif_event_attr where name='key_value' in gc$notif_event_attr_array.

For example: METRIC= Filesystem Space Available (%) num_key=1

KEY_VALUE_NAME= Mount Point

KEY_VALUE= /

If it is not null and value is greater than 1, then it multiple keys metric.

KEY_VALUE_NAME = value of gc$notif_event_attr where name='key_column_1' + ";" +

value of gc$notif_event_attr where name='key_column_2' + ";" +

. …. (up to where name ='key_column_num_key')

KEY_VALUE = value of gc$notif_event_attr where name='key_column_1_value' + ";" +

value of gc$notif_event_attr where name='key_column_2_value' + ";" +

. …. (up to where name='key_column_num_key_value')

The ";" is separator between names or values.

For example: METRIC= Program's Max CPU Utilization (%) which num_key=2

KEY_VALUE_NAME= Program Name;Owner

KEY_VALUE= loadcpu;userId

Severity Code mapping from 12c to pre-12c when the event type is metric_alert

When event type is target_availability

Use the following map when gc$notif_event_payload .event_type='target_availability'.

Mapping for MGMT_NOTIFY_JOB

Use the following map when gc$notif_event_payload .event_type=job_status_change'.

Mapping for MGMT_NOTIFY_CORRECTIVE_ACTION

Note that corrective action related payload is populated when gc$notif_msg_info.notification_type is set to NOTIF_CA.

For mapping the following attributes, use the mapping information provided for MGMT_NOTIFY_SEVERITY object Table 4-40, "Metric Alert Mapping"

MERTIC_NAME

METRIC_COLUMN

METRIC_VALUE

KEY_VALUE

KEY_VALUE_NAME

KEY_VALUE_GUID

CTXT_LIST

RULE_OWNER

RULE_NAME

OCCURRED_DATE

For mapping the job related attributes in MGMT_NOTIFY_CORRECTIVE_ACTION object, use the following map.

4.5.1 SNMP Traps: Moving from Previous Enterprise Manager Releases to 12c

For Enterprise Manager 11g and earlier, there were two types of SNMP traps:

• Alerts

• Job Status

For Enterprise Manager 12c there is now a single, comprehensive SNMP trap type that covers all available event types such as metric alerts, target availability, compliance standard violations, or job status changes. For more information about pre-12c to 12c SNMP trap mappings, see Appendix C, "SNMP Trap Mappings."

It is important to note that when you upgrade from a pre-Enterprise Manager 12c release to 12c, SNMP advanced notification methods defined using previous versions of Enterprise Manager (pre-12c) will continue to function without modification. Traps will conform to the older Enterprise Manager MIB definition. The pre-Enterprise Manager 12c traps will continue to be sent.

For Enterprise Manager 12c, size of SNMP trap has increased in order to accommodate all event types and provide more comprehensive information. By default, the maximum SNMP packet size is 5120 bytes. If the third party system has a limit in the size of SNMP trap it can receive, you can change the default size of SNMP trap that Enterprise Manager sends. To change the default packet size, set this emoms oracle.sysman.core.notification.snmp_packet_length parameter, and then bounce the OMS.

The Enterprise Manager 12c MIB includes all pre-Enterprise Manager 12c MIB definitions. Hence, if you have an Enterprise Manager 12c MIB in your third party system, you can receive SNMP traps from both pre-Enterprise Manager 12c as well as Enterprise Manager 12c sites.

4.6.1 About MIBs

A MIB is a text file, written in ASN.1 notation, which describes the variables containing the information that SNMP can access. The variables described in a MIB, which are also called MIB objects, are the items that can be monitored using SNMP. There is one MIB for each element being monitored. Each monolithic or subagent consults its respective MIB in order to learn the variables it can retrieve and their characteristics. The encapsulation of this information in the MIB is what enables master agents to register new subagents dynamically — everything the master agent needs to know about the subagent is contained in its MIB. The management framework and management applications also consult these MIBs for the same purpose. MIBs can be either standard (also called public) or proprietary (also called private or vendor).

The actual values of the variables are not part of the MIB, but are retrieved through a platform-dependent process called "instrumentation". The concept of the MIB is very important because all SNMP communications refer to one or more MIB objects. What is transmitted to the framework is, essentially, MIB variables and their current values.

4.6.2 MIB Definition

You can find the SNMP MIB file at the following location:

OMS_HOME/network/doc/omstrap.v1

The file omstrap.v1 is the OMS MIB.

For more information, see Appendix A, "Interpreting Variables of the Enterprise Manager MIB."

A hardcopy version of omstrap.v1 can be found in Appendix B, "Enterprise Manager MIB Definition."

The length of the SNMP OID value is limited to 2560 bytes by default. Configure emoms property oracle.sysman.core.notification.snmp.max_oid_length to change the default limit.

For Enterprise Manager 12c, SNMP traps are delivered for event notifications only. SNMP trap notifications are not supported for incidents or problems.

4.6.3 Reading the MIB Variable Descriptions

This section covers the format used to describe MIB variables. Note that the STATUS element of SNMP MIB definition, Version 1, is not included in these MIB variable descriptions. Since Oracle has implemented all MIB variables as CURRENT, this value does not vary.

4.7.1 Passing Corrective Action Execution Status to an OS Command or Script

The notification system passes information to an OS script or executable via system environment variables. Conventions used to access environmental variables vary depending on the operating system:

• UNIX: $ENV_VARIABLE

• MS Windows: %ENV_VARIABLE%

The notification system sets the following environment variables before calling the script. The notification system will set the environment variable $NOTIF_TYPE = NOTIF_CA for Corrective Action Execution. The script can then use any or all of these variables within the logic of the script.

Following table lists the environment variables for corrective action, they are populated when a corrective action is completed for an event.

4.7.2 Passing Corrective Action Execution Status to a PLSQL Procedure

The notification system passes corrective action status change information to PL/SQL procedure - PROCEDURE p(event_msg IN gc$notif_event_msg). The instance gc$notif_corrective_action_job object is defined in event_msg.event_payload. corrective_action if event_msg. msg_info. notification_type is equal to GC$NOTIFICATIONNOTIF_CA. When a corrective action executes, the notification system calls the PL/SQL procedure associated with the incident rule and passes the populated object to the procedure. The procedure is then able to access the fields of the object that has been passed to it. See Table 4-34, "Corrective Action Job-Specific Attributes" for details.

The following status codes are possible values for the job_status field of the MGMT_NOTIFY_CORRECTIVE_ACTION object.

4.8.1 Passing Job Execution Status to a PL/SQL Procedure

The notification system passes job status change information to a PL/SQL procedure via the event_msg.event_payload object where event_type is equal to job_status_change. An instance of this object is created for every status change. When a job changes status, the notification system calls the PL/SQL p(event_msg IN gc$notif_event_msg) procedure associated with the incident rule and passes the populated object to the procedure. The procedure is then able to access the fields of the event_msg.event_payload object that has been passed to it.

Table 4-47 lists all corrective action status change attributes that can be passed:

When a job status change occurs for the job, the notification system creates an instance of the event_msg.event_payload. event_attrs(i).value where event_attrs(i).name=' execution_status' object and populates it with values from the status change. The following status codes have been defined as constants in the MGMT_JOBS package and can be used to determine the type of status in the job_status field of the event_msg.event_payload. event_attrs(i).value where event_attrs(i).name=' execution_status' object.

CREATE  TABLE job_log (jobid RAW(16), status_code NUMBER(2), occured DATE);

CREATE OR REPLACE PROCEDURE LOG_JOB_STATUS_CHANGE(event_msg IN GC$NOTIF_EVENT_MSG)
IS
  l_attrs gc$notif_event_attr_array;
  exec_status_code NUMBER(2) := NULL;
  occured_date DATE := NULL;
  job_guid RAW(16) := NULL;

BEGIN
  IF event_msg.event_payload.event_type = 'job_status_change'
  THEN
    l_attrs := event_msg.event_payload.event_attrs;
    IF l_attrs IS NOT NULL
    THEN
      FOR i IN 1..l_attrs.COUNT
      LOOP
        IF l_attrs(i).name = 'exec_status_code'
        THEN
          exec_status_code := TO_NUMBER(l_attrs(i).value);
        END IF;
      END LOOP;
    END IF;

    occured_date := event_msg.event_payload.reported_date;
    job_guid := event_msg.event_payload.source.source_guid;
    -- Log all jobs' status
    BEGIN
      INSERT INTO job_log (jobid, status_code, occured)
      VALUES (job_guid, exec_status_code, occured_date);
    EXCEPTION
    WHEN OTHERS
    THEN
      -- If there are any problems then get the notification retried
      RAISE_APPLICATION_ERROR(-20000, 'Please retry');
    END;
    COMMIT;

  ELSE
    null; -- it is not a job_status_change event, ignore
  END IF;
END LOG_JOB_STATUS_CHANGE;
/

4.8.2 Passing Job Execution Status to an OS Command or Script

The notification system passes job execution status information to an OS script or executable via system environment variables. Conventions used to access environmental variables vary depending on the operating system:

• UNIX: $ENV_VARIABLE

• MS Windows: %ENV_VARIABLE%

The notification system sets the following environment variables before calling the script. The script can then use any or all of these variables within the logic of the script.

4.10.1 General Setup

The first step in diagnosing notification issues is to ensure that you have properly configured and defined your notification environment.

OS Command, PL/SQL and SNMP Trap Notifications

Make sure all OS Command, PLSQL and SNMP Trap Notification Methods are valid by clicking the Test button. This will send a test notification and show any problems the OMS has in contacting the method. Make sure that your method was called, for example, if the OS Command notification is supposed to write information to a log file, check that it has written information to its log file.

E-mail Notifications

• Make sure an e-mail gateway is set up under the Notification Methods page of Setup. The Sender's e-mail address should be valid. Clicking the Test button will send an e-mail to the Sender's e-mail address. Make sure this e-mail is received. Note that the Test button ignores any Notification Schedule.

• Make sure an e-mail address is set up. Clicking the Test button will send an e-mail to specified address and you should make sure this e-mail is received. Note that the Test button ignores any Notification Schedule.

• Make sure an e-mail schedule is defined. No e-mails will be sent unless a Notification Schedule has been defined.

• Make sure a incident rule is defined that matches the states you are interested and make sure e-mail and notification methods are assigned to the rule.

4.10.2 Notification System Errors

For any alerts involving problems with notifications, check the following for notification errors.

• Any serious errors in the Notification System are logged as system errors in the MGMT_SYSTEM_ERROR_LOG table. From the Setup menu, select Management Services and Repository to view these errors.

• Check for any delivery errors. You can view them from Incident Manager. From the Enterprise menu, select Monitoring, then select Incident Manager. The details will give the reason why the notification was not delivered. Delivery errors are stored in MGMT_NOTIFICATION_LOG with the DELIVERED column set to 'N'.

• Severities will not be displayed in the Enterprise Manager console if no metric values have been loaded for the metric associated with the severity.

4.10.3 Notification System Trace Messages

The Notification System can produce trace messages in sysman/log/emoms.trc file.

Tracing is configured by setting the log4j.em.notification property flag using the emctl set property command. You can set the trace level to INFO, WARN, DEBUG. For example,

./emctl set property -sysman_pwd your_sysman_password -name log4j.em.notification -value DEBUG

Trace messages contain the string "em.notification". If you are working in a UNIX environment, you can search for messages in the emoms.trc and emoms_pbs.trc files using the grep command. For example,

grep em.notification emoms.trc emoms_pbs.trc

What to look for in the trace file.

The following entries in the emoms.trc file are relevant to notifications.

Normal Startup Messages

When the OMS starts, you should see these types of messages.

2011-08-17 13:50:29,458 [EventInitializer] INFO  em.notification init.167 - Short format maximum length is 155
2011-08-17 13:50:29,460 [EventInitializer] INFO  em.notification init.185 - Short format is set to both subject and body
2011-08-17 13:50:29,460 [EventInitializer] INFO  em.notification init.194 - Content-Transfer-Encoding is 8-bit
2011-08-17 13:50:29,460 [EventInitializer] DEBUG em.notification registerAdminMsgCallBack.272 - Registering notification system message call back
2011-08-17 13:50:29,461 [EventInitializer] DEBUG em.notification registerAdminMsgCallBack.276 - Notification system message callback is registered successfully
2011-08-17 13:50:29,713 [EventInitializer] DEBUG em.notification upgradeEmailTemplates.2629 - Enter upgradeEmailTemplates
2011-08-17 13:50:29,735 [EventInitializer] INFO  em.notification upgradeEmailTemplates.2687 - Email template upgrade is not required since no customized templates exist.
2011-08-17 13:49:28,739 [EventCoordinator] INFO  events.EventCoordinator logp.251 - Creating event worker thread pool: min = 4 max = 15
2011-08-17 13:49:28,791 [[STANDBY] ExecuteThread: '2' for queue: 'weblogic.kernel.Default (self-tuning)'] INFO emdrep.pingHBRecorder initReversePingThreadPool.937 - Creating thread pool for reverse ping : min = 10 max = 50
2011-08-17 13:49:28,797 [[STANDBY] ExecuteThread: '2' for queue: 'weblogic.kernel.Default (self-tuning)'] DEBUG emdrep.HostPingCoordinator logp.251 - Creating thread pool of worker thread  for host ping: min = 1 max = 10
2011-08-17 13:49:28,799 [[STANDBY] ExecuteThread: '2' for queue: 'weblogic.kernel.Default (self-tuning)'] DEBUG emdrep.HostPingCoordinator logp.251 - Creating thread pool for output of worker's  output for host ping: min = 2 max = 20
2011-08-17 13:49:30,327 [ConnectorCoordinator] INFO  connector.ConnectorPoolManager logp.251 - Creating Event thread pool: min = 3 max = 10
2011-08-17 13:51:48,152 [NotificationMgrThread] INFO  notification.pbs logp.251 - Creating thread pool: min = 6 max = 24
2011-08-17 13:51:48,152 [NotificationMgrThread] INFO  em.rca logp.251 - Creating RCA thread pool: min = 3 max = 20

Notification Delivery Messages

2006-11-08 03:18:45,387 [NotificationMgrThread] INFO  em.notification run.682 - Notification ready on EMAIL1


2006-11-08 03:18:46,006 [DeliveryThread-EMAIL1] INFO  em.notification run.114 - Deliver to SYSMAN/admin@oracle.com


2006-11-08 03:18:47,006 [DeliveryThread-EMAIL1] INFO  em.notification run.227 - Notification handled for SYSMAN/admin@oracle.com

Notification System Error Messages

2011-08-17 14:02:23,905 [NotificationMgrThread] DEBUG notification.pbs logp.251 - Notification ready on EMAIL1
2011-08-17 14:02:23,911 [NotificationMgrThread] DEBUG notification.pbs logp.251 - Notification ready on PLSQL4
2011-08-17 14:02:23,915 [NotificationMgrThread] DEBUG notification.pbs logp.251 - Notification ready on OSCMD14
2011-08-17 14:02:19,057 [DeliveryThread-EMAIL1] INFO  notification.pbs logp.251 - Deliver to To: my.admin@oracle.com; issue type: 1; notification type: 1
2011-08-17 14:02:19,120 [DeliveryThread-OSCMD14] INFO  notification.pbs logp.251 - Deliver to SYSMAN, OSCMD, 8; issue type: 1; notification type: 1
2011-08-17 14:02:19,346 [DeliveryThread-PLSQL4] INFO  notification.pbs logp.251 - Deliver to SYSMAN, LOG_JOB_STATUS_CHANGE, 9; issue type: 1; notification type: 1
2011-08-17 14:02:19,977 [DeliveryThread-PLSQL4] DEBUG notification.pbs logp.251 - Notification handled for SYSMAN, LOG_JOB_STATUS_CHANGE, 9
2011-08-17 14:02:20,464 [DeliveryThread-EMAIL1] DEBUG notification.pbs logp.251 - Notification handled for To: my.admin@oracle.com
2011-08-17 14:02:20,921 [DeliveryThread-OSCMD14] DEBUG notification.pbs logp.251 - Notification handled for SYSMAN, OSCMD, 8

4.10.4 E-mail Errors

The SMTP gateway is not set up correctly:

Failed to send e-mail to my.admin@oracle.com: For e-mail notifications to be sent, your Super Administrator must configure an Outgoing Mail (SMTP) Server within Enterprise Manager. (SYSMAN, myrule)

Invalid host name:

Failed to connect to gateway: badhost.oracle.com: Sending failed;

nested exception is:
javax.mail.MessagingException: Unknown SMTP     host: badhost.example.com;

Invalid e-mail address:

Failed to connect to gateway: rgmemeasmtp.oraclecorp.com: Sending failed;

nested exception is:
javax.mail.MessagingException: 550 5.7.1        <smpemailtest_ie@example.com>... Access denied

Always use the Test button to make sure the e-mail gateway configuration is valid. Check that an e-mail is received at the sender's e-mail address

4.10.5 OS Command Errors

When attempting to execute an OS command or script, the following errors may occur. Use the Test button to make sure OS Command configuration is valid. If there are any errors, they will appear in the console.

Invalid path or no read permissions on file:

Could not find /bin/myscript (machineb10.oracle.com_Management_Service) (SYSMAN, myrule )

No execute permission on executable:

Error calling /bin/myscript: java.io.IOException: /bin/myscript: cannot execute (machineb10.oracle.com_Management_Service) (SYSMAN, myrule )

Timeout because OS Command ran too long:

Timeout occurred running /bin/myscript (machineb10.oracle.com_Management_Service) (SYSMAN, myrule )

Any errors such as out of memory or too many processes running on OMS machine will be logged as appropriate.

Always use the Test button to make sure OS Command configuration is valid.

4.10.6 SNMP Trap Errors

Use the Test button to make sure SNMP Trap configuration is valid.

Other possible SNMP trap problems include: invalid host name, port, or community for a machine running an SNMP Console.

4.10.7 PL/SQL Errors

When attempting to execute an PL/SQL procedure, the following errors may occur. Use the Test button to make sure the procedure is valid. If there are any errors, they will appear in the console.

Procedure name is invalid or is not fully qualified. Example: SCOTT.PKG.PROC

Error calling PL/SQL procedure plsql_proc: ORA-06576: not a valid function or procedure name (SYSMAN, myrule)

Procedure is not the correct signature. Example: PROCEDURE event_proc(s IN GC$NOTIF_EVENT_MSG)

Error calling PL/SQL procedure plsql_proc: ORA-06553: PLS-306: wrong number or types of arguments in call to 'PLSQL_PROC' (SYSMAN, myrule)

Procedure has bug and is raising an exception.

Error calling PL/SQL procedure plsql_proc: ORA-06531: Reference to uninitialized collection (SYSMAN, myrule)

Care should be taken to avoid leaking cursors in your PL/SQL. Any exception due to this condition will result in delivery failure with the message being displayed in the Details section of the alert in the Cloud Control console.

Always use the Test button to make sure the PL/SQL configuration is valid.
